Orbitron Satellite dish takedown

Discussion in 'C-BAND Satellite Discussion' started by rrob311, Jun 2, 2012.

  1. rrob311

    rrob311 Thread Starter Active SatelliteGuys Member

    Joined:
    Nov 25, 2010
    Posts:
    895
    Likes Received:
    0
    I am looking at an Orbitron 8-10' dish and was curious as to whether anyone has one of these and can tell me how it comes apart. I am trying to figure out how small the pieces will break down into and what kind of tools I will need. I don't have access to the dish right now. I know my Winegard breaks down into 4 mesh sections and my Sami into 3. Any help would be much appreciated.

    #1
  2. rrob311

    rrob311 Thread Starter Active SatelliteGuys Member

    Joined:
    Nov 25, 2010
    Posts:
    895
    Likes Received:
    0
  3. brex2001

    brex2001 Active SatelliteGuys Member

    Joined:
    Jul 14, 2009
    Posts:
    642
    Likes Received:
    0
    That looks to be a SE-10, 10ft Orbitron. My friend & member ivanyankoff has one just like it.

    Mark the back of the dish near the tube & the polar mount to keep the same declination. Loosen the 2 bolts on the side of polar mount tube & with help rock the dish back & forth while pulling out. Carry to your truck & set it on its back.
    Loosen the polar mount & lift off. They aren't very heavy.

    The panels slip out of the ribs after you pull the beading from the outside rim edge if you need to fix some panels. If it were me I'd not disassemble the frame of the dish. Could be too many rusty, busted bolts & the center plate(aluminum) could be corroded to the point of disintegration. That would be a bummer.

    I think you'll find the Orbitron pdf file in the manuals.

    #3
  4. rrob311

    rrob311 Thread Starter Active SatelliteGuys Member

    Joined:
    Nov 25, 2010
    Posts:
    895
    Likes Received:
    0
    Cool, I am not worried about rust so much because this is pretty much in the desert. How small do you think the panels break down into?

    #4
  5. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU!

    Joined:
    Dec 28, 2004
    Posts:
    17,551
    Likes Received:
    302
    If it's like my old Unimesh, it comes in four sections.

    #5
  6. brex2001

    brex2001 Active SatelliteGuys Member

    Joined:
    Jul 14, 2009
    Posts:
    642
    Likes Received:
    0
    12 panels for that dish & as said above just remove the beading on the rim edge, pull the panels straight out. They are about 32" wide x 72" long.
    If possible I wouldn't break down the dish into parts - those can be a pain to put back in if they get bent or kinked.
    A desert in New Hampshire?

    #6
  7. rrob311

    rrob311 Thread Starter Active SatelliteGuys Member

    Joined:
    Nov 25, 2010
    Posts:
    895
    Likes Received:
    0
    O no this project is in So. Ca. If it were NH I would bring a torch with me to take it apart unfortunately. When the panels come out do the frame pieces come out with the mesh or do you have to pull all of the mesh and then still have the frame to deal with?

    #7
  8. brex2001

    brex2001 Active SatelliteGuys Member

    Joined:
    Jul 14, 2009
    Posts:
    642
    Likes Received:
    0
    Orbitron teardown

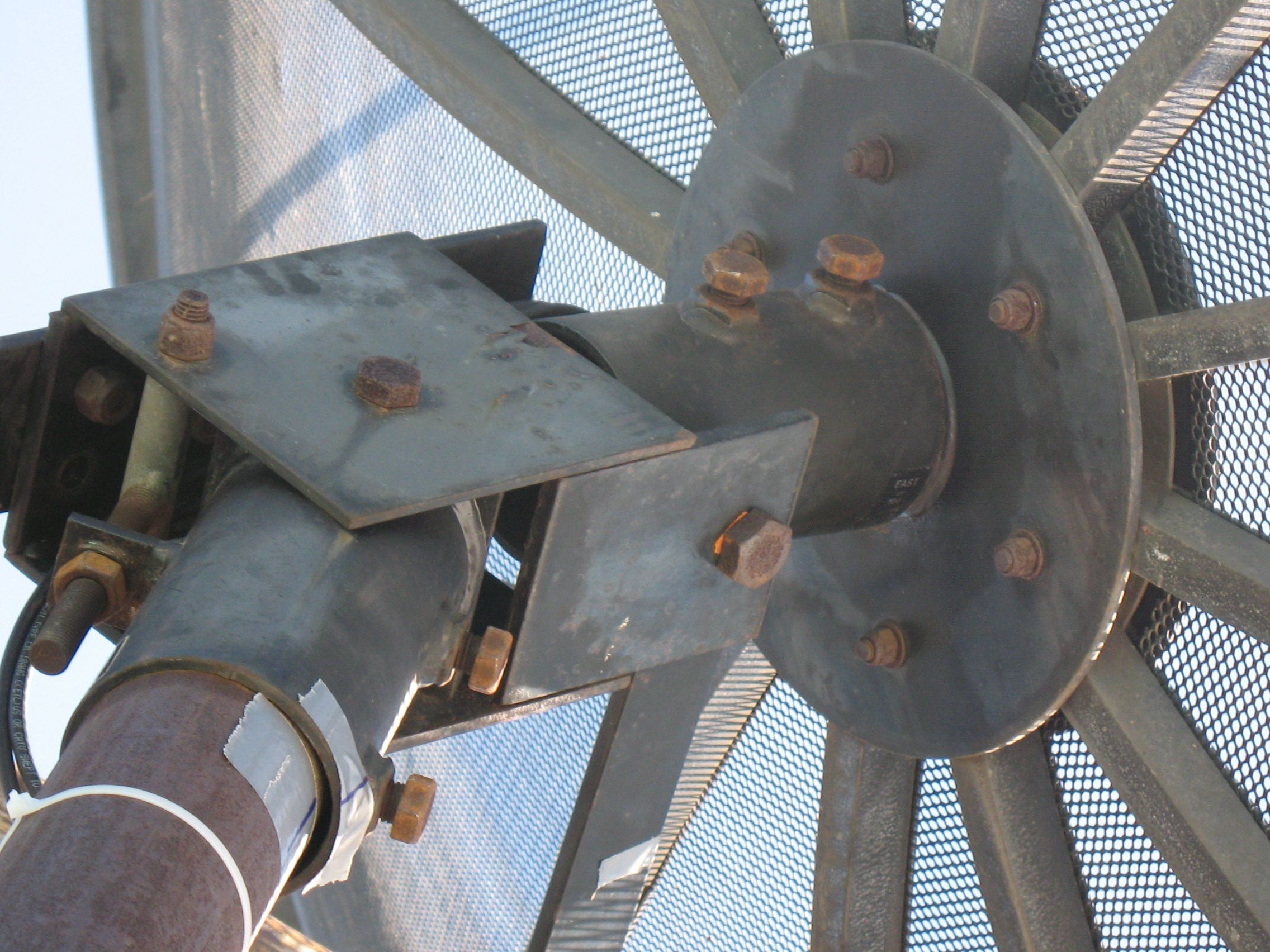

    Yes, the ribs & rim disassemble into pieces - 12 ribs & 6 rim arced pieces, IIRC. Plus the rim beading & 12 panels, declination tube & buttonhook center plates. And of course the polar mount.

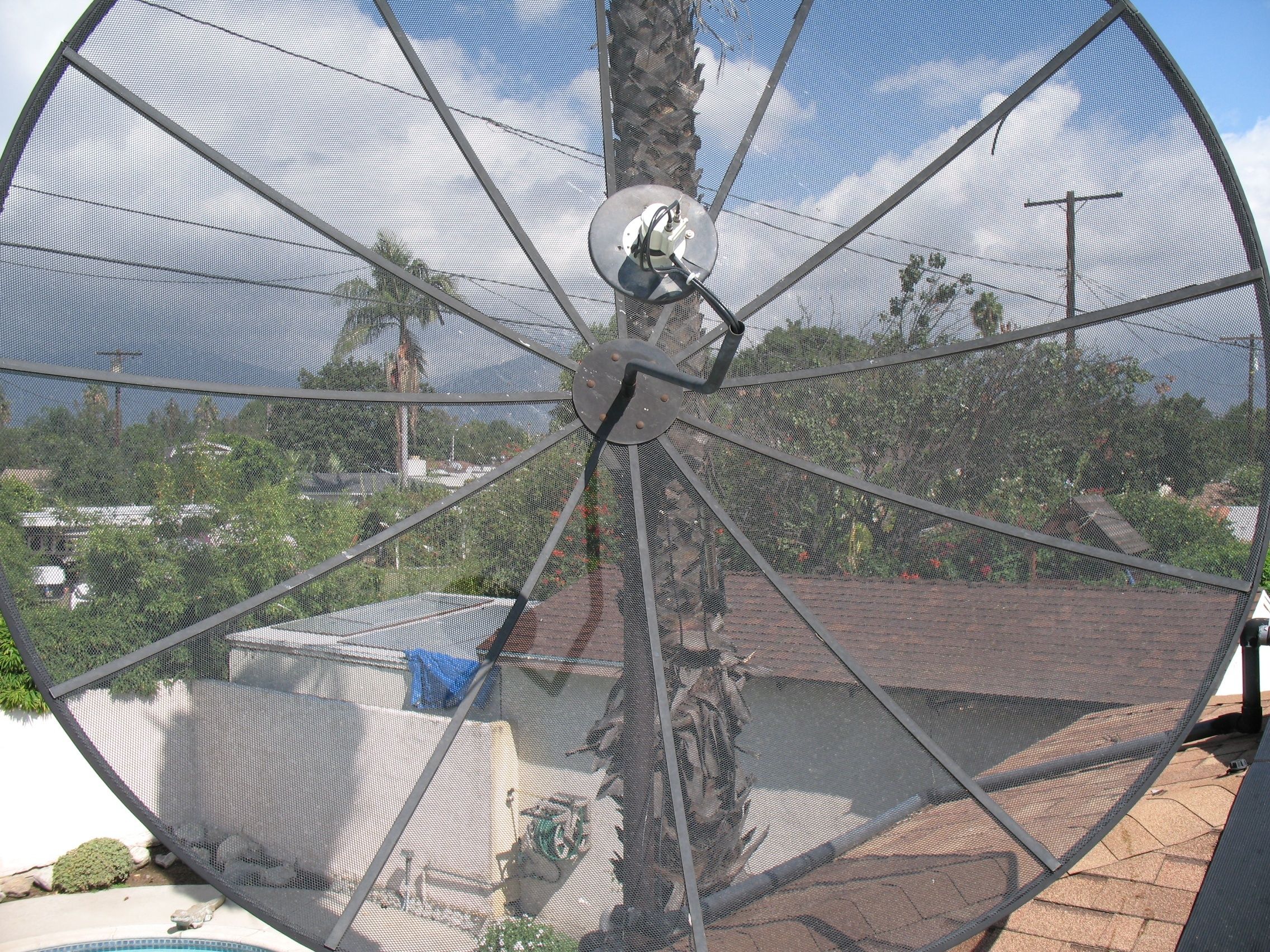

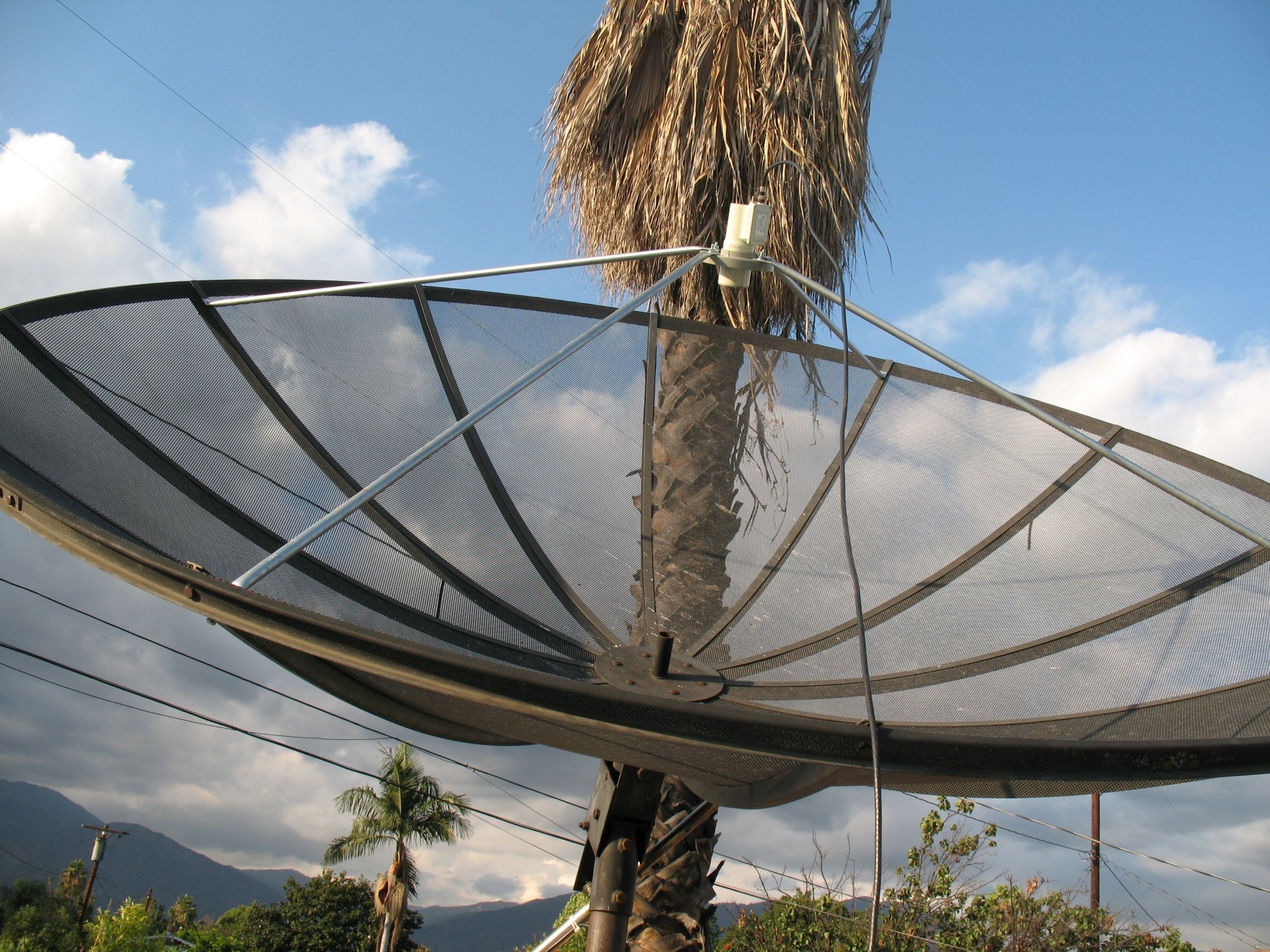

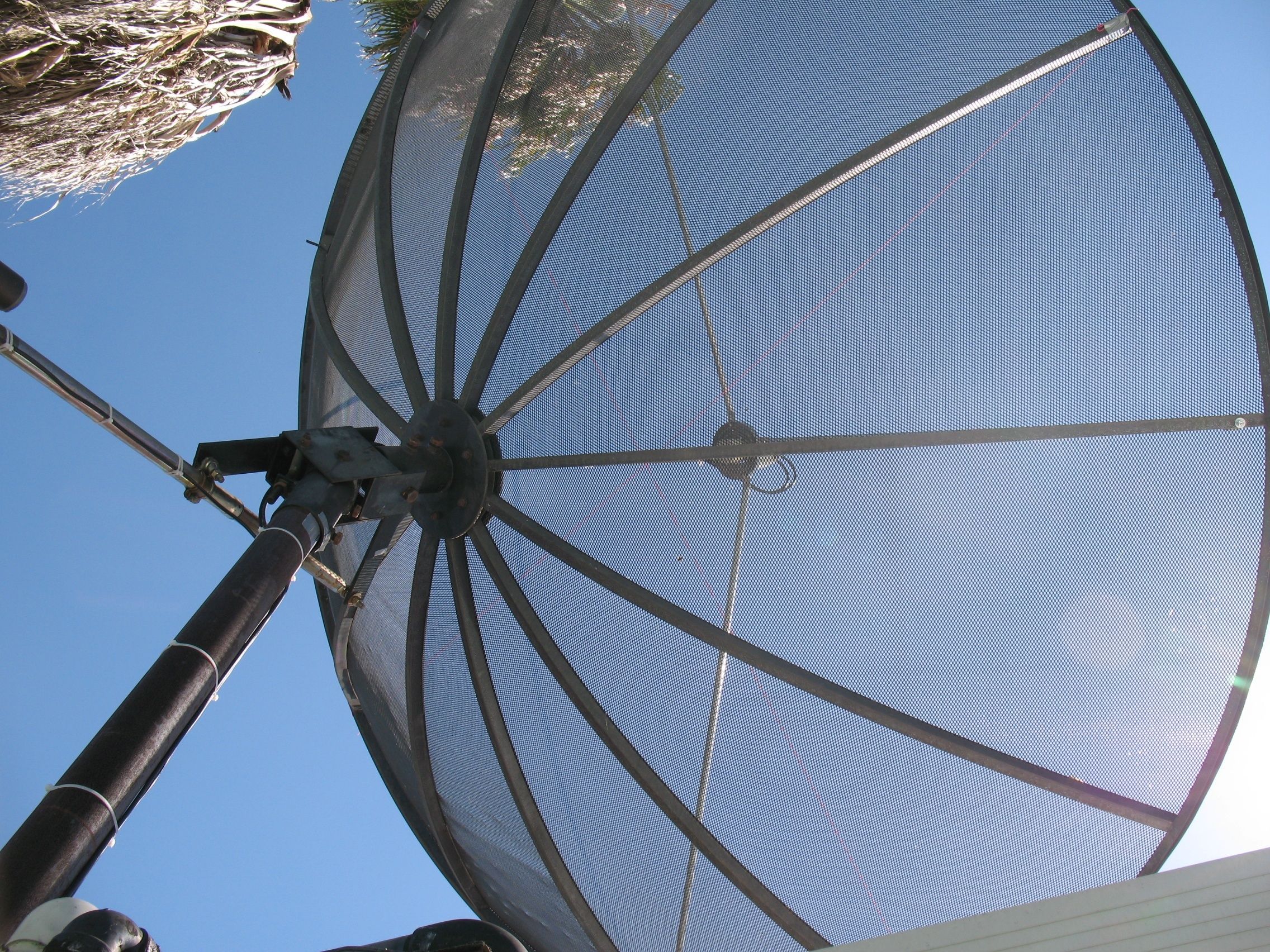

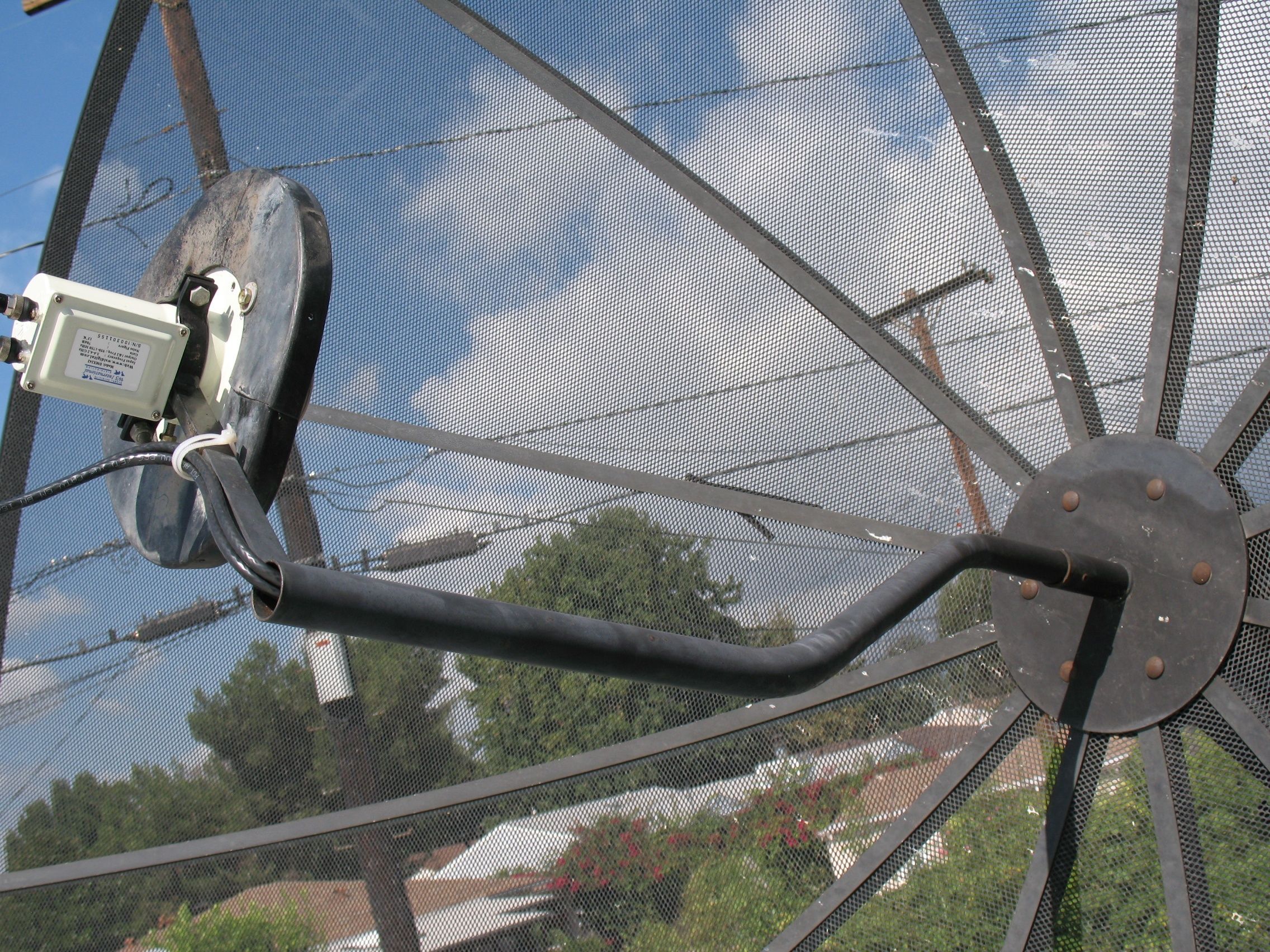

    Pics show ivanyakinoff's SE-10 which I converted to quad leg with 1/2" emt because the buttonhook sagged so badly. I don't remember the leg lengths but they were less than 60". Then some wild winds blew palm fronds through the dish panels & I had to fix it again. If only he had had that palm tree trimmed. Yup. That %!**%#!!! palm tree behind it.

    Use your search for posts about Orbitron teardown by member BrettBardi who had difficulties because of the aluminum center plate. Again, IIRC.
    Edit - Found the thread by Brett:
    http://www.satelliteguys.us/c-band-...e-10ft-mesh-dish-los-angeles.html#post2314850


    Attached Files:

    #8
    Last edited: Jun 4, 2012
