1.8 Mts Prodelin 0179-189

Discussion in 'Free To Air (FTA) Discussion' started by Tvsatelite, Oct 24, 2010.

Thread Status:
Not open for further replies due to lack of activity. Consider opening a new thread instead.
  1. Tvsatelite

    Tvsatelite Topic Starter Member

    Joined:
    Oct 24, 2010
    Posts:
    5
    Likes Received:
    0
    Location:
    Maturin Venezuela
    I just bought an used Prodelin 1.8 Mts. 0179-189 dish, but when I search in the Prodelin website for its specifications and/or Diagrams, they are clasified by series numbers: 1183, 1184 for example.

    Please does anyone could tell me the series number for this 1.8 Mts Prodelin 0179-189?

    Or could post its specifications and/or diagrams?


    :confused::confused::confused:

  2. pendragon

    pendragon SatelliteGuys Pro

    Joined:
    Oct 13, 2008
    Posts:
    1,100
    Likes Received:
    63
    The series numbers seem to classify the dish by its use: Ku or C, receive-only, or transmit-receive. There are also different mounts: azimuth/elevation, dual-axis and polar. If your dish still has the LNB or Tx/Rx electronics on it, you probably can figure out which version you have. For all I know the basic dish may even be the same across all of the series.

    I haven't looked recently, but the website for Prodelin (which is some part of General Dynamics now) had all sorts of technical documentation, instructions and parts lists a few months ago when I checked. You had to hunt around a bit for it, though.

  3. Tvsatelite

    Tvsatelite Topic Starter Member

    Joined:
    Oct 24, 2010
    Posts:
    5
    Likes Received:
    0
    Location:
    Maturin Venezuela
    Pendragon, thank you very much for your response, I am searching the web to figure out the model of my dish, in order to download the specifications and diagrams.



    :up:up:up
    :yes:lick:hatsoff:

  4. gremlin411

    gremlin411 SatelliteGuys Pro

    Joined:
    May 16, 2008
    Posts:
    377
    Likes Received:
    0
    Location:
    South East Texas
    here see if this will help you.


    Attached Files:

  5. whatchel1

    whatchel1 SatelliteGuys Master

    Joined:
    Sep 30, 2006
    Posts:
    9,094
    Likes Received:
    51
    Location:
    Great High Plains
    bye old friend

    I almost cried recently when I had gone to where I formerly lived and picked up the 1.8 mt that I had stored away. Anyway to continue the story I was bringing it where I live now and got about 4 miles away from town and the rope I had secured it with cut thru and the dish flew off the trailer. It damaged it beyond repair. I will now have to cut it up into pieces and put it into the dumpster.:sob::facepalm

  6. Tvsatelite

    Tvsatelite Topic Starter Member

    Joined:
    Oct 24, 2010
    Posts:
    5
    Likes Received:
    0
    Location:
    Maturin Venezuela
    Thank you very much friend Gremlin411 for your help.

    Thank you very much friend Gremlin411 for your help.

    I will keep this manual, even when my dish has not Polar Mount System.


    :):):)
    :bow:bow:bow

  7. Corrado

    Corrado SatelliteGuys Pro

    Joined:
    Apr 2, 2007
    Posts:
    2,283
    Likes Received:
    151
    Location:
    Hudson Valley Region, NY
    I have 3 Prodelin 1.8M offset dishes setup out in the yard. The reflectors all have #0179-189 but the mounts are all completely different. I'm betting the manuals are unique for the mount used. All of mine were for RX-TX in a previous life and now converted for C band.

  8. Tvsatelite

    Tvsatelite Topic Starter Member

    Joined:
    Oct 24, 2010
    Posts:
    5
    Likes Received:
    0
    Location:
    Maturin Venezuela
    1.8 Mts Prodelin Dish Series 1184 0179-189

    Friends, I just send a mail to the Prodelin people, asking for help about the specifications a assembly manual, and they just get back with this usefull information, which I will share.





    :):)
    :D:D
    :hatsoff::hatsoff:
    :wave:wave

    .

    View attachment 4096-224rH.pdf
    View attachment 1184 RxTx.pdf

  9. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    723
    Likes Received:
    754
    Location:
    Riga
    Hi!

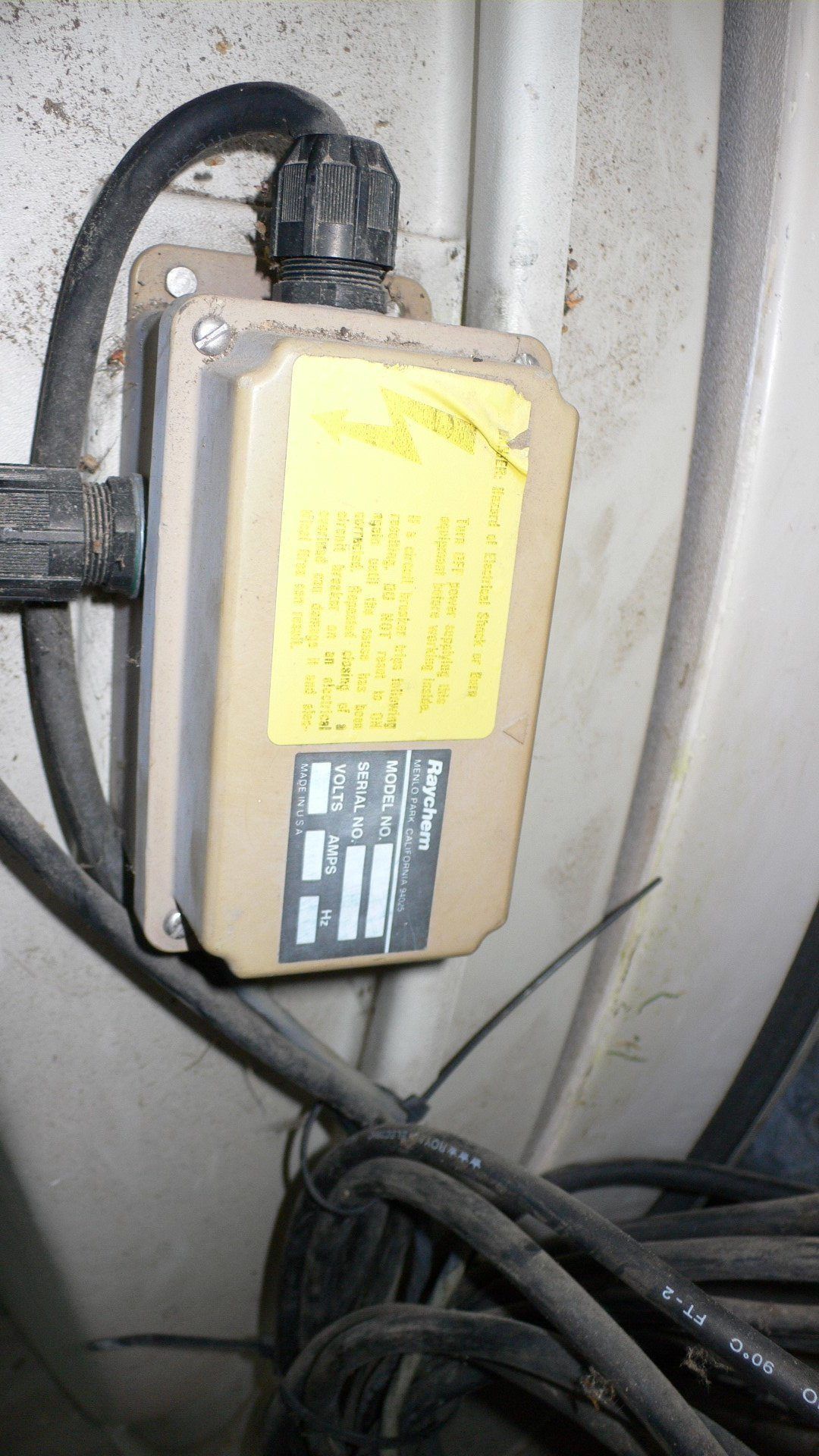

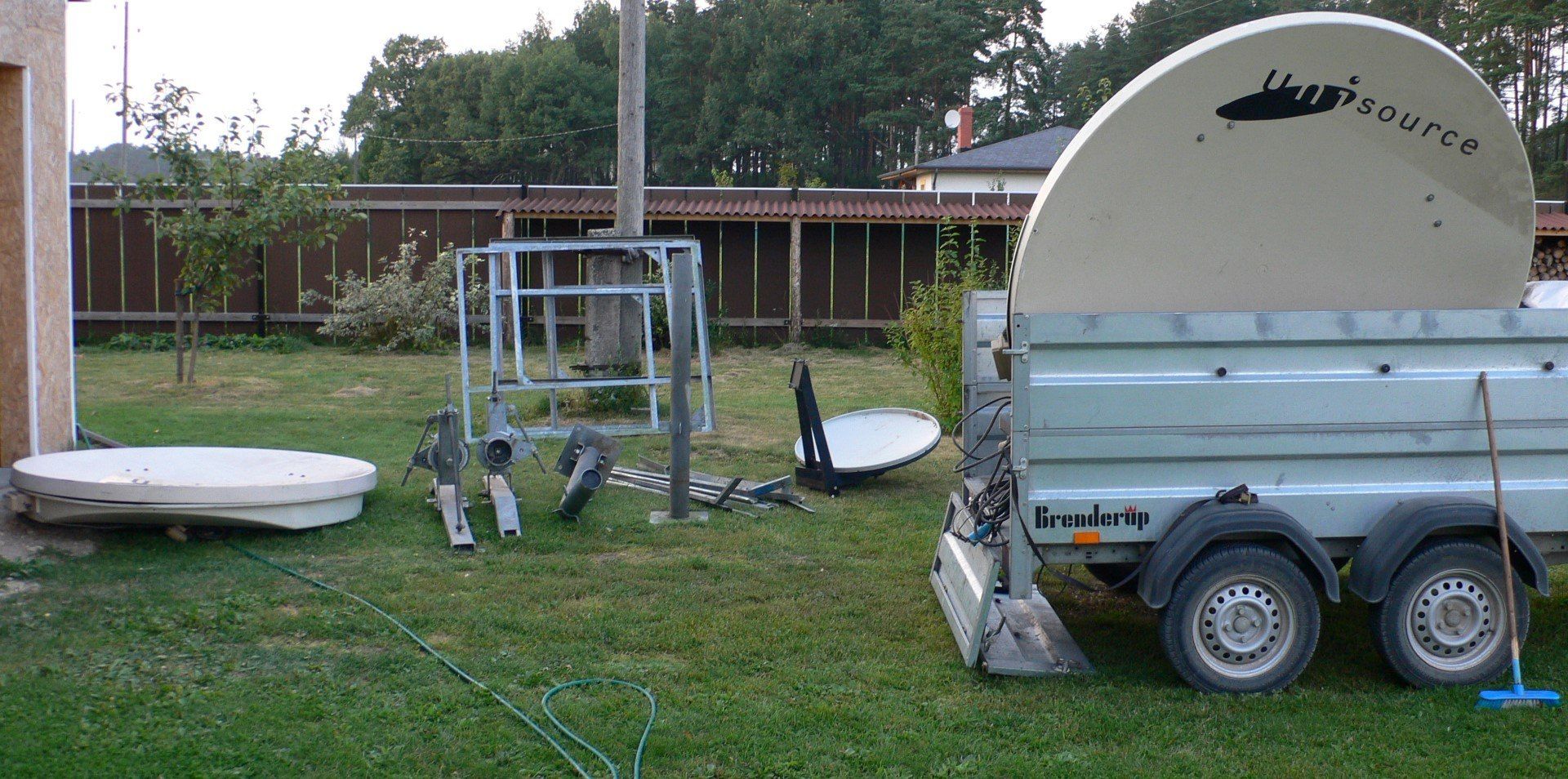

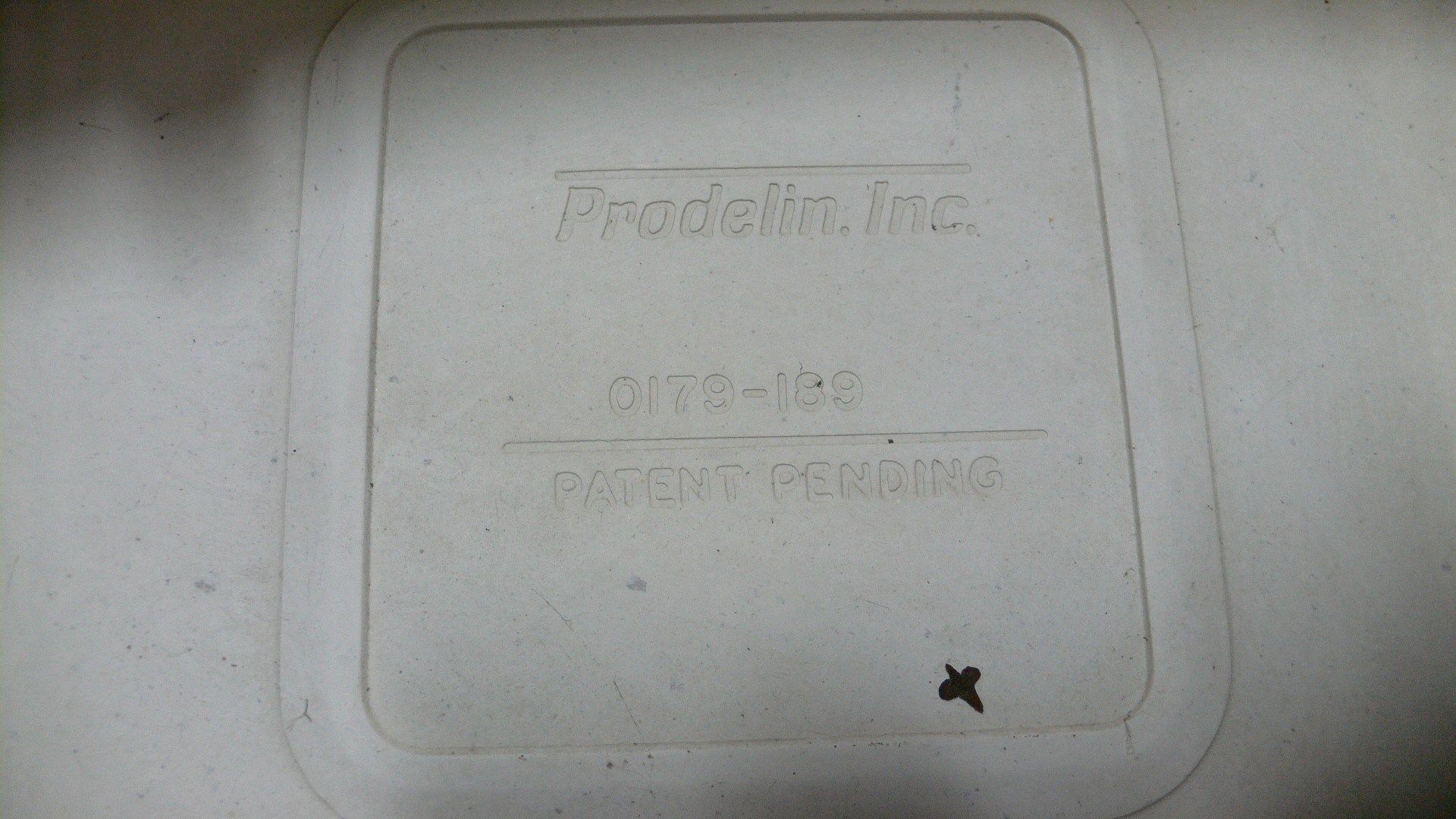

    Will not start new tread. I am in front of same issue as this topic-starter. Recently brought home 2 used Prodelin 1.8m dishes. There are also heating elements. Before I start to do something with those dishes I would like to find out exact modification, especially I am interested are they for Ku or C band.


    Attached Files:

  10. Anole

    Anole SatelliteGuys Master

    Joined:
    Sep 22, 2005
    Posts:
    11,819
    Likes Received:
    9
    Location:
    L.A., Calif.
    They will work for either band.
    Show us a picture of any included feedhorn and equipment.

    However, for C band in North America, they don't have beamwidth for satellites spaced 2 degrees apart.
    Not for commercial use, anyway.
    For experimentation, I'm sure you can capture a lot of C band signals.
    ​Satellite spacing and power level in your country will be the determining factor.

    For Ku band, they are excellent if a bit overkill. ;)
    Some members have installed half a dozen Ku LNBFs, to receive multiple satellites on a fixed dish.

    Several members have motorized the 6' Prodelins, using polar BUD mounts, Ajak 180 HH motors, and Birdview motorized mounts.
    You will have to make an adapter bracket to give the dish around 25 degrees of down-tilt for any of those mount ideas, to account for the offset of the dish.

  11. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    723
    Likes Received:
    754
    Location:
    Riga
    Thanks. I know from previous owner that those antennas were used for 2-way internet. But he did not give me any LNBs. I am not sure if I want to make this antenna motorized (maybe some day in the future). Making big multifeeds and receiving signals from many satellites is not my primary goal, I have enough place to plant many antennas:)
    My old dream is to make antenna controlled by 2 actuators plus some kind of mechanism to change LNB's skew. what I know for sure- I will not have enough time to do that this year.

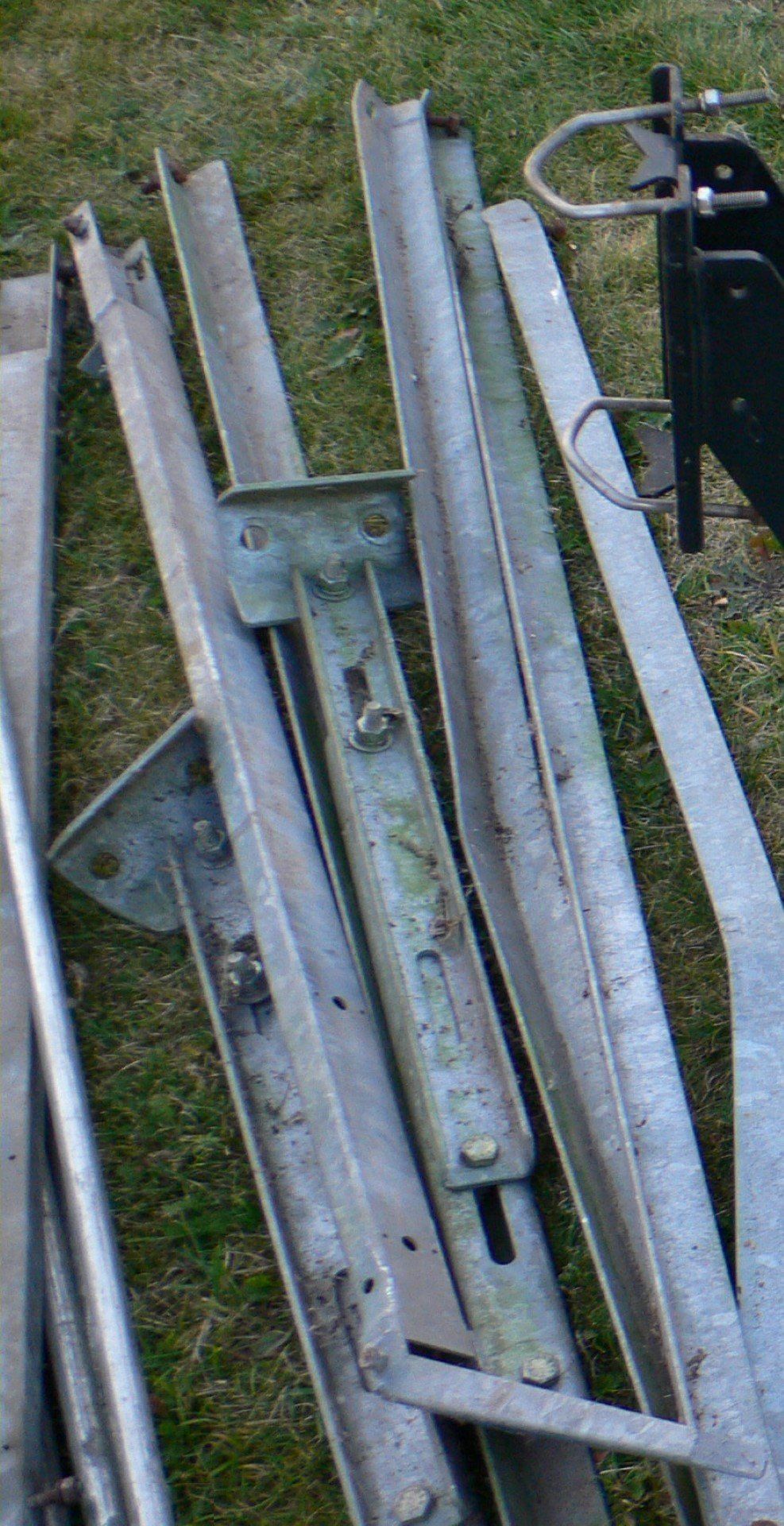

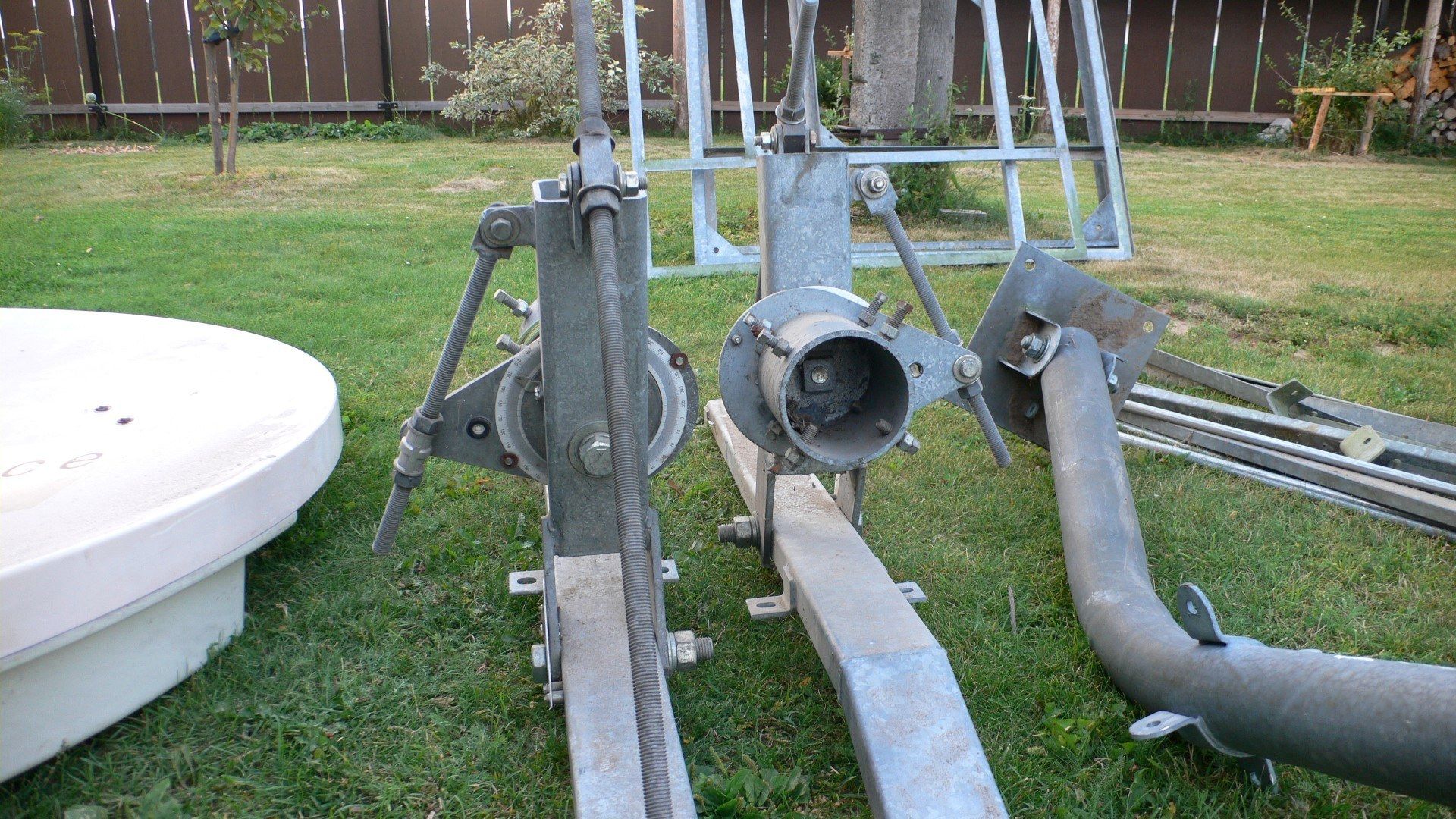

    Couple of another pictures showing what else was in the set.


    Attached Files:

  12. Tron

    Tron SatelliteGuys Master

    Joined:
    May 6, 2005
    Posts:
    6,593
    Likes Received:
    17
    Location:
    Metro New Orleans, LA
    Nice find! The transmitters would have been of no use for FTA anyway, and LNBs are easy to come by.

  13. Anole

    Anole SatelliteGuys Master

    Joined:
    Sep 22, 2005
    Posts:
    11,819
    Likes Received:
    9
    Location:
    L.A., Calif.
    Okay, two way Internet usage was on Ku band.
    That is what most of those dishes are used for.

    Your additional pictures show the standard fixed mount we see on the dishes here.
    AND, it looks like you got all the metal for the standard NPRMs normally used.
    Many members have that very same dish+mount, so you will see plenty of pictures on this forum.

    Motorizing a dish like that, using a polar mount, needs just one motor.
    When properly set up and aimed, the dish tracks all geostationary satellites above, AND automatically adjusts skew at the same time.
    No need for three motors.

  14. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    723
    Likes Received:
    754
    Location:
    Riga
    Person, who owned dishes befor me just contacted me and said that he found some additional hardware parts and documentation as well. Next week will pick them up.
    I have several 1,8m metal antennas (PFA and offset). I would like to compare performance of them and also Prodelin, and, of course leave the best one.

  15. Anole

    Anole SatelliteGuys Master

    Joined:
    Sep 22, 2005
    Posts:
    11,819
    Likes Received:
    9
    Location:
    L.A., Calif.
    You won't find better dishes than your 1.8mtr transmit-certified Prodelin.
    But what dish is best for a particular application may not be the Prodelin.

    Give us a better idea what you want to do, which band, and pictures of those other dishes.

  16. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    723
    Likes Received:
    754
    Location:
    Riga

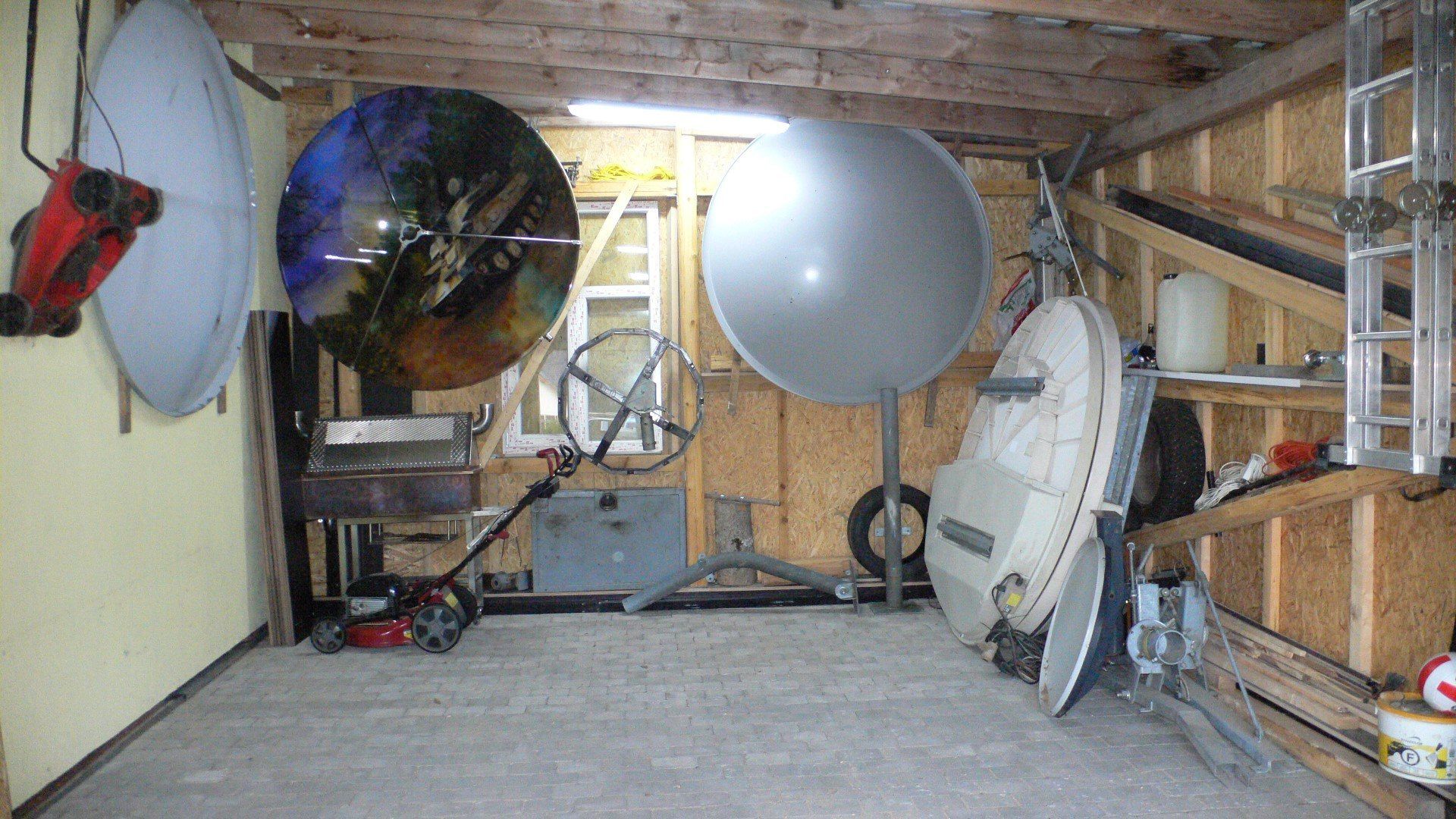

    Here they are, from left to right: 190 x 180 aluminum offset, aerographed 180cm, just powder painted 180cm aluminum, 2 Prodelins. And another one 180cm metal one stored in another garage. Also one 180cm aluminum at my friends house. All have polar-mounts. Wish to receive all available Ku and C band signals.
    P.S. 4,6m Andrew as well belongs to me, but I have difficulties to remove it from present location and bring home. :confused:


    Attached Files:

  17. Corrado

    Corrado SatelliteGuys Pro

    Joined:
    Apr 2, 2007
    Posts:
    2,283
    Likes Received:
    151
    Location:
    Hudson Valley Region, NY
    Nice collection.

  18. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    912
    Location:
    97W 48N
    To calculate the focal point/focal length use Parabola Calculator2.0
    The WIFI tab, calculates for offset antennas.
    Very nice collection.
    KISS principle - build, purchase, beg for, or borrow permanently, a polar mount. (for at least one dish, the rest can be fixed)
    One part to move, not 3.

  19. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    723
    Likes Received:
    754
    Location:
    Riga

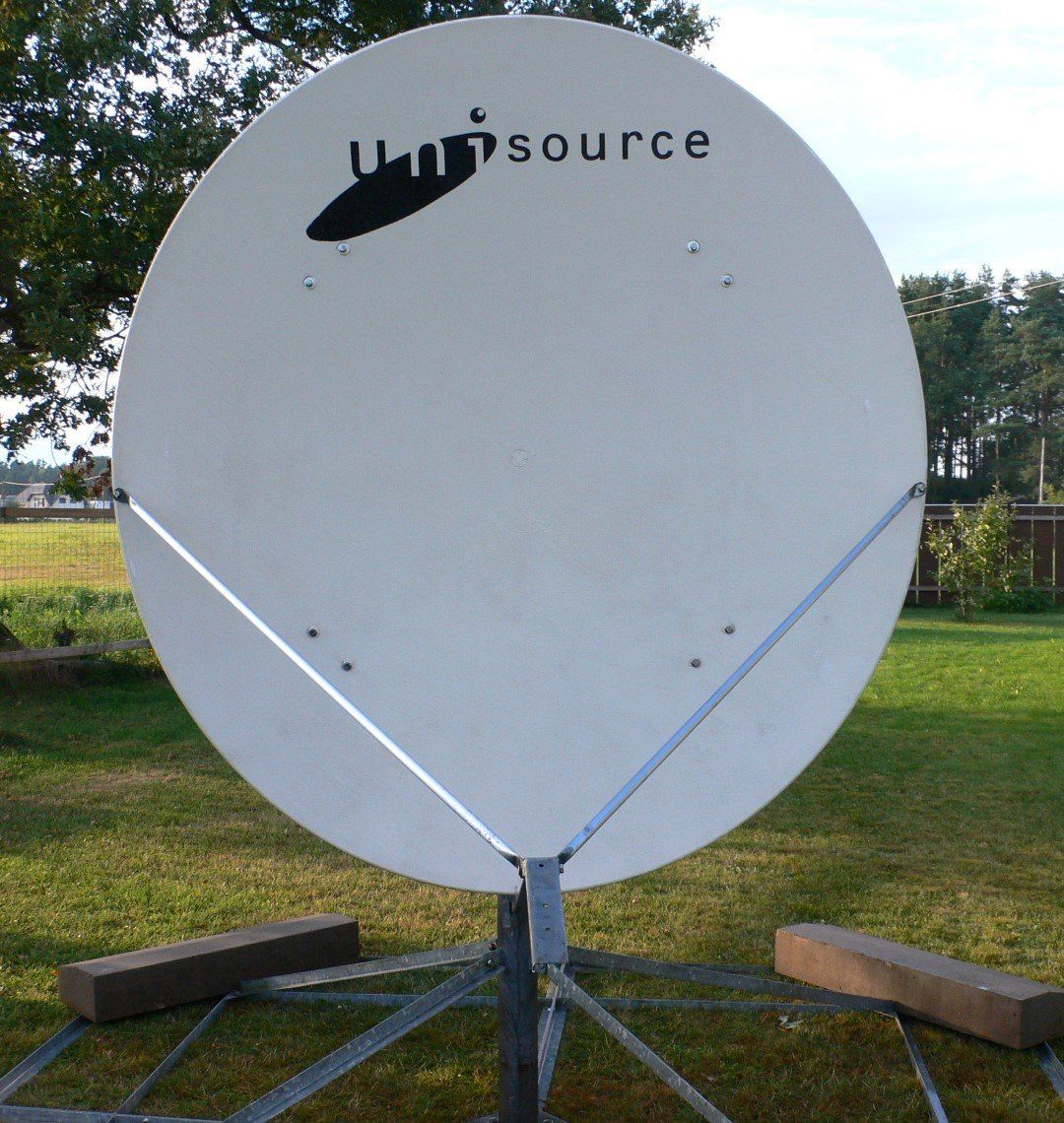

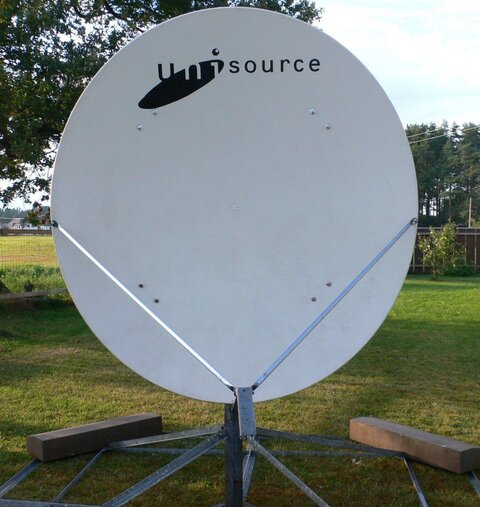

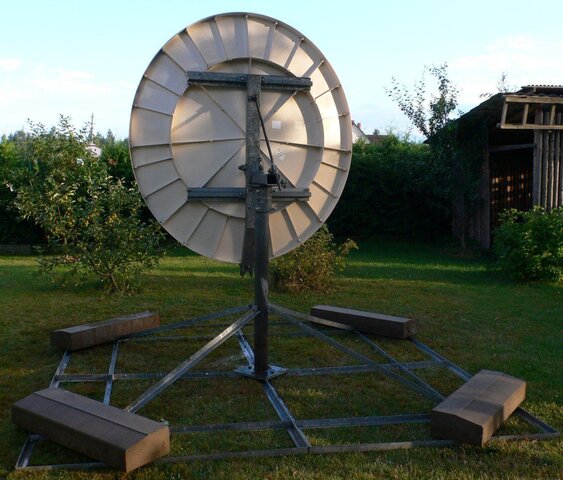

    Have installed one of the Prodelins today. Can I get some advice how better attach Ku-band LNB?


    Attached Files:

  20. SatelliteAV

    SatelliteAV SatelliteGuys Master
    Lifetime Supporter

    Joined:
    Sep 3, 2004
    Posts:
    6,483
    Likes Received:
    174
    Location:
    Roseville, CA
    Use an inverted pipe hanger to hold the LNBF with a length of threaded rod to raise the LNBF to the height of the previous feedhorn. It is import to place the feedhorn back in the sweet spot to collect all of the reflected signals from the reflector surface.
