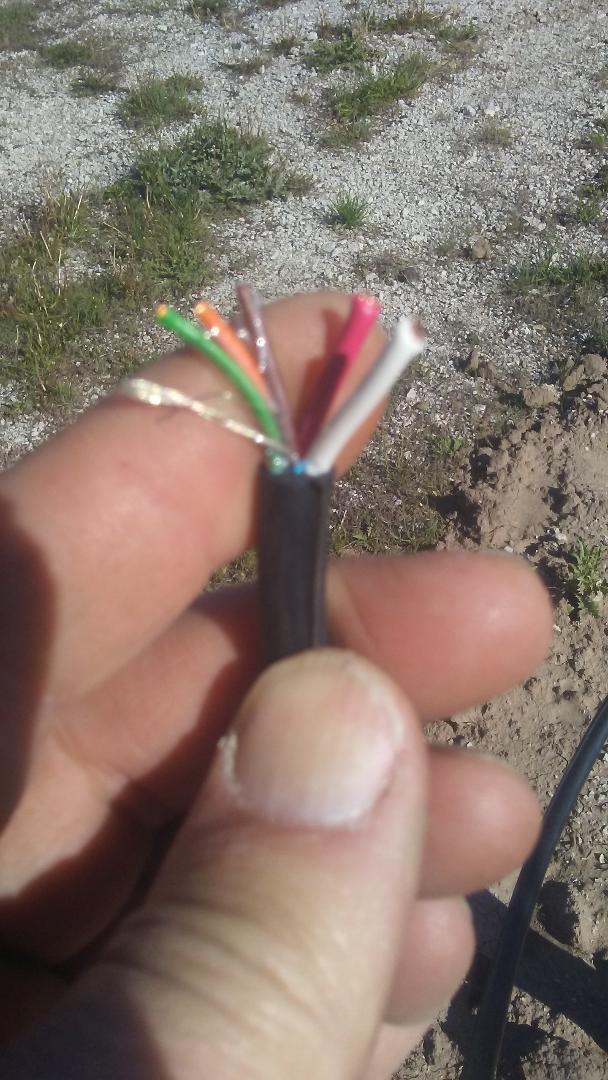

Anybody know where to buy this kind of wiring harness. 18awg and 16 awg. Never seen 2 different sizes together. I'm thinking I may have to just run 2 separate wire harnesses?? By the way these are all hooked to the actuator arm.


Attachments

  • thumbnail.jpeg
    117.4 KB · Views: 113
Register Today to see less ads! It's Free!

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,428
4,750
Montana
By the way these are all hooked to the actuator arm.
That is "Old School" actuator cable. Nobody makes that anymore. But the comment "all" are hooked to the actuator suggests that you have a three wire sensor in that actuator and not a two wire reed sensor. If so, you may have to make some considerations on a controller for that actuator or convert it to a reed sensor. The best choice for sensor wiring would be shielded cable used in security systems. Motor wiring can be 16 - 12 gauge two lead unshielded cable.

  • Like
Reactions: Brct203

Brct203

SatelliteGuys Pro
Dec 24, 2016
1,232
1,206
Connecticut
I agree with Magic Static - and I will heavily insist on the need for the sensor cable to be shielded. Unshielded cable would get electromagnetic noise from the motor cable or others, and mess up the pulse count.

I used 4-22 shielded alarm cable. If I had to re-do it, i'd try to go with 2-18 or 4-18 instead. 22-gauge is just a bit annoying to work with. For the motor cable I used 14-gauge speaker wire (copper, not aluminum).

can you post a picture of the inside of the actuator connection box, so we can see how that old cable is connected and hopefully see the type of sensor?

  • Like
Reactions: mrclean

mrclean

Active SatelliteGuys Member
May 16, 2019
19
22
Idaho

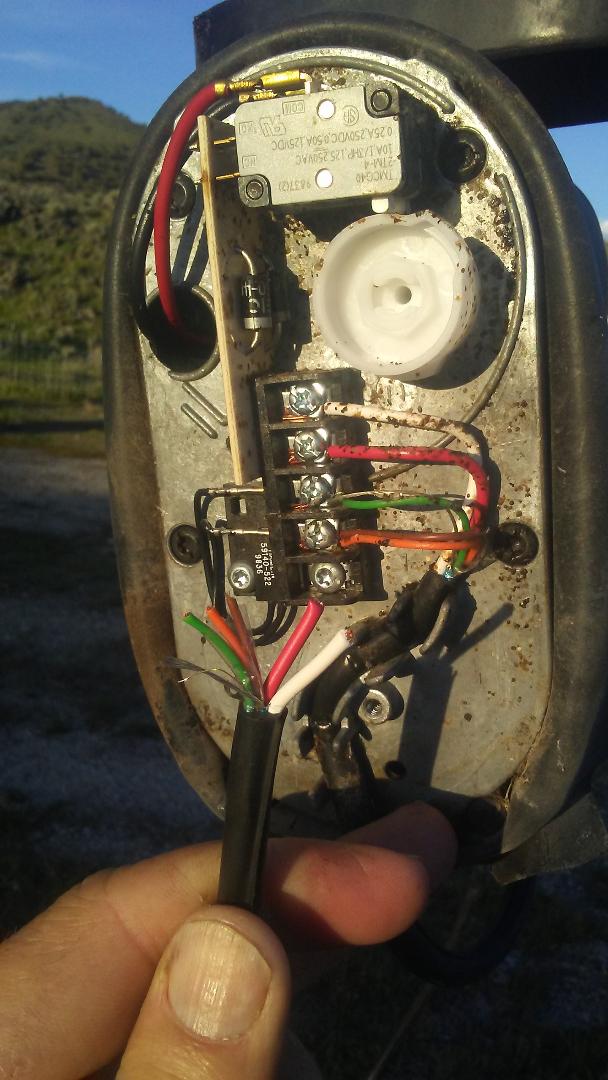

Its a van weise actuator arm, seems to be in decent shape. The old cable had 2 coax cables and 2 lead cables one with 18/4 and the other is pictured. Im sure there will have to be some more changes coming. i will definitely get the shielded wire.


Attachments

  • thumbnail-1.jpeg
    93.5 KB · Views: 115
Last edited:
  • Like
Reactions: Brct203

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,316
8,371
Meadow Vista, Northern California
They were doubling up on the wire for no reason other than they could. You have a reed switch sensor.

Two conductor plus shield stranded 20 gauge copper security system wire can be used for the sensor. This is sold in bulk or in rolls at Home Depot, Lowes, etc. Connect the shield drain wire inside to the controller ground terminal, but leave disconnected at the actuator.

Low voltage lanscape 2 conductor stranded 14 gauge copper wire can be used for the motor power. This is sold in bulk or in rolls at Home Depot, Lowes, etc.


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,316
8,371
Meadow Vista, Northern California
A sheild connected also at the actuator will not be as effective as only connecting the drain wire at the controller. You don't want the sheild to become a grounding point for the dish or to introduce noise from the motor.


primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
9,853
6,442
Beta Omicron Delta III
Off the wire topic but what receiver is a good choice to go with my Titanium ASC1?

You can't get much better than this one, though it comes with a bit of a learning curve. However, if you haven't had any real FTA receiver for some time, it's not much harder to learn than a regular appliance type receiver: Titanium Satellite - Store

IF you want one cheaper, but not as full-featured as the above one, this one is a good choice: Welcome to Michael Electronics


mrclean

Active SatelliteGuys Member
May 16, 2019
19
22
Idaho
I agree with Magic Static - and I will heavily insist on the need for the sensor cable to be shielded. Unshielded cable would get electromagnetic noise from the motor cable or others, and mess up the pulse count.

I used 4-22 shielded alarm cable. If I had to re-do it, i'd try to go with 2-18 or 4-18 instead. 22-gauge is just a bit annoying to work with. For the motor cable I used 14-gauge speaker wire (copper, not aluminum).

can you post a picture of the inside of the actuator connection box, so we can see how that old cable is connected and hopefully see the type of sensor?
You can't get much better than this one, though it comes with a bit of a learning curve. However, if you haven't had any real FTA receiver for some time, it's not much harder to learn than a regular appliance type receiver: Titanium Satellite - Store

IF you want one cheaper, but not as full-featured as the above one, this one is a good choice: Welcome to Michael Electronics
I ordered the mini from Michaels today. Did a little reading on it in KE4EST thread. Thanks again Prime!!!

  • Like
Reactions: primestar31

primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
9,853
6,442
Beta Omicron Delta III
I ordered the mini from Michaels today. Did a little reading on it in KE4EST thread. Thanks again Prime!!!

It's a good receiver, and will serve you well, I own one myself.

If in the future you decide to get in a little deeper to the FTA hobby, the Edision OS Mio is a FANTASTIC receiver, and personally, is my 'holy grail' receiver I've been waiting for a very long time. I bought one in February, and it's the best I've ever seen, does everything I want just right, (I do a lot of recordings, and it's flawless at that, and does them in the background) and I've had plenty different ones over the years.

  • Like
Reactions: Larry1

mrclean

Active SatelliteGuys Member
May 16, 2019
19
22
Idaho
I have tons to learn about this FTA. So if I start with decent components it should tell me if "thats good enough" or like you say go BIGGER BETTER! lol.
