8.5’ Spun Aluminum Buttonhook Dish (1 Viewer)

mr_rye89

Thread Starter
SatelliteGuys Family
Jul 5, 2020
63
67
Central New Mexico

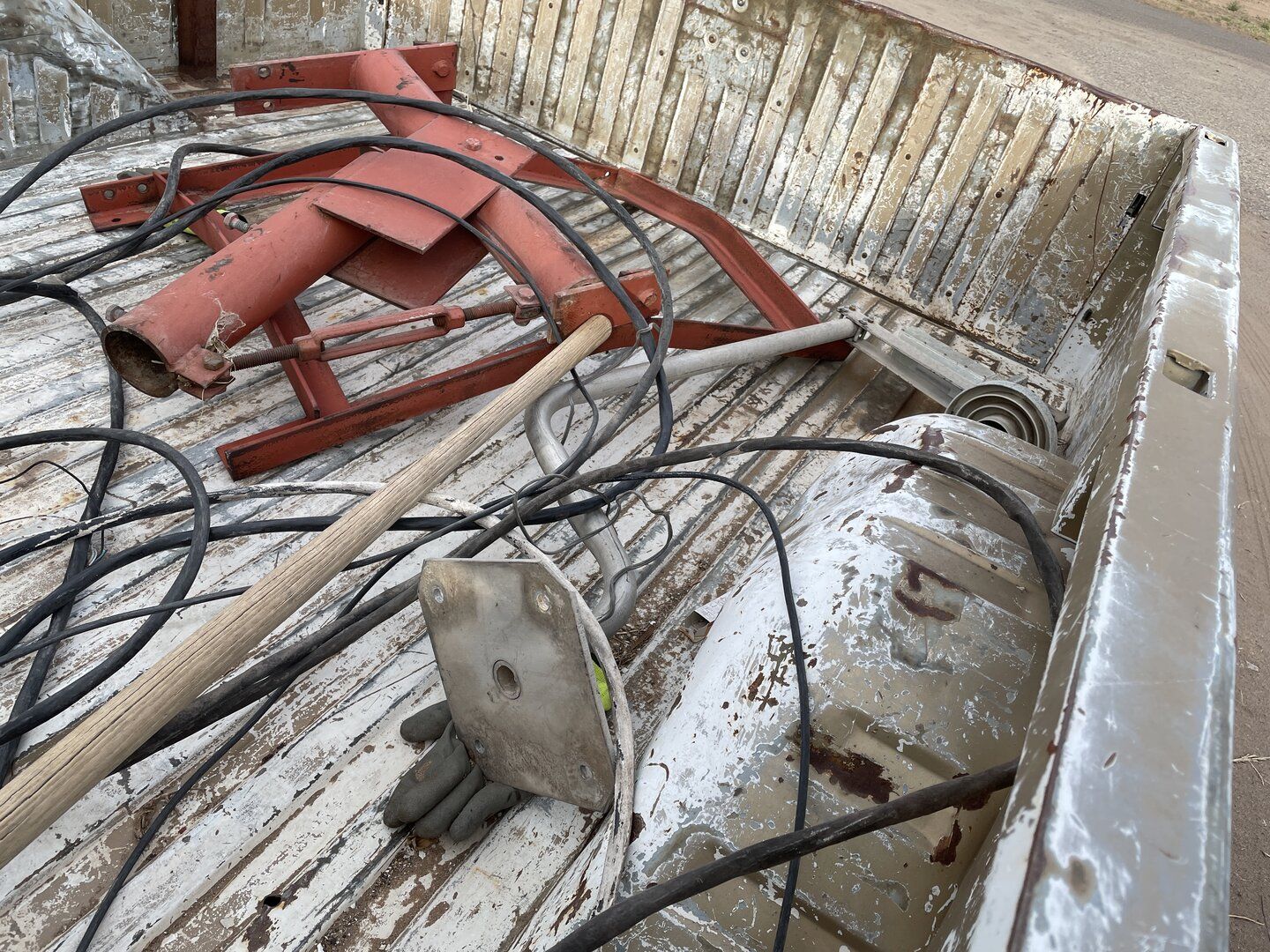

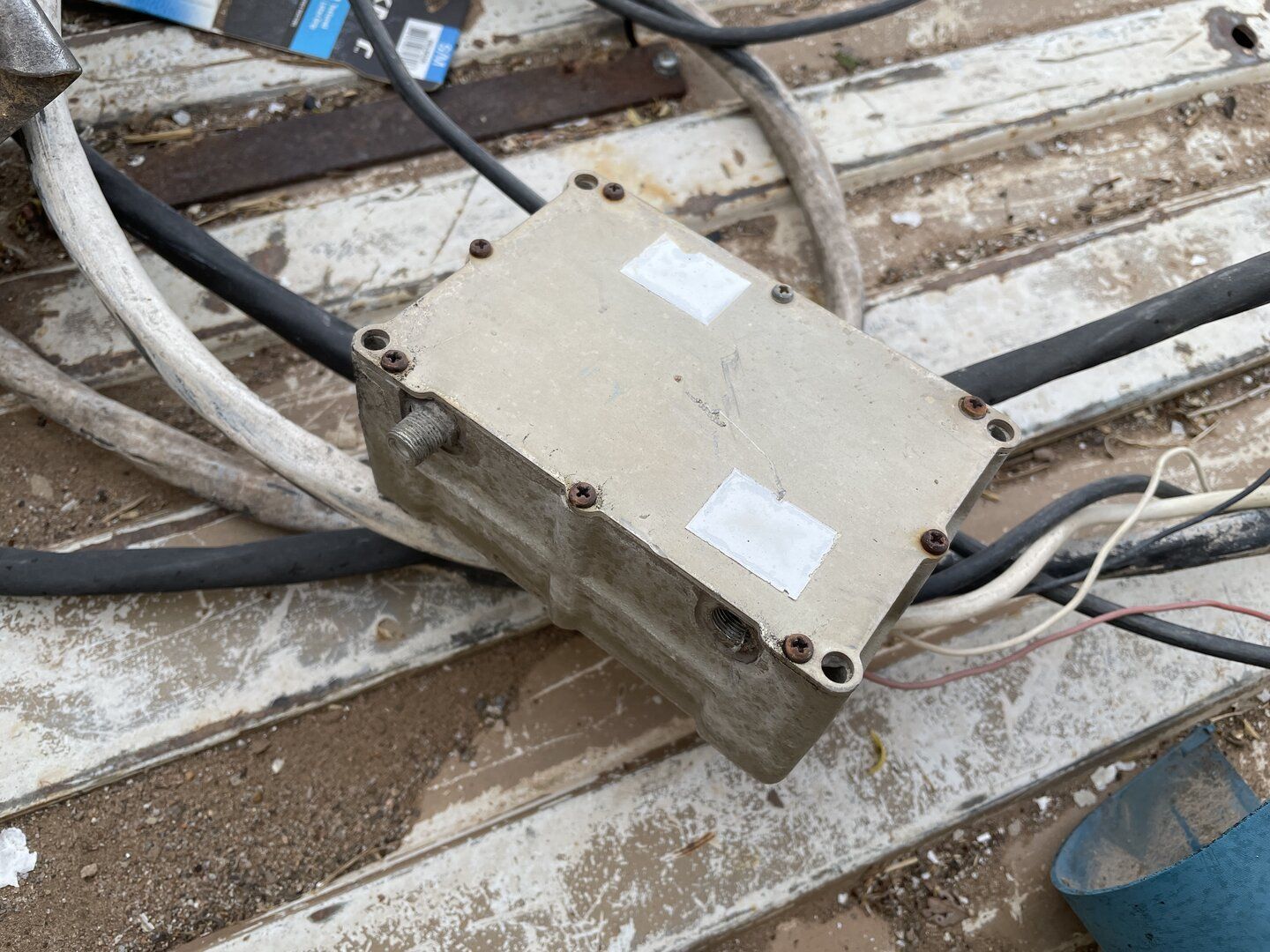

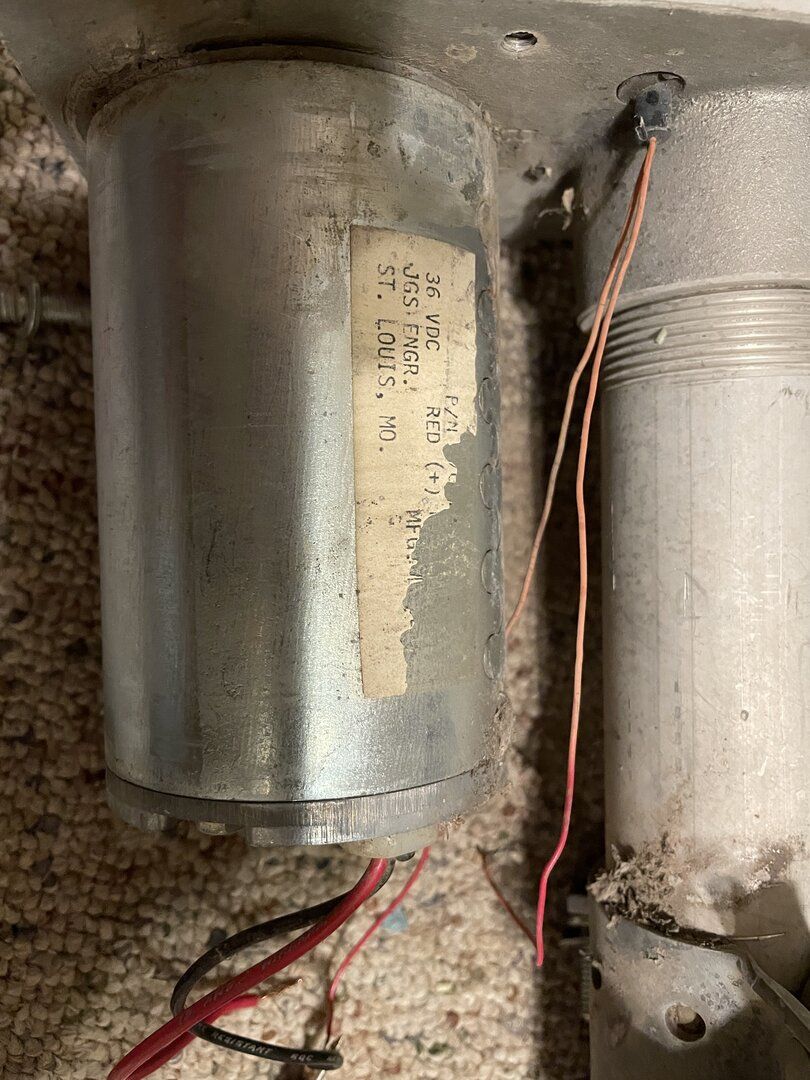

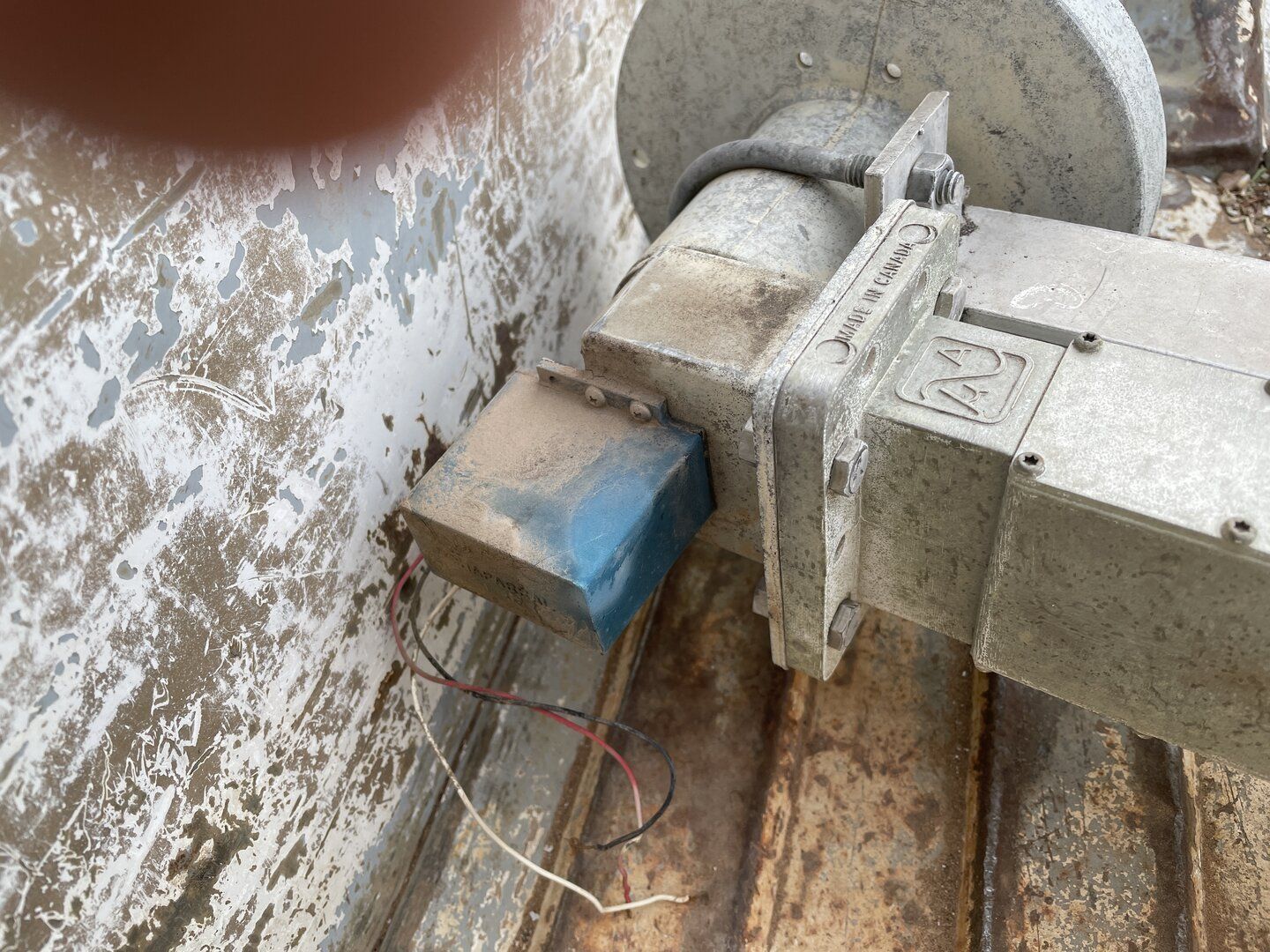

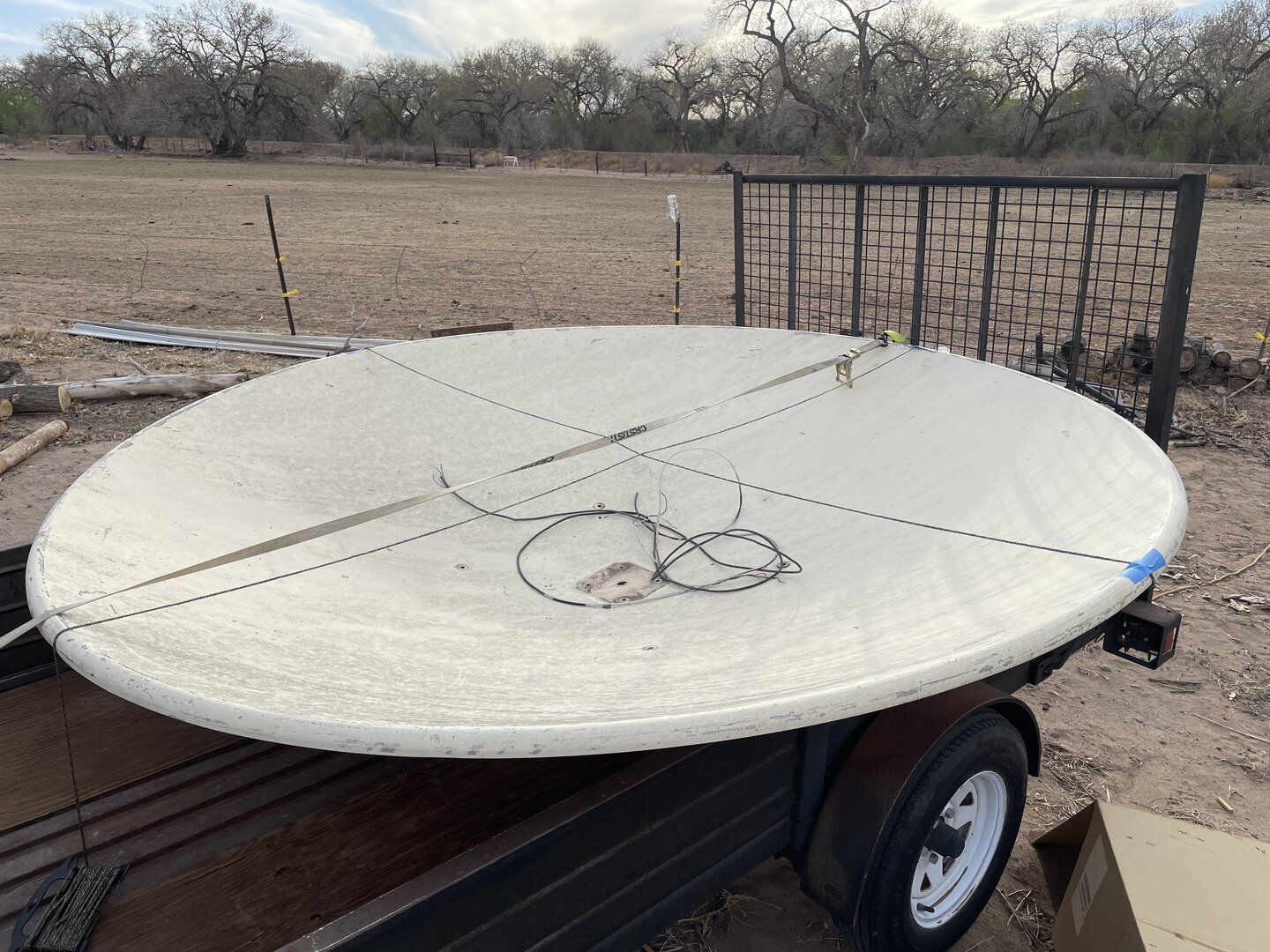

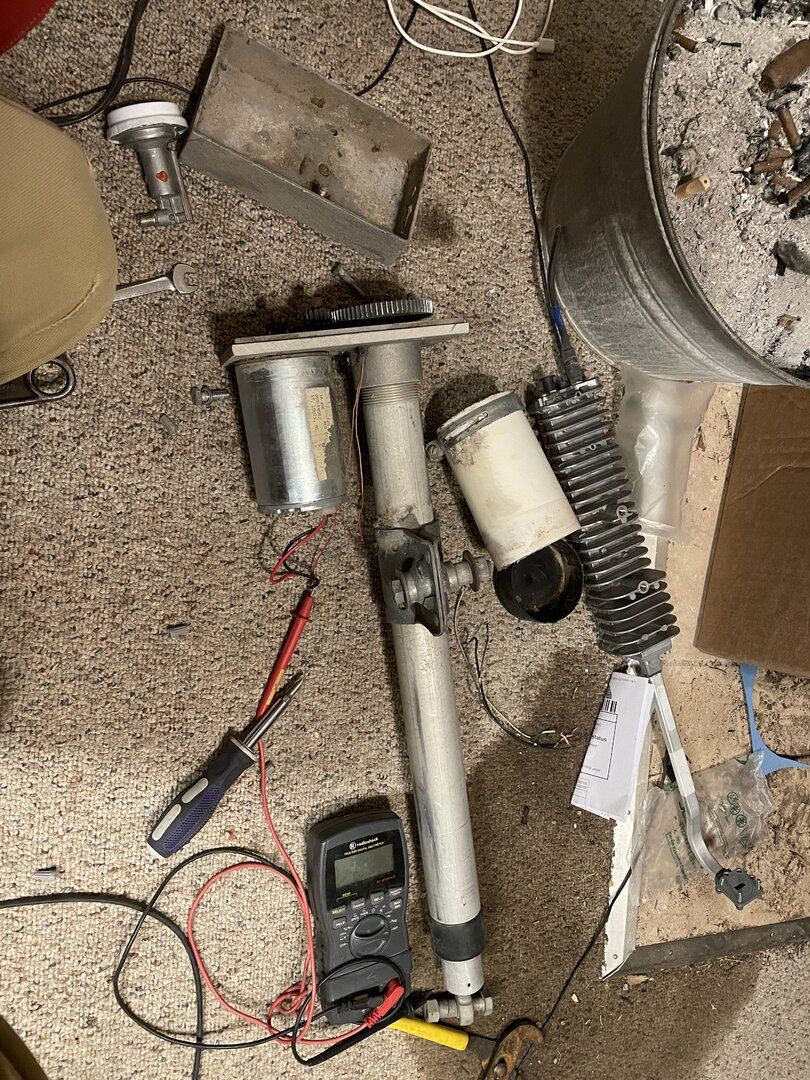

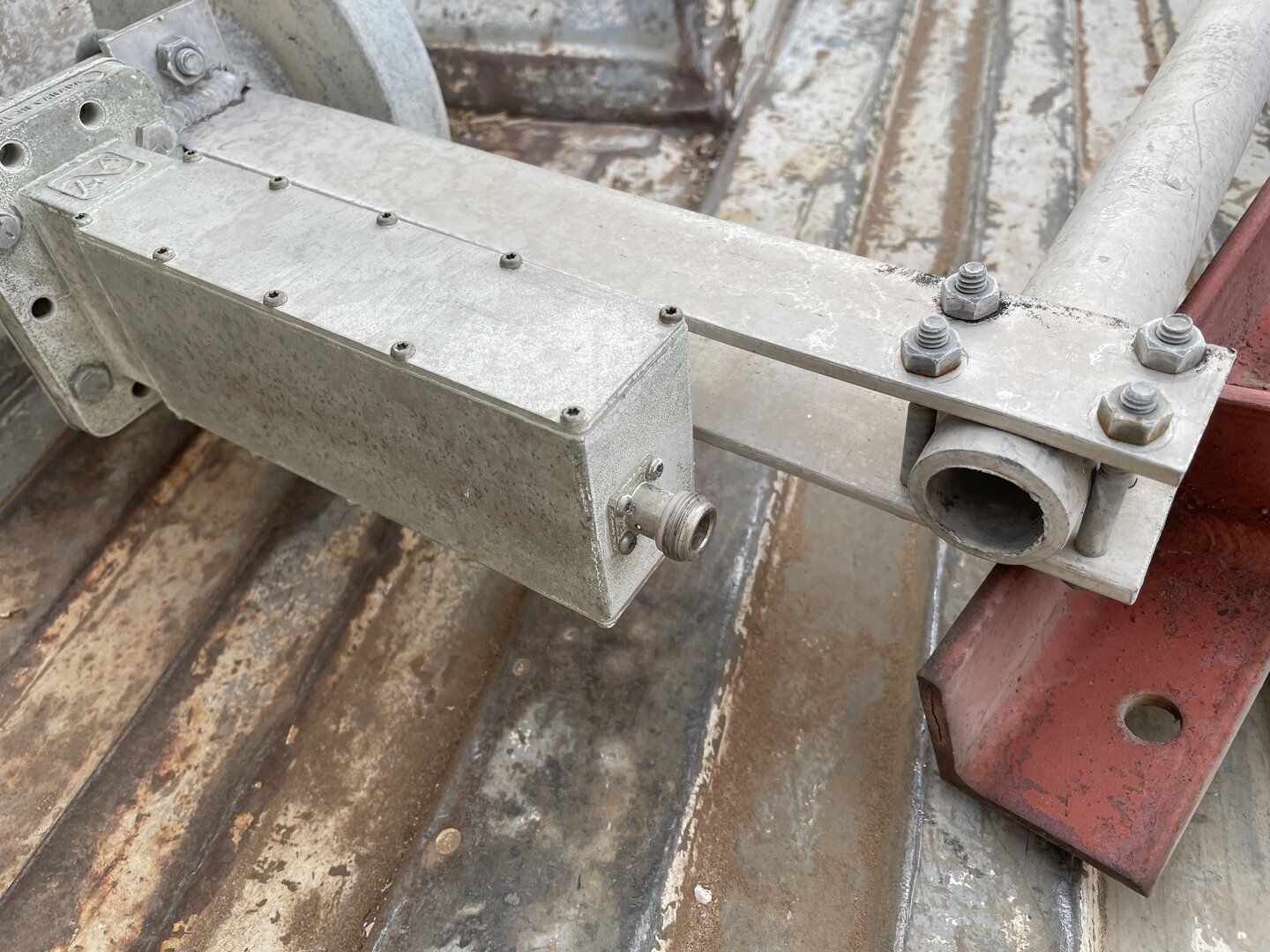

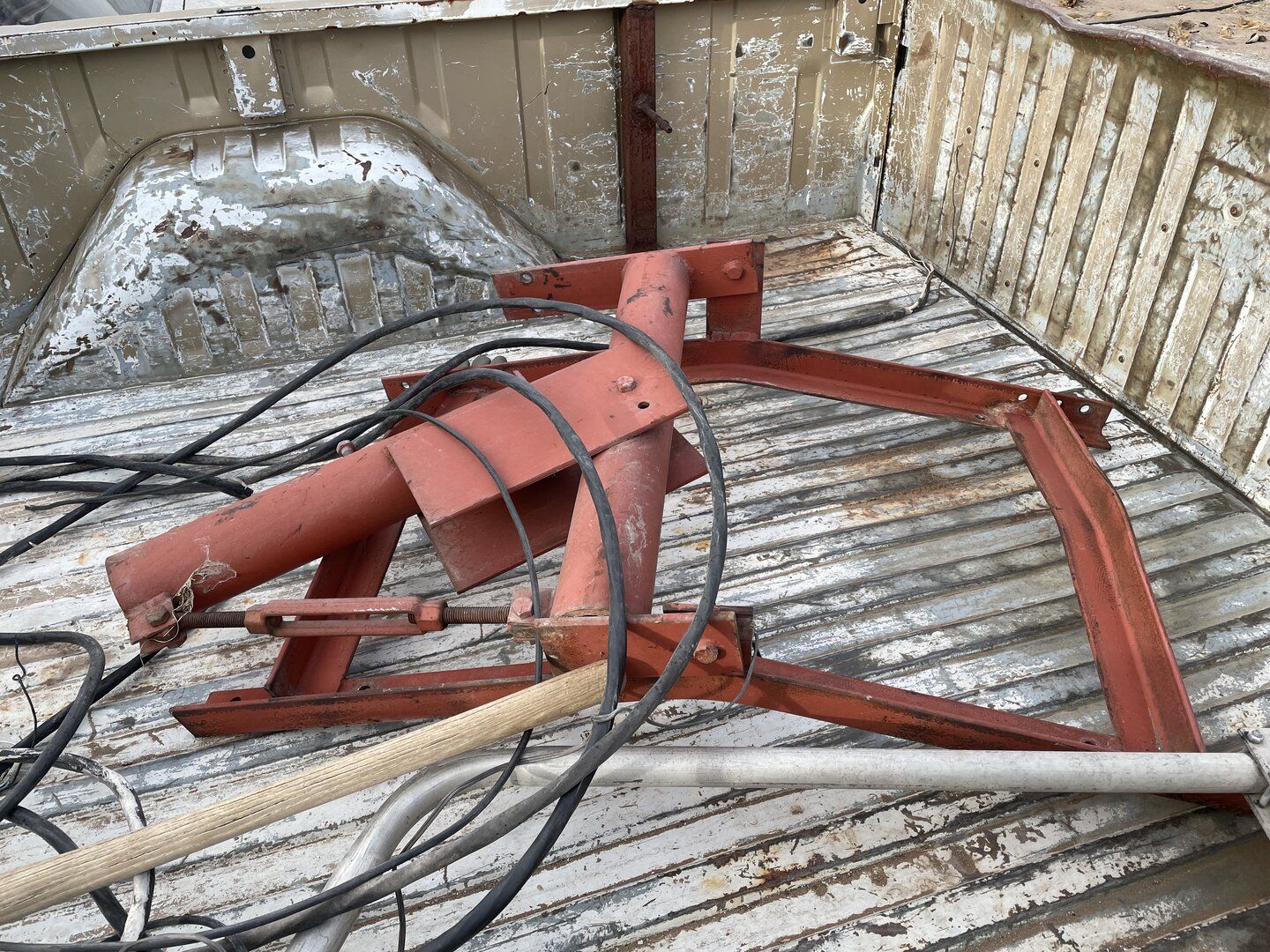

Grabbed this dish on Tuesday, for free! The dish itself measures like its not warped, the actuator and reed switch seem to work. Dunno about the Chaparral feedhorn/lnb/motor. Really heavy duty mount and goes on a 3” mast. Oh and I dismantled it by myself. Assembly won’t happen right away due to wind


Attachments

  • E4D0B49A-A8DE-4E36-AE13-57430048499A.jpeg
    347.5 KB · Views: 51
  • 192A7FC0-24D9-43F5-8C58-A965E3EBF12F.jpeg
    476.5 KB · Views: 49
  • B4D94211-AD83-476B-964F-6E570FF4CD5B.jpeg
    469.3 KB · Views: 48
  • A0A1EE70-4F5D-4CD4-9212-9717CE3C9F5D.jpeg
    375 KB · Views: 43
  • C1D0979A-FB94-4AB9-9566-233CE08251A7.jpeg
    343.5 KB · Views: 43
  • 68F85729-6C2D-47BA-95FB-DF201D1A760B.jpeg
    289.5 KB · Views: 45
  • A2FE3297-94B3-4B1D-80A3-9B3C6D5CA40F.jpeg
    278.8 KB · Views: 43
  • 03E7B775-27D6-4B9F-A42C-7748F6430ACC.jpeg
    309.2 KB · Views: 47
  • D3F2BFF4-67A8-449D-A206-6D2E9960AA7C.jpeg
    167.2 KB · Views: 44

mr_rye89

Thread Starter
SatelliteGuys Family
Jul 5, 2020
63
67
Central New Mexico

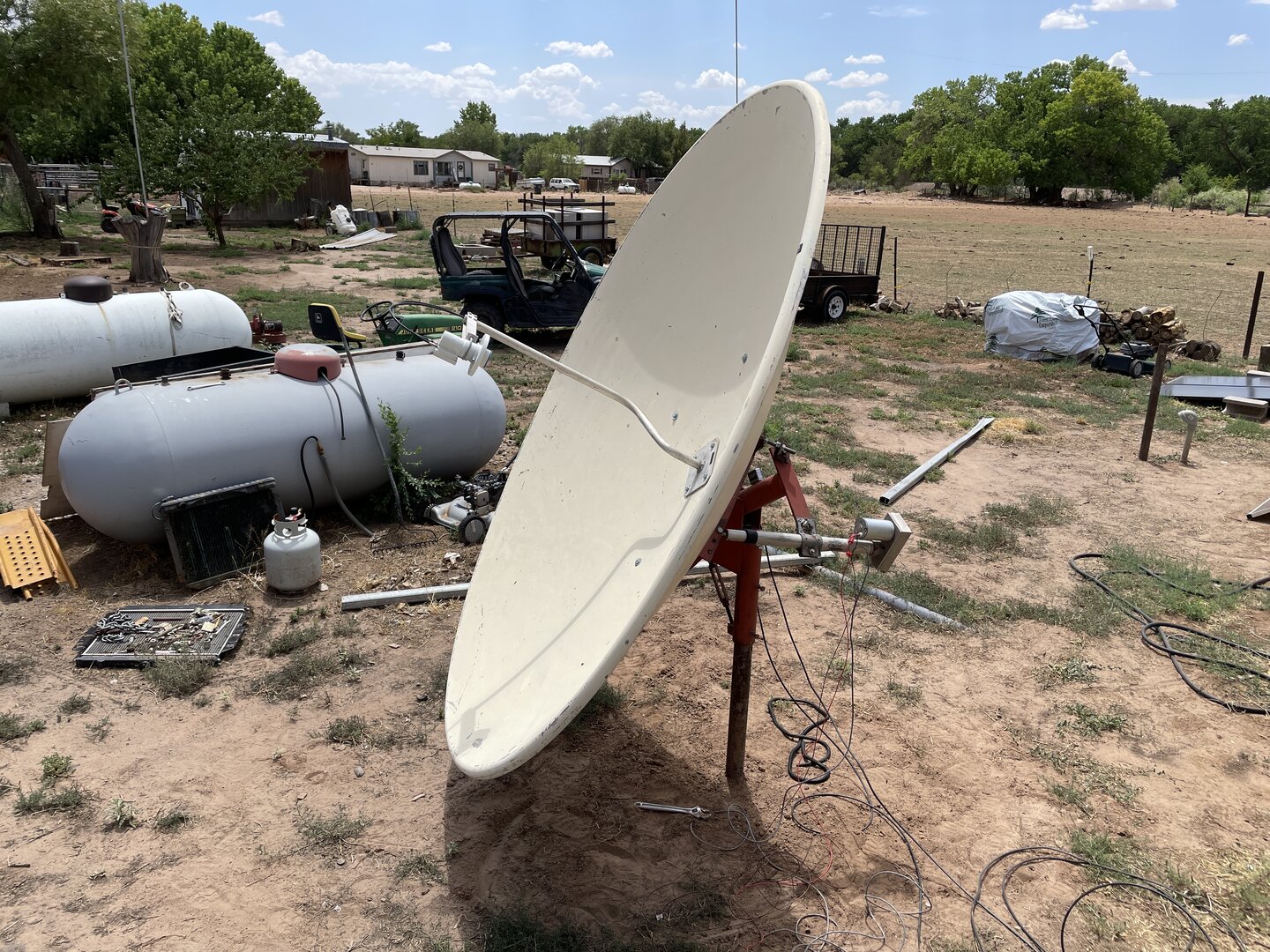

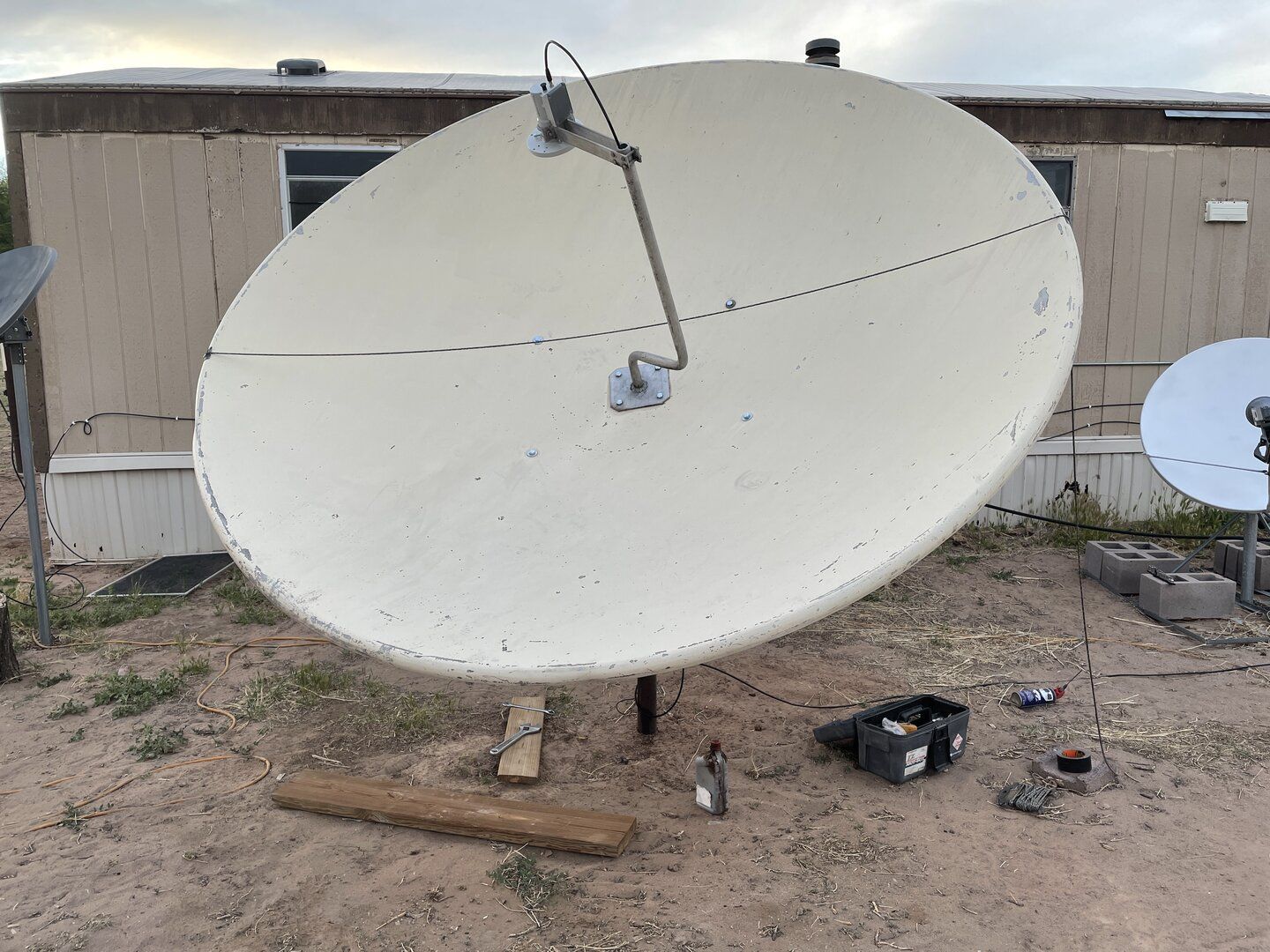

put it in this weekend, was waiting for the new ball joint and Titanium LNBF to get here. So far I can get 107 (seems to be my zenith bird) 111, and 113. Nothing east or west of that.....

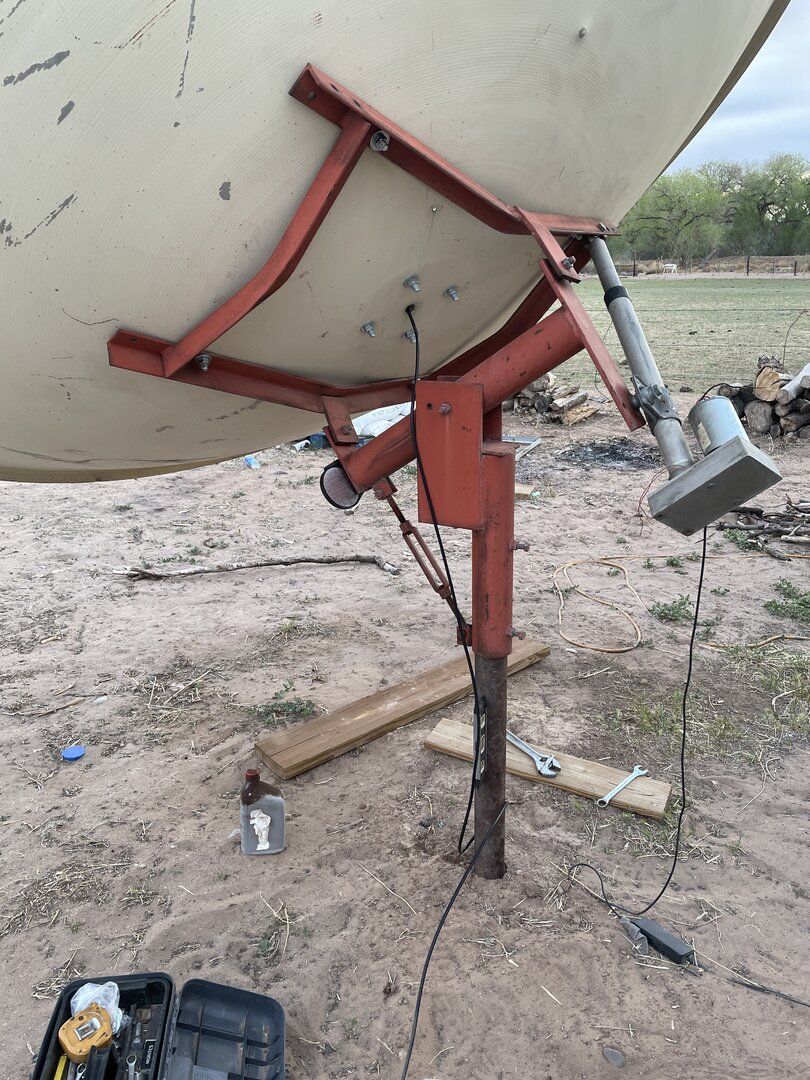

declination isn’t really adjustable but it seems right for my latitude, and yes the actuator is on the wrong side.......


Attachments

  • 884DDAA3-02E7-4B96-9431-EC2643218381.jpeg
    279.3 KB · Views: 27
  • 2487788F-4537-472A-8E72-E4F0E8BA2B80.jpeg
    235 KB · Views: 27
  • Like
Reactions: k.r. and FTA4PA

mr_rye89

Thread Starter
SatelliteGuys Family
Jul 5, 2020
63
67
Central New Mexico
I got 127 but had to tweak the elevation, may need to slew back to see if I still hit the other birds. NASA TV booming in


Attachments

  • F773E664-F261-4CC3-961F-807D3FA15FE0.jpeg
    227.7 KB · Views: 16
  • Like
Reactions: FTA4PA

primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
9,506
5,998
Beta Omicron Delta III
put it in this weekend, was waiting for the new ball joint and Titanium LNBF to get here. So far I can get 107 (seems to be my zenith bird) 111, and 113. Nothing east or west of that.....

declination isn’t really adjustable but it seems right for my latitude, and yes the actuator is on the wrong side.......

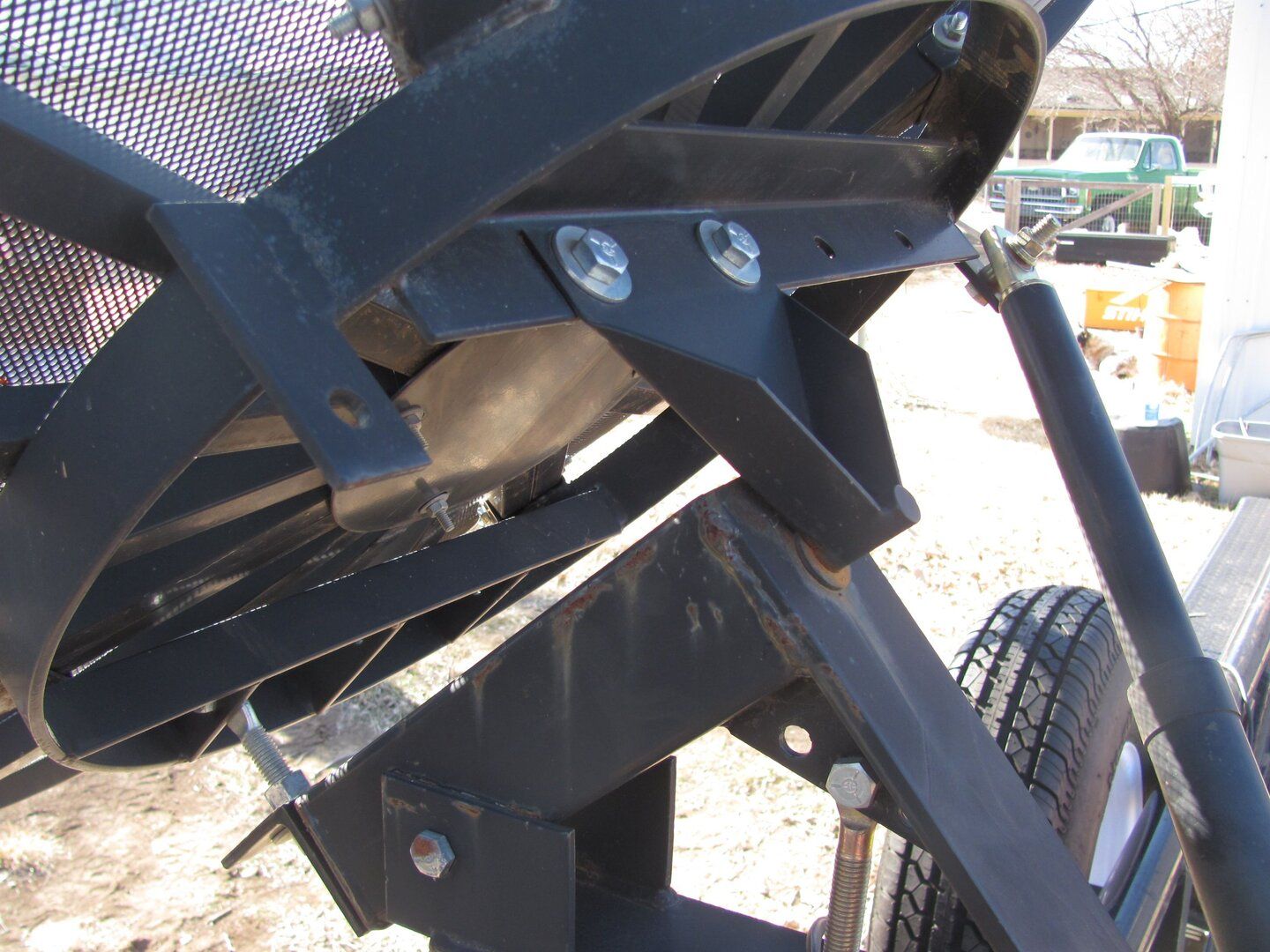

Photo #2, on the polar mount bottom swivel point, remove the bolt on the two flat pieces of metal. Cut the metal pieces back, or find a way to bend them into a right angle. Or replace that on both sides with a piece of right angle angle-iron facing each other and weld them on, one on each side. Have holes drilled in them, and place at least a 1/2 inch 6" long bolt or all-thread with the head welded to the new angle iron piece on the side facing the dish. The threaded end will be double-nutted to the new angle iron piece on the bottom part on the pole side.

The double-nut comes in play where each nut is on a different side of the new piece of angle iron. You adjust the length to ADD or SUBTRACT needed declination. So in effect, the dish face would tilt IN more at the bottom, or maybe even OUT more, depending on where you live.

This is NOT the same as just adjusting the elevation rod!

Does this make sense?

Here's a photo I borrowed from another post here, credit for the photo goes to the original poster. This is from a SAMI dish, like the one I have.


Attachments

  • IMG_2329.JPG
    230.8 KB · Views: 24
Last edited:
  • Like
Reactions: Captain Midnight

mr_rye89

Thread Starter
SatelliteGuys Family
Jul 5, 2020
63
67
Central New Mexico
I think so. That's a pretty clever way to get declination on this mount. I may try to sketch my inerpretation of what you said and post it later. Thanks for the tip

I'm guessing the mount was locally built (by rednecks!). On the elevation adjuster, the threaded ends were partially cut, heated and bent around where they attach to the mast/polar swivel. I broke one this weekend and had to weld it back.

  • Like
Reactions: primestar31

mr_rye89

Thread Starter
SatelliteGuys Family
Jul 5, 2020
63
67
Central New Mexico

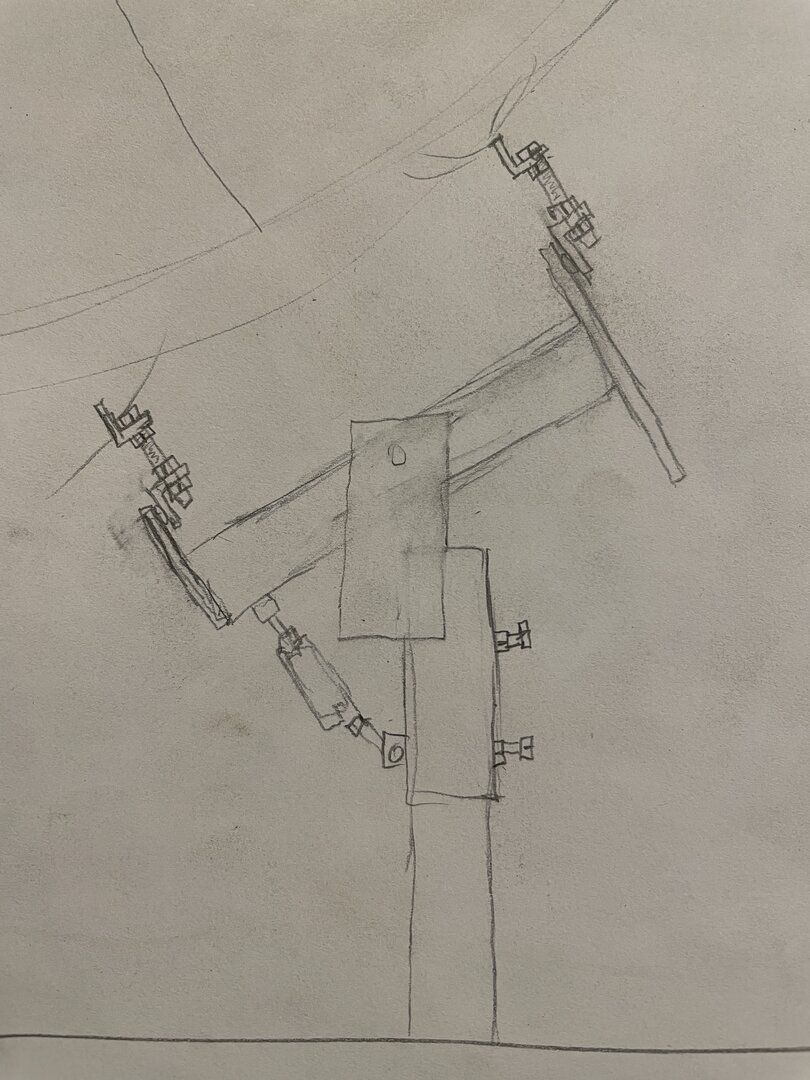

Here’s my goofy sketch, yours looks like it only adjusts on the bottom.......


Attachments

  • 8B124278-BFF5-4482-91E6-45F8A6559F80.jpeg
    128.5 KB · Views: 21

mr_rye89

Thread Starter
SatelliteGuys Family
Jul 5, 2020
63
67
Central New Mexico
I know my declination might be off, but I can’t get anything east of 107 (which is 1 degree from true south in my location) no matter how I adjust it. I’m going to be Double checking the buttonhook tonight as I may dismantle the dish and fabricate a declination adjustment on the mount this weekend. I calculated the focal distance and have the LNBF there but the scalar isn’t quite in the right spot.


a33

SatelliteGuys Pro
Feb 4, 2015
540
347
netherlands europe
BTW. Did you already measure the present, built-in declination offset angle of the mount?

For CNM, Lat=34.6N, (modified) declination offset angle should be about 5.0 degrees.
When the present built-in angle is very near, some spacers between mount and dish (on top, or on bottom) might also help to fix the difference?
But I have no experience with buds, myself.

Greetz,
A33


mr_rye89

Thread Starter
SatelliteGuys Family
Jul 5, 2020
63
67
Central New Mexico

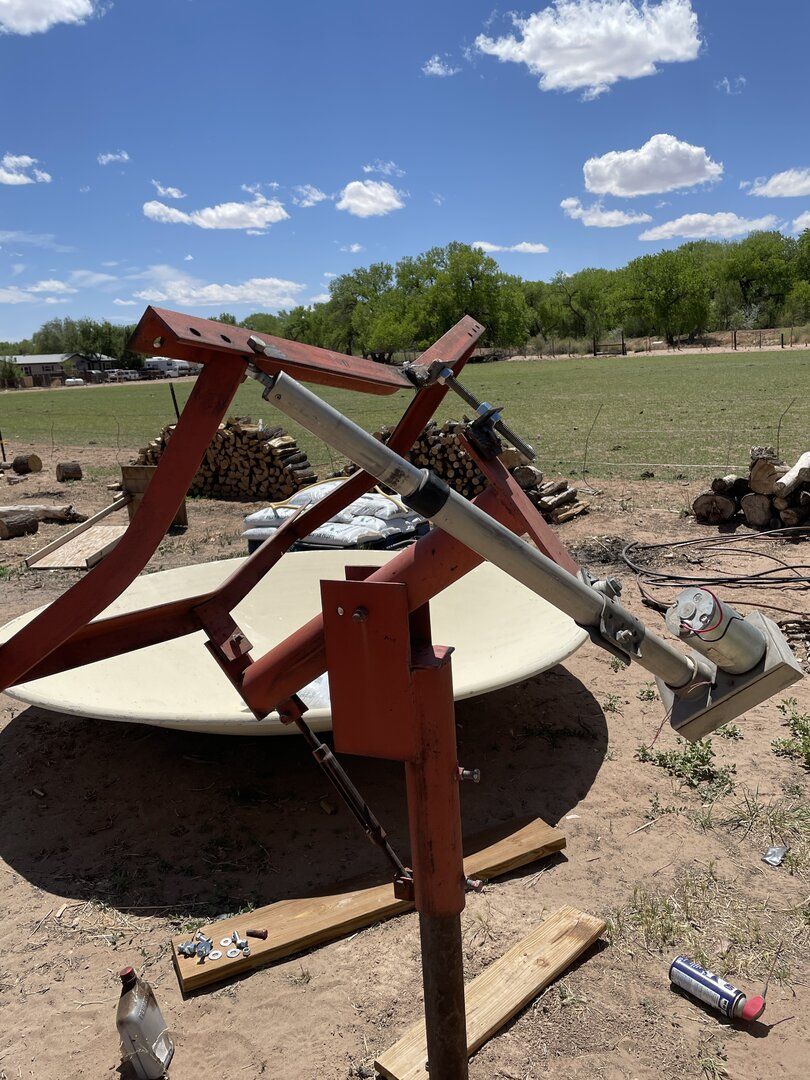

As of last week I have declination adjustment. I’ve been able to hit 87, 91, 99, 103,107,113, 125, 127...... I think 97 is blocked by a tree, and I don’t get some of the transponders I should be getting. I’m looking at getting a digital angle gauge......

What’s a good way to find true south? I’m inept with a compass, my hiking GPS doesn’t seem to know where it is, and I’m not sure about the one on my IPhone.....


Attachments

  • 500BC7E2-4729-426E-98A0-C9A7F91FEE0A.jpeg
    203.3 KB · Views: 10

primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
9,506
5,998
Beta Omicron Delta III
What’s a good way to find true south? I’m inept with a compass, my hiking GPS doesn’t see. Im to know where it is, and I’m not sure about the one on my IPhone.....
DishPointer - Align your satellite dish Enter your dishes site coordinates at the pole base (get from Google Maps) on here, and scroll about 2/3rds down the list on the side for "True South / True North". A overlay map of YOUR property will appear, and you can line it up with local landmarks.

  • Like
Reactions: Captain Midnight

Captain Midnight

SatelliteGuys Pro
Sep 16, 2019
299
185
Greers Ferry, Arkansas
DishPointer - Align your satellite dish Enter your dishes site coordinates at the pole base (get from Google Maps) on here, and scroll about 2/3rds down the list on the side for "True South / True North". A overlay map of YOUR property will appear, and you can line it up with local landmarks.
THIS. True South adjustment of the mount on the pole for me is very much overlooked by many installers. You can get the angles from calculators but the south adjustment is something you have to find yourself.
