8 ft DH perf spun dish with H to H mount (1 Viewer)

Status
Please reply by conversation.

brex2001

Thread Starter
SatelliteGuys Pro
Jul 14, 2009
642
2
USA

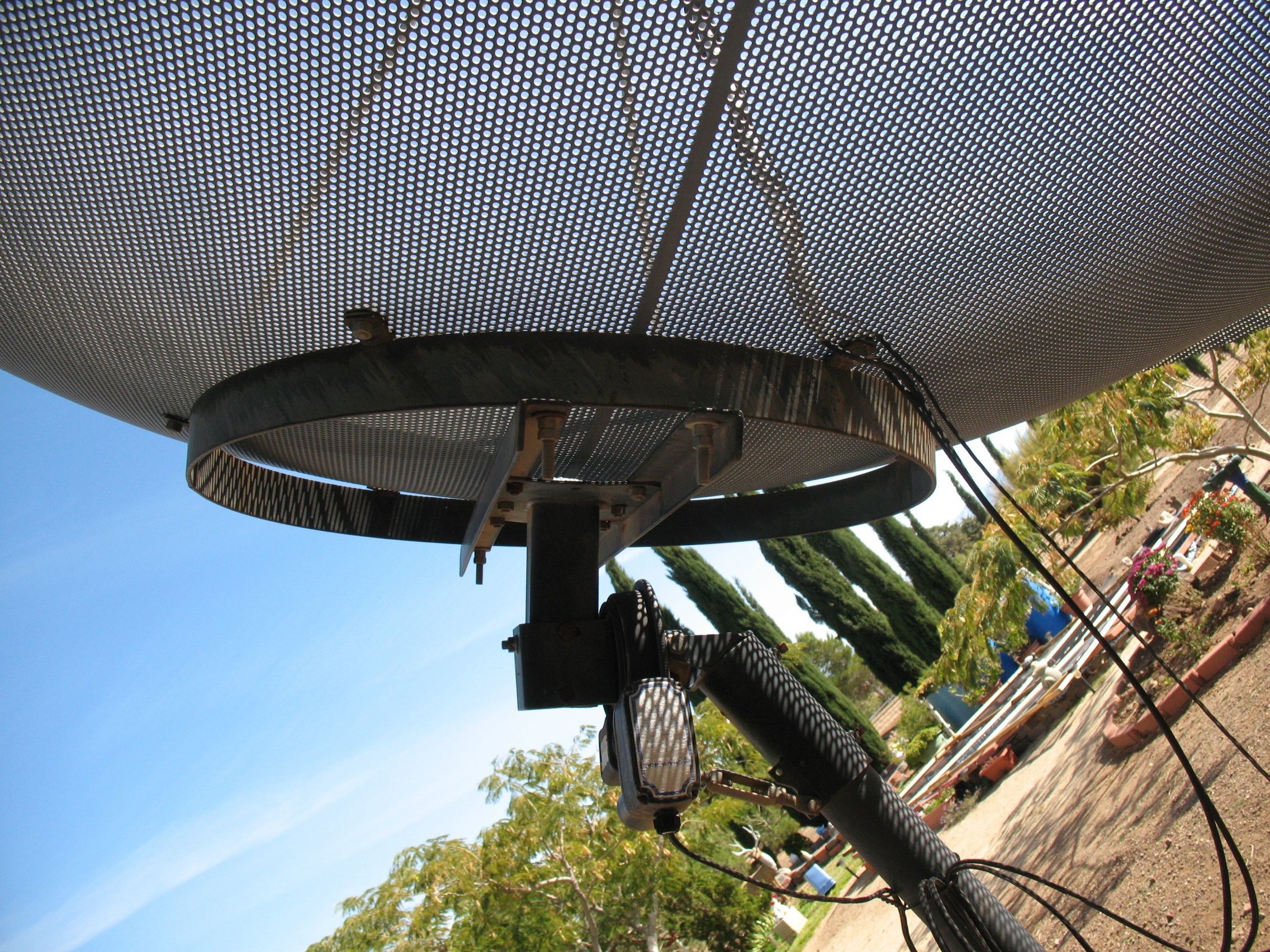

Acquired a 8 ft spun aluminum dish yesterday. A DH perforated with a Starcast H to H mount. In really great condition. The original installer clued me into this one - belonged to a nice elderly couple up in the high desert.

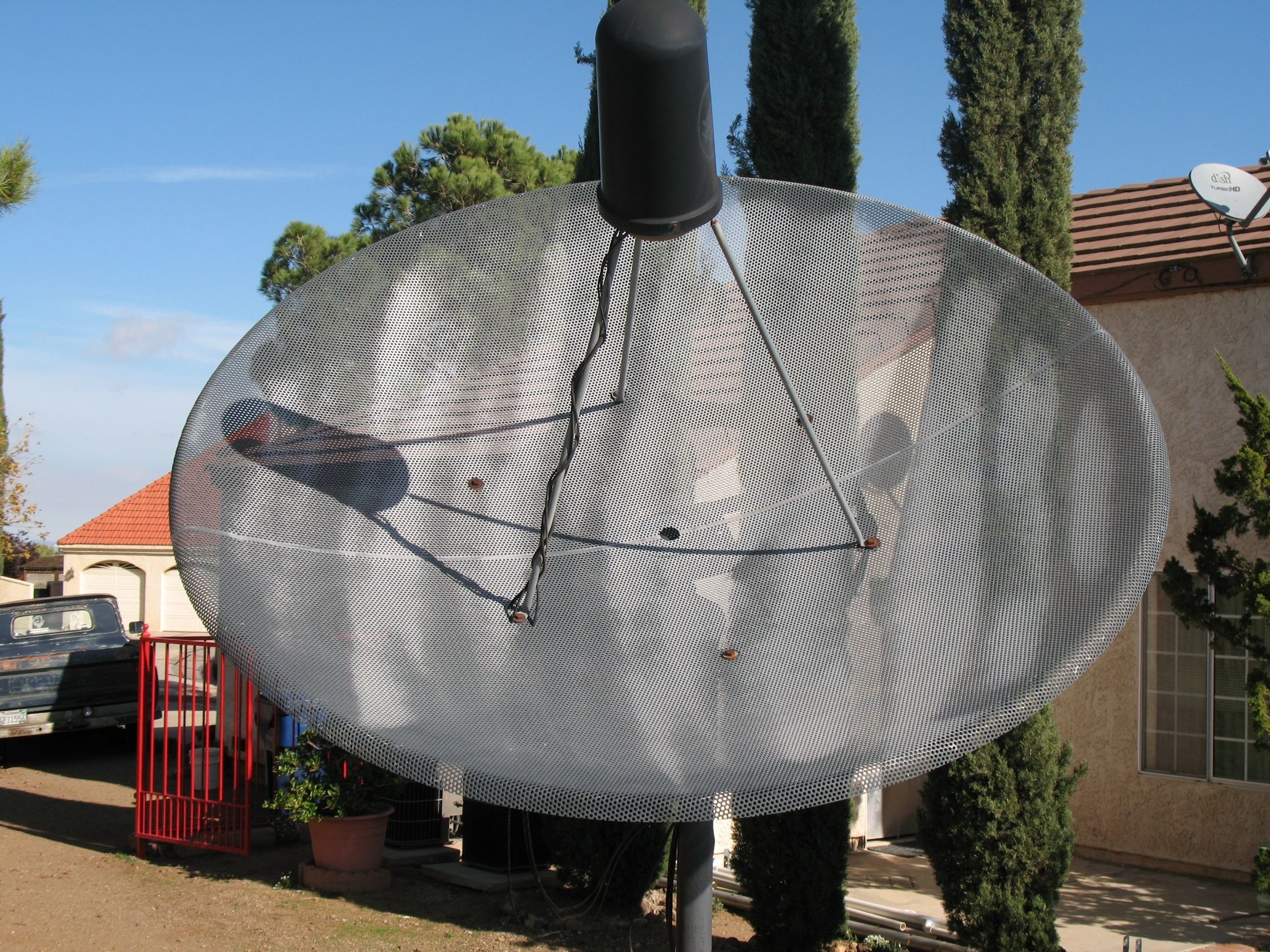

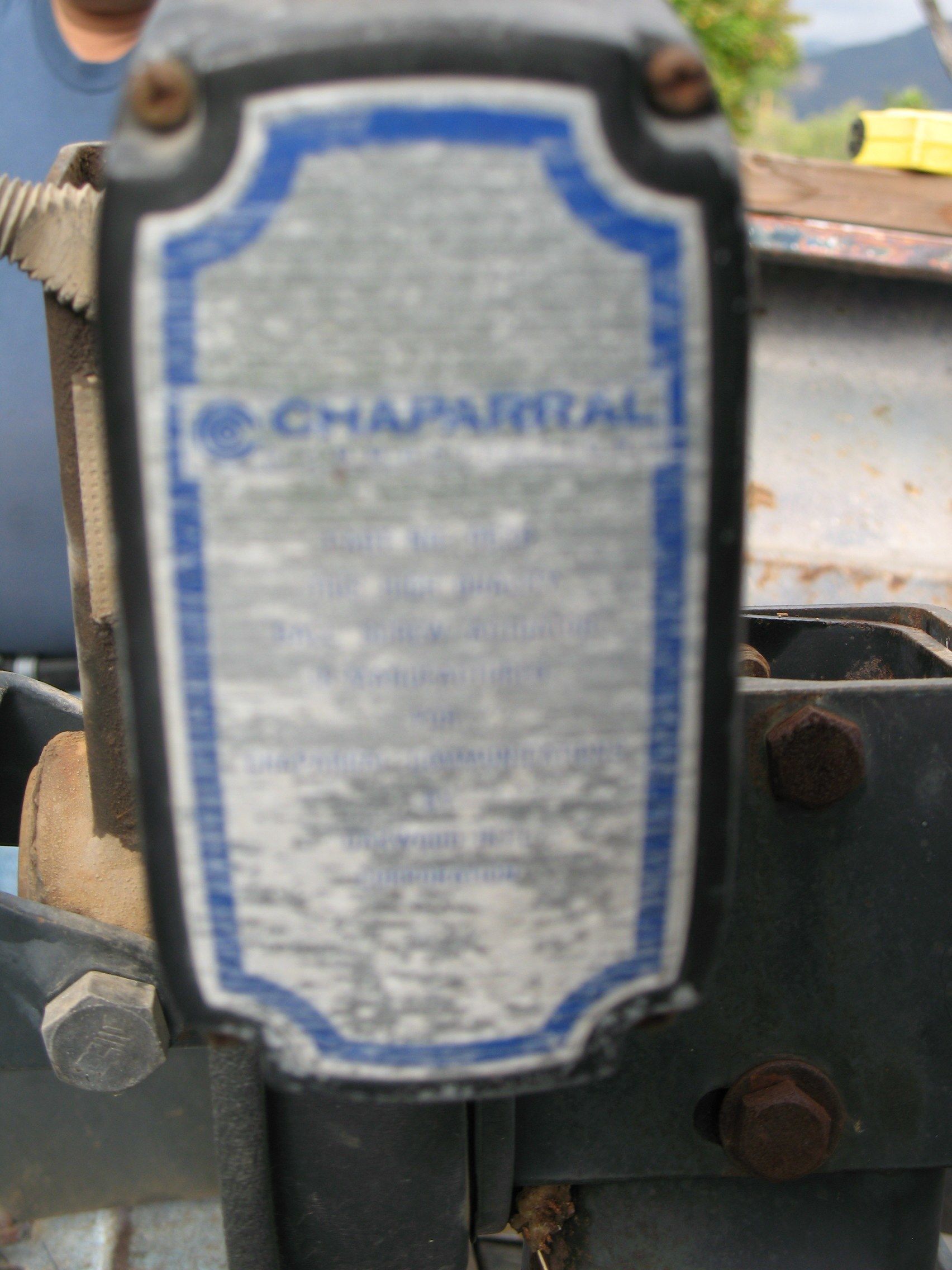

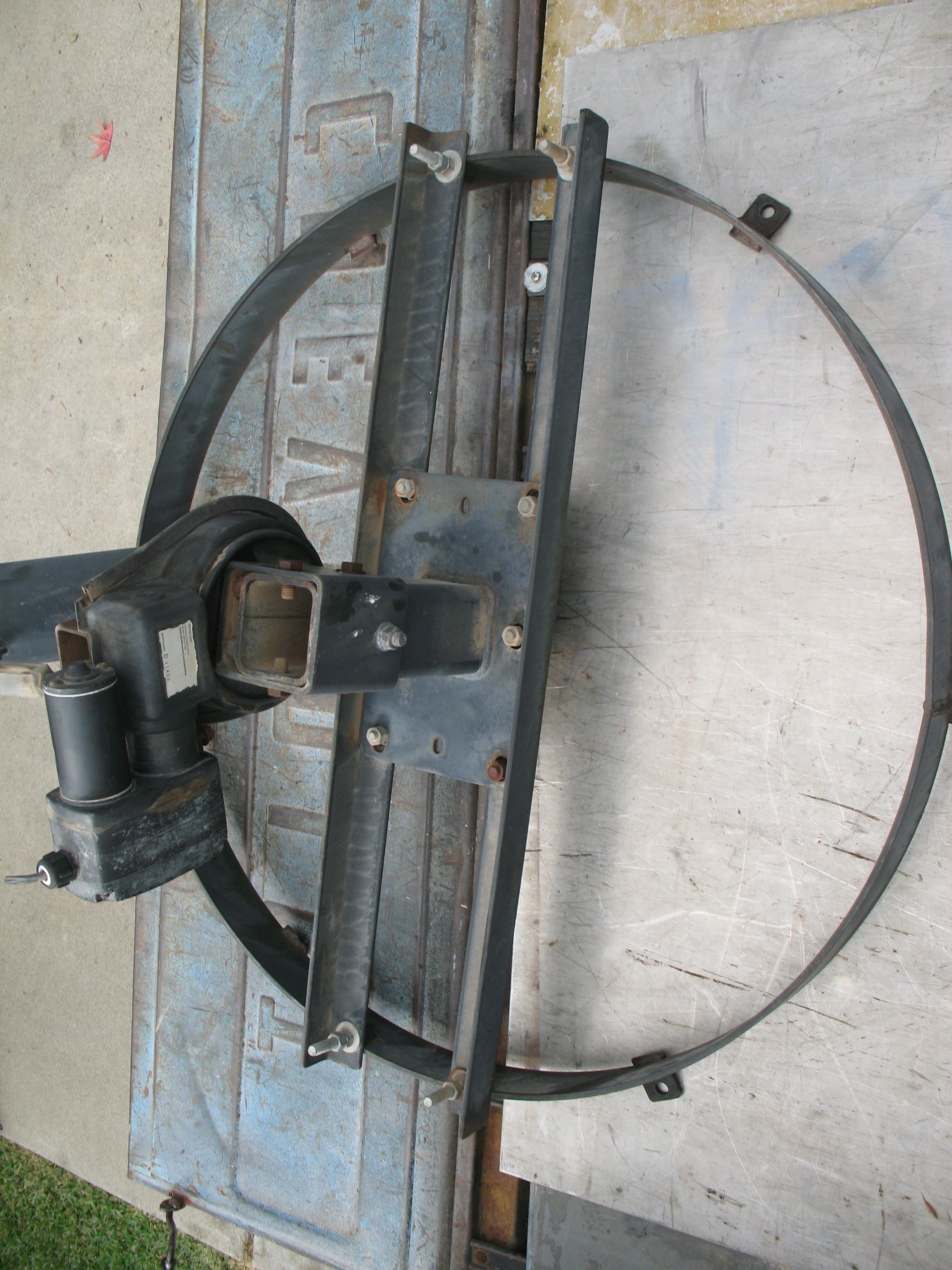

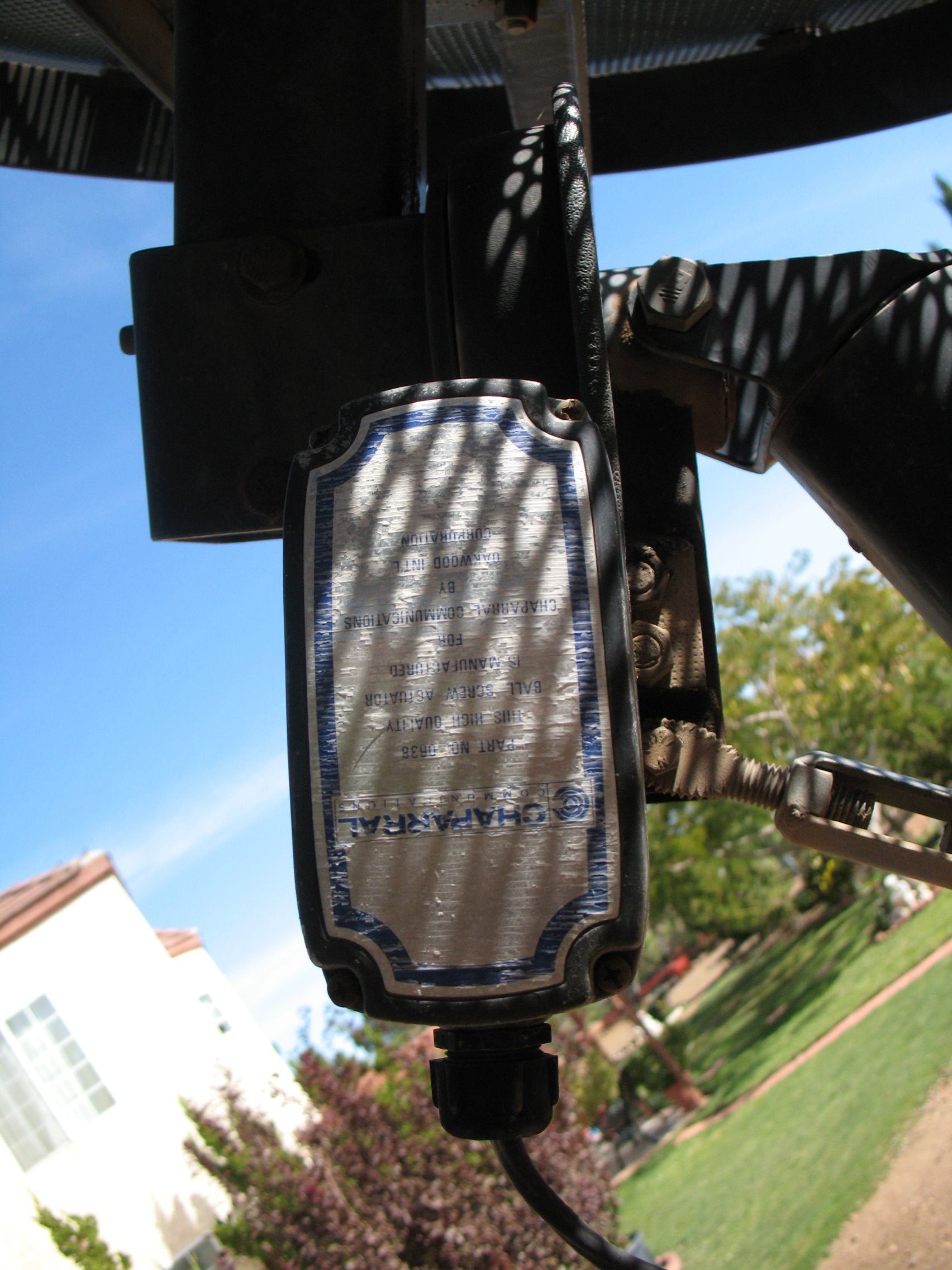

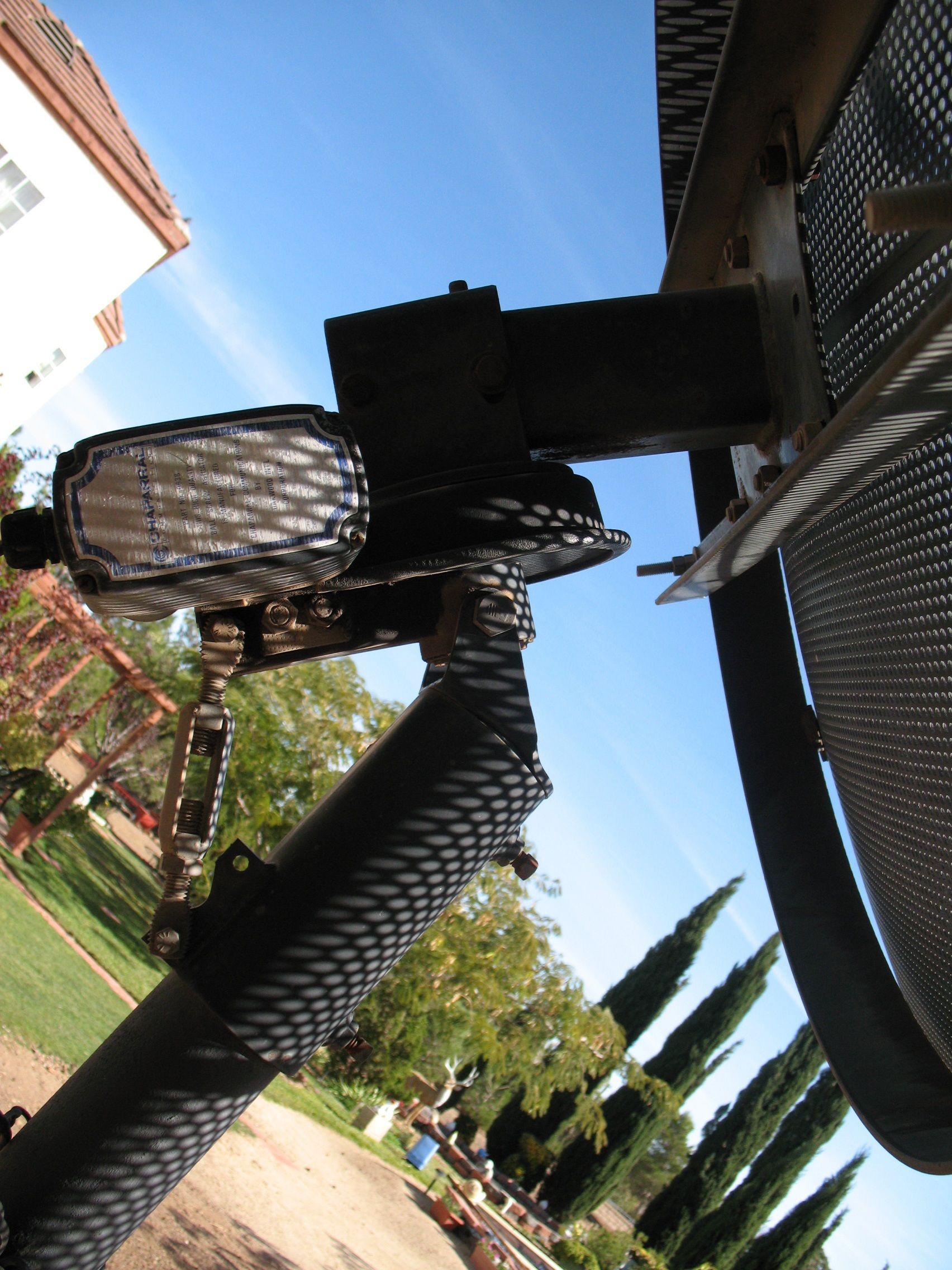

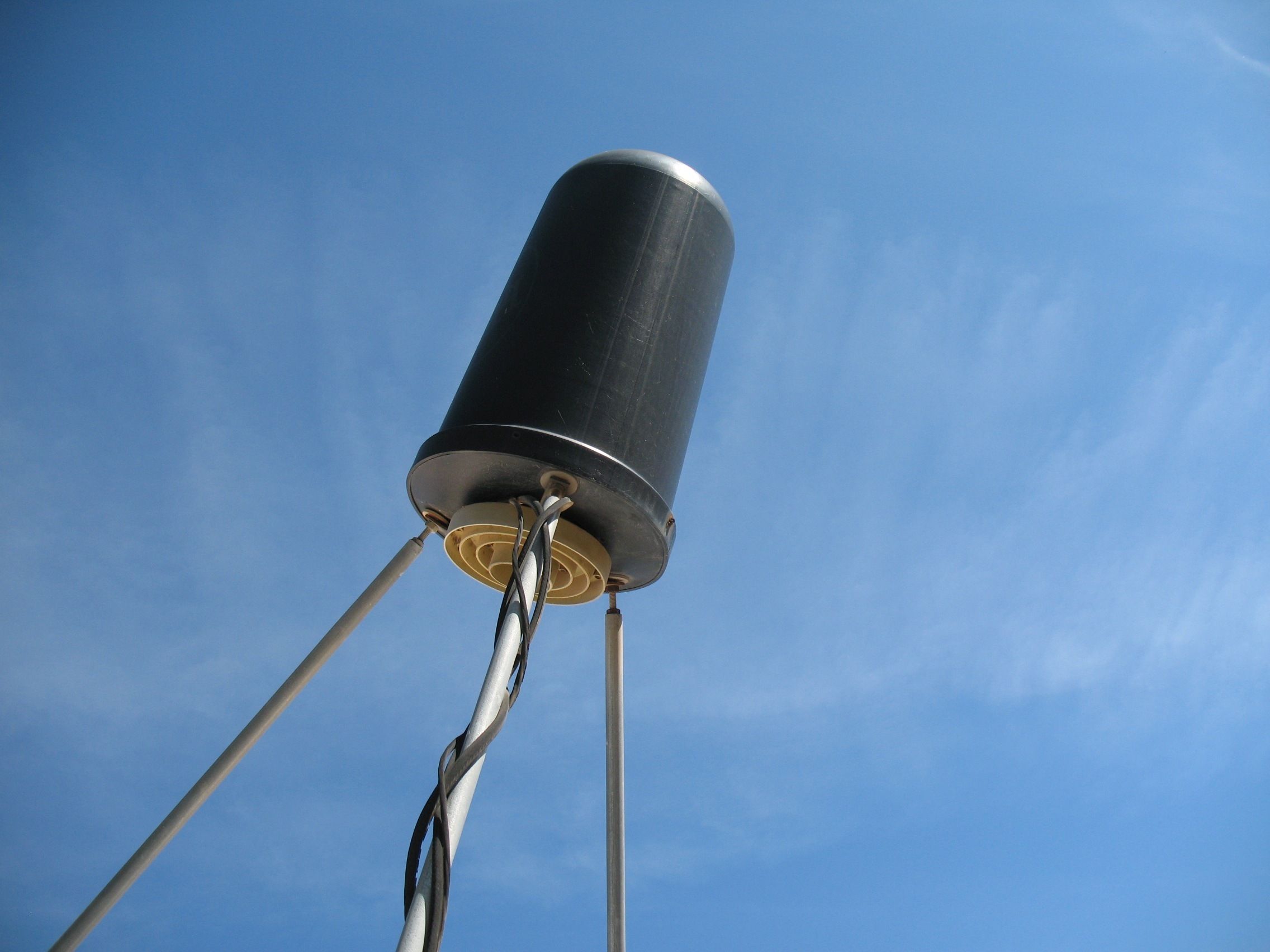

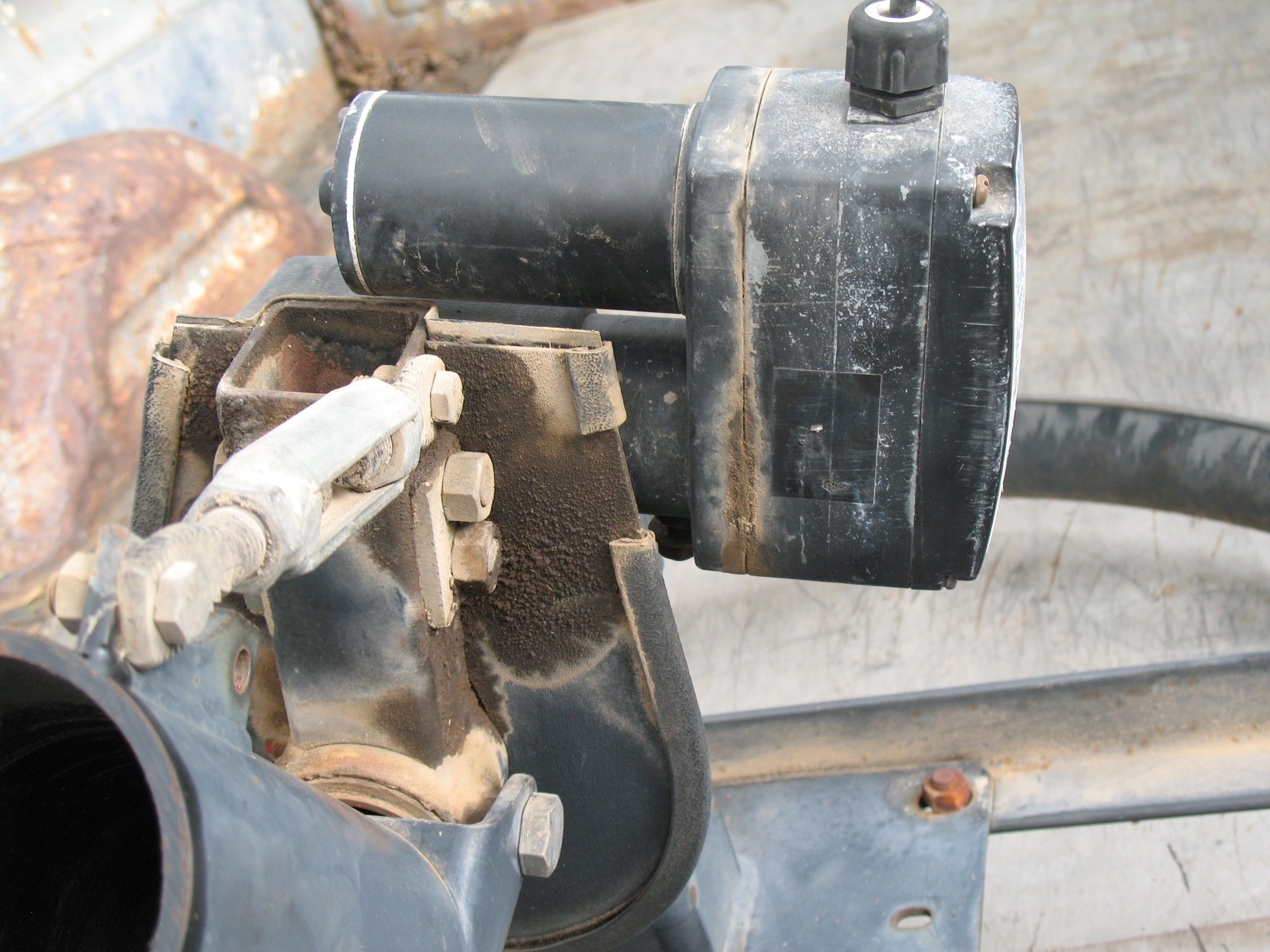

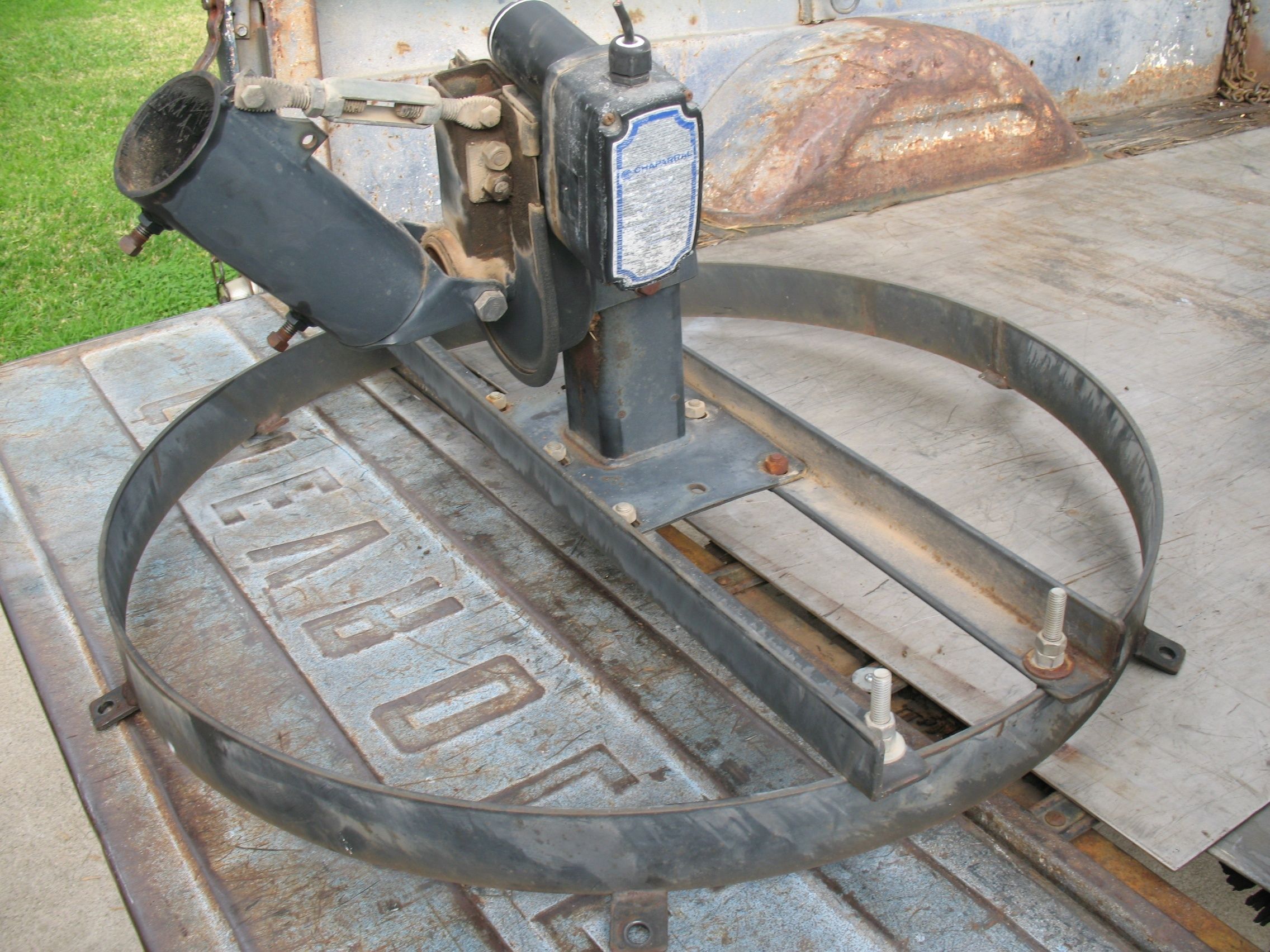

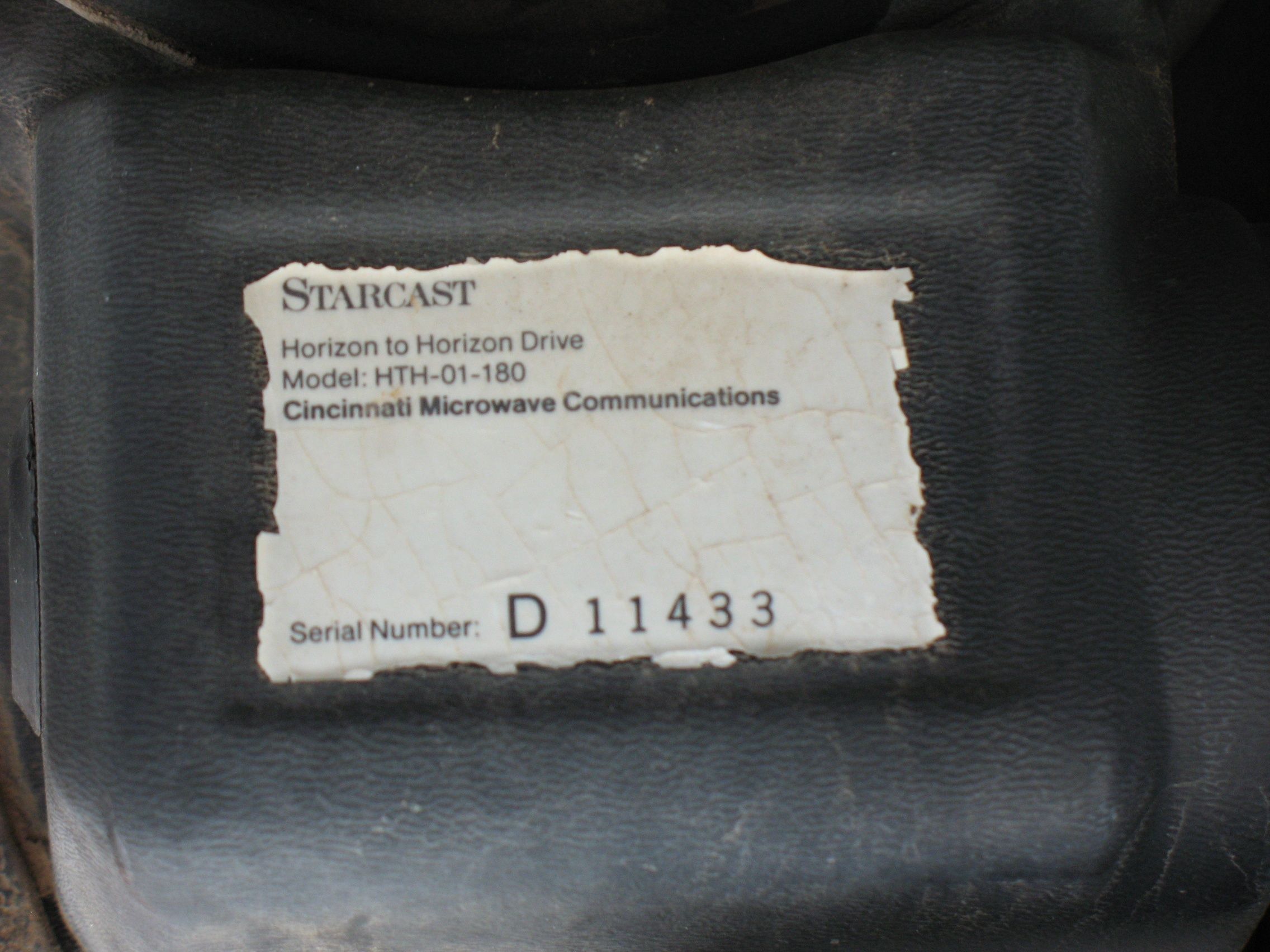

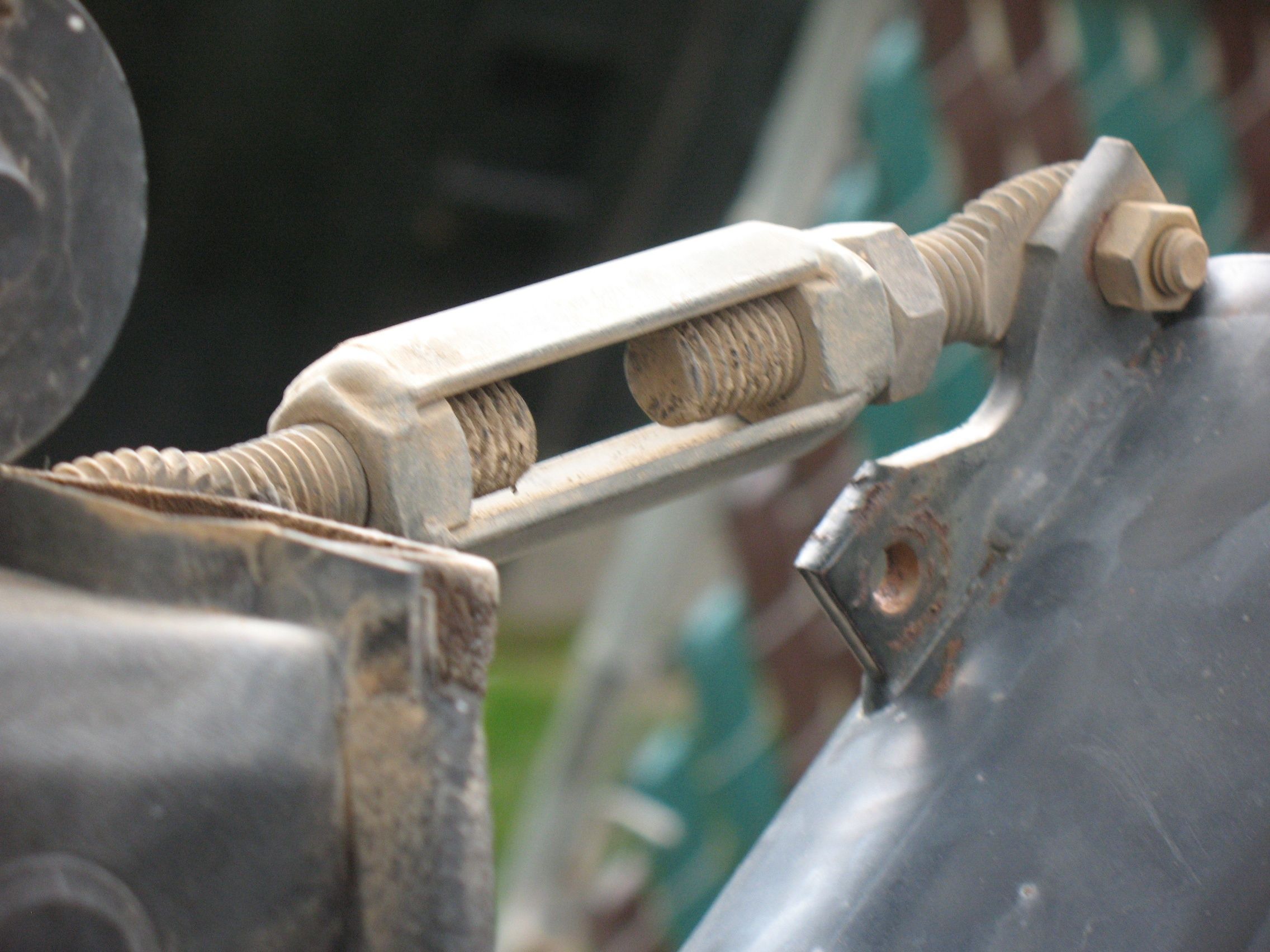

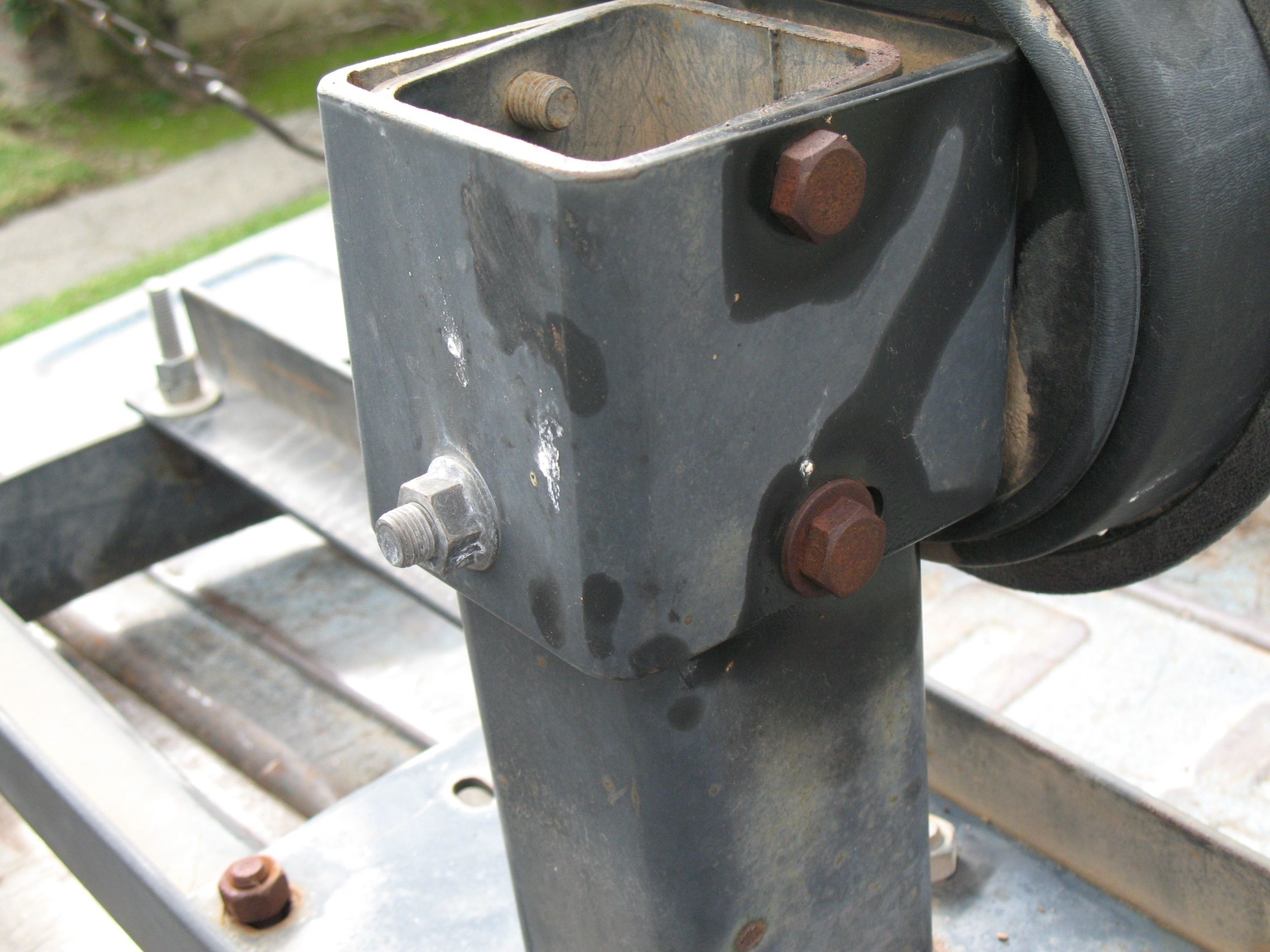

The H to H mount has a huge 3" x 38" ring, easy declination adjustment, turnbuckle elevation, powered by a Chaparral ballscrew linear actuator motor. "Milk stool" feedhorn support with 3 focal length adjustable legs.

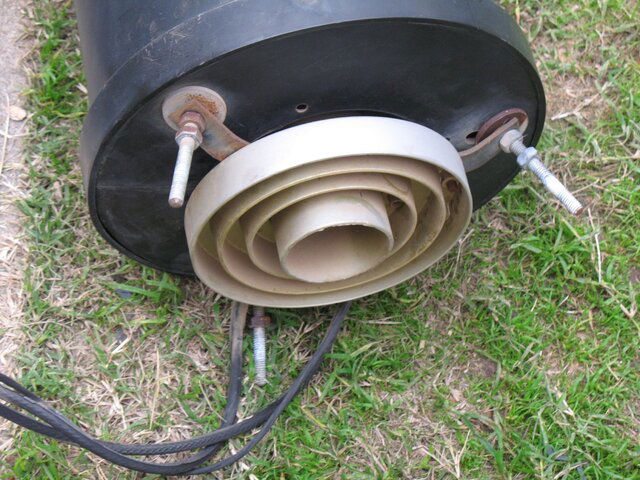

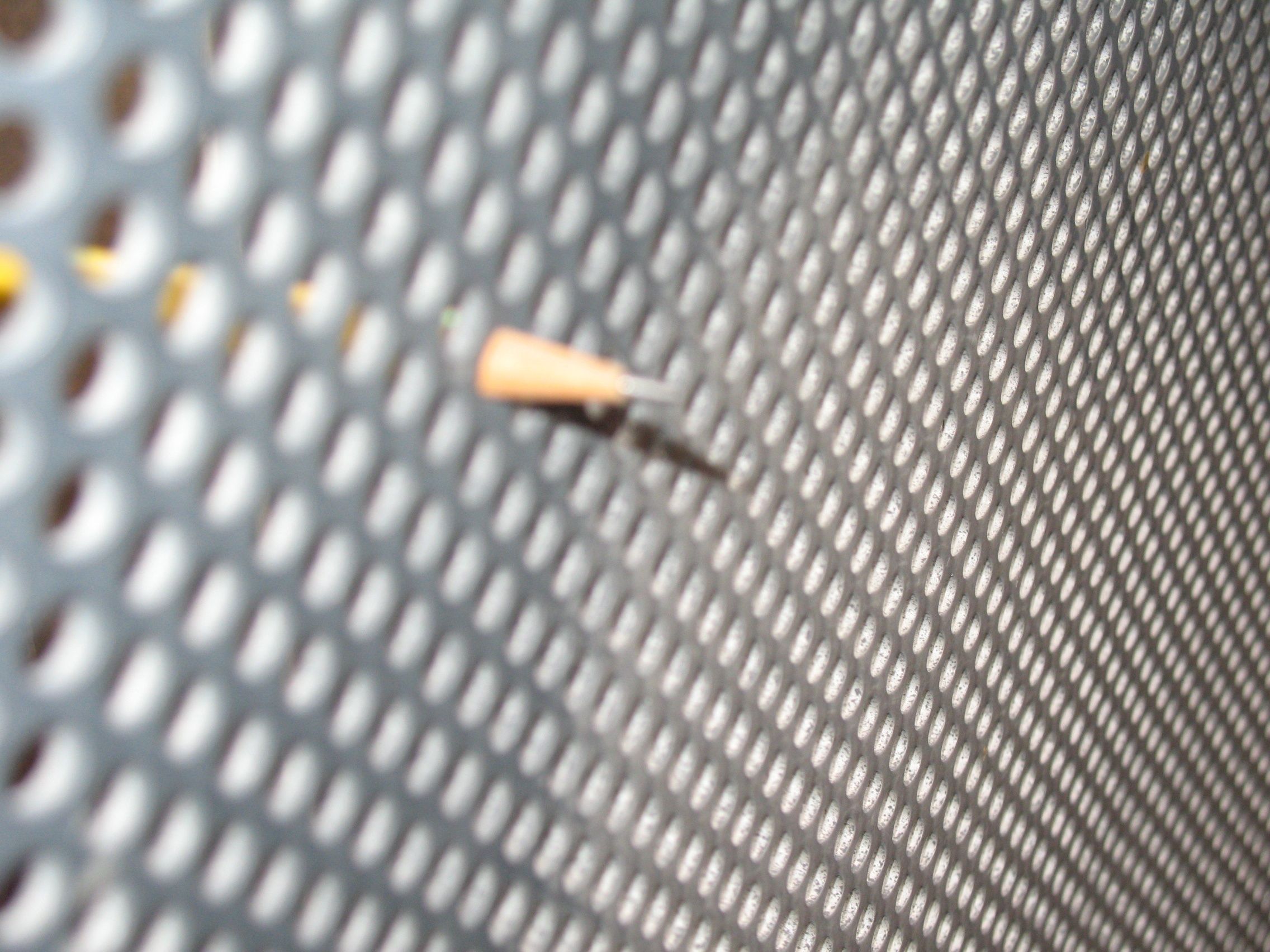

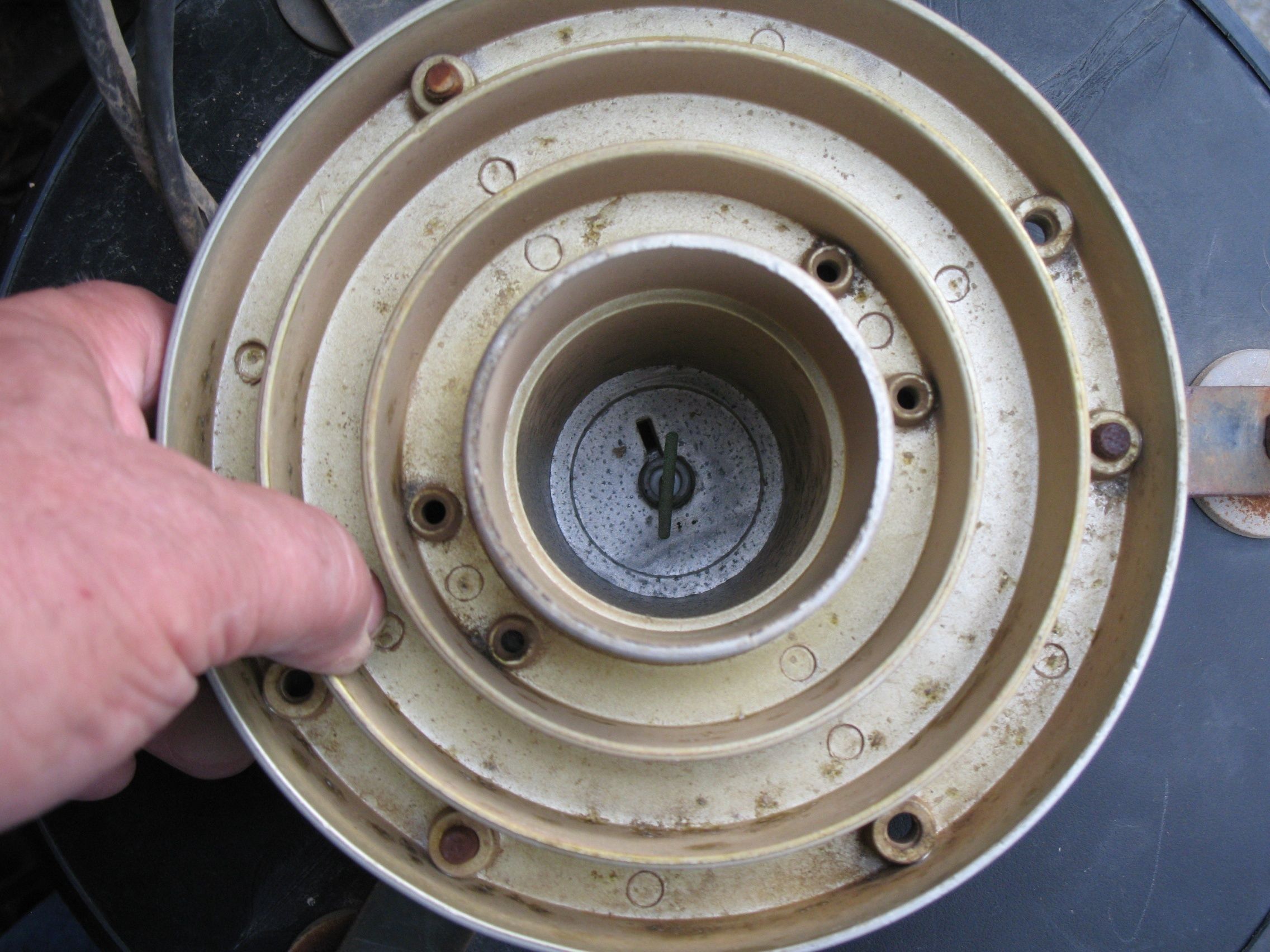

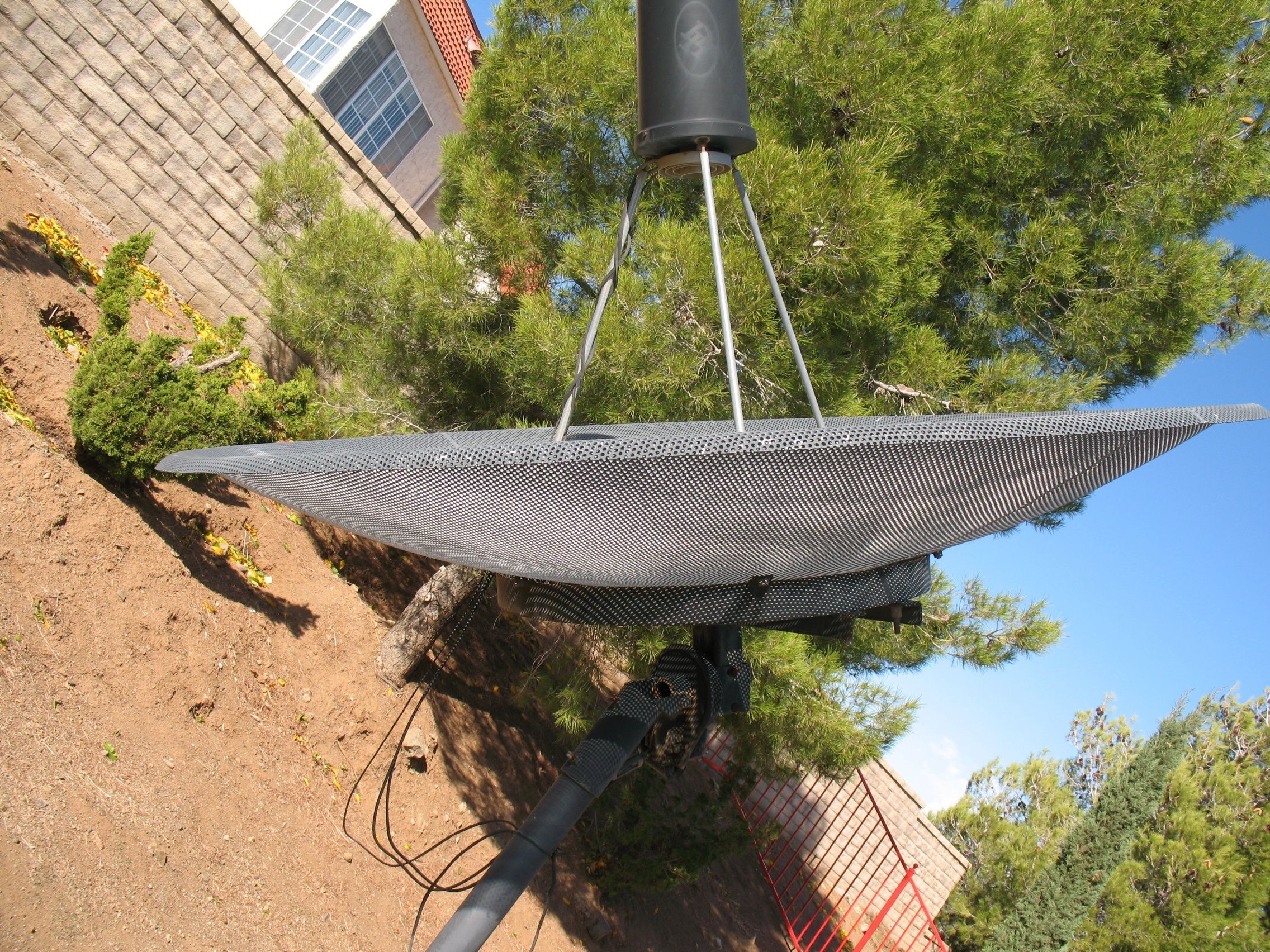

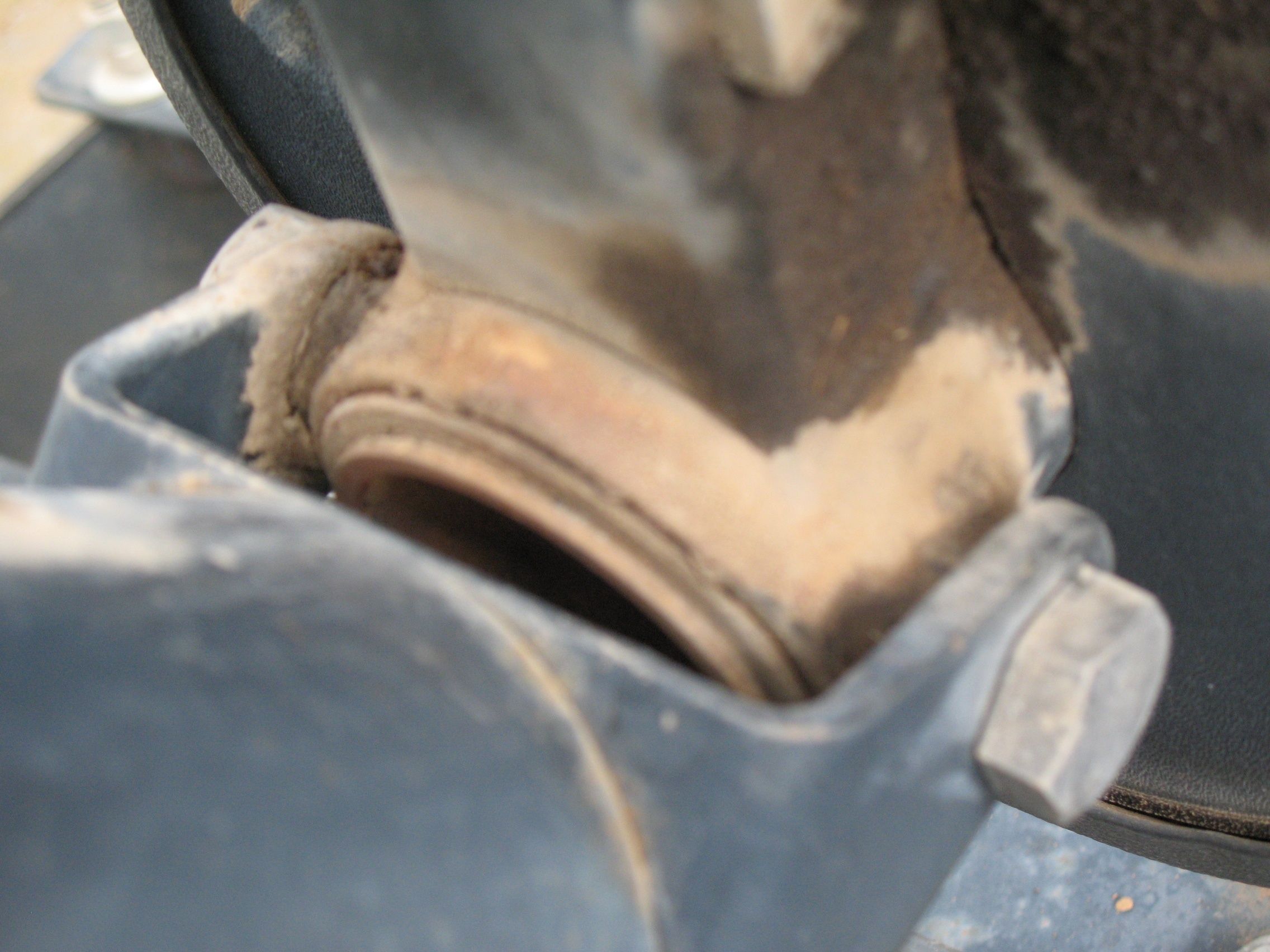

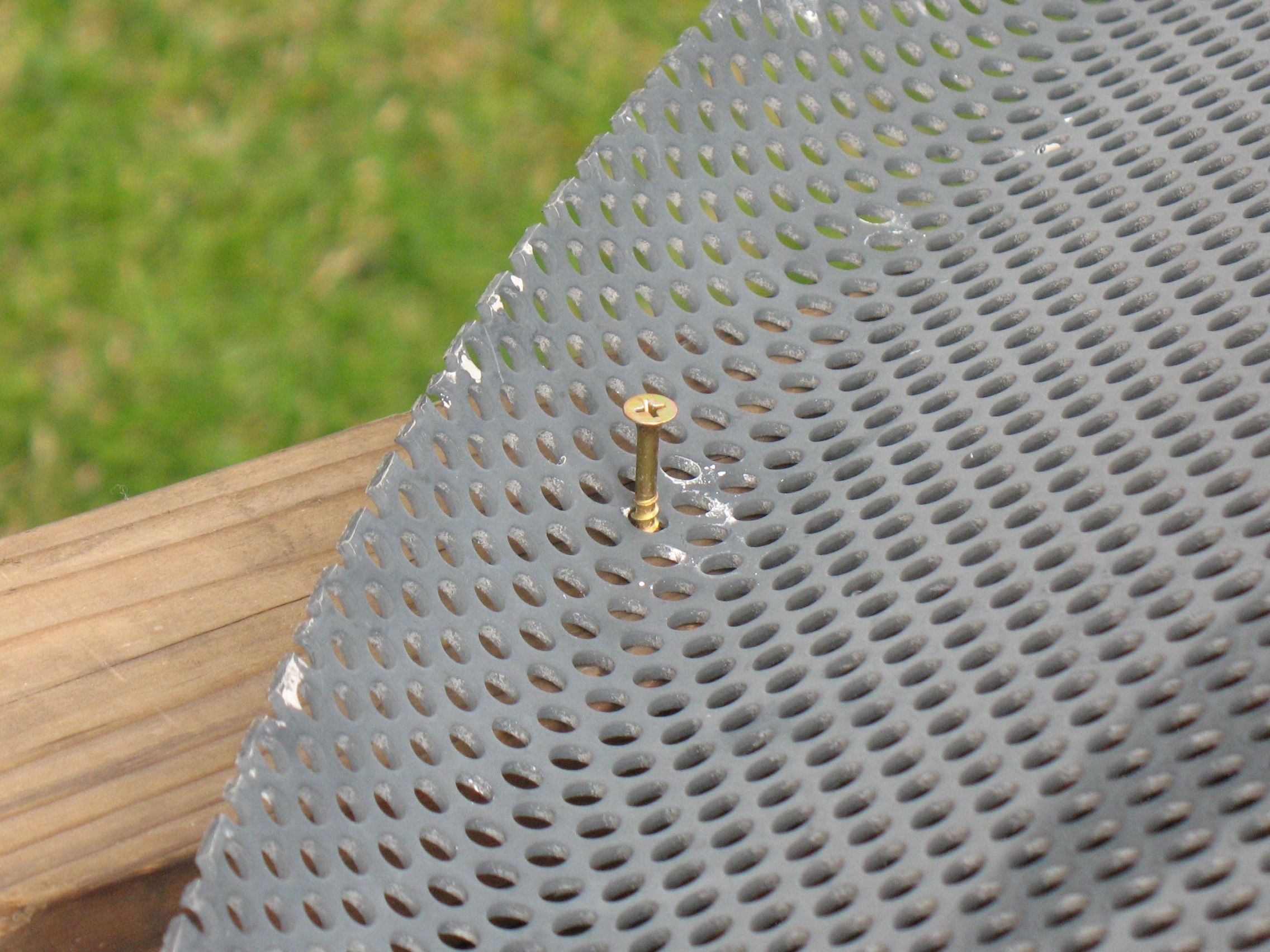

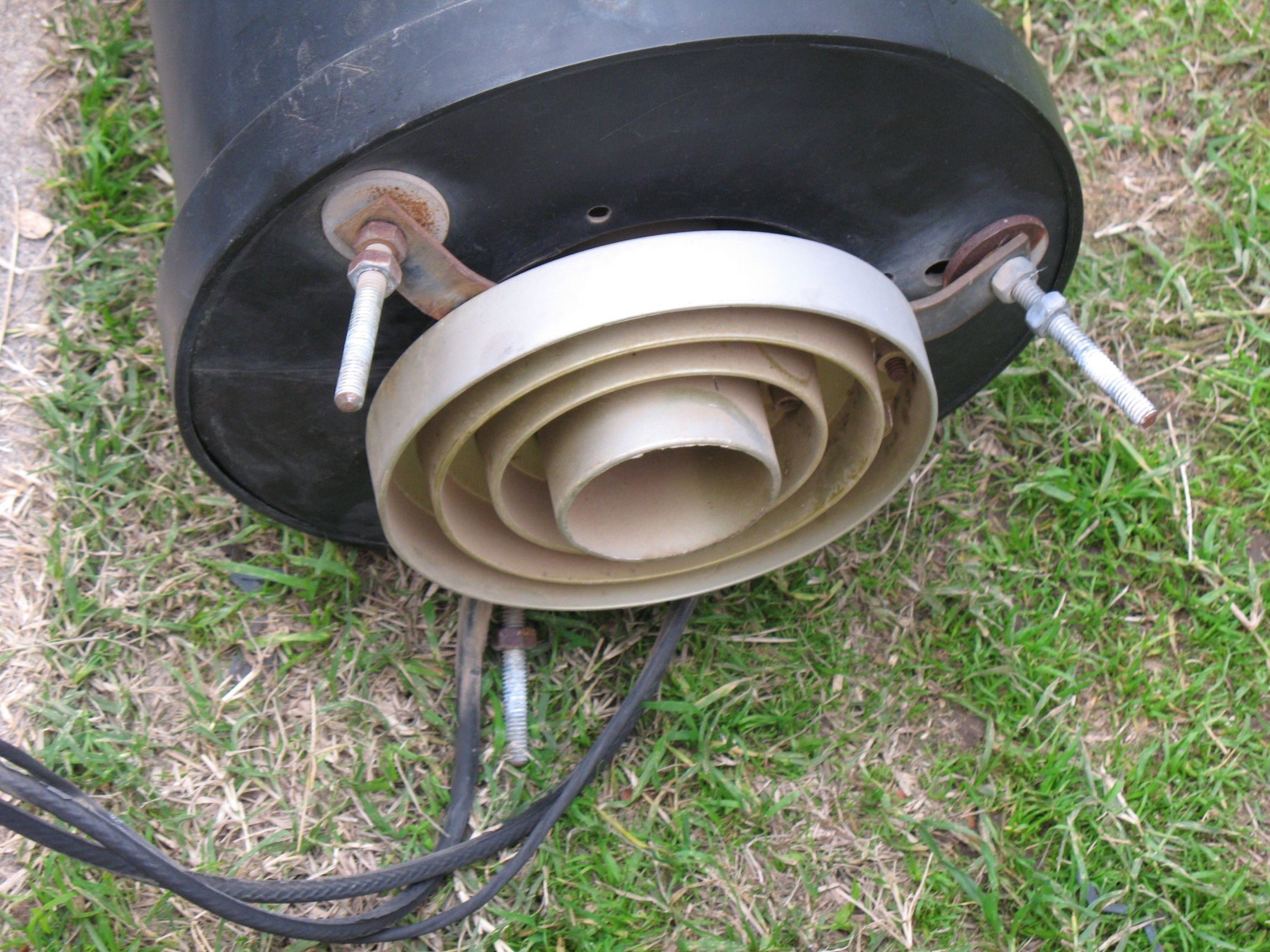

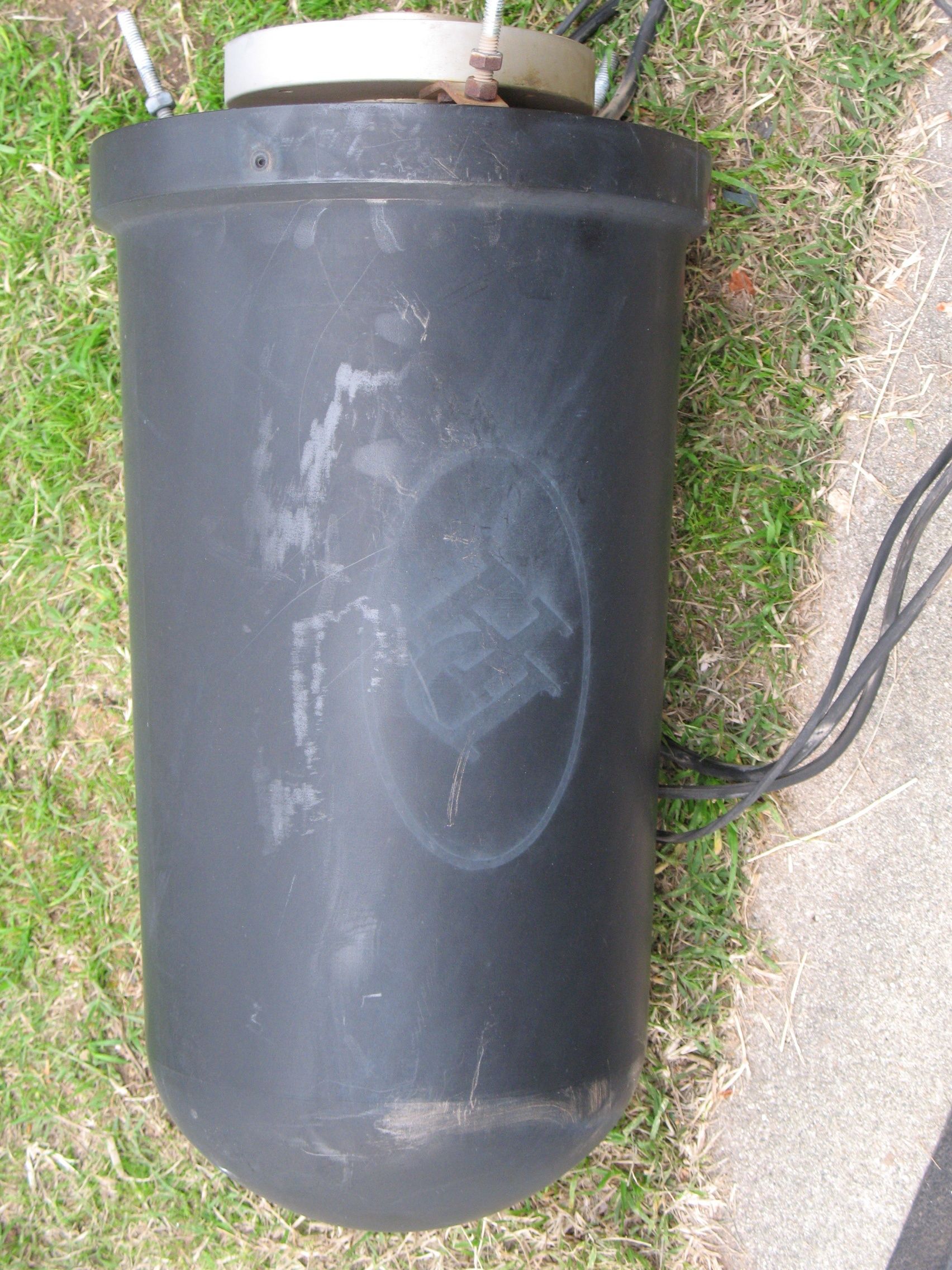

Feedhorn scalar still has the gold anodizing. Holes in the dish are almost pencil diameter so its its C-band only for this dish. This shallow dish has good gain according to the installer.
Focal length of 36" & f/D of 0.375. 90 inches from lip to lip(8 ft "nominal" diameter).

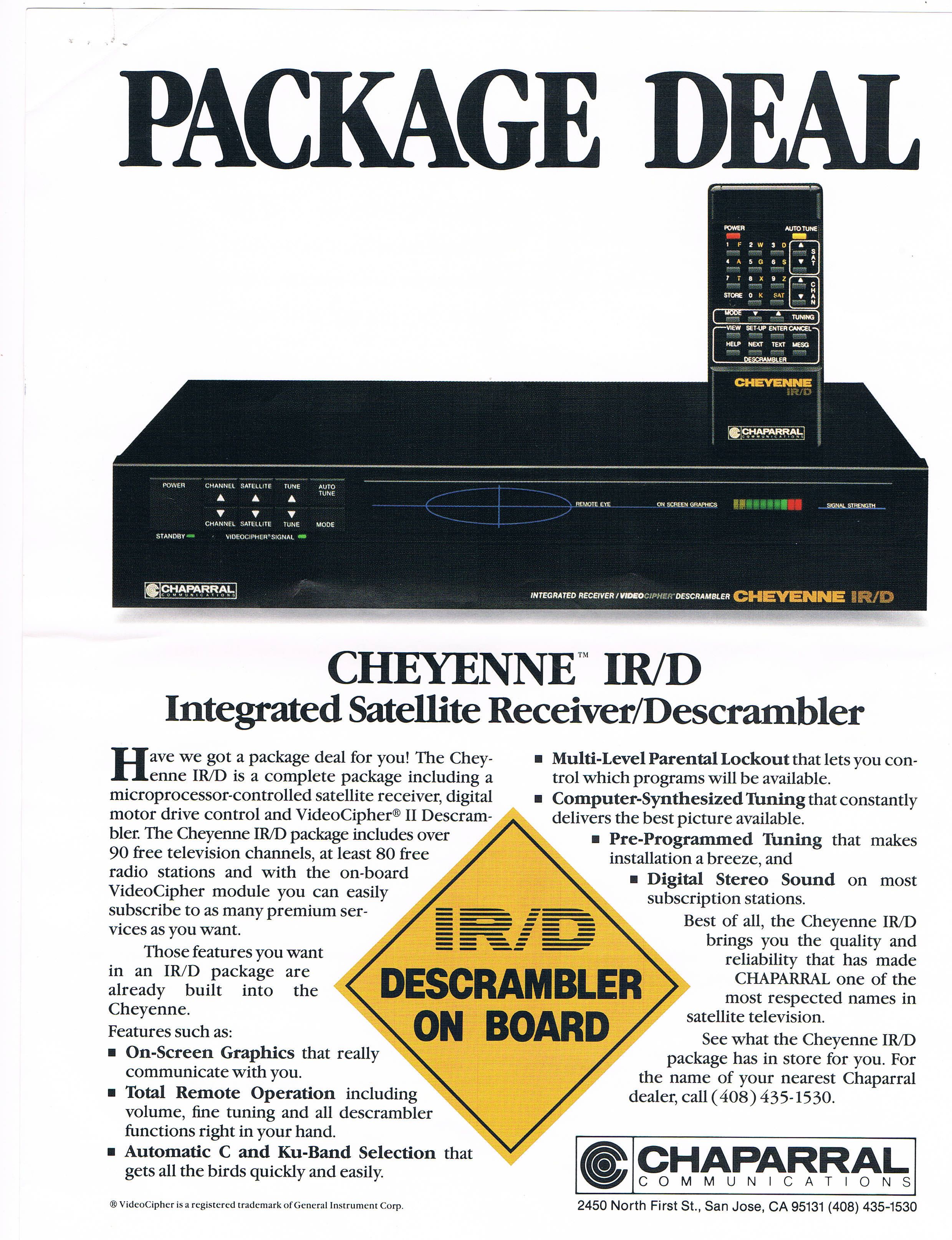

Though not worth much they included the Chaparral Cheyenne analog IRD, UHF remote & other goodies. Even the original sales brochures & manuals for DH & Chaparral were intact. I'll scan these to pdf & upload later on.

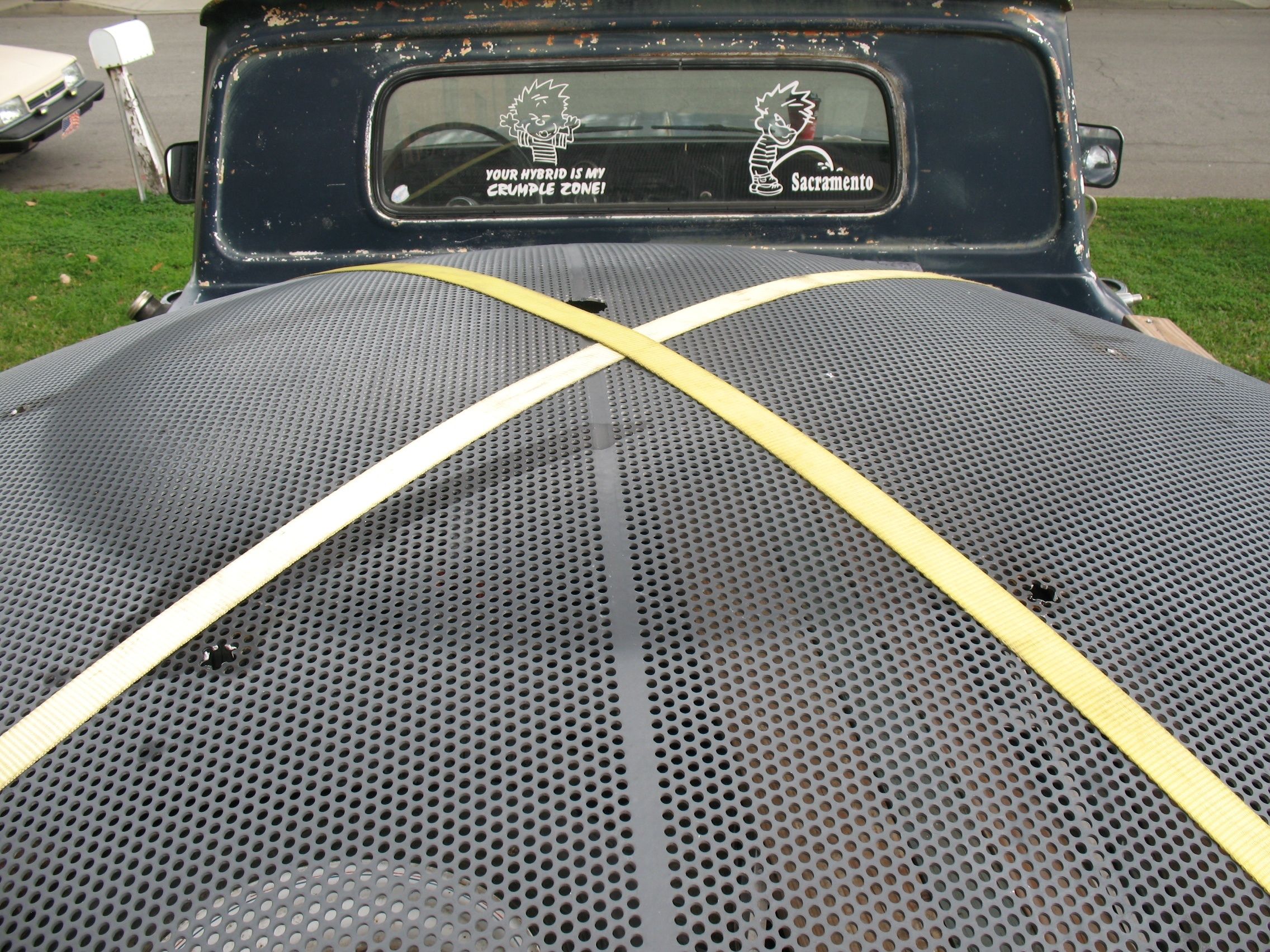

Anchored the dish to 2x4s mounted in the P/U stake holes with deck screws through holes at 4 places & cross-strapped the dish down - gently. Shipping pads at both ends of the bed to cushion the dish.

Lots of steaming gawks on the highways & freeways back home. ;)

Blessed desert climate.:)

But hey - its horizon to horizon.:D
This one should remind Anole of his find in the 2009 Adventures in dish hunting.;)


Attachments

  • 8ft DH perf removal 001.JPG
    8ft DH perf removal 001.JPG
    804.5 KB · Views: 216
  • 8ft DH perf removal 002.JPG
    8ft DH perf removal 002.JPG
    842.9 KB · Views: 196
  • 8ft DH w HtoH 009 (12).JPG
    8ft DH w HtoH 009 (12).JPG
    894.9 KB · Views: 182
  • 8ft DH w HtoH 009 (14).JPG
    8ft DH w HtoH 009 (14).JPG
    361.3 KB · Views: 174
  • 8ft DH w HtoH 009 (15).JPG
    8ft DH w HtoH 009 (15).JPG
    466.6 KB · Views: 164
  • 8ft DH w HtoH 009 (16).JPG
    8ft DH w HtoH 009 (16).JPG
    195.9 KB · Views: 162
  • 8ft DH perf removal 003.JPG
    8ft DH perf removal 003.JPG
    1 MB · Views: 163
  • 8ft DH perf removal 014.JPG
    8ft DH perf removal 014.JPG
    455.3 KB · Views: 165
  • 8ft DH perf removal 013.JPG
    8ft DH perf removal 013.JPG
    793.8 KB · Views: 163
  • 8ft DH perf removal 019.JPG
    8ft DH perf removal 019.JPG
    341.8 KB · Views: 205
  • 8ft DH perf removal 020.JPG
    8ft DH perf removal 020.JPG
    461.3 KB · Views: 157
  • 8ft DH perf removal 024.JPG
    8ft DH perf removal 024.JPG
    311.6 KB · Views: 148
  • 8ft DH perf removal 028.JPG
    8ft DH perf removal 028.JPG
    370 KB · Views: 150
  • 8ft DH perf removal 029.JPG
    8ft DH perf removal 029.JPG
    350.9 KB · Views: 166
  • 8ft DH perf removal 030.JPG
    8ft DH perf removal 030.JPG
    335.7 KB · Views: 159
  • 8ft DH perf removal 031.JPG
    8ft DH perf removal 031.JPG
    316.7 KB · Views: 163
  • 8ft DH perf removal 033.JPG
    8ft DH perf removal 033.JPG
    428.1 KB · Views: 159
  • 8ft DH perf removal 034.JPG
    8ft DH perf removal 034.JPG
    557.6 KB · Views: 196
  • 8ft DH perf removal 036.JPG
    8ft DH perf removal 036.JPG
    418.8 KB · Views: 164
  • 8ft DH perf removal 048.JPG
    8ft DH perf removal 048.JPG
    425.3 KB · Views: 169
  • 8ft DH perf removal 050.JPG
    8ft DH perf removal 050.JPG
    585.3 KB · Views: 168
  • 8ft DH perf removal 051.JPG
    8ft DH perf removal 051.JPG
    554.2 KB · Views: 144
  • 8ft DH perf removal 055.JPG
    8ft DH perf removal 055.JPG
    388.1 KB · Views: 157
Last edited:

Anole

SatelliteGuys Master
Sep 22, 2005
11,819
10
L.A., Calif.
twins?

Well, isn't that special . . . ? - ;)

I've seen pictures of dishes like this before, but none had the DH nor AMCI name attributed to them.
Some were reported to be 10' in size, but you never know (people do make mistakes).

I'm thinking maybe back in the day, real dish makers like DH, OEM'd bare dishes out to anyone who wanted a good one.
Then, companies like AMCI tricked it out to suit themselves and sold under their own name.
My dish is eerily identical, with the 8' size, the weld across the middle, and that rolled-over rim.

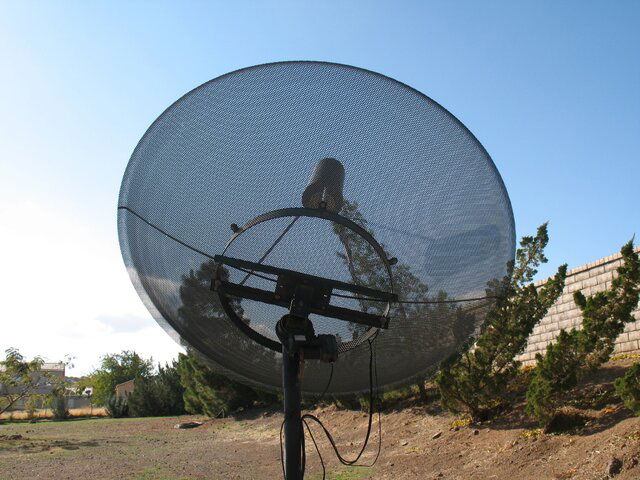

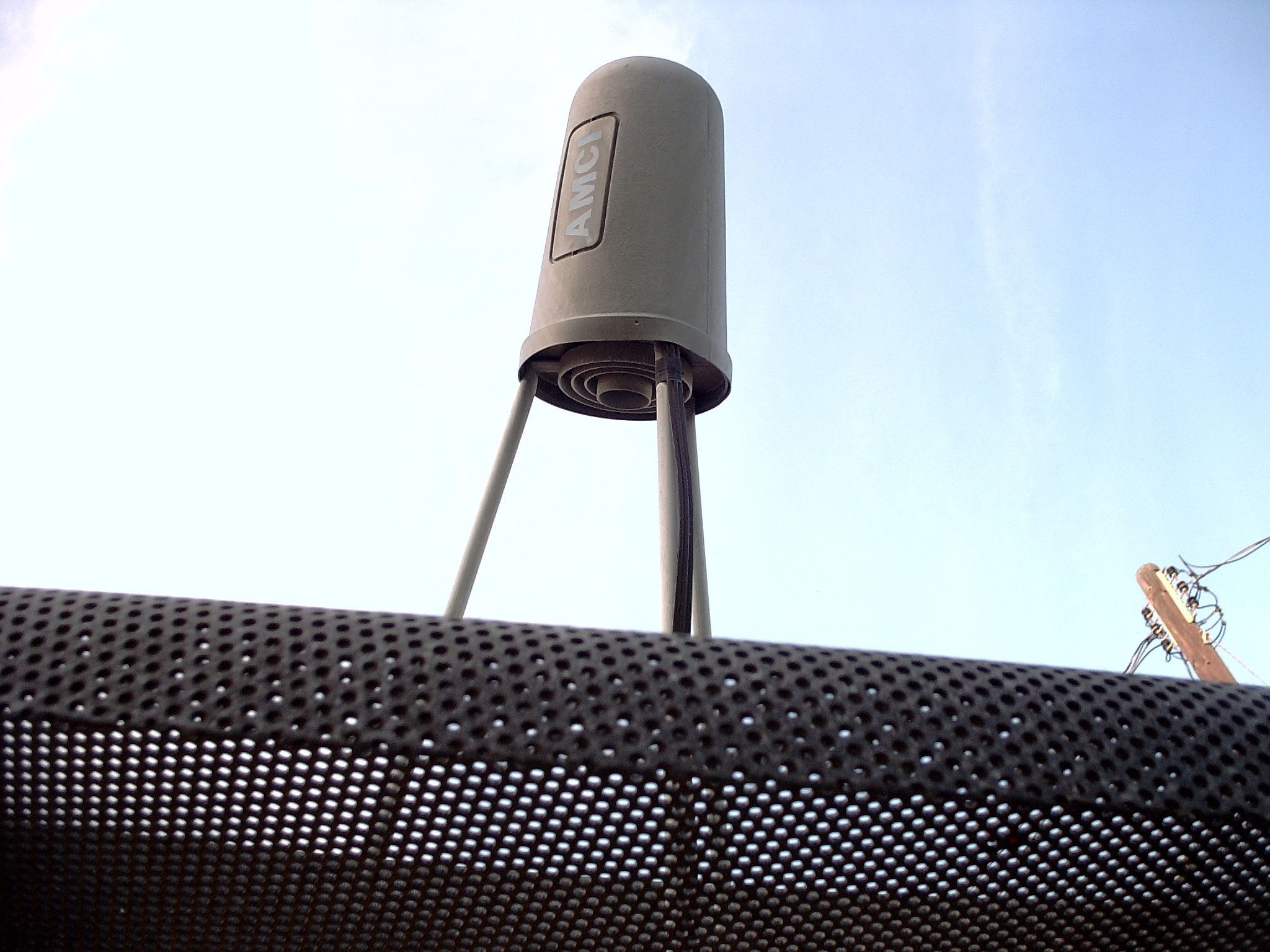

Even the shape of the LNB cover hints at similar DNA.
Frankly, the info I have on the perforated Birdview makes me wonder, too. ;)

Yes, please do scan any related documents you find.
Ya may have found the missing link (a secret all the installers of the day knew), that we've overlooked! - :up


Attachments

  • 06-PICT4446.JPG
    330.2 KB · Views: 83
Last edited:

brex2001

Thread Starter
SatelliteGuys Pro
Jul 14, 2009
642
2
USA
Thanks guys!

My 'almost a perf Birdview' dish.:rolleyes::D

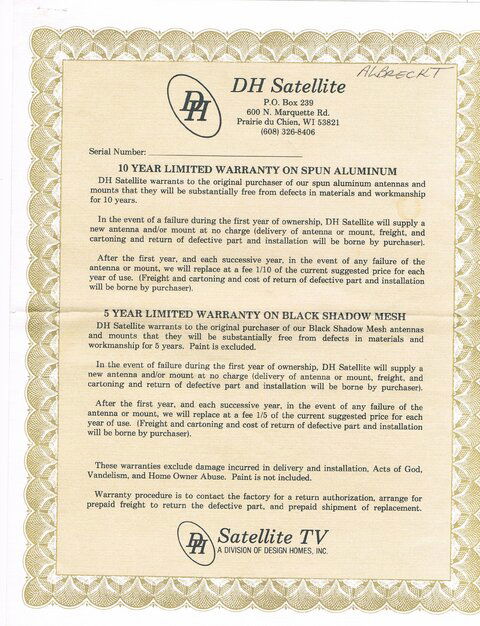

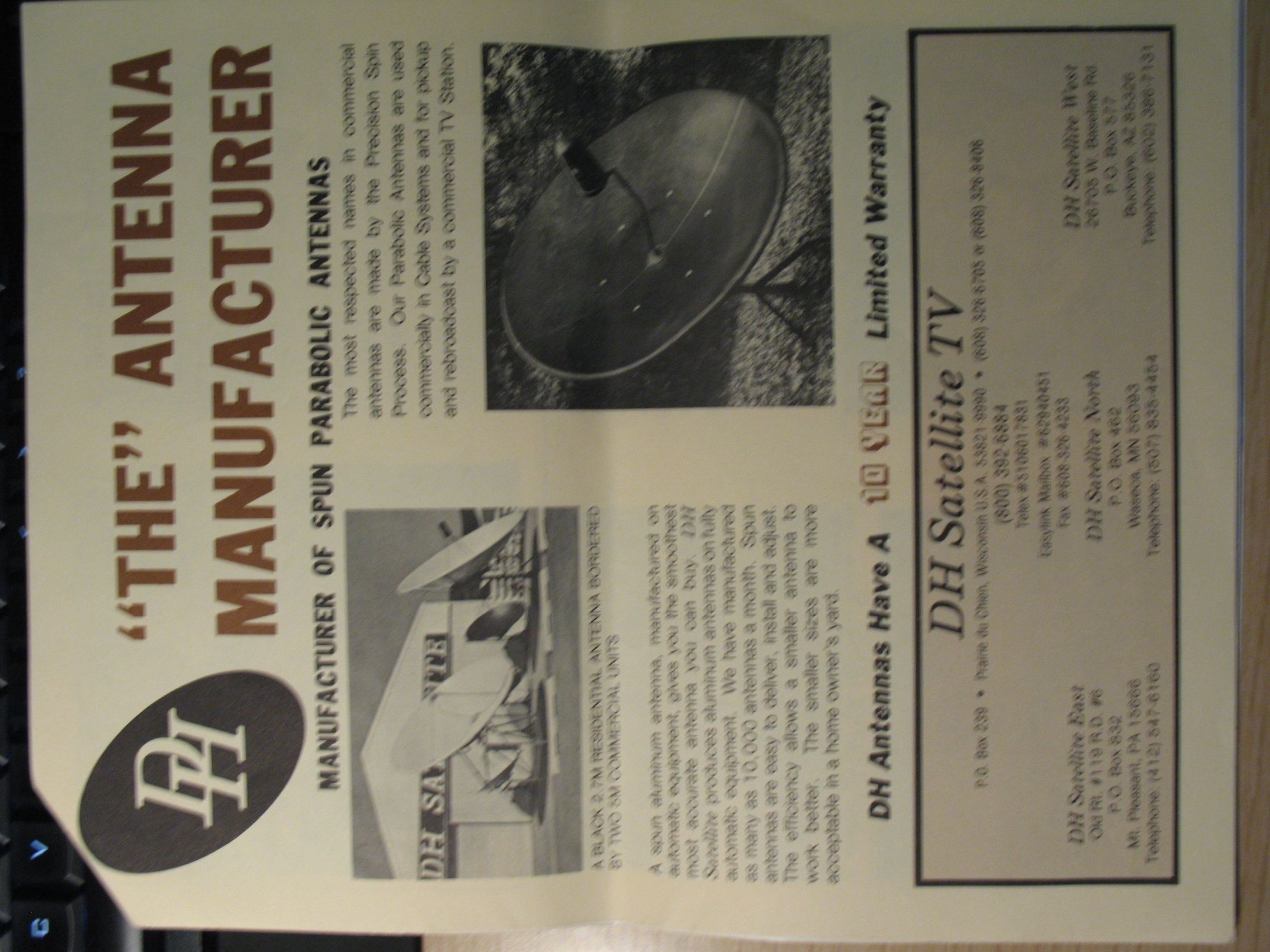

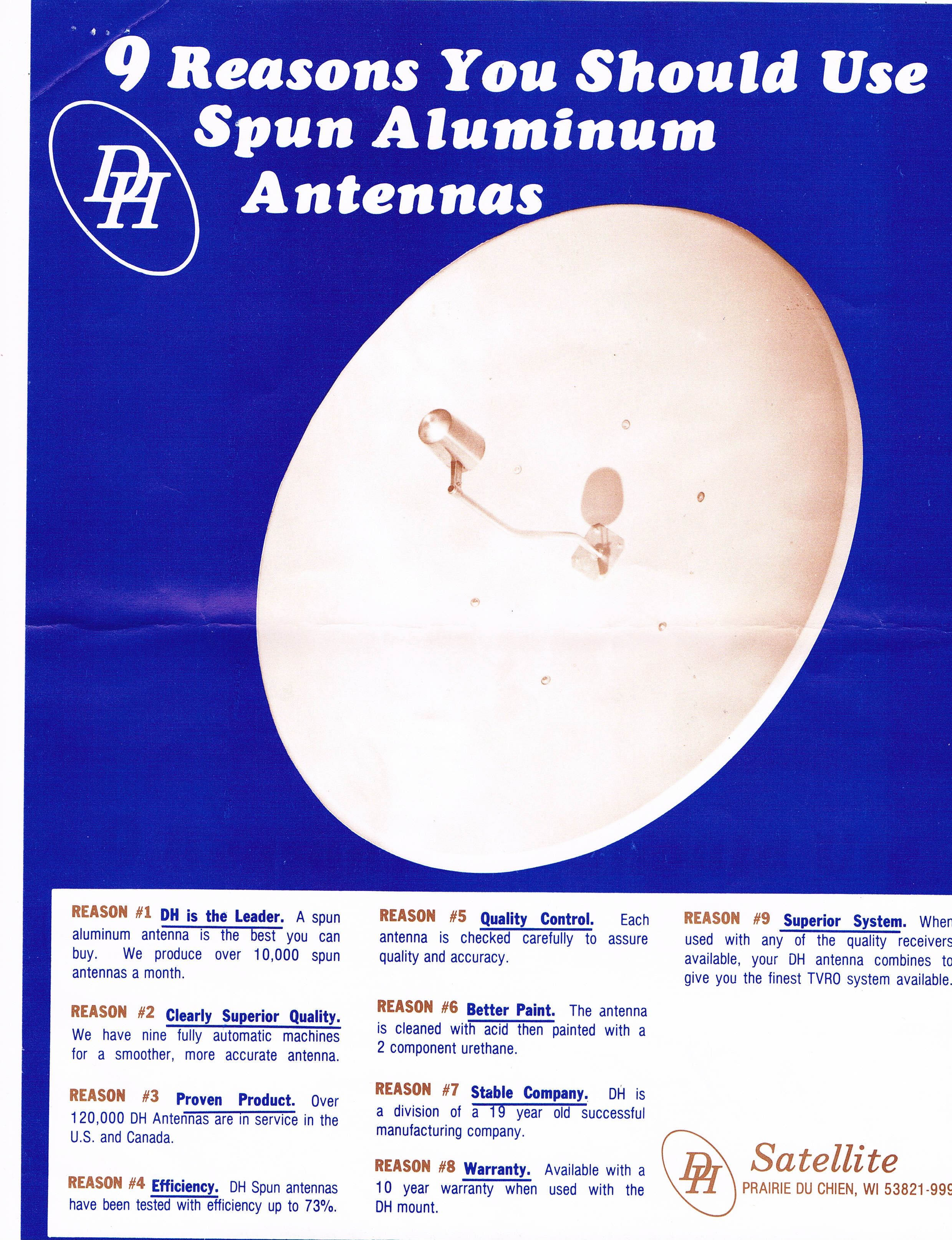

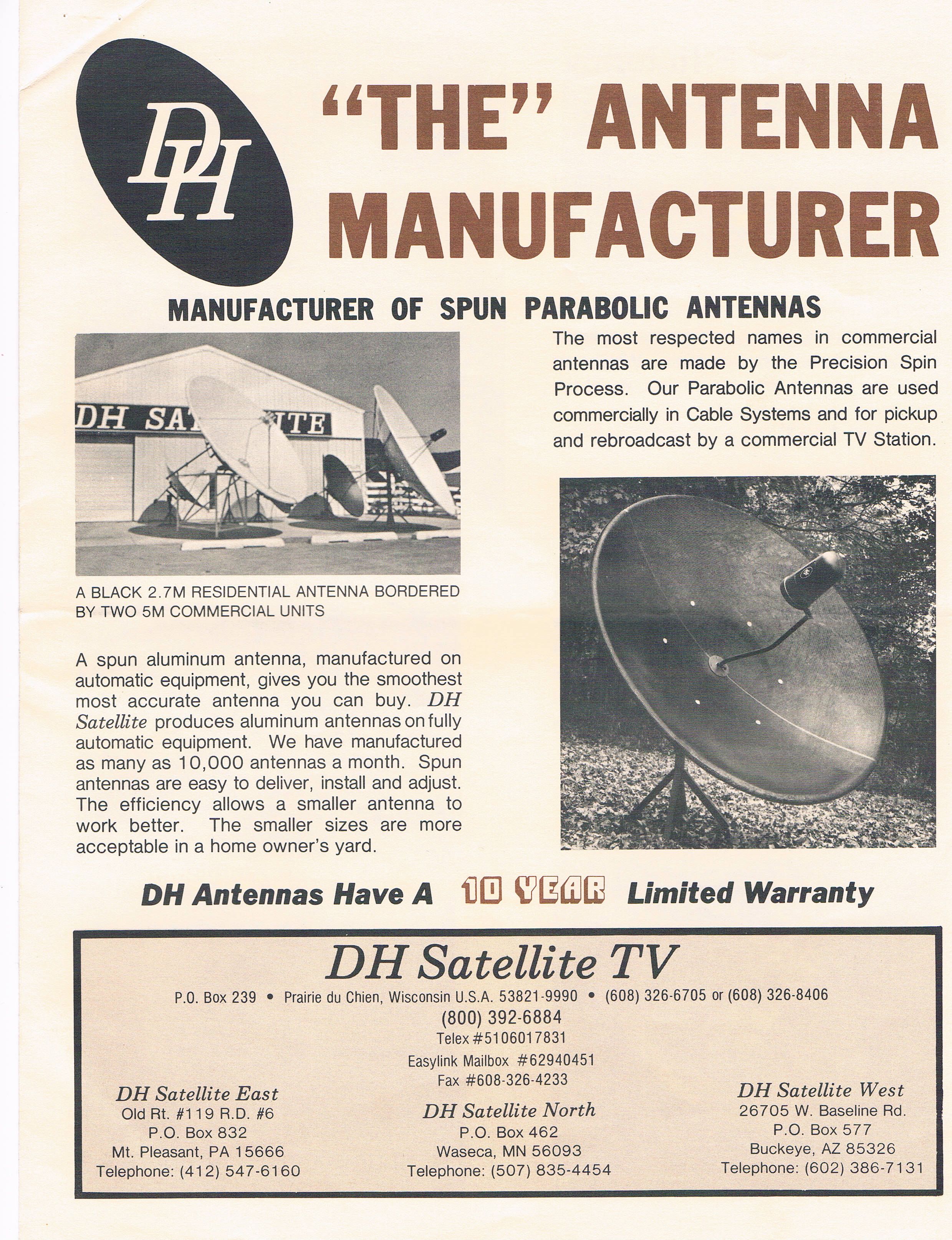

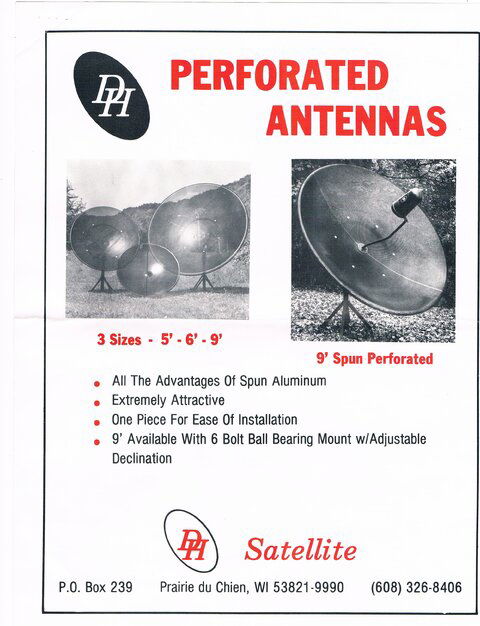

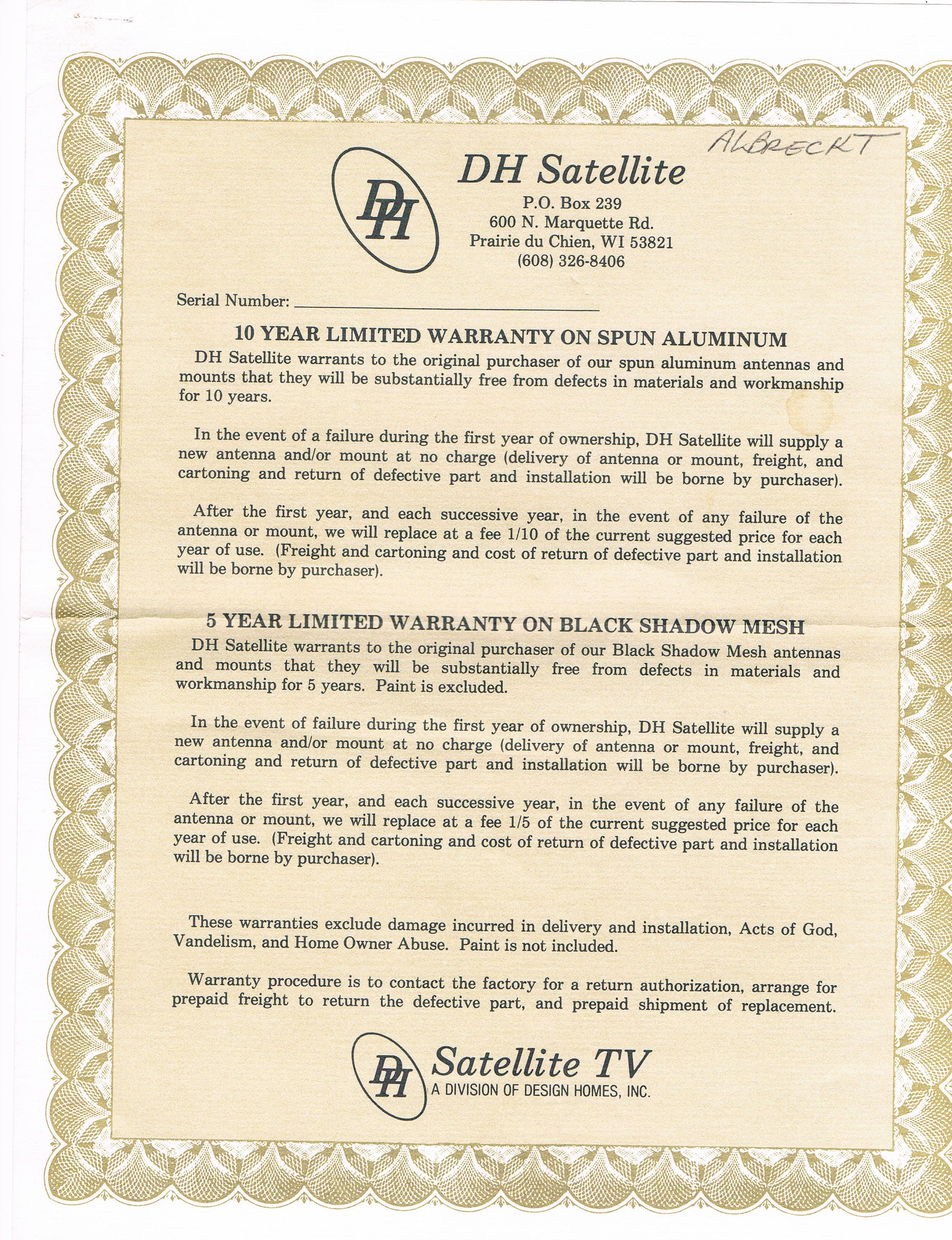

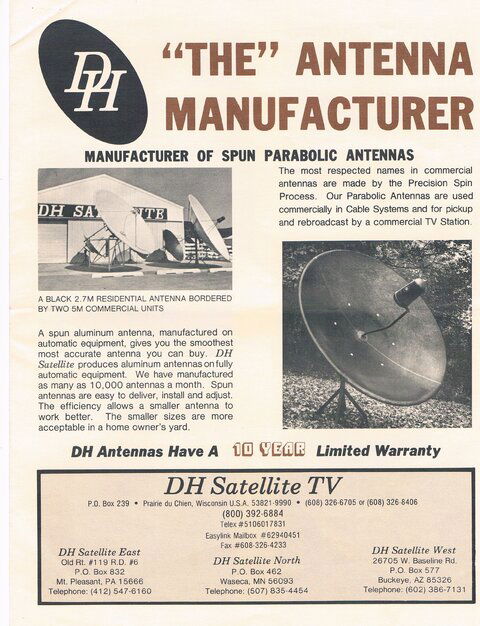

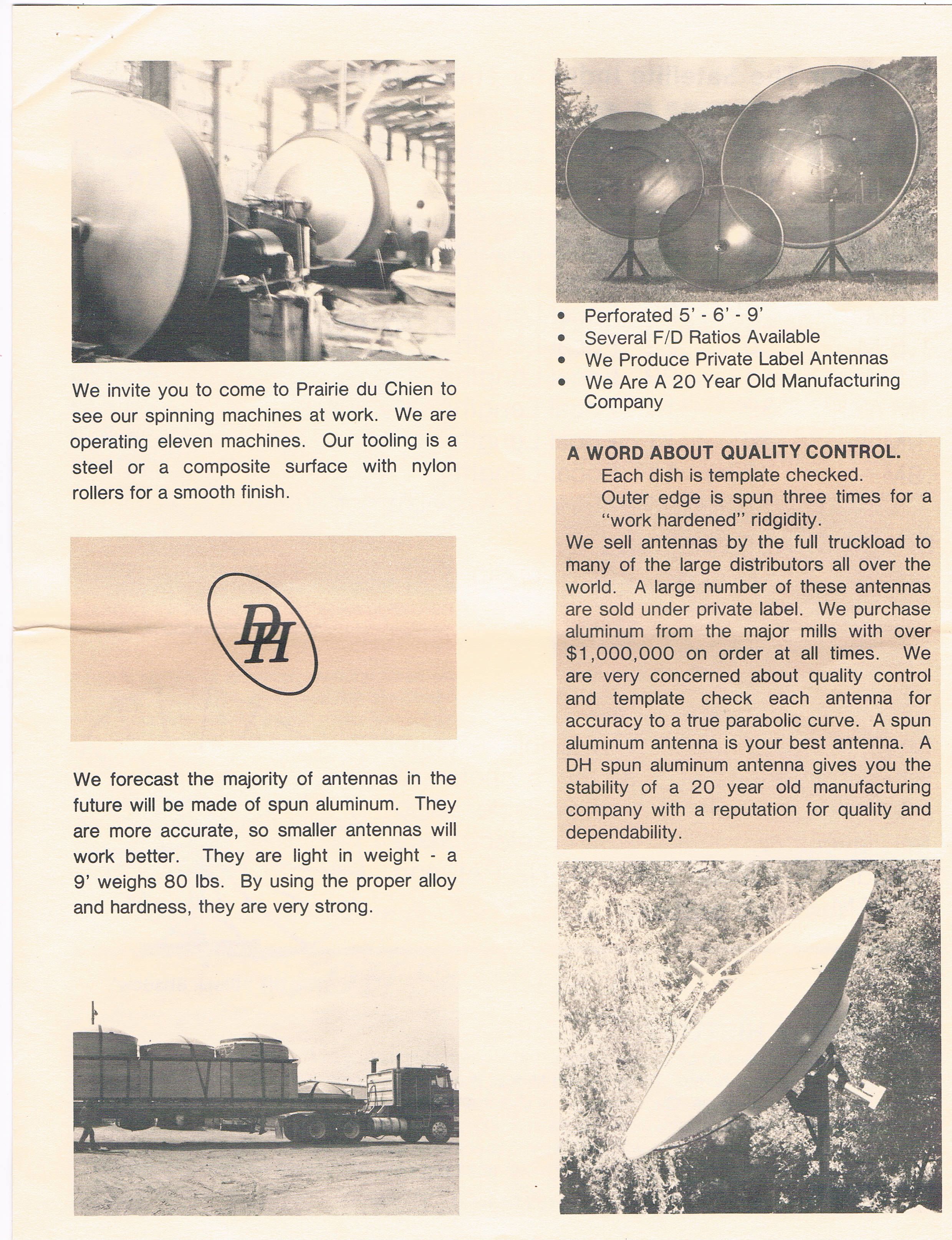

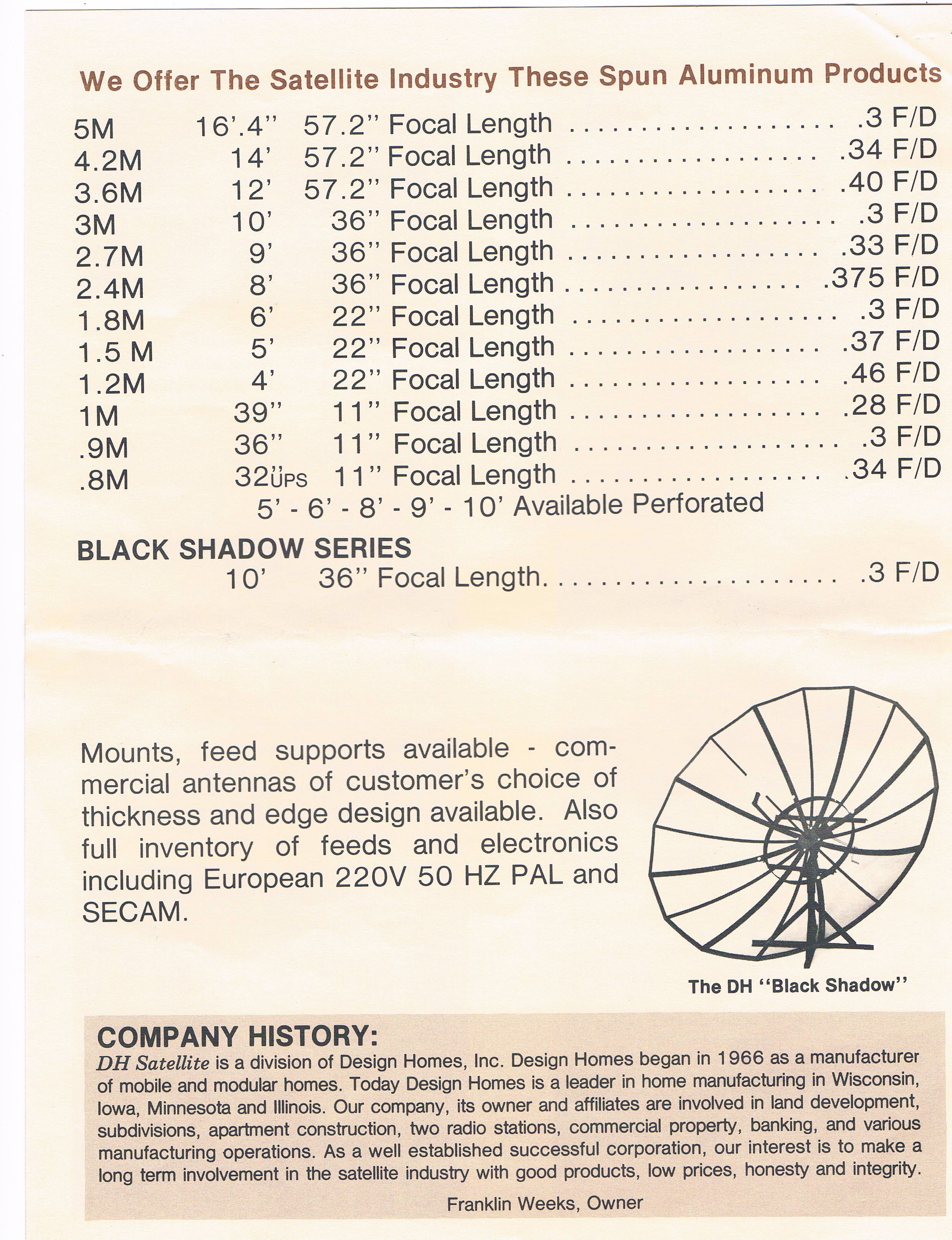

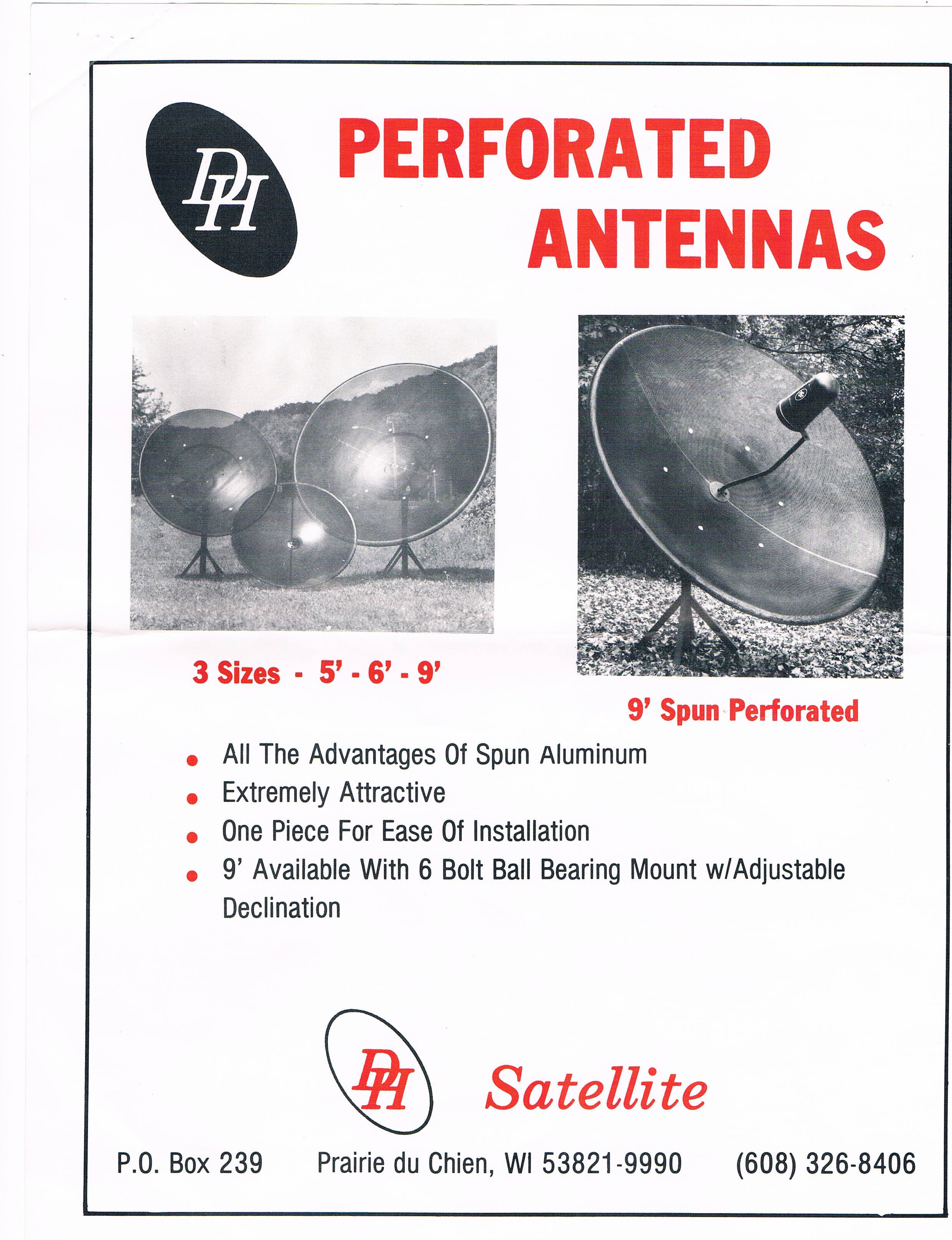

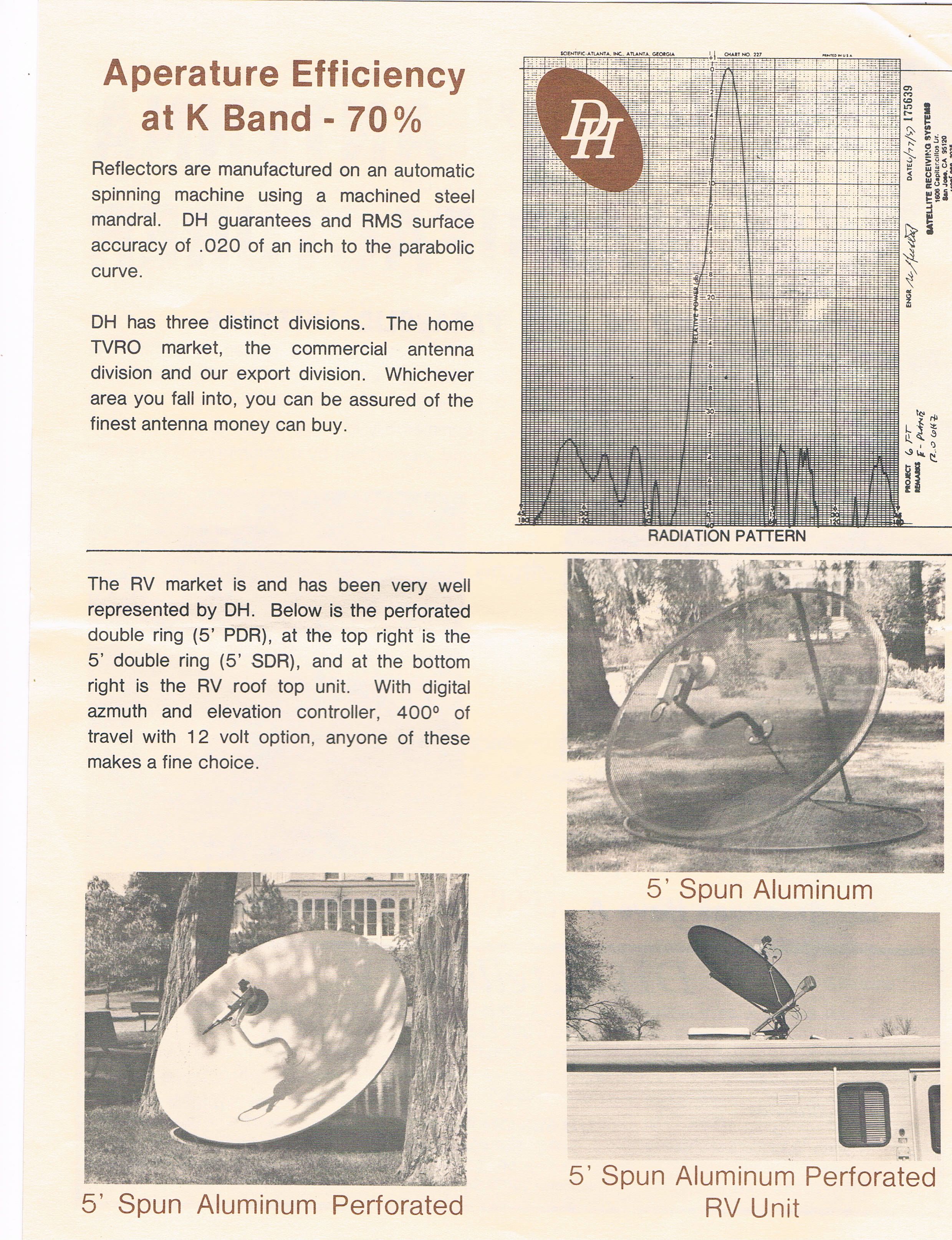

Here's some brochures for DH.

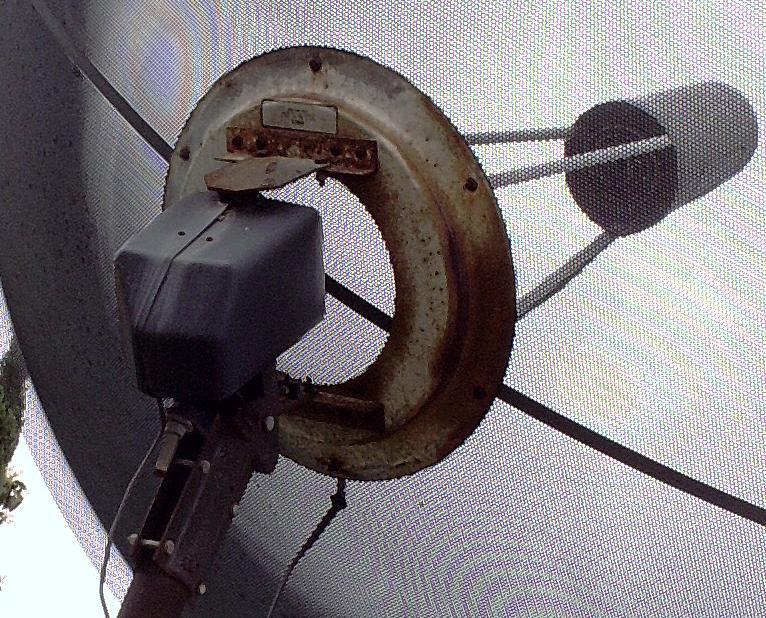

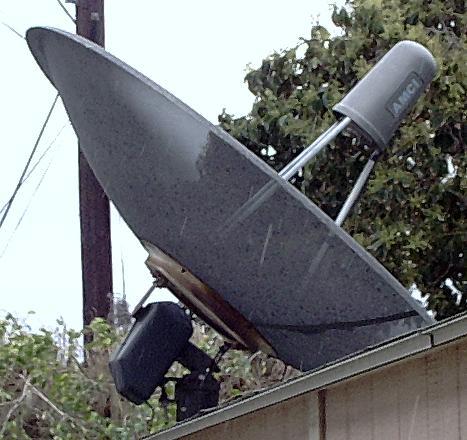

Added 2 pics Anole posted in the 2009 "Adventures in Dish Hunting" thread of a DH(?) with a Ajak H to H mount.
