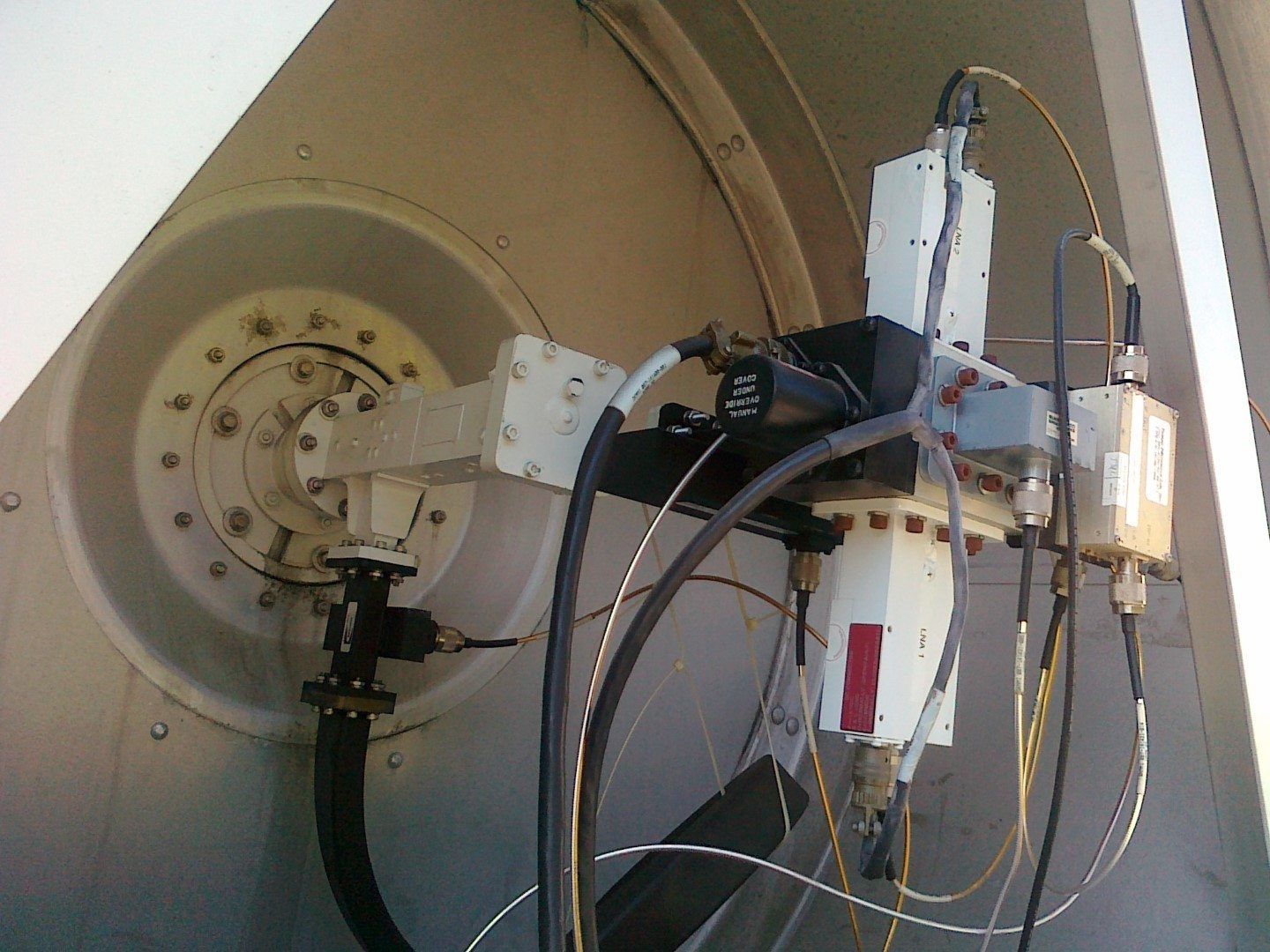

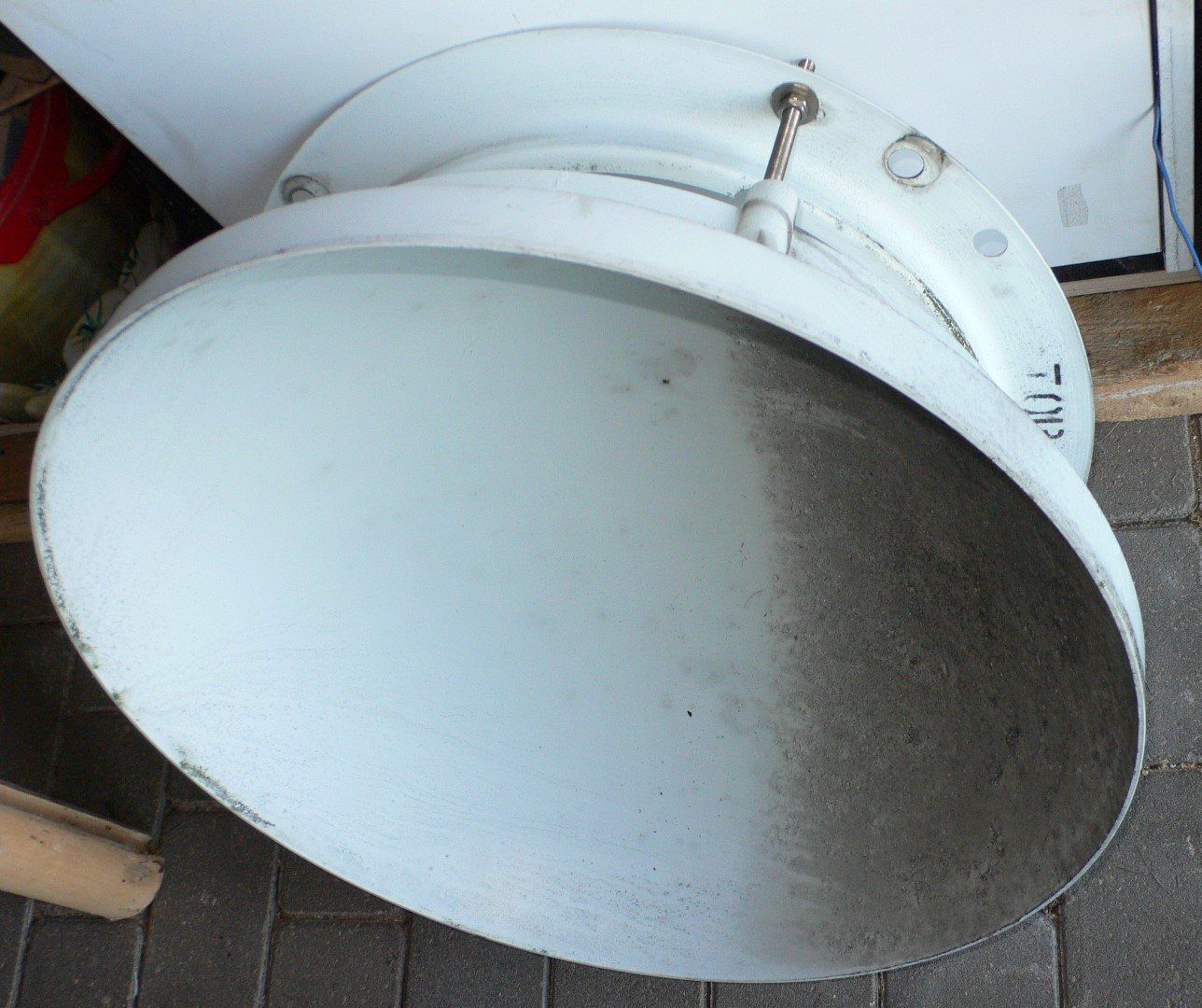

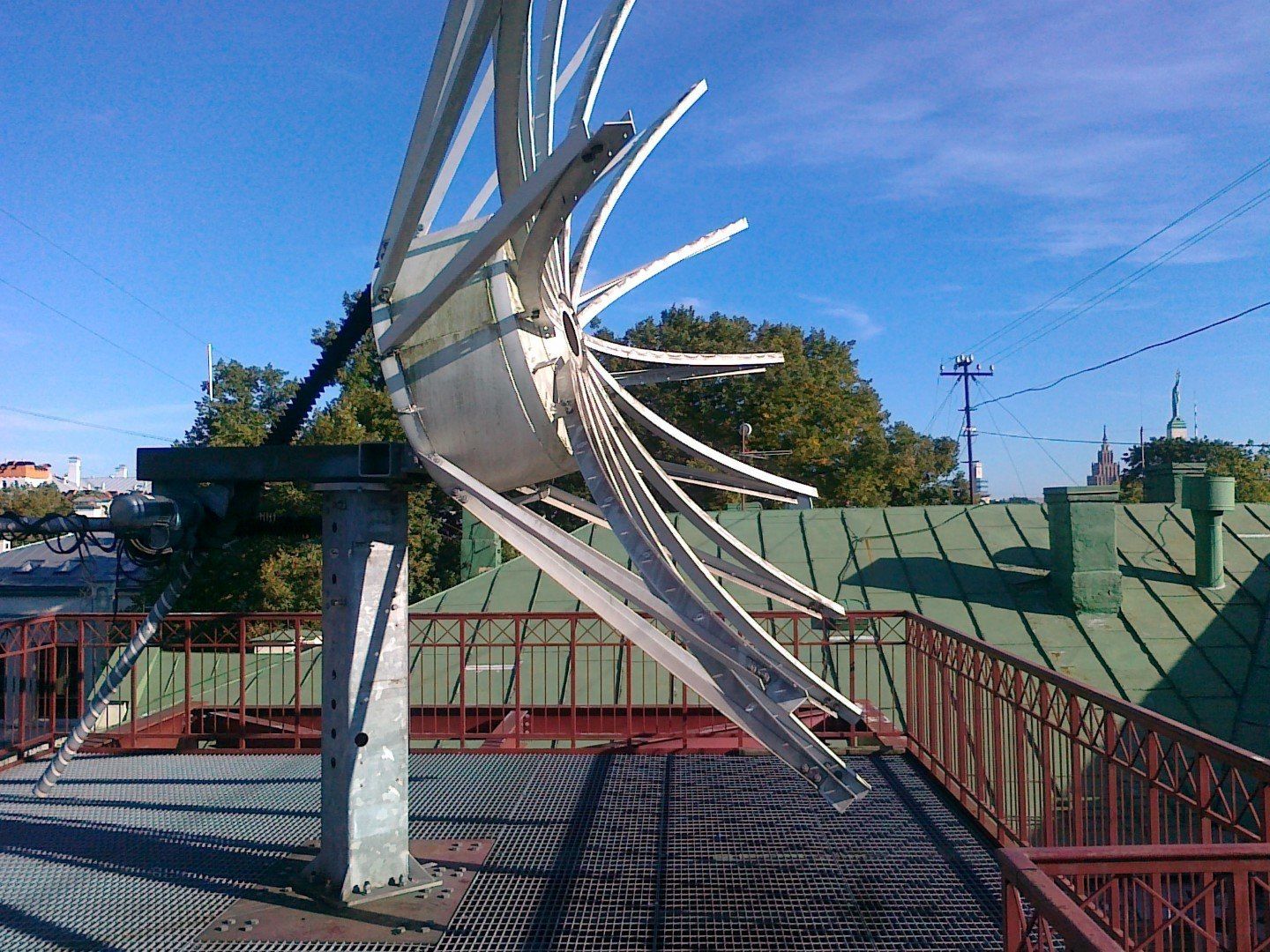

Hi! I've got title antenna and from yesterday half of it (mirror, heaters, cables, metal boxes etc.) already in my garage. But still have some heavy parts left on the roof at the old location place. It's location is such that crane can not be used, every part is lowered down about 10 meters on the ropes. My question is: How heavy is big galvanized part (pole itself)? There are some pictures from yesterday's work.


Attachments

  • 61cmReflector.JPG
    202.7 KB · Views: 818
  • 08092013995 (Large).jpg
    08092013995 (Large).jpg
    225.9 KB · Views: 782
  • 080920131002 (Large).jpg
    080920131002 (Large).jpg
    351.3 KB · Views: 816
Pixl

Pixl

Senior Member
Pub Member / Supporter
Feb 27, 2010
1,902
66
Traverse City, Michigan
Curious as to where you took the pictures. Your location is listed as Latvia, but it looks like the Statue of Liberty in the background.



RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga
You have yours statue of Liberty we have ours monument of Freedom. This is Latvia, Riga _http://en.wikipedia.org/wiki/Freedom_Monument

toucan-man

toucan-man

SatelliteGuys Pro
Jul 13, 2008
2,690
25
Wisconsin
I like that statue ! And I like that dish ! Let us know how you get it down !

RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga
Let us know how you get it down !

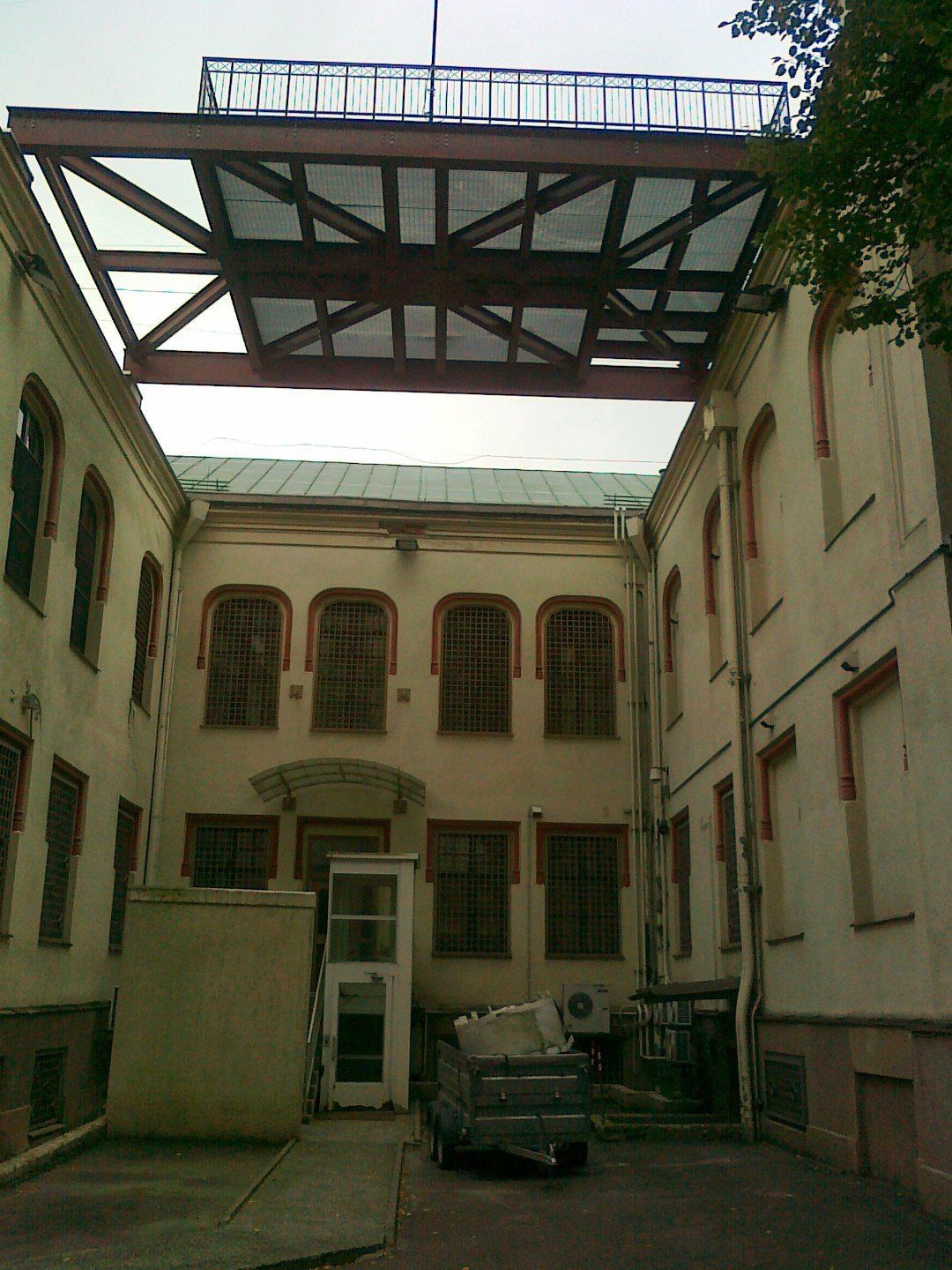

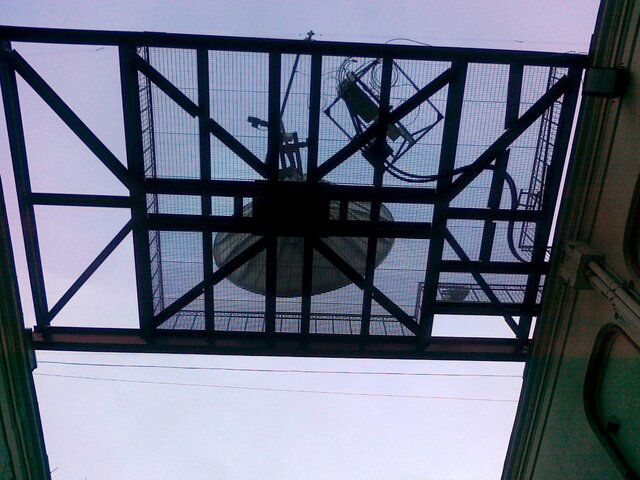

You bet. And this is view from ground, took this picture last winter. I can go under this platform only by car with trailer.


Attachments

  • 05022013420 (Large).jpg
    05022013420 (Large).jpg
    271.2 KB · Views: 489
Pixl

Pixl

Senior Member
Pub Member / Supporter
Feb 27, 2010
1,902
66
Traverse City, Michigan
You have yours statue of Liberty we have ours monument of Freedom. This is Latvia, Riga _http://en.wikipedia.org/wiki/Freedom_Monument


Very nice statue, not the same when you see it up close from your link.



Nice dish too. Hope to see more pictures of you taking it down, and more important when you get it back up!

RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga

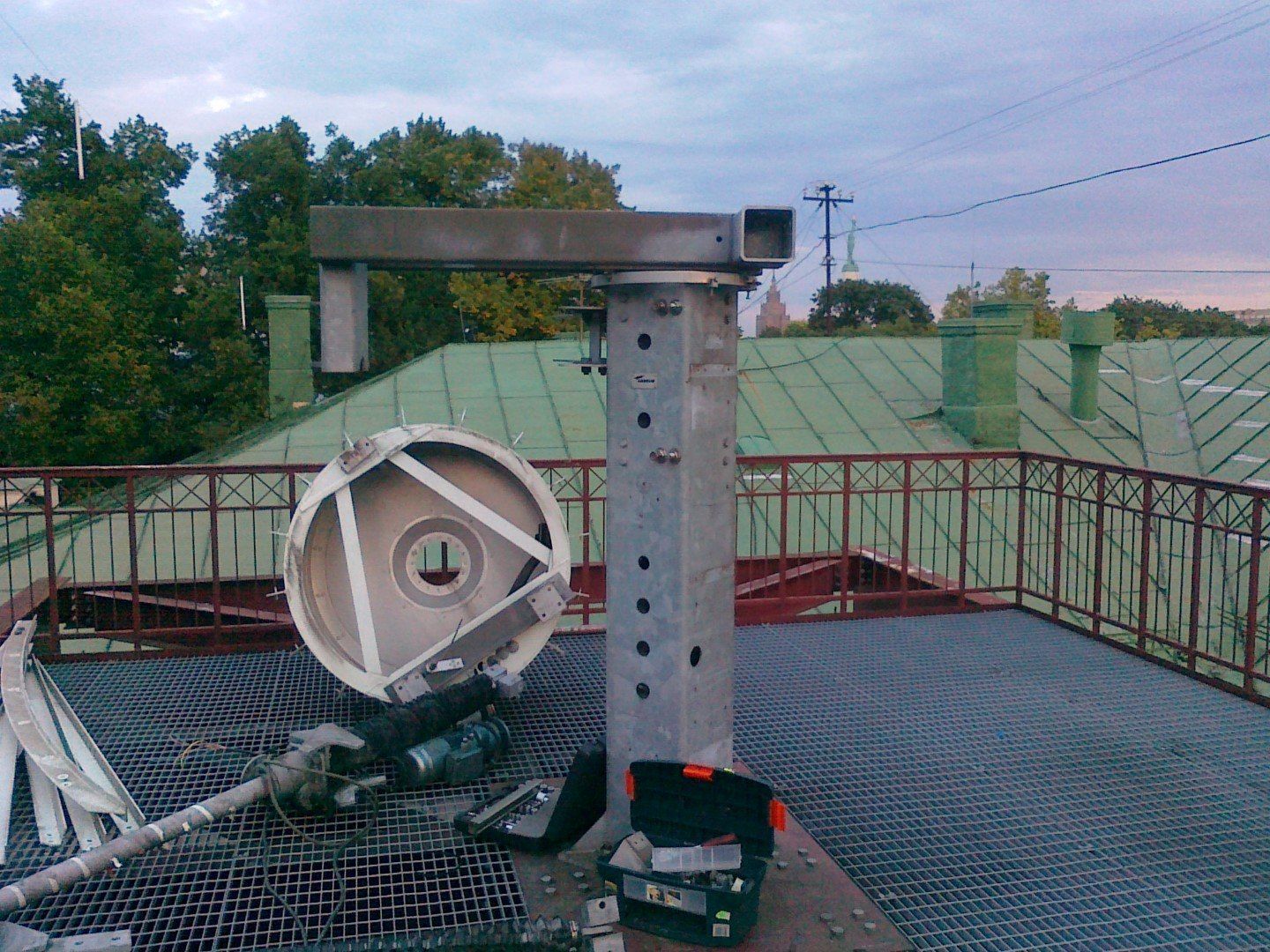

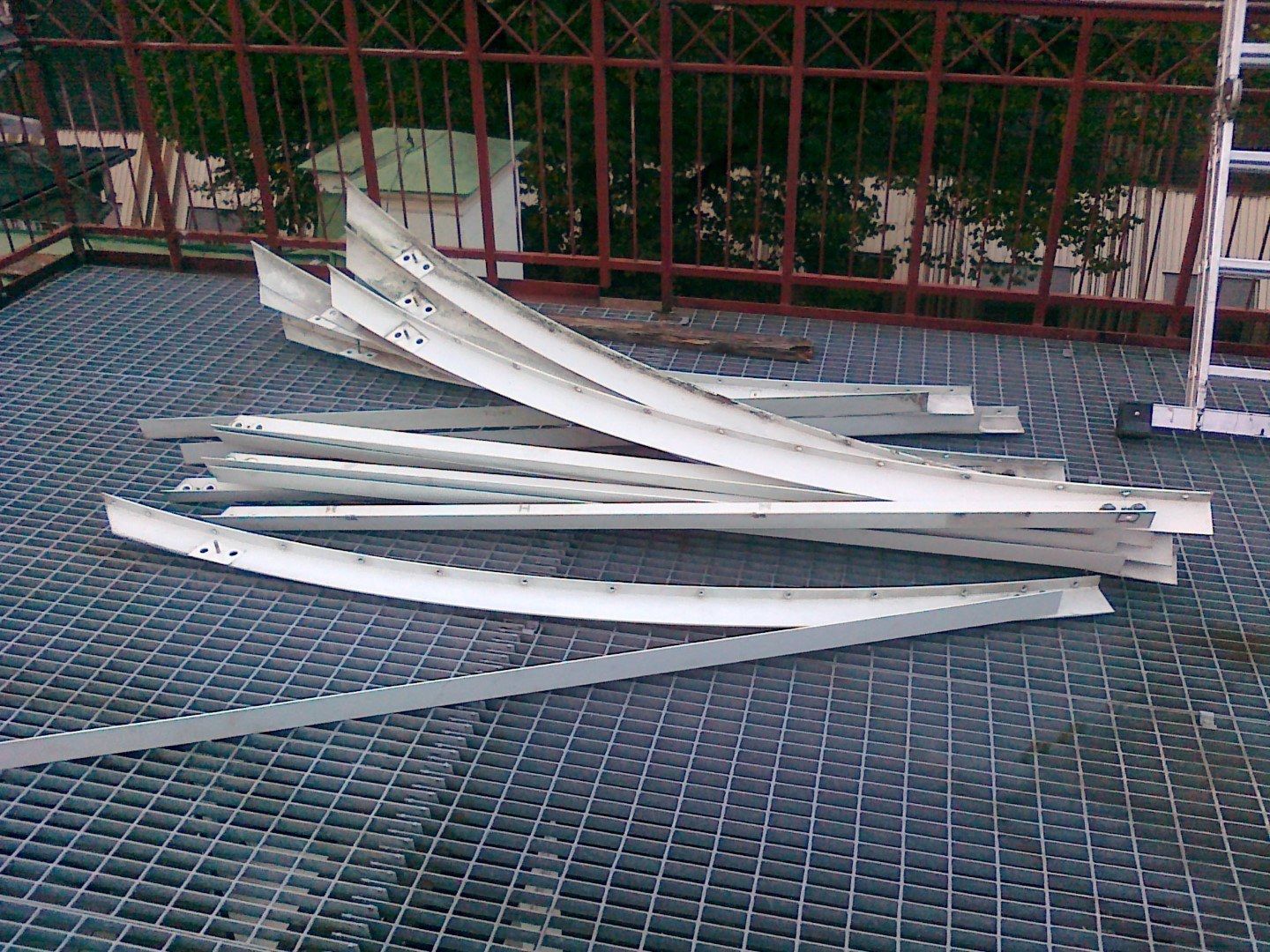

Today all the ribs, motors and central part (barrel) were removed and traveled to my garage. So, need another day to finish moving.


Attachments

  • 110920131014 (Large).jpg
    110920131014 (Large).jpg
    373.6 KB · Views: 475
  • 110920131012 (Large).jpg
    110920131012 (Large).jpg
    328.5 KB · Views: 492
RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga

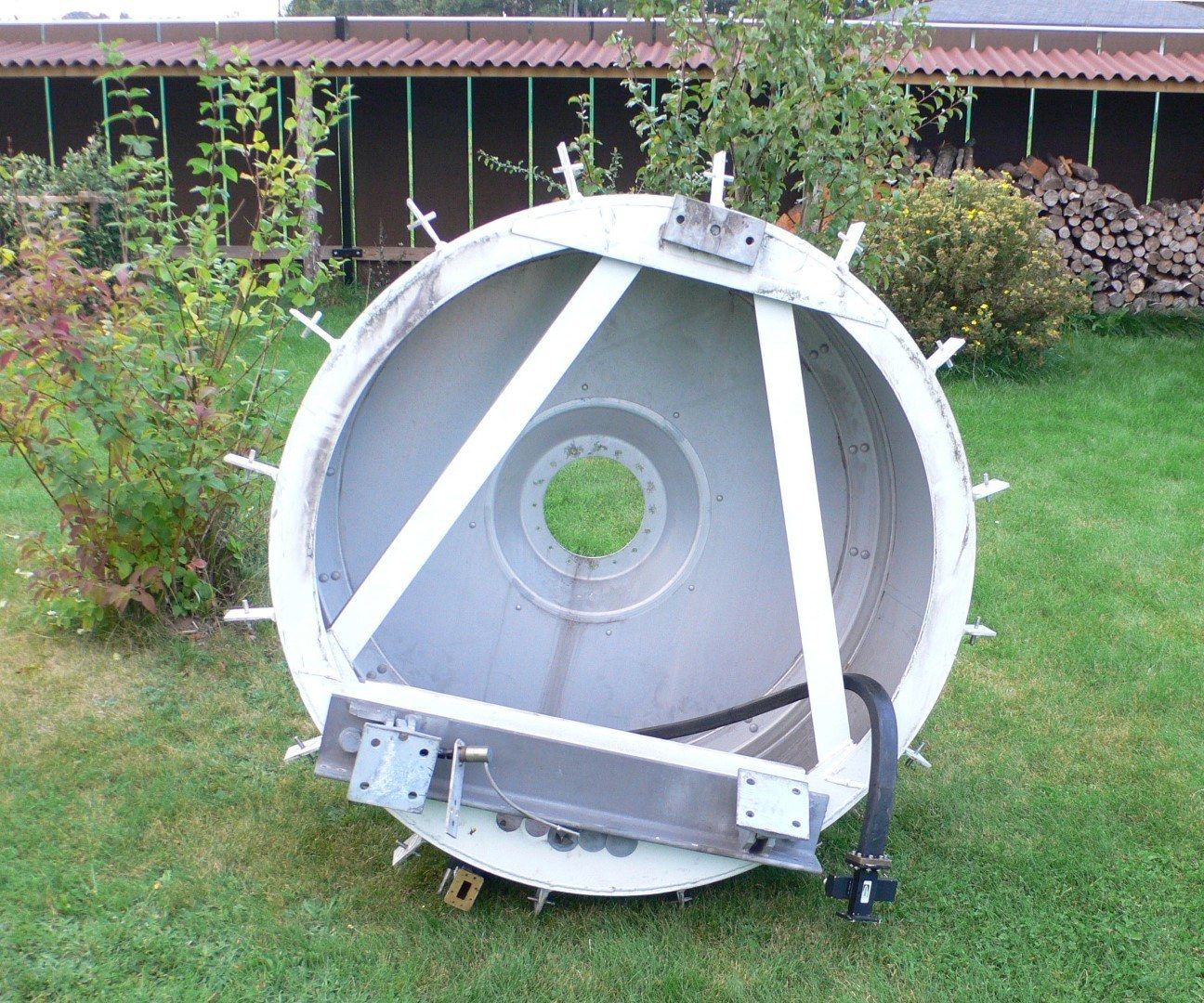

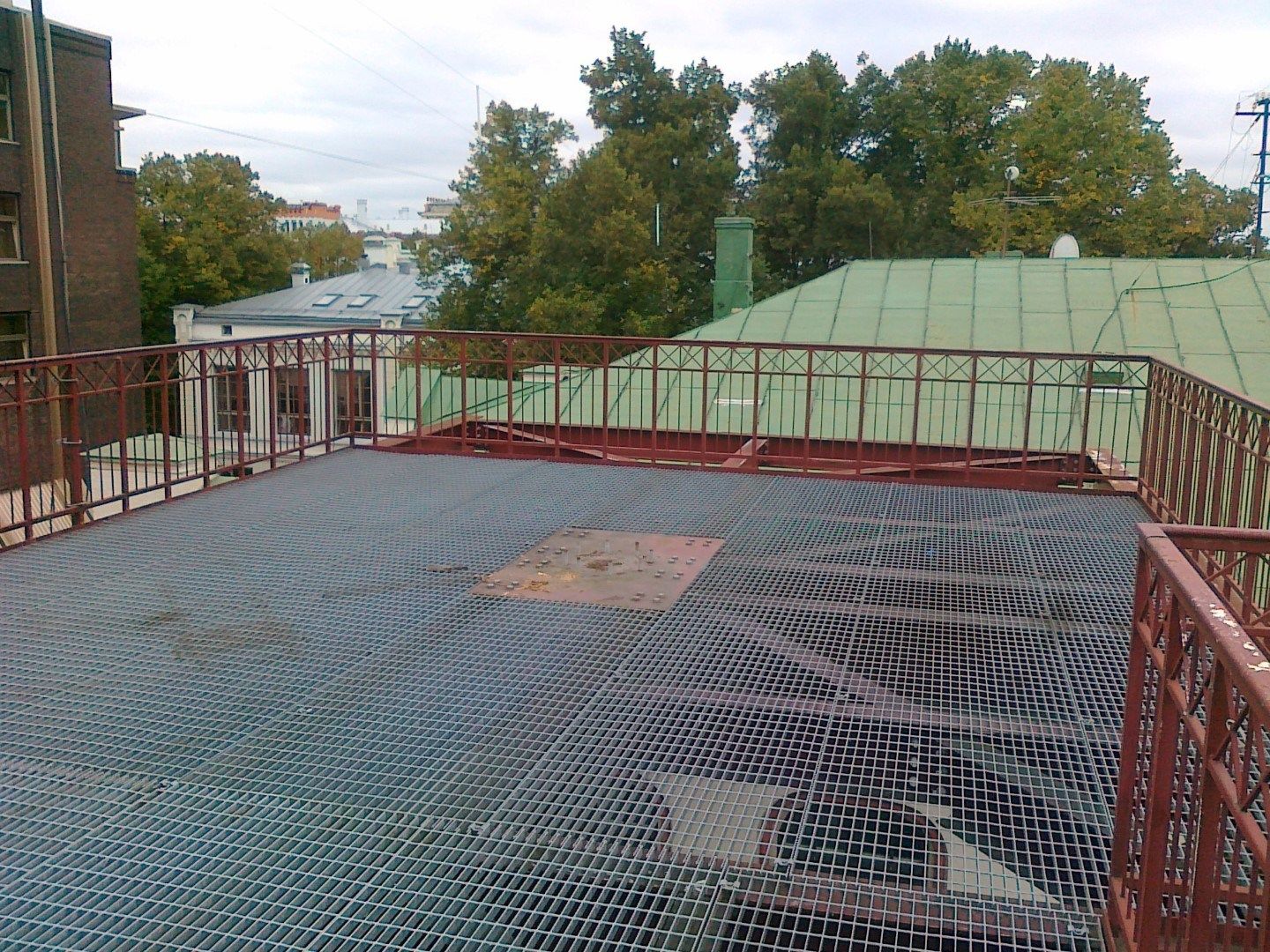

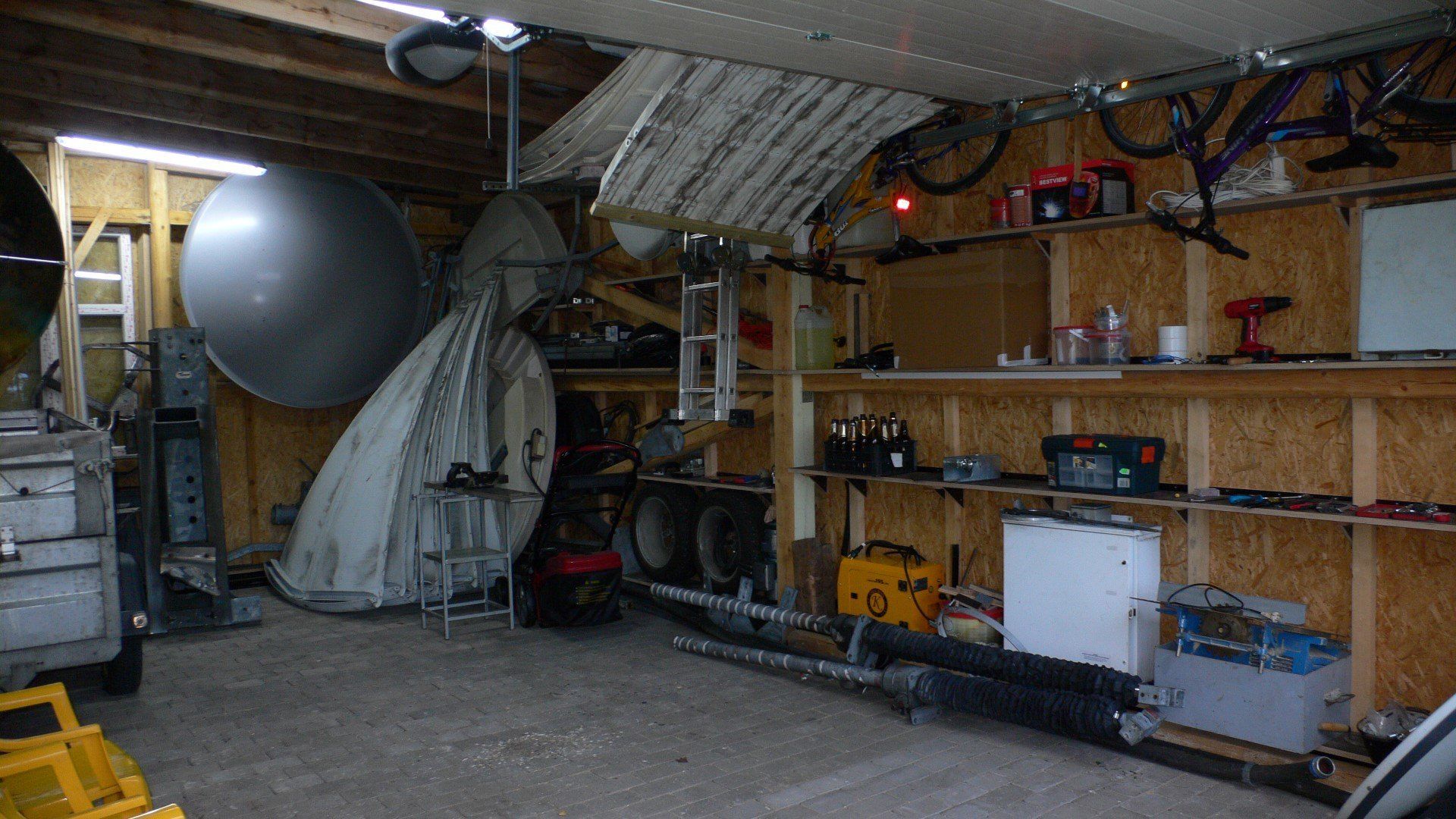

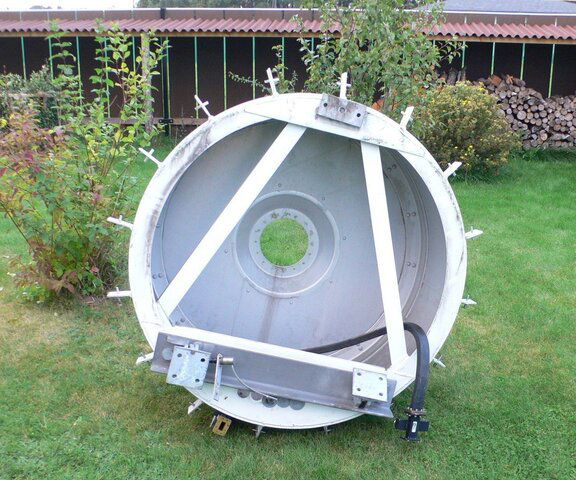

Finished removal and moving today. All together it was about 12,5 hours (without actual driving) 3-man work. everithing in the garage now. Was not so easy to lower mount because of it's weight, but we managed without any accidents. Barrels to which all the ribs connected has diameter of 122cm, made of aluminum. All antenna and ribs aluminum made. We did not take metal plate which stays under mount, so when I install antenna at my place I will be forced to make custom-made base. You will not see any progress of installing my Andrew till next summer (at least), it will peacefully rest in the garage.


Attachments

  • empty.jpg
    426.1 KB · Views: 531
  • High.jpg
    265 KB · Views: 530
  • barrel122.JPG
    352.2 KB · Views: 523
  • Garage.JPG
    365.9 KB · Views: 534
Cham

Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,470
1,019
Boonies
Too bad you couldn't get that whole mounting (floor) frame assembly home somehow... would need a good size crane and a semi trailer with oversize permits etc as it's likely welded together. A few vertical piles and you could mount it over your garage! :)

RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga

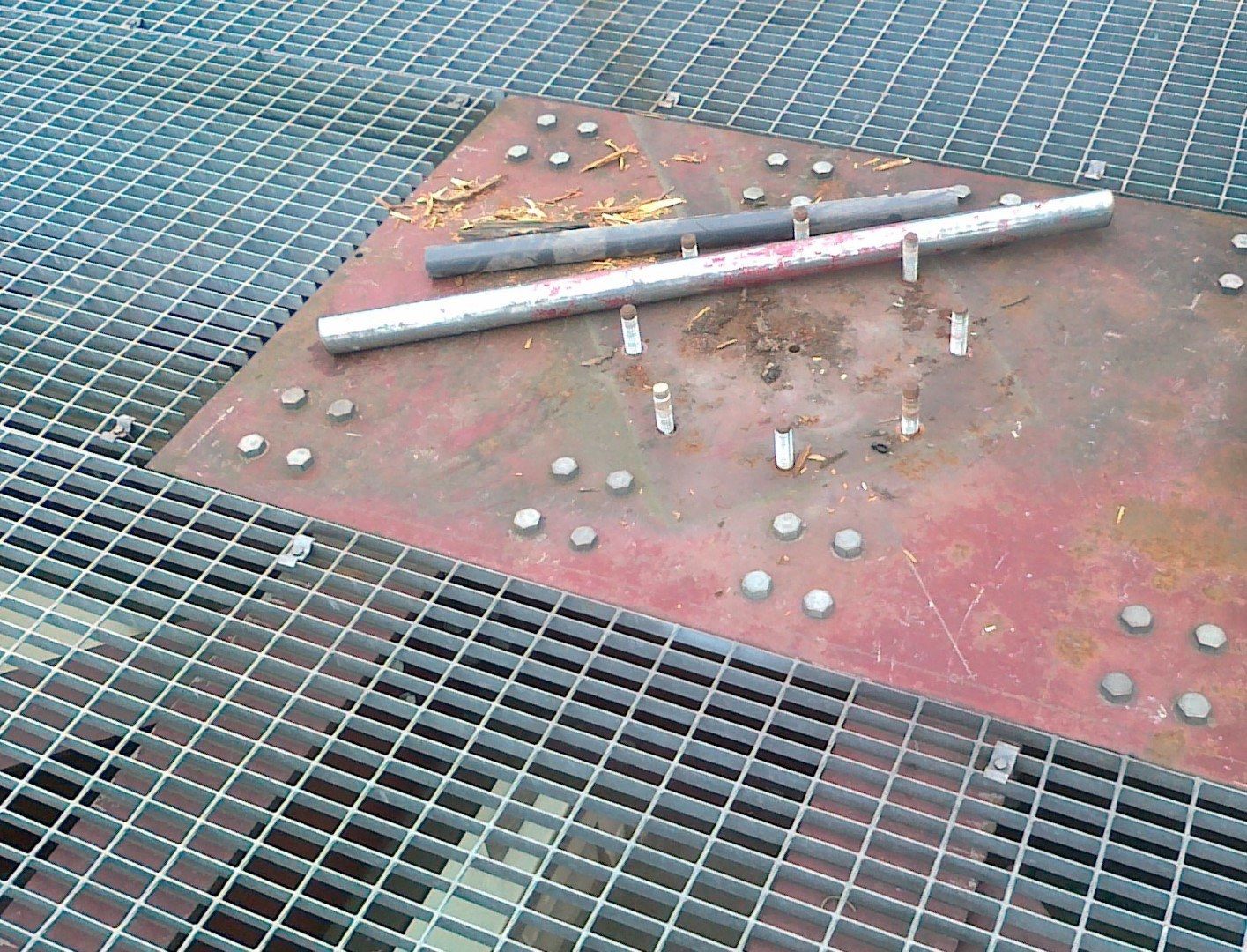

No, that frame is not welded, just bolted to the big metal pieces. But, you know, to access bolts you should approach them from underneath, and there is more than 10 meters, I am not so crazy :rant: to hang there. 8 central threaded pieces in this position even have some play, I do not know how they fixed under that plate. I spoke to owner of that building, they are going to remove platform someday, so I still can get pieces I need. Even if I do not get them, that is not a big deal to make a new mounting frame. I am thinking about making round surface out of concrete some 6m in diameter which will be assembly and mounting place for antenna.


Attachments

  • MountFrame.jpg
    373.8 KB · Views: 406
turbosat

turbosat

SatelliteGuys Master
Dec 26, 2006
9,003
80
Oneonta,AL
That is one nice job, and should be a great dish once it's reinstalled.

RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga

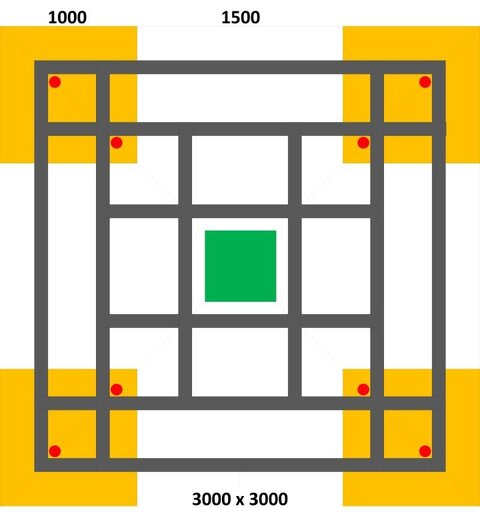

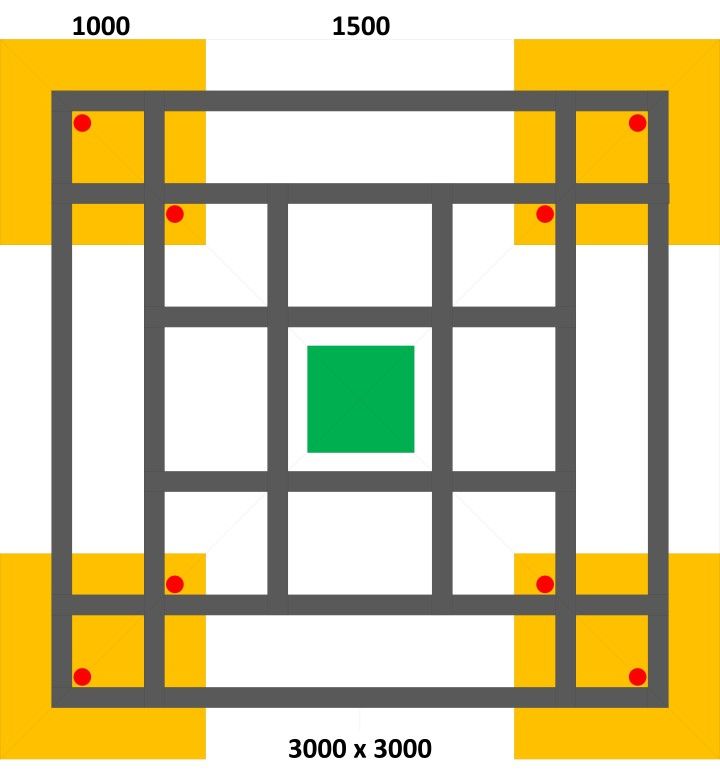

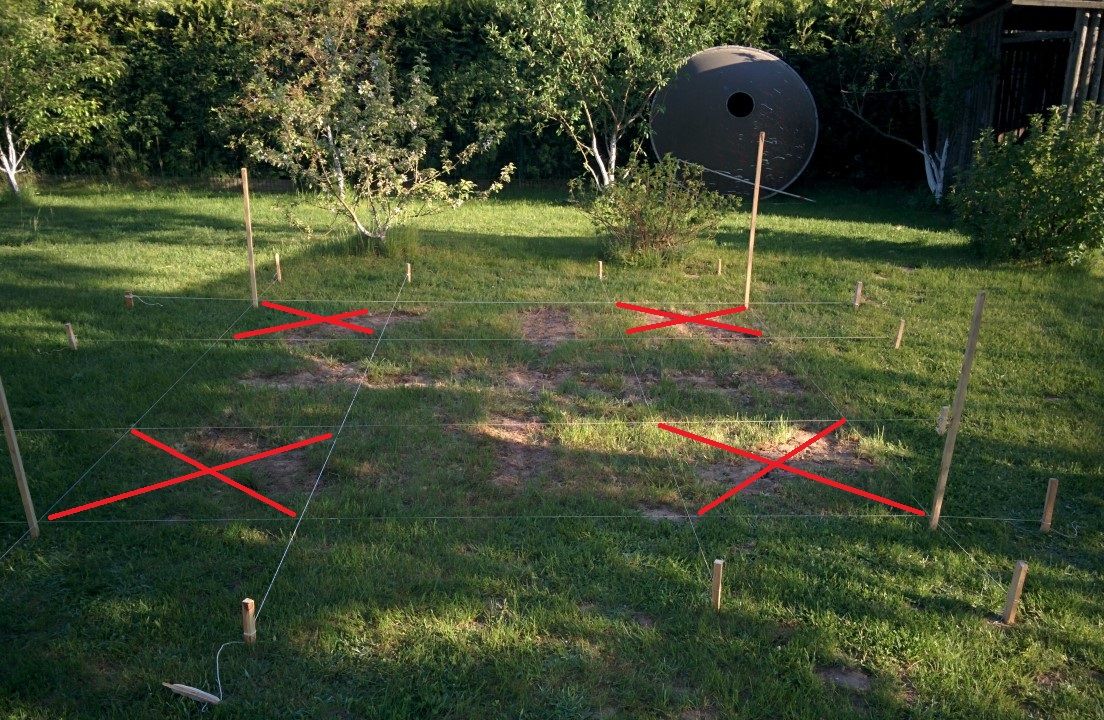

Finally decided to start some work on subject dish install. Will use 4 m3 of concrete (~10 tons). Metal frame(gray lines) will be build on top of concrete blocks and leveled on 8 points (red dots). Green square is antenna's stand. That is an idea. Did not start digging yet, so "no-return point" is not crossed :)
BigPlatform Custom IMG 20160525 192058 Custom

FaT Air

FaT Air

HOA Free Zone
Feb 27, 2010
6,668
914
97W 48N
Metal frame below grade to facilitate mowing the grass
or above grade with area filled with rock with Roundup for weed control? Going to be Az/El?
How in the H.E. double hockey sticks did I not see this thread until now?

armadillo_115

armadillo_115

SatelliteGuys Pro
Jun 10, 2015
1,290
1,008
Virginia
OMG,what a dish! :thumbup

Just when I was feeling good about finding a 12 footer.lol

RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga

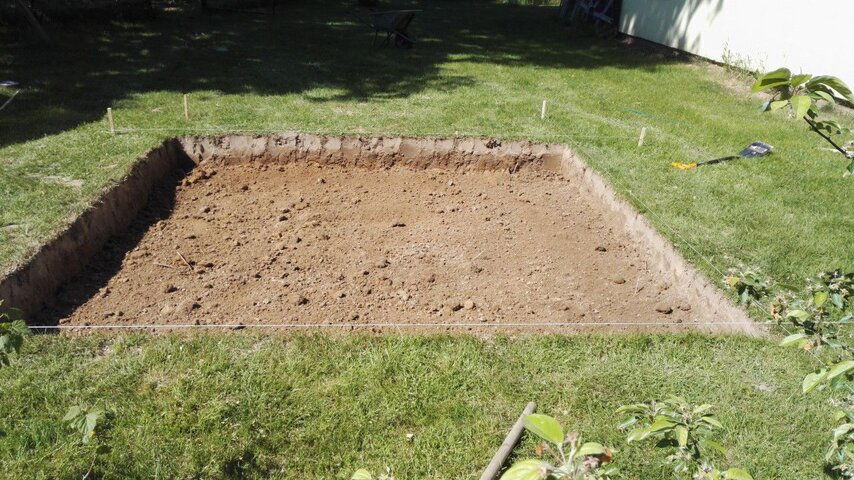

Changed my mind towards solid block of concrete 3,5x3,5x0,35m, which is, BTW, according to antenna's manual. Did little bit of digging (slowly and sadly) today, and hole is ready. :) IMG 20160527 153618 Custom
Yes, antenna will be Az/El motorized with 2 actuators (the big ones).

Magic Static

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,497
4,848
Montana
Did you get the controller for this dish? I'm curious how it operates the two actuators. There must be some kind of polarizer too.

RimaNTSS

RimaNTSS

Thread Starter
SatelliteGuys Pro
Aug 9, 2013
865
913
Riga
No, unfortunately have no controller nor polarizer :(.
