Apex DT250 pictures and info

R

roashru

Thread Starter
SatelliteGuys Pro
Jul 28, 2005
271
0
This converter box has the most features I have found for a coupon approved box.
A list of features that I am glad it has.

aspect ratio
4:3 - normal - zoom
16:9 - normal - zoom - fill

signal meter

s-video
If your close to the TV screen you will notice the slight moving rainbow colors are gone.

the manual attached is page for page the same as the one in the box.

The bad things I have found with this box is the front, top, and sides are black but the power light is bright! a piece of electrical tape will cover that.
If you lose the remote control you can only power it on.


Attachments

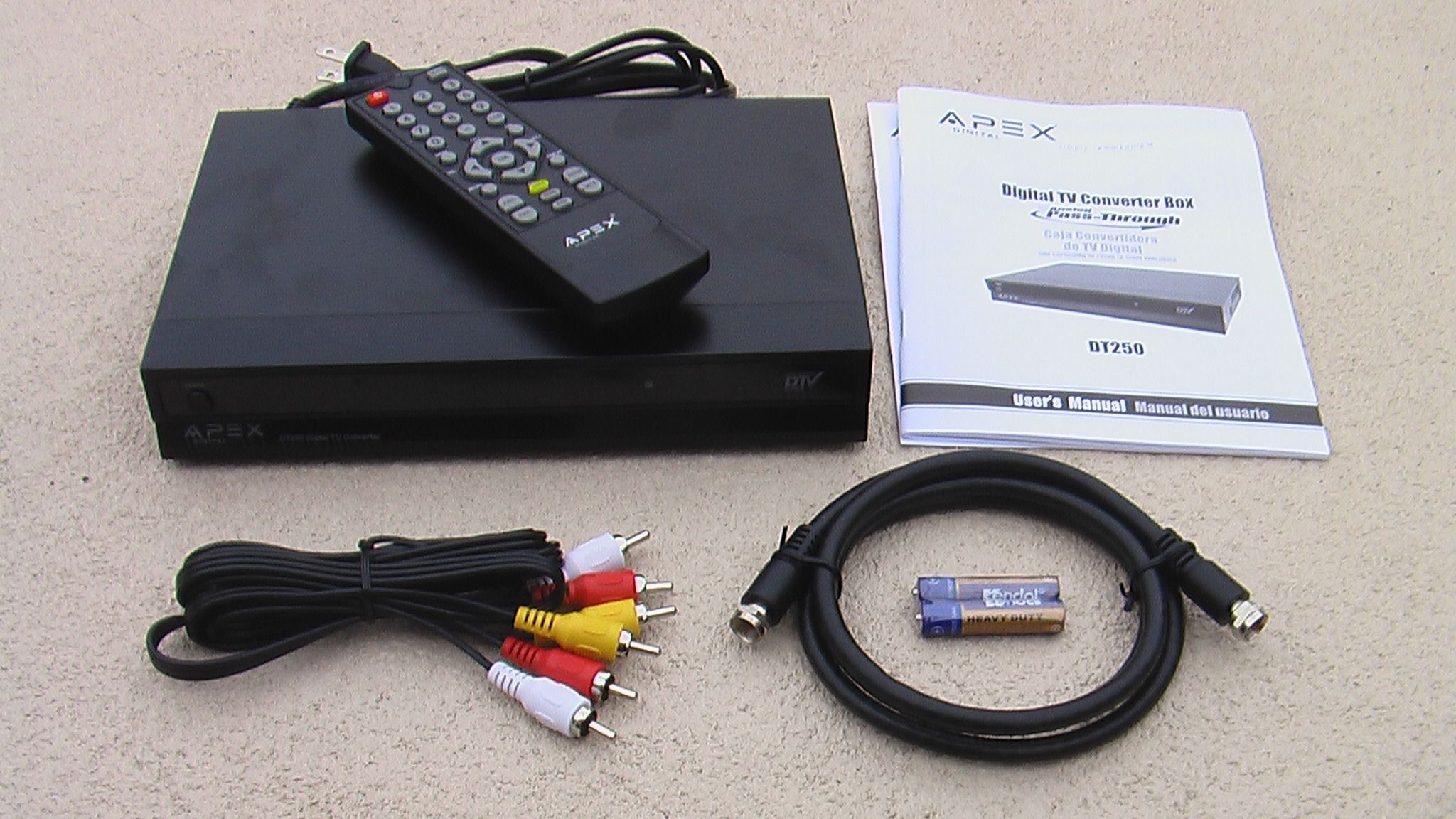

  • whats_in_the_box.jpg
    315.3 KB · Views: 557

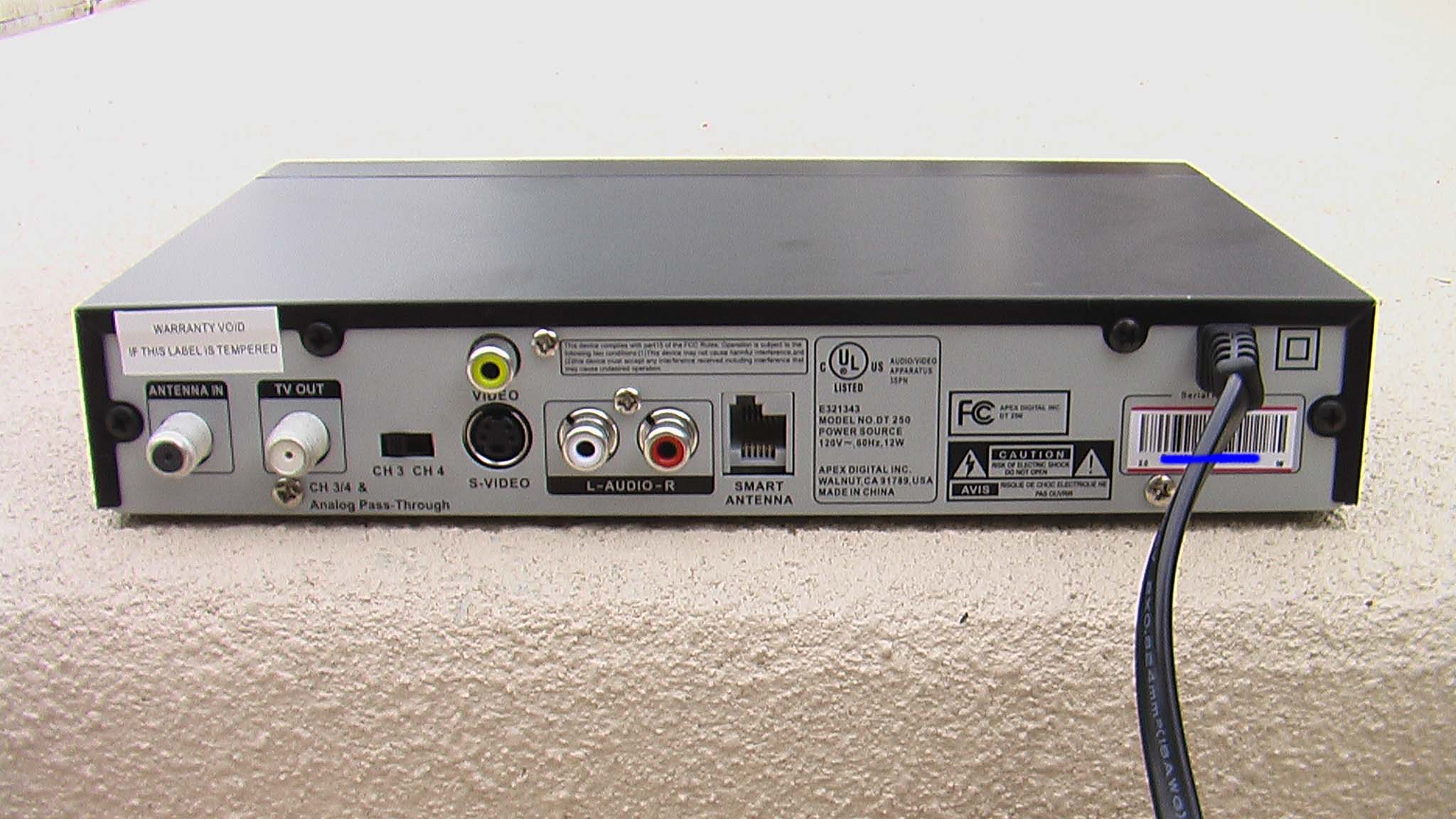

  • rear.jpg
    183.1 KB · Views: 668
  • main_menu-s-video.jpg
    293 KB · Views: 684

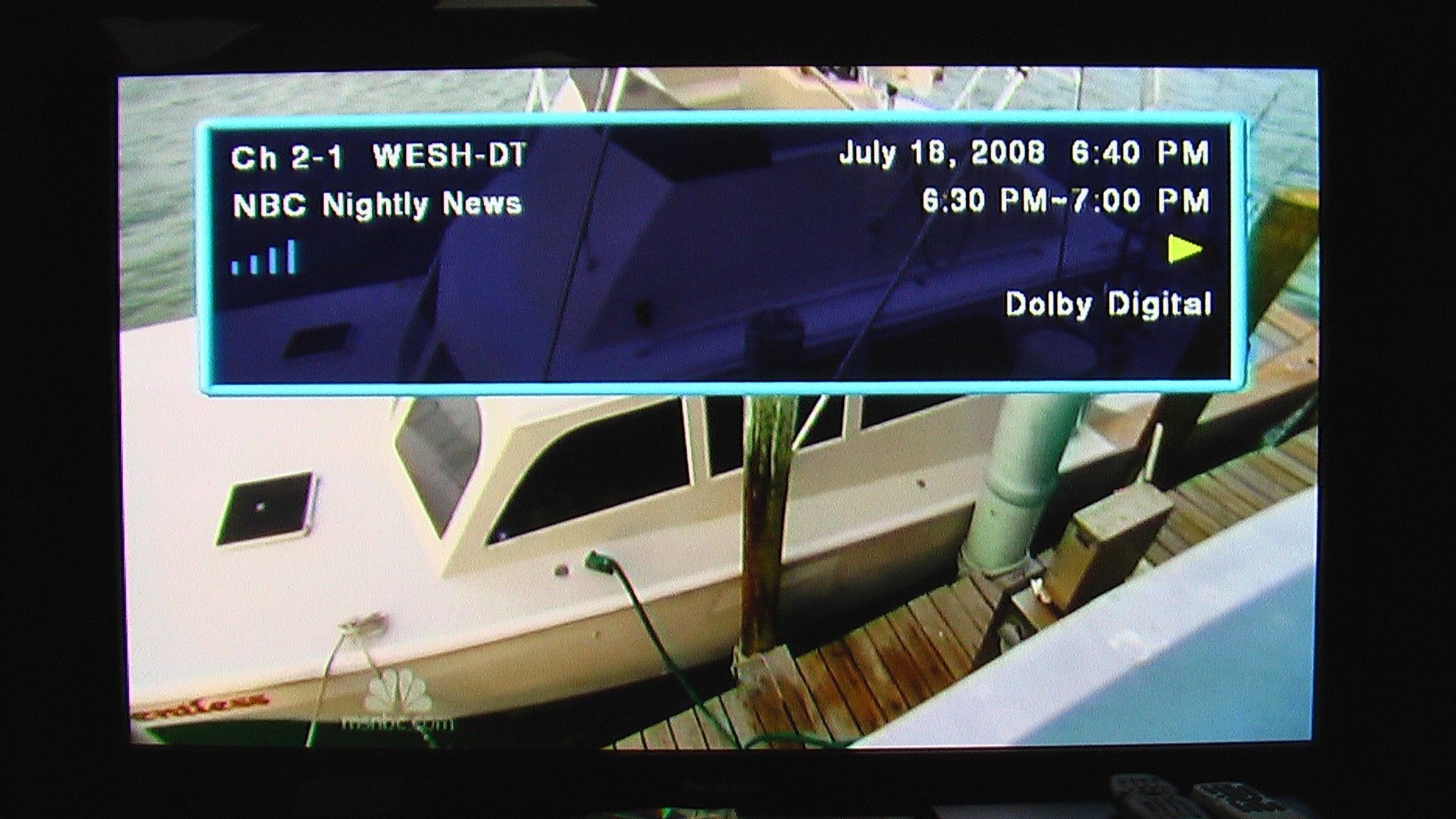

  • display-composite.jpg
    313.2 KB · Views: 611
  • apex_digital_dt250_user_manual_english.pdf
    7.2 MB · Views: 720
Last edited:
S

Smith P.

On Vacation
Oct 4, 2003
8,907
1
Bay Area, CA
SO, using hair dryer and a knife, you could open it and tell us what is inside or post nice pictures. ;)

R

roashru

Thread Starter
SatelliteGuys Pro
Jul 28, 2005
271
0
Waiting for next day digital cameras are terrible in low light. A circuit board full of parts will need the best lighting. Will use a better camera too.

Did anyone read the warranty seal? "label is tempered" ??? he he

Anole

Anole

SatelliteGuys Master
Sep 22, 2005
11,819
13
L.A., Calif.
When you get around to posting your impressions of the box, please include your zip code, and info about your antenna.
I have found TVfool a useful site to compare your expected signal levels to mine and get a better idea how a given box performs.

I'd looked at that unit a while back, being one of the few with an Svideo connector.
I did a lot of research, and don't recall why , but discontinued pursuit of it.
Will be valuable to talk to someone who actually has one. - :up

Meanwhile, I'm slowly gathering my thoughts on the other Svideo-equipped box. :cool:

R

roashru

Thread Starter
SatelliteGuys Pro
Jul 28, 2005
271
0

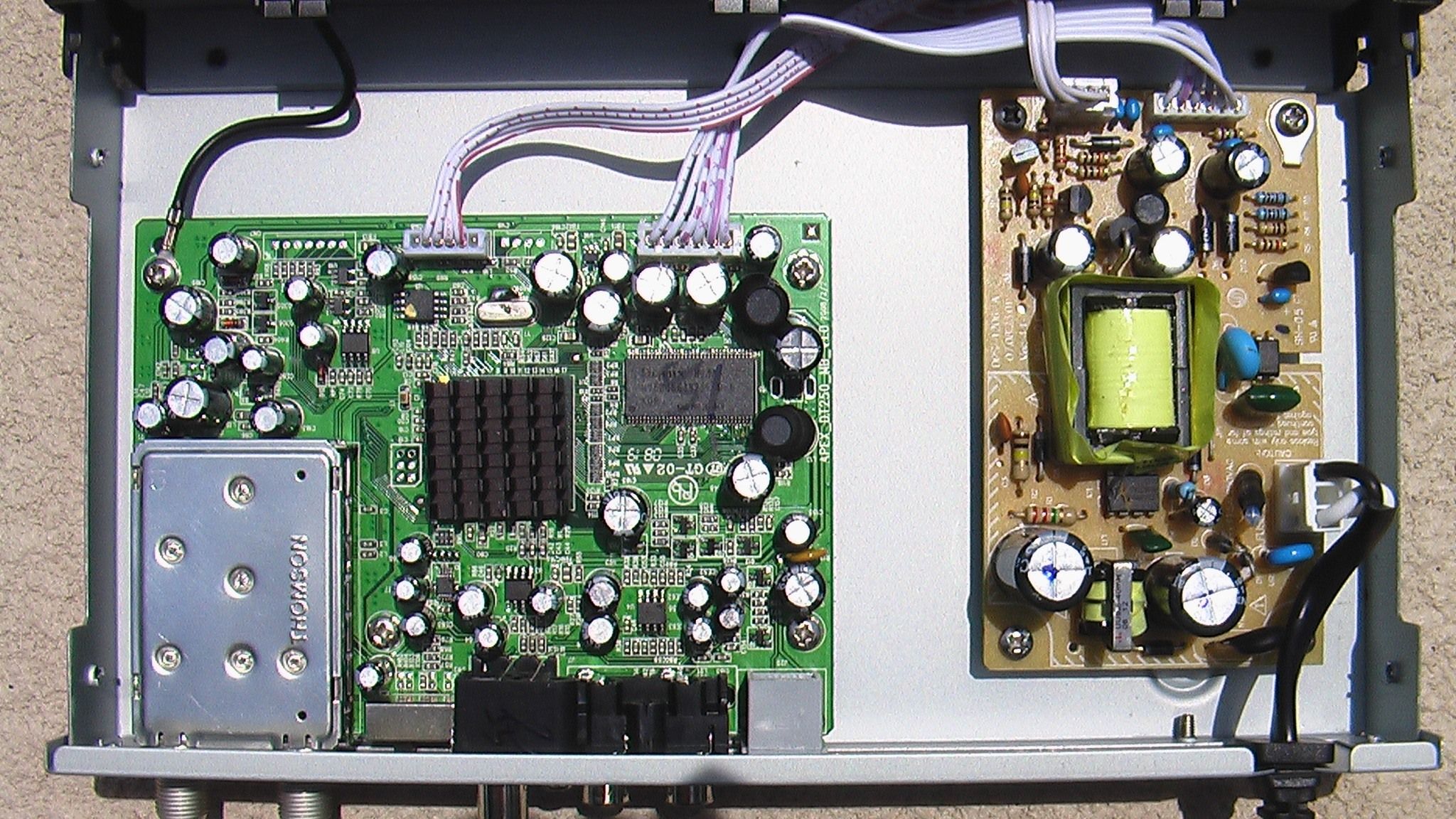

Inside the Apex DT250 their isnt much just the Main board and a power supply.
The chips I wanted to get good pictures of was the ATSC demodulator and MPEG video processor the Apex DT250 has an all-in-one chip with a heat sink glued to it so I just used my camcorder for pictures again.

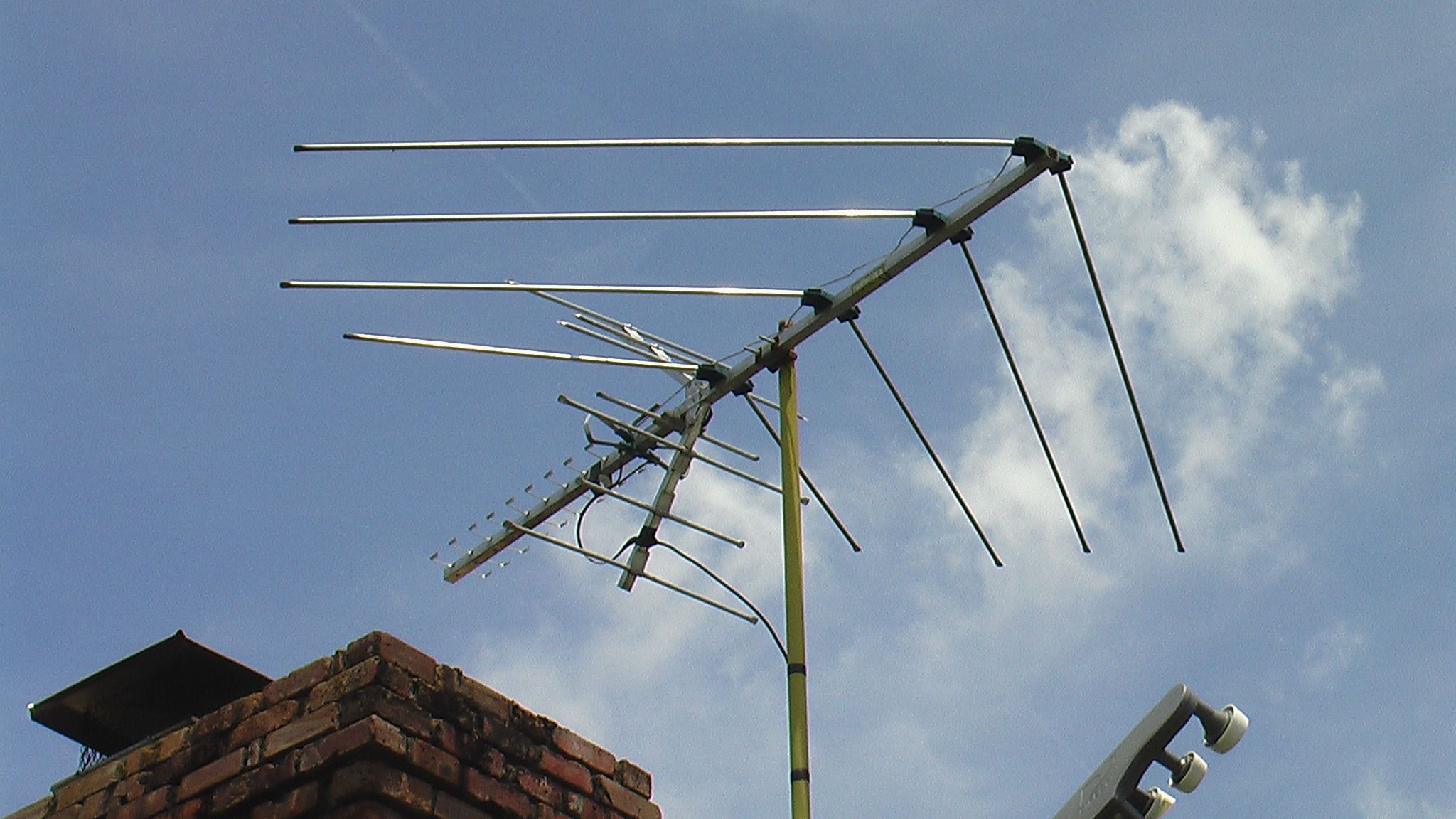

The Apex DT 250 dose have manual channel input its not in the manual the "manual channel set" in the main menu is just a show/hide feature. To manually add a channel to the channel map type in the number of the channel with the dash watch for the on screen channel number to blink next select the signal button on the remote control wait for the channel to come in good enough to get call sign and program data the channel will be added to the channel map automatically. I have already done some DTV DXing first night of having the DT250. I was amazed at what I picked up with the antenna I have here to work with I was getting Tampa, FL DMA channels Jacksonville, FL DMA is possible if the antenna is turned.

http://www.satelliteguys.us/hd-over-air-ota/142723-will-end-tv-dxing.html#post1450700 < first night DTV DXing


Attachments

  • inside_apex_dt250.jpg
    465.8 KB · Views: 657
  • antenna-orlando_dma.jpg
    272.1 KB · Views: 371
S

Smith P.

On Vacation
Oct 4, 2003
8,907
1
Bay Area, CA
Something missed here - flash chip, where SW located. Could be on other side ?
As to the heatsink - wait an hour when the converter become hot and gently _rotate_ the sink before lift it up. Later you can reseat it back.
Also, could you make please macro shots of unpopulated connectors - close to main chip and at edge, will be interesting to read silk print.

R

roashru

Thread Starter
SatelliteGuys Pro
Jul 28, 2005
271
0
The memory (Hynix) is the long chip without a heat sink. They used adhesive on U1 not even going to try removing it. J1 next to U1 Im sure is a serial port.

easier to post the U1 PCB print

o 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U

S

Smith P.

On Vacation
Oct 4, 2003
8,907
1
Bay Area, CA
That's coordinates ( not telling us about not soldered connectors );
anyway, wait when the heat sink become hot, then just try to rotate it for a few degree left-right, it should move, then remove it.
You can put it back later or throw away - no big deal, the chip will survive, don't worry.

T

tagno25

Member
Aug 23, 2009
5
0
Kansas City, MO, USA
WHY IS A YEAR OLD THREAD REOPENED? Couldn't you just as your question?

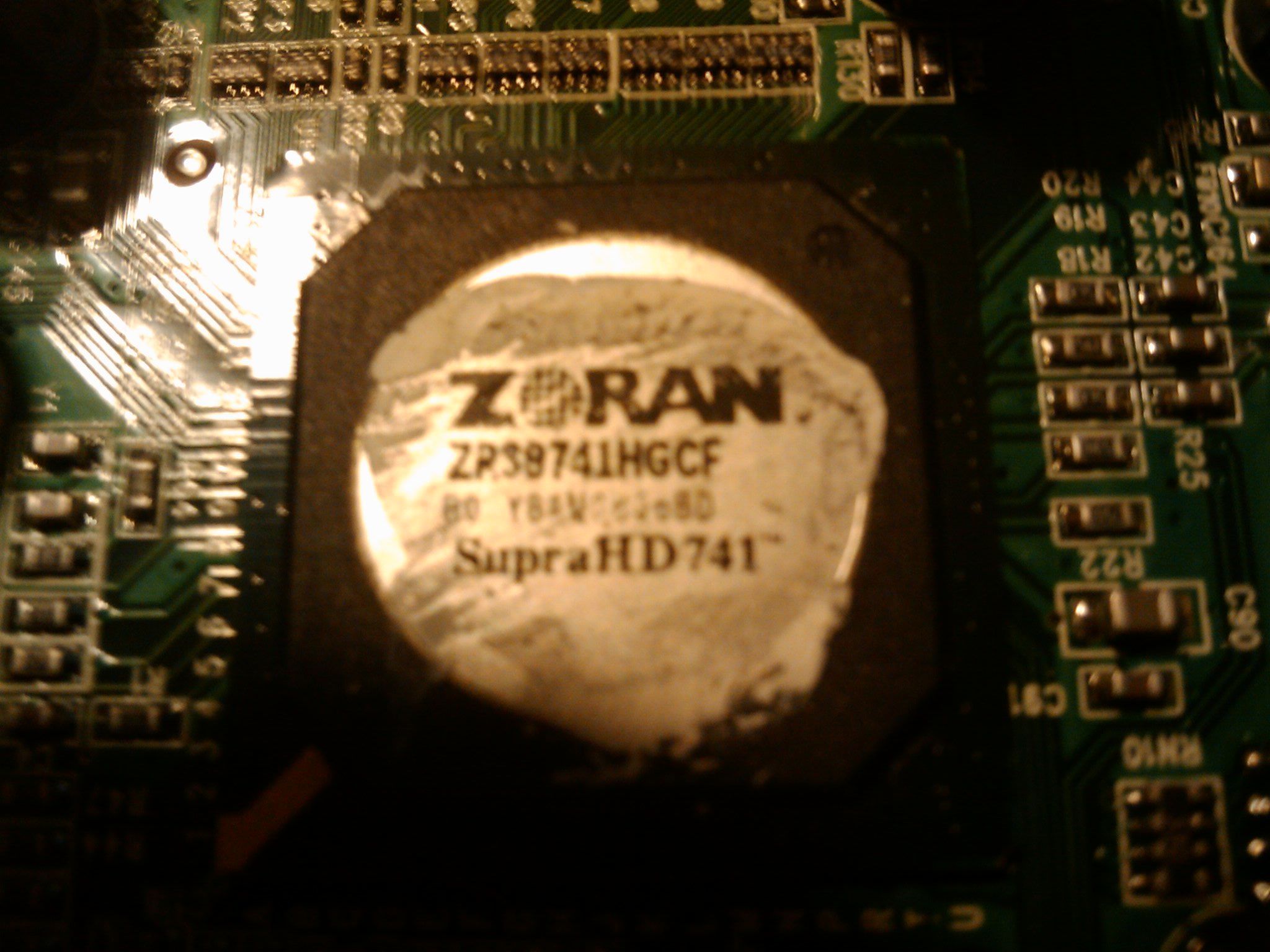

It may be a year old thread, but I had relevant info/pictures. (and this thread has the most info, for this converter, I could find on Google)

It just happens I had a question that was related to this thread. and since I was posting the pictures as an afterthought I asked the question.
