C band on 90 cm dish experiment

SkySurfer80

Thread Starter
SatelliteGuys Pro
Jun 14, 2019
199
136
Tennessee
Hey guys. Picked up a 90cm Channel Master dish and a mounting stand. Also got a BSC C band lnb.

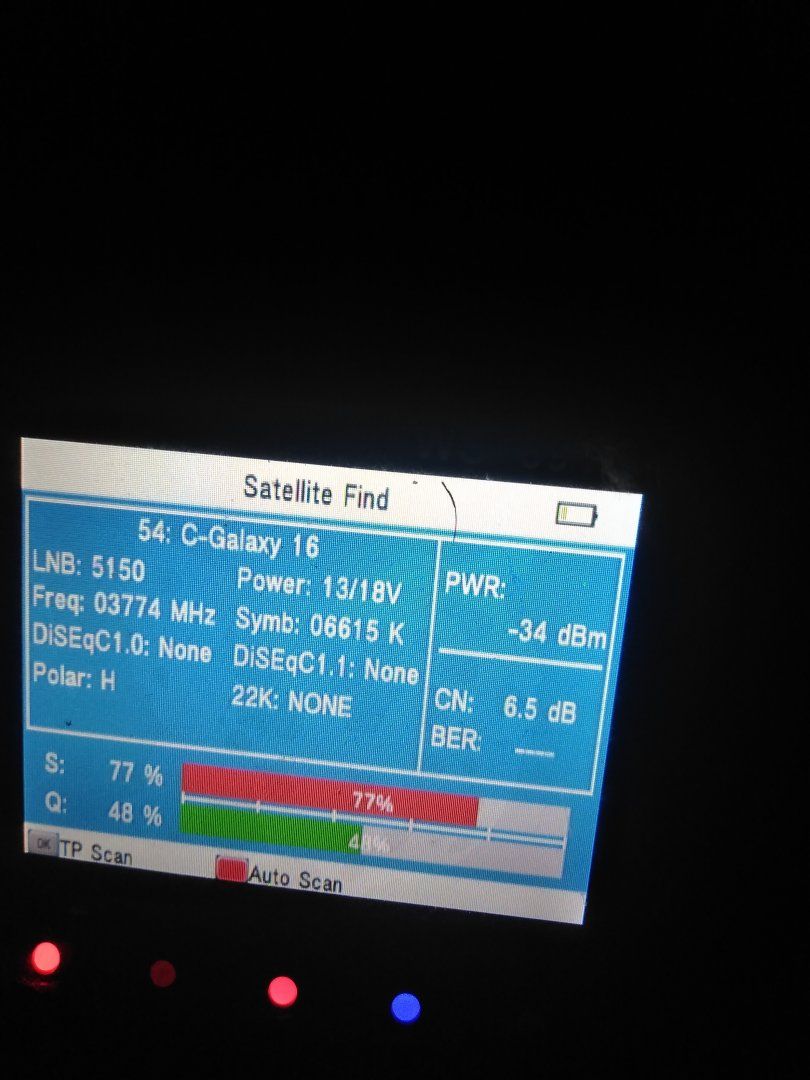

The dish measures 36.5 wide by 39 inches tall so it is a hair over 90cm. More like 91 cm wide and maybe equivilent to a round 95cm dish with the size. Anyhow I am going to test and see what C band I can recieve on it. I have a good digital meter now and even though I have a 12 ft bud in the waiting I like to experiment on things like this. Having a Satlink 6916 meter with blind scans I can show what I am pulling in and things such as db while at the dish.

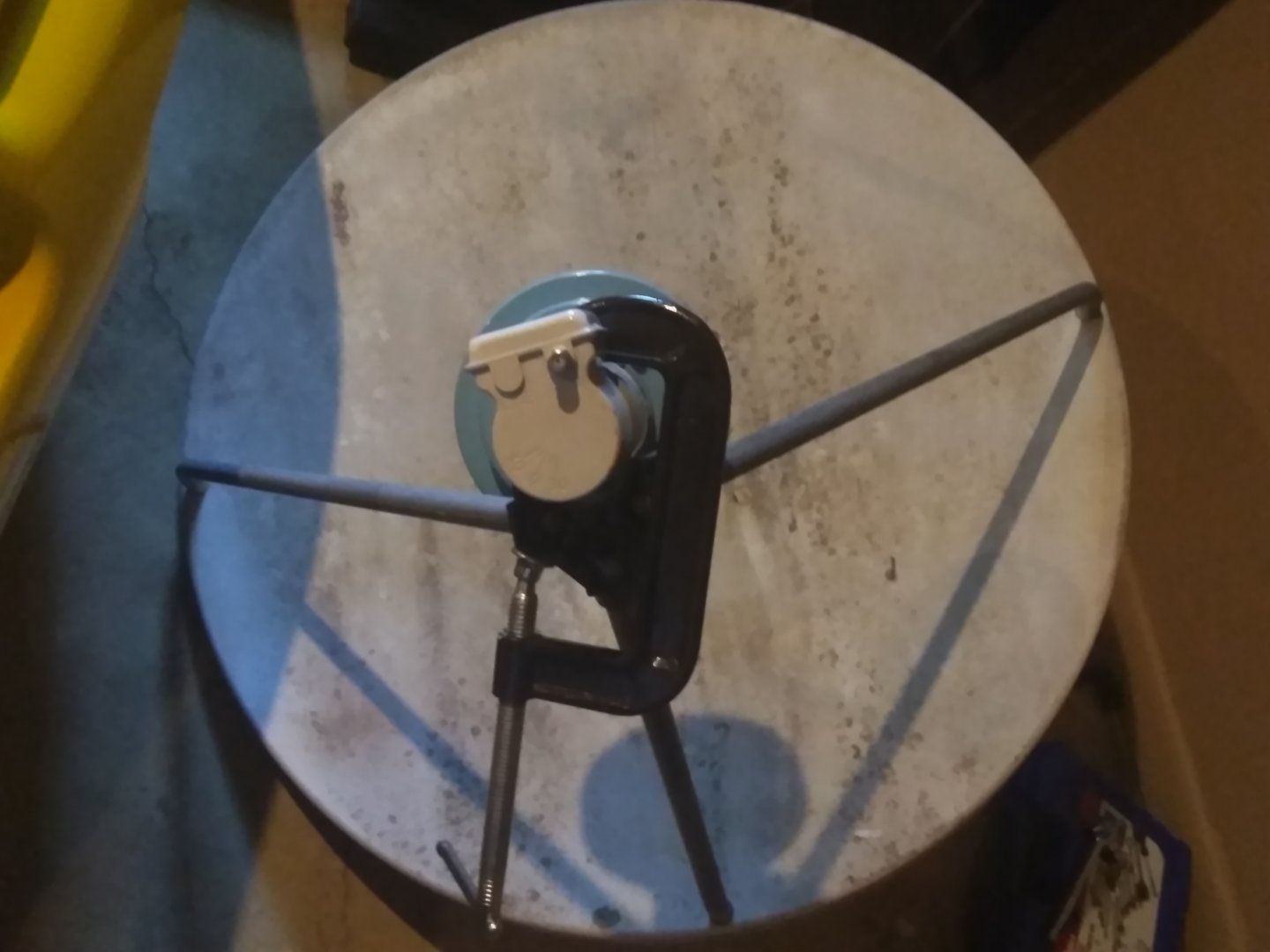

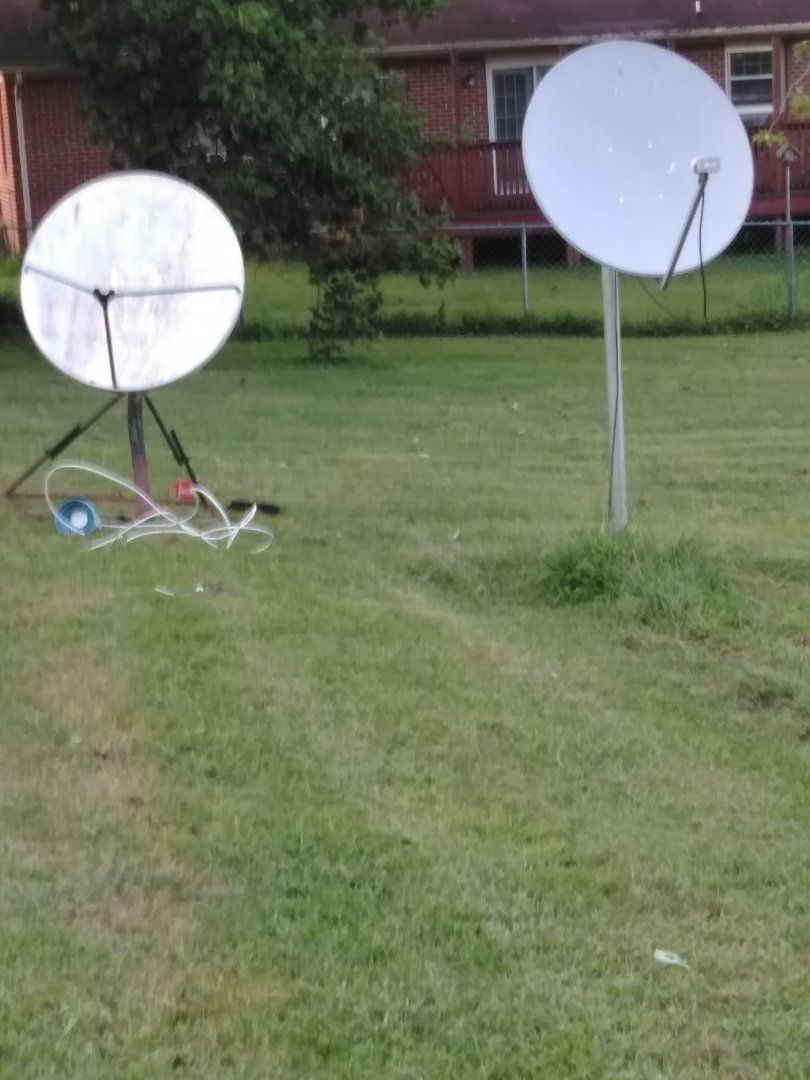

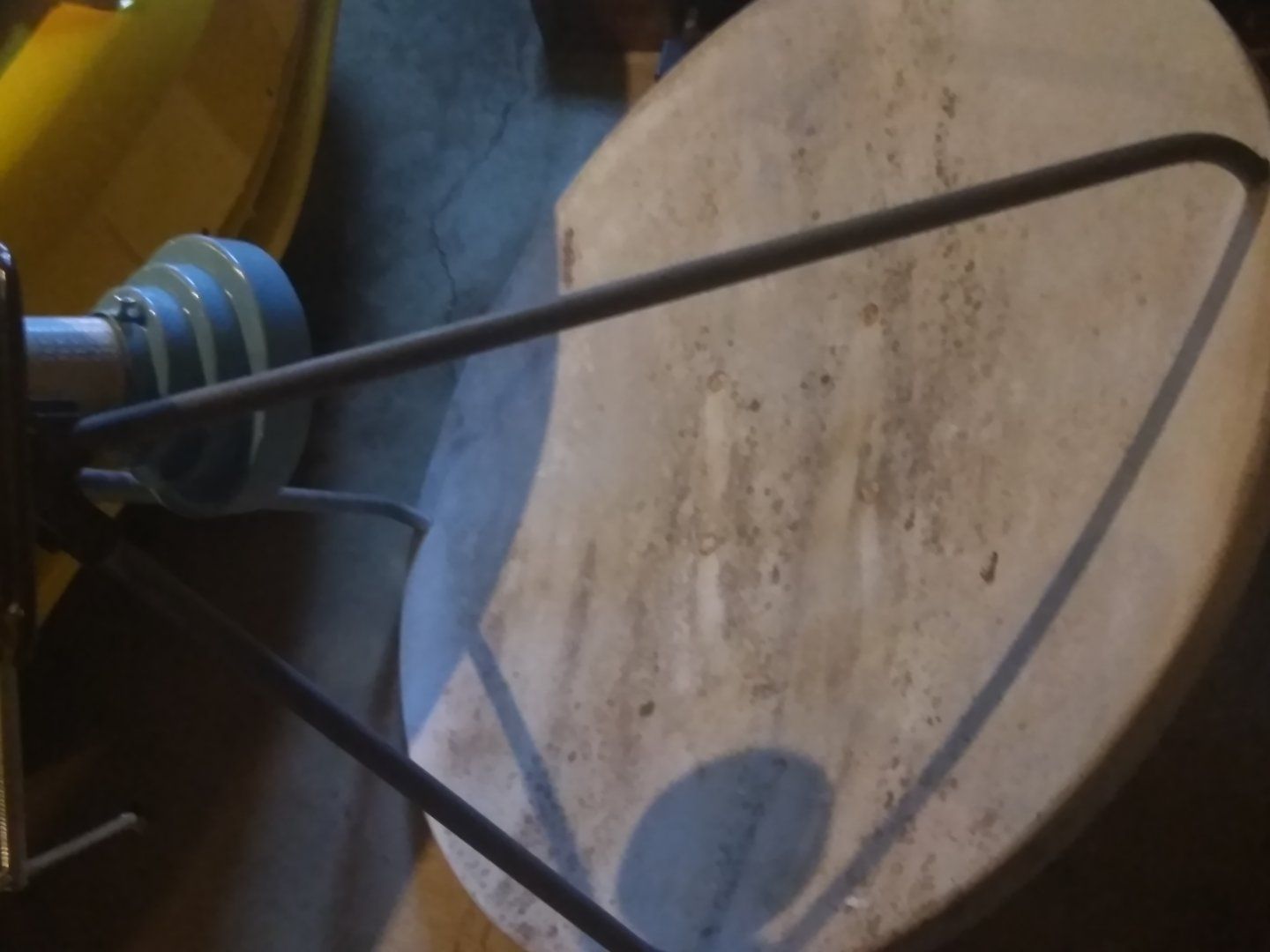

I will post pics and updates of what I scan in and info such as signals and such. Here is a pic of the dish. As you can see I will be using a C clamp to mount it down until I figure out something better. Again this is an experiment and likely not a fixed dish on c band, but then again you never know! I wouldnt mind added a fixed c band sat to my locked in ku motorized setup which is scanning 30w to 129w as we speak.


Attachments

  • Like
Reactions: FTA4PA

danristheman

SatelliteGuys Pro
Jan 25, 2011
3,126
1,104
85w
You can do minibud on that dish. Those lnb arms will be trouble. Talk to Brian or ke4est on here for an c band lnbf.

  • Like
Reactions: c-spand

SkySurfer80

Thread Starter
SatelliteGuys Pro
Jun 14, 2019
199
136
Tennessee
Well having issues clamping it down with a c clamp. I think tomorrow i am gonna get some duct tape. Lol.

Just using the hand holding the lnb and adjusting it i hit 97 on a blind blind scan. Lol. I hit several tps but only scanned in the Axteca feed with the mux of channels and hit them at 8.5 db. i guess not too bad for a small dish.


primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
8,598
4,927
Beta Omicron Delta III
You can't use a c-band lnbf, with a conical scalar on that model dish, and EVER get it in the proper place for receiving c-band signals like you want. The c-band lnbf will sit 3-4 degrees too HIGH, (changing the dish aim, and not getting enough signal) and be pushed in too close to the dish because of the size of the conical scalar. It's simply NOT possible to do it properly without modifying the two side arms, and how they connect to the center arm. You have to remove the plastic ku lnb holder and go with screws.

Easiest solution involves moving the side arms down the needed distance on the center arm and drilling a hole to bolt through, and leaving the center arm mount point free enough so it'll all work, and allow proper adjustment.

Don't even bother trying it any other way, I guarantee you it won't even work right until you move those side arms...


raydio

K4ECP
Supporting Founder
Pub Member / Supporter
Jan 6, 2005
928
901
Rio Rancho, NM
You can't use a c-band lnbf, with a conical scalar on that model dish, and EVER get it in the proper place for receiving c-band signals like you want. The c-band lnbf will sit 3-4 degrees too HIGH, (changing the dish aim, and not getting enough signal) and be pushed in too close to the dish because of the size of the conical scalar. It's simply NOT possible to do it properly without modifying the two side arms, and how they connect to the center arm. You have to remove the plastic ku lnb holder and go with screws.

Easiest solution involves moving the side arms down the needed distance on the center arm and drilling a hole to bolt through, and leaving the center arm mount point free enough so it'll all work, and allow proper adjustment.

Don't even bother trying it any other way, I guarantee you it won't even work right until you move those side arms...
Yes, you need to throw that dish away and give it to me -

  • Like
Reactions: SkySurfer80

SkySurfer80

Thread Starter
SatelliteGuys Pro
Jun 14, 2019
199
136
Tennessee
Well with some tape and adjusting I have so far been able to pull in the following.


91 West

Classic Arts
The Word Network 2 channel mux
PR mux some BYU channels

A few others. Forgot what they were. Hit the Word Net up to 40 or so pct quality



97 West

The Azteca mux with several channels

Some other mux



Not bad for just tinkering on a small dish.


Attachments

RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
786
831
Riga
I have played around feedarms and LNB-holder of CM dishes a lot and finally came to the conclusion that it is better to change feedarms and LNB-holder to new ones. Then it is possible to adjust LNB in all possible ways and directions. Depending on the clamp used dish can be equipped with Ku or C band LNB.

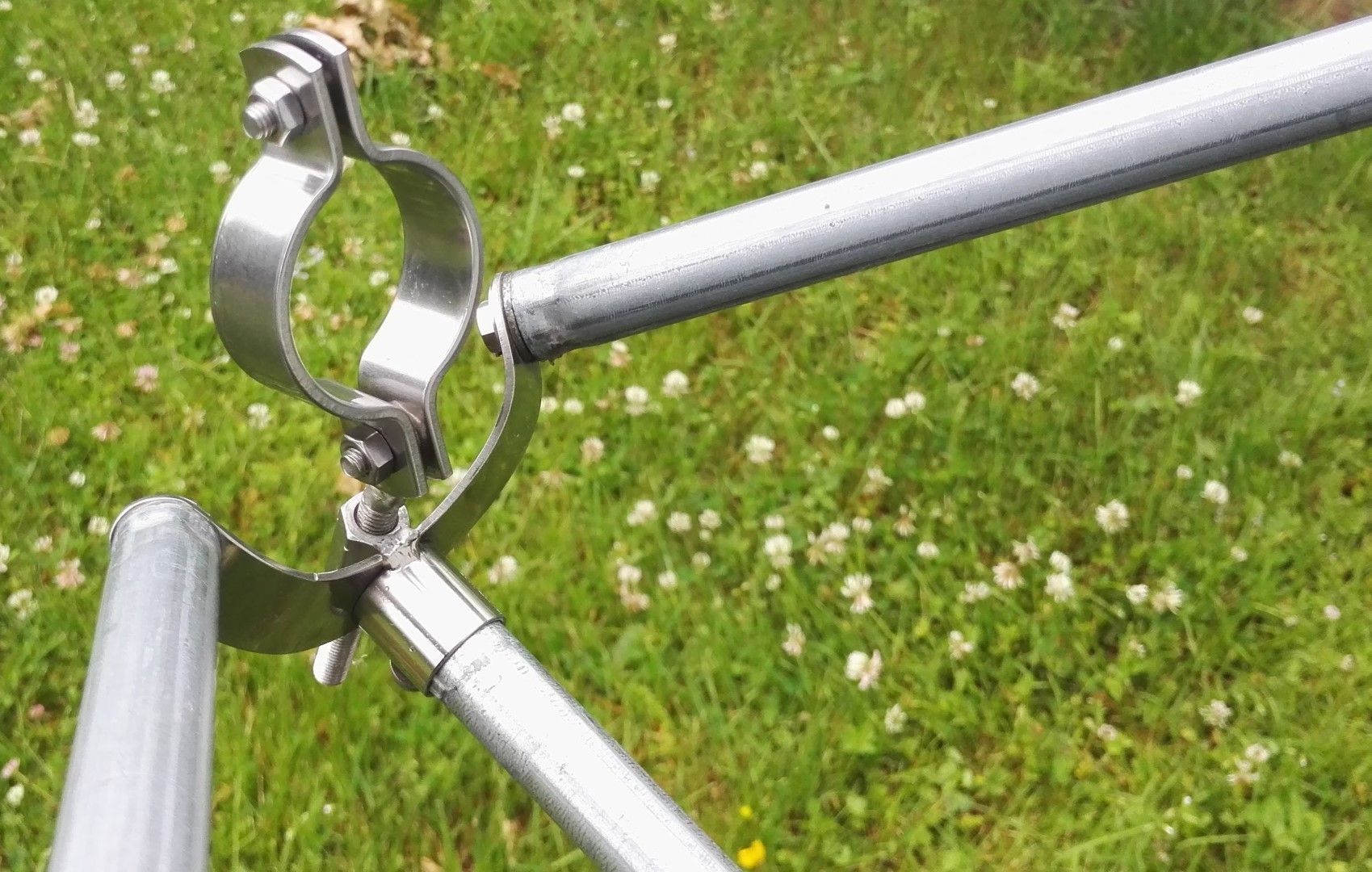

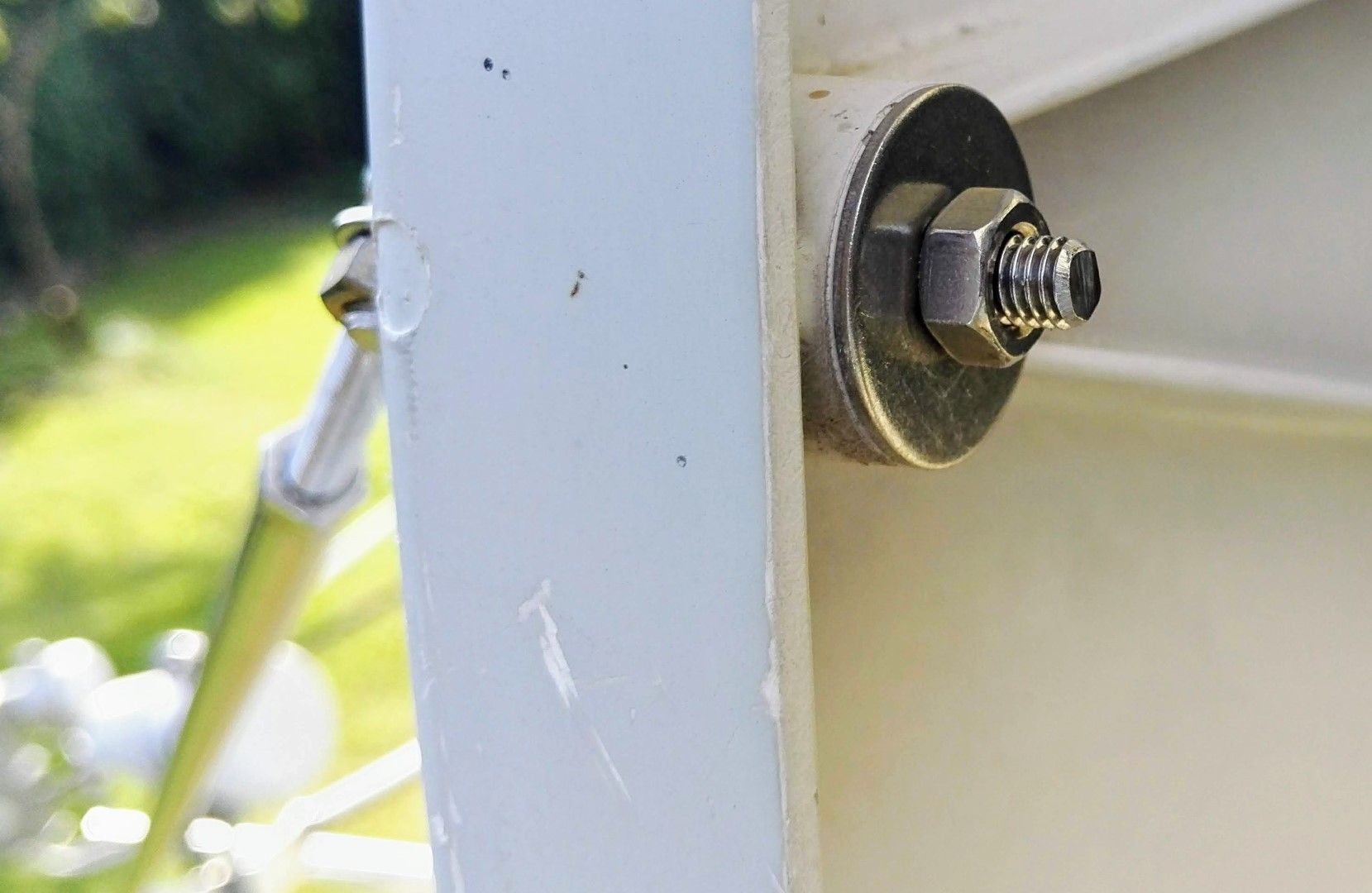

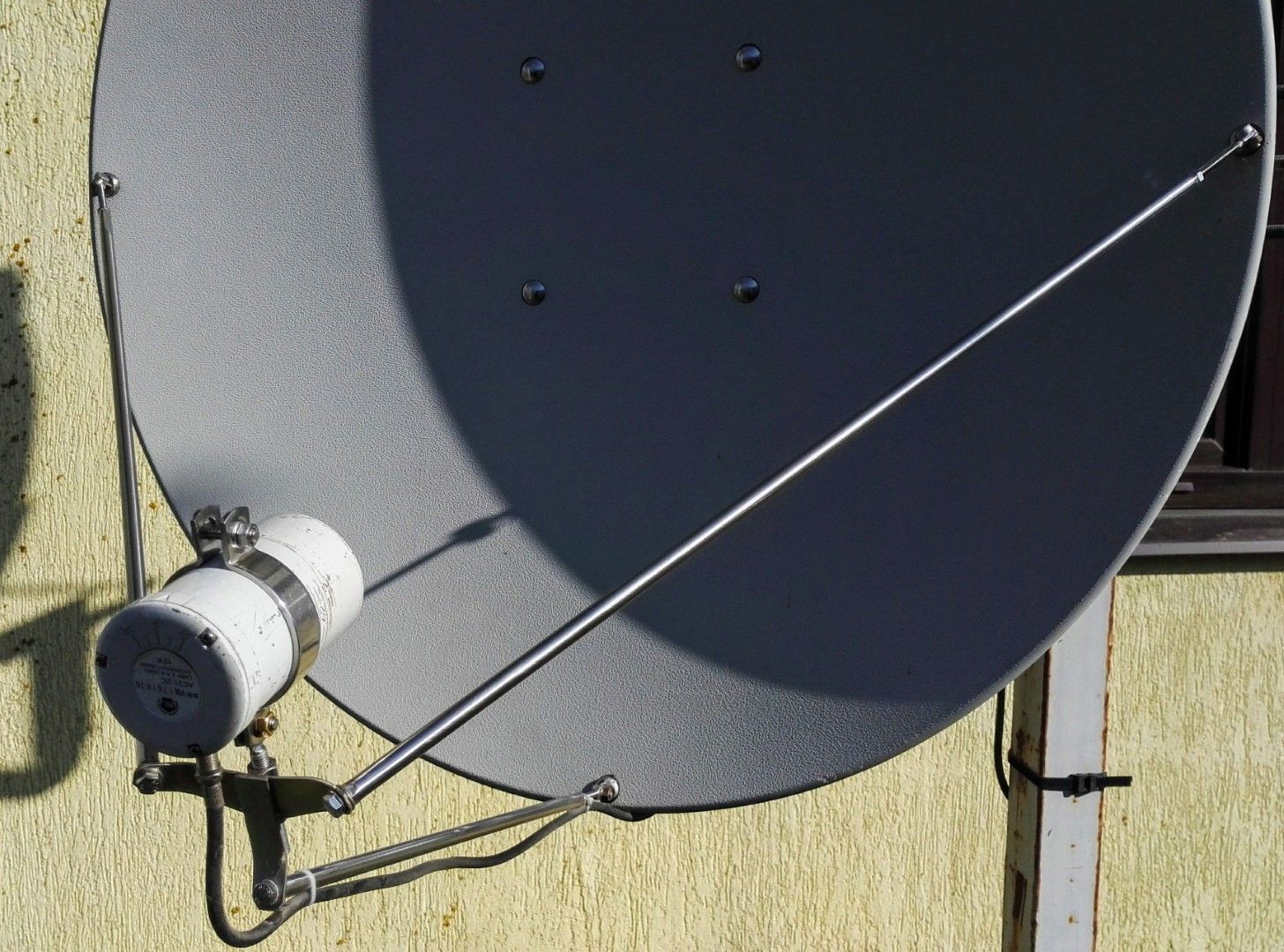

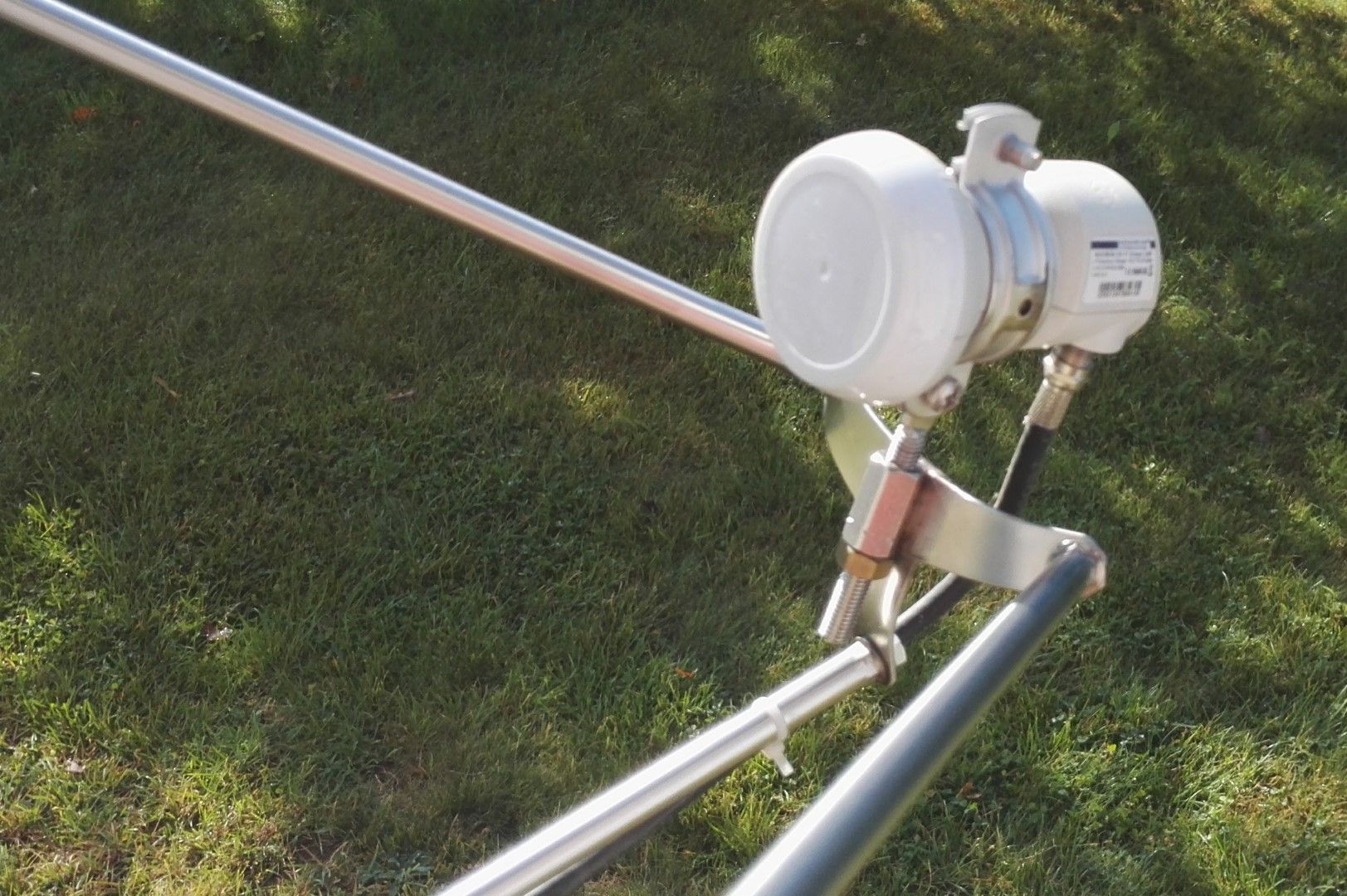

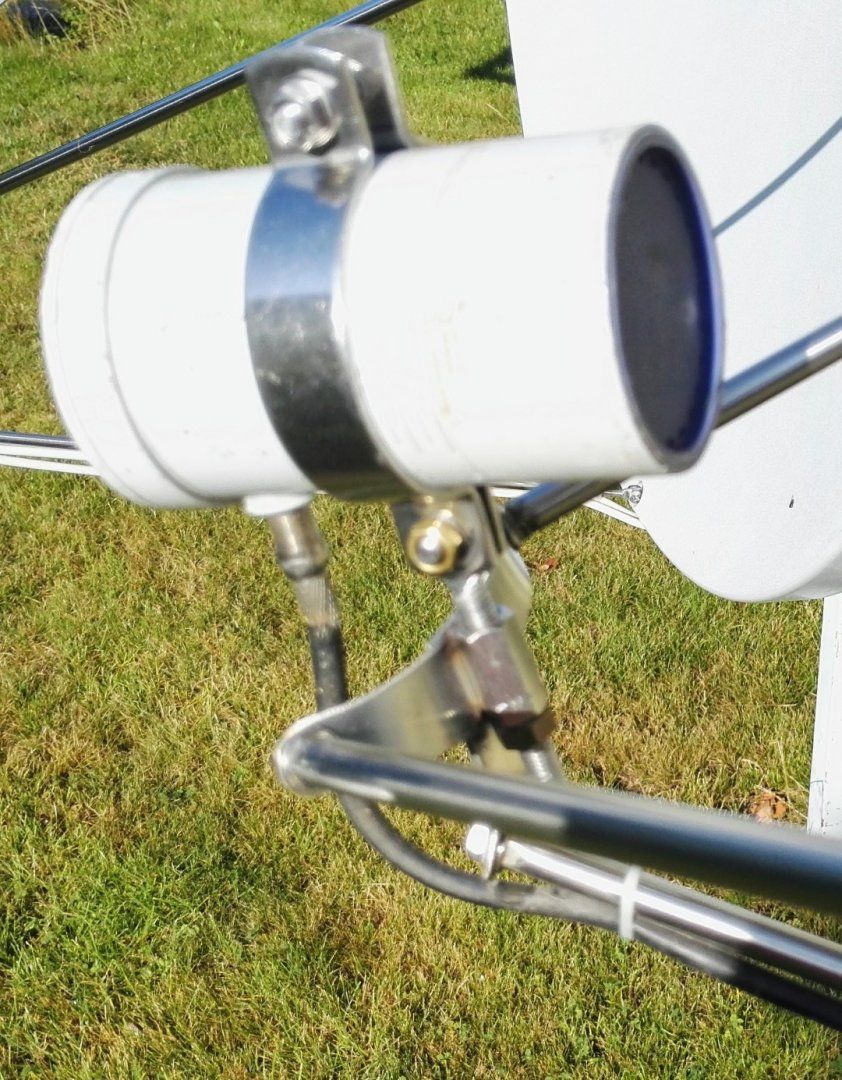

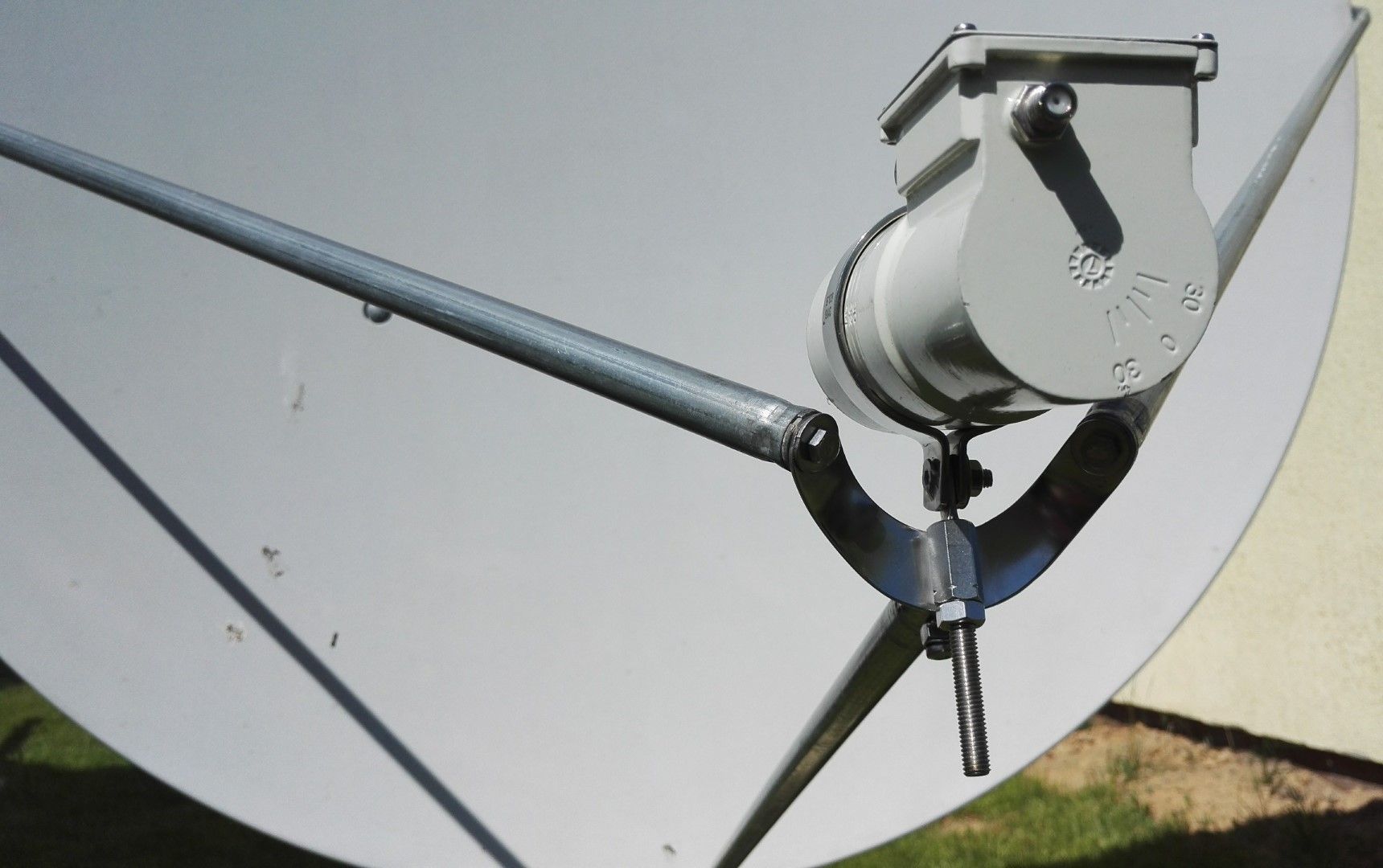

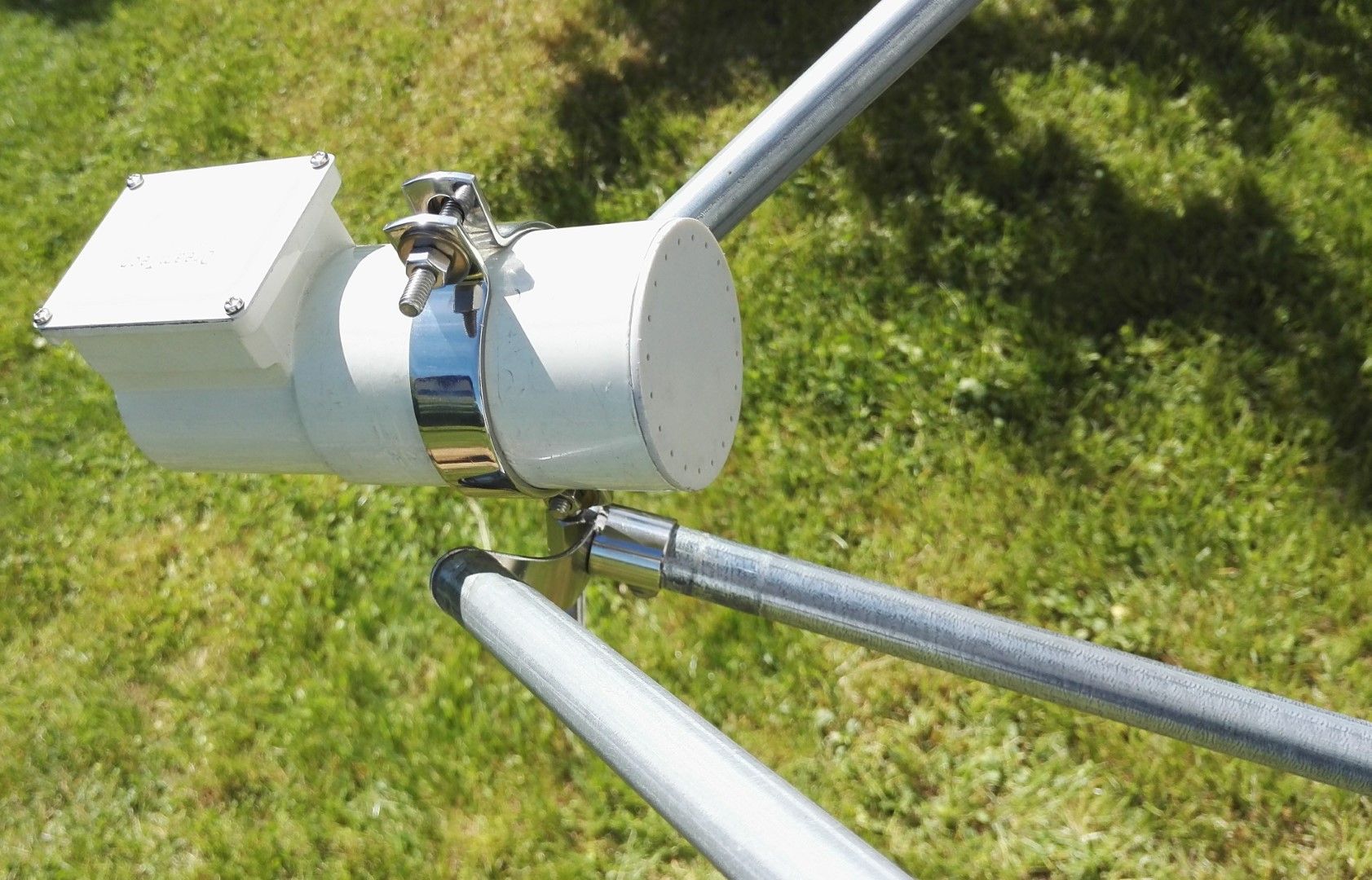

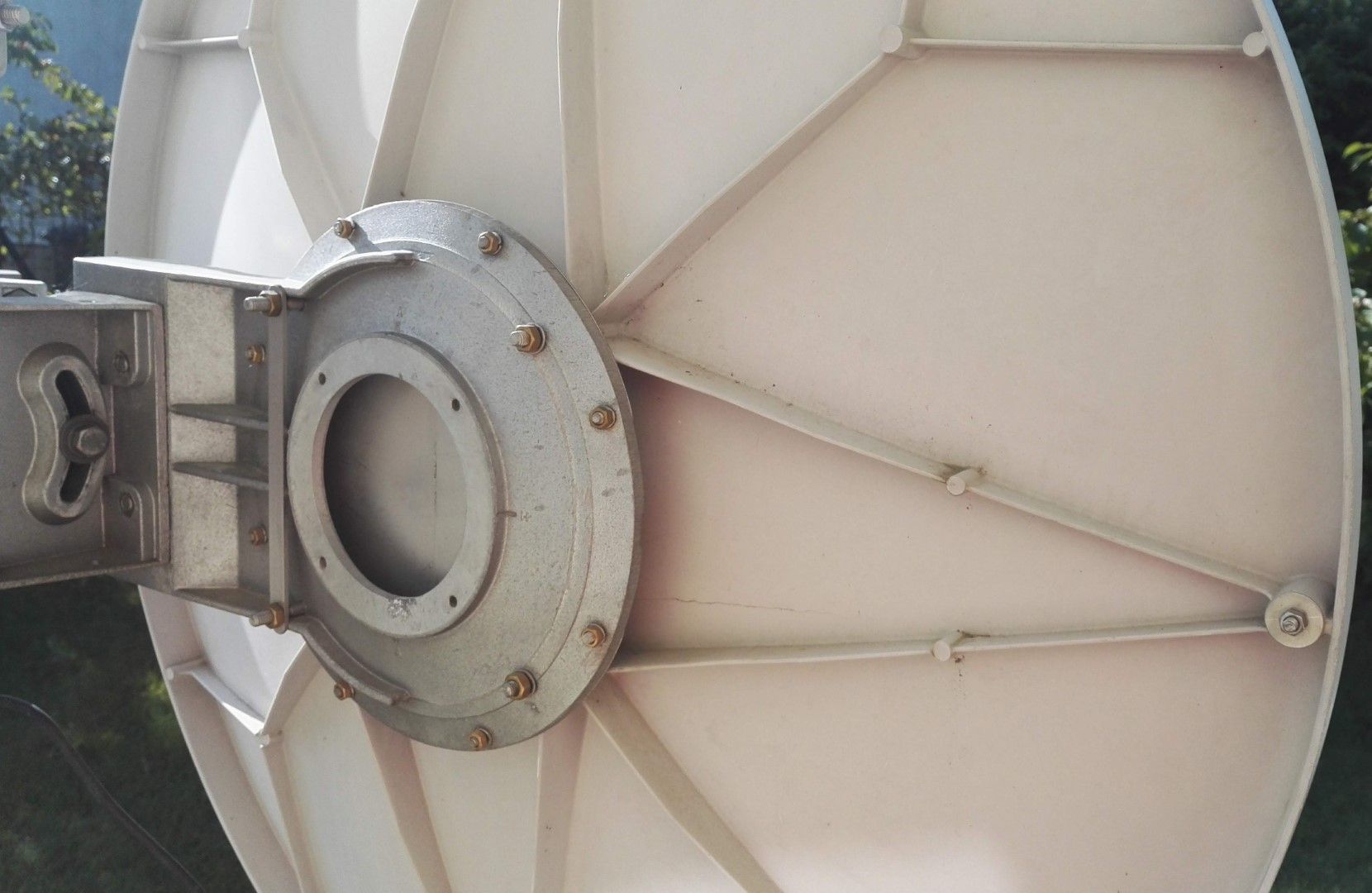

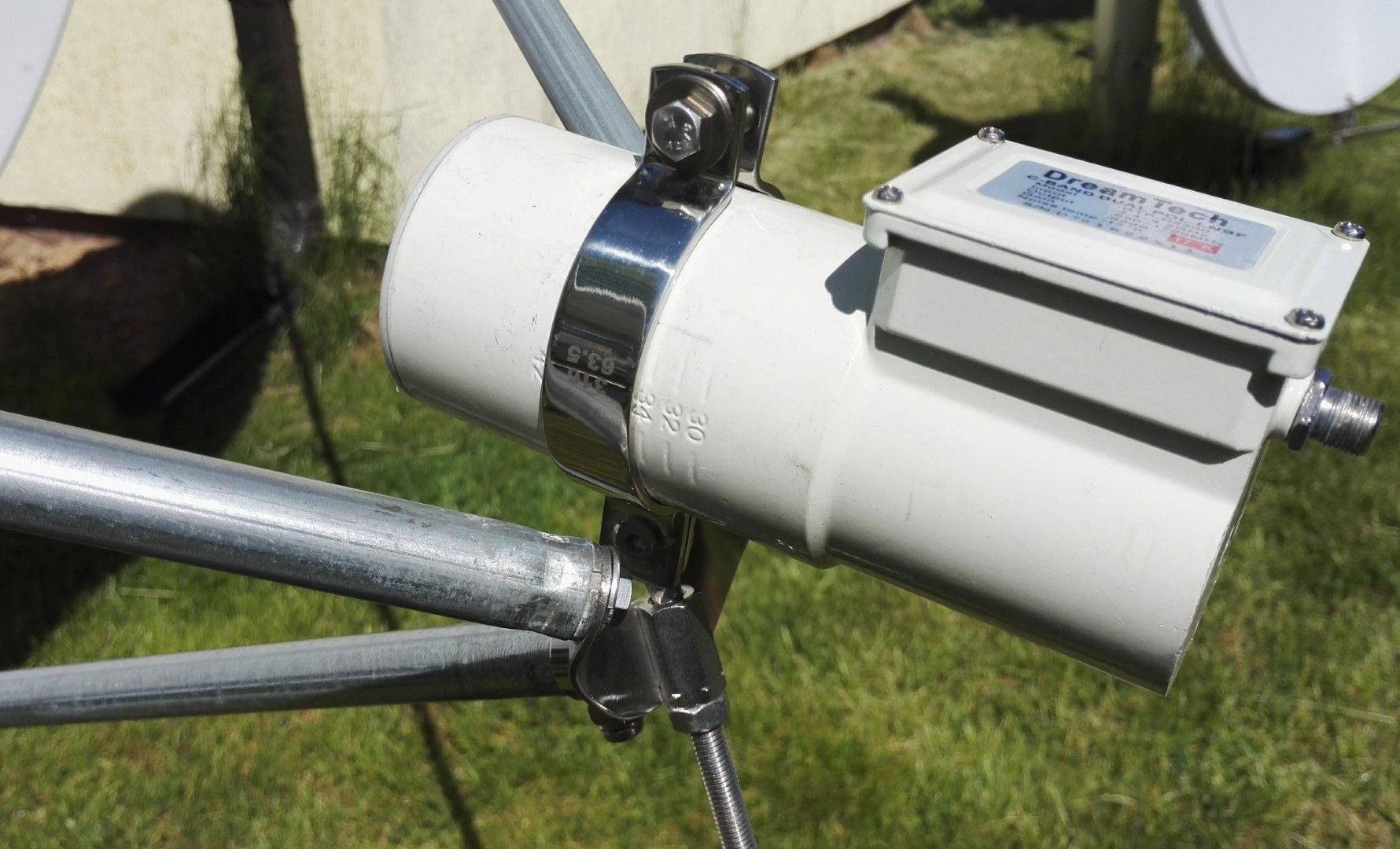

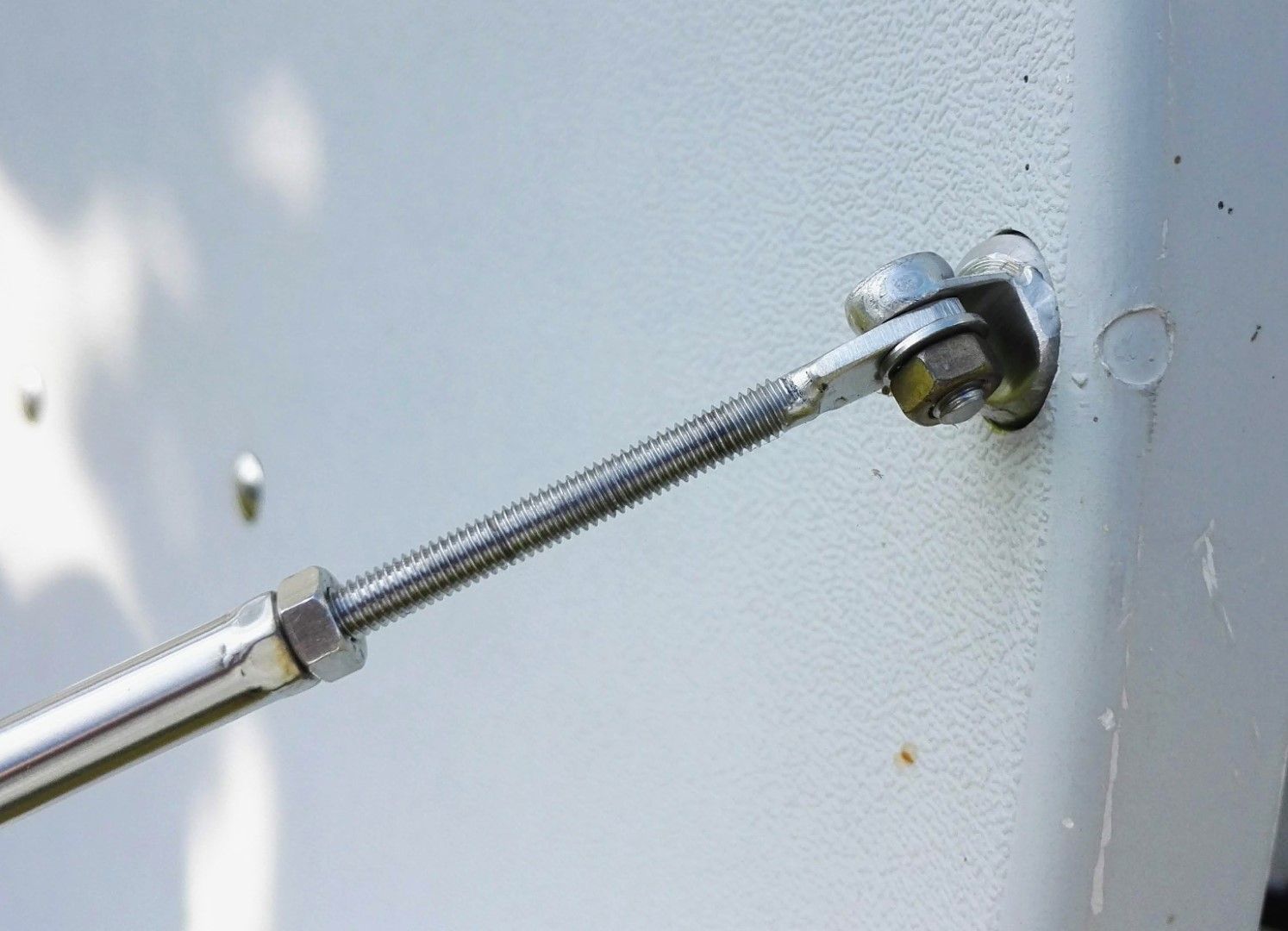

There are some pictures of mine 90 CM dish. IMG_20190820_170025 (Large).jpg IMG_20190820_170033 (Large).jpg IMG_20190822_093503 (Large).jpg IMG_20190822_094101 (Large).jpg IMG_20190822_094110 (Large).jpg IMG_20190822_094429 (Large).jpg


danristheman

SatelliteGuys Pro
Jan 25, 2011
3,126
1,104
85w
99w would be the next one to try it used to be really great for a minibud. Lesea channels you should get. Keep working on it.

  • Like
Reactions: c-spand
