Care and Feeding of a 12 foot Paraclipse... (1 Viewer)

Register Today to see less ads! It's Free!
Status
Please reply by conversation.

stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,819
46
Slidell,LA

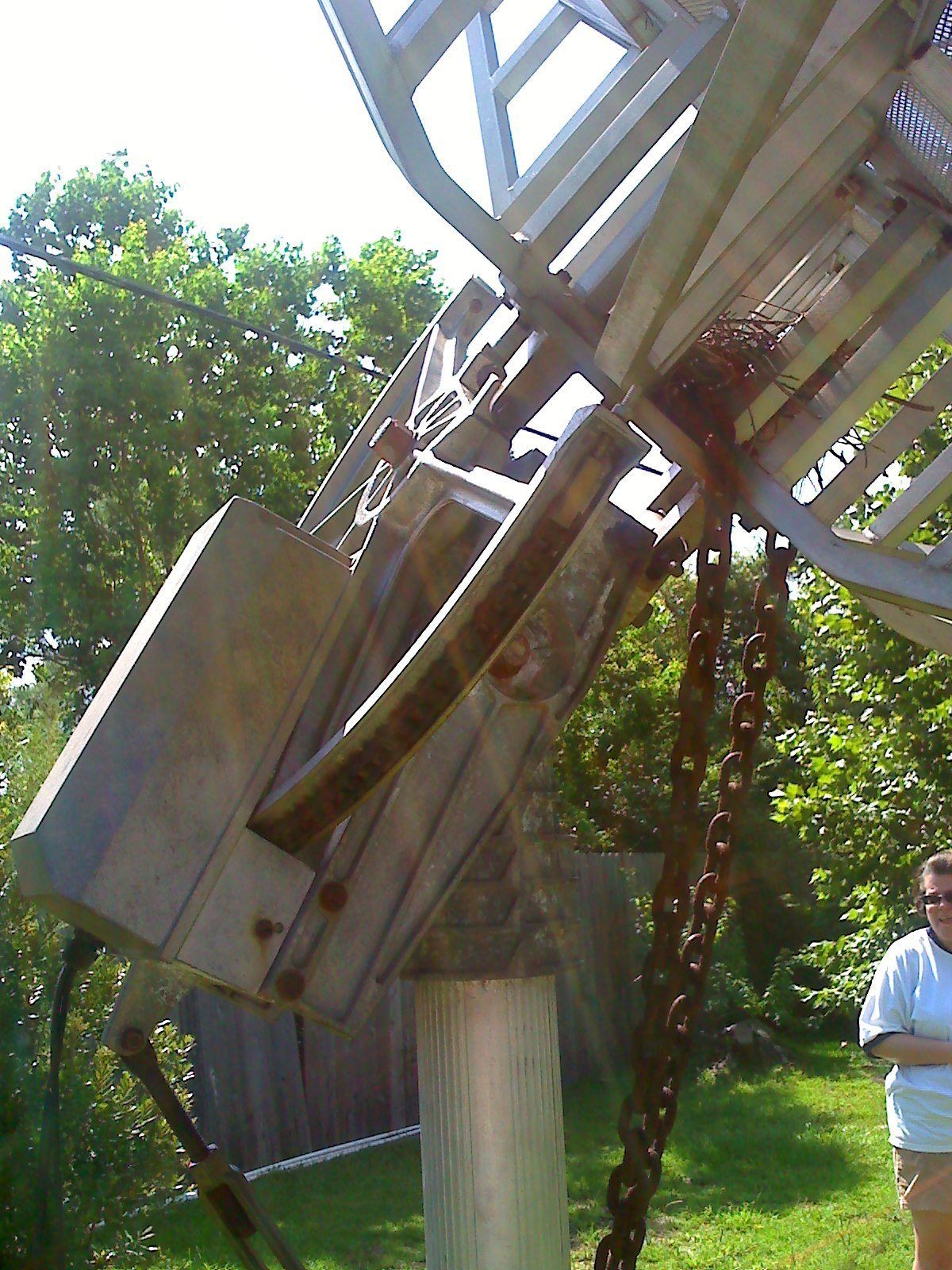

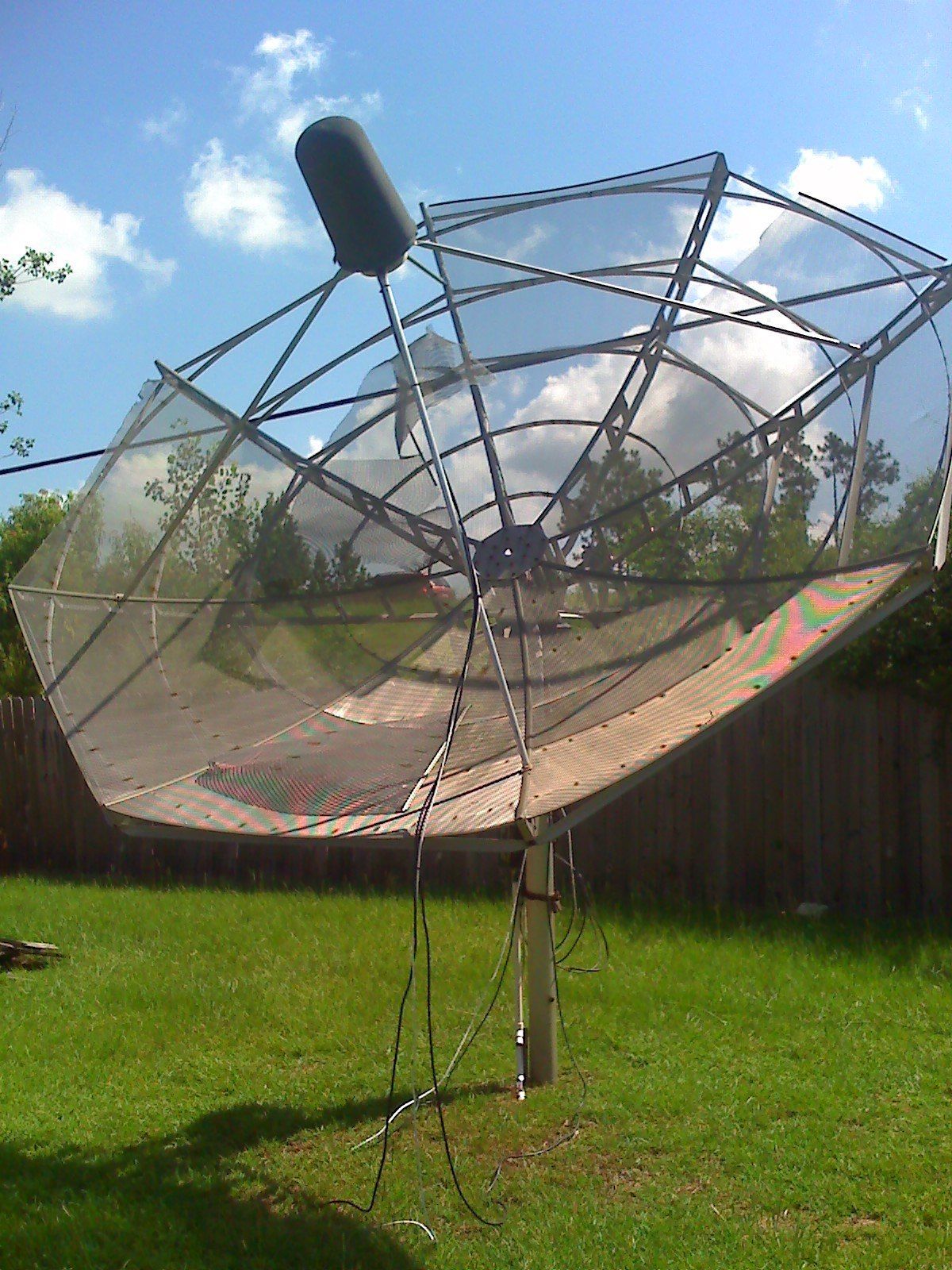

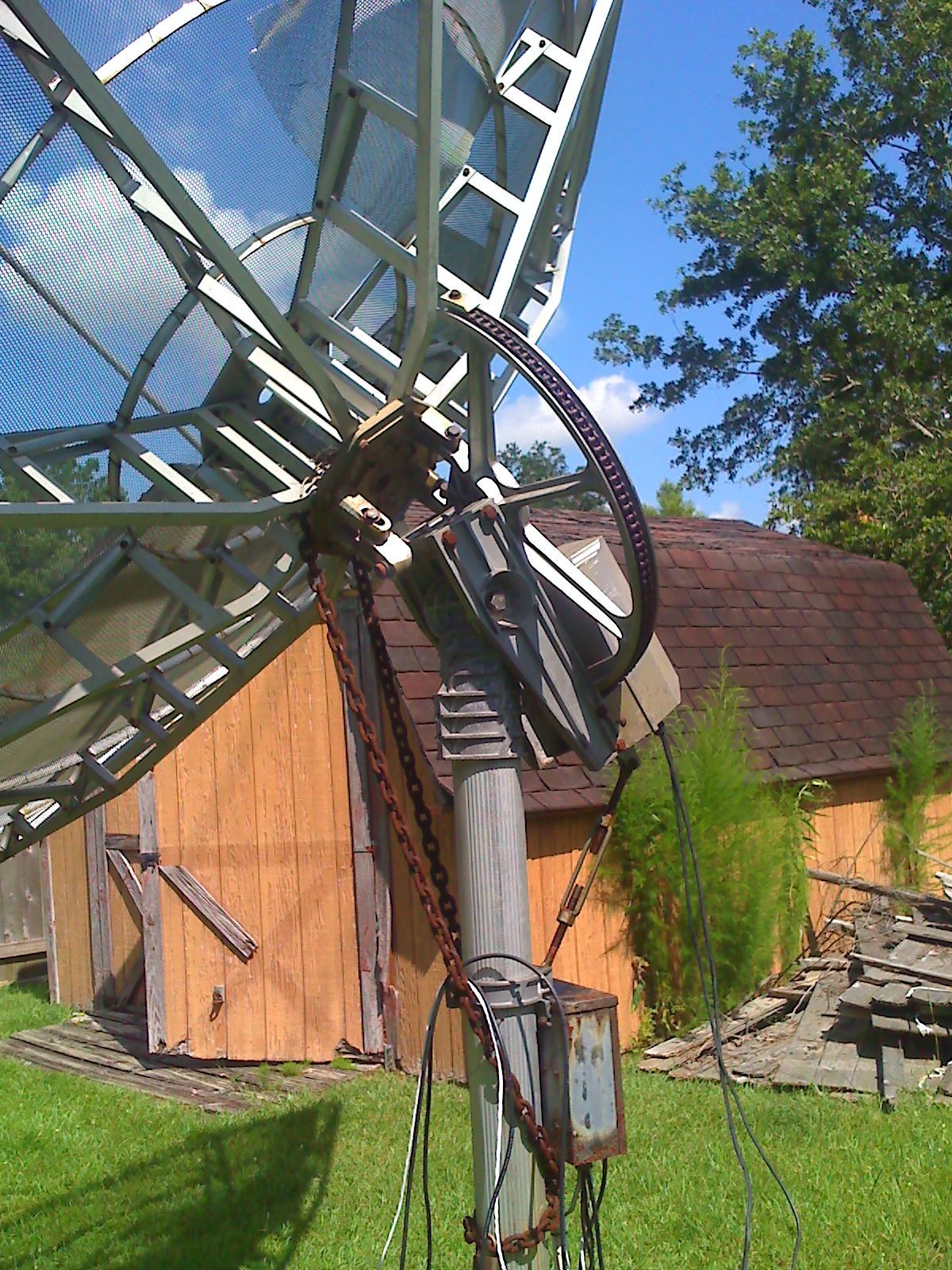

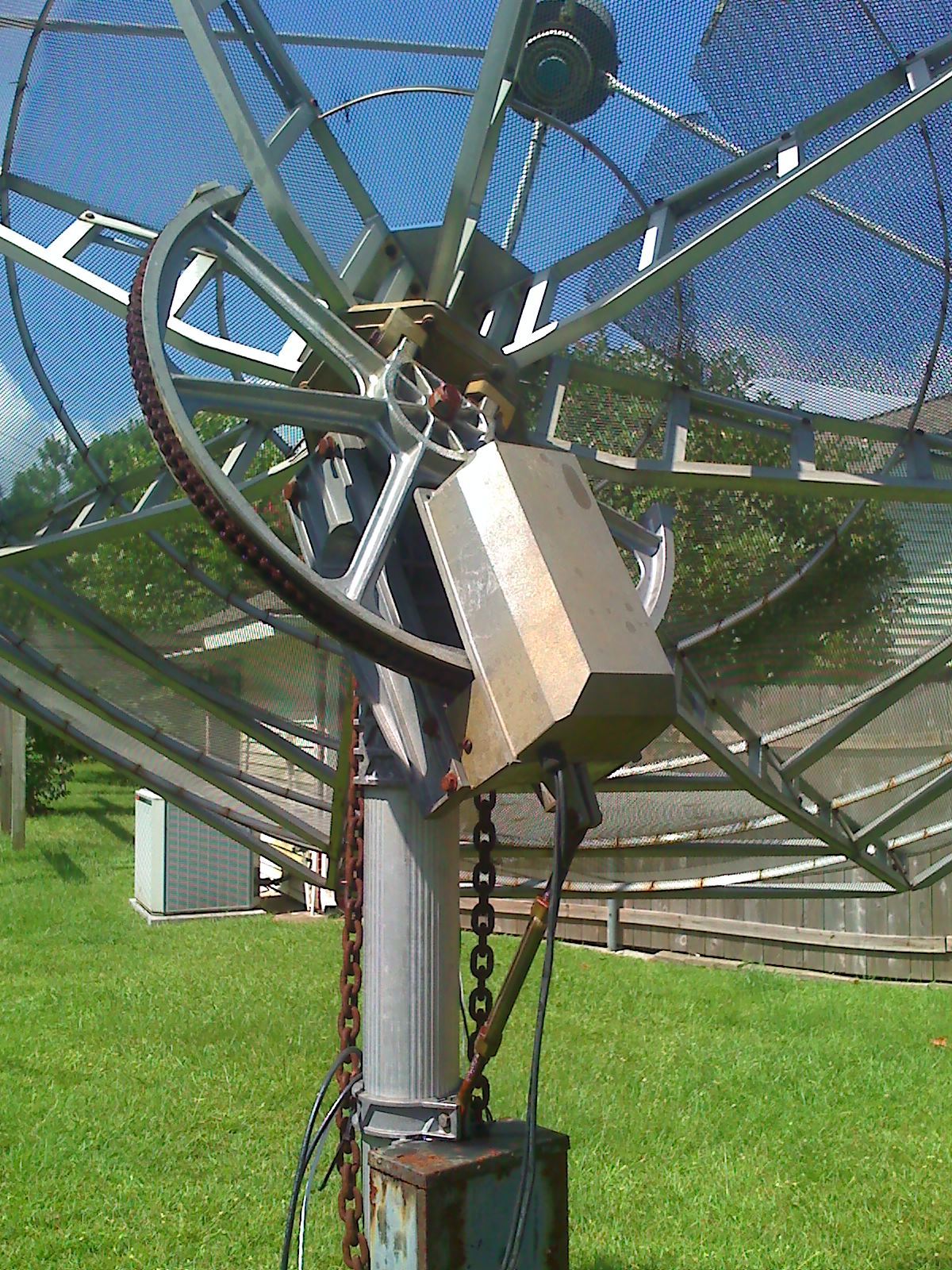

I've been looking at this dish for 25 years now...I decided to go ask....I asked. And now its mine for the taking. 12 foot paraclipse with a h-to-h mount.

Two questions...how in the hell am I gonna get it home with a 5X10 trailer and what are the chances that the motor is still gonna work?


Attachments

  • 0712081027a.jpg
    397.3 KB · Views: 717
  • 0712081028a.jpg
    443.1 KB · Views: 823
  • 0712081028b.jpg
    353.9 KB · Views: 654
  • 0712081028c.jpg
    340.1 KB · Views: 873
Register Today to see less ads! It's Free!

linuxman

SatelliteGuys Pro
Jul 16, 2006
3,903
15
North West of St. Louis, MO
Two questions...how in the hell am I gonna get it home with a 5X10 trailer and what are the chances that the motor is still gonna work?
First of all, a very nice score. They are a great dish, and the H-H mount should be fantastic for you.

As to the questions.

I would take the six or 8 bolts that run through the back plate through the mounting assembly to the face of the dish loose and take the dish off the mount from there.

Then take the H-H mount off the pole. You will need lots of hands because I don't see a way to dis-assemble the dish. There probably is, I just can't see it from your pictures.

Second question, if the sides of the trailer aren't too tall, just set it back side down in the trailer you have and come home slow with red flags on the sides and rear using back roads and flashing lights on lead and tail cars.

The mesh won't be hard to replace and you will have an excellent dish.

The chances of the motor working are very good. I have not brought home a single dish that the actuator or motor didn't work at least for a few months. I have only had one actuator fail after 6 months of usage.

Nice dish and a great find. :)


stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,819
46
Slidell,LA
I would say you are correct about the weight of the dish minus the mount. 150 lbs or less, probably less.

You should be able to carry it without that much trouble, after all, Tron rolled one for a couple of miles. :)

The PB-Blaster will work it's way into the threads, wouldn't hurt to go back and spray again in a day or two or the night before you go after it. :D

You will be fine with your trailer, just have to watch out for traffic and stuff close to the side of the road. :cool:

Good Luck, and I can't wait until you get it up and operational. :)

I am going to go back one day next week with tools and a ladder, and remove the feed and feed legs, and look at things closer. I was thinking I will probably have to take the mesh out of the center of the dish to reach the back side of the bolts, the dish is too deep and high to reach from the ladder I would think....

I am waiting to see what kind of help I am gonna get...all the folks I have helped out over the years...let's see how many of them will return the favor...;)


linuxman

SatelliteGuys Pro
Jul 16, 2006
3,903
15
North West of St. Louis, MO
I am waiting to see what kind of help I am gonna get...all the folks I have helped out over the years...let's see how many of them will return the favor..
It never hurts to help someone else. I have made that my practice over the past 30 years.

Today eleven of our friends showed up to help the four members of our family move all of our stuff back into the building now that the threat of a flood is gone, so helping others only helps yourself. :)


Mauiguy

SatelliteGuys Pro
Jan 3, 2008
180
14
Haiku, Maui
I am going to go back one day next week with tools and a ladder, and remove the feed and feed legs, and look at things closer. I was thinking I will probably have to take the mesh out of the center of the dish to reach the back side of the bolts, the dish is too deep and high to reach from the ladder I would think....

I am waiting to see what kind of help I am gonna get...all the folks I have helped out over the years...let's see how many of them will return the favor...;)


Stogie,

I have disassembled about five Paraclypse dishes. I would strongly recommend looking closely at where the mount attaches to the backing plate. There are three or four bolts there.

If you try to take the ribs loose from the back hub plate, you may damage or break the front hub plate on the reflecting side of the dish. It is made from aluminun and can be broken easily.

I have no idea how to send diagrams or pictures to this site, but, if you email me an address I can burn a copy of the installation and instruction manuals for the paraclypse classic 12 foot and 14 foot chain drive dish. and mail it to you.

Email addy is mauiguy1@hawaiiantel.net


stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,819
46
Slidell,LA
Stogie,

I have disassembled about five Paraclypse dishes. I would strongly recommend looking closely at where the mount attaches to the backing plate. There are three or four bolts there.

If you try to take the ribs loose from the back hub plate, you may damage or break the front hub plate on the reflecting side of the dish. It is made from aluminun and can be broken easily.

I have no idea how to send diagrams or pictures to this site, but, if you email me an address I can burn a copy of the installation and instruction manuals for the paraclypse classic 12 foot and 14 foot chain drive dish. and mail it to you.

Email addy is mauiguy1@hawaiiantel.net

EMAIL SENT! :eek: :up

Register Today to see less ads! It's Free!

linuxman

SatelliteGuys Pro
Jul 16, 2006
3,903
15
North West of St. Louis, MO
Not exactly sure if i can attach a PDF file to one of these posts, but for any one interested, I have that manual on PDF now. The file size for email is about one meg.

You can attach a PDF to a reply below.

Just click on the quote icon at the bottom of this post, and that will bring up the screen to type using advanced mode.

Click on the paper clip icon along the top which will bring up a browser for you to find your attachment and upload it.

Then just click on the paper clip again, and tell it to insert into the post. :)


melgarga

SatelliteGuys Pro
May 11, 2008
834
0
SE Texas
uh, this may be an out-of-context thing i dont understand, so could someone please explain this to me.
It's a generation gap thing. I have used the term "Dueling Banjos" once to infer something to some younger peeps and got basicly the same reaction as yours.......lol. Might also try IMDB for movie info.....good site, even the "free side"
One of my daughters said she's afraid to bring anyone to my house cause comming thru the gate and down the drive it looks like somewhere out of "The Texas Chainsaw Massacre" Cant really see how that's a bad thing. Keeps the tourist and the curious away...........
And dont even get me started on "Blazing Saddles" and all the terminology ol' crazy Mel has given the public that the younger folks have no idea of the source.....BADGES! We dont NEED no stinking badges!.....hehehehe
Picked me up 2 Birdies w/irds this weeekend guys...one solid and one perf'd........I'll u'l some pics later for posterity sake. dang it......now Linuxman is doing a Whois on my IP.....lol I can almost feel MS Virtual Earth bearing down on me........


Mauiguy

SatelliteGuys Pro
Jan 3, 2008
180
14
Haiku, Maui
You can attach a PDF to a reply below.

Just click on the quote icon at the bottom of this post, and that will bring up the screen to type using advanced mode.

Click on the paper clip icon along the top which will bring up a browser for you to find your attachment and upload it.

Then just click on the paper clip again, and tell it to insert into the post. :)


Thank you. Attached is the paraclypse assembly manual


Attachments

  • scan0001.pdf
    1.4 MB · Views: 448

linuxman

SatelliteGuys Pro
Jul 16, 2006
3,903
15
North West of St. Louis, MO
It's a generation gap thing. I have used the term "Dueling Banjos" once to infer something to some younger peeps and got basicly the same reaction as yours.......lol. Might also try IMDB for movie info.....good site, even the "free side"
One of my daughters said she's afraid to bring anyone to my house cause comming thru the gate and down the drive it looks like somewhere out of "The Texas Chainsaw Massacre" Cant really see how that's a bad thing. Keeps the tourist and the curious away...........
And dont even get me started on "Blazing Saddles" and all the terminology ol' crazy Mel has given the public that the younger folks have no idea of the source.....BADGES! We dont NEED no stinking badges!.....hehehehe
Picked me up 2 Birdies w/irds this weeekend guys...one solid and one perf'd........I'll u'l some pics later for posterity sake. dang it......now Linuxman is doing a Whois on my IP.....lol I can almost feel MS Virtual Earth bearing down on me........

You got me ROFLOL. :)

We'll look forward to the pictures of your Birdviews. :D

"We know where you are". :cool:

Just kidding! Unfortunately, I don't have time right now to do the tracking thing. :)


stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,819
46
Slidell,LA
Thank you. Attached is the paraclypse assembly manual


Thanks! :up

FANTASTIC information! Exactly what I needed! the three bolts holding the mount to the backing plate were my first thought on how to remove it. I am probably going to go back Tuesday and see if I can break them loose (if not more PB Blaster), take the feed mount off, and line up some help, might try to get it this coming weekend if everything comes together.

Also nice to see a regular actuator motor under that cover, too. From the shape of the chain on this dish though, I am going to have to take that off and soak it well in oil before I even try to operate it.


Mauiguy

SatelliteGuys Pro
Jan 3, 2008
180
14
Haiku, Maui
Thanks! :up

FANTASTIC information! Exactly what I needed! the three bolts holding the mount to the backing plate were my first thought on how to remove it. I am probably going to go back Tuesday and see if I can break them loose (if not more PB Blaster), take the feed mount off, and line up some help, might try to get it this coming weekend if everything comes together.

Also nice to see a regular actuator motor under that cover, too. From the shape of the chain on this dish though, I am going to have to take that off and soak it well in oil before I even try to operate it.

I have looked at my chain just to see how it is all assembled, and I think you might be able to replace the original with one from a motor cycle. Back when paraclypse was still active, I had a distinct impression that they were using as many pre manufactured as possible.

FYI that rear hub plate from which you will be removing the bolts is made from aluminum too. I have heard of folks breaking those too.

Recently I took the remains of a twelve foot paraclypse to the recycle place. The total weight of the dish including the backing plates and mesh (with out the mount) was in the neighborhood of one hundred seventy pounds.

Two reasonably fit young guys could take it down I think


Mauiguy

SatelliteGuys Pro
Jan 3, 2008
180
14
Haiku, Maui
Thanks for posting the instructions Mauiguy!


My pleasure.
I just emailed Stogie, and I have almost all of the old technical bulletins that the paraclypse folks used to post on the internet. I will dig through my stuff and post them here for informational purposes. There is some interesting stuff in there.

Aloha


stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,819
46
Slidell,LA
I have looked at my chain just to see how it is all assembled, and I think you might be able to replace the original with one from a motor cycle. Back when paraclypse was still active, I had a distinct impression that they were using as many pre manufactured as possible.

FYI that rear hub plate from which you will be removing the bolts is made from aluminum too. I have heard of folks breaking those too.

Recently I took the remains of a twelve foot paraclypse to the recycle place. The total weight of the dish including the backing plates and mesh (with out the mount) was in the neighborhood of one hundred seventy pounds.

Two reasonably fit young guys could take it down I think

Yes, I used to be an aluminum shipfitter (helped build the hovercraft the Navy use,LCAC), so I know how brittle aluminum, especially cast aluminum, can be. I plan on at least four guys to help me get it down to make dang sure we have NO mishaps. Once I get it here at home I can use a tractor with a boom pole that I have access to, to reset the dish on the mount, if need be.

Keep the good info coming! And thanks again!


Mauiguy

SatelliteGuys Pro
Jan 3, 2008
180
14
Haiku, Maui
Yes, I used to be an aluminum shipfitter (helped build the hovercraft the Navy use,LCAC), so I know how brittle aluminum, especially cast aluminum, can be. I plan on at least four guys to help me get it down to make dang sure we have NO mishaps. Once I get it here at home I can use a tractor with a boom pole that I have access to, to reset the dish on the mount, if need be.

Keep the good info coming! And thanks again!


As I mentioned in a previous post, I have several of the technical support newsletters that Paraclypse used to publish on the web. I am willing to upload those to this site as long as none of the moderators object.

These newsletters include such information as setting declination on the standard Paraclypse dish using the shim method etc. I also have a price list for the Paraclypse dishes from 2000. This list includes the paraclypse classic dishes, along with the hydro dishes, eclipse dishes and some patriot dishes...

Stogie, just for your information the Web list price for your dish back in 2000 was....1,995.00.

I will scan the documents to PDF and if I receive no objections I will post them here.


stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,819
46
Slidell,LA

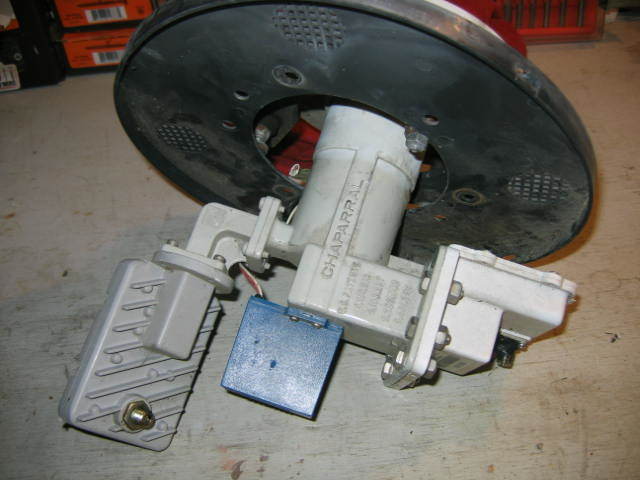

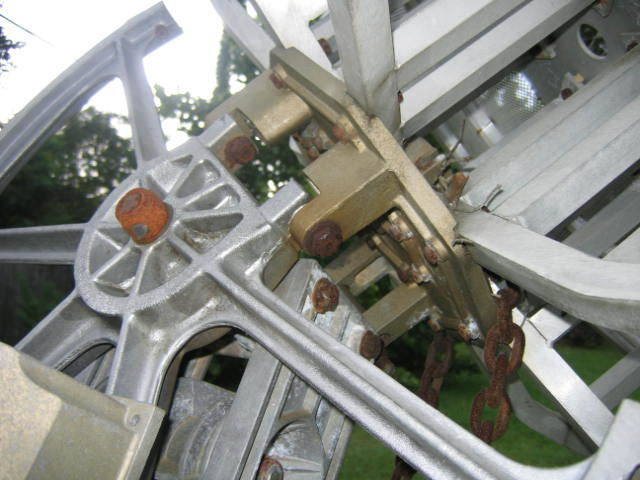

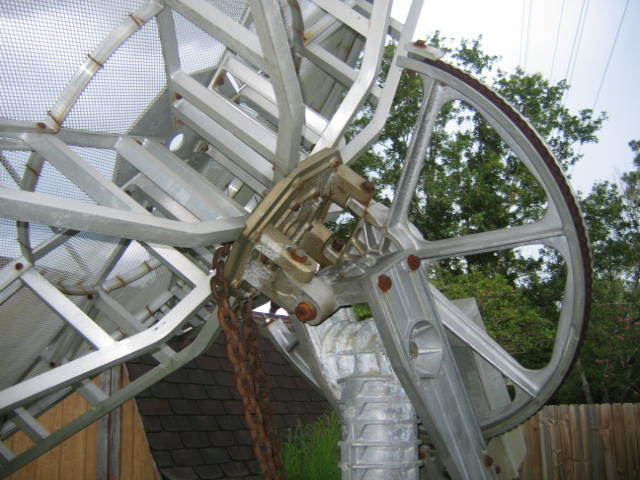

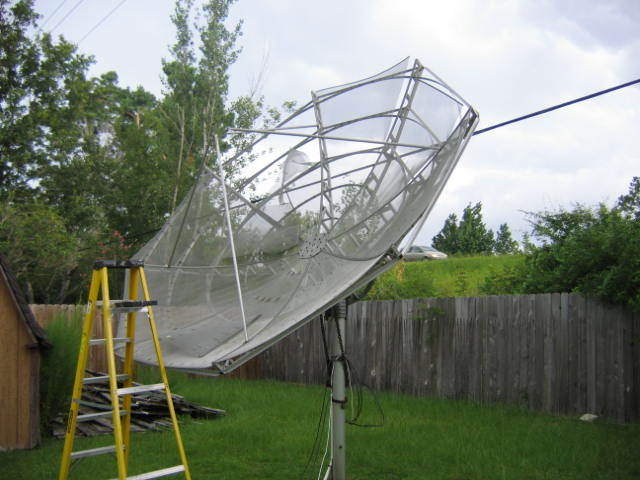

Went back to the dish today, took some more pics and harvested the feed and lnb's....

Then the Rains came. LOL

Oh well go back tomorrow...

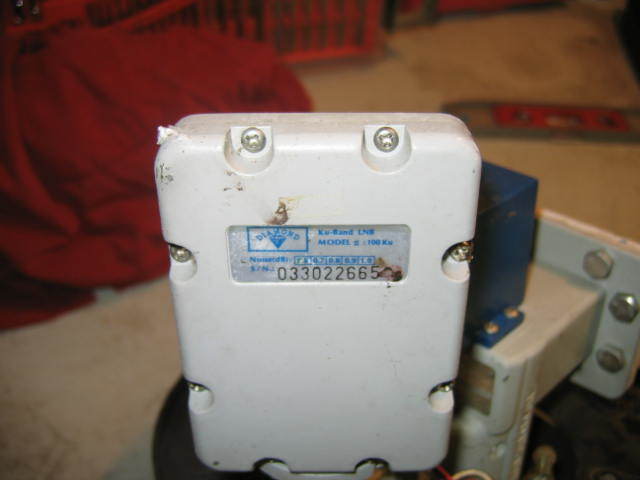

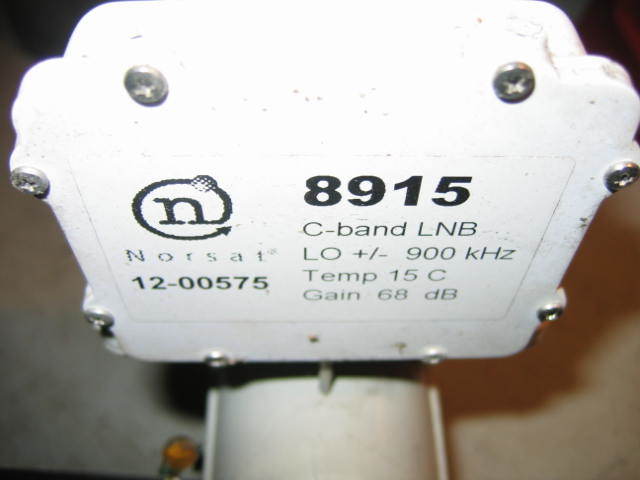

Had some high-dollar LNB's on that puppy...I am already seeing that KU LNB on a 1m P* that I have on standby...it has a round mounting plate...


Attachments

  • IMG_1463.JPG
    45.4 KB · Views: 482
  • IMG_1464.JPG
    55 KB · Views: 485
  • IMG_1465.JPG
    45.6 KB · Views: 383
  • IMG_1467.JPG
    36 KB · Views: 482
  • IMG_1469.JPG
    22.8 KB · Views: 421
  • IMG_1471.JPG
    22.8 KB · Views: 406

gabshere

SatelliteGuys Pro
Aug 20, 2006
3,720
21
Rison , Arkansas
i will be watching this thread closely can you guess what i found :D

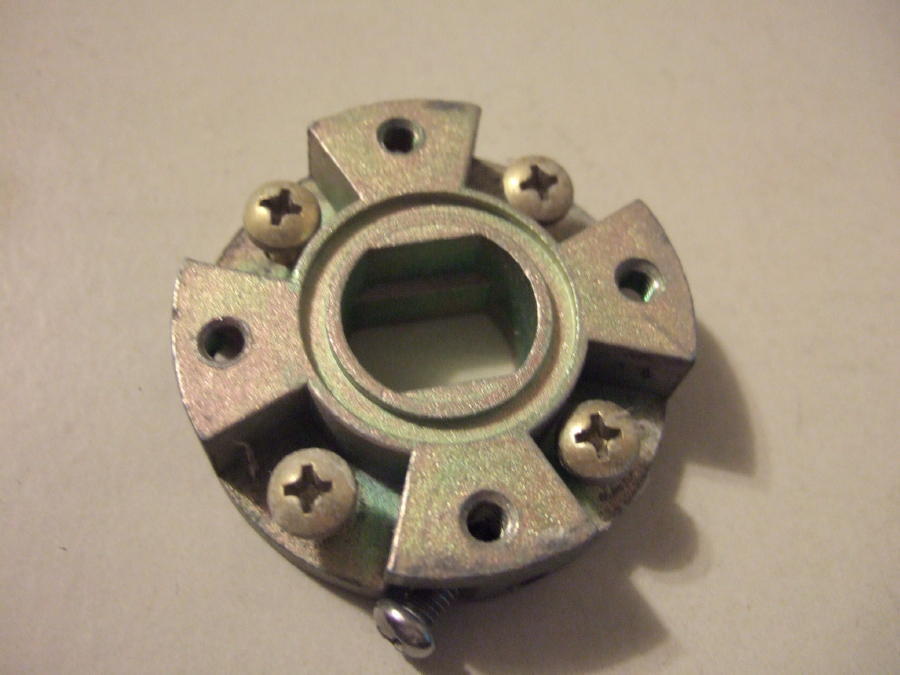

they make a adapter mounting plate, i know i have one or two here


Attachments

  • adapter.JPG
    49.5 KB · Views: 258

Mauiguy

SatelliteGuys Pro
Jan 3, 2008
180
14
Haiku, Maui
Went back to the dish today, took some more pics and harvested the feed and lnb's....

Then the Rains came. LOL

Oh well go back tomorrow...

Had some high-dollar LNB's on that puppy...I am already seeing that KU LNB on a 1m P* that I have on standby...it has a round mounting plate...


Stogie,

At one time Paraclypse upgraded their mesh to smaller holes in order to get better Ku reception. It appears that you do not have that upgrade on your dish. Let me reassure you that you will do fine with that mesh. My dish receives all ku feeds that I have attempted to receive.

The reason I mention the mesh stuff, is that they also changed how the mesh was mounted on the trusses. The original had the mesh sort of set on the surface of the truss along a grooved rib. Once all of the clips were installed there was a plastic strip that then snapped in to the grove to secure the edges of the mesh.

If you do not remove the plastic, you may find that it is almost impossible to reinstall mesh where you need to do so.

Removal of those strips can usually be accomplished by sliding them out of the rib. With the aluminum there may be some corrosipon issues, but if you can save the strips and then reuse them it would be to your advantage in keeping a parabolic surface.

The manual I posted does not discuss these retaining strips as that particular model did not incorporate them.

Later modifications to the Paraclypse design incorporated grooves on the sides of the trusses into which the mesh would slide. Then the mesh was clipped to the support rings. When they made that version they went to a denser mesh which increased the metal to 55 percent instead of 37 percent..

I have an even older manual for the paraclypse that did not incorporate any type of groove or plastic cap material to secure the mesh. Apparently they used a "U" shaped wire to hold the mesh down on the trusses. In addition it had a button hook type feed.
