Direcpc LNB

[john green]

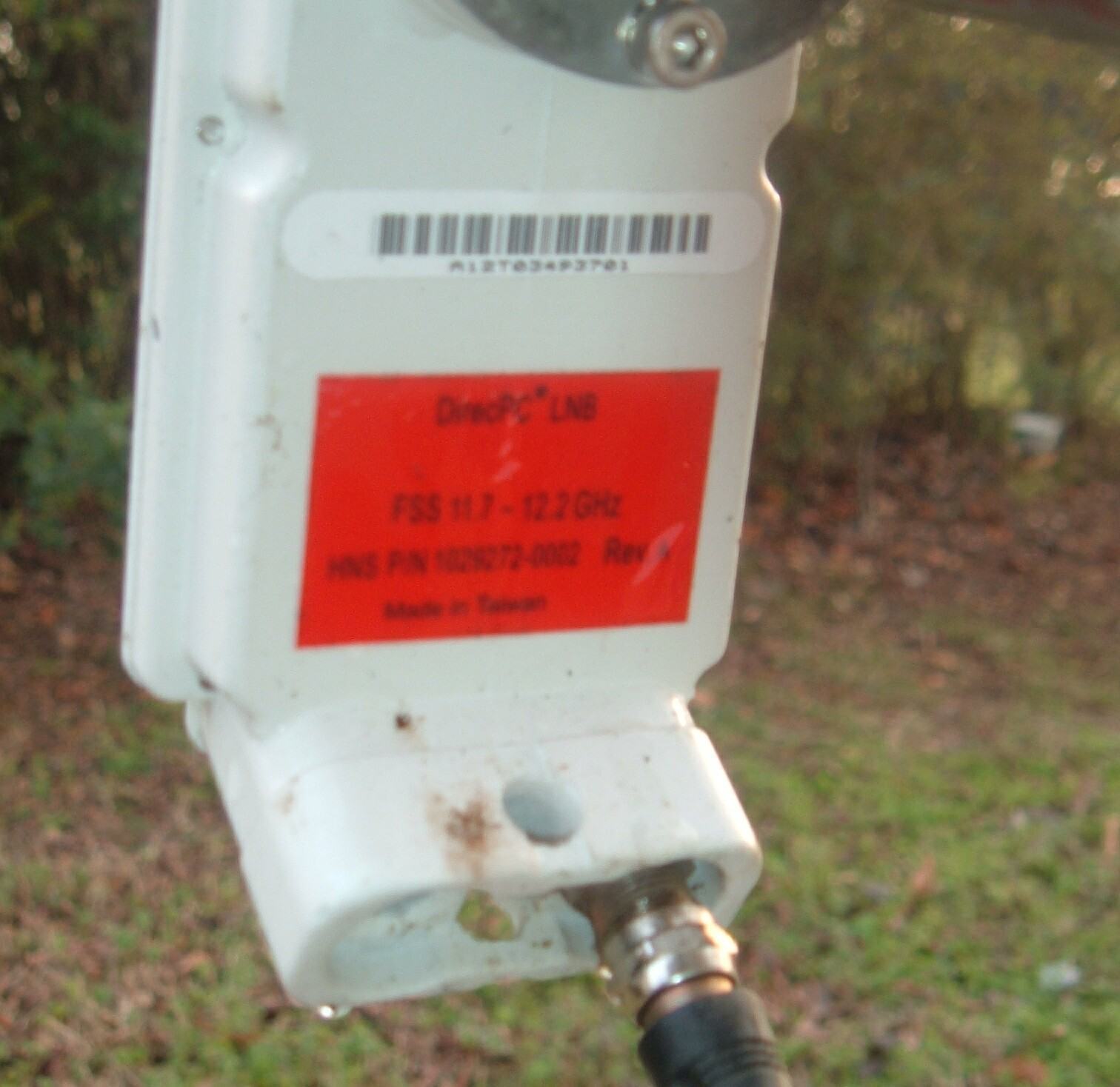

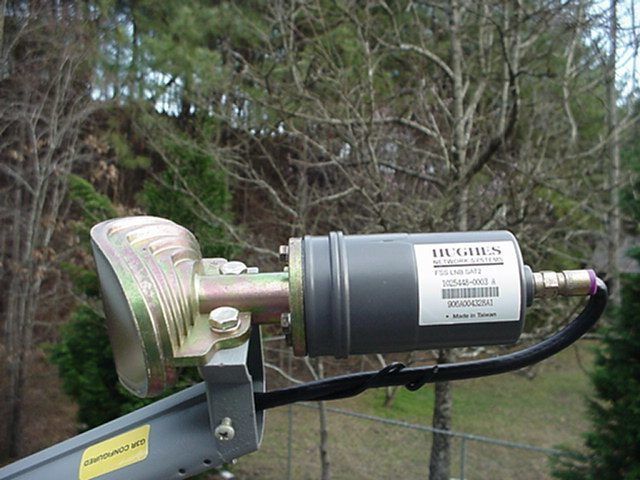

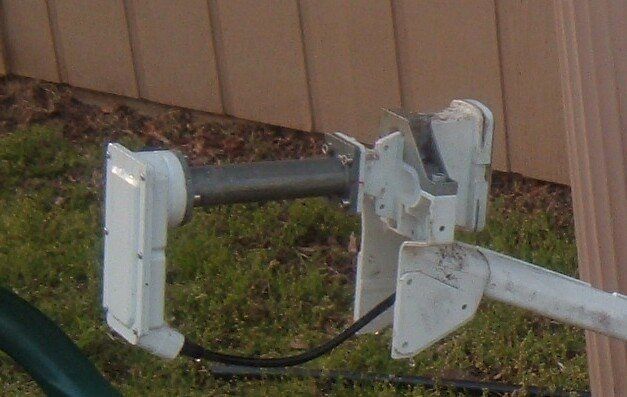

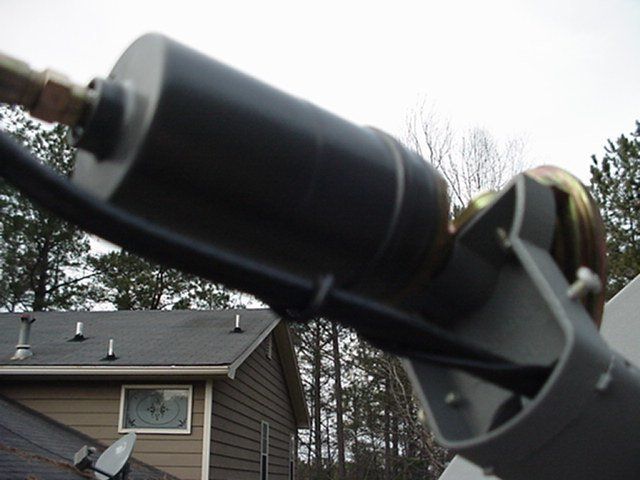

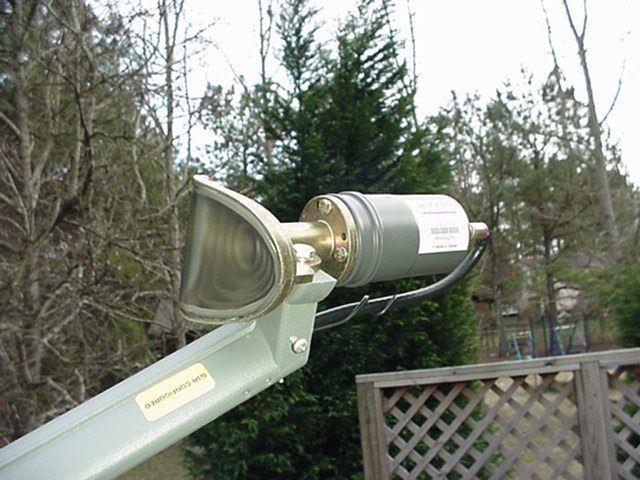

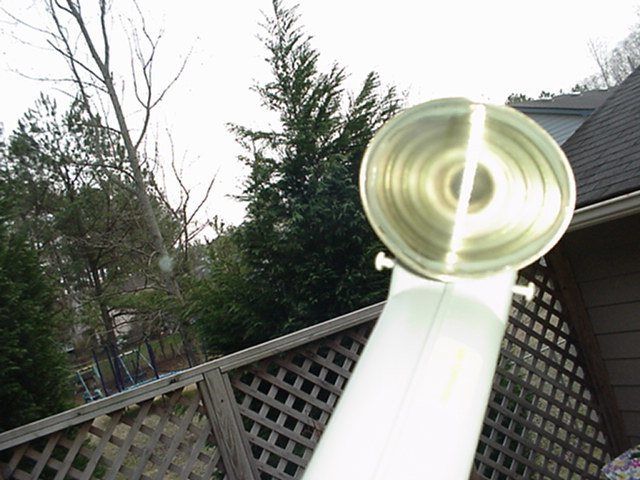

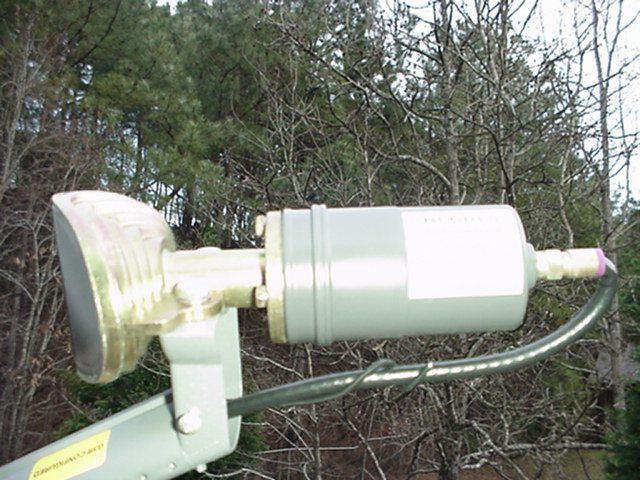

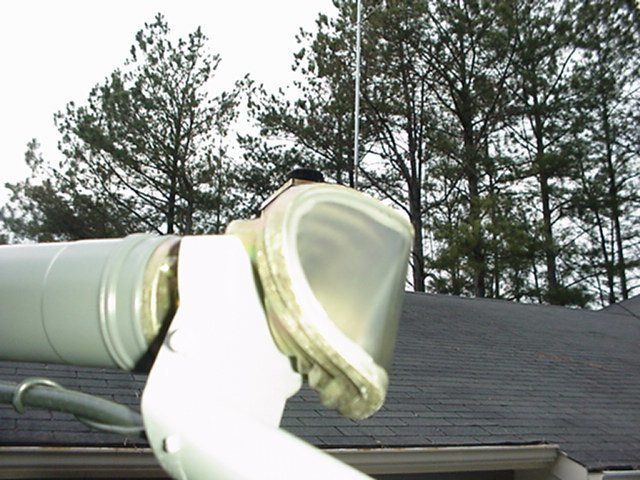

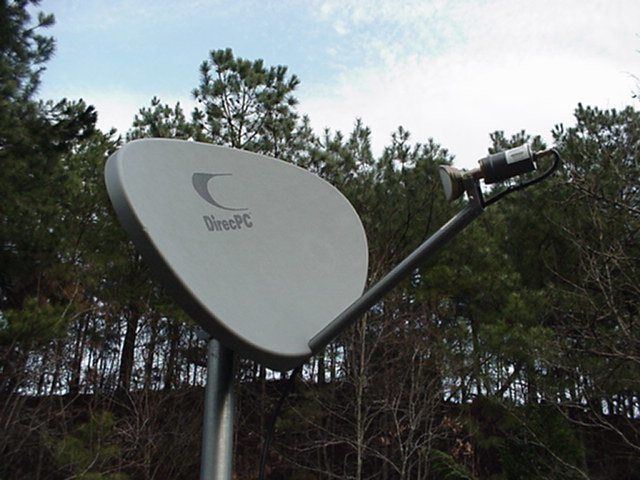

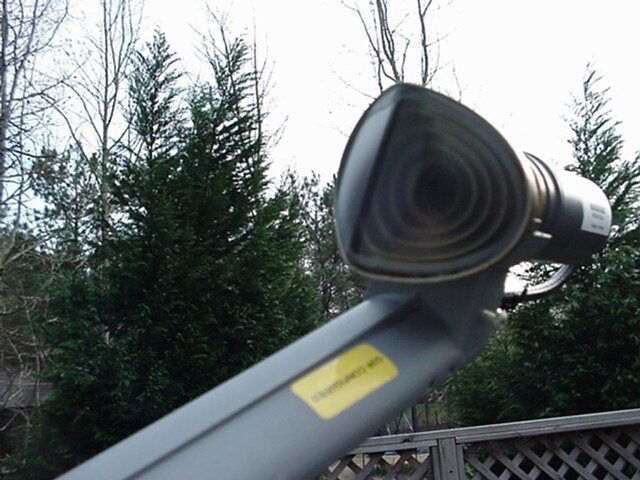

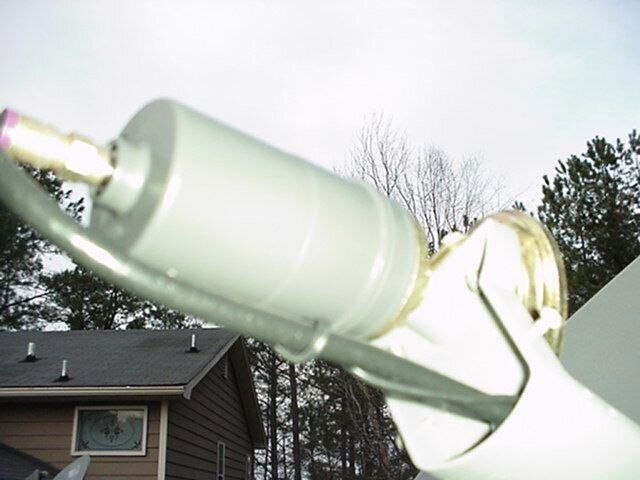

For those of you who were curious about the LNB that came with the Direcpc dish here are some pics.



[7720driver]

Yes John, that LNB is different from mine. Mine is square, not round. Glad you lucked up and got one that can switch polarity via voltage. Thanks for the pics!



[Mr Tony]

John
What size is that dish? I have a 32x18 that has the same LNB....my 39x23 has a rectangle one (7720 probably has the same one)



[john green]

It's 35 x 20 if I remember correctly.It performs pretty well.I have it stationary on G10.



[Mr Tony]

oh wait...your right...35x20...same size as a Superdish

I'll get a picture of the other LNB for the larger dishes



[drhydro]

My p* 39" has the same feed horn, but has outputs for both h and v. Since its set on amc3 for PBS , I just use 1 of the outputs.



[partyharty]

I just thought I would post some pics of my LNB (off of a Direcway Dish).

If anyone has any idea of the specs please feel free to chime in.

The first picture is of the label (attached to the LNB)
The second picture is of the LNB (minus the cover)

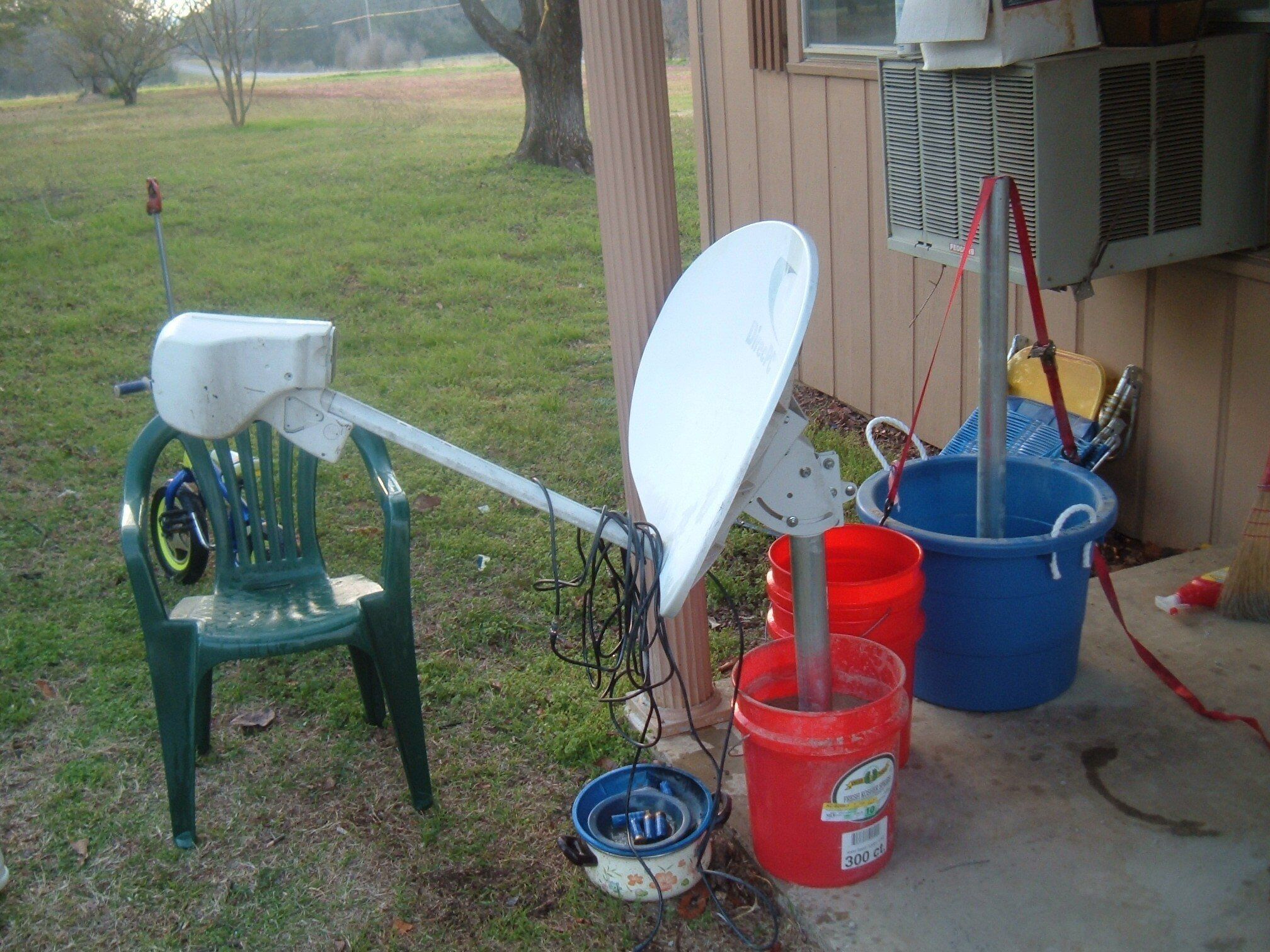

The 3rd picture is of the entire dish

PS I kinda guessed when I put the specs in my sig



[Mr Tony]

I've got the same dish

The LNB is a .6 NF



[PSB]

Still got 2 off them here! Standard 10750 for the L.O. (As stated above)



[partyharty]

I've got the same dish

The LNB is a .6 NF

One of your other post's is why I guessed it was a .6
I am not that good of a guesser



[digiblur]

That's one hell of a bend/bind you have the cable doing the first set of pictures... or maybe it's the angle you are at with the camera.



[partyharty]

If your referring to my pictures its because the one with the LNB was taken upside down and flipped in software. The cable's look to be really messed up but they are not in real life
