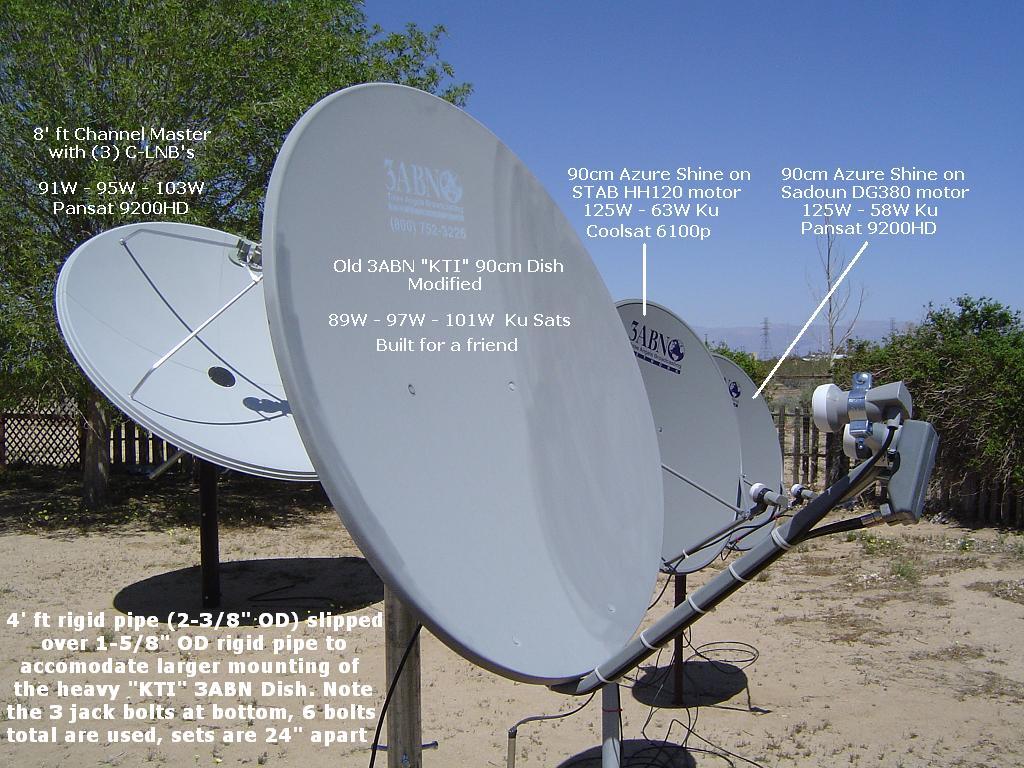

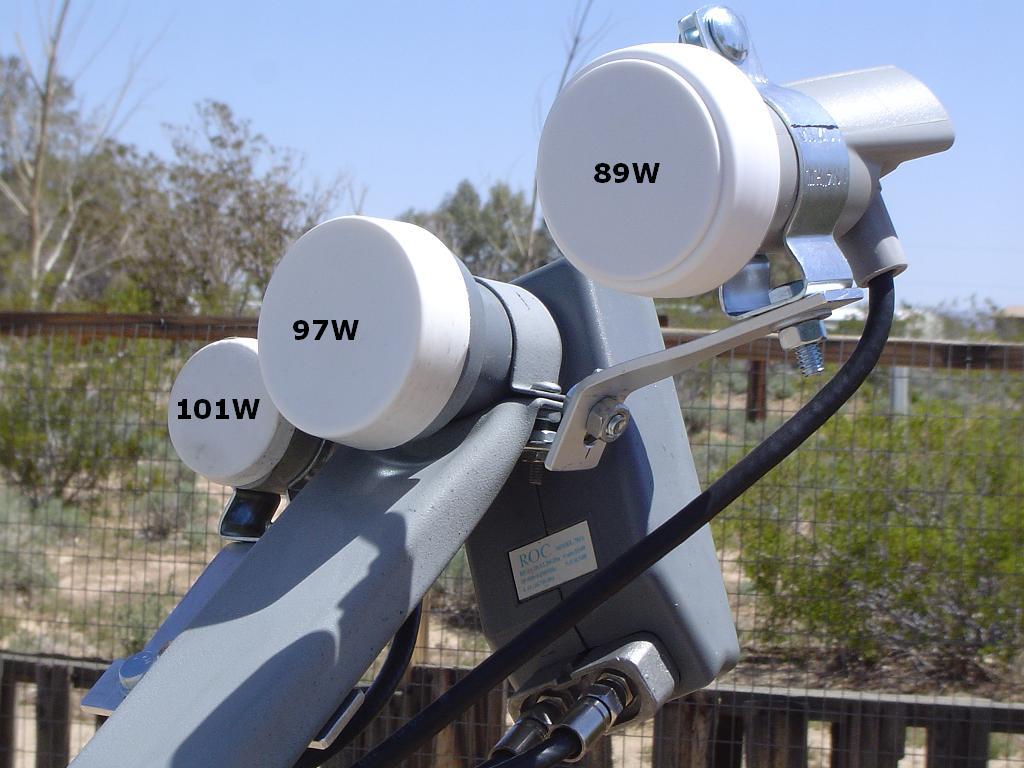

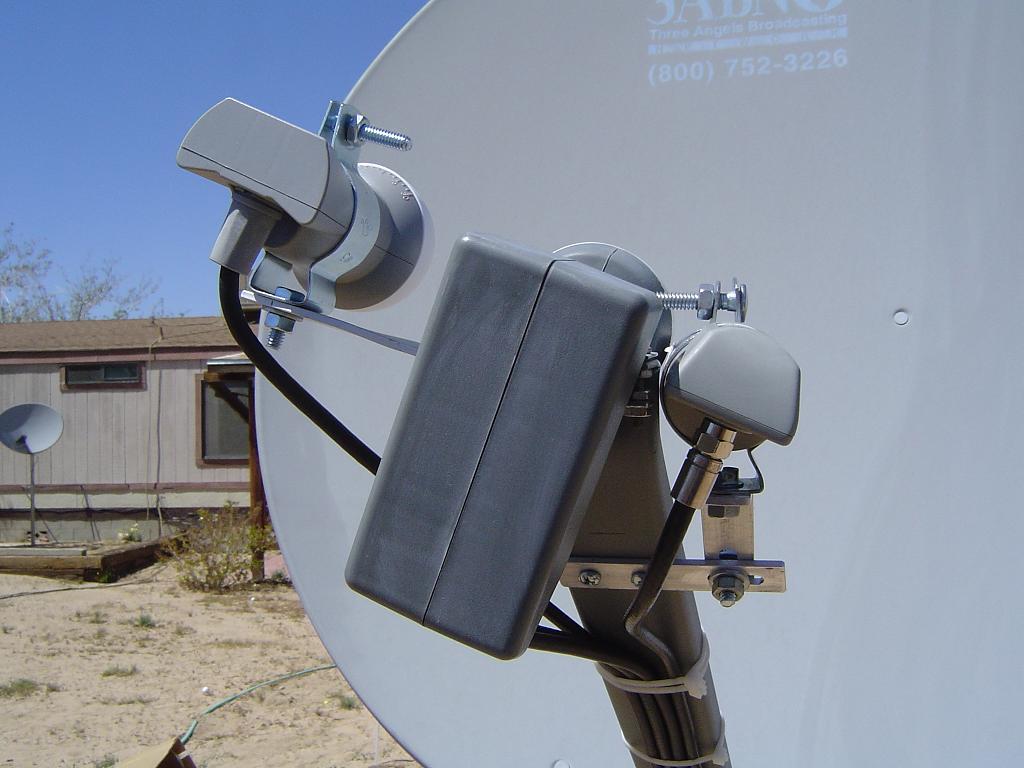

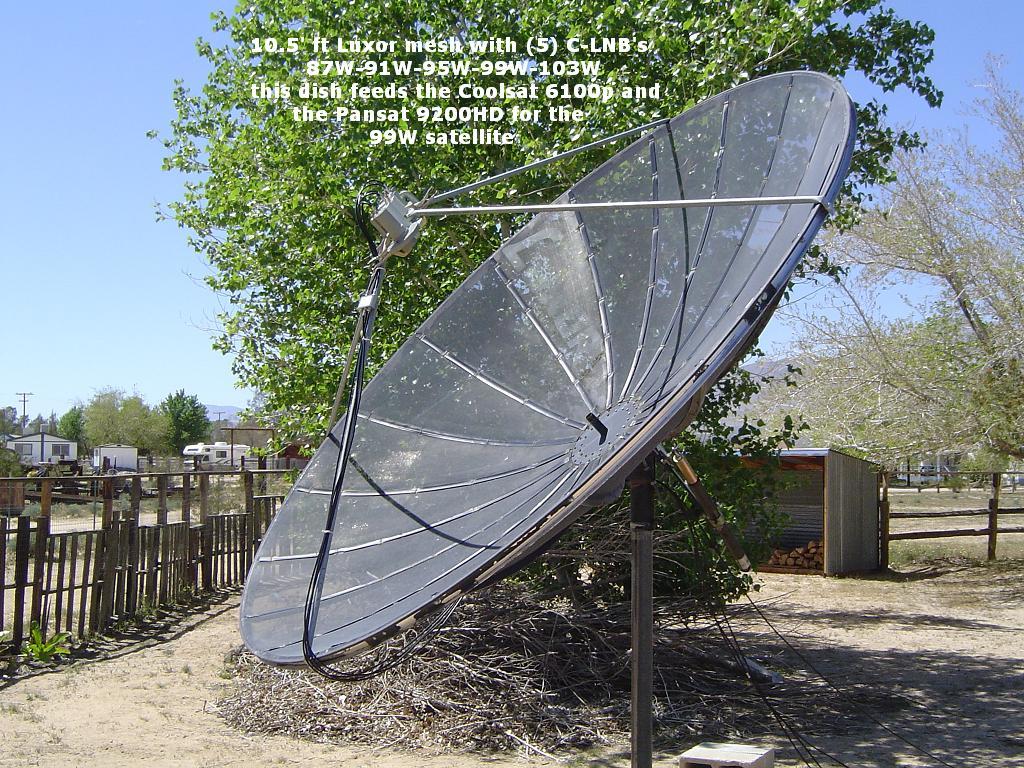

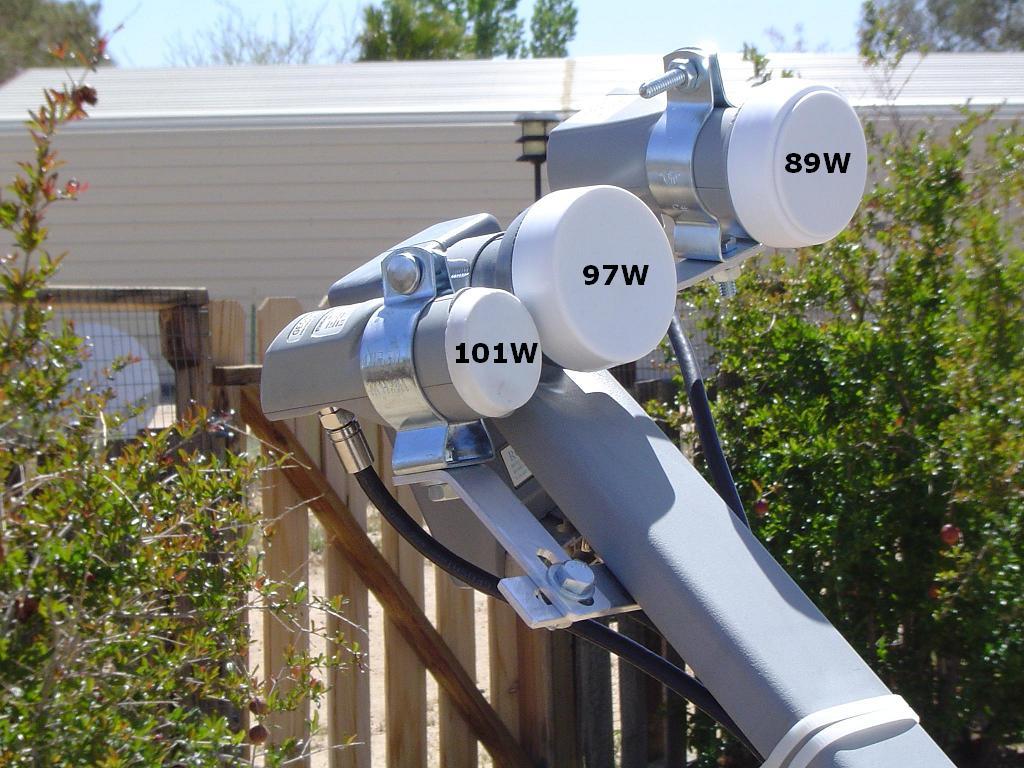

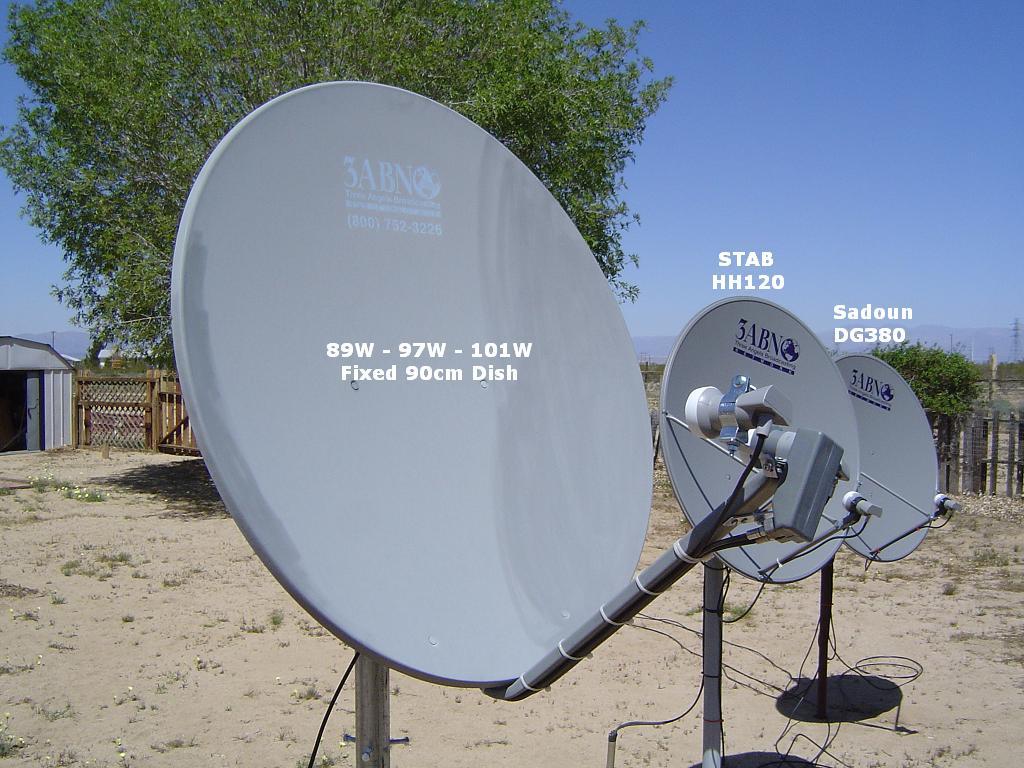

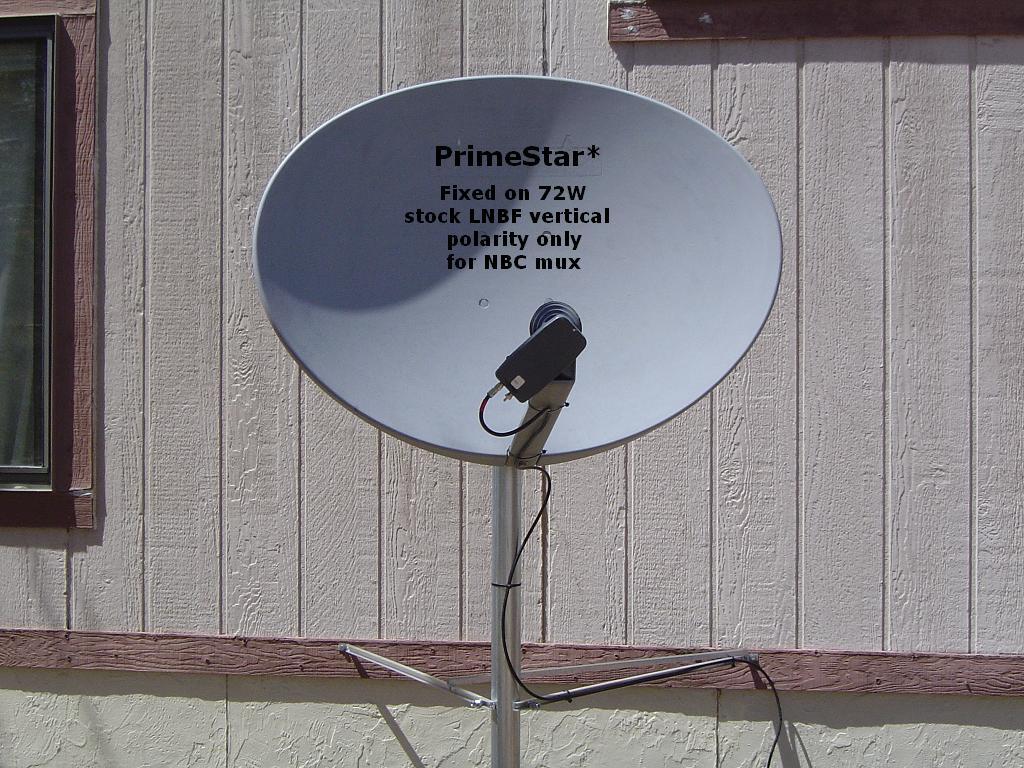

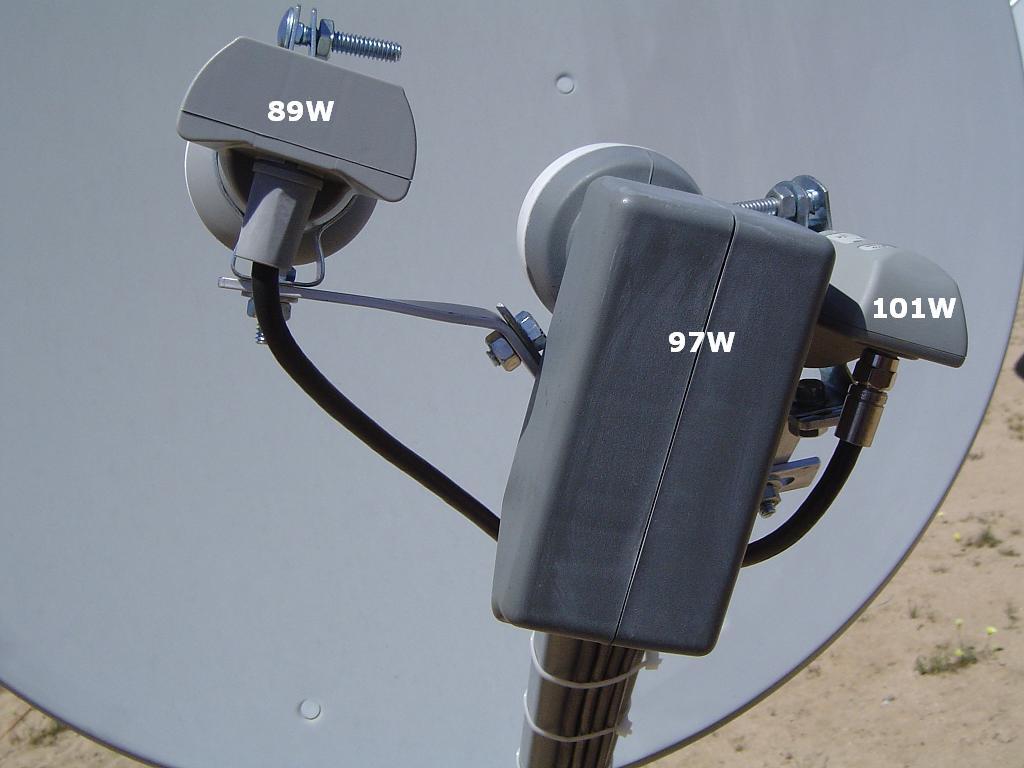

I've been moving dishes from roof to ground, adding one or two here and there and building some for friend's, etc. So I thought since most of you like looking at pictures I have some for you, I added text to most of them. The LNB mod is something I just finished for another friend who had only the 101W on her 3ABN dish so I updated it for the new change over and also added a 3rd as a bonus. I was trying for the 83W (RTV) but couldn't lock a QS to save my life, it was just a bit too far for this arrangement. This is an excellent dish compared to the newer ones of equal size, this old KTI dish is wider therefore rendering more signal for mods like this. The 89W although far off to the side is getting around 90% QS on TP 11955 using my field box (Captive Works 600SP), my friend's old "Manhattan Skyline 1000" shows 99%.

I also had to find a way to temporarily mount this heavy dish on a small ground post so I made up a sleeve as shown in the pics, it worked well for this project, it converts the 1-5/8" rigid post to a 2-3/8" for Primestars and others having a large post clamp.

As you may agree, dish farms are never finished, I'm still thinking and tinkering Have fun!



[Tron]

Great dish farm, McGuyver! Could you post some close up pics of how you mounted multiple C-Band LNBFs on the BUDs? I've been toying with adding an LNBF for 91W on my 6' "PortaBUD", which is fixed at 87W. Iceberg did something similar by sawing out a notch in the scalar ring.



[McGuyver]

LNB Mountings

Tron, here are a few, need more? just ask, hope this helps ya!

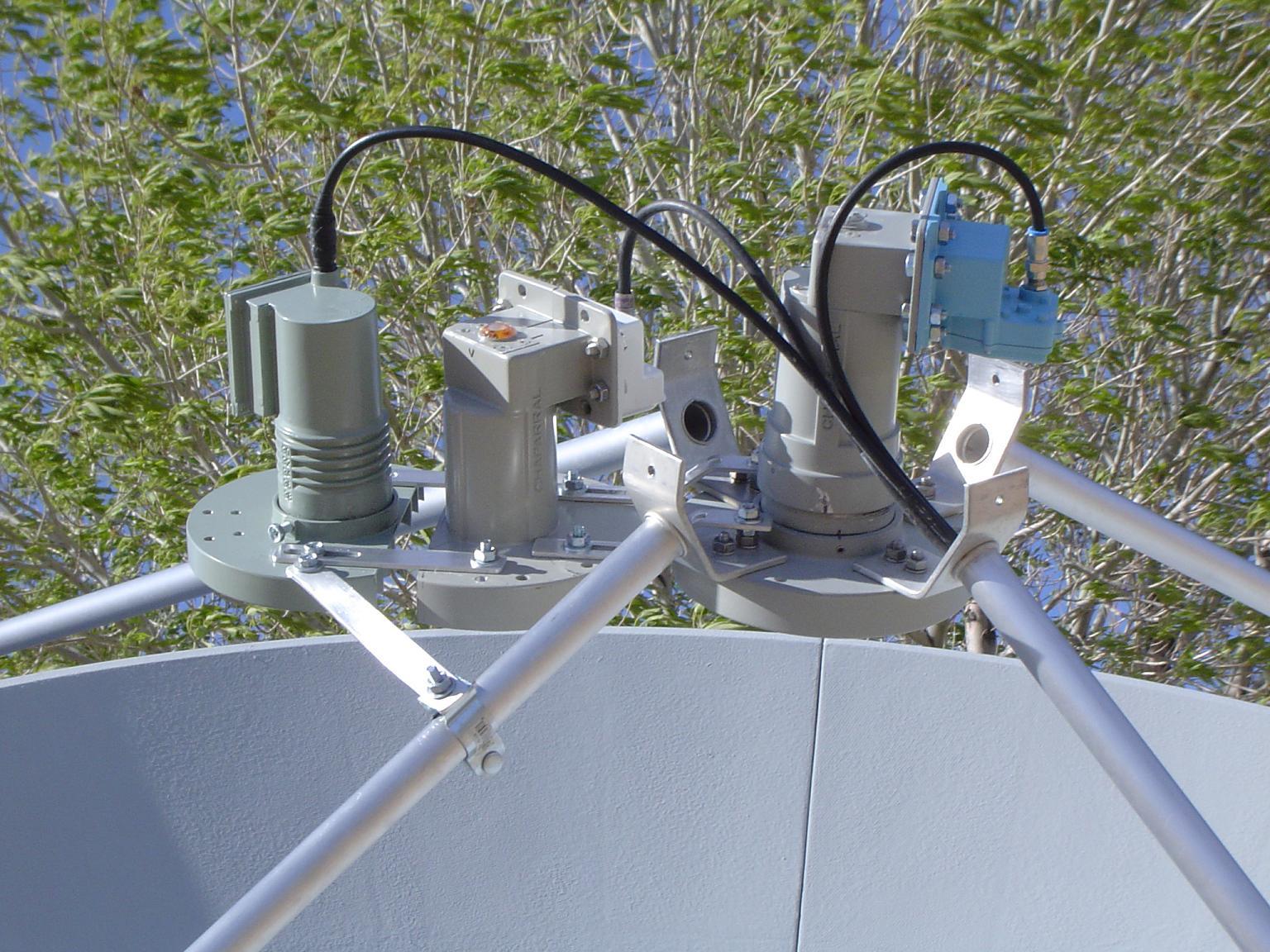

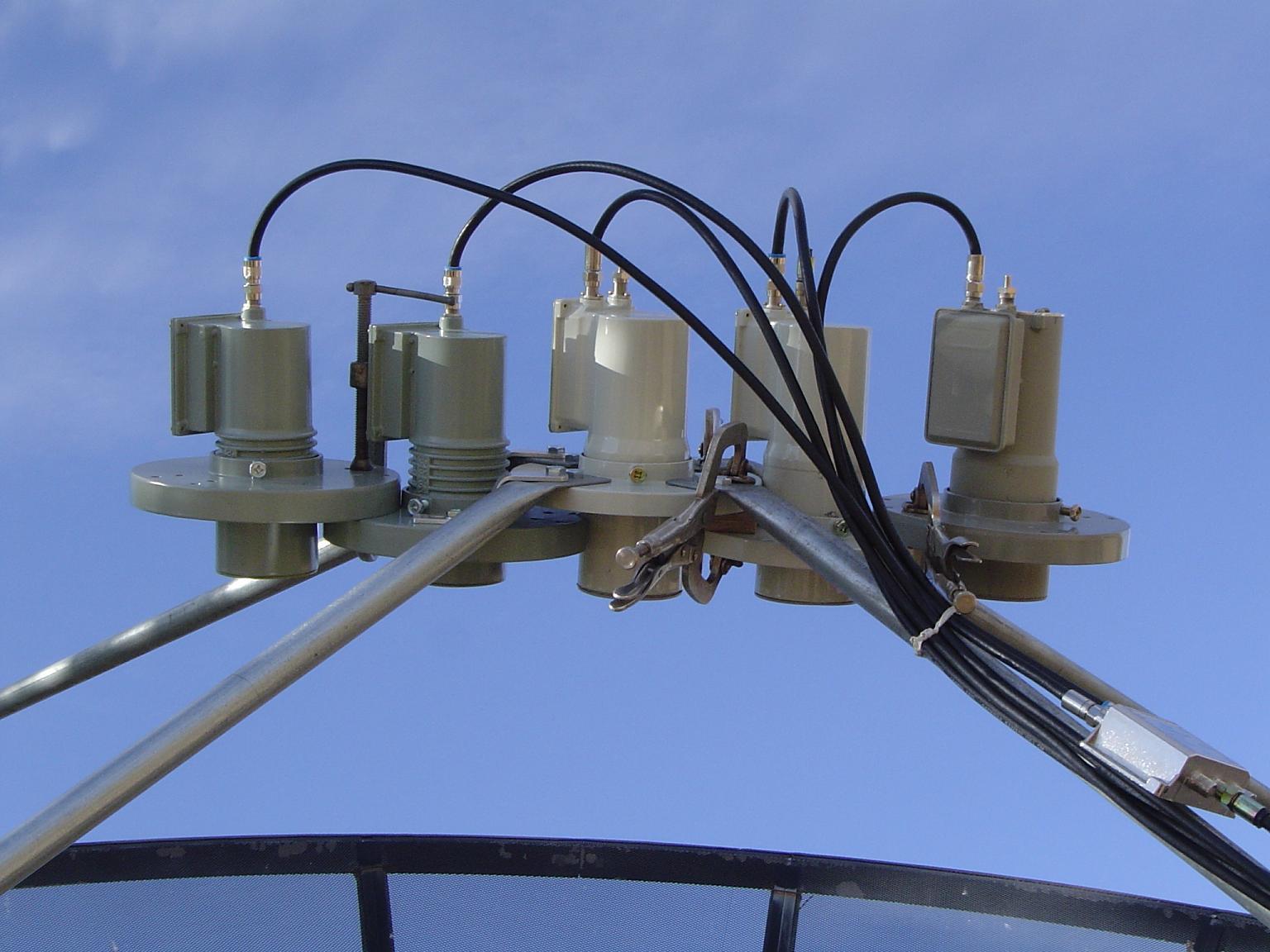

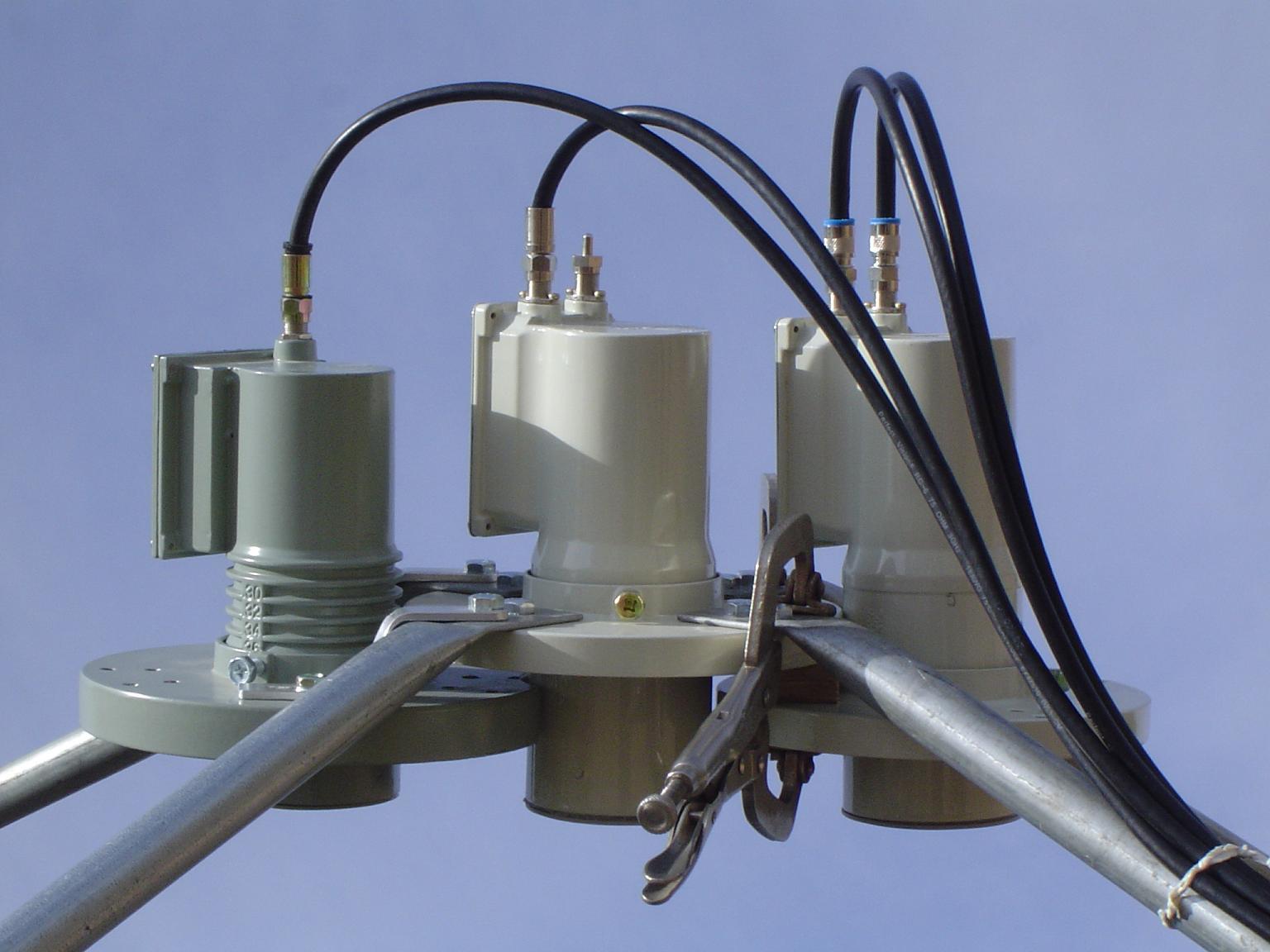

BTW, the stacked scalar arrangement was possible only because I calculated a deeper focal point on my 10.5' mesh, I added about 1.5" to the depth, by accident that is but it worked out for the best for this mod. the other photo is on my 8' channel master dish with 3 lnb's, and the clamps are temp until I fab more brackets



[Cadsulfide]

You Dudes rock!



[stanleyjohn]

Great setup McGuyver! Knowing me ill catch the FTA bug and expand my set up.For now it will be KU receiving to see what i can get at my location! then ill scope out a spot somewhere on the ground for a larger dish for C recieving.It will be interesting to see how much i can put up outside before the wife screems bloody murder.



[McGuyver]

Great setup McGuyver! Knowing me ill catch the FTA bug and expand my set up.For now it will be KU receiving to see what i can get at my location! then ill scope out a spot somewhere on the ground for a larger dish for C recieving.It will be interesting to see how much i can put up outside before the wife screems bloody murder.

It is addicting but better than other habits, lol
Don't know what it is about "wives" but mine doesn't care one bit, maybe it's because she has her Dish Network sub box, lol, I have my FTA farm. In fact I get more channels than she gets, I'm getting well over 100 channels from about 16 satellites, C & Ku combined and it's all free for a one-time investment with no committment terms and monthly subscriptions except for the wifey's sub, Ugh!

Keep in mind that when you're ready to go BIG you should look for a freebie BUD, both of mine were freebies and were not all that difficult to set up. You only have to dig the post hole once and it doesn't usually cost anymore than Ku equipment considering you picked up a freebie dish.
An easy way to find freebies is to join up free with the "Freecycle.org" Yahoo group in your community and place a WANT ad for a big dish or anything you want or you might find something in the listings you can use, people give away all sorts of free stuff, I got many, many small dishes, receivers, cables, remotes and the 8' ft fiberglass BUD for free, not to mention my 3 small 13" field test color TV's that work like new, I even got a bunch of scrap aluminum sheets and various pieces from a guy who restored an airplane and he wanted to clean up his garage. Just do a Google search for your area, type in;
"Freecyle.org in (your City, State)" and you should find a group in your area. Good luck



[McGuyver]

Great dish farm, McGuyver! Could you post some close up pics of how you mounted multiple C-Band LNBFs on the BUDs? I've been toying with adding an LNBF for 91W on my 6' "PortaBUD", which is fixed at 87W. Iceberg did something similar by sawing out a notch in the scalar ring.

Tron, one thing came to mind about your dish, I understand they are a tripod feed pole design, it might be beneficial for you to make a duplicate feed pole and arrange them in a quad position so that it may provide better clearance to mount additional lnb's and also add better support and alignment.



[Tron]

Yes it is a tripod feed pole design. I'm a bit concerned about the size of my dish being rather small for an arrangement of LNBFs, spacing may get rather tight. If I can get 91W in addition to what I already get on 87W, though, I'll be very happy ...



[McGuyver]

Yes it is a tripod feed pole design. I'm a bit concerned about the size of my dish being rather small for an arrangement of LNBFs, spacing may get rather tight. If I can get 91W in addition to what I already get on 87W, though, I'll be very happy ...

Yes it might be tight on a 6' ft'er but it should be doable, the lnb's might need to be really close requiring a slice of the scalar right next to the throat mount but I first guaged or should I say; noted the position of the 87W by using my step ladder and a rod clamped to the top of the ladder, pointed at the edge of the scalar, then I navigated the dish to the 91W and measured the distance between the two positions, in my case on my 8 ft it was something like 4.25" (don't quote me on this number) and then I calculated the portion of scalar to trim from each lnb dividing the difference between the two. I would use this method in both directions to double check the measurement of distance just to be sure and what ever you do, don't move the ladder one bit while doing this and do it while the wind is calm. This method should give you some idea if it's pheasable.
