Dish Specs, Trust But Verify!

Discussion in 'C-BAND Satellite Discussion' started by bpalone, Mar 21, 2017.

Thread Status:
Not open for further replies due to lack of activity. Consider opening a new thread instead.
  1. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    Purchased a new 10 footer from Tek2000 to replace my 8 footer. The weather improved to a point that I decided to go ahead and do the install. The install went as expected, up until the point and aim portion.

    My due south is 105W and only has S2 signals. Couldn't raise a thing, moved to 107.3W, was barely able to raise some S signals. After 4.5 days of checking rechecking and replacing components I came to the point of the only thing I hadn't checked was their numbers.

    So, strung string again (had done a string test) and measured the depth of the dish and diameter. Then doing the math, found that the focal point was 43.14 inches not the 48.5 inches all of their documents state. Had to do my own math to approximate where to mount the support rods, as their support would only state that the focal point is 48.5 inches.

    Moved the rods to a point close to what I calculated (was off) and moved the scalar and LNBF much closer to the correct point over the dish. The results were great, was able to check my tracking of the arc and button up to wait for another round of decent weather. Need to adjust things to get scalar and LNBF just a bit higher. Will shim the rods higher when I get a nice day, which will get me to the point I need to be at. That should give me a bit more Q on the weaker signals.

    MORAL OF THE STORY, trust but verify. You should take the time to check the focal length yourself. It only takes a few minutes and can save days of frustration. This is true whether you are rescuing an older BUD or setting up a new one.

    a33, sgs, hank123 and 3 others like this.
  2. waylew

    waylew SatelliteGuys Pro

    Joined:
    Aug 23, 2010
    Posts:
    2,454
    Likes Received:
    838
    Location:
    northern WEST new york
    I seem to recall it mentioned here somewhere that there are 2 different sets of arms for those dishes and they need to be attached in different places.

    hank123 likes this.
  3. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    Yes, that is the case, but supposedly all have a focal length of 48.5 inches. They even have a sheet that was placed in the hardware box telling about the different rod lengths and clearly states that the focal is 48.5 inches for their 10 footers. My problem was that I wanted to believe their data. But, the tape measure and math proved otherwise. Just wished I had found it earlier.

  4. hank123

    hank123 COLORADO CONNOISSEUR BUD HUNTER Lifetime Supporter

    Joined:
    May 8, 2016
    Posts:
    543
    Likes Received:
    287
    Location:
    N. Colorado
    Post some satellite porn.

    How does the back assembly seem to be on this dish? Will she hold up? Your not to far north of me and I know the wind blows up there.

  5. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    They have beefed up their mounting. I can't compare with an old version of their 10 foot mount, but can their old 8 foot mount. It is better and only time will tell. I am in a place where somewhat sheltered from the heavy winds. The pipe portion I had another one built to fit my existing pole and it is heavier than what they ship.

    Running a camera wasn't one of my priorities while fighting my issue. In fact, zero pictures were taken. Being as how everyone really, really like pictures, I will get some. It may be a bit, or maybe even as early as today. Will make point of getting decent picture of frame, etc.

    hank123, FTA4PA and k.r. like this.
  6. Arion

    Arion SatelliteGuys Pro

    Joined:
    Jul 23, 2005
    Posts:
    432
    Likes Received:
    170
    This is good to know. I intend to get out of their 10' packages in a month or so and it's a concern of mine that since these dishes are made in China and I'm sure the guy at Tek doesn't speak or read Mandarin, that some of the instructions translated into English might not be accurate. Your experience here may save people following you a lot of trouble so thanks for the info. Overall are you satisfied with the build construction considering what you paid for it?? Also, did you source your own mounting pole or get one of theirs? And if one of theirs does it seem adequate?

    hank123 likes this.
  7. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    I am pleased, so far. Aside, from the wrong focal point issue. Doing the string test, they touched just as they are supposed to. As I stated above, I had a new pole mount portion made to fit my existing pole, that ran the cost up another $300. But, my back thanked me for not having to dig up and plant another pole. I would recommend that you source your own pole, as I would guess that their poles are probably marginal. That is a guess, so take it for what it is worth.

    Who knows, why my dish isn't the same as what they claim all of them to be. It could of been that while loading containers in China, that someone else's dish got mixed into Tek2000's. I don't know and at this point I don't really care. I got to the bottom of the issue and have a working 10 dish, now. I'm pleased with the performance I have seen so far. Just don't expect to get a Mercedes for a Yugo price.

    hank123 likes this.
  8. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W

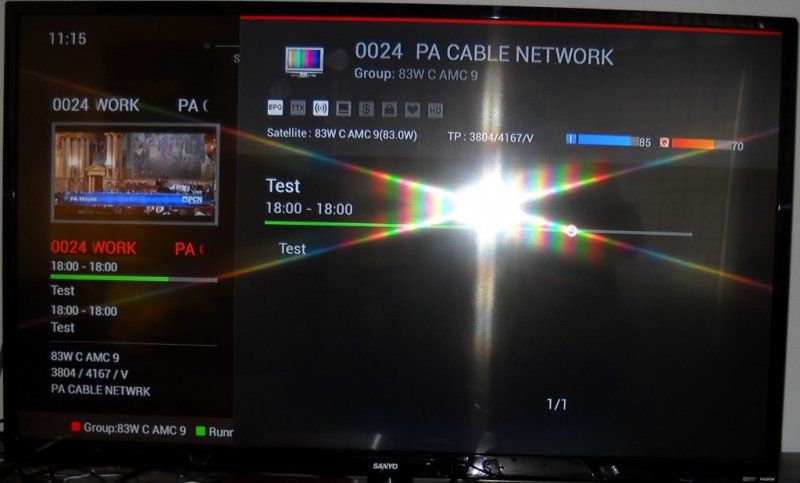

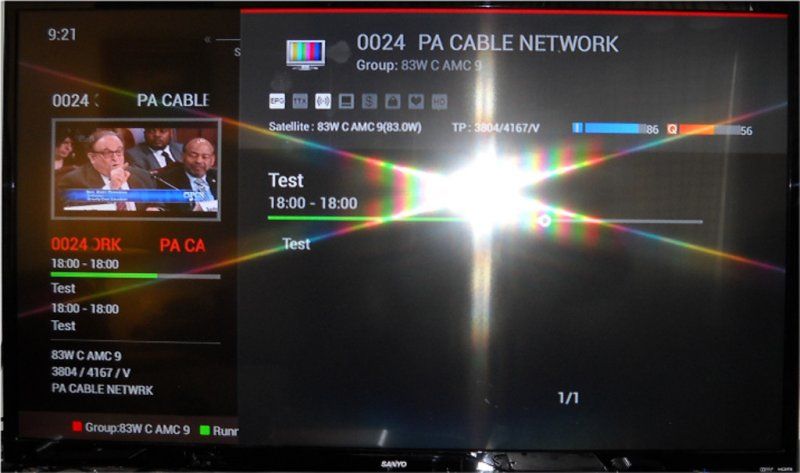

    OK, here are some pictures. The first two are showing the change in Q after the adjustment of the feed support arms. I apologize for the flash glare, but had to use it because of a window behind me.

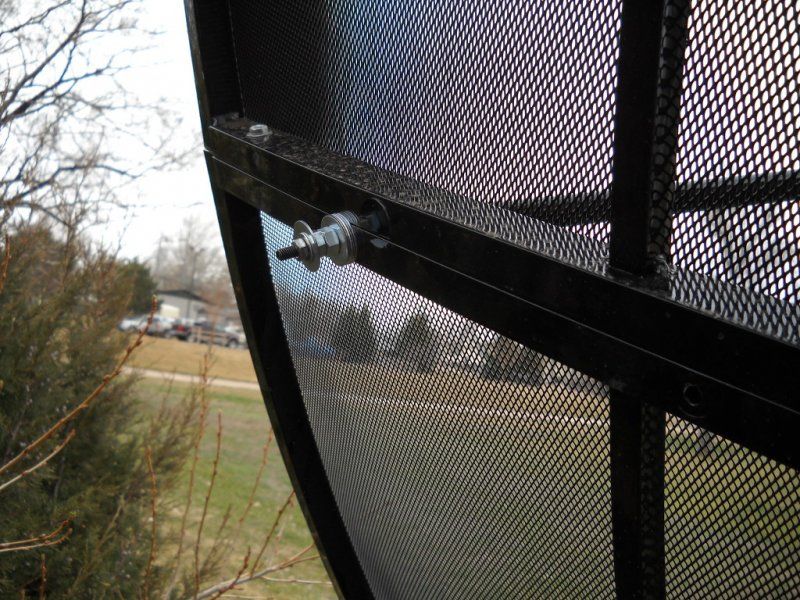

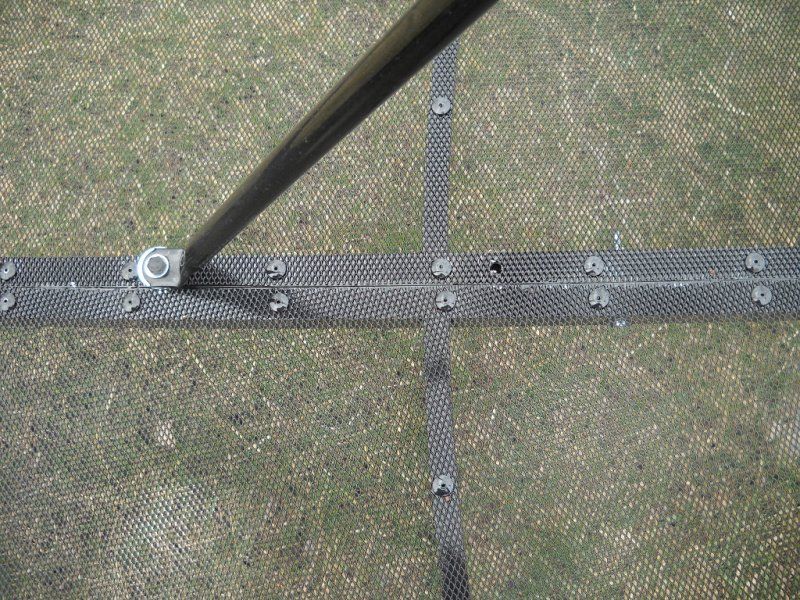

    The second two show how far I had to move the LNBF support arm to get equipment into the focal point correctly. The second one displays some of my handy work, er, well maybe I should say shows the Farmer John, in me. :) The longer bolts I bought were, well... quite long enough.


    Attached Files:

    Jason S, k.r. and FTA4PA like this.
  9. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W

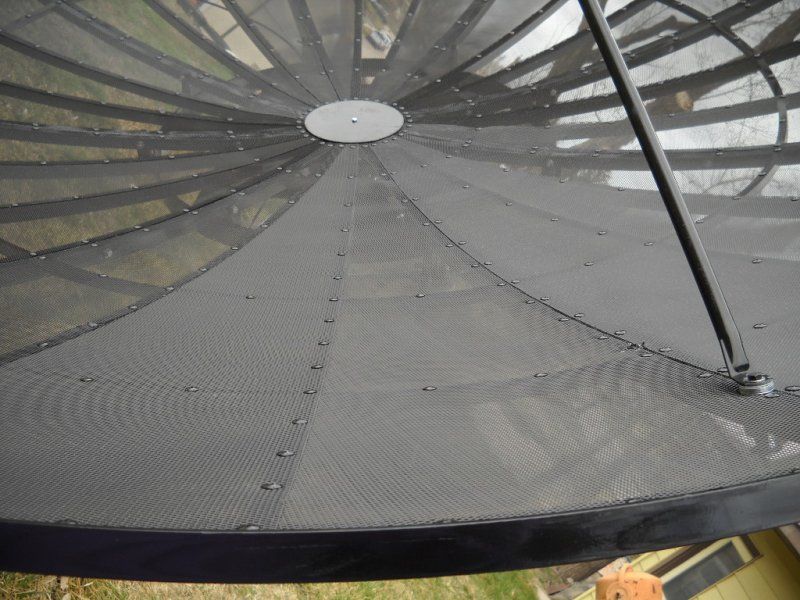

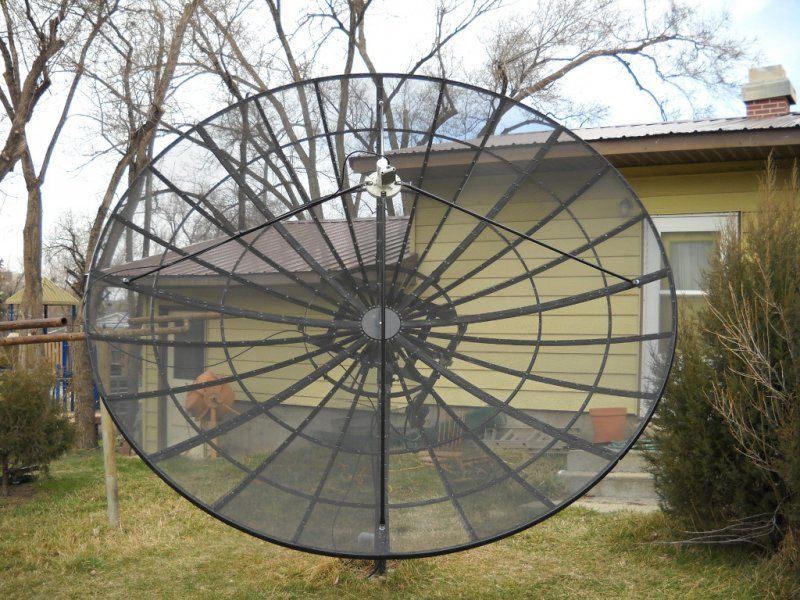

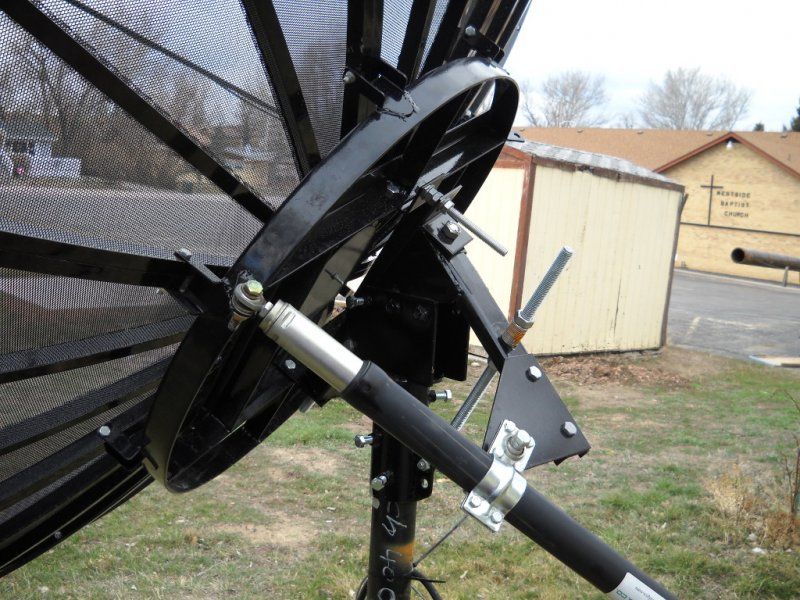

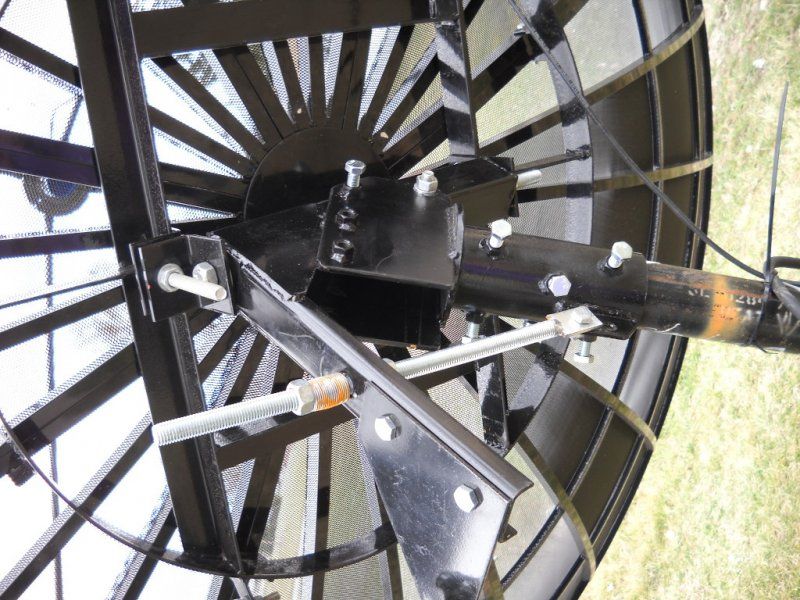

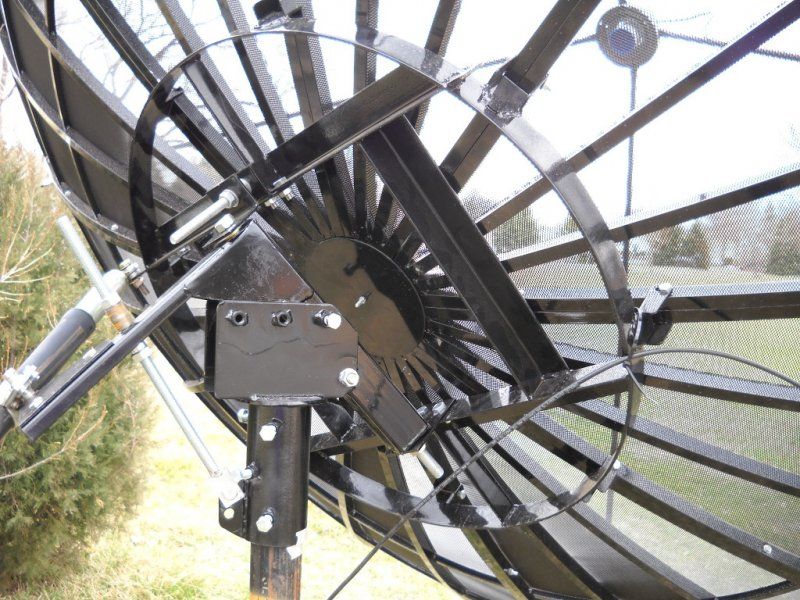

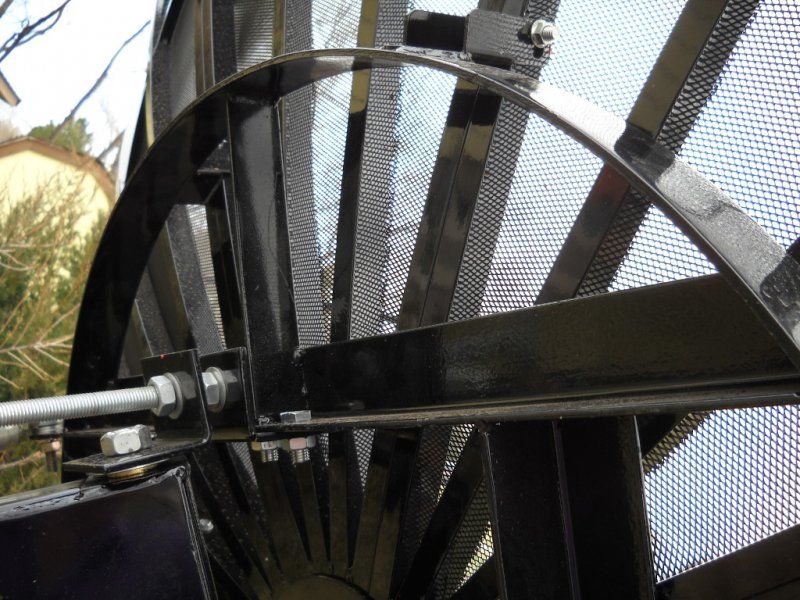

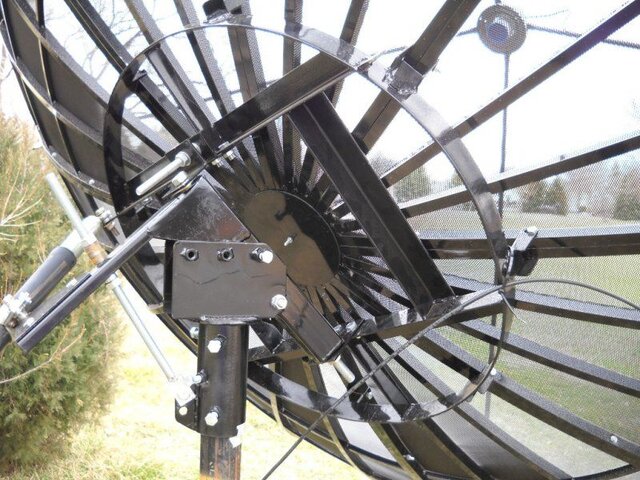

    More Pictures of the dish and mount.


    Attached Files:

    FTA4PA and k.r. like this.
  10. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W

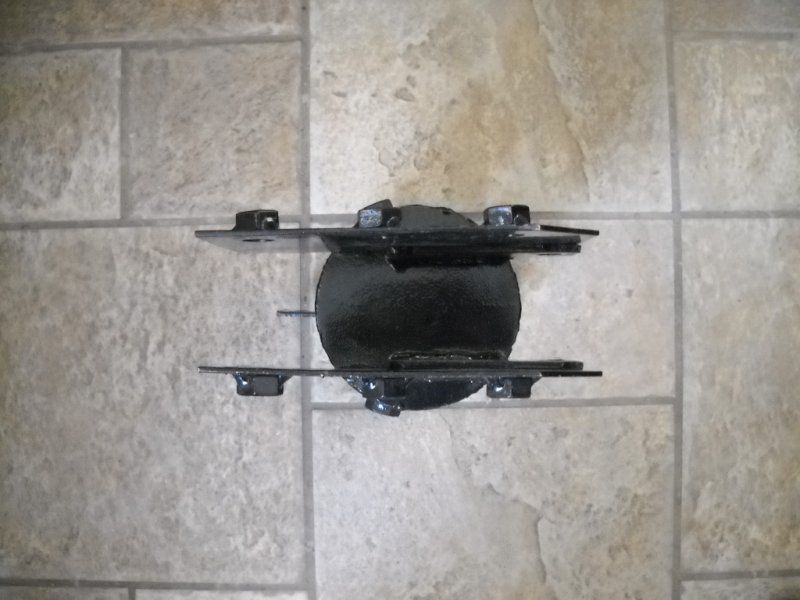

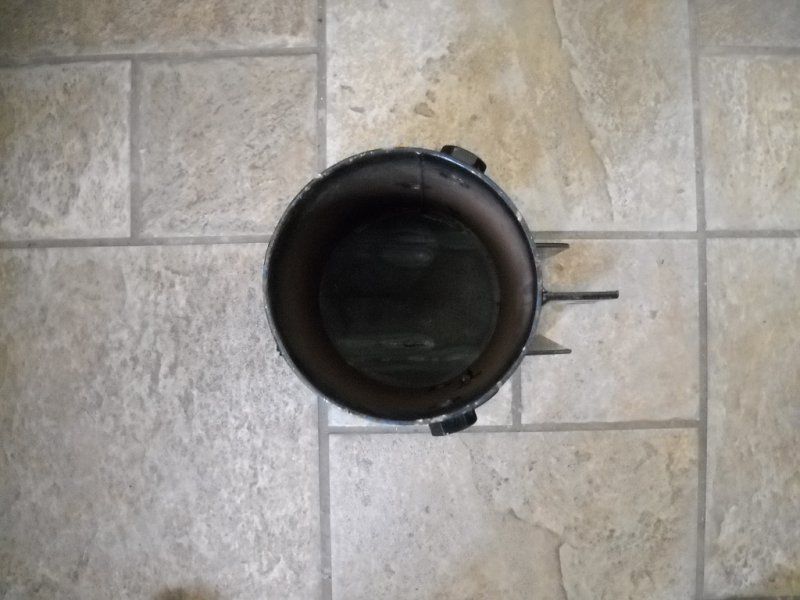

    Got to thinking about all the pictures. Since I had a custom made pole top/saddle made and pictured above, that I thought maybe I should show the pole top/saddle sent from Tek2000. So, here you go.


    Attached Files:

  11. iBoston

    iBoston SatelliteGuys Pro

    Joined:
    Jul 15, 2014
    Posts:
    1,772
    Likes Received:
    917
    Location:
    North Central
    These are really inferior. Strong winds will tear the welds right off! - I speak from Experience. Your custom work looks GOOD.

  12. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    Thanks. The very reason, I figured I had better post pictures of the stuff provided by Tek2000. My goal with the custom one, was to fit the pole I had set. It also benefited from being made from heavier iron.

  13. mkv7196

    mkv7196 Well-Known SatelliteGuys Member

    Joined:
    Oct 17, 2015
    Posts:
    30
    Likes Received:
    1
    Location:
    Calgary, AB
    That's a huge difference between the lnb rod mounting points. Maybe they sent you the wrong sized lnb rods? Can you measure the length of your lnb rods?

  14. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    The rods were 59 inches. The measurement and math do not lie. Here are the measurements: Edge of Reflective surface to Edge of Reflective surface -- 117.5 inches

    Depth at center, to the plate -- 19.5 inches to that add 0.5 inches for the plate, so depth is 20 inches.

    Those numbers yield a focal length of 43.14 inches, rather than their many places stated 48.5 inches. Also yields a F/D of 0.367 rather than their stated 0.4.

    Prior to setting at the appropriate focal point, could not lock a single S2 signal. After, just getting in neighborhood was knocking down the S2's with ease. After adjusting to proper focal point (not tweaked, just at measured focal point) am getting the maximum I have seen on my A3 for Q on many of the channels. So, again, I would have to say that the tape and math are correct.

  15. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    Finally took time and made a copy of the insert they send in the hardware box and scanned that into a PDF. Quality is not the best, as the original was beat up quite a bit in transit. It recites the support rod lengths and focal points of the different dishes.


    Attached Files:

  16. zack

    zack SatelliteGuys Family

    Joined:
    Sep 22, 2009
    Posts:
    96
    Likes Received:
    26
    Location:
    texas
  17. bpalone

    bpalone Topic Starter SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    Will respond no further. But, suggest anyone questioning my measurement and calculations, do some searching on finding the focal point for a parabolic reflector.

    Nothing more to say.

    bigg t likes this.
  18. a33

    a33 SatelliteGuys Pro

    Joined:
    Feb 4, 2015
    Posts:
    366
    Likes Received:
    243
    Location:
    netherlands europe
    Well, it wouldn't be the first time that a manufacturer or vendor gives wrong specs. :rolleyes:

    And I don't understand the reasoning tek2000 gives:
    "With reference to the diagram below, the correct focal length is the distance from p to the parabola vertex v. It is NOT the distance from p to the centre disc (which in all likelihood he was measuring). You have to add an additional 2 inches from the disc to the vertex."

    Adding 2 inches also to the depth of 20 inches measured by bpalone gives 22 inches, even gives a focal length of 39.22 inch. Nowhere near the claimed 48.5. So that reasoning doesn't add up.
    If he meant substracting ('adding to the other side of the disc surface'?), that would give 47.94 as focal length; that would be nearer, but still not 48.5
    But what is exactly the position and curvature of this central disc? Is it really very different from the normal parabolic form, as tek2000 claims? He doesn't give his own measurements.
    So the reasoning in his post I cannot follow.... Something wrong with me or with my reasoning?

    For now I believe the calculation of bpalone, and the improvements he got by the alteration of the LNB position.
    'Trust but verify'!

    greetz,
    A33

    bigg t, armadillo_115 and bpalone like this.
  19. armadillo_115

    armadillo_115 SatelliteGuys Pro

    Joined:
    Jun 10, 2015
    Posts:
    1,156
    Likes Received:
    848
    Location:
    Virginia
    A33... I figured it the same as you and bpalone... two days ago. I have to remove my socks to count beyond ten though. :oops:

    Dish would need to be several inches wider... or depth less... or a combination to get the stated Focal Length. I never bother to figure the FD after that.

    Maybe they forgot to convert the Canadian Inch to the American Inch. :facepalm

    bigg t likes this.
  20. zack

    zack SatelliteGuys Family

    Joined:
    Sep 22, 2009
    Posts:
    96
    Likes Received:
    26
    Location:
    texas
    I never liked math, just saw that on a different site and just passed it along!
