Dual LNB offset bracket

S

swyman18

Thread Starter
SatelliteGuys Family
Original poster
Nov 22, 2008
46
17
Honoka'a, HI

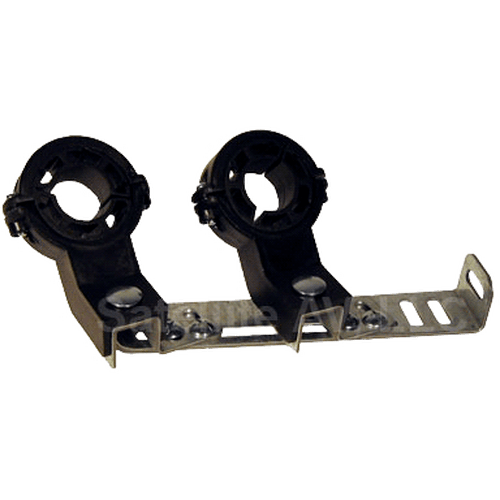

This is probably really dumb question. I am going to try my first attempt at installing a second ( and possibly third) Ku LNB on my GeoSatPro 90cm dish. I got one of these dual brackets pictured below and from what I’ve read, I am supposed to physically bend the bracket up or down to line up with the sats I want to receive. Is that correct?

I am located in Hawaii (longitude 155w) and I want to see if I can get both 91w and 87w on the same dish. I know that may be a stretch considering how low to the horizon those sats are for me.

The metal seems too thick to really be able to bend the bracket without doing some damage to the lnb arm. My skew for these sats would be about 67 degrees, so that’s quite a large bend.

I just want to make sure I’m on the right track with this, physically bending the bracket doesn’t seem right to me.

Thanks.

IMG 0659

M

Magic Static

SatelliteGuys Master
Lifetime Supporter
Oct 12, 2010
7,498
4,849
Montana
4° on a 90cm dish is almost impossible without some special narrow feedhorns on the LNBFs. And close to the horizon even more difficult. GeoSat made some Bullet LNBFs that were intended for multi-sat configurations, but they are no longer available. They had a special bracket made to hold two Bullets at 4° separation. A lot tighter than the bracket you have now.

  • Like
Reactions: comfortably_numb
M

Magic Static

SatelliteGuys Master
Lifetime Supporter
Oct 12, 2010
7,498
4,849
Montana
Not much on 91W Ku. I scanned it yesterday and found one interesting feed. Labeled Ford Bronco, Ford was filming the new Bronco in off road trials. :)

  • Like
Reactions: k.r.
A

a33

SatelliteGuys Pro
Feb 4, 2015
660
428
netherlands europe
The metal seems too thick to really be able to bend the bracket without doing some damage to the lnb arm. My skew for these sats would be about 67 degrees, so that’s quite a large bend.

I'd skew the whole dish, then, if possible. So that the angle of the multifeedrail against the arm, is perpendicular again.
(Or use the gpflepsen setup, as here: A way to deal with offset dish aiming in difficult situations )

But note the Magic Static post about 4° on a 90cm dish ! That would be the first thing to consider.

Greetz,
A33

comfortably_numb

comfortably_numb

Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
14,434
17,217
Kansas City / Las Vegas
4 degrees works for me on a 1.2m but not a 90cm.

That being said, I have bent those exact same brackets before for the purpose as you have described on my 1.2m dish.

It's a process of experimentation. A 6° or 8° separation works pretty good on a 90 cm, for instance 97/103.

S

swyman18

Thread Starter
SatelliteGuys Family
Original poster
Nov 22, 2008
46
17
Honoka'a, HI
Thanks all, will take the suggestions into consideration.

  • Like
Reactions: comfortably_numb
C

c-spand

SatelliteGuys Pro
Feb 25, 2019
1,363
823
1
I would tune 91 first then try to add 87w. Try www.satbeams.com 87 is at 10.5 elevation but being in the islands you have nothing in the way. I have heard from other people that getting under 10 degree elevation is very difficult. But being where you are should be fine. Need a 35 inch or more dish. you should go threw and just single lnb threw the arc and bank the channels. Start with the easiest from there and go towards 87. Say 129w has reuters start there and work all sats in to 87. Good luck. Curious what you can get.

comfortably_numb

comfortably_numb

Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
14,434
17,217
Kansas City / Las Vegas

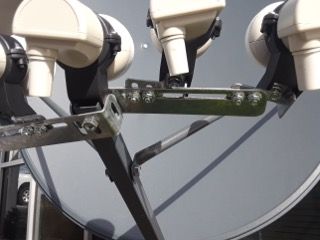

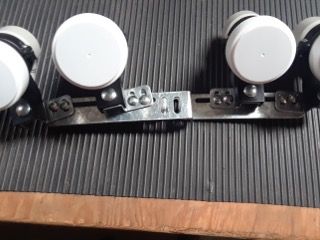

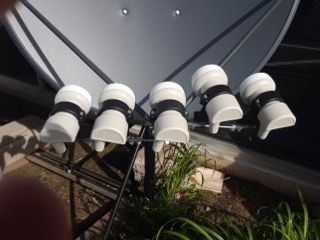

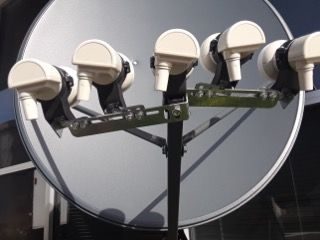

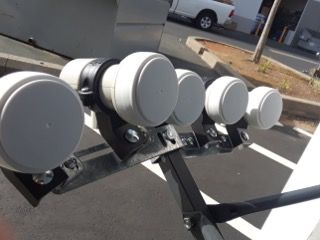

Here are some photos showing how to do offset LNB's on your 90cm GeoSat Pro. Note: I have not had success running more than 3 LNB's total on that dish. Most signals are DVB-S2 now and won't be picked up by LNB's pointed so far off the center of the dish.

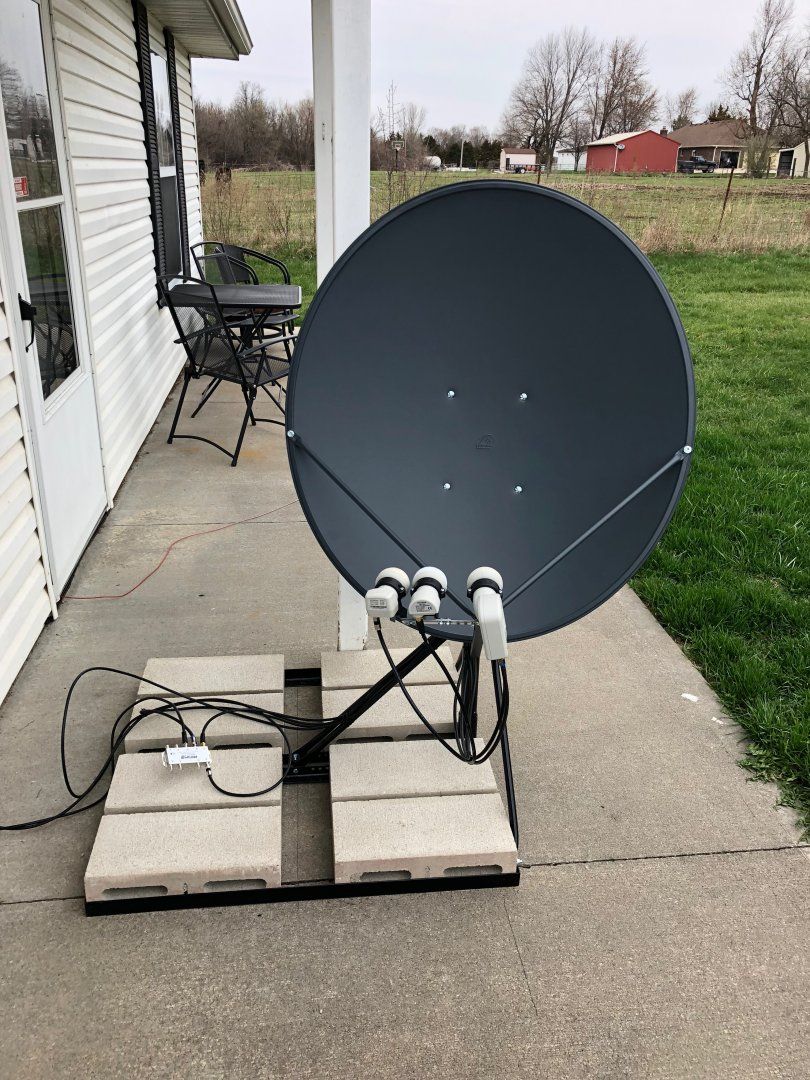

87 95 103
5lnbf13
5lnbf5
5lnbf4
5lnbf2
5lnbf1

Last edited:
  • Like
Reactions: danristheman and c-spand
S

swyman18

Thread Starter
SatelliteGuys Family
Original poster
Nov 22, 2008
46
17
Honoka'a, HI
I would tune 91 first then try to add 87w. Try www.satbeams.com 87 is at 10.5 elevation but being in the islands you have nothing in the way. I have heard from other people that getting under 10 degree elevation is very difficult. But being where you are should be fine. Need a 35 inch or more dish. you should go threw and just single lnb threw the arc and bank the channels. Start with the easiest from there and go towards 87. Say 129w has reuters start there and work all sats in to 87. Good luck. Curious what you can get.

I have another 90cm dish on a STAB HH90 motor and I am able to get from 125w down to 97w on there. Anything lower is outside of the motors physical limits.

I have the other 90cm dish pointed at 91w and wanted to try out the bracket to see what else I can add on there.

S

swyman18

Thread Starter
SatelliteGuys Family
Original poster
Nov 22, 2008
46
17
Honoka'a, HI
Here are some photos showing how to do offset LNB's on your 90cm GeoSat Pro. Note: I have not had success running more than 3 LNB's total on that dish. Most signals are DVB-S2 now and won't be picked up by LNB's pointed so far off the center of the dish.

Thanks for the pics. So did you have to physically bend the bracket up or down in any of those configurations? Looks like probably not necessary based on your location?

comfortably_numb

comfortably_numb

Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
14,434
17,217
Kansas City / Las Vegas
Thanks for the pics. So did you have to physically bend the bracket up or down in any of those configurations? Looks like probably not necessary based on your location?

Correct. I only bent one for experimentation purposes. You can slide the LNB along the offset rail and make adjustments that way.

TheEel

TheEel

I don't like the latest Star Treks
Pub Member / Supporter
Aug 2, 2009
9,861
3,231
USA
I've been considering doing something similar on my 12 footer for C-band but for 4 or more sats. I could use a second motorized 12 footer but it's more work than this old man wants to do.
