Fingers Crossed on my CM 1.2 m (1 Viewer)

Register Today to see less ads! It's Free!
Status
Please reply by conversation.

bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
I just motorized my Channel Master 1.2M dish on a homemade LIGHT WEIGHT mount connected to a H-H Jaeger DisEqc 1.2 USALS motor. Let's see if it tracks the arc. If it does, I'll post some pictures if anyone wants to see them. I also sucessfully mounted my 75 cm Globecast (a/ka/ Channel Master) eliptical dish on the motor via amother homemade mount and it worked fine (despite some prior postings which said it couldn't be done).:D:D:D:D:D:D:D

Register Today to see less ads! It's Free!

turbosat

SatelliteGuys Master
Dec 26, 2006
9,001
75
Oneonta,AL
YES we wanna see it! Once you're sure its working ok, and have time, post some pics of it. I just put a 1m primestar on a polar mount, and have the best signal readings I've ever gotten in over a year of having fta. Always helps the rest of us to know 'how you did it'


bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
So far my CM 1.2 m is scanning the arc near perfectly!!!!! Just took some photos-will post soon. A few satellites have to be nudged with DisEqc 1.2, though. Any input would be helpful to be able to avoid the nudging. Thanks!!!!!!!!!!
Couldn't have done it without the collective help and info. from this group! God bless ya' all!

Register Today to see less ads! It's Free!

PopcornNMore

SatelliteGuys Pro
Mar 20, 2005
3,635
128
Gibsonia, PA
Channel Master 1.2m

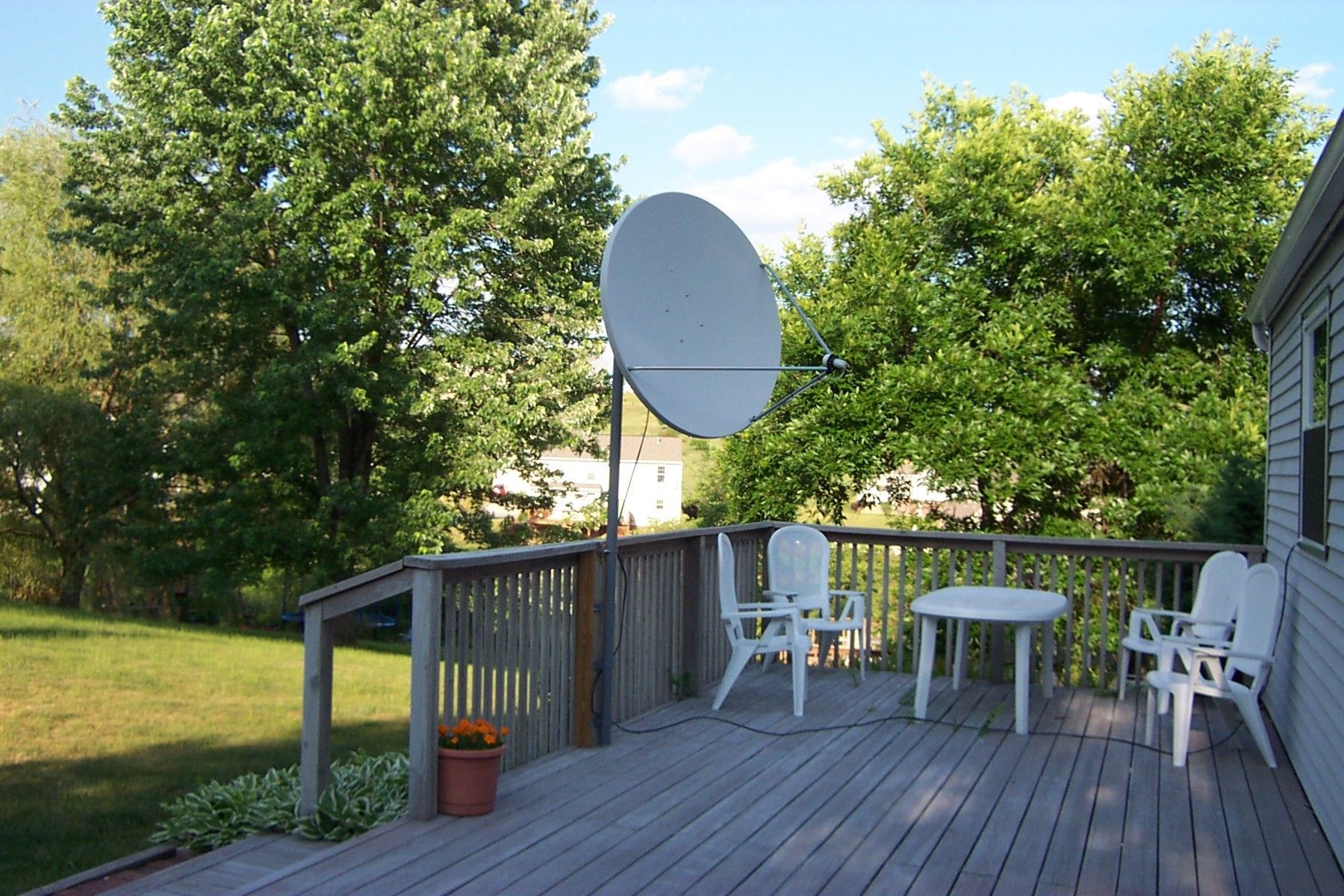

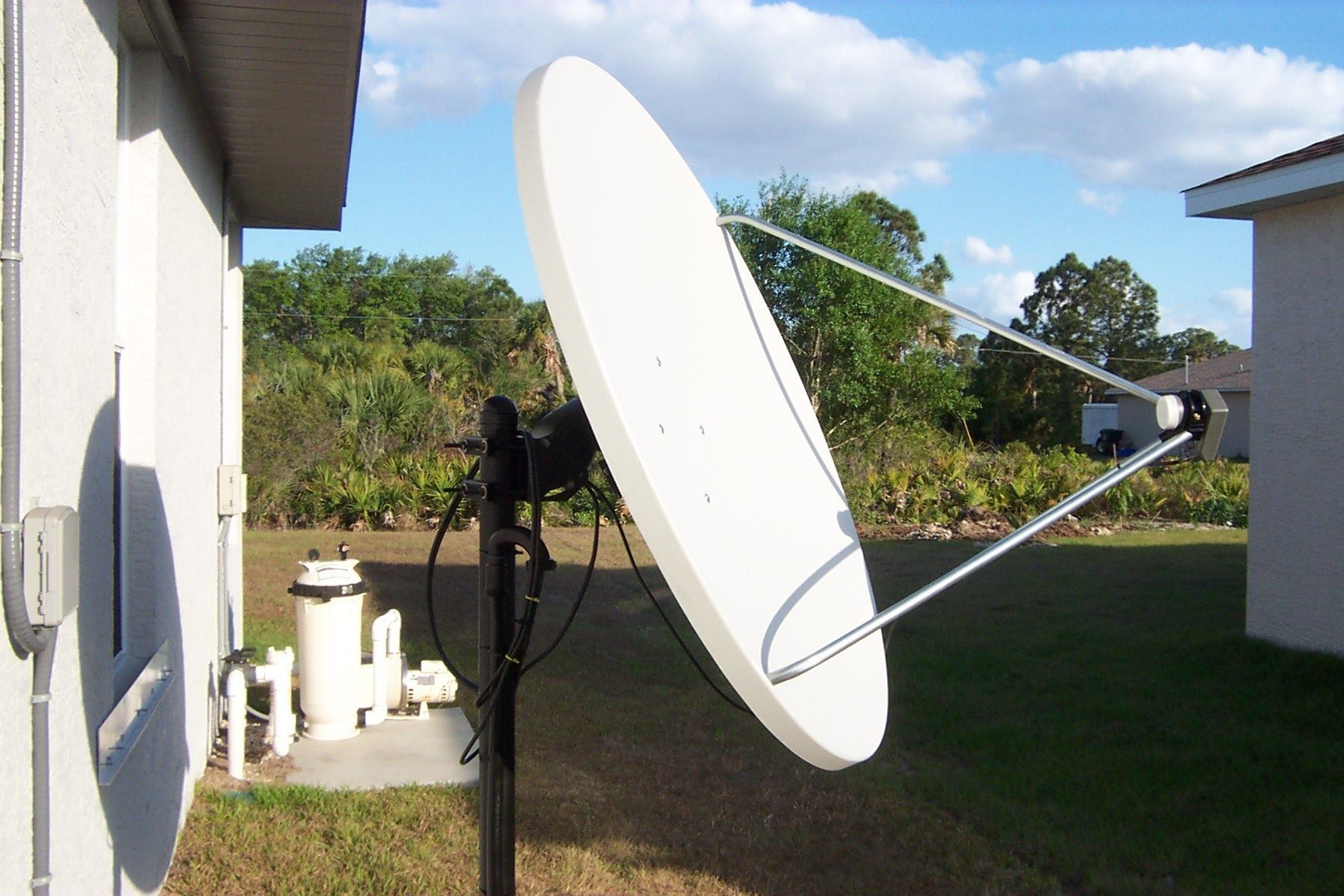

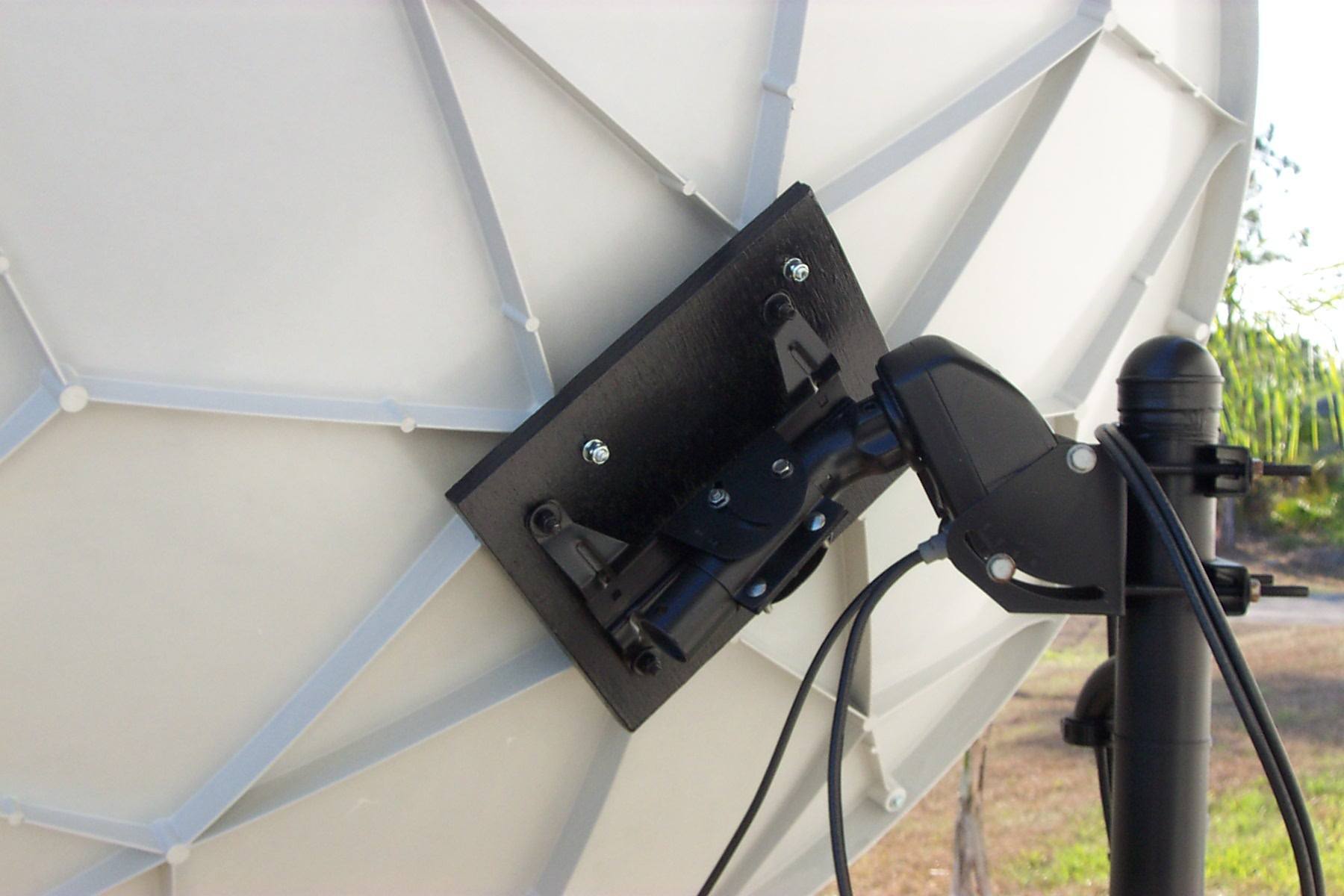

My Channel Master 1.2m has been motorized with a SG2100 H-H drive now for the past 2 years and I have had no problems.


Attachments

  • Satellite 005.jpg
    Satellite 005.jpg
    122.3 KB · Views: 333
  • Satellite 003.jpg
    Satellite 003.jpg
    295.5 KB · Views: 297
  • 060607 003.jpg
    060607 003.jpg
    499.7 KB · Views: 252
  • 060607 004.jpg
    060607 004.jpg
    427.4 KB · Views: 259

bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
Your prior postings on this subject were a large part of my inspiration to get this done. I will post pictures this evening. Thanks!!!


bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
OK--here we go!

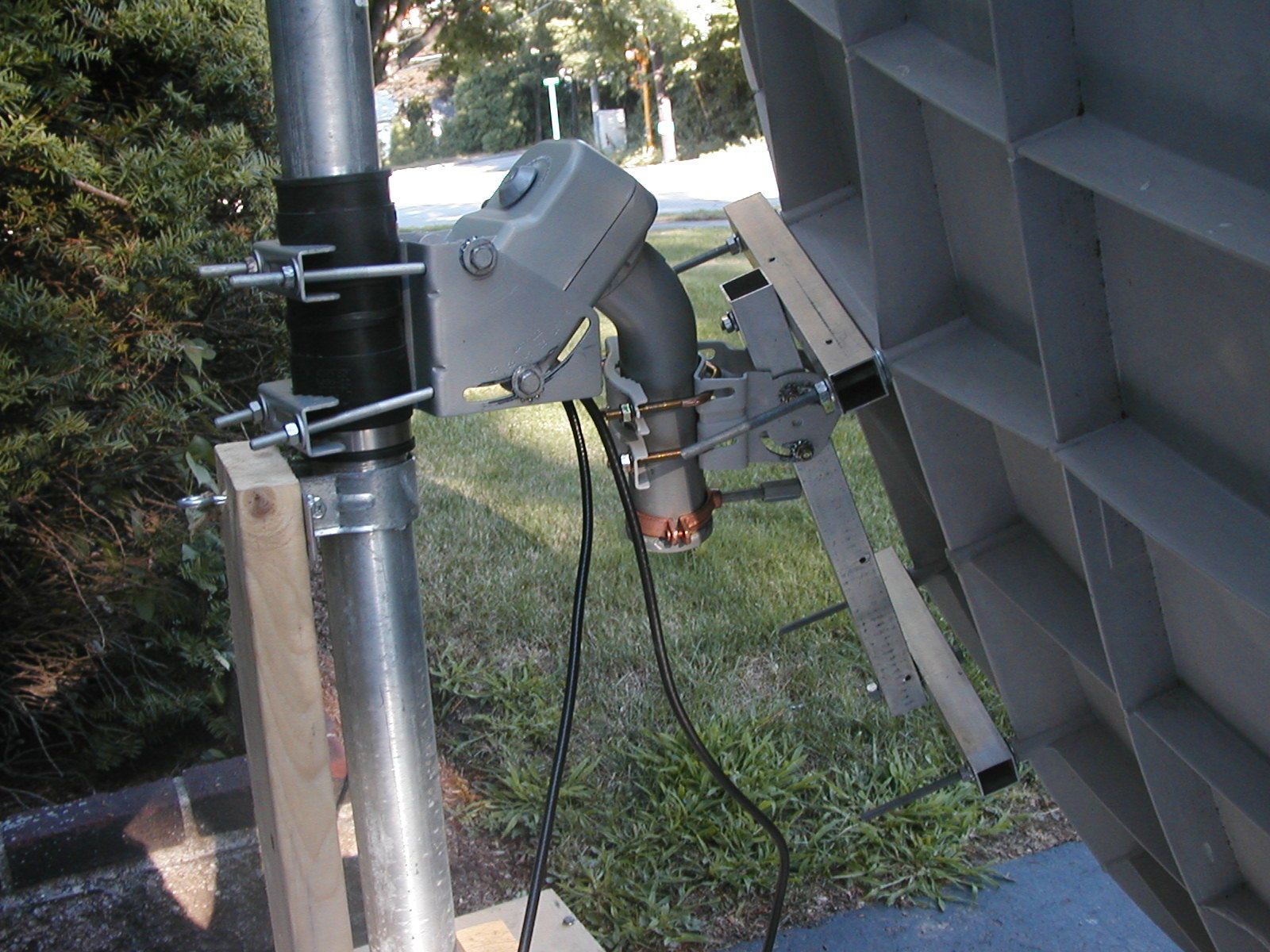

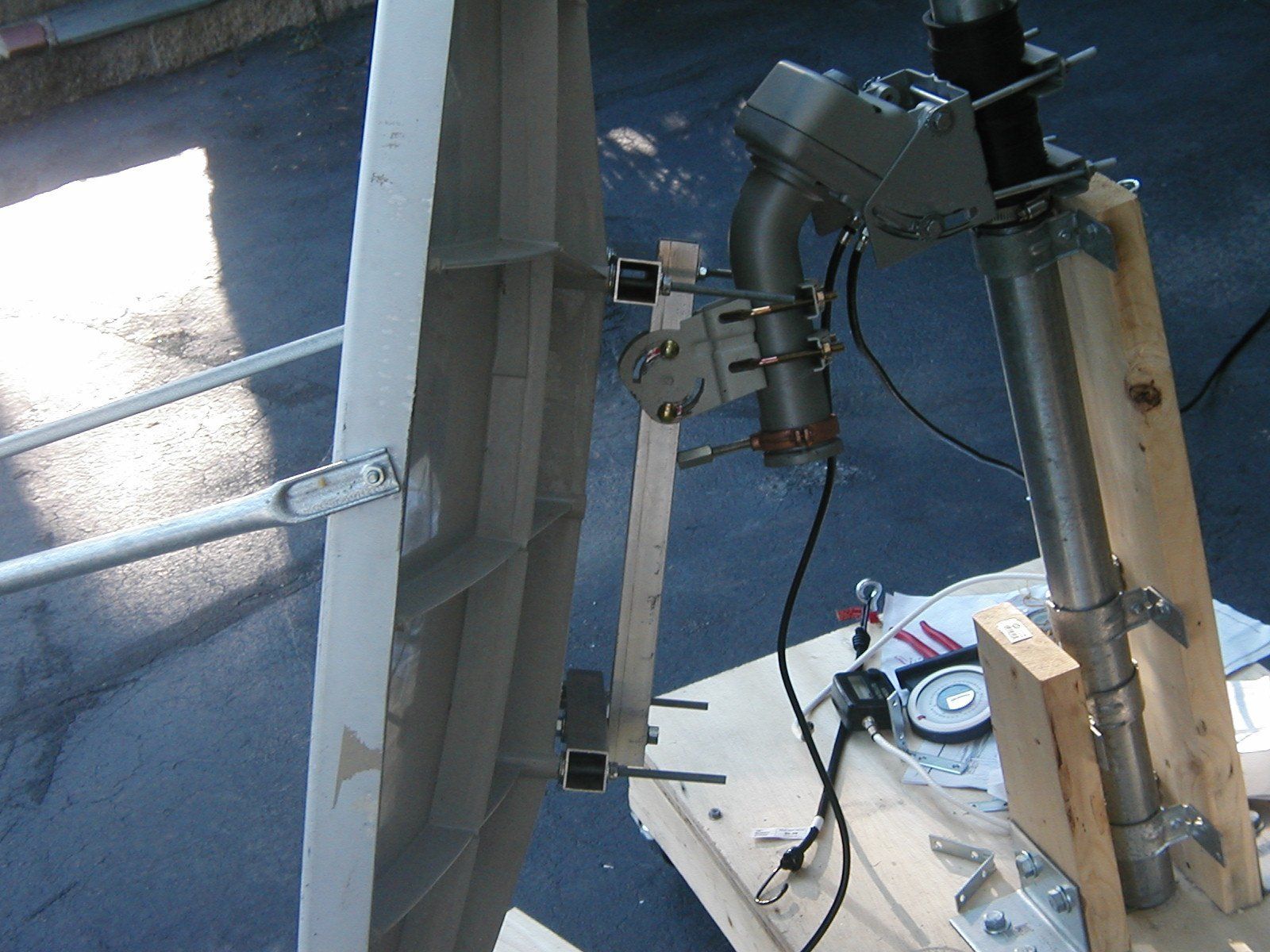

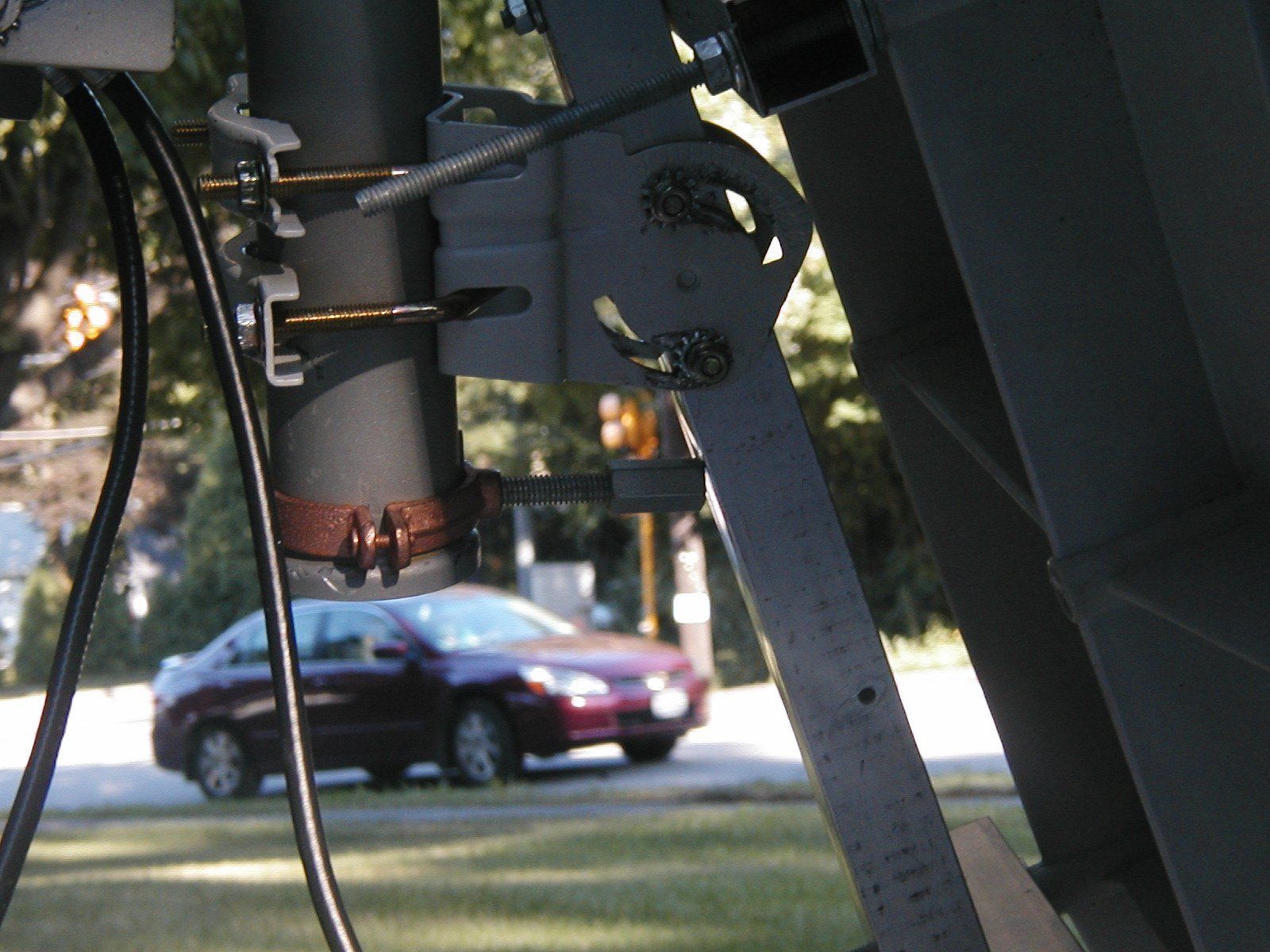

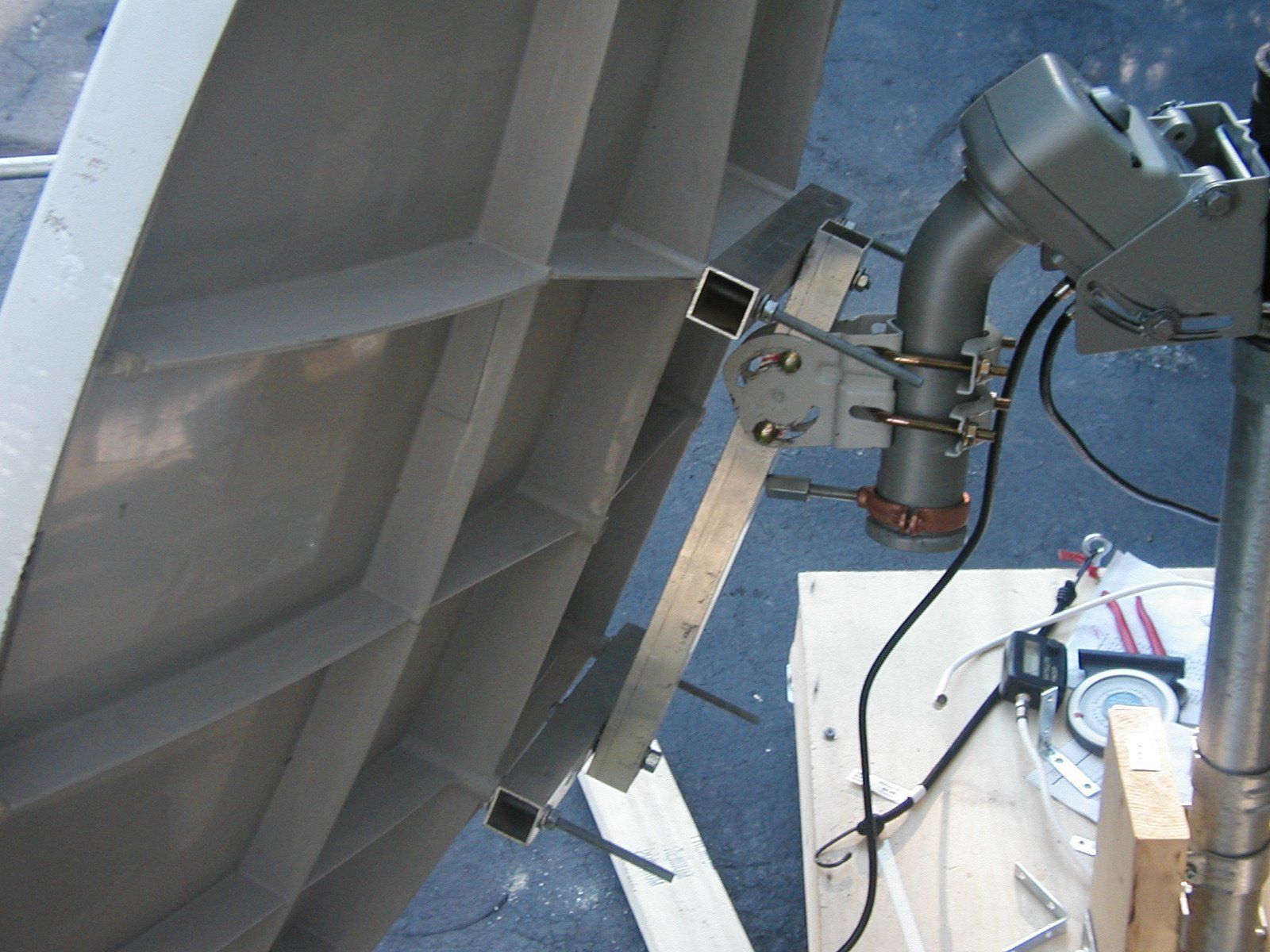

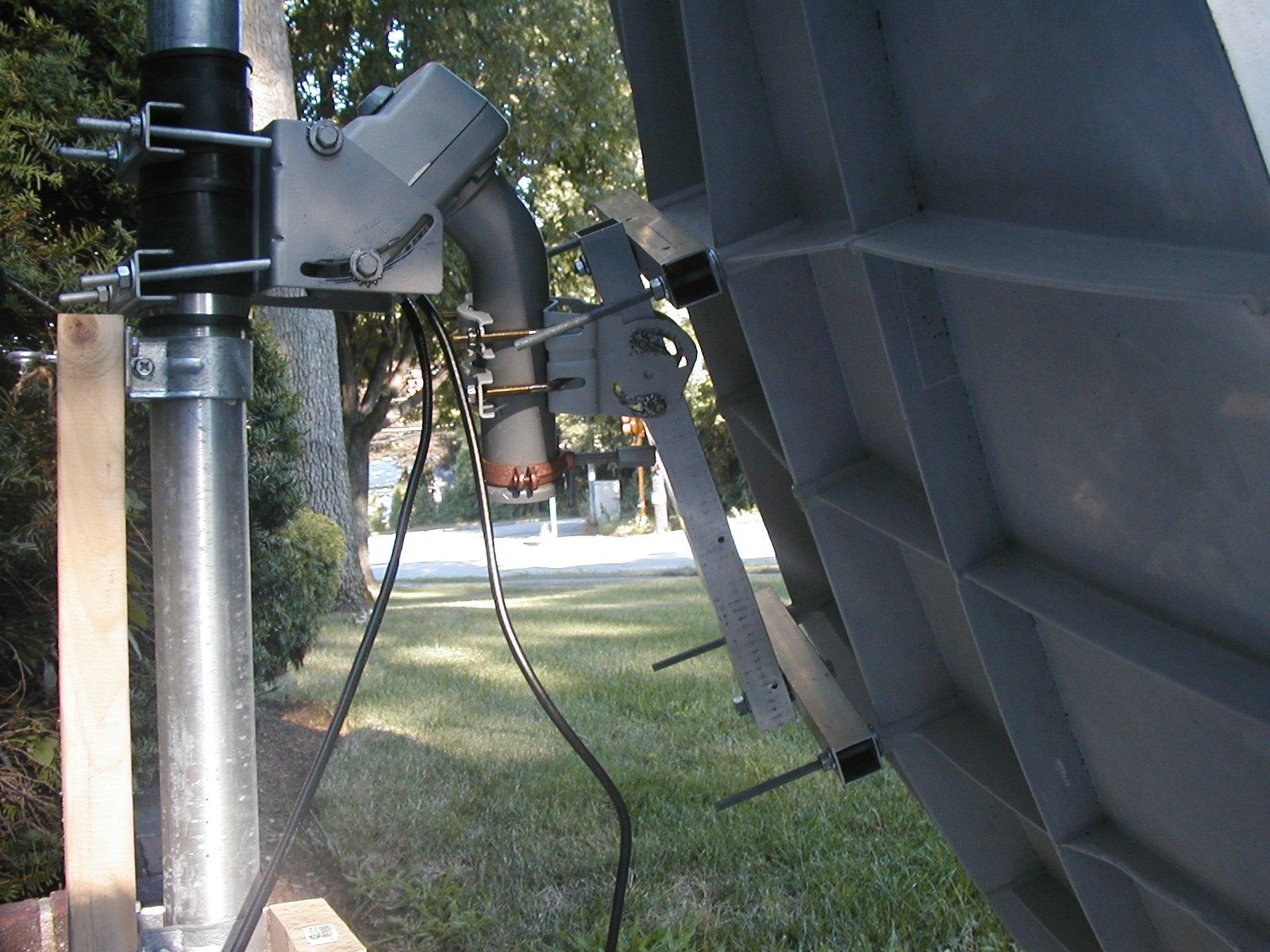

Ok--here's how I did it. I used 1 1/2" square, hollow aluminum tubing. Cut three pieces to size. I purchased a fortec 80 cm mount ($10 plus shipping) from Sadoun. This mount is strong, yet very light weight. It allowed me to adjust the elevation skew and to adjust for the offset angle of my dish (16.9 degrees). The rest should be obvious from the pictures. Note: the dish is so heavy that the two horizontal screws on the mount (which sets the angle of the dish relative to the motor's snout) are not strong enough to hold the dish at the 24 degree angle I needed. So, I attached a plumbing clamp to the snout of the motor. I bought a straight, 3/8" bolt which screws into the plumbing clamp. I cut it size with a hack saw. At the other end of this bolt, I then screwed on a "sleeve" which allows the user to connect two bolts. This sleeve allows for fine tuning to a fraction of a degree. Now, the angle of the dish only has to be set one time. The weight of the dish against this "set screw" keeps everything rigidly in place. This part can be redone by using a longer "set screw" which bolts to the center spine of the mount. I'm still pondering this.

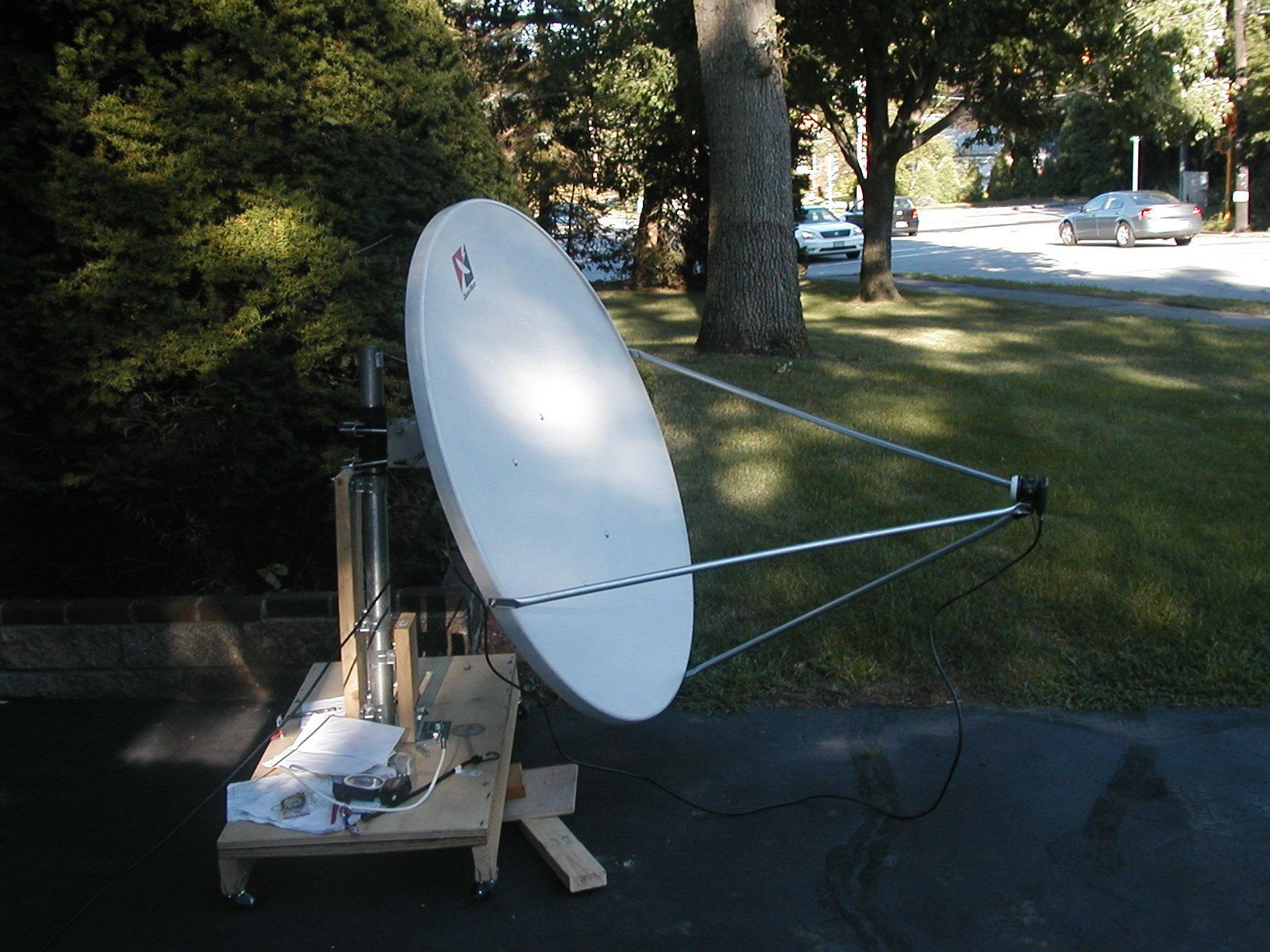

Note: the base is a temporary one which is one wheels so I can wheel it around my driveway. I can make the pole plumb at any location by using shims in the right place. I have not decided where the permanent location will be yet.

This set up tracks the arc nearly perfectly--I am near Boston. When I was aimed at G10R, I had to nudge the dish a few clicks with DisEqc 1.2 commands.

My HH motor is a Jaeger SuperJack DG 120+. I bought it on Ebay in Austria. It moves the dish with ease.

If anyone has any questions, would like more details, would like any more photos, just let me know. I owe everything to the other more senior posters to these forums from whom I have learned so much such as Iceberg, PopcornNmore (who gave me the inspiration from his prior posting to try this), Anole, Stogie 5150, Tron, Gabshere and Likvid to name a few.


Attachments

  • P1010025.JPG
    288.1 KB · Views: 234
  • Copy of P1010034.JPG
    Copy of P1010034.JPG
    297.2 KB · Views: 261
  • Copy of P1010033.JPG
    Copy of P1010033.JPG
    246.8 KB · Views: 201
  • P1010028.JPG
    301.5 KB · Views: 245
  • P1010027.JPG
    281 KB · Views: 261
  • P1010029.JPG
    270.2 KB · Views: 210
  • P1010030.JPG
    250.4 KB · Views: 236

turbosat

SatelliteGuys Master
Dec 26, 2006
9,001
75
Oneonta,AL
Great job Bloomdog-is that motor supposed to be six million dollar man of satellite movers (better,stronger,faster) ?? Never heard of that brand. Nice bracket, clever.


turbosat

SatelliteGuys Master
Dec 26, 2006
9,001
75
Oneonta,AL
Great job Bloomdog, like the bracket too. Never heard of that motor, is it stronger than the motecks and digiwaves?


Anole

SatelliteGuys Master
Sep 22, 2005
11,819
12
L.A., Calif.
Nice job, there.
Looks like you incorporated all the good ideas that've been posted, here.
I don't see a pivot bolt through the middle of the Fortec elevation adjustment, though

I do particularly like the light weight tubing.
But, that threaded hex thing - it locks in place every 1/6th of a turn - very imaginative! :eureka


PopcornNMore

SatelliteGuys Pro
Mar 20, 2005
3,635
128
Gibsonia, PA
Great job Bloomdog. I noticed that the mounting holes on the back of your CM 1.2m dish are different than mine. My 1.2m dishes have mounting holes 12" on center within a square. your dish seems to be 12" left to right and 24" top to bottom.

I am now trying to motorize my CM 1.2m dish were the mounting holes are 24" on center within a square.


bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
Nice setup bloom. Where did you get the dish? Looks almost new!

I watch CRAIGSLIST like a hawk for satellite/FTA-related stuff. I saw this dish on CRAIGSLIST. I drove 2 hours and paid $60 for it from a private individual. It fit in the trunk of my car, thank god.

Last edited:

bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
Nice job, there.
Looks like you incorporated all the good ideas that've been posted, here.
I don't see a pivot bolt through the middle of the Fortec elevation adjustment, though

I do particularly like the light weight tubing.
But, that threaded hex thing - it locks in place every 1/6th of a turn - very imaginative! :eureka

A pivot bolt wasn't necessary. On the inside of the Fortec bracket are "nipples". Since my aluminum tubing was a perfect fit, I merely drilled holes in the tubing which correspond to the nipples. So, it pivots nicely without a bolt.


bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
Great job Bloomdog. I noticed that the mounting holes on the back of your CM 1.2m dish are different than mine. My 1.2m dishes have mounting holes 12" on center within a square. your dish seems to be 12" left to right and 24" top to bottom.

I am now trying to motorize my CM 1.2m dish were the mounting holes are 24" on center within a square.

That's correct--my dish is a "Type 123" which has elongated mounting holes. As I recall, the holes are approx. 10" apart, horizontally, and approx. 15" apart, vertically. I can give you exact measurements if anyone wants them. What I gave a great deal of thought on was where to attach the Fortec mount on the vertical mounting bracket. It occurred to me that the dish should pivot at the exact point that it would pivot on an AZ/EL mount otherwise the dih offset would be wrong as it travels the arc. So, I lined up the vertical mounting bracket next to the AZ/EL mount I have and got the pivot point as close as I could.


bloomdog

SatelliteGuys Pro
Sep 20, 2006
306
0
Nice job, there.
Looks like you incorporated all the good ideas that've been posted, here.
I don't see a pivot bolt through the middle of the Fortec elevation adjustment, though

I do particularly like the light weight tubing.
But, that threaded hex thing - it locks in place every 1/6th of a turn - very imaginative! :eureka

I have studied these forums for months and have read nearly every thread. I figured that there was no reason to reinvent the wheel. Just redesigned it a bit. ;)
