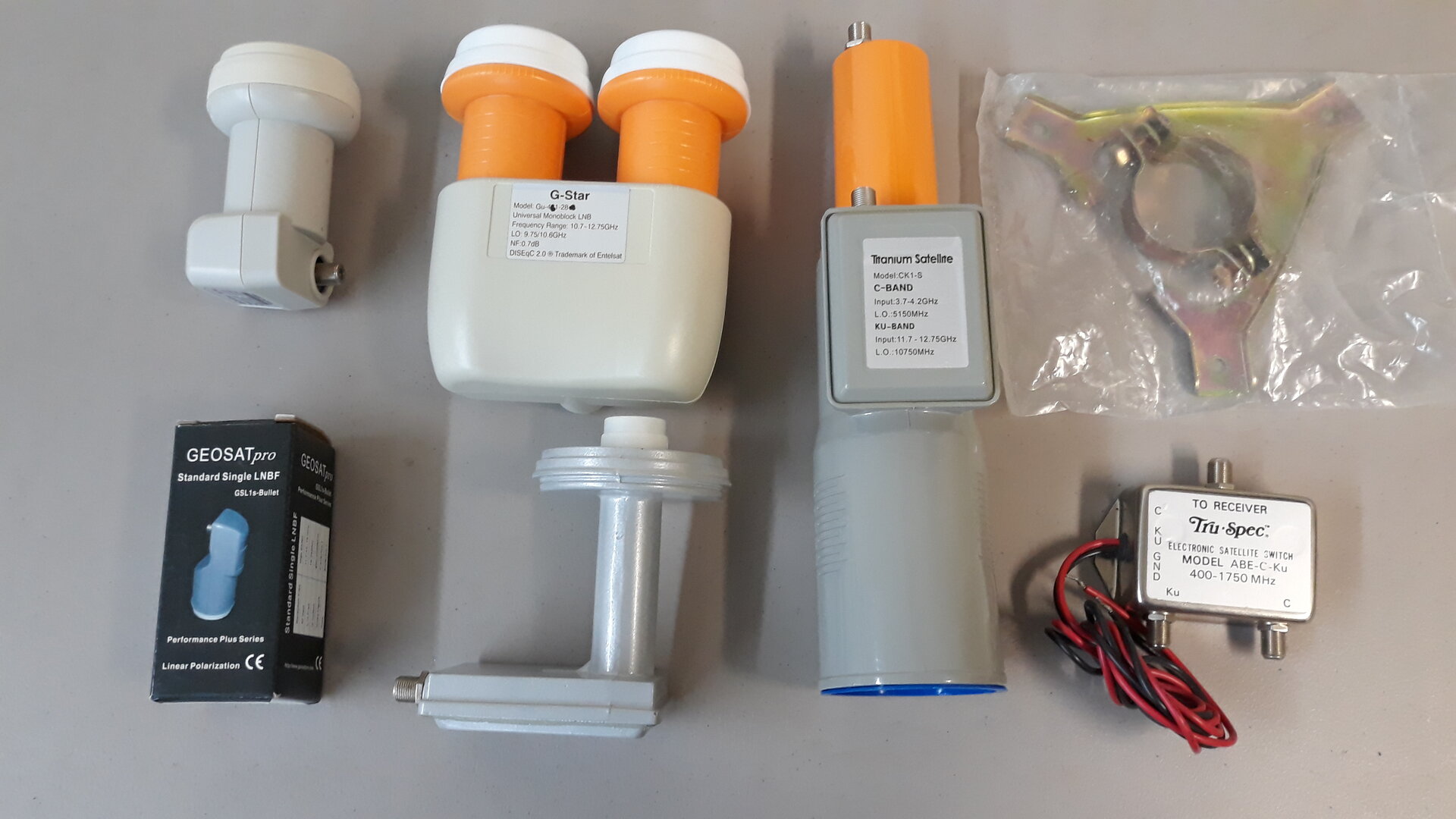

More satellite items to gift to a new home. I would like to see them working in a hobbyist system, rather than age out and not be used.

You pay the USPS priority shipping cost and one or all of these items will be yours. Reply to this thread with the item or items that you will use and I will message you back through the forum and get your contact information. Will send an invoice for the USPS mailing cost. First come, first served.

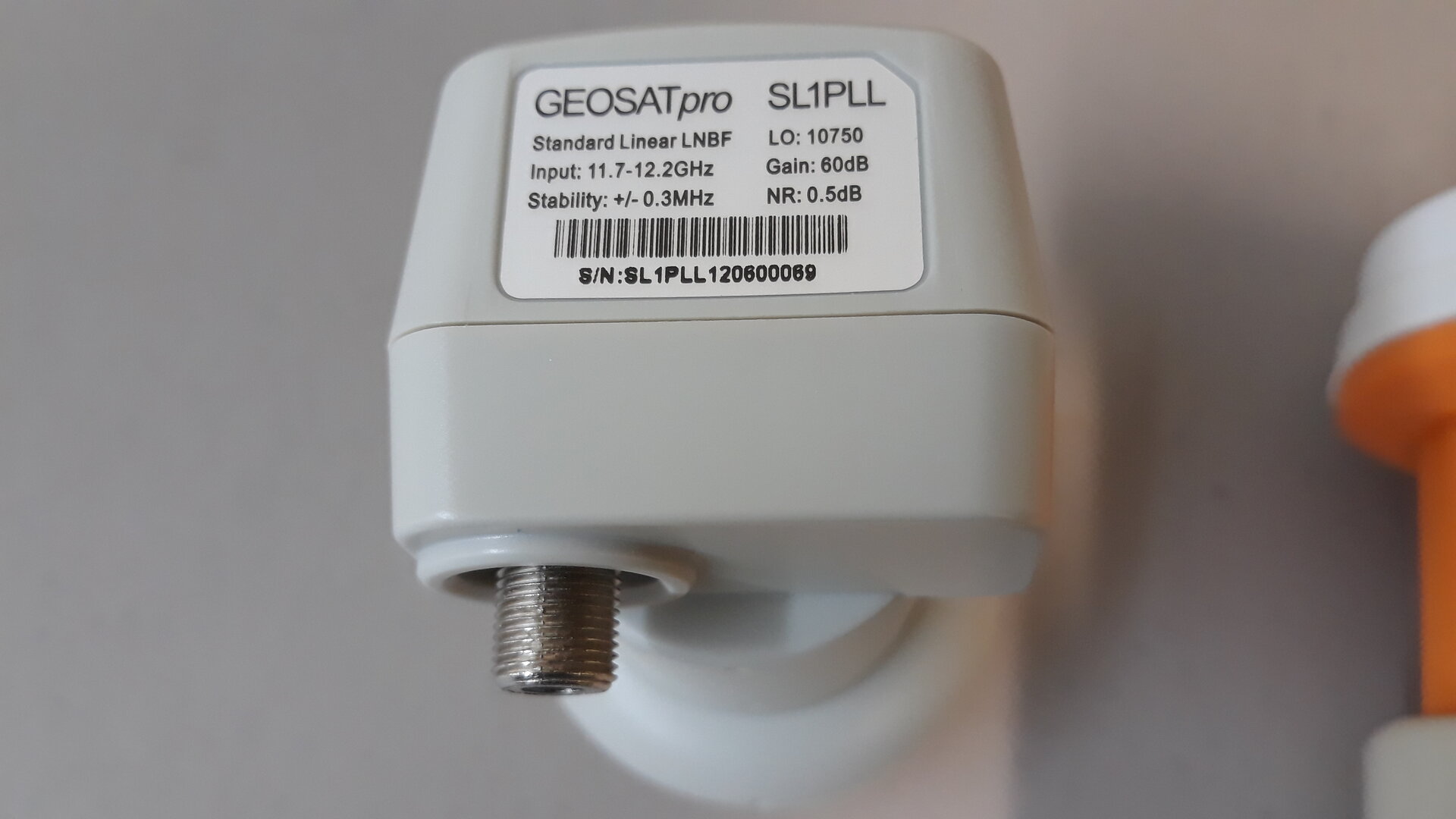

1. GEOSATpro SL1PLL LNBF - Standard LO 10750 Linear Single output KU LNBF

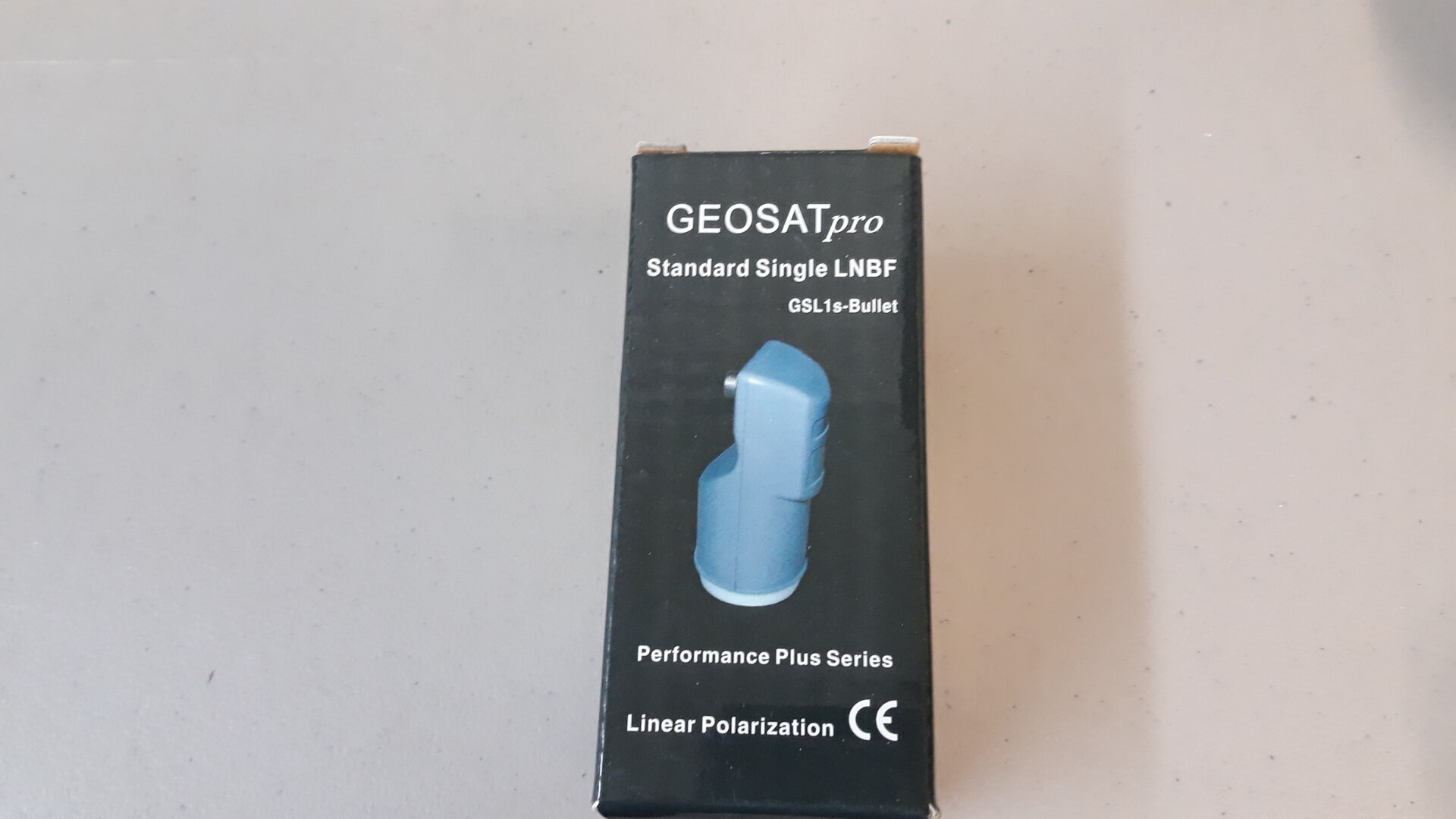

2. GEOSATpro GSL1 Bullet LNBF - Standard LO 10750 Linear Single output KU LNBF

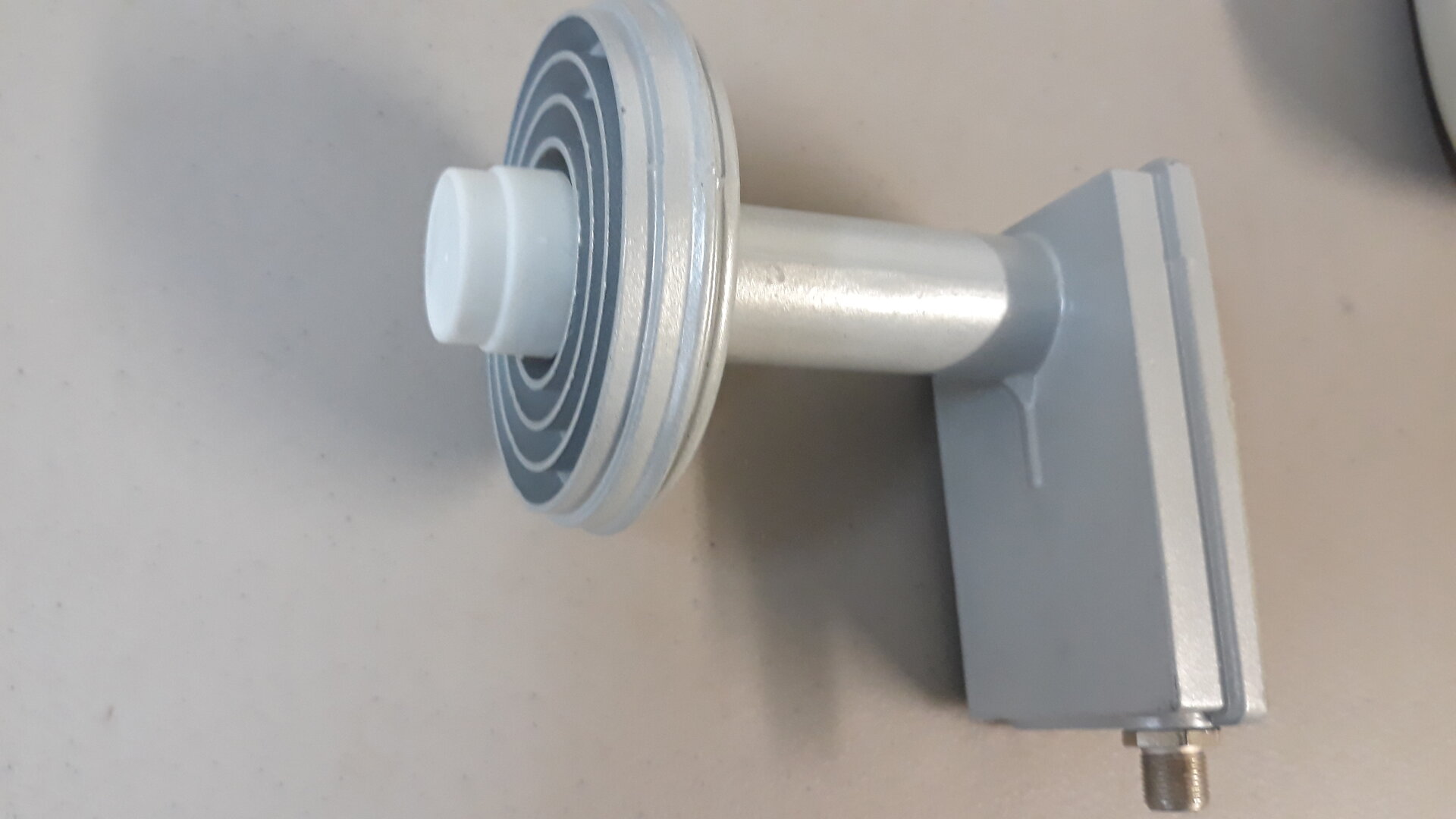

3. Factory Sample - Prime Focus Standard LO 10750 Linear Single Output KU Prime Focus LNBF

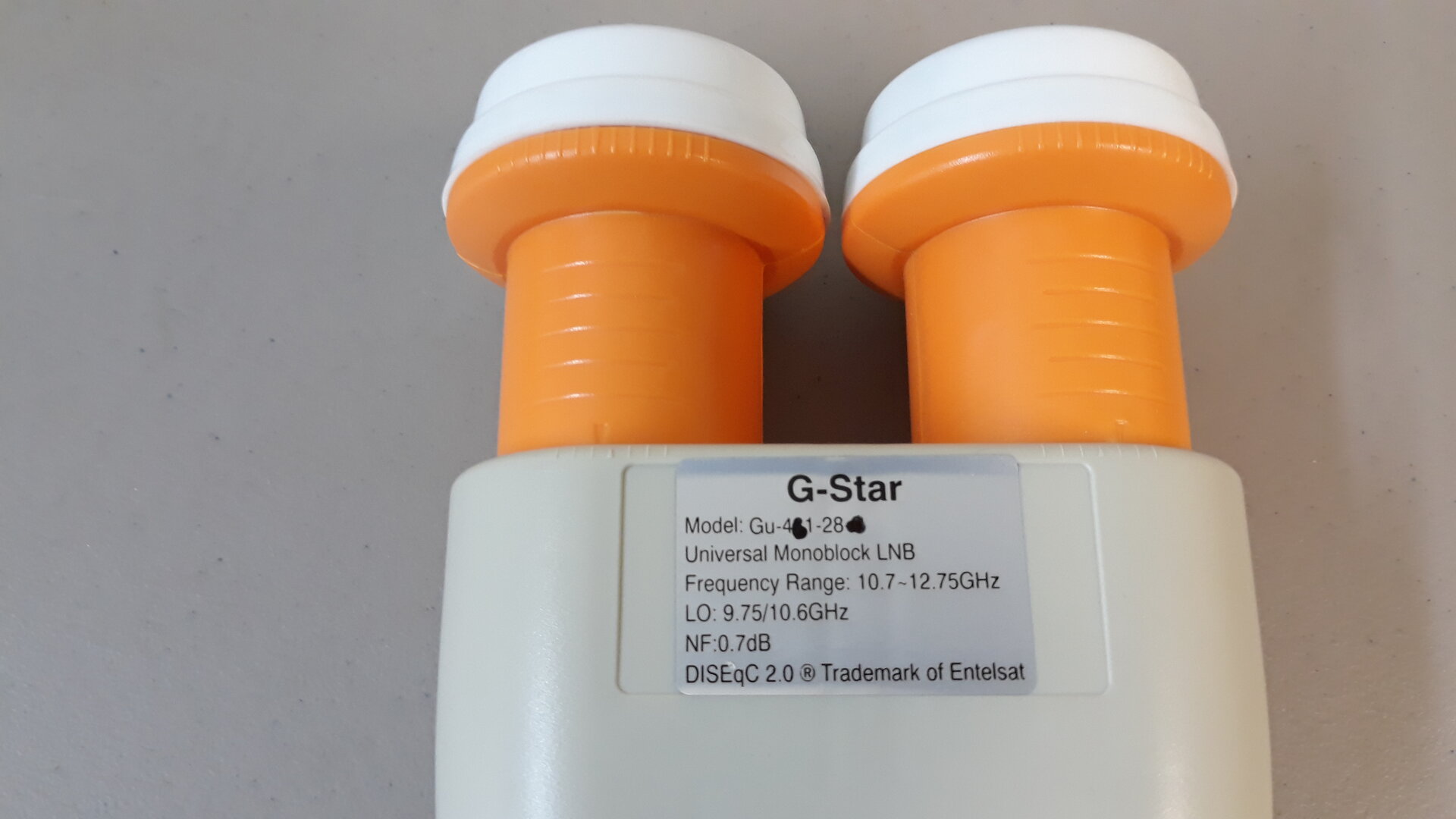

4. G-Star Dual LNBF DiSEqC 2.0 Switch - Universal LO 9750/10600 Linear Single Output Dual LNBF with adjustable skew and DiSEqC 2.0 internal switch

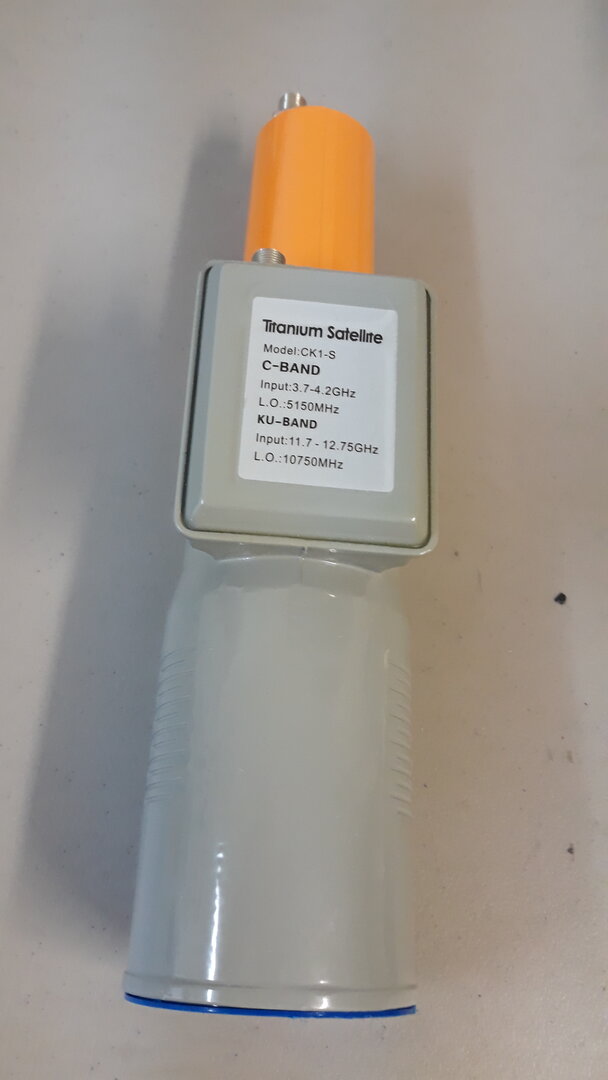

5. Titanium Satellite CK1S - Combo C and KU LNBF - C-band LO 5150 Single Linear / KU-band Standard LO 10750 Linear Single Output

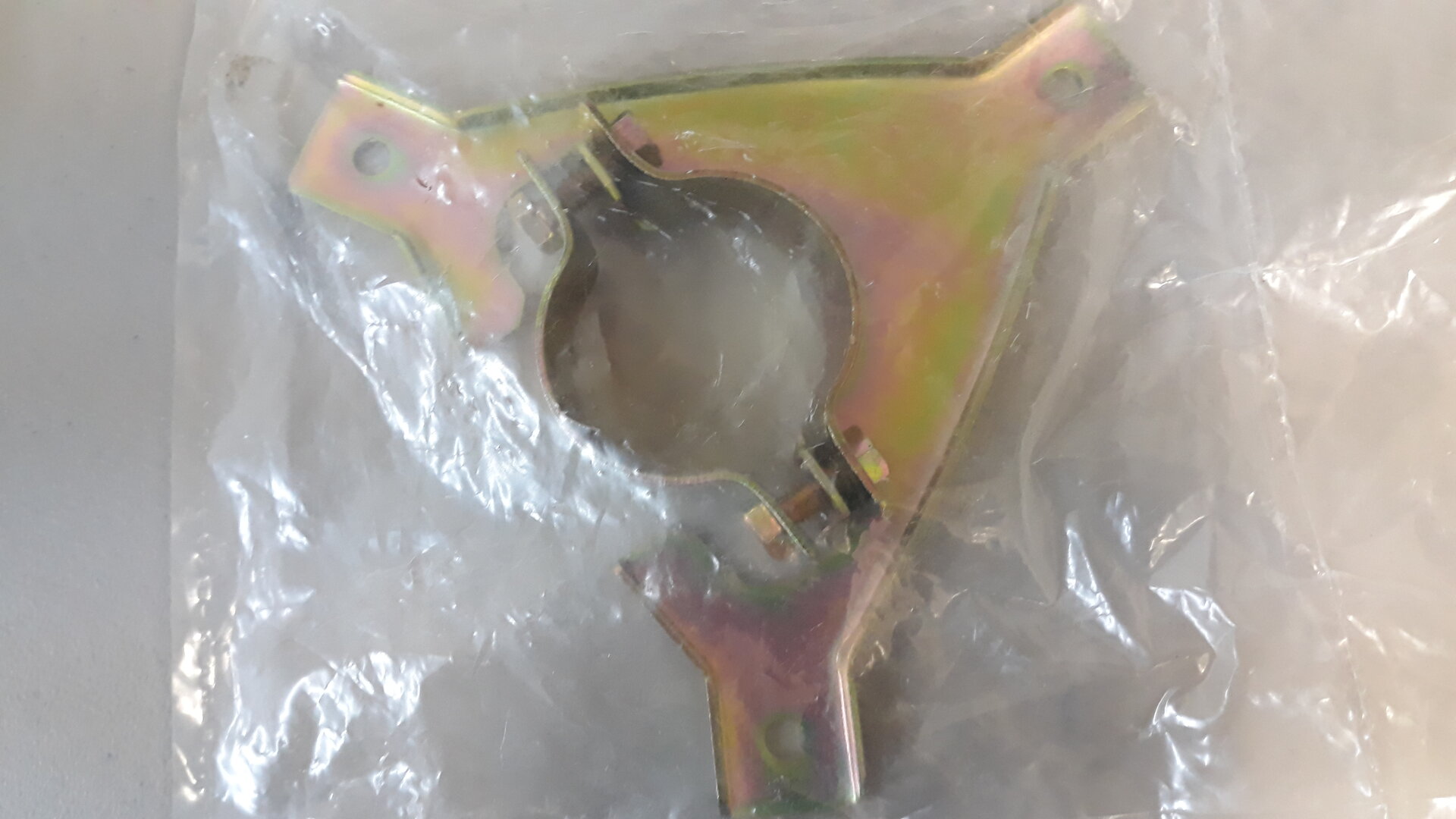

6. Prime Focus 42mm Feed Clamp - Suitable for mounting a KU LNBF on a three support leg prime focus reflector

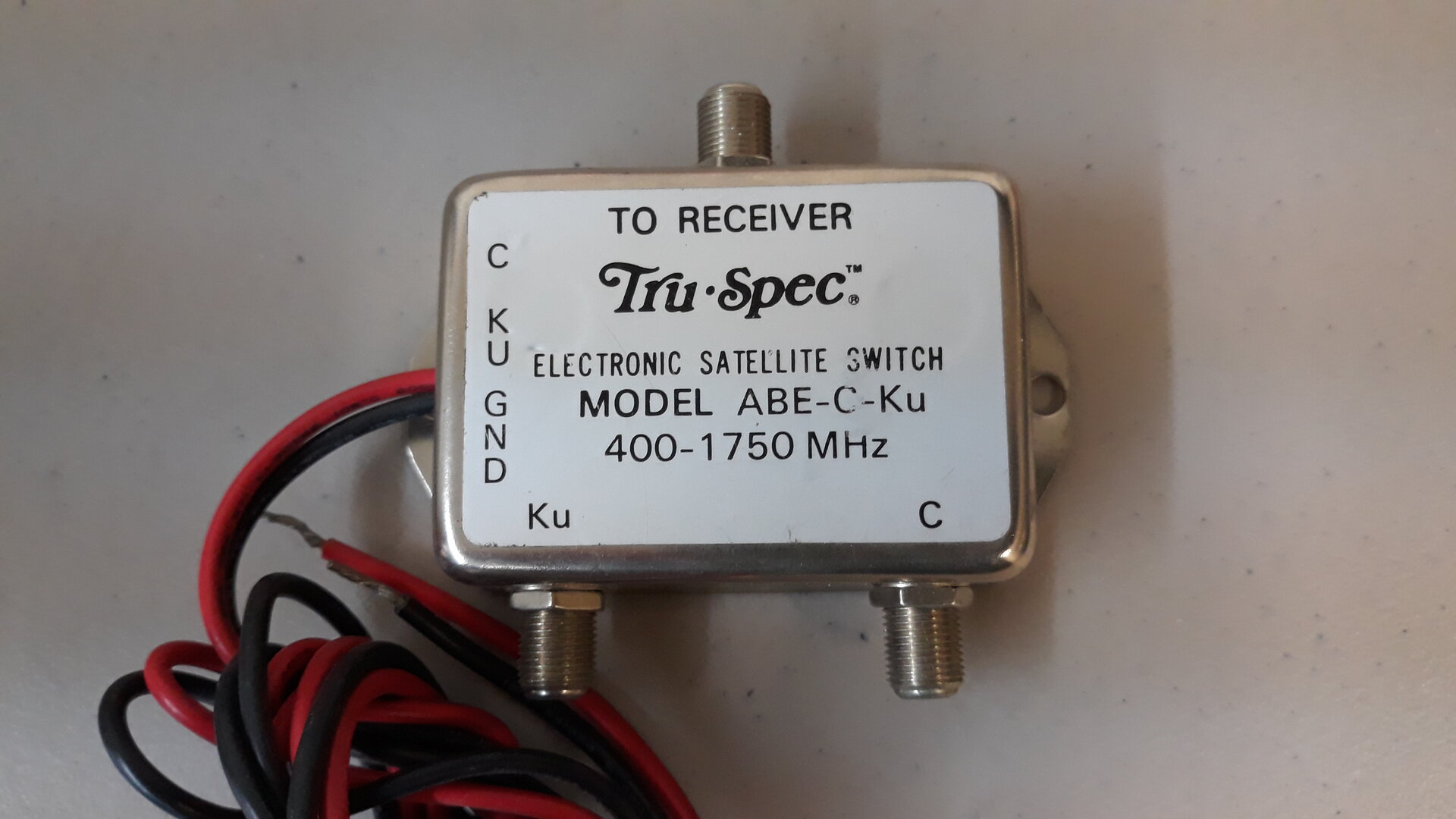

7. Tru Spec 12Vdc Coax switch - Old School!!!

  • Like
Reactions: c-spand and comfortably_numb
Register to hide this ad
Radioguy41

Radioguy41

SatelliteGuys Pro
Pub Member / Supporter
Aug 7, 2008
2,992
3,267
Lehighton, PA
I'll take the Titanium Satellite CK1S - Combo C and KU LNBF - C-band LO 5150 Single Linear / KU-band Standard LO 10750 Linear Single Output and the Tru Spec 12Vdc Coax switch please.

Jim S.

Jim S.

When someone asks you if you're a god, you say yes
Lifetime Supporter
Jan 2, 2006
5,869
1,678
FN11od
I can't find the specs on that monoblock anywhere. Is the separation 4 degrees? If so, I'll take it.

C

Conway

SatelliteGuys Pro
Sep 9, 2007
260
216
i'll take the
GEOSATpro GSL1 Bullet LNBF - Standard LO 10750 Linear Single output KU LNBF and a CK1S if possible. Thanks

Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,741
9,282
Meadow Vista, Northern California
Items Still Available:

1. GEOSATpro SL1PLL LNBF - Standard LO 10750 Linear Single output KU LNBF

6. Prime Focus 42mm Feed Clamp - Suitable for mounting a KU LNBF on a three support leg prime focus reflector

7. Tru Spec 12Vdc Coax switch - Old School!!!

cyberham

cyberham

SatelliteGuys Master
Jun 16, 2010
6,061
5,086
British Columbia
I could sure use the GSP SL1PLL on my fixed 87W dish to replace my SL2 bullet (non-PLL). I have an SL1PLL on my 103W fixed dish and it works very well.

Sent from my SM-G950W using Tapatalk

ancient

ancient

SatelliteGuys Pro
May 12, 2014
441
229
USA
Maybe you could answer a question for me - looking at your item #6, I could have used that to mount a Ku LNBF to a 6 foot dish I picked up that had originally been used for C-band. But at the time I didn't know where to get one that would have been shipped in a timely manner (less than six weeks), so I made something out of an old broken steel shovel. So basically there is a steel ring that attaches to the three mounts and a smaller hole inside that the LNB pokes through, and a couple of clamps that look very similar to what's shown on #6. But what I was never sure of is do the clamps go on the outside (away from the concave surface of the dish) or the inside (closer to the concave surface of the dish)? I put them on the outside, closer to the body of the LNB and further from the surface of the dish (hope that makes sense), but have always wondered if I did it right. It seems to work okay except in really pouring rain, which I had thought would not be a problem with a 6 foot dish.

Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,741
9,282
Meadow Vista, Northern California
ancient said:
Maybe you could answer a question for me - looking at your item #6, I could have used that to mount a Ku LNBF to a 6 foot dish I picked up that had originally been used for C-band. But at the time I didn't know where to get one that would have been shipped in a timely manner (less than six weeks), so I made something out of an old broken steel shovel. So basically there is a steel ring that attaches to the three mounts and a smaller hole inside that the LNB pokes through, and a couple of clamps that look very similar to what's shown on #6. But what I was never sure of is do the clamps go on the outside (away from the concave surface of the dish) or the inside (closer to the concave surface of the dish)? I put them on the outside, closer to the body of the LNB and further from the surface of the dish (hope that makes sense), but have always wondered if I did it right. It seems to work okay except in really pouring rain, which I had thought would not be a problem with a 6 foot dish.
Click to expand...
ancient Might be six of one, half dozen of the other or not... use the mount in a way that it places the feedhorn opening of the prime focus type of feed and scalar at the correct Focal Length for the reflected signals to converge into the feedhorn throat.some feedhorns have a long throat, which allow it to be solid for and aft to optimize. If not, the FL adjustment would need to be made with support leg or mount ponts.

Sounds to me that either the LNBF is not in the sweet spot or using a offset rather than a prime focus LNBF and not correctly illuminating the reflector?

Please start a new thread if you wish to have a discussion on this feed issue.

  • Like
Reactions: primestar31
M

mememeth

SatelliteGuys Family
Dec 10, 2018
63
40
boston
Titanium said:
More satellite items to gift to a new home. I would like to see them working in a hobbyist system, rather than age out and not be used.

You pay the USPS priority shipping cost and one or all of these items will be yours. Reply to this thread with the item or items that you will use and I will message you back through the forum and get your contact information. Will send an invoice for the USPS mailing cost. First come, first served.
View attachment 153577



1. GEOSATpro SL1PLL LNBF - Standard LO 10750 Linear Single output KU LNBF
View attachment 153578

2. GEOSATpro GSL1 Bullet LNBF - Standard LO 10750 Linear Single output KU LNBF
View attachment 153579

3. Factory Sample - Prime Focus Standard LO 10750 Linear Single Output KU Prime Focus LNBF
View attachment 153580

4. G-Star Dual LNBF DiSEqC 2.0 Switch - Universal LO 9750/10600 Linear Single Output Dual LNBF with adjustable skew and DiSEqC 2.0 internal switch
View attachment 153584

5. Titanium Satellite CK1S - Combo C and KU LNBF - C-band LO 5150 Single Linear / KU-band Standard LO 10750 Linear Single Output
View attachment 153581

6. Prime Focus 42mm Feed Clamp - Suitable for mounting a KU LNBF on a three support leg prime focus reflector
View attachment 153582

7. Tru Spec 12Vdc Coax switch - Old School!!!
View attachment 153583
Click to expand...
i would like number 4 + 5, thank you
