got some new LNB's

Status
Please reply by conversation.
M

Mr Tony

Thread Starter
SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
334
87
Mankato, MN
eh, sometimes you get lucky on Ebay. Threw a bid on some LNB's and won them for like 5 bucks. Got them today :)

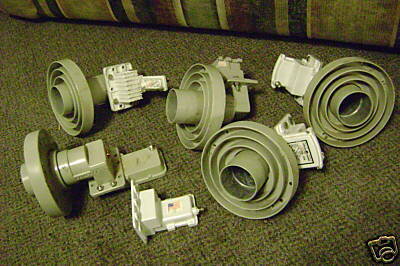

Here is the list

California Amplifier Mag 7 noise 35k

chaparral noise 25k

Gardiner 26k

US Gold 30k

California Amplifier Mini Mag 30k

California Amplifier Mini Mag 25k

I had to wash the scaler rings as they were dirty. neighbors thought I was nuts. Most people was their cars...I wash satellite parts :)

only drawback is there is no polorotors on them so they would have to manually be tuned. They need some screws to hold the feedhorn to the LNB but gonna try them out on the 6 foot dish and see how they works out :)


Attachments

  • 5b5a_1.JPG
    27.8 KB · Views: 237
T

tvropro

On Vacation
Mar 9, 2007
6,872
0
eh, sometimes you get lucky on Ebay. Threw a bid on some LNB's and won them for like 5 bucks. Got them today :)

Here is the list

California Amplifier Mag 7 noise 35k

chaparral noise 25k

Gardiner 26k

US Gold 30k

California Amplifier Mini Mag 30k

California Amplifier Mini Mag 25k

I had to wash the scaler rings as they were dirty. neighbors thought I was nuts. Most people was their cars...I wash satellite parts :)

only drawback is there is no polorotors on them so they would have to manually be tuned. They need some screws to hold the feedhorn to the LNB but gonna try them out on the 6 foot dish and see how they works out :)

I would start with the California Amplifier Mini Mag 25k. The Mini Mag series came out after the Cal Amp LNB I have on my 12 ft dish. I have the full size HEMT 40 degree LNB. It was the same one cable headends used back in 89. The Mini mag series didn't have the isolator that the earlier LNB's had, but were still very good. The isolator was a fine tuned filter that allowed only 3.4 to 4.2 GHZ to pass. This was nice if you were getting out of band TI. For $5 bucks you got a great deal. I payed $200.00 for my LNB in 89. It works flawlessly with all the digital I throw at it so you should have good luck with these.

Edited to add: The Mag 7 actually was the one that came out after mine the Mini Mag came out after that. Had to think a while about what I remember :) You should do well with all the Cal Amps. The Gardner was a good unit too.

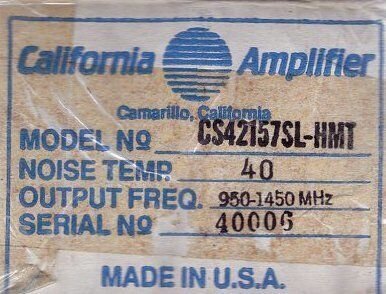

The image is from the box from my LNB.


Attachments

  • IMAGE1.jpg
    32.5 KB · Views: 189
Last edited:
M

Mr Tony

Thread Starter
SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
334
87
Mankato, MN
I'll take some pics of them tomorrow :)

T

tvropro

On Vacation
Mar 9, 2007
6,872
0
Hey Ice you should be able to get a polorotor motor and put it on the feedhorn then you won't have to manually adjust the skew.

M

Mr Tony

Thread Starter
SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
334
87
Mankato, MN
I know...but right now the 2nd dish is wheeled out an moved to G26 for AMGTV and once in a while to 121 for some stuff...I want to see how good it works before I drop any more money in it.

I want to see how well the "old LNB's" hold up to that new fangled 621-2 on there right now :)

T

tvropro

On Vacation
Mar 9, 2007
6,872
0
Ought to be an interesting test. Some of the old LNB's were really good. Built like tanks too :D

stogie5150

stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,824
51
Slidell,LA
Hey Ice I got a couple complete horns I took of the dishes I scrapped, complete with servos....I'll swap ya....LOL ;)
