Does anyone have any info on this satellite dish?
105 0505 105 0504 105 0506

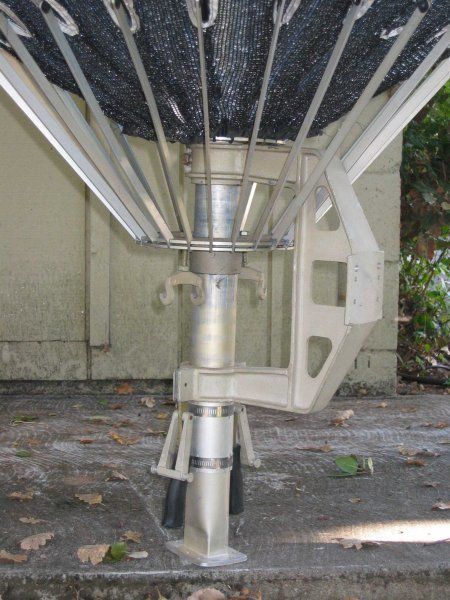

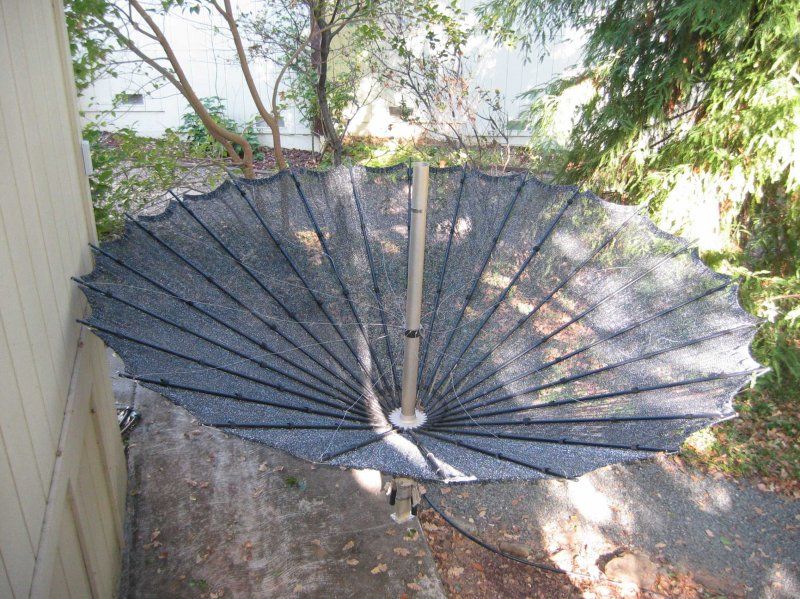

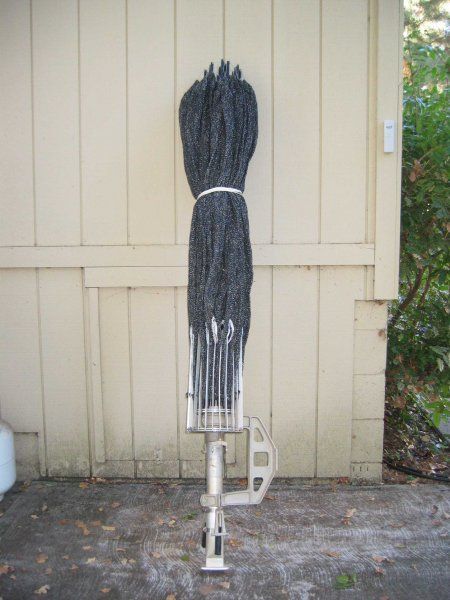

I recently was given a portable 7.5-8' folding satellite dish and unable to find any information other than a similar design on an expired patent. There is no stamping, plates or other branding or ID.

The construction is aluminum, fiberglass rods, stainless steel wires with metal embedded fabric.

The subreflector is missing so will probably have to convert to a direct feed.

I have seen similar KU Prime focus units at NAB and Satellite Expo marketed for military communications. Never have seen this type of folding L or C-band set-up. Any information would be appreciated.

Thank you!

B

Brct203

SatelliteGuys Pro
Dec 24, 2016
1,300
1,317
Connecticut
that reminds me a bit of the dishes that were used with Inmarsat A terminals (think CNN reporters during Desert Storm). Of course those used with Inmarsat were a lot smaller, but otherwise the idea was the same, I think.

  • Like
Reactions: Titanium
boba

boba

SatelliteGuys Master
Dec 12, 2003
11,350
1,033
Dorchester, TX.
I associate that with Echohosphere (not DISH) and a trade show for "C" band,, probably in the 80's. I don't remember much except you could throw a ball into the mesh and it returned back to shape.

  • Like
Reactions: Titanium
S

SatPhreak

SatelliteGuys Pro
Apr 19, 2007
943
139
Thunder Bay, ON
I don't know any thing about that dish but it sure looks cool. Are you going to try it out Titanium?

A dish like that would be perfect for an occasional setup.

  • Like
Reactions: Titanium
lost_mesa

lost_mesa

SatelliteGuys Pro
Oct 18, 2010
546
455
New Mexico
BITD there was mention of a folding C Band dish, along with photos, in Coop's Satellite Digest. Don't remember the details or know if this is the same one. Could it be that old?

  • Like
Reactions: Titanium and N5XZS
iBoston

iBoston

SatelliteGuys Pro
Jul 15, 2014
2,267
1,649
North Central
I think that is a very cool dish. I'd love to see a signal from it. Is it an umbrella? is it a table umbrella? oh, no - wait, what?? It's a satellite dish.. :eek:

  • Like
Reactions: Titanium
Titanium

Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
7,446
8,661
Meadow Vista, Northern California
No clue as to the age. It could be from the 80's, but it is in very good condition and stored indoors. Looks to be mil spec or ??? Very light at approx. 21lbs.

Mounting it on a heavy duty two axis security camera mount and controlling the AZ/EL via PTZ RS485 and a CCTV install meter. Skew will be with a Chapparal manual skew controller. Might try a simple Arduino project to integrate the dual axis and polarity servo controls for automatic tracking.

Trying to decide if the mount will be a truck receiver hitch insert or a surplus communications mast tripod.

Unsure why I am doing this project or how it will be used, but for now my goal is to have it on display as eye candy for our ham radio club Field Day in June. Automating the AZ/EL for continuous arc sweep and light the feed and parabola with blue projection LED lamps.

Will post photos and videos as the project progresses.

Titanium

Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
7,446
8,661
Meadow Vista, Northern California
danristheman very cool! Definitely similar and likely from the same manufacturer. The mast mount looks identical.

Now to figure out who made the kit. Probably Coop's Satellite Digest will be the resource to solve the mystery.


Phalaenopsis

Phalaenopsis

SatelliteGuys Pro
Nov 24, 2017
457
274
NA
Brian, I dont know if this helps at all but there’s a 1.2 meter Inmarsat dish that looks kinda similar to yours.

T

thedishking

Well-Known SatelliteGuys Member
Nov 5, 2006
25
17
Minneapolis, MN
I actually have one of those in storage at a relative's house in SD from when we cleared out a property years ago.

The front reflector looked like a metal serving plate with a plastic piece protruding from it, supported by 3 legs.
With single polarity LNB that twisted in the back, almost like a cassegrain type of an antenna.
There is also a fancy chrome tripod that went along with it, that folded up like the antenna does.

There was a round pivot that bolted to the frame and this "sat" in the tripod.

It will be several months before I am back to where this is located, but I do remember using this in the mid '90s as a site survey antenna for real restricted sites (trees, etc).

If you can hang on for a while, I should be able to get you some measurements of plate that is on front of antenna.

Travis

  • Like
Reactions: Titanium
Titanium

Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
7,446
8,661
Meadow Vista, Northern California
thedishking wow! Great info! I'm not planning any destructive modifications, so it might be possible to duplicate the sub reflector.

Thanks!

Horsepower

Horsepower

SatelliteGuys Pro
Dec 11, 2017
542
221
Richmond, VA
Wow that is interesting. I have no idea what it is, but I bet it cost a fortune!

Titanium

Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
7,446
8,661
Meadow Vista, Northern California
I had initially researched Inmarsat but I don't believe that it was an Inmarsat dish due to the larger size and as it has a CPR229 LNB mount on the rear from the waveguide. The design is similar though to the 1.2m Magnavox, but uses a wire hub to shape the parabola when tensioned.

B

Brct203

SatelliteGuys Pro
Dec 24, 2016
1,300
1,317
Connecticut
I had initially researched Inmarsat but I don't believe that it was an Inmarsat dish due to the larger size and as it has a CPR229 LNB mount on the rear from the waveguide. The design is similar though to the 1.2m Magnavox, but uses a wire hub to shape the parabola when tensioned.
Good point - Inmarsat would have been for L-Band, so a very different LNA/LNB. And it seems the Inmarsat Std-A dishes were in the 1 meter - maybe 1.5 meter range
