how do you set the elevation

Status
Please reply by conversation.
IntelPennny4

IntelPennny4

Thread Starter
SatelliteGuys Pro
Oct 28, 2016
326
123
USA
im not sure how to set the elevation on my 8ft bud anyone care to give out any ideas. im using it as a stationary dish so only one satellite at a time.

hank123

hank123

COLORADO CONNOISSEUR BUD HUNTER
Lifetime Supporter
May 8, 2016
543
288
N. Colorado
Can you post a pic?

Should be a bolt with a nut on both sides of a plate to keep it fixed.

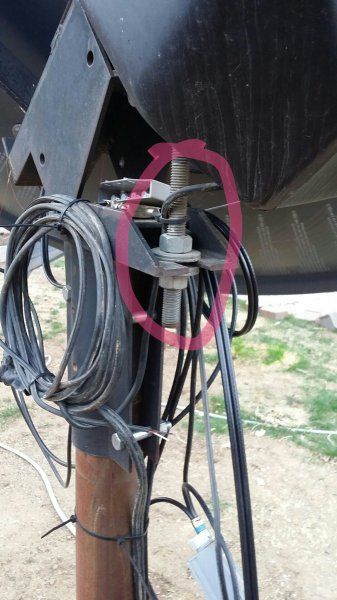

Screenshot 2017 03 30 18 54 26 1

IntelPennny4

IntelPennny4

Thread Starter
SatelliteGuys Pro
Oct 28, 2016
326
123
USA

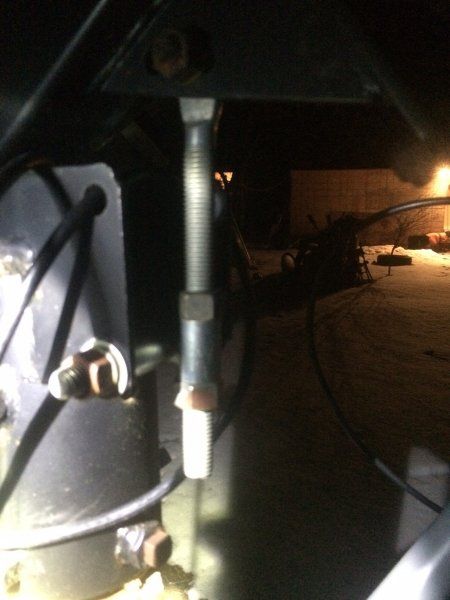

this it what i got sorry but its night time here :) i know thats how i set it. but im confused on how to set it to say 18.6 or what ever elevation i need. so im saying how do i know when its 18.6 or whatever elevation i need


Attachments

  • image1.JPG
    36.3 KB · Views: 165
Ali Erfani

Ali Erfani

Member
Jan 11, 2017
13
5
Turkey
Put a digital or analog inclinometer on your reflector rim, if you read 18.6, then you have reached to your desire SAT.

Ali

IntelPennny4

IntelPennny4

Thread Starter
SatelliteGuys Pro
Oct 28, 2016
326
123
USA
i have both digital and analog. the problem is i dont know where to put the inclinometer.

armadillo_115

armadillo_115

SatelliteGuys Pro
Jun 10, 2015
1,287
1,005
Virginia
First... dish must be rotated to its highest point. Various dishes are built differently and the best point to set the inclinometer will vary. Wherever you set the inclinometer,be sure it lies flat... no rivets or bent spots, etc.

Elevation: Inclinometer goes on the big pivoting bar that attaches near the pole. OR... some dishes have a back plate that is at 90 degrees off-set.

Declination: Inclinometer goes on the back of the mounting ring. Or place a board across the front of the dish and measure from there. (Think of the declination as an additional off-set from the main pivot bar. Declination moves the dish, not the main pivot point.

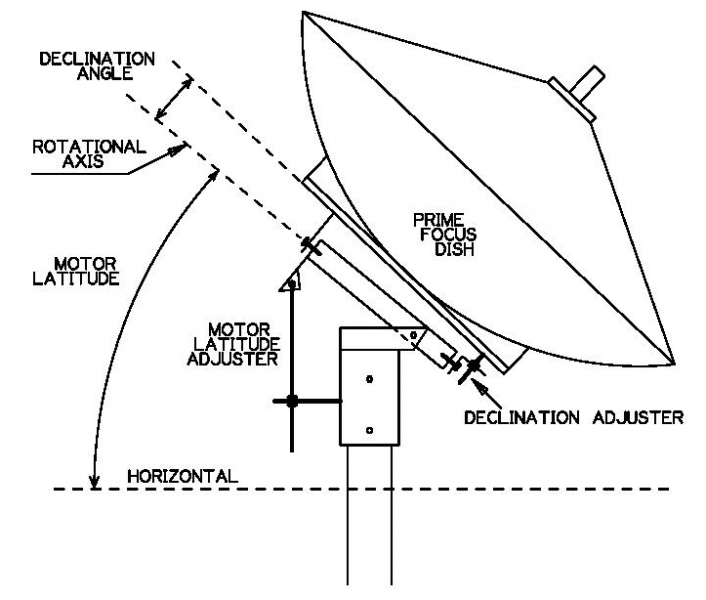

Maybe this drawing will help:
POLARMOUNTANGLE2


Drawing credit goes to repentnow(dot) com

  • Like
Reactions: Titanium
armadillo_115

armadillo_115

SatelliteGuys Pro
Jun 10, 2015
1,287
1,005
Virginia
I should add that if this is a used dish that came from near your location... it was PROBABLY set correctly or close, anyway. There are always exceptions to make life more interesting though. lol

Post a photo of the inclinometer on the dish and someone can verify if you're on the correct location if you need further help..
