How I made a C only BUD work on KU

Status
Please reply by conversation.

FaT Air

HOA Free Zone
Feb 27, 2010
6,668
914
97W 48N

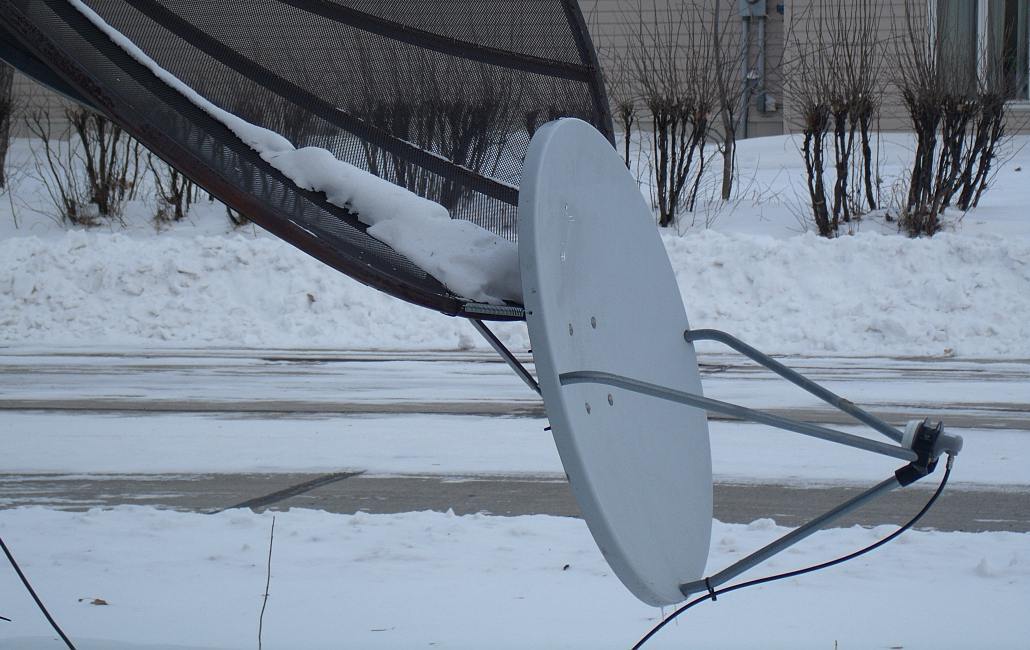

Mount an offset dish to the lip. Here's how I did it

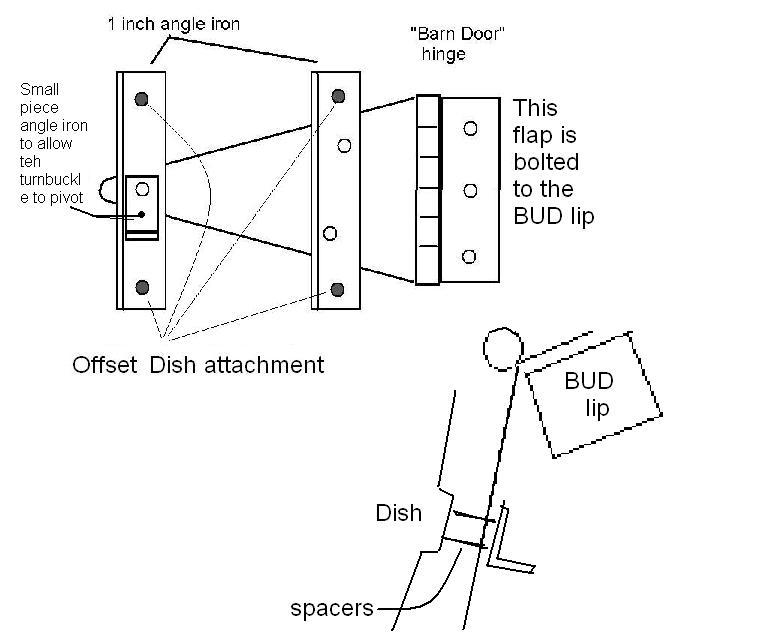

I cut 1 inch angle irons to span the mounting holes of the dish, a .75m Channel Master.(30 inch) I mounted the angle irons to the dish and placed the "barn door" hinge between the angle iron and dish and marked and drilled holes to mount the hinge to the angle iron. I also made a small angle to place at 90 degrees to allow the turnbuckle to pivot. Extra washers were necessary between the dish and angle iron. Another small angle was mounted to the bottom of the BUD for the other end of the turnbuckle. Because a 1/4 inch bolt doesn't fill the holes in the ends of the turnbuckles, i used a rubber grommit on the bolt and fender washers to take up the play.
I drilled a small hole on the sides of the offset dish in line with the lip of the BUD. For E-W adjustment, one side has a spring between the Ku and BUD lip, the other a small turnbuckle.

Alignment: aimed at a southern sat with C and Ku transponders active. Peaked C with the actuator.(tracking the arc as well as I can make it) Then adjusted the turnbuckles on the offset for max on Ku. That was it.
Time, fabrication: 2 hours. Alignment: 20 minutes


Attachments

  • Clipboard01b.jpg
    38.3 KB · Views: 579
  • Clipboard02.jpg
    90.5 KB · Views: 636
  • Clipboard01.jpg
    75.4 KB · Views: 591

whatchel1

SatelliteGuys Master
Sep 30, 2006
9,099
48
Great High Plains
Mount an offset dish to the lip. Here's how I did it
I cut 1 inch angle irons to span the mounting holes of the dish, a .75m Channel Master.(30 inch) I mounted the angle irons to the dish and placed the "barn door" hinge between the angle iron and dish and marked and drilled holes to mount the hinge to the angle iron. I also made a small angle to place at 90 degrees to allow the turnbuckle to pivot. Extra washers were necessary between the dish and angle iron. Another small angle was mounted to the bottom of the BUD for the other end of the turnbuckle. Because a 1/4 inch bolt doesn't fill the holes in the ends of the turnbuckles, i used a rubber grommit on the bolt and fender washers to take up the play.
I drilled a small hole on the sides of the offset dish in line with the lip of the BUD. For E-W adjustment, one side has a spring between the Ku and BUD lip, the other a small turnbuckle.

Alignment: aimed at a southern sat with C and Ku transponders active. Peaked C with the actuator.(tracking the arc as well as I can make it) Then adjusted the turnbuckles on the offset for max on Ku. That was it.
Time, fabrication: 2 hours. Alignment: 20 minutes

Thanks for the pix that is pretty cool work there.


GreatFTA

SatelliteGuys Pro
Aug 14, 2006
1,389
15
Mississippi Delta
Does that extra weight interfere with the C Band performance?
At one time I thought about mounting a Directv dish on my BUD to see if I can track the circular signals of other satellites (No, no hacking)...
I doubt anything is up there that the FTA receivers can pick up. Am I right, Iceberg? I remember getting the ION and NASA stuff.


yankee495

SatelliteGuys Pro
Apr 13, 2007
336
62
Southwest Missouri
Very nice indeed! I can see your mesh here. My 6' is ok but them S2 signals are squirrelly.

But, I had a Corotor II on that dish and put a DMX741 on it. I now have an extra coax as the 741 uses 22 Khz switching. I'm trying to figure how to make good use of it without digging it up to move it (the coax).

You got'em all thinking now! :hatsoff:


whatchel1

SatelliteGuys Master
Sep 30, 2006
9,099
48
Great High Plains
Does that extra weight interfere with the C Band performance?
At one time I thought about mounting a Directv dish on my dish to see if I can track the circular signals of other satellites (No, no hacking)...
I doubt anything is up there that the FTA receivers can pick up. Am I right, Iceberg? I remember getting the ION and NASA stuff.

It should cause any problem once he peaked it up on the bird straight to the S of him as he would be compensating for the slight elevation loss. Biggest problem would be if it were to be warping the dish but that could taken care of with a guy wire.


billyboy_1

SatelliteGuys Pro
Dec 3, 2008
314
33
Southeast Missouri
Mount an offset dish to the lip. Here's how I did it
I cut 1 inch angle irons to span the mounting holes of the dish, a .75m Channel Master.(30 inch) I mounted the angle irons to the dish and placed the "barn door" hinge between the angle iron and dish and marked and drilled holes to mount the hinge to the angle iron. I also made a small angle to place at 90 degrees to allow the turnbuckle to pivot. Extra washers were necessary between the dish and angle iron. Another small angle was mounted to the bottom of the BUD for the other end of the turnbuckle. Because a 1/4 inch bolt doesn't fill the holes in the ends of the turnbuckles, i used a rubber grommit on the bolt and fender washers to take up the play.
I drilled a small hole on the sides of the offset dish in line with the lip of the BUD. For E-W adjustment, one side has a spring between the Ku and BUD lip, the other a small turnbuckle.

Alignment: aimed at a southern sat with C and Ku transponders active. Peaked C with the actuator.(tracking the arc as well as I can make it) Then adjusted the turnbuckles on the offset for max on Ku. That was it.
Time, fabrication: 2 hours. Alignment: 20 minutes
Great thinking...looks like your big dish has a pod.


FaT Air

HOA Free Zone
Feb 27, 2010
6,668
914
97W 48N
Does that extra weight interfere with the C Band performance?
I forgot to mention the BUD is a USS (United States Satellite, Thief River Falls, Mn.)steel dish, designed for the northern cllimes nasty weather. Very HD. The dish mounting ring is 1/4 inch by ~3 and about 30 inch(a guess at this time) dia. All ribs. mesh, everything, HD steel. The mesh is welded onto the ribs. I have stood, albeit, back when I was a bit lighter, in the dish to tweak the skew, without affecting it. No, there has been no effect on the C band performance. It does shade a small portion of the BUD, But this area is quite small in proportion.
For those that may want/need to do it on an aluminum dish. My thoughts were guy wire(s) from the lip where the Ku is mounted, to the center or mount ring of the BUD.
very nice work indeed but what sats are coming in and whats the signal like.
Well it's only a 30 inch. and performs as. well, as a 30 inch should. The only thing I know I don't get is Montana PBS and some feeds on AMC 15, all else (est. 95+%) is good. A new metal 39 inch would probably be lighter than the commercial 30in Channel Master. But I don't have one, Think that would work even better. Tracks the arc as best as can be expected. Get the C tracking, the Ku is locked in.
What would happen if your dish had the right mesh and just mounted a Ku LNB to the side? Is being of 6" off center that critical?
If it had Ku mesh, I would have kept the ADL feed and LNB's. BTW, you'd need a Prime Focus Ku LNBF.
Mounting a Ku feed to the left or right would only require another sat position be programmed a bit E or W of the C band position, for the same sat..
The Problem I had, using an ADL C/Ku feed, with a good Ku lnb, was poor Ku performance. It worked, but knew it should/could be better. I had the 30 inch (fixed) and the BUD aimed at the same sat and the 30 inch easily would get twice the transponders. My problem is the mesh used. Expanded sheet metal. It's not smooth and the holes are too big. Expanded, if rolled smooth, with small enough holes would probably work a whole lot better.

Last edited:

whatchel1

SatelliteGuys Master
Sep 30, 2006
9,099
48
Great High Plains
I forgot to mention the BUD is a USS (United States Satellite, Thief River Falls, Mn.)steel dish, designed for the northern cllimes nasty weather. Very HD. The dish mounting ring is 1/4 inch by ~3 and about 30 inch(a guess at this time) dia. All ribs. mesh, everything, HD steel. The mesh is welded onto the ribs. I have stood, albeit, back when I was a bit lighter, in the dish to tweak the skew, without affecting it. No, there has been no effect on the C band performance. It does shade a small portion of the BUD, But this area is quite small in proportion.
For those that may want/need to do it on an aluminum dish. My thoughts were guy wire(s) from the lip where the Ku is mounted, to the center or mount ring of the BUD. Well it's only a 30 inch. and performs as. well, as a 30 inch should. The only thing I know I don't get is Montana PBS and some feeds on AMC 15, all else (est. 95+%) is good. A new metal 39 inch would probably be lighter than the commercial 30in Channel Master. But I don't have one, Think that would work even better. Tracks the arc as best as can be expected. Get the C tracking, the Ku is locked in. If it had Ku mesh, I would have kept the ADL feed and LNB's. BTW, you'd need a Prime Focus Ku LNBF.
Mounting a Ku feed to the left or right would only require another sat position be programmed a bit E or W of the C band position, for the same sat..
The Problem I had, using an ADL C/Ku feed, with a good Ku lnb, was poor Ku performance. It worked, but knew it should/could be better. I had the 30 inch (fixed) and the BUD aimed at the same sat and the 30 inch easily would get twice the transponders. My problem is the mesh used. Expanded sheet metal. It's not smooth and the holes are too big. Expanded, if rolled smooth, with small enough holes would probably work a whole lot better.

I dealt with those guys a long time ago. I had one their early USS Maspro sat receivers. High quality but the audio was rather lispy. Video was some of the best out there. They were out in the days before scrambling. In fact they had to modify the receivers so that a videocypher could be used with them .
