Installing brackets

Status
Please reply by conversation.
comfortably_numb

comfortably_numb

Thread Starter
Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
13,915
15,761
Kansas City / Las Vegas

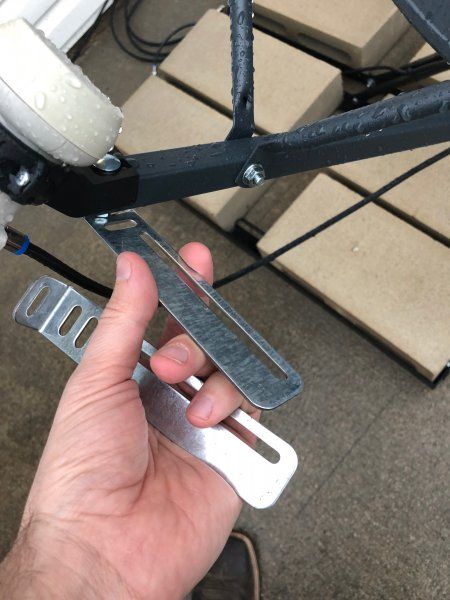

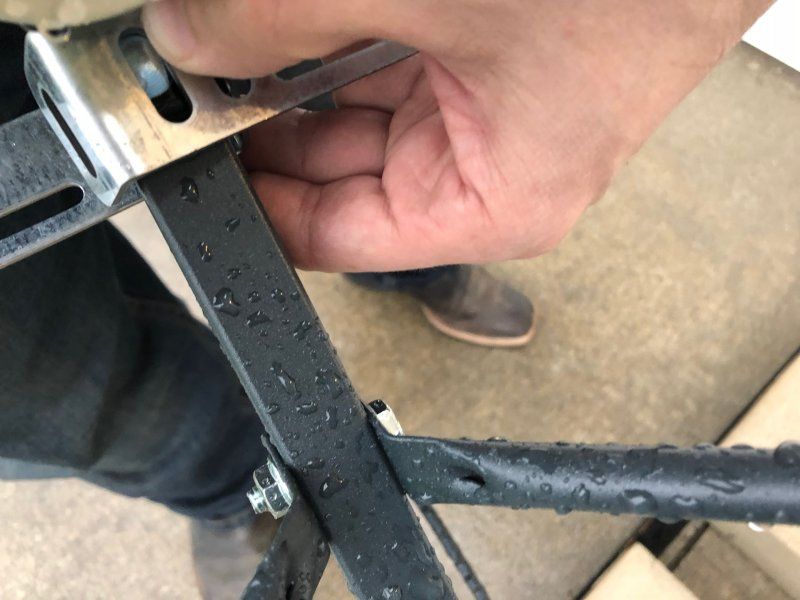

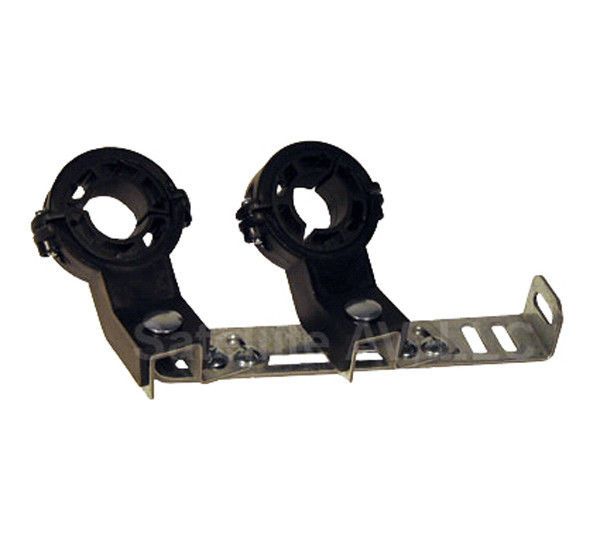

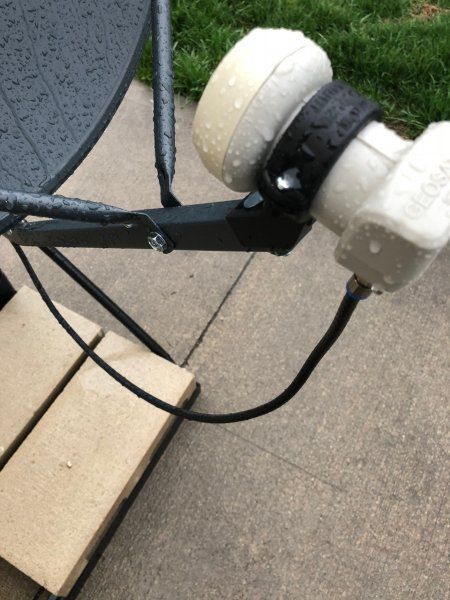

So I bought 2 of these extender brackets and they arrived today. One for either side of the arm. Easy enough putting them together but I can't figure out how to mount 2 to the GeoSat 90cm. I see where one fits (screwed in below the existing LNB holder) but where does the 2nd one go? The lip of the bracket holder juts out so I can't figure out where to mount the other one.

S l1600

IMG 0149


IMG 0150


IMG 0151

comfortably_numb

comfortably_numb

Thread Starter
Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
13,915
15,761
Kansas City / Las Vegas

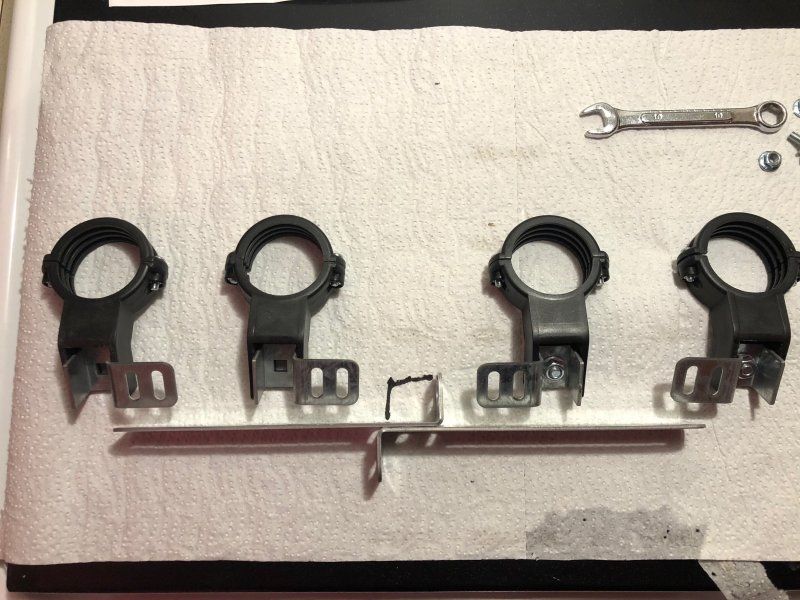

Could this be how its done? (Black marker indicates where pole would be)

B4A11995 E848 4883 A041 C5769EDF744F

Phalaenopsis

Phalaenopsis

SatelliteGuys Pro
Nov 24, 2017
457
274
NA
So, do you want to have a multi lnb system to have many satellites in one dish? With that kit, I wouldn't try anything under a 4 degree separation.

comfortably_numb

comfortably_numb

Thread Starter
Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
13,915
15,761
Kansas City / Las Vegas
So, do you want to have a multi lnb system to have many satellites in one dish? With that kit, I wouldn't try anything under a 4 degree separation.

Yes, that’s my plan. 87, 91, 95, 103

One bracket is supposed to mount on one side of the arm, and the other bracket on the other side of the arm. It’s that lip jutting out of the bracket that is confusing me :confused:

  • Like
Reactions: Phalaenopsis
Phalaenopsis

Phalaenopsis

SatelliteGuys Pro
Nov 24, 2017
457
274
NA
Yes, that’s my plan. 87, 91, 95, 103

One bracket is supposed to mount on one side of the arm, and the other bracket on the other side of the arm. It’s that lip jutting out of the bracket that is confusing me :confused:
I'm not sure how to set up a multi lnb system, because I've never set one up myself. danristheman and kittyhas1000legs are expert's at multi lnb systems. What do you find interesting on 95w? I have a dish on 95w but there really nothing interesting, just CCTV and wildfeeds.

A

a33

SatelliteGuys Pro
Feb 4, 2015
639
420
netherlands europe
Well, I guess the lip doesn't have to be upward,
and it also doesn't have to be at the central LNB-arm (it could also be at the far end).

So maybe that bracket is usually meant to use only one of them at a dish, in exactly the way that you figured out. But that is just my guess.

As long as you position the LNB feedhorns at the right spot, and aim them about right, all is well.

BTW. Finding the needed hights of the by-rider LNBs might be easier if you calculate the needed 'tilt angle/ skew' (against the horizontal) for the multifeedbrackets beforehand.

greetz,
A33

Magic Static

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,497
4,848
Montana
Try bolting the two brackets together by the lip. With the lips pointed down fasten the bracket to the bottom of the arm with the LNBF bracket bolts already on the dish arm. Looks like it might fit that way.

A

a33

SatelliteGuys Pro
Feb 4, 2015
639
420
netherlands europe
BTW. Finding the needed hights of the by-rider LNBs might be easier if you calculate the needed 'tilt angle/ skew' (against the horizontal) for the multifeedbrackets beforehand.

Ah! For your location, for 87W - 103W, that would be about 0.4 degrees against the horizontal (103W LNB being the highest one) !
With that angle I guess it would be no trouble at all, to find them. :)

So my tip is not really useful....

greetz,
A33

  • Like
Reactions: comfortably_numb
comfortably_numb

comfortably_numb

Thread Starter
Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
13,915
15,761
Kansas City / Las Vegas
Try bolting the two brackets together by the lip. With the lips pointed down fasten the bracket to the bottom of the arm with the LNBF bracket bolts already on the dish arm. Looks like it might fit that way.

I could also drill a hole in the arm for the bracket on the other side, right?

kittyhas1000legs

kittyhas1000legs

That's a lot of claws!
Pub Member / Supporter
Aug 8, 2012
1,696
1,402
Western Slope, CO
There's a lot of improvising and experimentation to go along with multiple LNBs on one dish. I haven't drilled any holes yet, but I've tried a few different Before attaching the LNB holder I'll hand-hold the LNB and try to get a signal, so I can get a good idea of where to attach it then try to peak the signal.

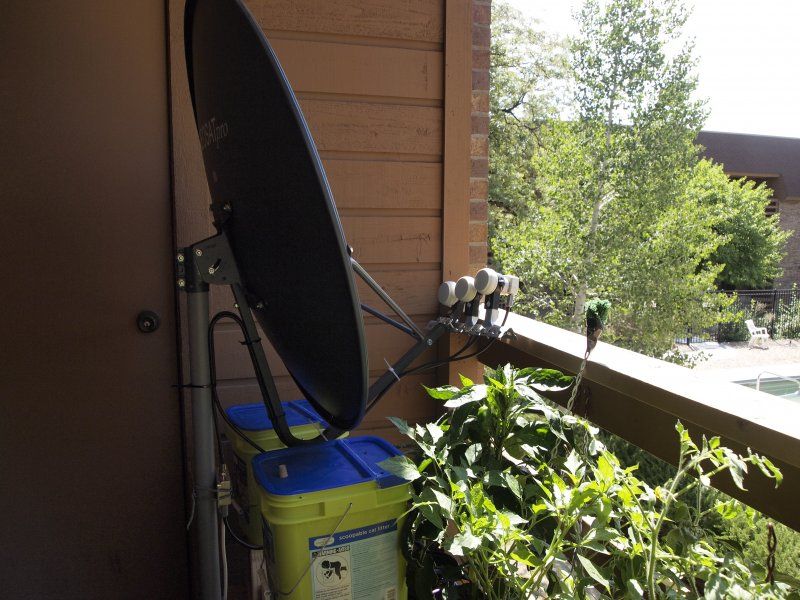

Here's my old setup for 103/97/91 (103 centered on the dish) using a $2 piece of steel from Lowe's. The cat litter buckets were essentially drip irrigation for the tomatoes, peppers, etc on the balcony.
 8034964  8034964b


Attachments

  • P3292472.JPG
    42.5 KB · Views: 124
Phalaenopsis

Phalaenopsis

SatelliteGuys Pro
Nov 24, 2017
457
274
NA
There's a lot of improvising and experimentation to go along with multiple LNBs on one dish. I haven't drilled any holes yet, but I've tried a few different Before attaching the LNB holder I'll hand-hold the LNB and try to get a signal, so I can get a good idea of where to attach it then try to peak the signal.

Here's my old setup for 103/97/91 (103 centered on the dish) using a $2 piece of steel from Lowe's. The cat litter buckets were essentially drip irrigation for the tomatoes, peppers, etc on the balcony.
View attachment 132140 View attachment 132141

You’ve got yourself a balcony greenhouse!

kittyhas1000legs

kittyhas1000legs

That's a lot of claws!
Pub Member / Supporter
Aug 8, 2012
1,696
1,402
Western Slope, CO
Is everything you’re growin’ legal, Kitty? ;)
Of course, it's Colorado!

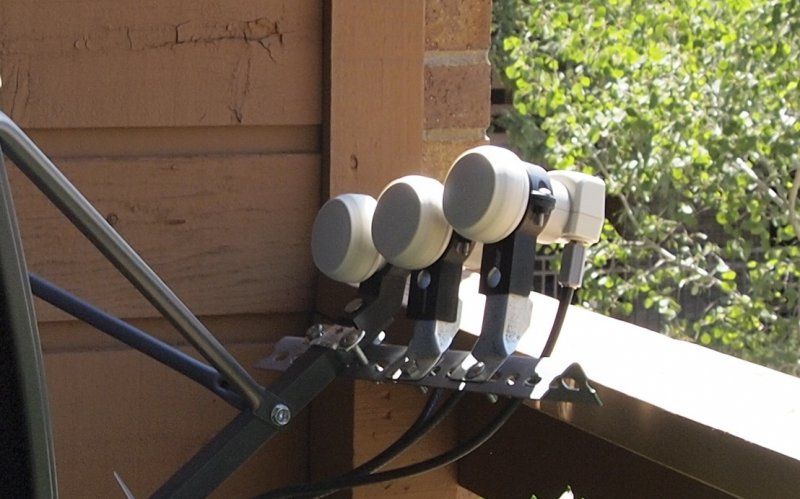

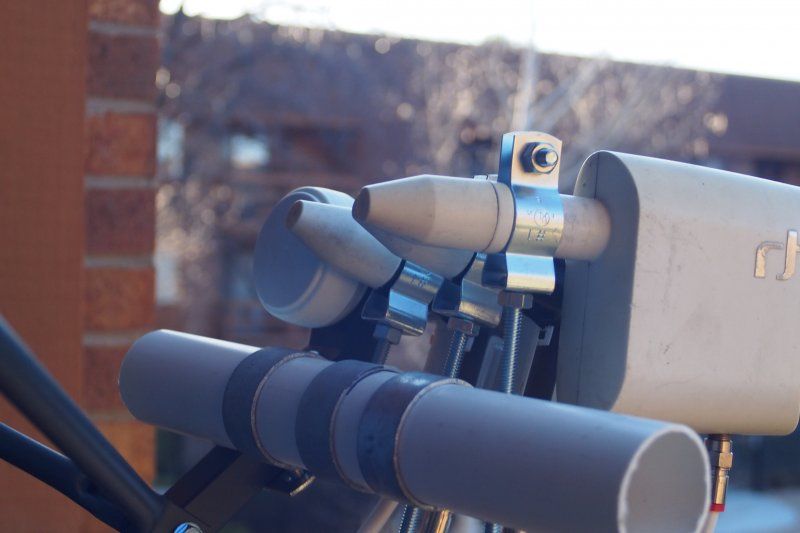

I accidentally included a pic of the current setup as well in that last post. Pvc pipe with fence bands, bolts, and emt hangers. The middle two LNBs have half their casing removed so they can sit close enough together for four-degree spacing. Tomorrow I'll be making some sort of rain shield and peaking 91w.

A

a33

SatelliteGuys Pro
Feb 4, 2015
639
420
netherlands europe

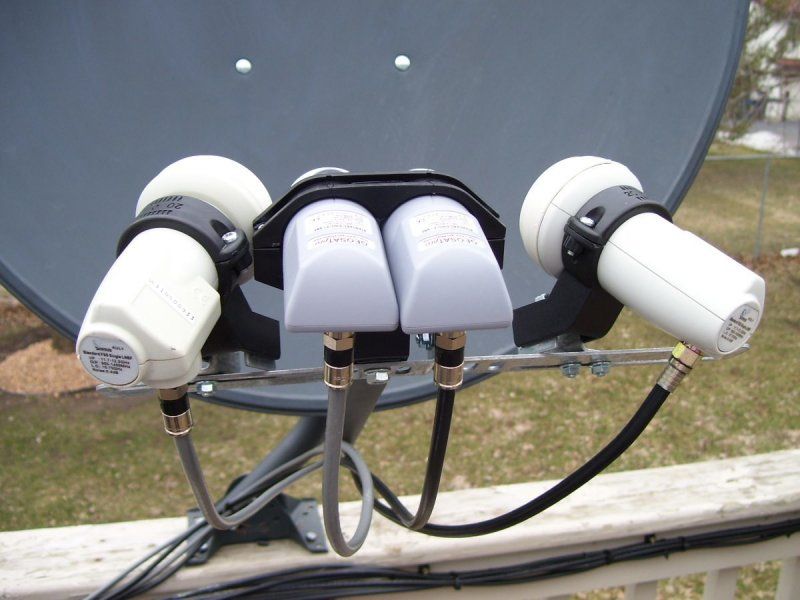

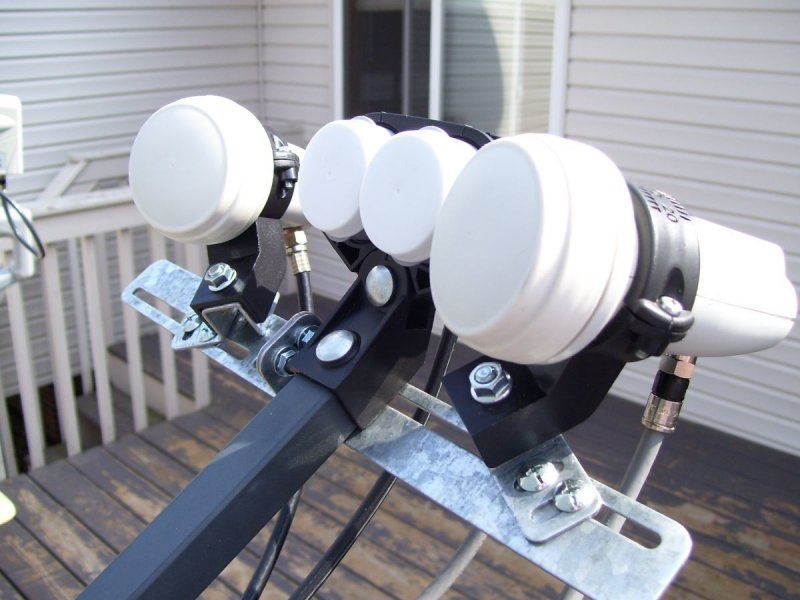

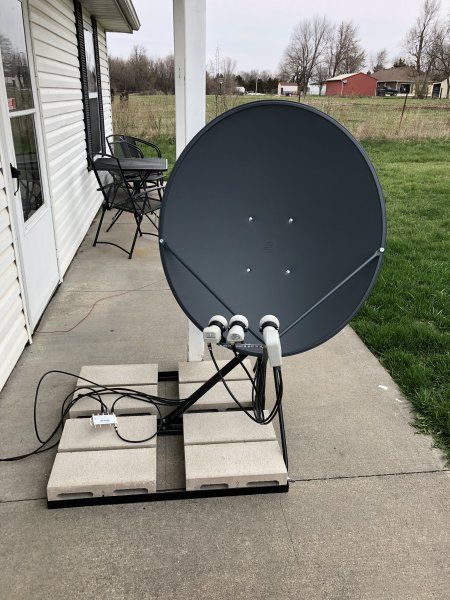

These are some photos the vendor found for me. He also emailed the manufacturer; we’re waiting to see what they say.

Well, there you have an example for the bracket construction. :)

The left/right aiming angle of the two outer LNBs looks a bit too big on the photos, I would say.
It looks like the left LNB looks to the right half of the dish; ideally it should be aiming a little bit left of center.
But it might be an optical illusion of the photo, of course.

Greetz,
A33

  • Like
Reactions: comfortably_numb
comfortably_numb

comfortably_numb

Thread Starter
Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
13,915
15,761
Kansas City / Las Vegas
There's a lot of improvising and experimentation to go along with multiple LNBs on one dish. I haven't drilled any holes yet, but I've tried a few different Before attaching the LNB holder I'll hand-hold the LNB and try to get a signal, so I can get a good idea of where to attach it then try to peak the signal.

Here's my old setup for 103/97/91 (103 centered on the dish) using a $2 piece of steel from Lowe's. The cat litter buckets were essentially drip irrigation for the tomatoes, peppers, etc on the balcony.
View attachment 132140 View attachment 132141

So in the photos, is 103 the LNB attached to the arm? If so, wouldn’t 97 and 91 be on the other side of the arm (east of 103)?

phlatwound

phlatwound

SatelliteGuys Pro
Lifetime Supporter
Dec 25, 2007
3,268
229
Goosapeak Junction
So in the photos, is 103 the LNB attached to the arm? If so, wouldn’t 97 and 91 be on the other side of the arm (east of 103)?

Think about how the signal is reflected off the dish...if the desired sats (97 & 91 in this example) are east of the center sat (103W), the LNBFs will be placed west of the center sat LNBF location.

  • Like
Reactions: kittyhas1000legs
Phalaenopsis

Phalaenopsis

SatelliteGuys Pro
Nov 24, 2017
457
274
NA
So, when you installed your bracket, did you touch your dish alignment at all, or did you just play around with the lnbs?

  • Like
Reactions: Theseeker
