Mount lnb on Feedhorn

Status
Please reply by conversation.

slimmswitch

SatelliteGuys Family
Original poster
Aug 22, 2004
118
0

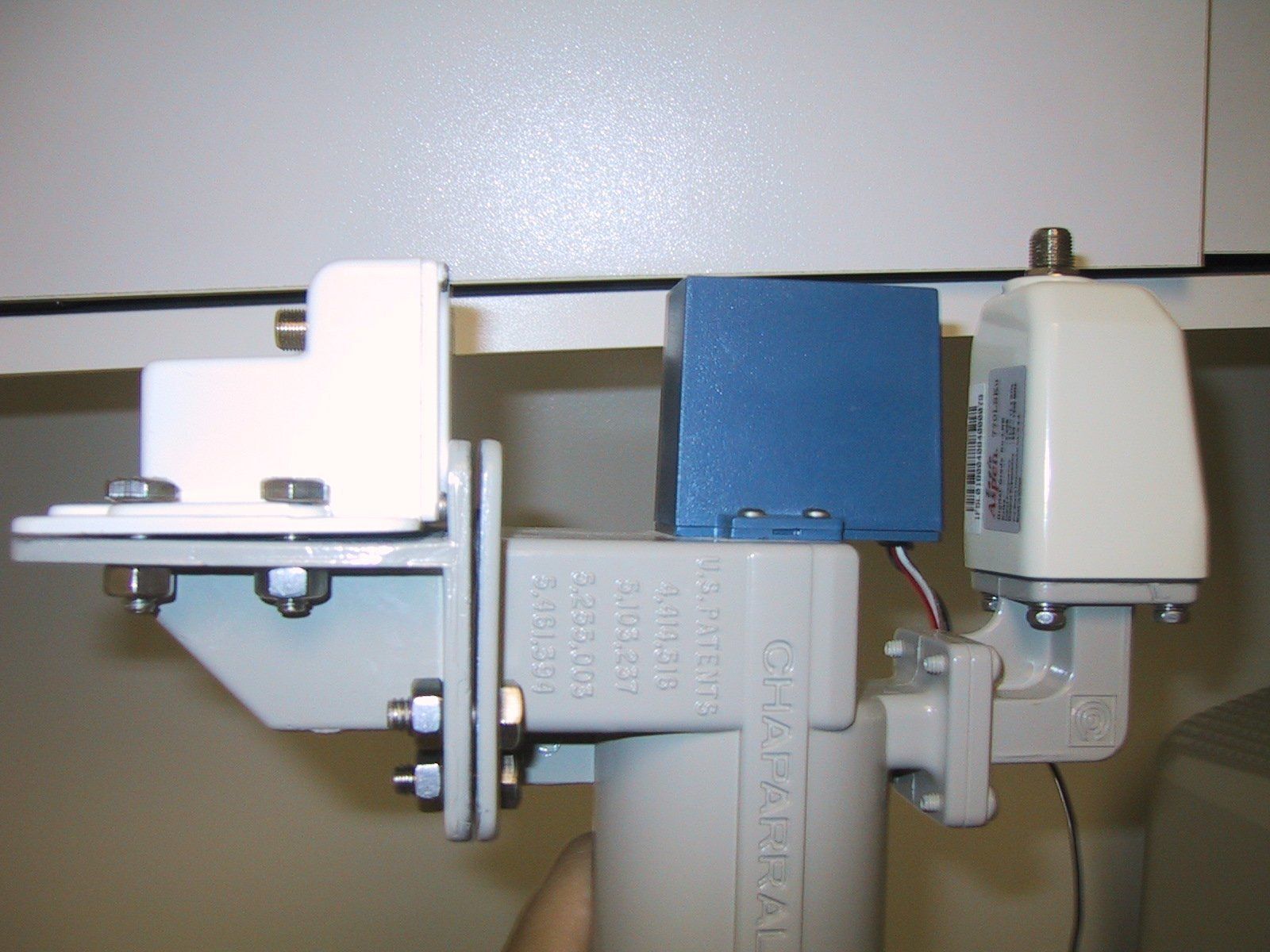

I just received my Chaparral C/KU band Corotor 2 Plus Feedhorn with 2 lnb today... And i was wondering if someone can look at the picture i provided and tell me if i put everything on properly.


Thanks Guys


Attachments

  • Picture.jpg
    211.1 KB · Views: 283
slimmswitch said:
I just received my Chaparral C/KU band Corotor 2 Plus Feedhorn with 2 lnb today... And i was wondering if someone can look at the picture i provided and tell me if i put everything on properly.


Thanks Guys



I have a newbie question .

Why do they have the 90 dehre " Ell's " between the feed horn & the LNB's ? Just to make it more compact & allow them to fit under those plastic covers ?

Thanks ,
Wyr

That is correct. I eliminated the elbows on my installation. This results in some additional signal. You do have to make sure all connections are water tite, since the cover will not fit over the setup then.
