Multi LNB Holders for C-band

Status
Please reply by conversation.
dsmith0429

dsmith0429

Thread Starter
SatelliteGuys Pro
Sep 12, 2013
470
195
Lake Placid, FL
I found a few multi C-band LNB holders and was wondering if anyone has tried one. I found several designs for dual and quad lnbs. I only found 1 on eBay, from China. Others I found doing a web search, but apparently none sold in the US???. Any thoughts? One description for the dual one says 10° separation. Didn't find anything for the quad one.

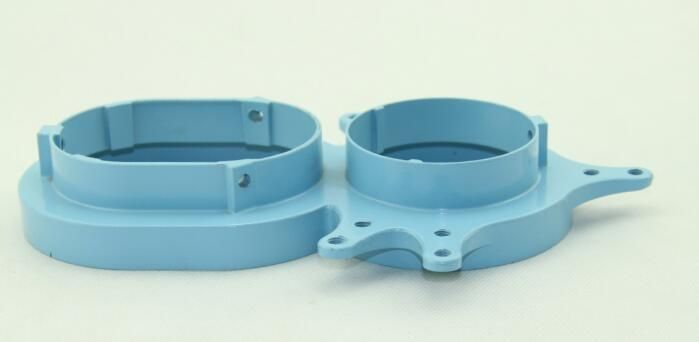

Dual cband holder
Screen Shot 2016 09 02 at 13235 AM

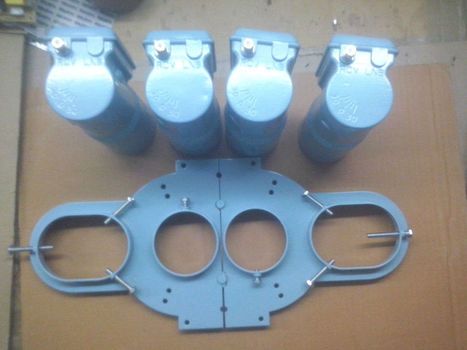

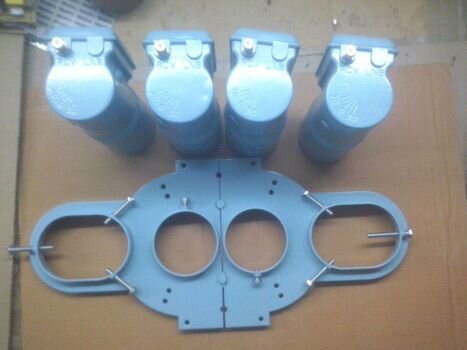

Quad cband lnb

mr3p

mr3p

SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,244
217
West
Its on my "list" of stuff to get but I wanted one with built in scalar like this:

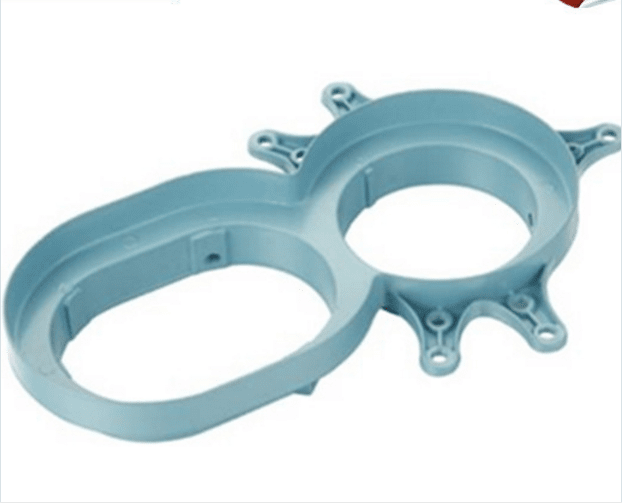

c-band-dual-lnb-holder-dual-satellite-lnb-bracket-holder-5-degree-lnbf-holder-for-prime-focus-antenna.jpg

Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,427
8,637
Meadow Vista, Northern California
Yes, I have tested a few designs. The best performance was with a dual unit like mr3p posted. The claim of 10 degree is bunk as the convergence points for multi-satellite reception varies based on the reflector FD/FL.

If mounting on a motorized dish, place the second feedhorn as close to the primary to optimize performance. Also important to note that the additional scalars and LNBFs mounted on a prime focus dish will increase the shadow and start reducing the amount of gathered signal. So don't get too carried away and add too many... :)

  • Like
Reactions: hank123 and mr3p
BigRyan

BigRyan

SatelliteGuys Pro
Aug 2, 2014
228
131
Texas
Yes, I have tested a few designs. The best performance was with a dual unit like mr3p posted. The claim of 10 degree is bunk as the convergence points for multi-satellite reception varies based on the reflector FD/FL.

If mounting on a motorized dish, place the second feedhorn as close to the primary to optimize performance. Also important to note that the additional scalars and LNBFs mounted on a prime focus dish will increase the shadow and start reducing the amount of gathered signal. So don't get too carried away and add too many... :)

I was going to ask at what point does the center obstruction degrade the signal and also does the cable have to be split to use another LNB and would that not also reduce the signal. Or is this more for use with a second receiver and a second home run for the additional receiver?

To bad I didn't have anything better to ask for my "100th" post. :whoo

fred555

fred555

Pub Member
Lifetime Supporter
Sep 18, 2014
7,976
6,908
77W
I was going to ask at what point does the center obstruction degrade the signal and also does the cable have to be split to use another LNB and would that not also reduce the signal. Or is this more for use with a second receiver and a second home run for the additional receiver?

To bad I didn't have anything better to ask for my "100th" post. :whoo

Switch between them using a 22Khz switch or Diseqc on a single receiver, or
Connect the multiple LNBs to a multiswitch and enjoy multiple sats on multiple receivers.


http://www.satelliteguys.us/xen/threads/switch-setups-simplified.134124/

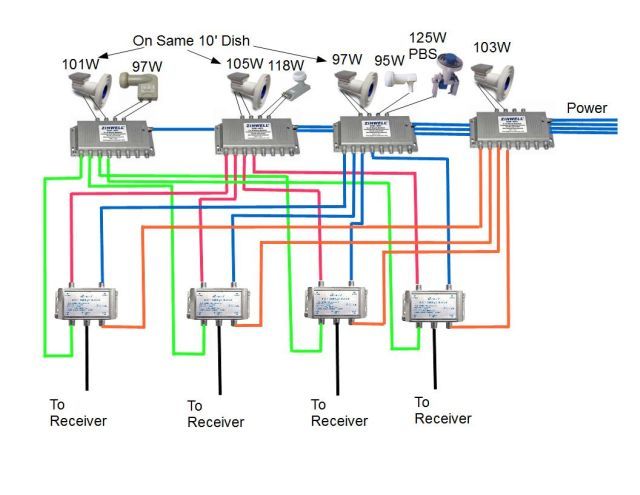

Here is my setup, all stationary dishes, some with multi-lnb setup, all sats available to all receivers at all times.

Four Powered Multiswitches

BigRyan

BigRyan

SatelliteGuys Pro
Aug 2, 2014
228
131
Texas
BigRyan

BigRyan

SatelliteGuys Pro
Aug 2, 2014
228
131
Texas
You want something like this, a 4x1 (4 way) diseqc switch:

http://nc-electronics.com/4x1.html

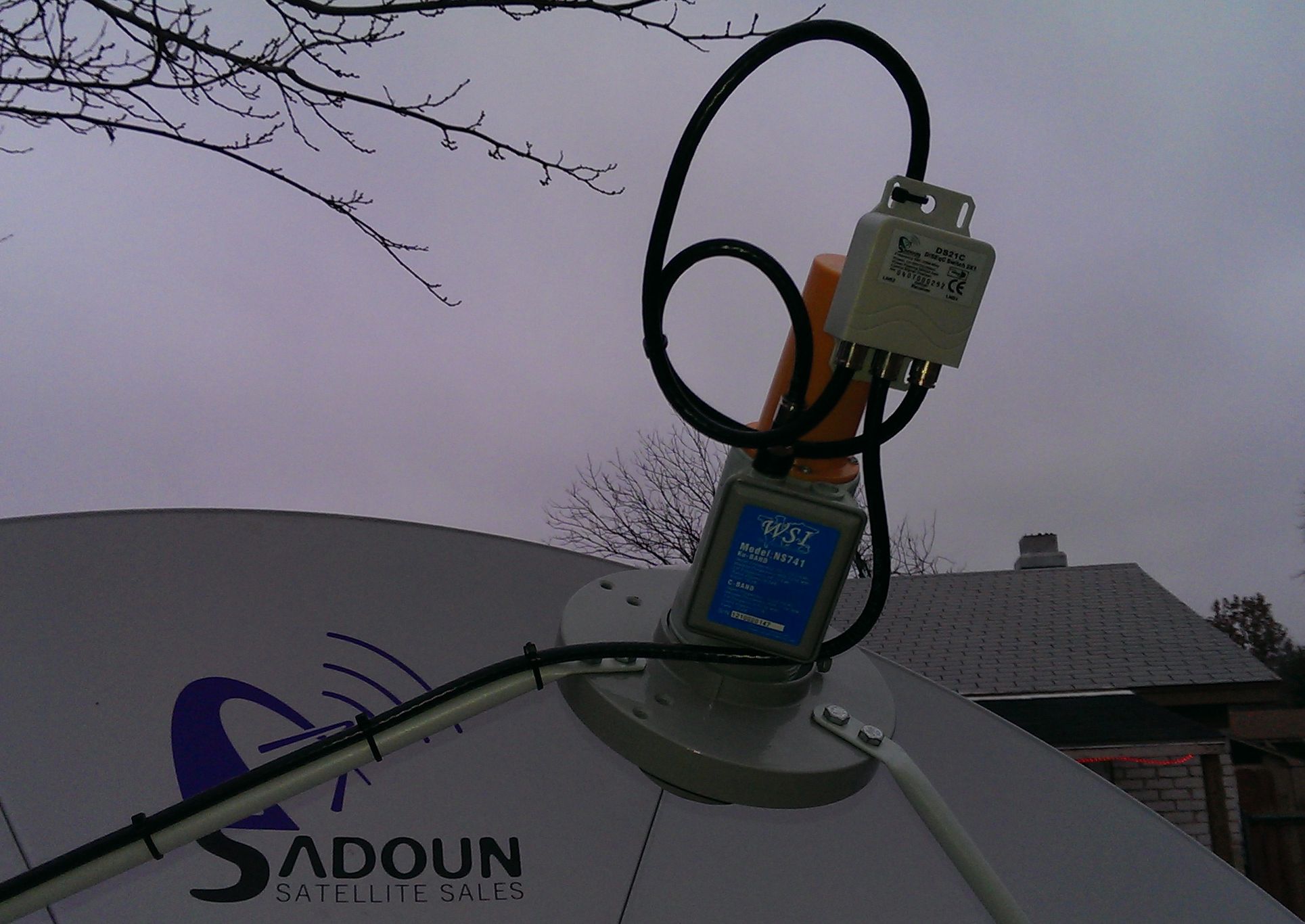

Ok,so this is what I could use with the dual LNB holder and add a second "Dual LNB" NS741 and have 4 LNBs in the place of two. Would this be the preferred method to add a second receiver?

I am going to study your diagram and try to get my head around this. Since I got into FTA I have really wanted to add a receiver to the bedroom TV and I am looking at something like this vs an HDMI splitter after the MicroHD. Although I would have to watch the same thing on both TV's I would only need the 1 VBOX to move the dish.

fred555

fred555

Pub Member
Lifetime Supporter
Sep 18, 2014
7,976
6,908
77W
Ok,so this is what I could use with the dual LNB holder and add a second "Dual LNB" NS741 and have 4 LNBs in the place of two. Would this be the preferred method to add a second receiver?

I am going to study your diagram and try to get my head around this. Since I got into FTA I have really wanted to add a receiver to the bedroom TV and I am looking at something like this vs an HDMI splitter after the MicroHD. Although I would have to watch the same thing on both TV's I would only need the 1 VBOX to move the dish.

Read up on mutiswitches if you want to watch different things on two different receivers:

http://www.satelliteguys.us/xen/posts/1344314/

http://www.satelliteguys.us/xen/posts/1344315/

  • Like
Reactions: BigRyan
fred555

fred555

Pub Member
Lifetime Supporter
Sep 18, 2014
7,976
6,908
77W
Ok,so this is what I could use with the dual LNB holder and add a second "Dual LNB" NS741 and have 4 LNBs in the place of two. Would this be the preferred method to add a second receiver?

I am going to study your diagram and try to get my head around this. Since I got into FTA I have really wanted to add a receiver to the bedroom TV and I am looking at something like this vs an HDMI splitter after the MicroHD. Although I would have to watch the same thing on both TV's I would only need the 1 VBOX to move the dish.

After reading about multiswitches, you will notice that watching different things on different TVs would require switching all Lnbfs to dual output models. That may not be practical since I see you have a combo C\Ku, each lnbf with only a single output.

BigRyan

BigRyan

SatelliteGuys Pro
Aug 2, 2014
228
131
Texas
After reading about multiswitches, you will notice that watching different things on different TVs would require switching all Lnbfs to dual output models. That may not be practical since I see you have a combo C\Ku, each lnbf with only a single output.

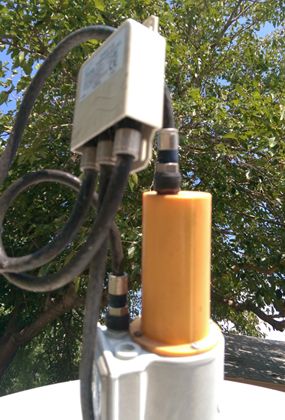

Here is a different angle.

IMAG4438

hank123

hank123

COLORADO CONNOISSEUR BUD HUNTER
Lifetime Supporter
May 8, 2016
543
288
N. Colorado
Yes, I have tested a few designs. The best performance was with a dual unit like mr3p posted. The claim of 10 degree is bunk as the convergence points for multi-satellite reception varies based on the reflector FD/FL.

If mounting on a motorized dish, place the second feedhorn as close to the primary to optimize performance. Also important to note that the additional scalars and LNBFs mounted on a prime focus dish will increase the shadow and start reducing the amount of gathered signal. So don't get too carried away and add too many... :)

Why would you have it so close?
2 LNBF at the same satellite?
Why would you need if you have a motorized dish?

Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,427
8,637
Meadow Vista, Northern California
Some mount a circular polarity feedhorn next to a linear polarity on a motorized dish for optimized reception of the international satellites.

Otherwise, mount the multi-LNBFs on a fixed fish for simultaneous multi-satellite reception.

  • Like
Reactions: hank123
KE4EST

KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
26,376
6,634
EM75xb
