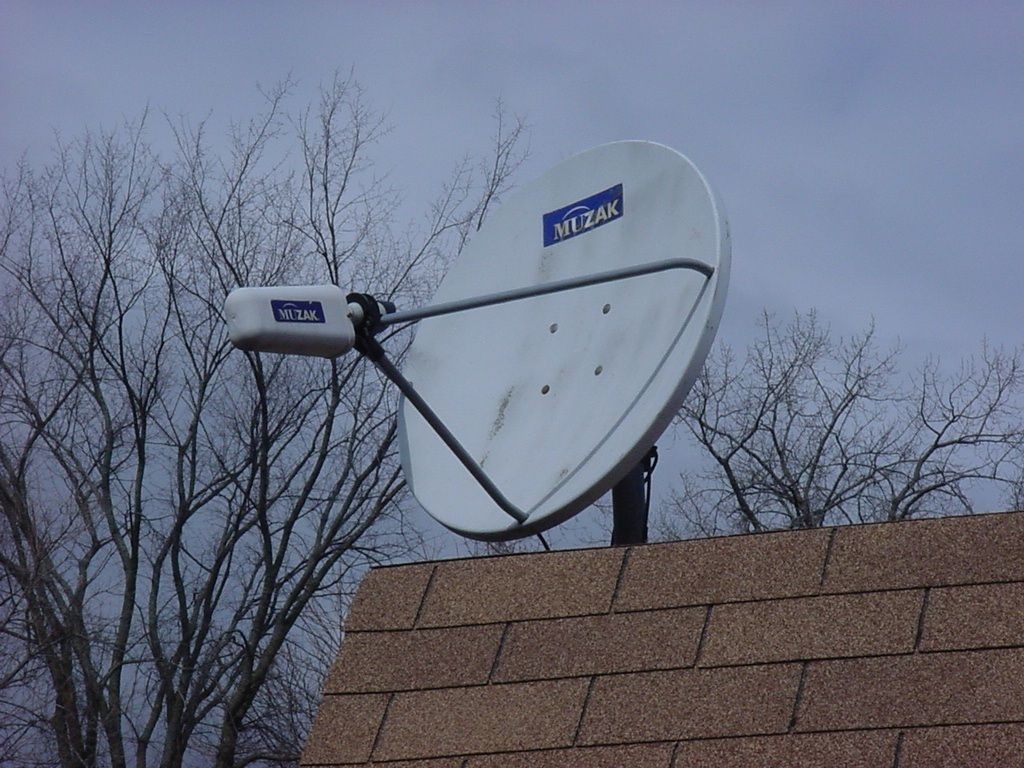

Perhaps another alternative to hunting down old Primestar dishes might be one of these Muzak dishes. My son spotted this one at a train station. It looks to be about 80cm.


Attachments

  • Picture 114.jpg
    Picture 114.jpg
    139.2 KB · Views: 374

stogie5150

Crazed Cajun Rebel
Jan 7, 2007
3,816
39
Slidell,LA
I got news for you chaps.....I will take anything that looks like it MAY focus satellite signals...:D

Musak dishes, P* dishes, big E* and D* dishes, ANYTHING. :cool::D:)


GreatFTA

SatelliteGuys Pro
Aug 14, 2006
1,389
15
Mississippi Delta
Could be a 1.2 Meter. Look at the back of the dish and see if it may have Channel Master brand name on it. It should have the size on it too. Seems like the name on front of the dish and on the LNB cover was the Satellite company (like Primestar) that was offering satellite services some years back.
That dish you saw would be great for FTA! I got two of them.


schlever

SatelliteGuys Pro
Oct 1, 2007
491
1
Regina, SK
I would love to be able to scrounge some dishes, but all thats around up here in Canada are pizza pans :( and BUDs, which the wife says I can't put in the yard :mad:


GrumpyGuy

SatelliteGuys Pro
Jun 17, 2006
249
0
Northeast Ohio
90cm for sure probably a meter

Yup. I would say .90 meter (C.M. Type 90) or maybe a 1 meter (C.M. Type 100)

Attached is the Channel Master factory installation and specifications manual I dug up when I was restoring and converting a type 90 for motorized FTA use.


Attachments

  • DishInstallationManual.pdf
    344.7 KB · Views: 127

DK_Sat

SatelliteGuys Pro
Dec 11, 2005
572
14
MD
That dish is made by channel Master i have 2 1 meter dishes just like that one on the photo.


GreatFTA

SatelliteGuys Pro
Aug 14, 2006
1,389
15
Mississippi Delta
Yup. I would say .90 meter (C.M. Type 90) or maybe a 1 meter (C.M. Type 100)

Attached is the Channel Master factory installation and specifications manual I dug up when I was restoring and converting a type 90 for motorized FTA use.

You ought to put this CM manual where the manuals section is
. I think it would be a great help to new FTA hobbist!


Corrado

Thread Starter
SatelliteGuys Pro
Apr 2, 2007
2,382
270
Hudson Valley Region, NY
The photo doesn't do justice to the size. For a reference, compare the reflector to the shingles on the roof. I took the photo from about 10 ft away.It's definitely much smaller than my 1m Primestar dish. I got as close as possible while standing on the fence post. It's mounted on top of a shed next to the railroad tracks.


GrumpyGuy

SatelliteGuys Pro
Jun 17, 2006
249
0
Northeast Ohio
.It's definitely much smaller than my 1m Primestar dish.

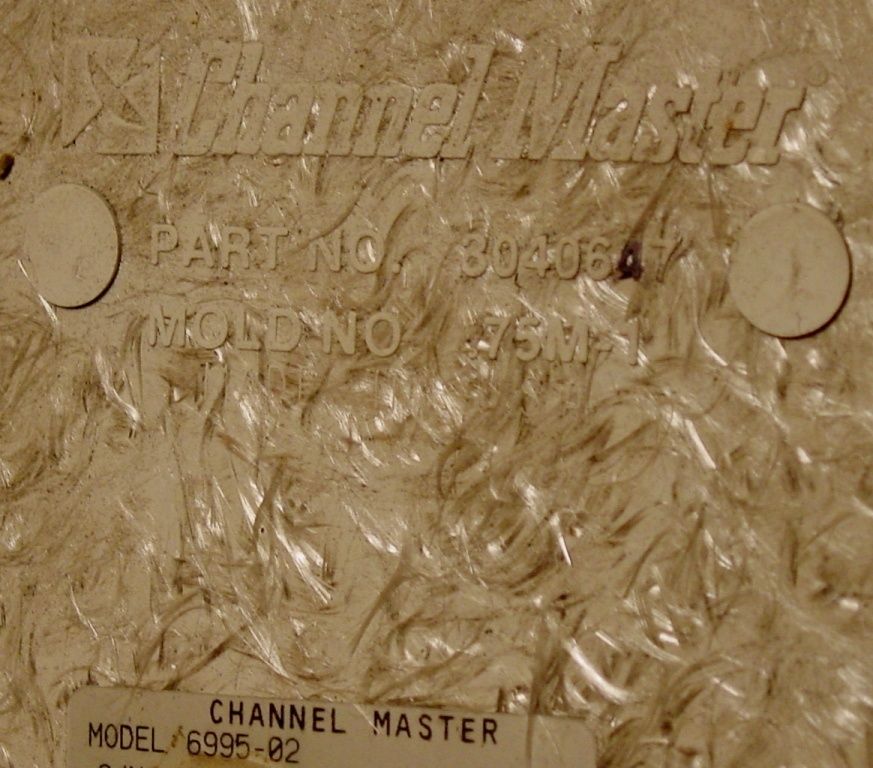

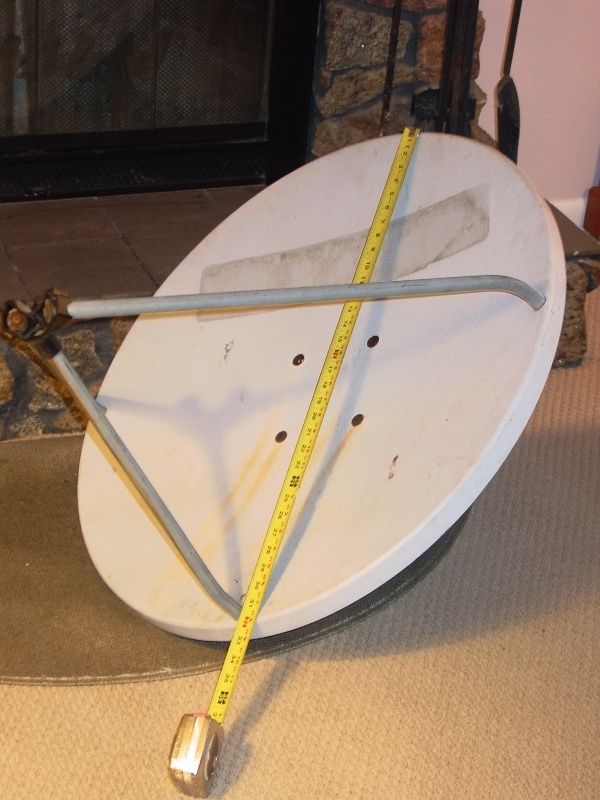

OK...then it may be a .75 meter, like the one in these photos. I took care in trying to duplicate your camera angle. The top lip to bottom lip dimension is roughly 32 inches.

Smaller than what is generally considered necessary for good all around FTA performance, but it probably has tighter geometric tolerances than most consumer grade FTA dishes ... some day I will get around to doing a little field testing.


Attachments

  • ChannelMaster75cm.JPG
    65.7 KB · Views: 176
  • ChannelMaster75cmBack.JPG
    104.2 KB · Views: 163
