New (to me) preamp Kitz KT-500

Discussion in 'Over the Air TV By RabbitEars.Info' started by comfortably_numb, Apr 8, 2019.

  1. comfortably_numb

    comfortably_numb Topic Starter Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,262
    Likes Received:
    7,419
    Location:
    Missouri/Kansas
  2. primestar31

    primestar31 SatelliteGuys Master

    Joined:
    Mar 15, 2005
    Posts:
    8,159
    Likes Received:
    4,392
    Location:
    Beta Omicron Delta III
    I love the Kitztech KT-200's, using them for years. However that KT-500 is far too strong for 99% of the people out there, and I recommend you sell it. It's noisier than claimed, and FAR too powerful for anybody that has receivable tv stations closer than 75 miles. It'll overwhelm and kill the signal of everything else. Read this: https://www.avsforum.com/forum/25-hdtv-technical/2358449-new-televes-long-range-uhf-yagi.html#post42391729
    And:

    https://www.avsforum.com/forum/25-hdtv-technical/381623-official-avs-antenna-related-hardware-topic-560.html#post54969830

  3. comfortably_numb

    comfortably_numb Topic Starter Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,262
    Likes Received:
    7,419
    Location:
    Missouri/Kansas
    Well, the reason I want to try it is I lost reception on some of my LP stations when I moved the antenna into the attic. I'm currently using the 30db setting on the 7777HD, so if I need to I can adjust the gain of the KT-500 back to 30 and keep the 7777HD as a backup

  4. primestar31

    primestar31 SatelliteGuys Master

    Joined:
    Mar 15, 2005
    Posts:
    8,159
    Likes Received:
    4,392
    Location:
    Beta Omicron Delta III
    It might work fine for that, as your attic attenuates almost all your signal. However, it might overload the whole system, and cause issues. You can't tell for sure until you try. You might be one of the lucky ones.

    andy_horton and comfortably_numb like this.
  5. Trip

    Trip RabbitEars Webmaster Staff Member HERE TO HELP YOU!

    Joined:
    Jun 21, 2008
    Posts:
    1,128
    Likes Received:
    552
    Location:
    Alexandria, VA, US
    I swear by the KT-200. Haven't tried any of the other models.

    - Trip

    primestar31 and comfortably_numb like this.
  6. comfortably_numb

    comfortably_numb Topic Starter Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,262
    Likes Received:
    7,419
    Location:
    Missouri/Kansas
    Purchased, tested out great, but ended up not needing it. My loss is your gain; pun intended

    Kitztech TV Booster
    KT-500 Specifications:


    Bandwidth 50 Mhz - 805Mhz
    Optimized for Ch 7-51
    Built in FM Trap
    Noise Figure: .85 db
    Gain: Adjustable from 0 - 36 db
    Overload LED Indicator
    Overload Resistant
    Input/Output Impedance: 75 ohms
    Fully Shielded Aluminum Case
    Case Size: 3.125" x 2.125" x 1"
    DC power supply included
    Amplifier Power: 7-14 Volts DC @ 70MA

    $60 shipped to the first person to PM me. Paypal only, please :)

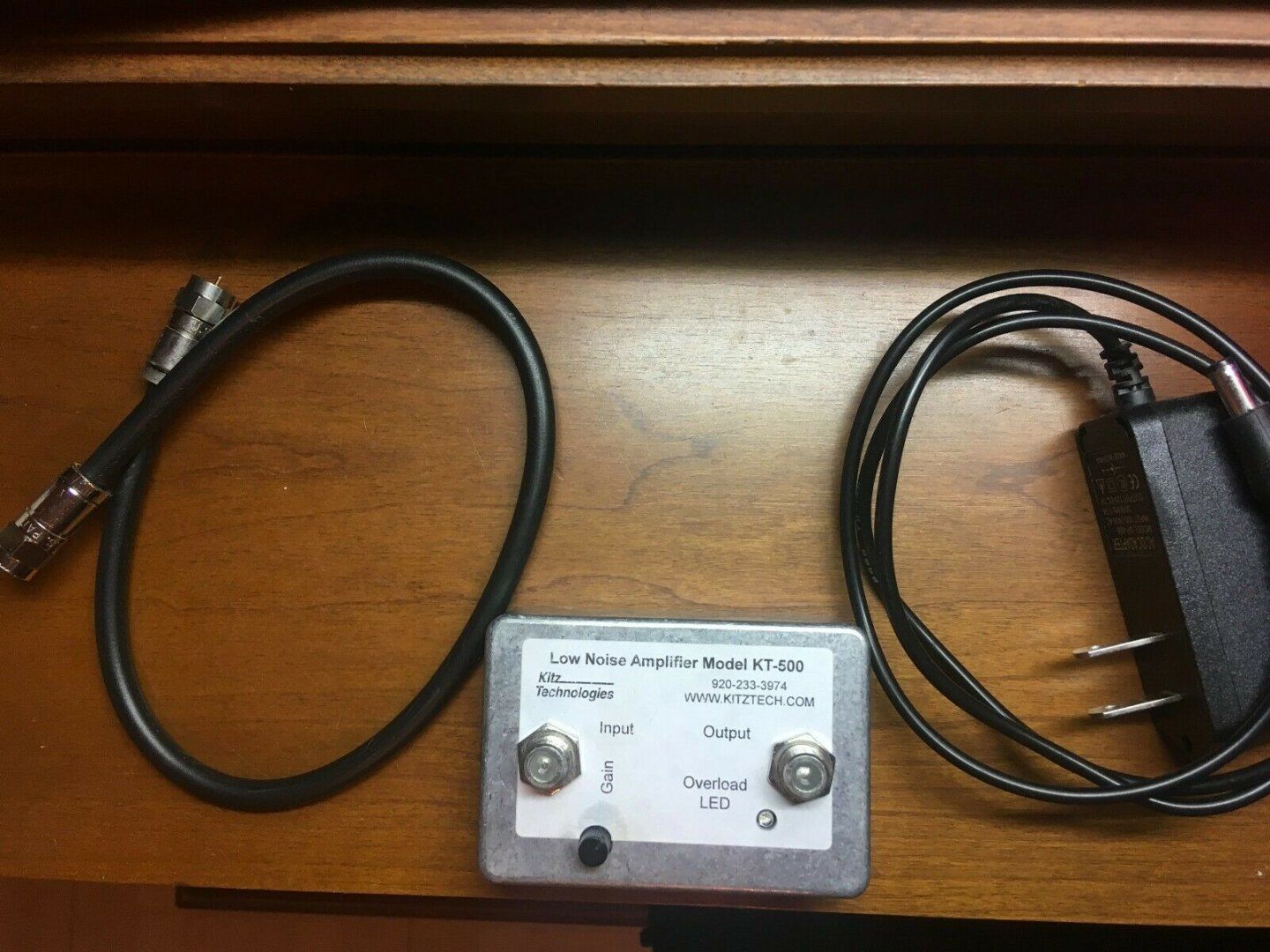

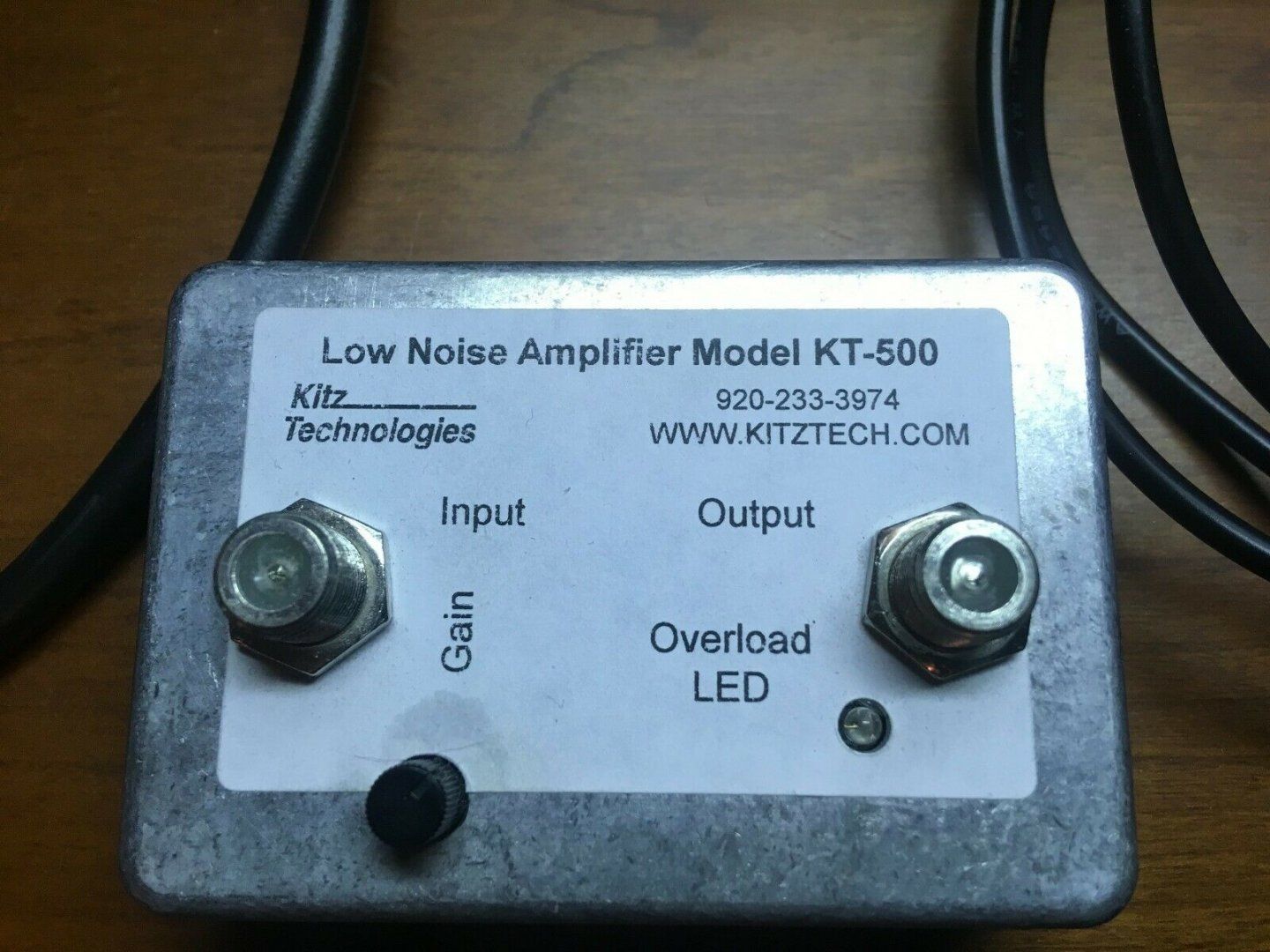

    s-l1600 (1).jpg s-l1600.jpg

    charlesrshell likes this.
  7. Trip

    Trip RabbitEars Webmaster Staff Member HERE TO HELP YOU!

    Joined:
    Jun 21, 2008
    Posts:
    1,128
    Likes Received:
    552
    Location:
    Alexandria, VA, US
    Is it the coax-powered or standard model?

    - Trip

  8. comfortably_numb

    comfortably_numb Topic Starter Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,262
    Likes Received:
    7,419
    Location:
    Missouri/Kansas
    It is the standard model

  9. comfortably_numb

    comfortably_numb Topic Starter Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,262
    Likes Received:
    7,419
    Location:
    Missouri/Kansas
  10. Wireless Engineer

    Wireless Engineer SatelliteGuys Family

    Joined:
    Mar 18, 2019
    Posts:
    44
    Likes Received:
    36
    Location:
    Ohio
    More gain doesn't equal better signal.
    In fact using the LEAST amount of gain possible is the best solution.
    .......
    A medium gain preamp like the Winegard LNA-200 is more than enough gain.

  11. comfortably_numb

    comfortably_numb Topic Starter Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,262
    Likes Received:
    7,419
    Location:
    Missouri/Kansas
    The KT-500 is intended for extreme deep fringe locations, but since it has adjustable gain, it can be used for multiple applications.

    charlesrshell likes this.
  12. Larry1

    Larry1 SatelliteGuys Pro

    Joined:
    Aug 24, 2005
    Posts:
    1,549
    Likes Received:
    90
    Location:
    Port Hope, ON Canada
    A lot of my channel are in extreme fringe being 2 edge. I'm sure this amp will help. The Channel Master CM-7777 works but needs a little more. Just waiting for a LTE filter to arrive now for my second antenna setup.

    comfortably_numb likes this.
