Yea it goes to more LNBs, nice set up.
I disagree. Why would it need to go to more lnb? The black tubing is called flexible waveguide btw. Its a lot less lossy than rg-6. Chances are more like they go the receiver(s) Its an ortho setup so one each for H & V. The LNB's look like external reference units.

  • Like
Reactions: Titanium

Borisov-54

Thread Starter
SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus
Motor repair by the hands. Motor Strong SRT DM-2100
For 8 years of work of my motor, has appeared small gap./slack/. Dish, has disassembled the motor and has found malfunction. The plastic washer became less in thickness-0,35 mm. I found thicker - 0,55 mm. Has established a new washer and play was gone. The excellent signal became on all satellites.




Arrow-has removed this washer





Red arrow-new thicker a washer





Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,359
937
Boonies
Some motors have an adjustable wedge to take up slack in the worm gear axle. I prefer the washer. Less chance for it to go out of adjustment.
Thank you for the great pictures!

  • Like
Reactions: Borisov-54

Borisov-54

Thread Starter
SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus

Attachments

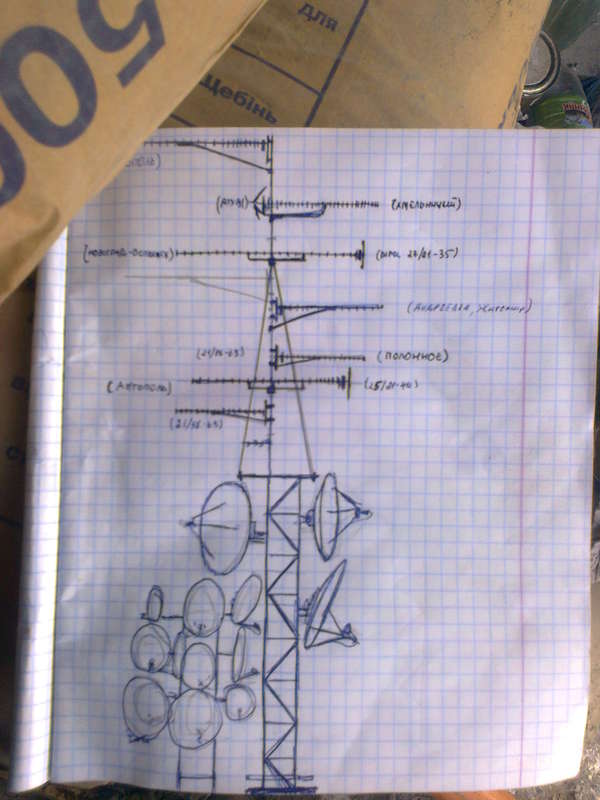

  • 1.jpg
    69.1 KB · Views: 121

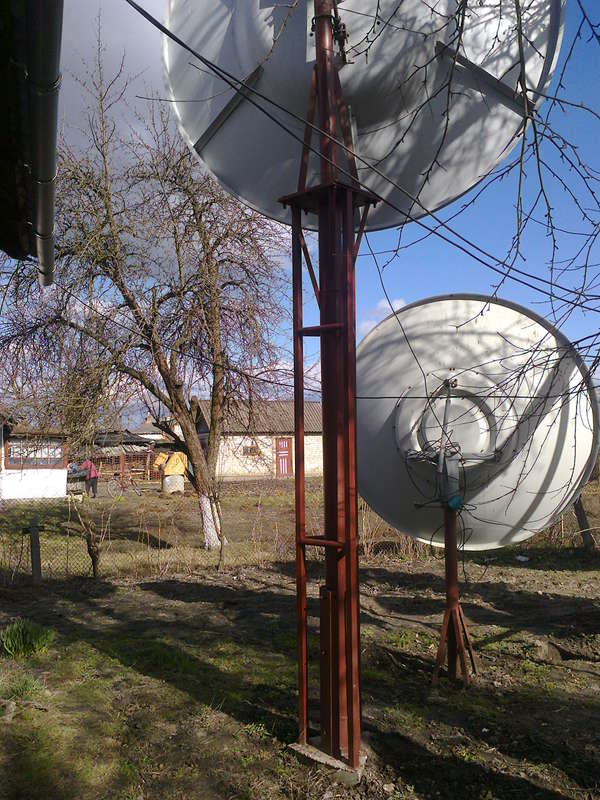

  • 2.5-1.jpg
    122.5 KB · Views: 131
  • 2.5-2.jpg
    79.6 KB · Views: 114
  • 2.5-3.jpg
    86.2 KB · Views: 117
  • 2.5-4.jpg
    87.7 KB · Views: 112
  • 2.5-6.jpg
    122.5 KB · Views: 122

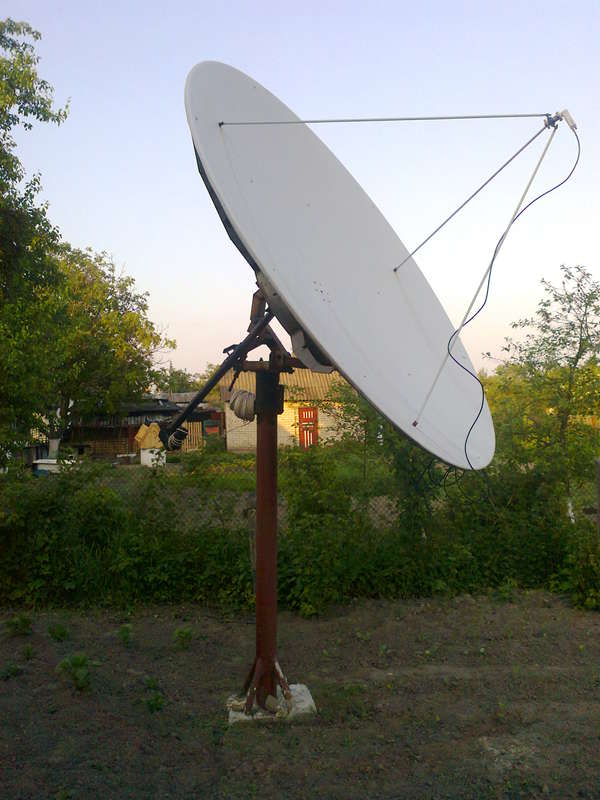

  • 2.6-1.jpg
    58.7 KB · Views: 127
  • 2.6-2.jpg
    66.5 KB · Views: 131
  • 2.6-3.jpg
    89.9 KB · Views: 121
  • 2.jpg
    64 KB · Views: 121
  • 3.jpg
    82.7 KB · Views: 112
  • 4.jpg
    81.4 KB · Views: 118
  • 5.jpg
    68.8 KB · Views: 134
  • 6.jpg
    111.9 KB · Views: 112

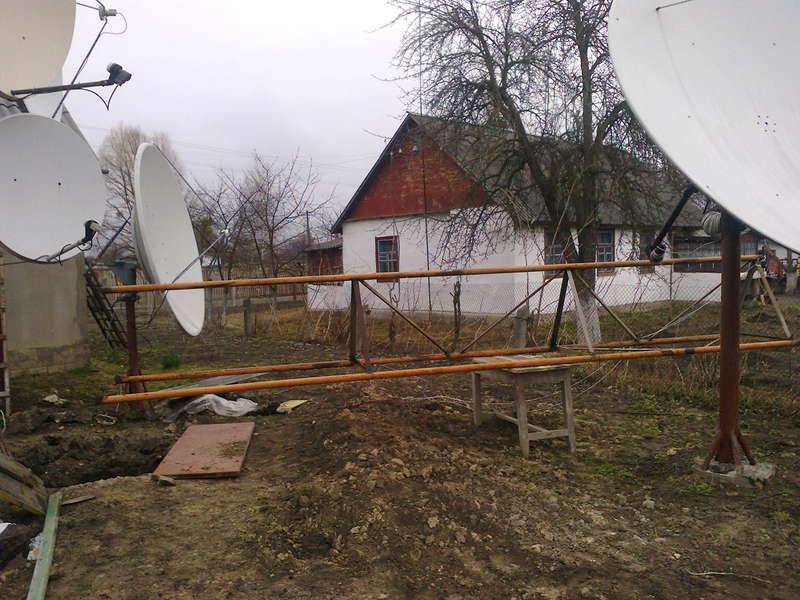

  • 7.jpg
    81.2 KB · Views: 117
  • 8.jpg
    92.7 KB · Views: 138

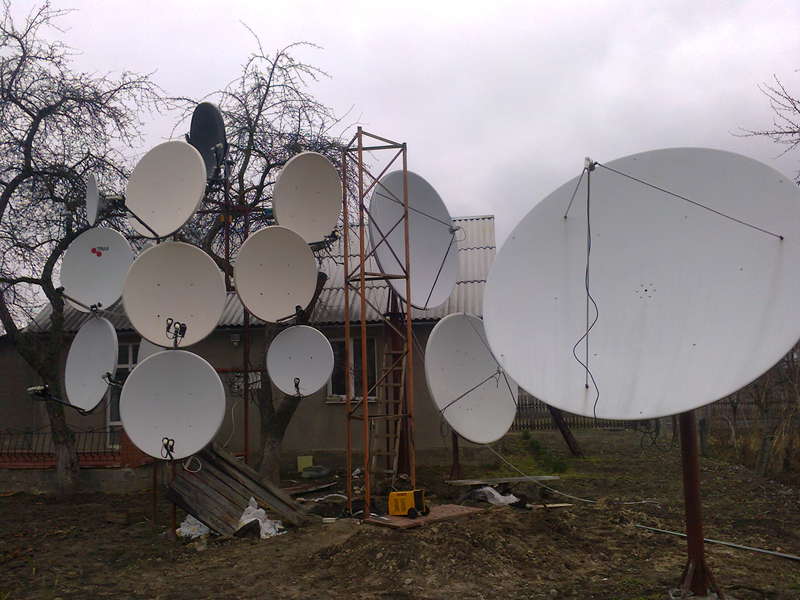

  • 9.jpg
    61.3 KB · Views: 127
  • 10.jpg
    84 KB · Views: 122
  • 11.jpg
    105.6 KB · Views: 115
  • 12.jpg
    79.6 KB · Views: 106

Borisov-54

Thread Starter
SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus

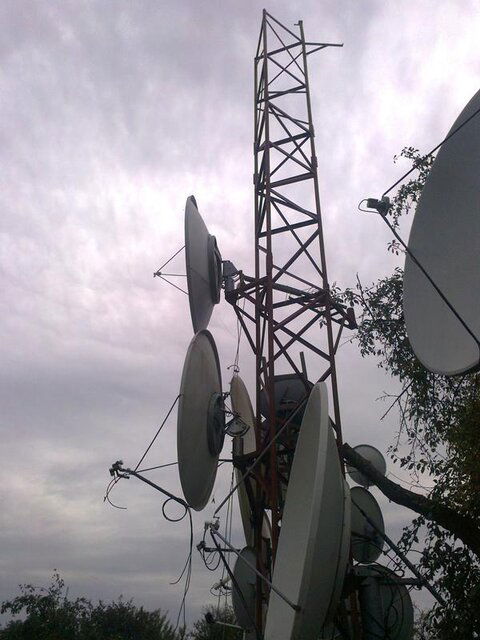

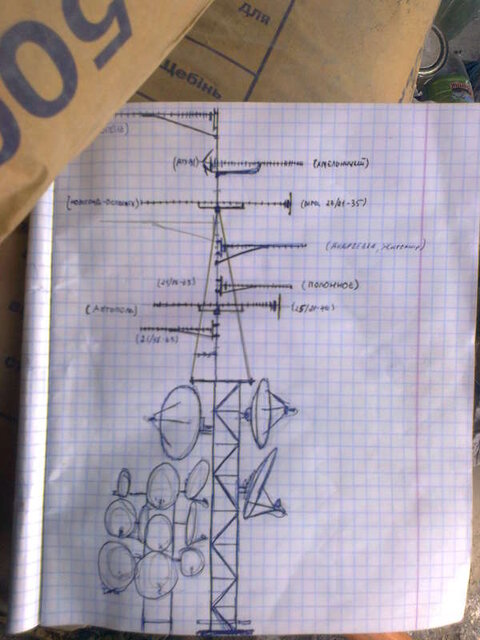

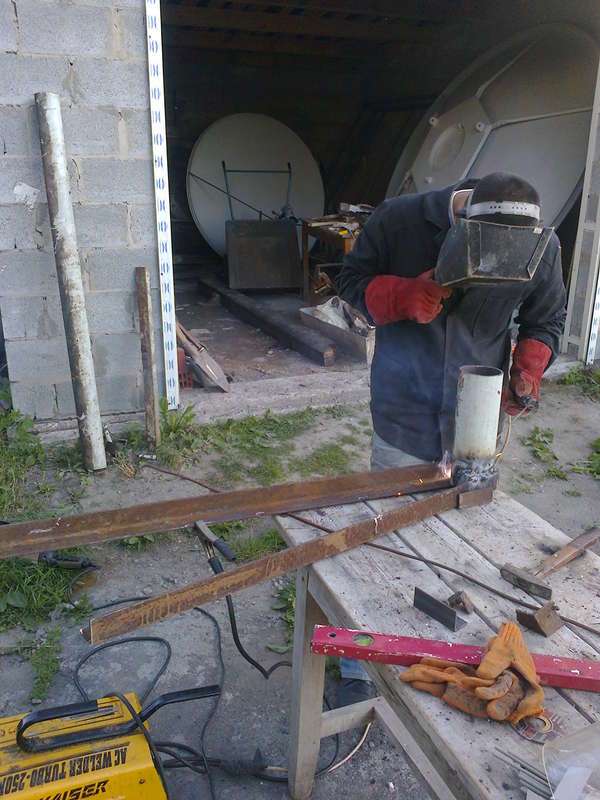

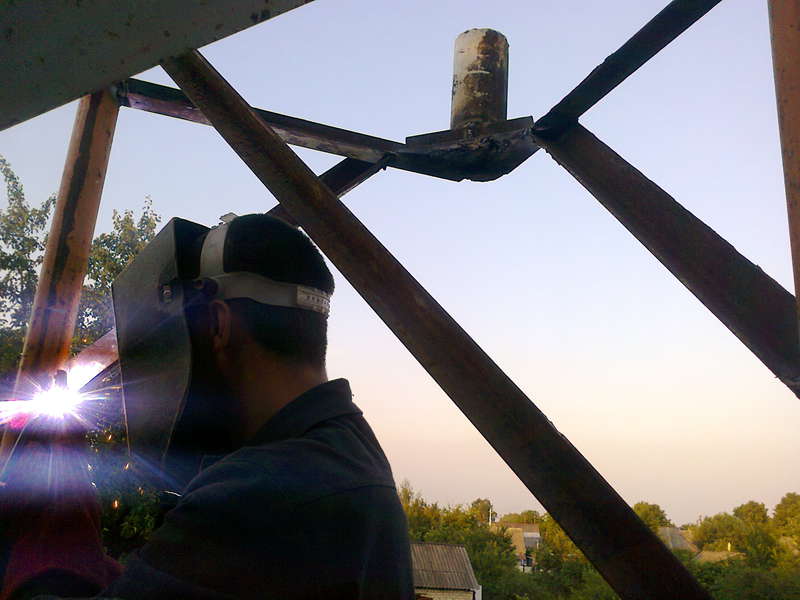

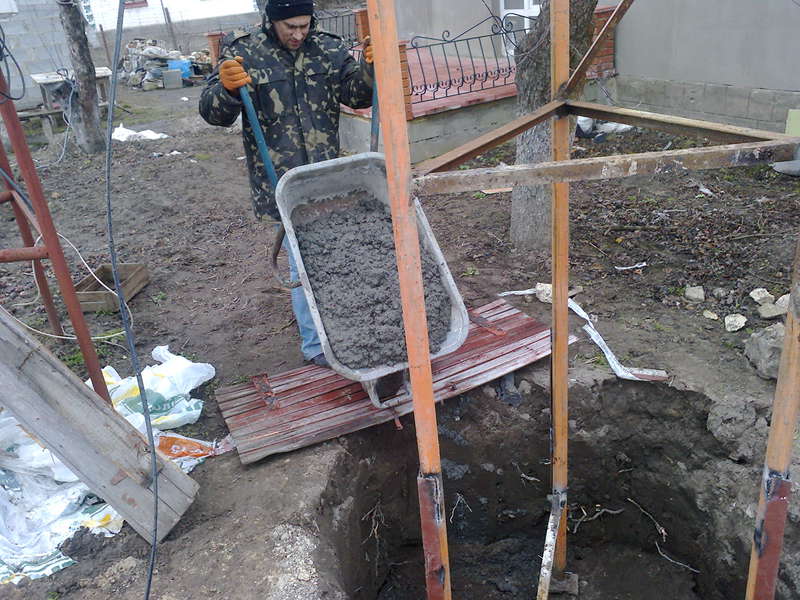

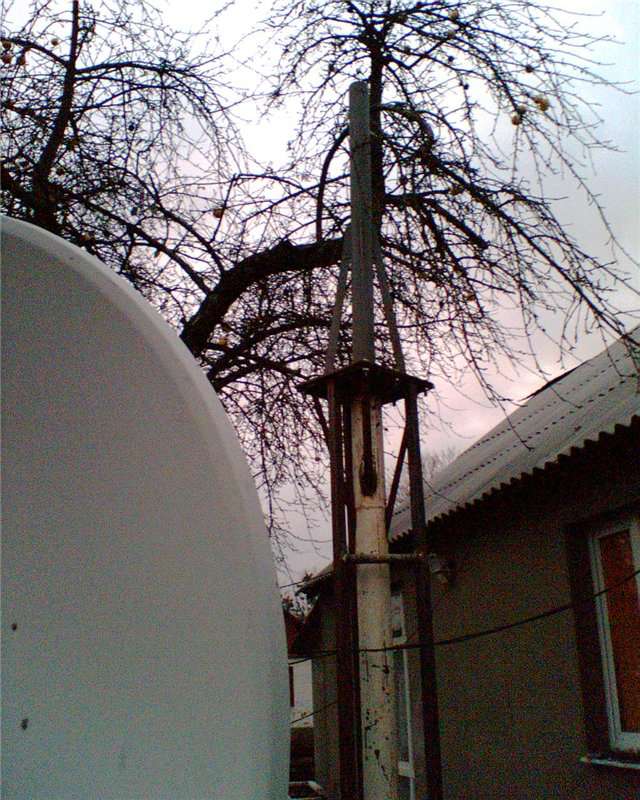

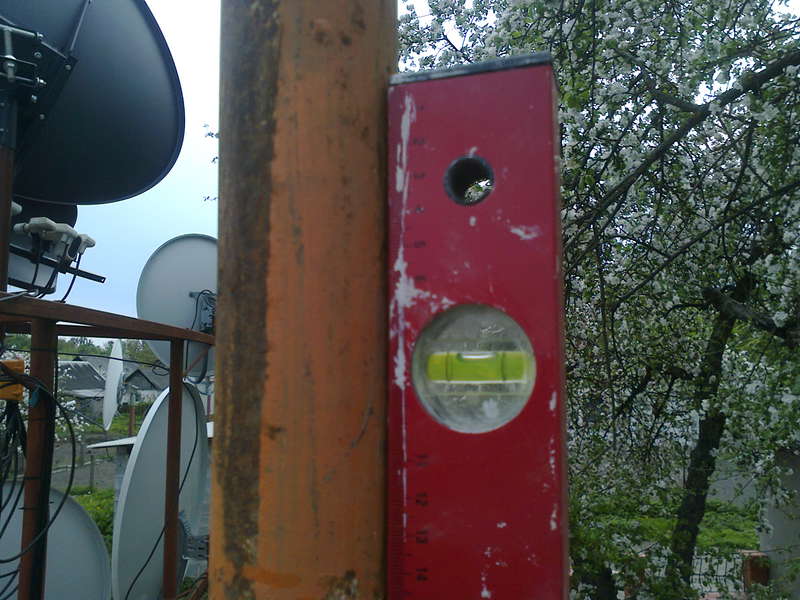

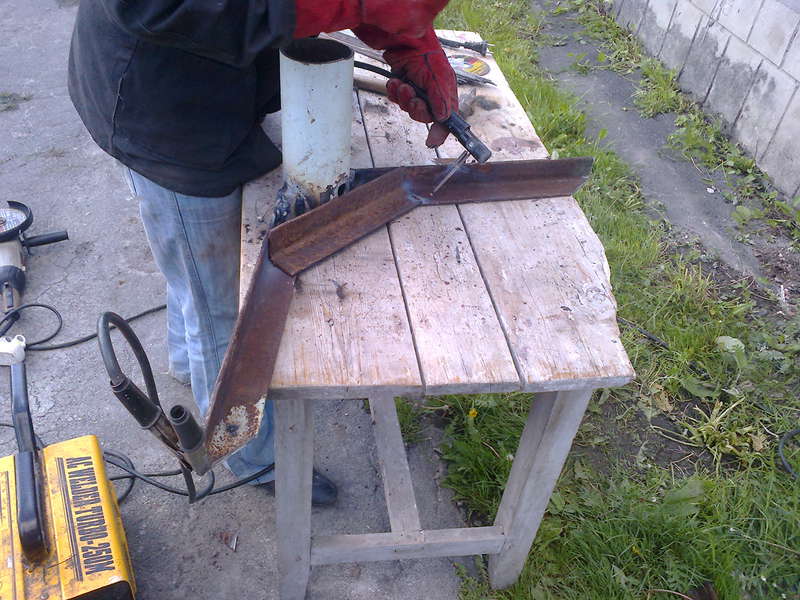

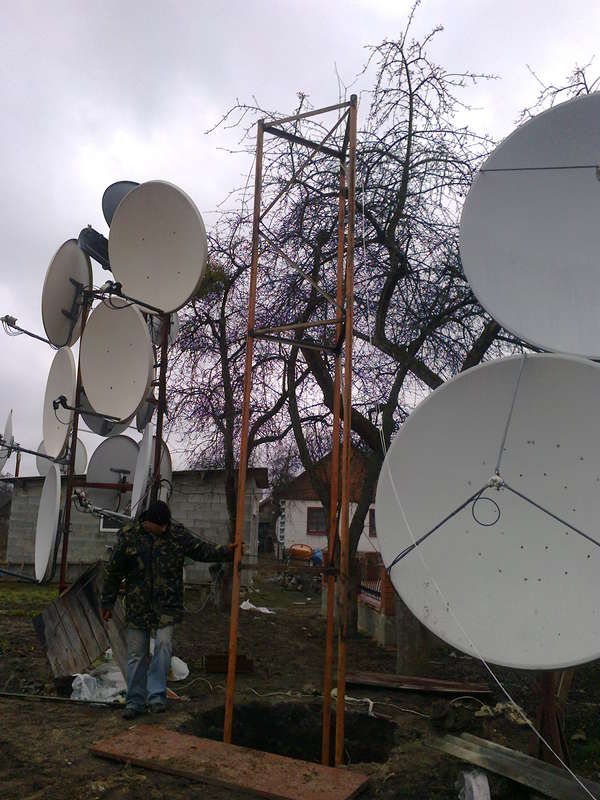

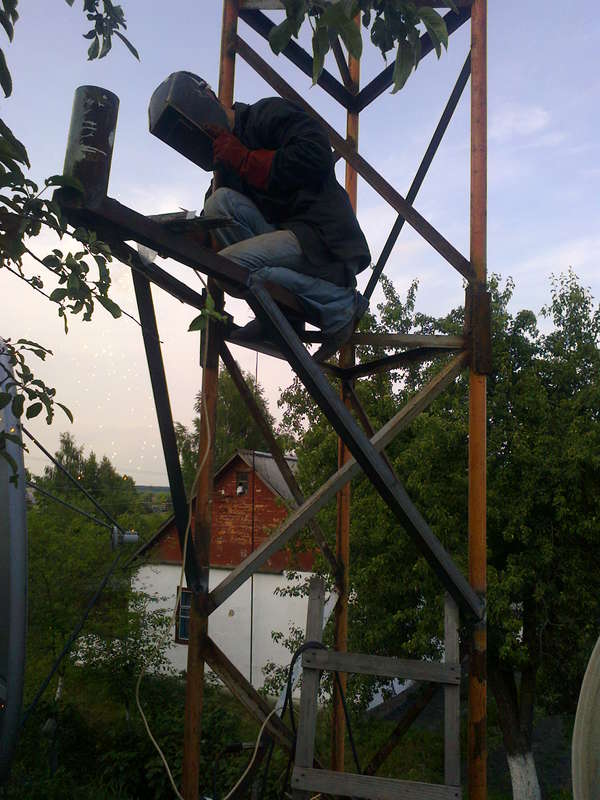

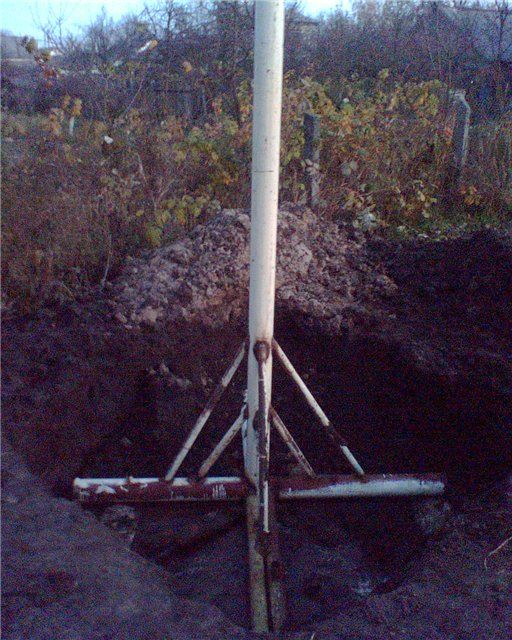

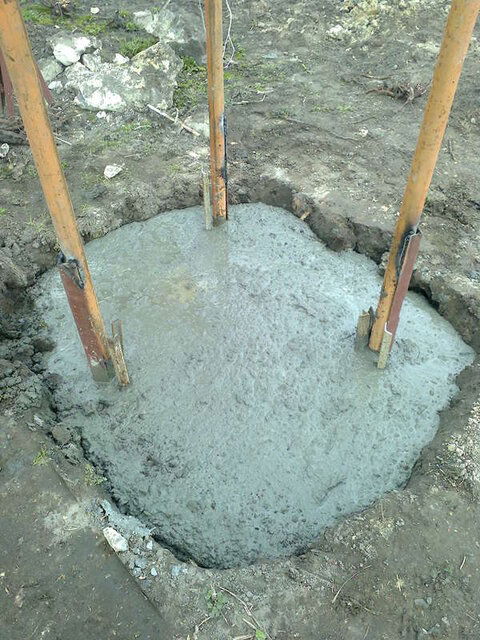

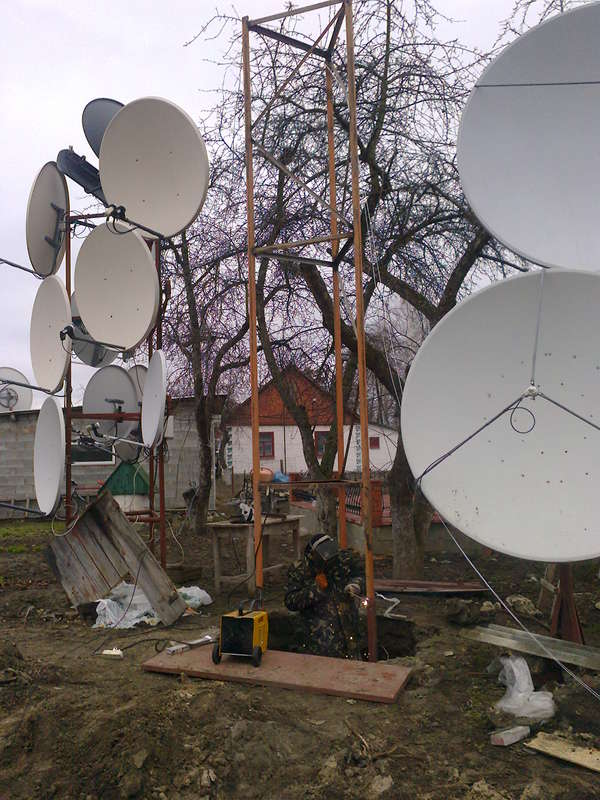

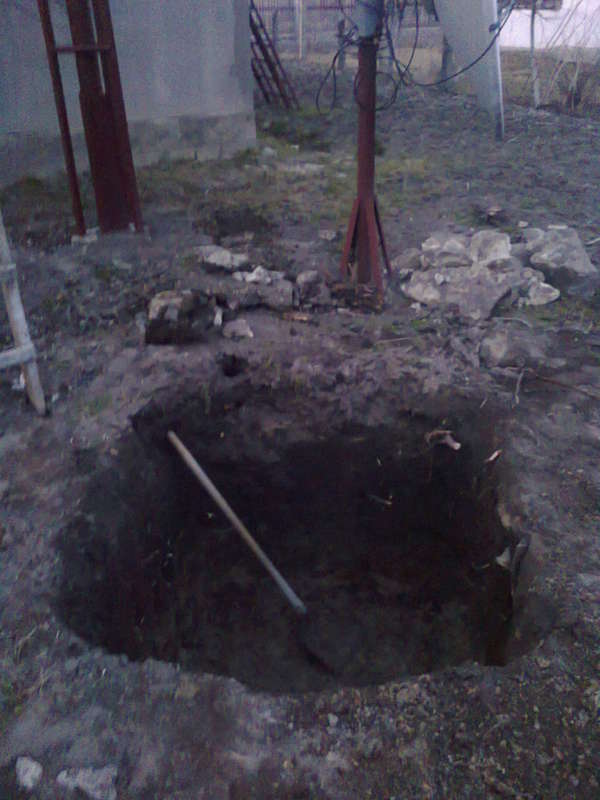

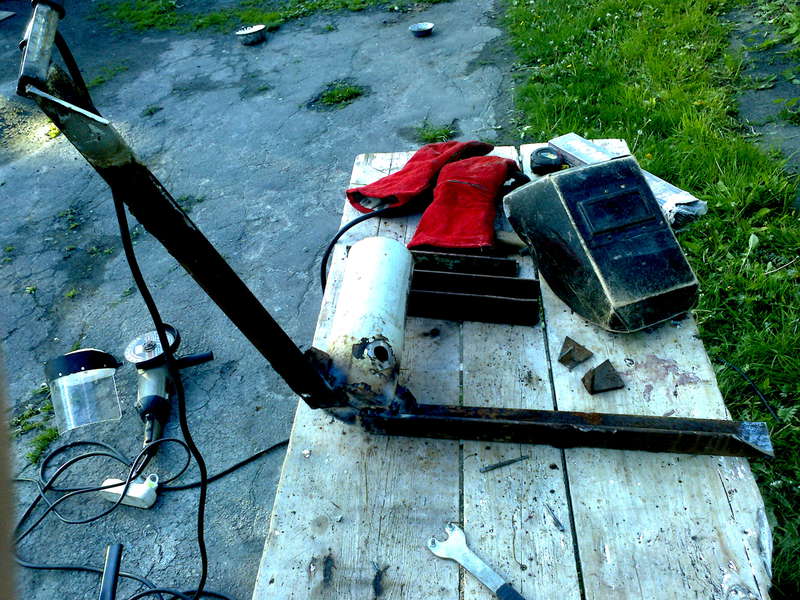

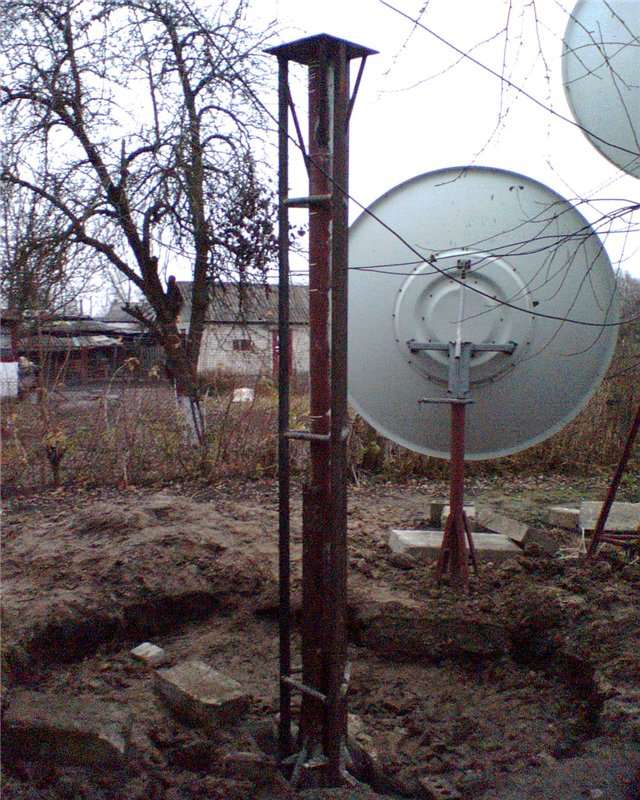

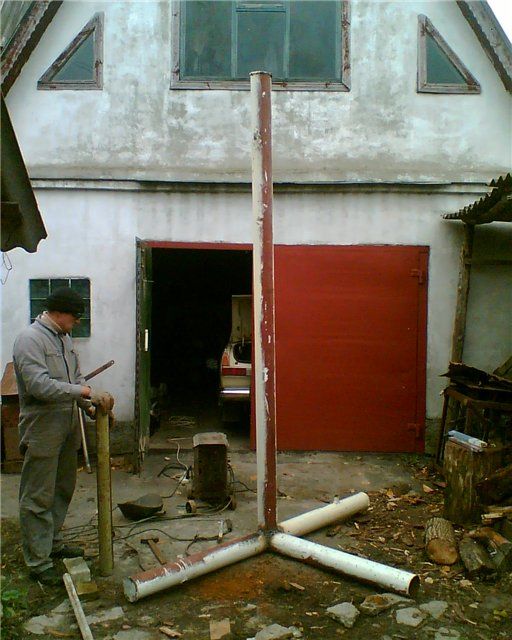

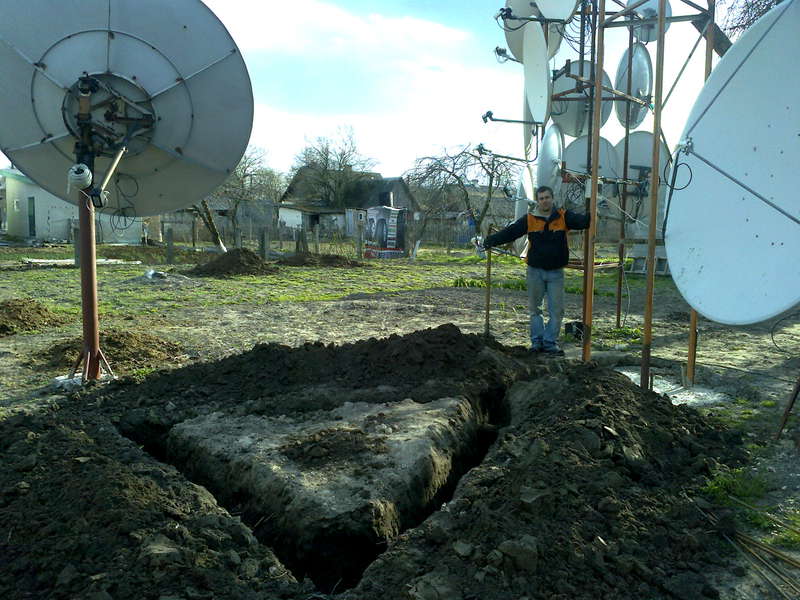

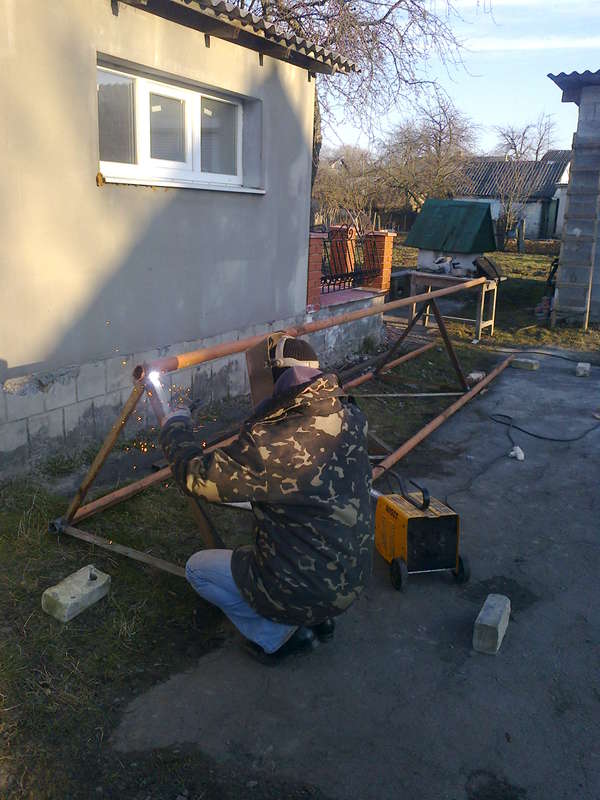

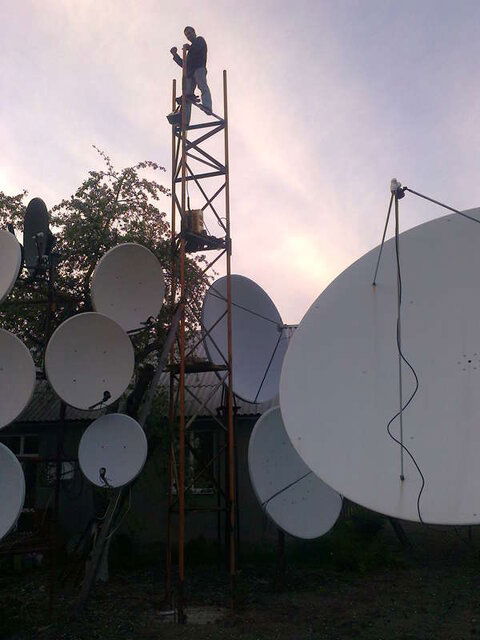

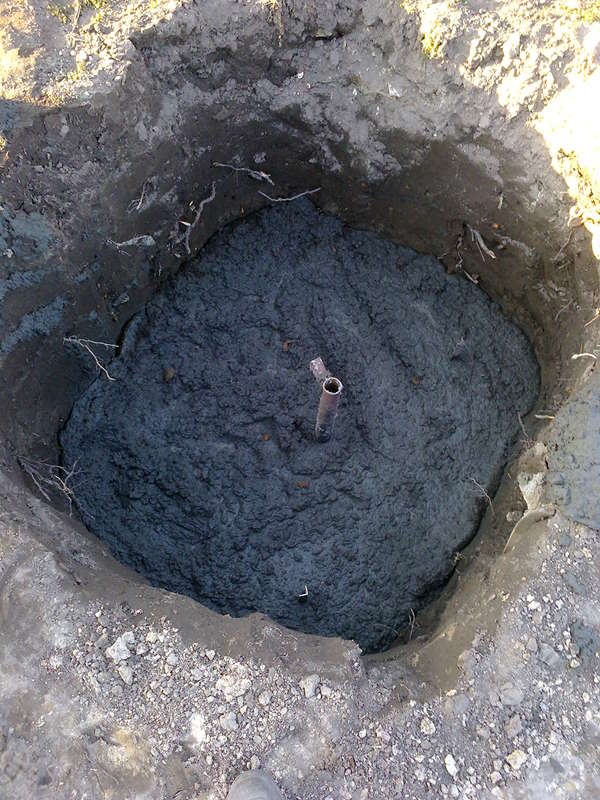

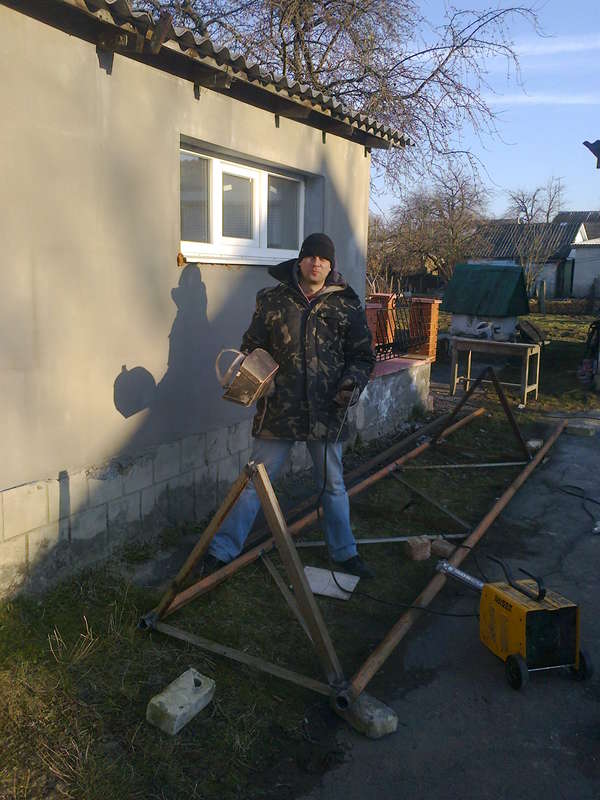

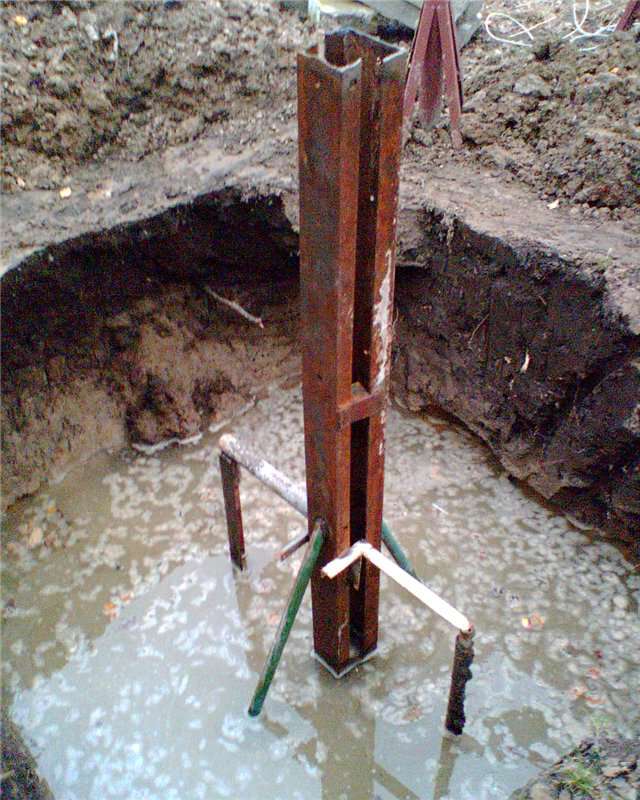

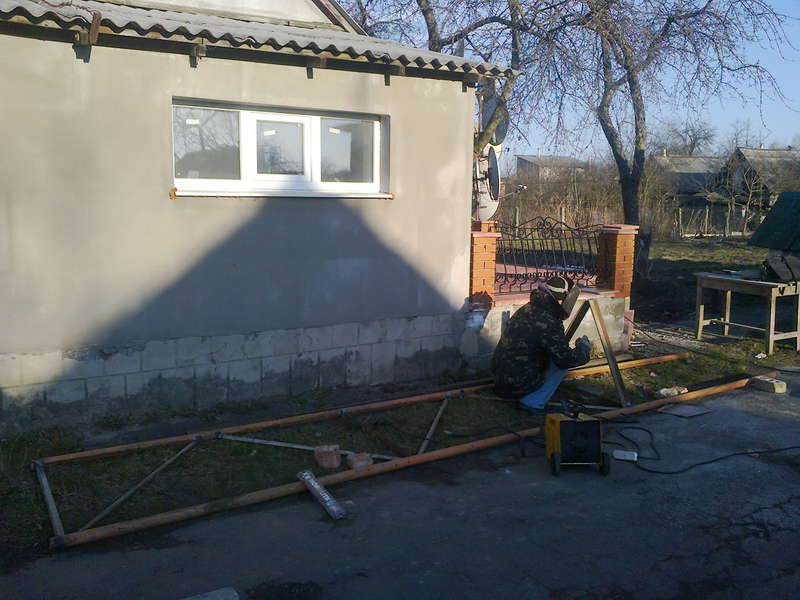

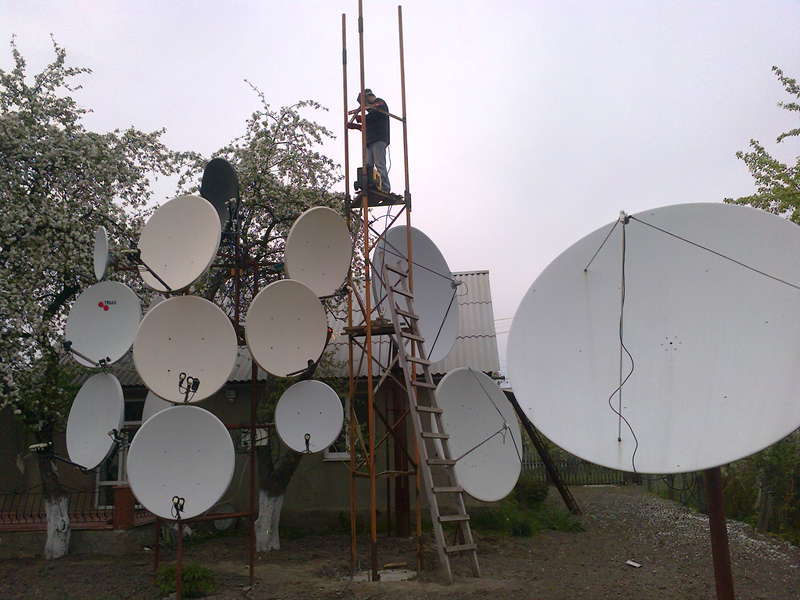

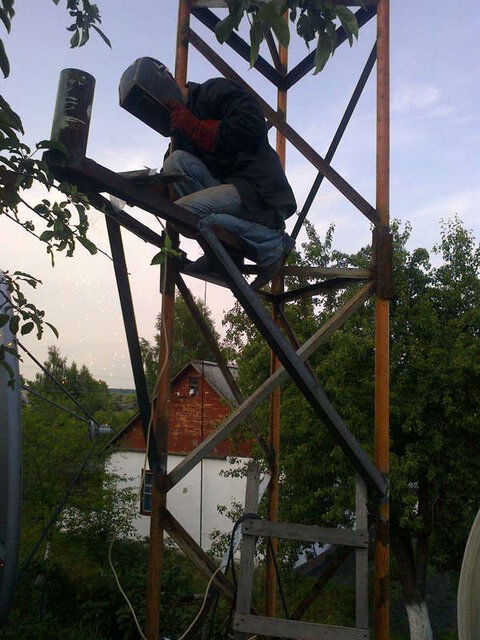

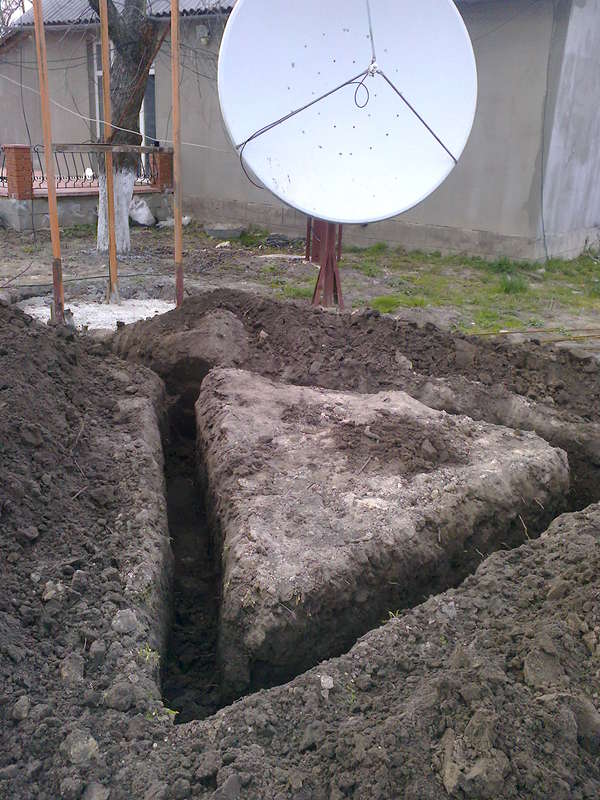

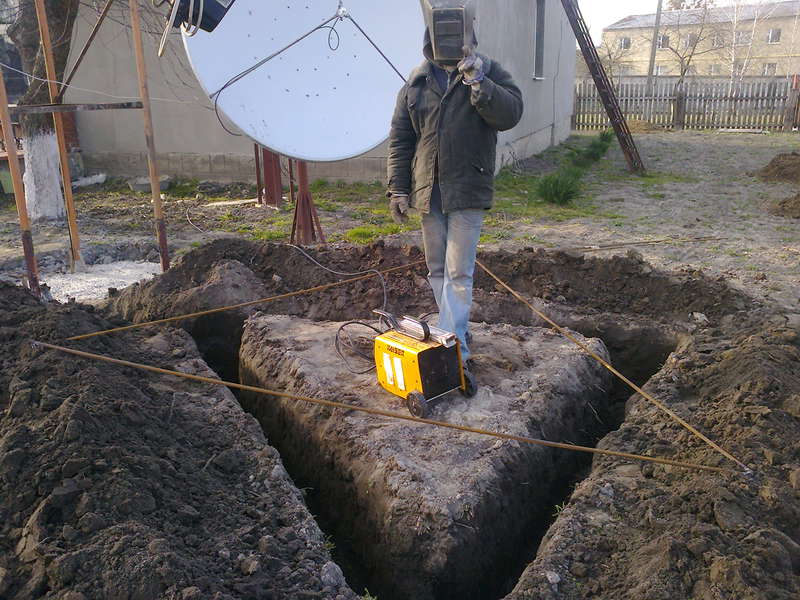

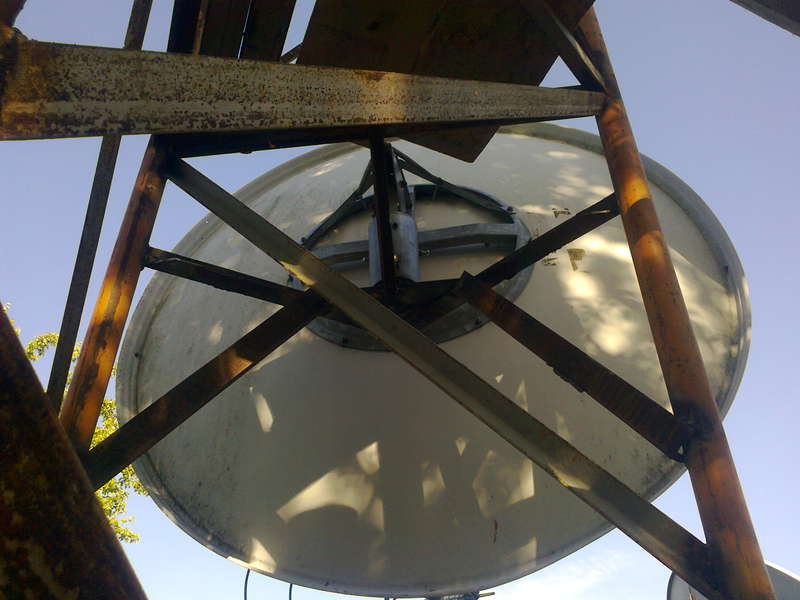

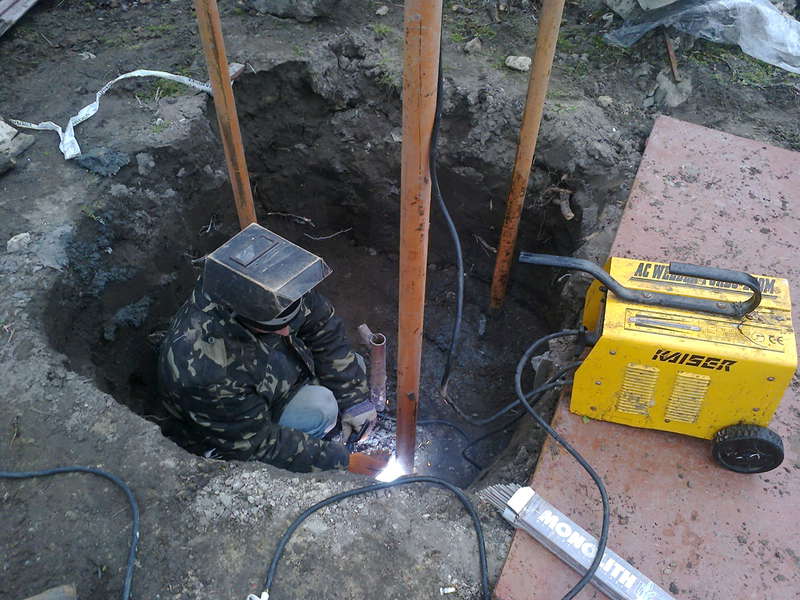

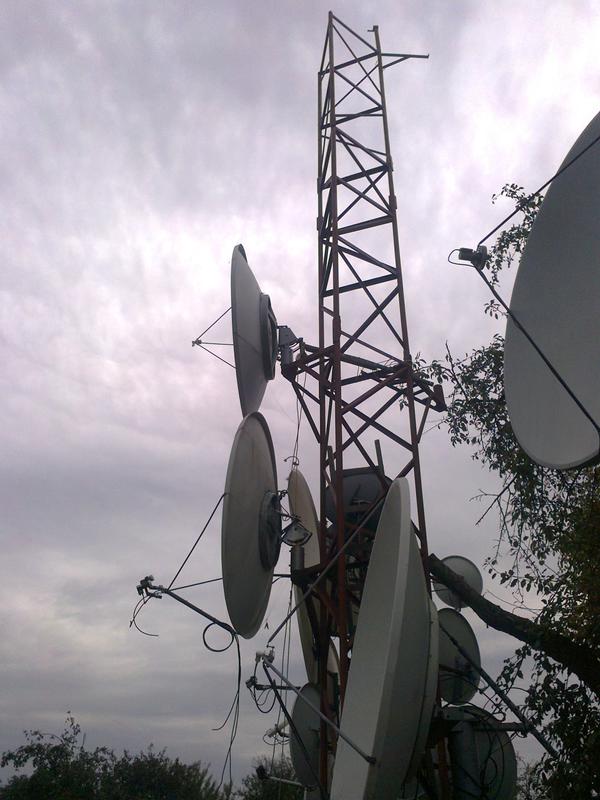

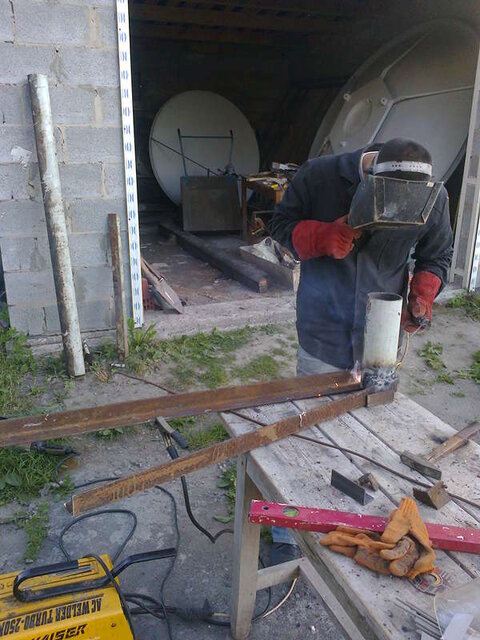

Apart from all these workers have made another important component is the Ground:


Attachments

  • 13.jpg
    95.7 KB · Views: 105
  • 14.jpg
    111.2 KB · Views: 93
  • 16.jpg
    101.7 KB · Views: 107
  • 17.jpg
    84 KB · Views: 111
  • 18.jpg
    90.3 KB · Views: 117
  • 21.jpg
    58.5 KB · Views: 115
  • 22.jpg
    76.9 KB · Views: 127
  • 23.jpg
    59.6 KB · Views: 115
  • 24.jpg
    107.6 KB · Views: 104
  • 25.jpg
    88 KB · Views: 104

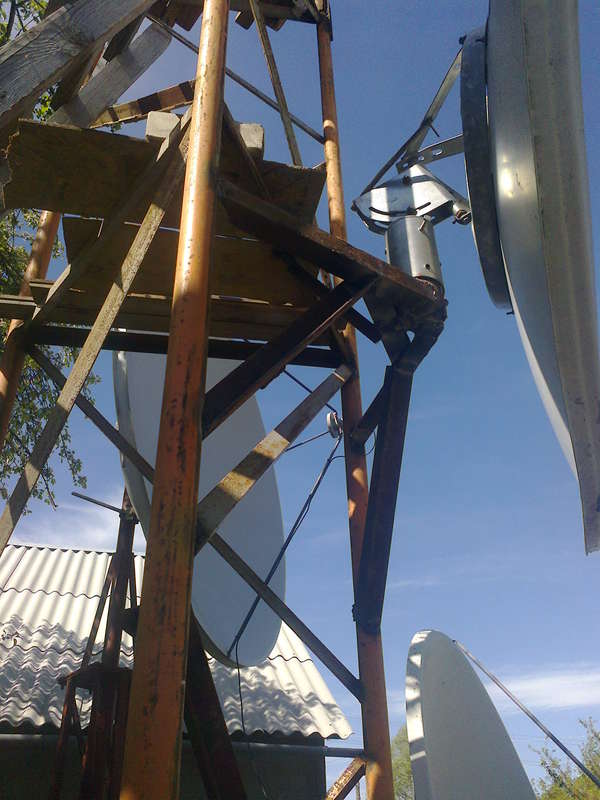

  • 26.jpg
    79.4 KB · Views: 117
  • 27.jpg
    51.2 KB · Views: 109

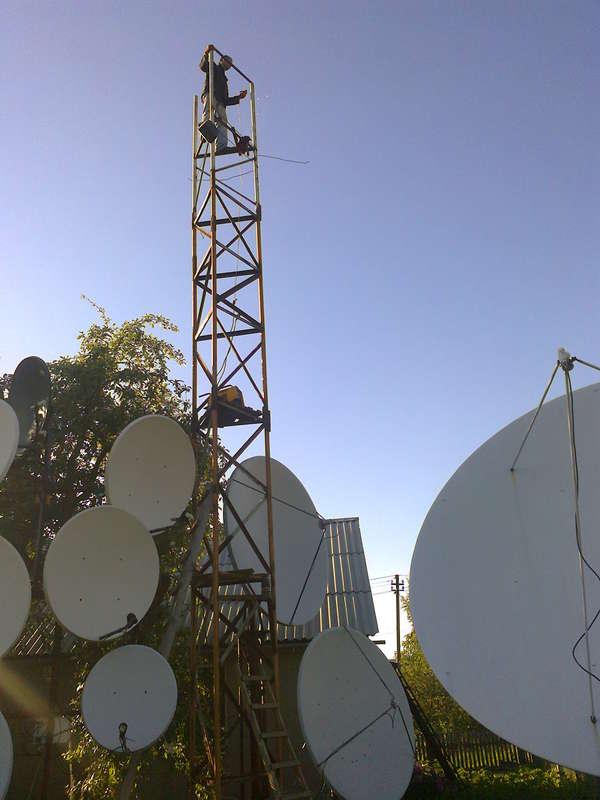

  • 28.jpg
    46.7 KB · Views: 117
  • 30.jpg
    89 KB · Views: 127
  • 31.jpg
    91.2 KB · Views: 117

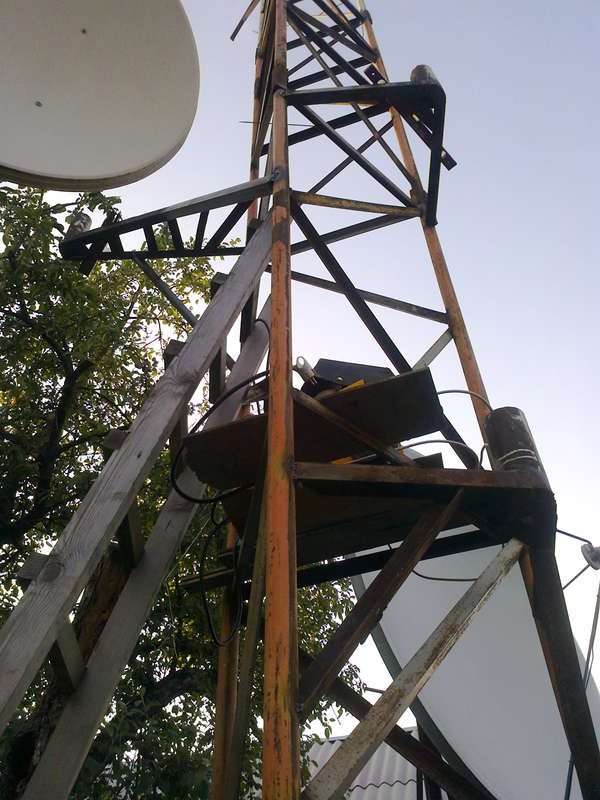

  • 32.jpg
    92.4 KB · Views: 111
  • 34.jpg
    47.3 KB · Views: 116

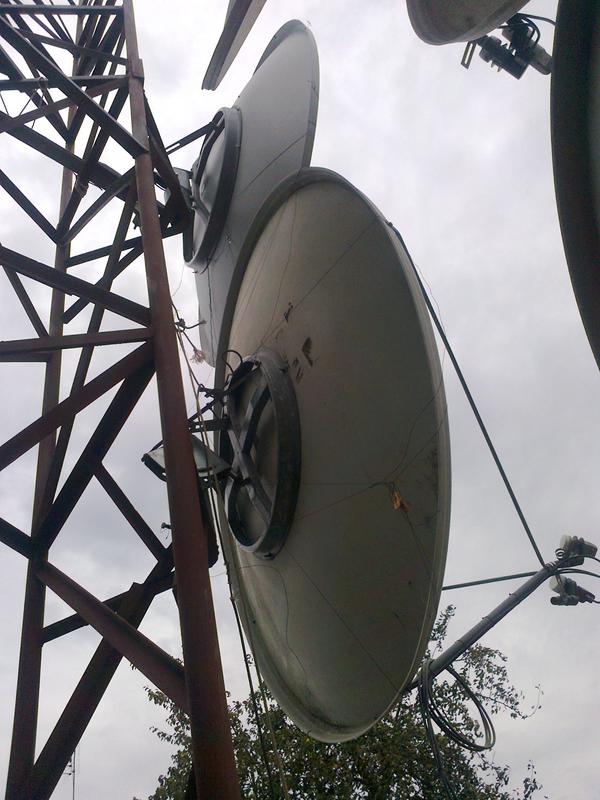

  • 37.jpg
    75 KB · Views: 103
  • 38.jpg
    68.3 KB · Views: 109

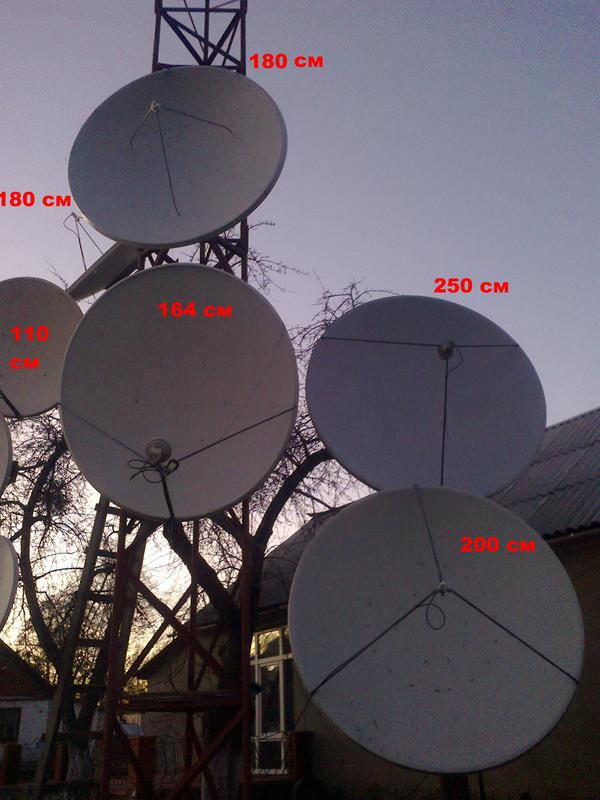

  • 01.jpg
    61.5 KB · Views: 108

Borisov-54

Thread Starter
SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus
Good afternoon.
In a dispute, truth is born.
So we argued at our European forum. Who first started drilling holes in C LNB, so that no condensation would remain. In which year in America did they start drilling at the bottom of the hole in C LNB ...?

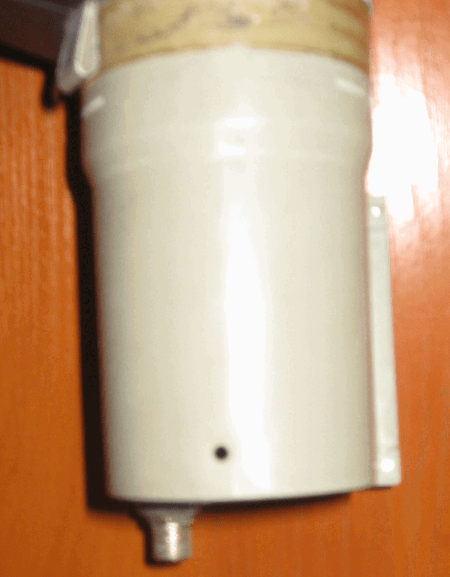

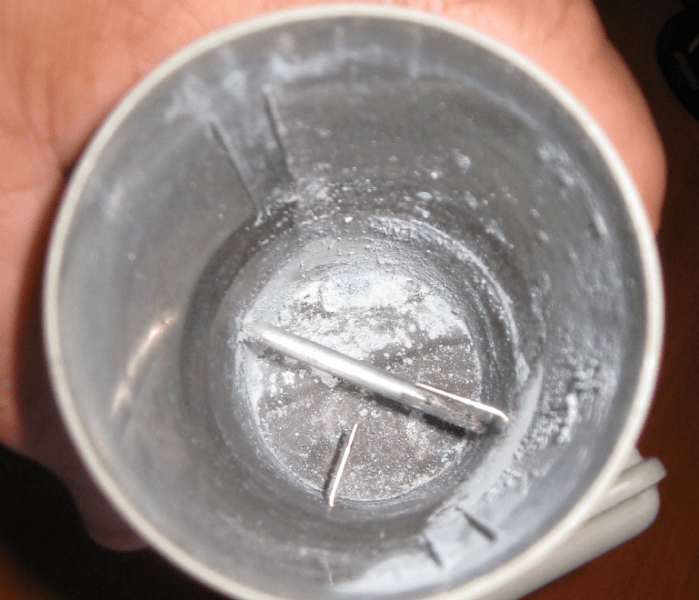

My first unfortunate experience was in the C range service, at the beginning I did not drill a hole. And that's what happened- / 1 photo /.

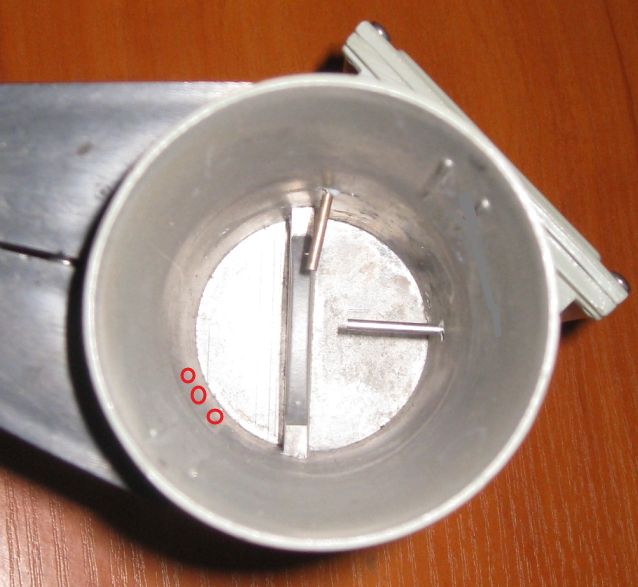

The signal after a couple of years fell from the satellite. I disassembled the LNB and there the dirt inside. I cleaned, drilled even 3 holes by 2 mm and everything was fine with the signal and there was no condensation inside.
