pics of the dish farm...post yours too :)

Discussion in 'Free To Air (FTA) Discussion' started by Iceberg, Apr 7, 2008.

  1. fred555

    fred555 Pub Member
    Lifetime Supporter

    Joined:
    Sep 18, 2014
    Posts:
    7,797
    Likes Received:
    6,705
    Location:
    77W

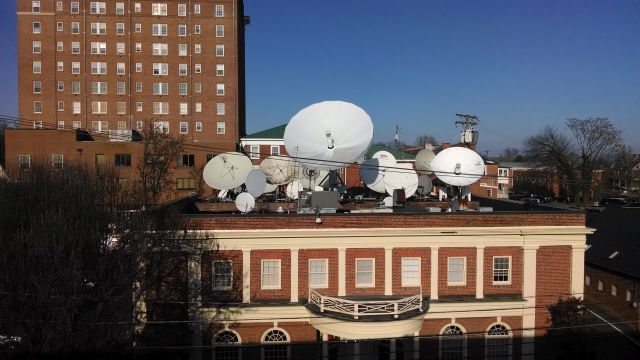

    Here is my farm:
    I am dreaming again, time to wake up! below are the real pictures:

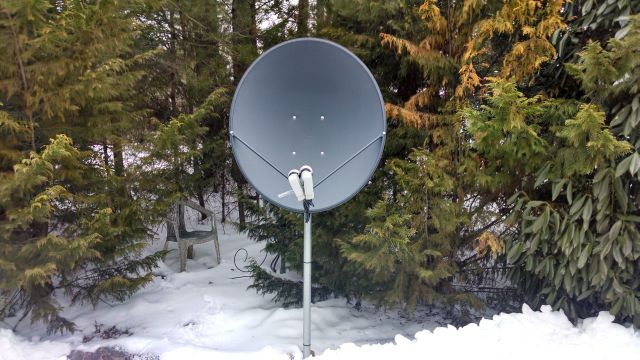

    Geosatpro 90cm/Two SL2PLL's fixed at 97W & 103W

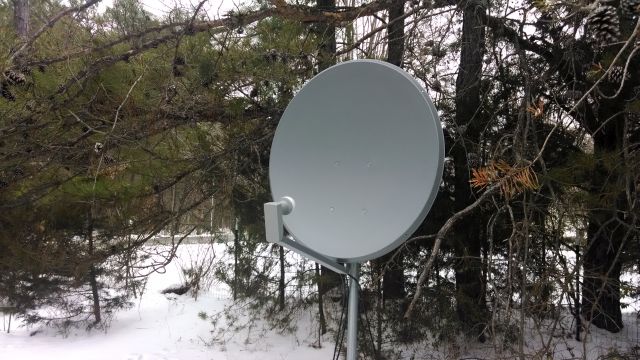

    30'' Winegard DS-2078/dms922-10750-Dual Circular fixed

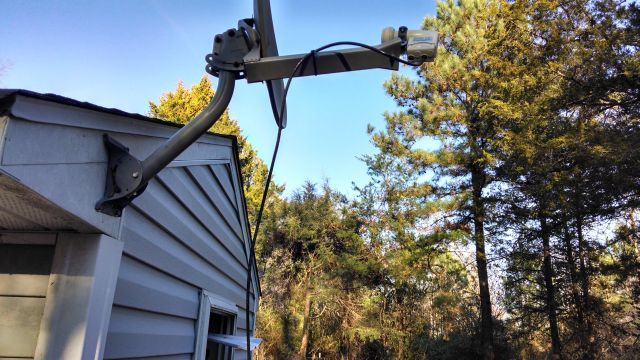

    20'' Converted Pay dish/SL2PLL fixed at 30W

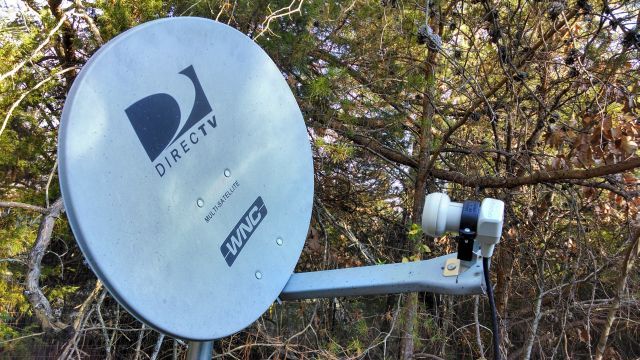

    This one is currently awaiting a new assignment, was 123W.

    Since I live i the woods, I cant see the entire sky from one place. Different areas see different parts of the sky. I have a "distributed" farm, spread out. That's also why I don't have any motors. When the BUDs go up there will be one for the western arc and one for the eastern, with a limited view on each arc.

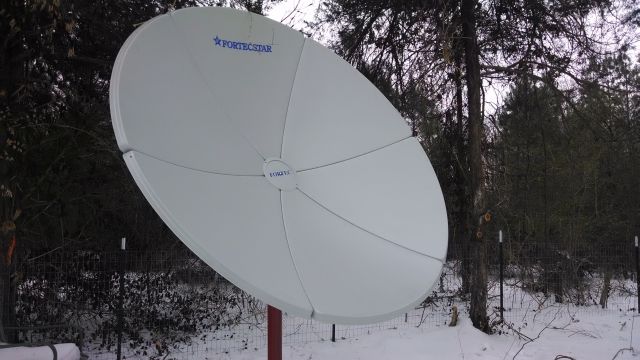

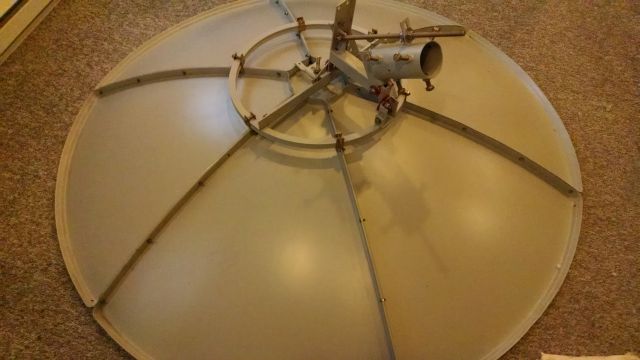

    This 6 footer is waiting on the temp to rise above freezing, pole is already set. I might set it tomorrow.

    UPDATE: Put her on the pole just now.

    As for the 10 foot Winegard, the fabricators have finished the fancy slab mounted pole, but I think they have to wait for warmer weather to paint it.

    Might as well put this in here, a Channel Master 3020 13 footer.

    #601 fred555, Feb 21, 2015
    Last edited: Feb 21, 2015
  2. *** WELCOME TO SATELLITEGUYS! ***
  3. spongella

    spongella SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    May 12, 2012
    Posts:
    885
    Likes Received:
    470
    Location:
    Central NJ

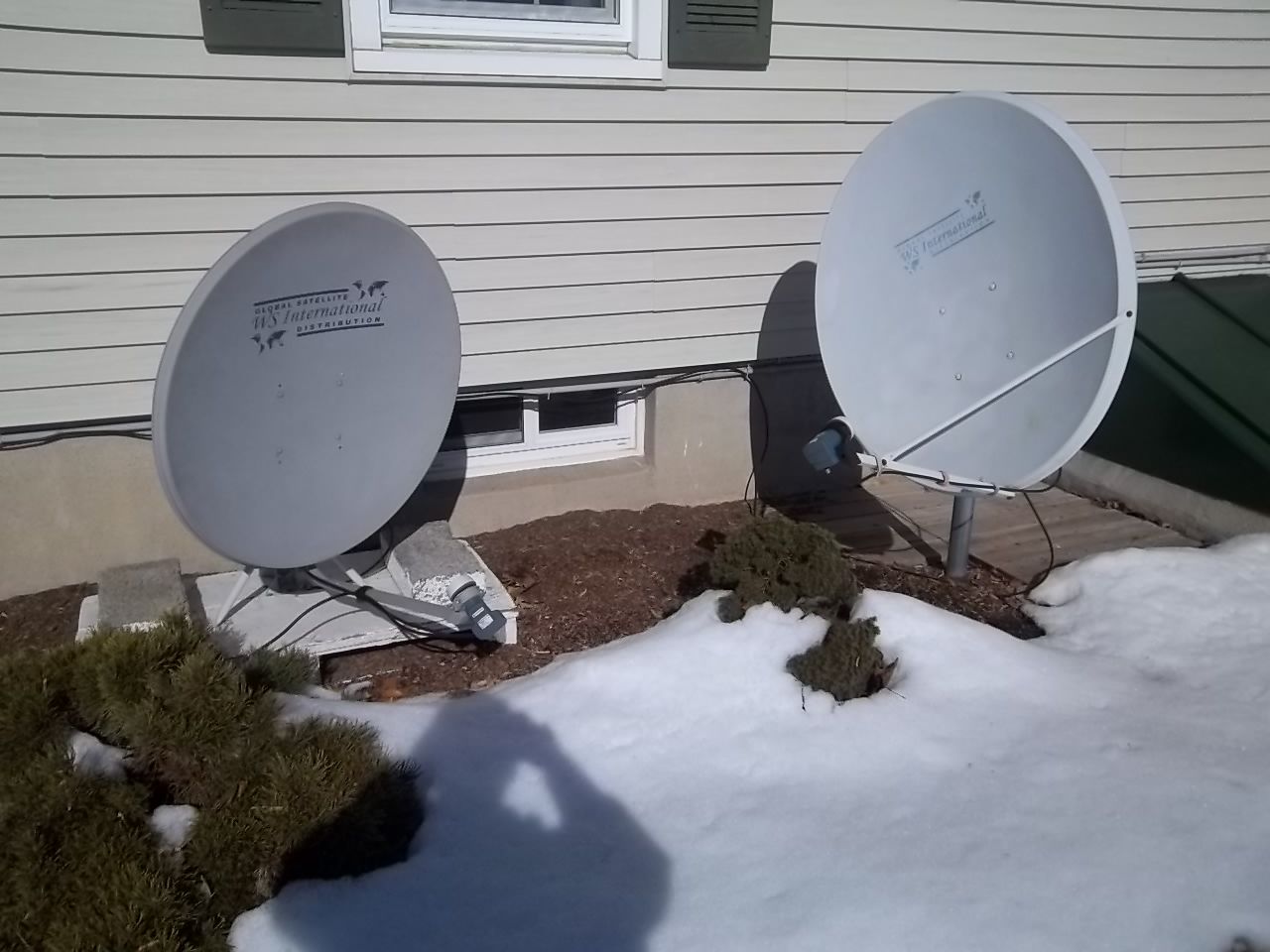

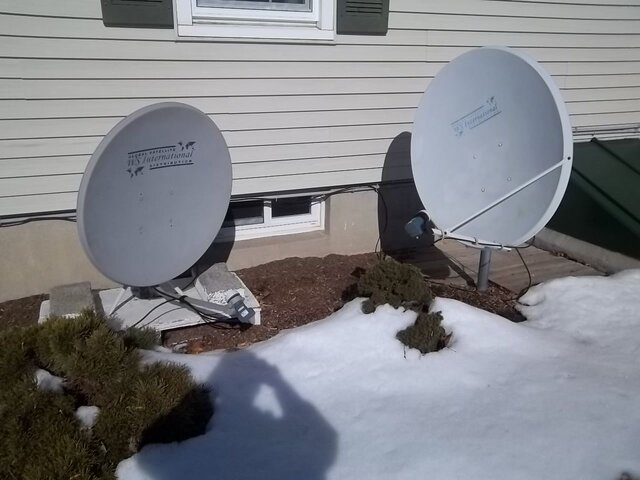

    My little dish farm, 1- 39 incher motorized, 1- 30 incher stationary (for bird hunting).
    This is great, seeing all the other folk's setups. Some real nice ones.

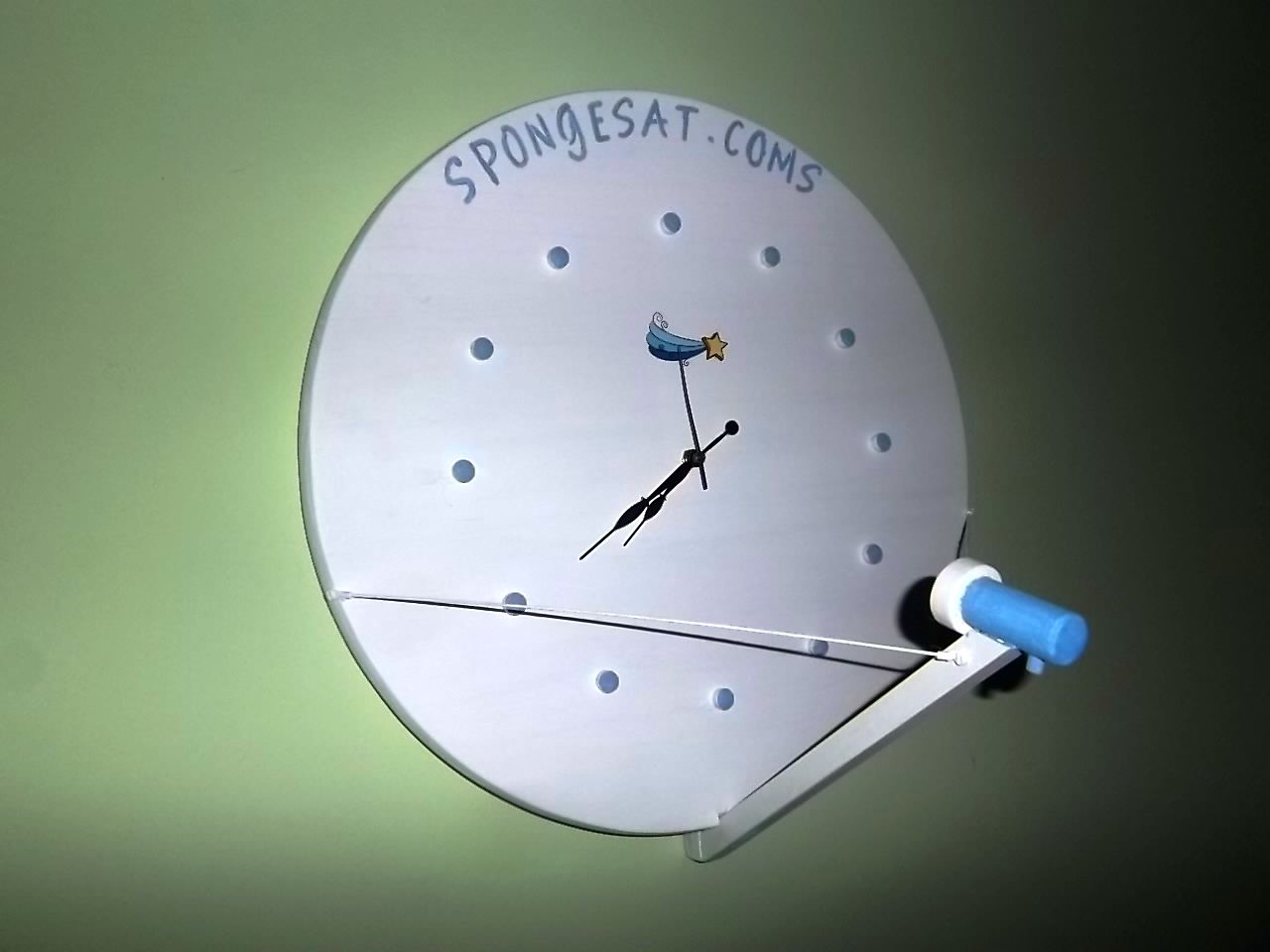

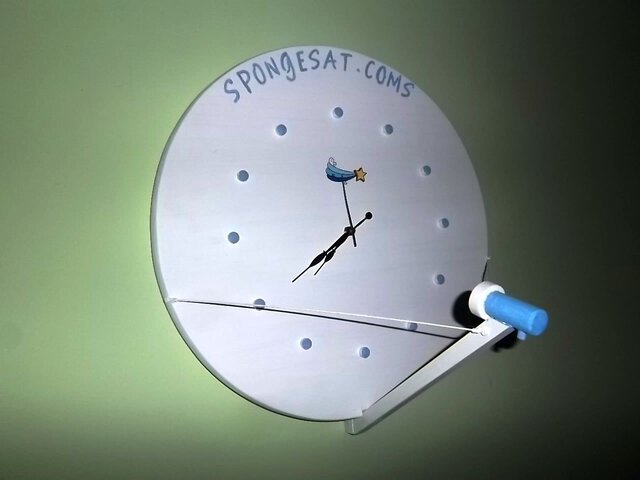

    Second pic is my "dish" clock, made it last year. Got the movement from Clockit.com and the rest was done in the shop from scrap wood and 1 small round table top bought at Home Depot.

    Sponge


    Attached Files:

  4. cee

    cee SatelliteGuys Family

    Joined:
    Jan 1, 2012
    Posts:
    51
    Likes Received:
    12
    Location:
    Western Catskills Ny

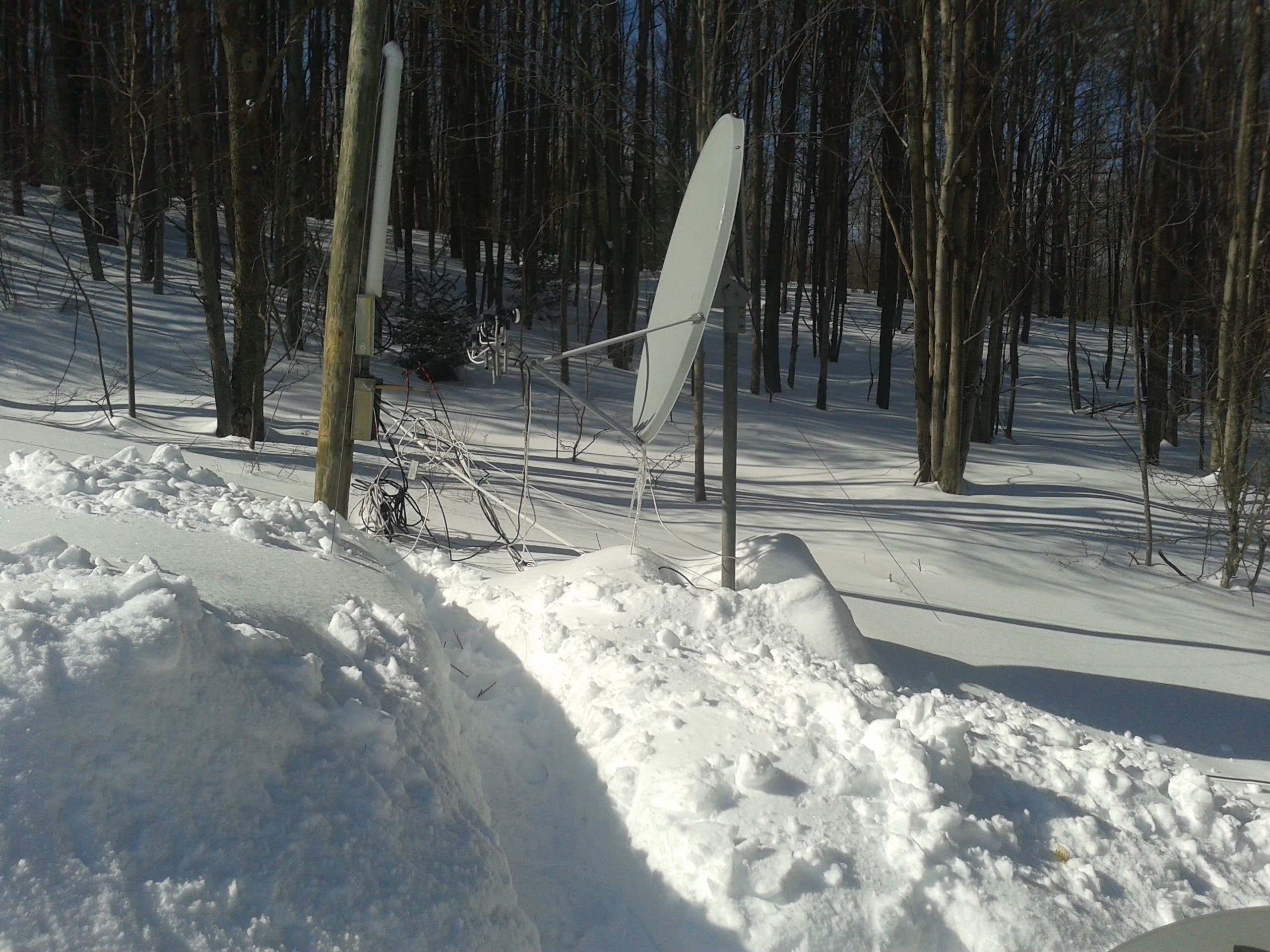

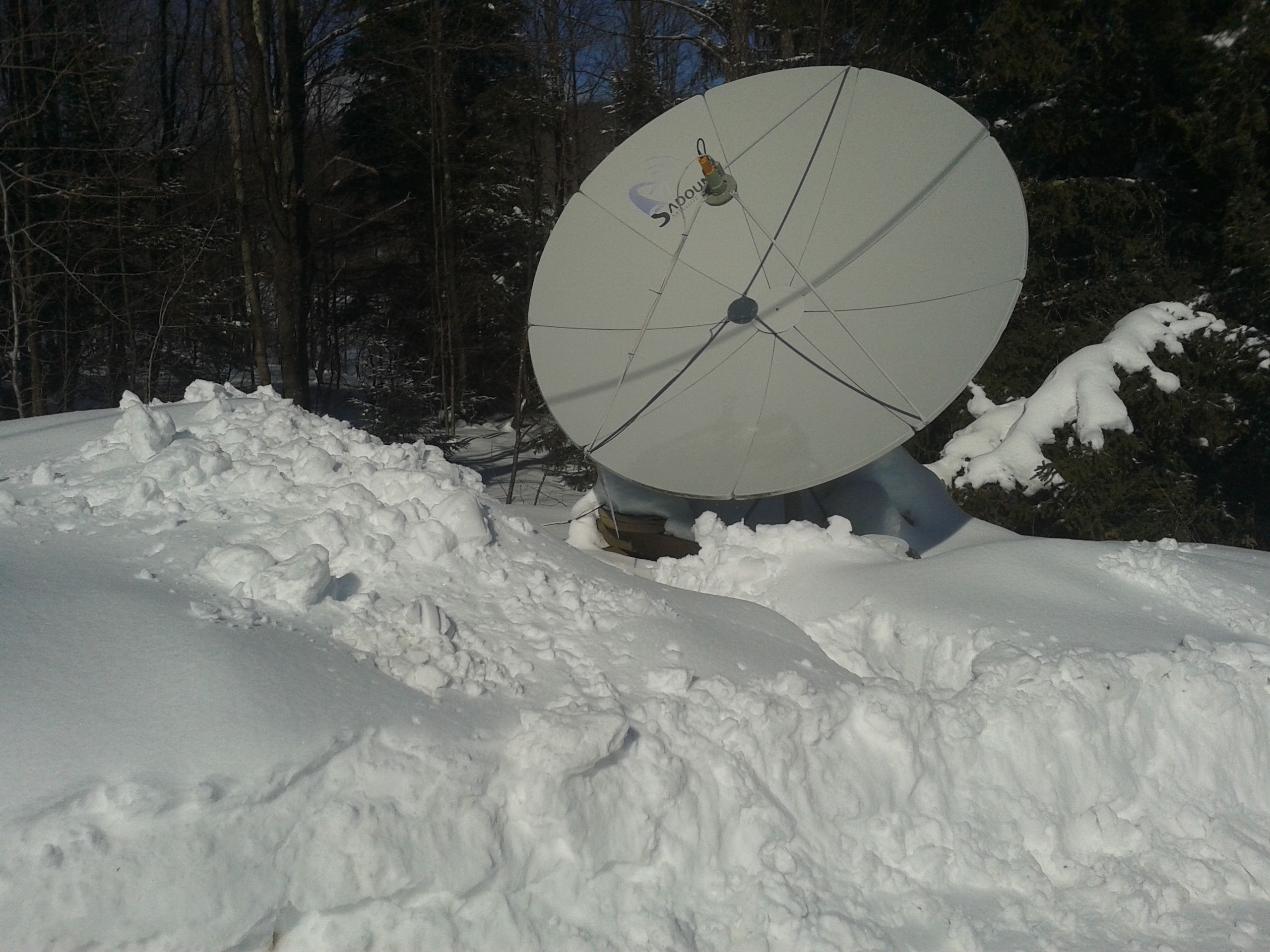

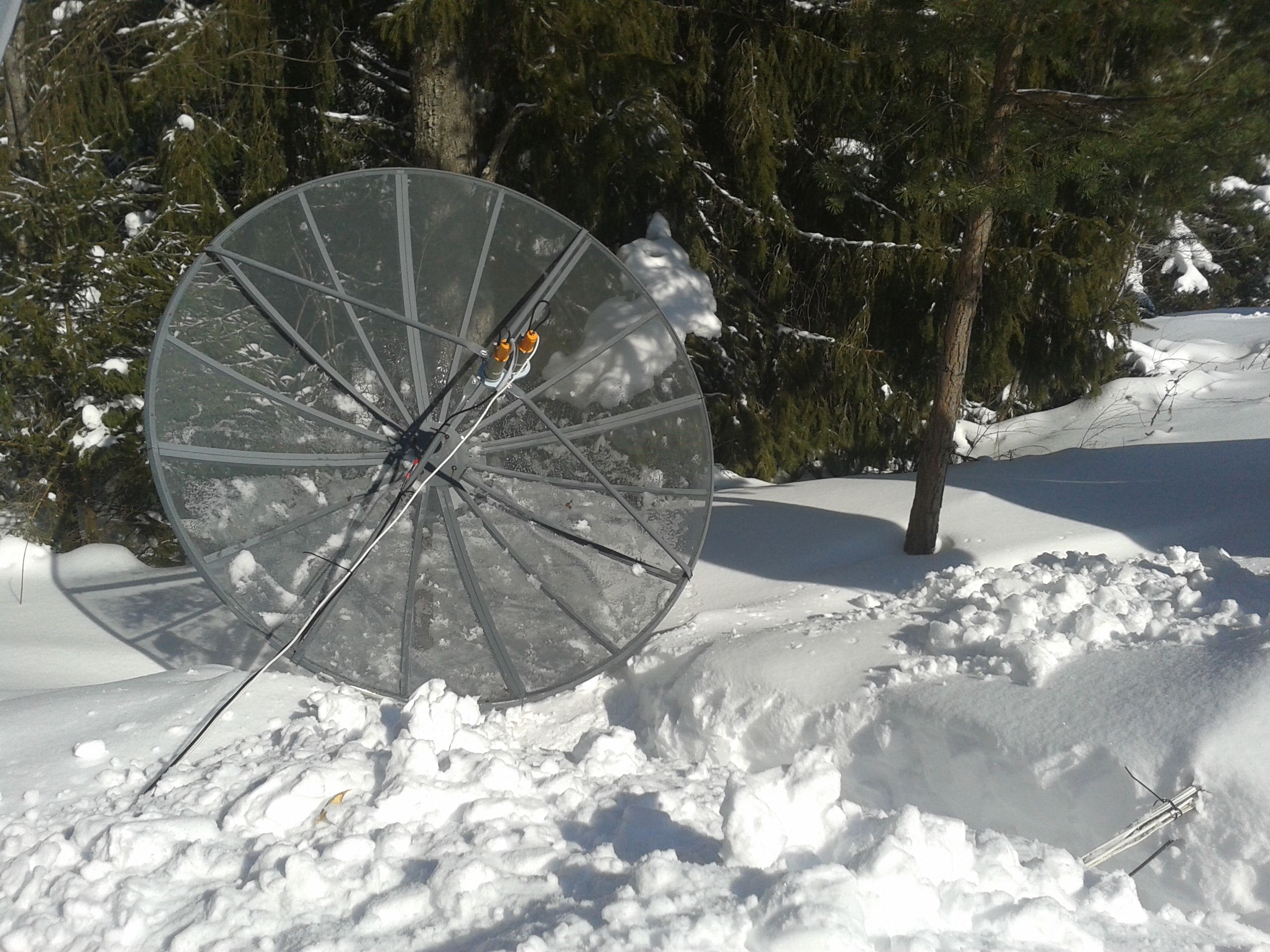

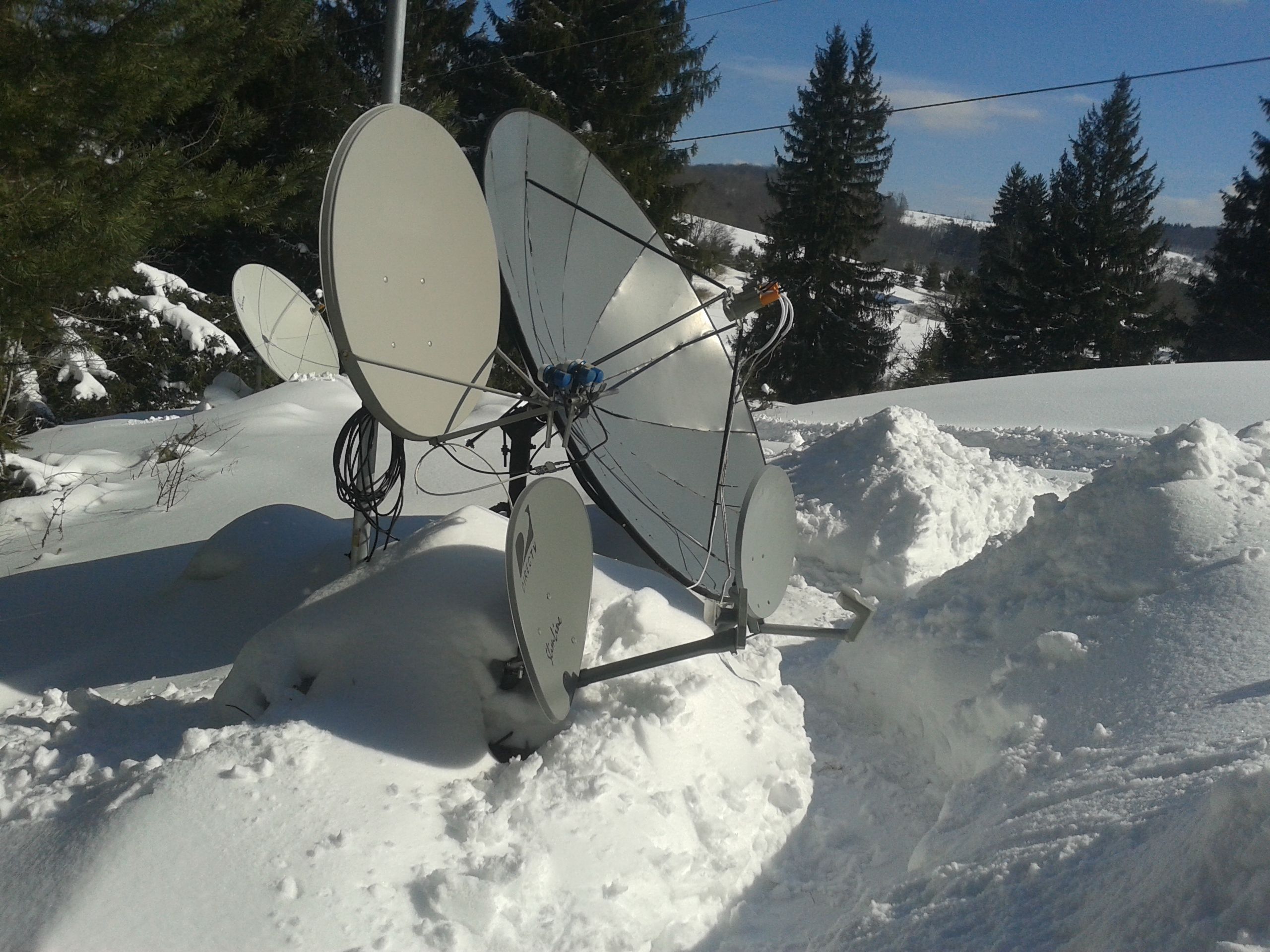

    few dishes 20150222_132711.jpg 20150222_132637.jpg 20150222_132620.jpg 20150222_132604.jpg 20150220_223440.jpg 20141213_150310.jpg

    Magic Static and spongella like this.
  5. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    912
    Location:
    97W 48N

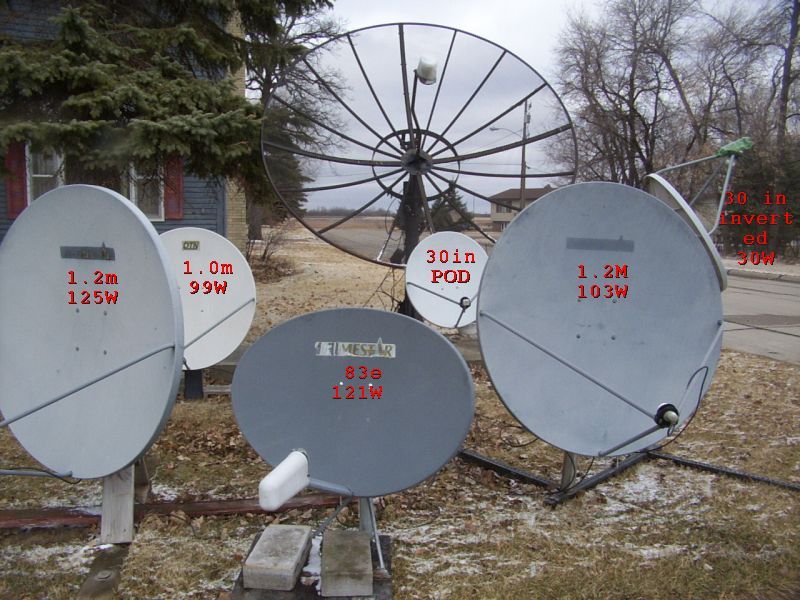

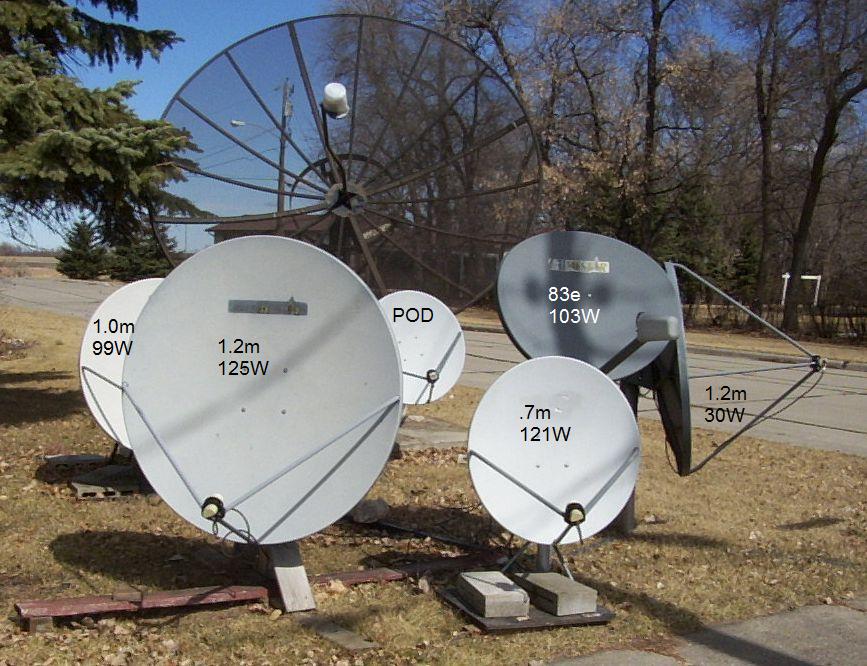

    Spring project finished. Re positioned some dishes. Again. Last fall put the 1.2 on the left on 125W, and put the elliptical that was on 125W to 103W that was the 1.2m. Last week, during very nice weather, I added the 30 inch aimed at 121W. BUT, the elliptical just wasn't doing it on 103W,

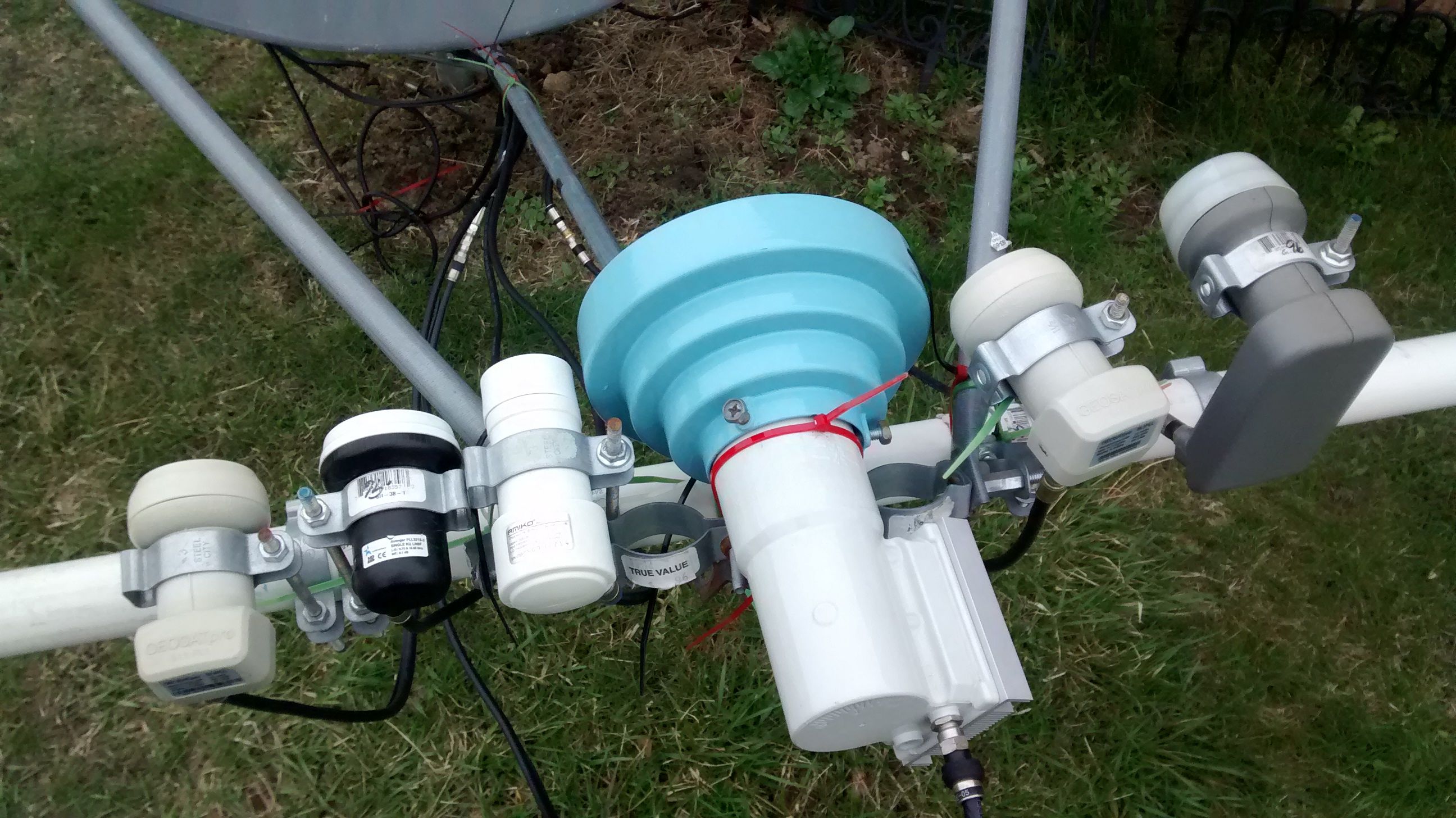

    So --- spun my homemade NPRM around to get the smaller tube on the east.
    inverted 30 on 30W, a 1.2 back on 103W, and the elliptical on 121. Now it WORKS!.
    When tuning the inverted 30, the wind whipped up and sleet/rain and snow started.
    RETREATED indoors until it passed. Tuned up then decided I didn't want rain/snow accumulating on the holder.

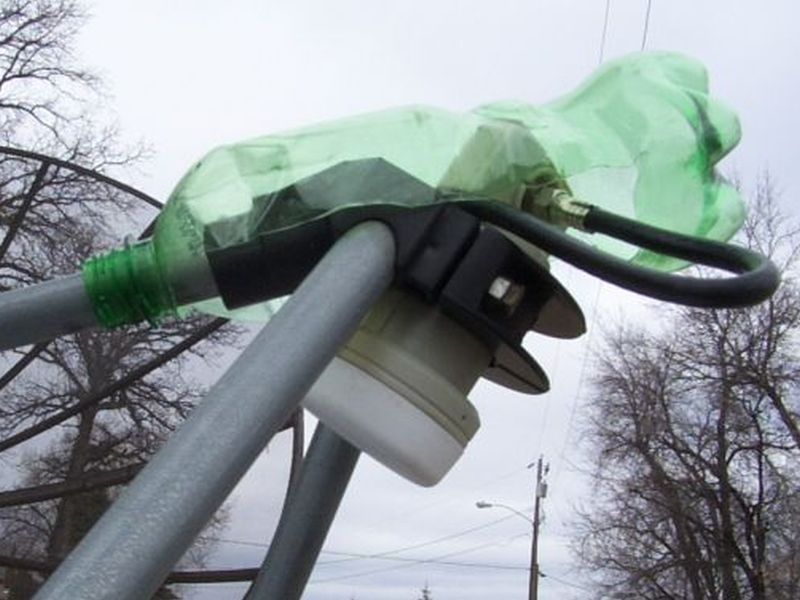

    made a shield out of a pop bottle.
    I'll probably make a better looking one once the weather straightens up.

    hank123, Borisov-54, FTA4PA and 3 others like this.
  6. Iceberg

    Iceberg Topic Starter The No Pain Train
    Supporting Founder

    Joined:
    Nov 17, 2003
    Posts:
    0
    Likes Received:
    28
    Location:
    The Lake House
    dumb question

    POD???

  7. Magic Static

    Magic Static FTA Geek
    Staff Member HERE TO HELP YOU! Lifetime Supporter

    Joined:
    Oct 12, 2010
    Posts:
    5,512
    Likes Received:
    2,197
    Location:
    Montana
    Yea POD? Is that an anagram or just a name you gave the dish you bolted on the lip of the BUD?

  8. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,387
    Likes Received:
    641
    Location:
    85w
    Payable on death living the dish in his will.

  9. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    912
    Location:
    97W 48N
  10. fred555

    fred555 Pub Member
    Lifetime Supporter

    Joined:
    Sep 18, 2014
    Posts:
    7,797
    Likes Received:
    6,705
    Location:
    77W
  11. Esquire122

    Esquire122 Active SatelliteGuys Member

    Joined:
    Apr 10, 2015
    Posts:
    22
    Likes Received:
    15
    Location:
    Alabama
    Greetings everyone,

    I have had a PrimeStar dish with a Fortec LNBF on Galaxy 19 since 2005. My Fortec Lifetime Ultra just bit the dust so I am going to get the
    Amiko Mini HD SE this week and re-point the Primestar to another Sat.

    In the meantime, I acquired a Prodelin 1.8M Series 1183 dish (my avatar photo) and refurbished it this past weekend.

    [​IMG]


    So now I have two dishes in the farm. I will post a pic of the install when I am done. Thanks to Iceberg and KE4EST
    for answering my questions. I used to work at a Satellite Uplink facility in the 90s for a major university and enjoyed
    actually having a huge dish farm with a 10m C-band capable of 1000W and 7m Ku-Band capable of 300W.
    Thus far, I have...a dish garden...LOL!

    Respectfully,
    Esquire

    #610 Esquire122, Apr 13, 2015
    Last edited: Apr 13, 2015
    RimaNTSS likes this.
  12. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,387
    Likes Received:
    641
    Location:
    85w
    Welcome to the site Esquire. I have only 1 dish at my apartment long story with that but welcome.

    Esquire122 likes this.
  13. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    623
    Likes Received:
    634
    Location:
    Riga

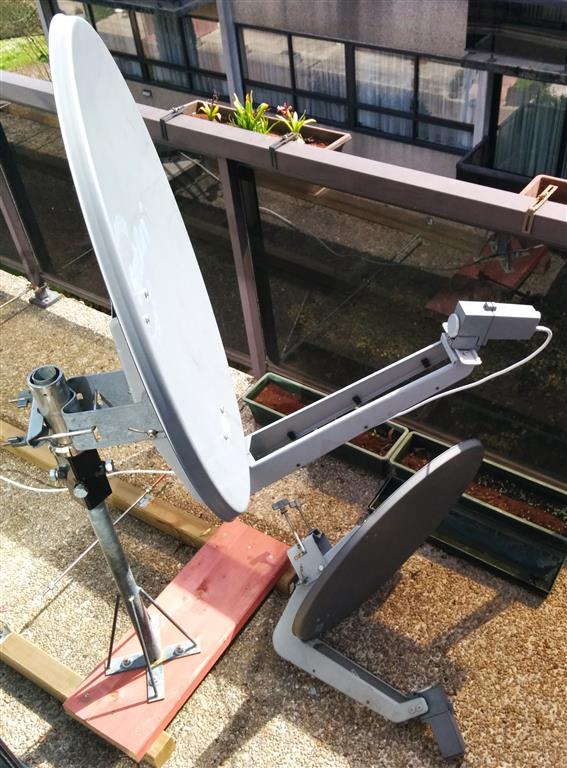

    Esquire122 Welcome to forum and nice restoration of 1.8m Prodelin dish. You could also post picture of it from behind to see what kind of mount there. And to not turn this thread to just a discussion, there is my last dish installed on balcony. It is Kathrein 75cm, and another one - 60cm laying under it. I simply have not enough space to install every antenna, so I am changing them on by one from time to time :shh
    Are you sure it is Prodelin 1.8M Series 1183 dish? I thought 1183 has 8 screws going through it's "face".
    IMG_20150412_123702 (Large).jpg

  14. Esquire122

    Esquire122 Active SatelliteGuys Member

    Joined:
    Apr 10, 2015
    Posts:
    22
    Likes Received:
    15
    Location:
    Alabama
    Actually, it had a peeling and deteriorated Channel Master logo on the top so it is a ChanneI Master product.
    I was told that Prodelin made it for Channel Master and Andrews. When I downloaded the Prodelin Manual
    for it, everything matched but I could have been misinformed on the manufacturer.

    This Andrew Type 180TX is exactly what I have for the mount, AZ/EL, dish, and LNB support arms,

    [​IMG]

    You are indeed correct that the Prodelin has an 8-bolt mounting. So the question is: Did Andrew make my antenna
    or did someone else make it for Andrew and Channel Master (my dish)?
    More to follow.

    Respectfully,
    Esquire

    #613 Esquire122, Apr 13, 2015
    Last edited: Apr 13, 2015
  15. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,387
    Likes Received:
    641
    Location:
    85w
    I have 1.2 meter dish and 2 1 meter dishes that I have for spare dishes you did a good job of cleaning up that dish.

    Esquire122 likes this.
  16. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    912
    Location:
    97W 48N
    Esquire122 - NICE dish! I'd find room for a 6 footer. (If I could acquire one) and WELCOME to the site!
    Is there a molded in 'label' on the back ?
    Maybe late in the history of CM, and then Andrew, outsourced the manufacture to Prodelin, Who knows for sure???? (outsourcing was a popular/common trend in those days)
    Think that's when attaching the arms to the perimeter of the dish began. Think the Channel Master made dishes, the arms fit into holes molded into the dish face at the edge. (what I think anyway - the only 'style' I've seen 'live')
    FYI: (as I know it) Since then Andrew (small dish division) and Raven Antenna have been acquired by Satellite Holdings LLC. dba Skyware Global

    Esquire122 likes this.
  17. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    623
    Likes Received:
    634
    Location:
    Riga

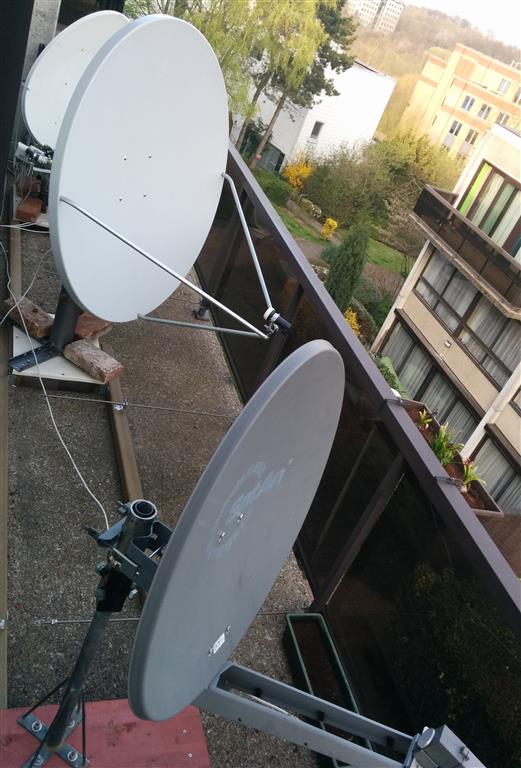

    That is my recent setup. Too tight on the balcony :(
    IMG_20150413_190250 (Large).jpg

    Esquire122 likes this.
  18. Esquire122

    Esquire122 Active SatelliteGuys Member

    Joined:
    Apr 10, 2015
    Posts:
    22
    Likes Received:
    15
    Location:
    Alabama
    Yes...I didn't notice it before but at the top, on the back in the mold plastic, it states:
    Channel Master
    Part No. 3040711
    Mold No. 1.8m-1
    Made in the USA
    There is still a white sticker next to this "in the mold" label with the numbers "9384" (inspection sticker/mfg date maybe?)

    Respectfully,
    Esquire

  19. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,387
    Likes Received:
    641
    Location:
    85w
    Here are some of my pics.


    Attached Files:

  20. primestar31

    primestar31 SatelliteGuys Master

    Joined:
    Mar 15, 2005
    Posts:
    6,246
    Likes Received:
    2,260
    Location:
    Beta Omicron Delta III
    Admit it, you carry those in your wallet! lol... :everybodydance

  21. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,387
    Likes Received:
    641
    Location:
    85w
    Right next to my capital one card whats in your wallet? Those are the pics I see when I turn on my phone and to show people.




***
