pics of the dish farm...post yours too :)

Discussion in 'Free To Air (FTA) Discussion' started by Iceberg, Apr 7, 2008.

  1. Esquire122

    Esquire122 Active SatelliteGuys Member

    Joined:
    Apr 10, 2015
    Posts:
    22
    Likes Received:
    15
    Location:
    Alabama
    Greetings Everyone,

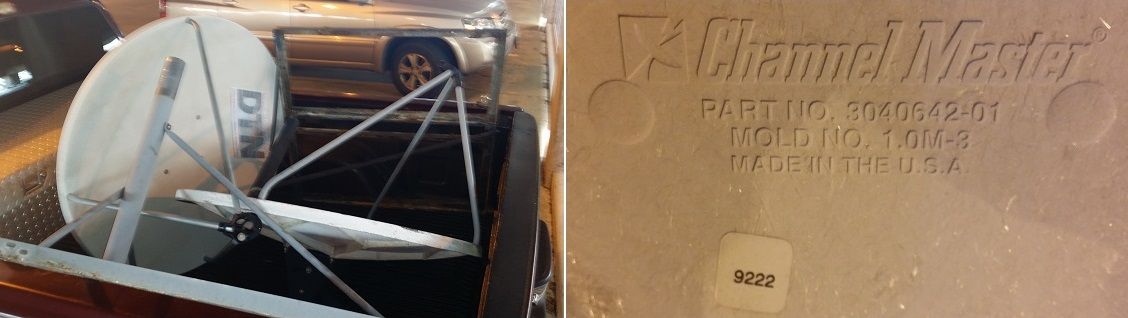

    I know it has been awhile since I have posted. I just scored these two antennas with gravity roof mounts.


    They were abandoned by a local agency and were slated to go to the dumpster. So, I volunteered to take care of that task. ;)
    Time to go download the manual and look at the dish specs.

  2. gpflepsen

    gpflepsen Supporting Founder
    Supporting Founder

    Joined:
    Sep 8, 2003
    Posts:
    3,259
    Likes Received:
    252
    Location:
    SE NE
    Great find, great dishes.

    Sent from a phone, probably while I'm driving over the speed limit through a school zone with construction workers present.

  3. armadillo_115

    armadillo_115 SatelliteGuys Pro

    Joined:
    Jun 10, 2015
    Posts:
    1,127
    Likes Received:
    818
    Location:
    Cana Va

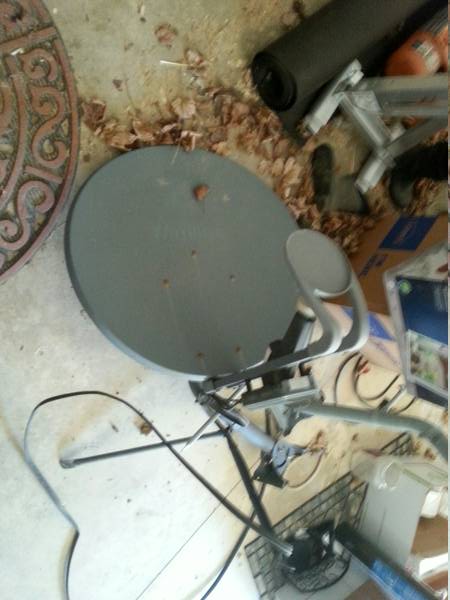

    Not in my 'dish farm' but I happened across this while searching Craigslist nation wide.Didn't want to start a new thread.Wonder what it was used for? Sorry pic quality is poor.

  4. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    652
    Likes Received:
    680
    Location:
    Riga
    This is antenna for tooway internet, however could also be used for reception of SAT signals only

    armadillo_115 likes this.
  5. Iceberg

    Iceberg Topic Starter The No Pain Train
    Supporting Founder

    Joined:
    Nov 17, 2003
    Posts:
    0
    Likes Received:
    32
    Location:
    The Lake House
  6. Jason S

    Jason S Ordinary Average Guy...
    Lifetime Supporter

    Joined:
    Aug 9, 2014
    Posts:
    764
    Likes Received:
    463
    Location:
    SE Kansas
    This is part of my farm. It's a Wild Blue internet dish with the TX/RX removed and an LNBF substituted for use on 30W.


    Titanium, FTA4PA and armadillo_115 like this.
  7. gpflepsen

    gpflepsen Supporting Founder
    Supporting Founder

    Joined:
    Sep 8, 2003
    Posts:
    3,259
    Likes Received:
    252
    Location:
    SE NE
    So, how many reflections until the signal is degraded to a noticeable degree?

    Sent from a phone, probably while I'm driving over the speed limit through a school zone with construction workers present.

    Titanium likes this.
  8. Jason S

    Jason S Ordinary Average Guy...
    Lifetime Supporter

    Joined:
    Aug 9, 2014
    Posts:
    764
    Likes Received:
    463
    Location:
    SE Kansas
    Polgyver has done some tests of reflections and long focal points, here is one thread: Receiving FTA signal after double reflection

  9. Titanium

    Titanium AI6US
    Lifetime Supporter

    Joined:
    May 23, 2013
    Posts:
    5,283
    Likes Received:
    4,435
    Location:
    Meadow Vista, Northern California
    There is no signal loss with this design based on a Gregorian sub reflector. In this case, the Gregorian type mount is used to place the tria in a more suitable location, shorten the length of the support arms and reduce the materials needed to support the heavy feedhorn mounting platform.

    Jason S likes this.
  10. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    652
    Likes Received:
    680
    Location:
    Riga
    In fact, Gregorian system perform up to10% better than simple PFA or offset dish. It also reduces X-pol and eliminated side-lobes. That is a beauty of Gregorian system. :)

    Hockeynut, Jason S and Titanium like this.
  11. Esquire122

    Esquire122 Active SatelliteGuys Member

    Joined:
    Apr 10, 2015
    Posts:
    22
    Likes Received:
    15
    Location:
    Alabama

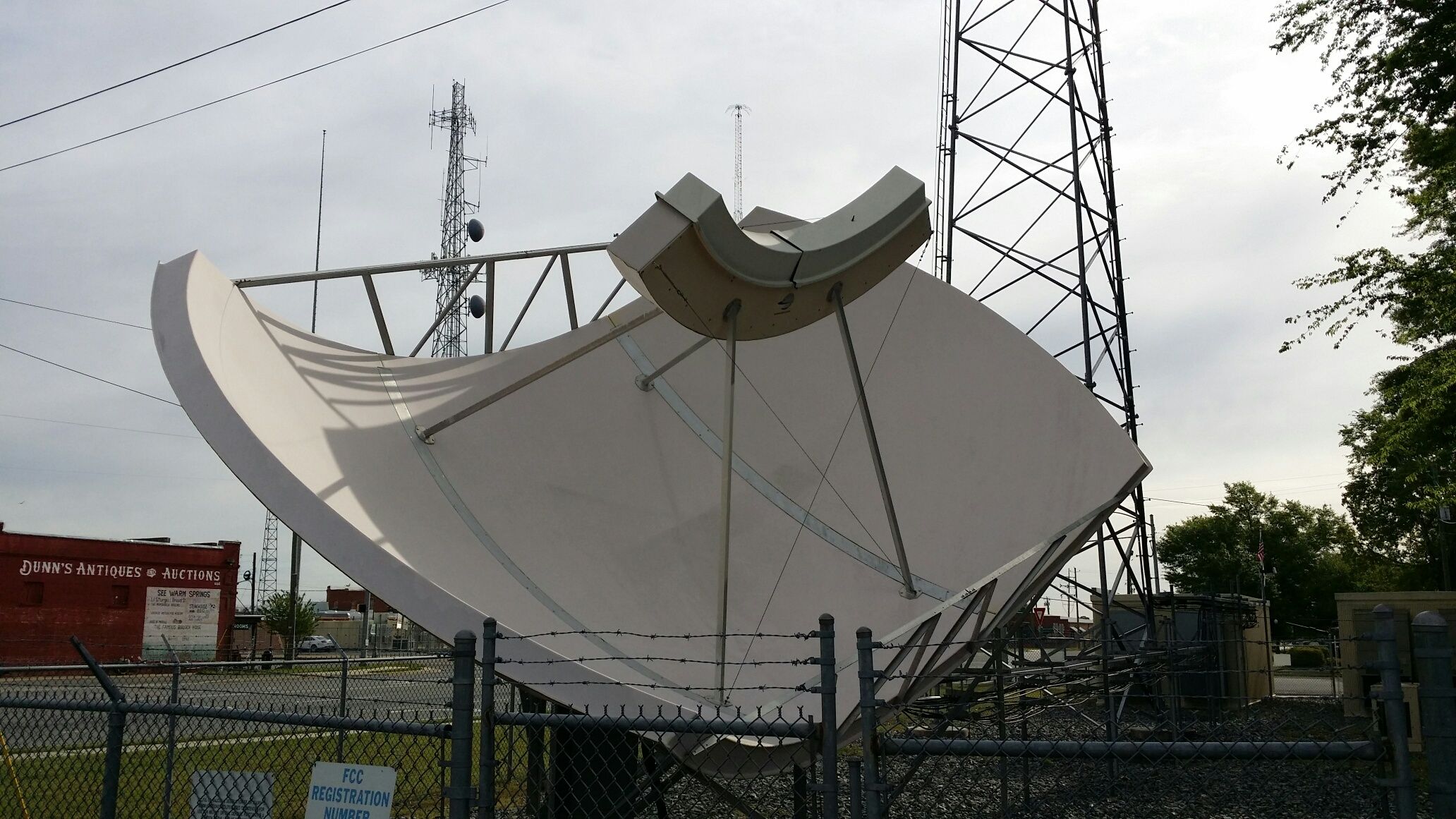

    I was out of town this past weekend and when traveling through Georgia, I saw this dish.
    It even has the old FCC registration number to prevent interference from other 4ghz users.
    If you only have room for one dish, I guess you would go for this wide arc one.

    Respectfully,
    Esquire


    Attached Files:

    hank123, fred555 and FTA4PA like this.
  12. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    652
    Likes Received:
    680
    Location:
    Riga

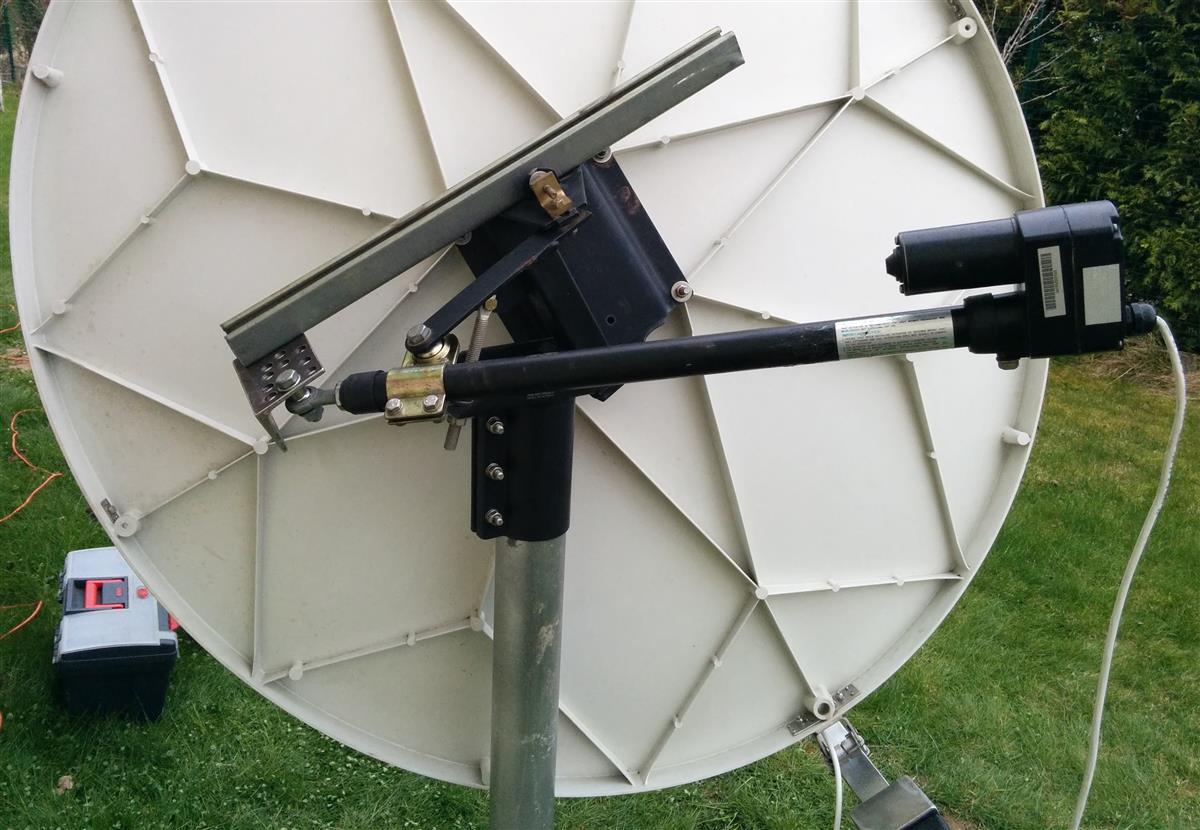

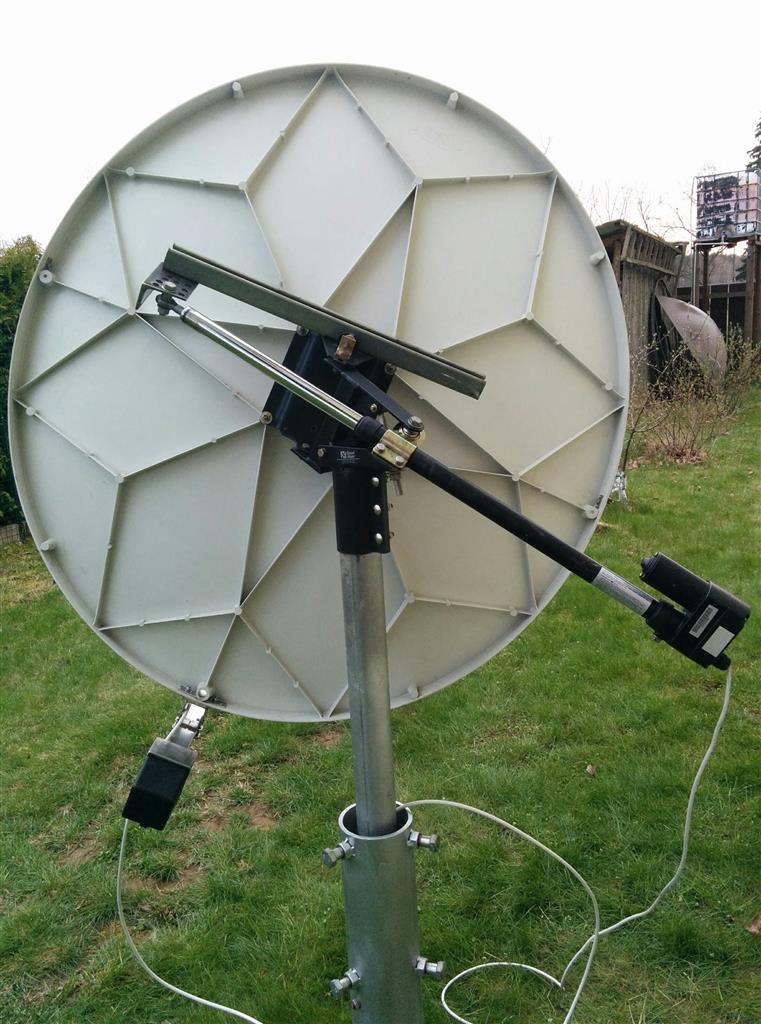

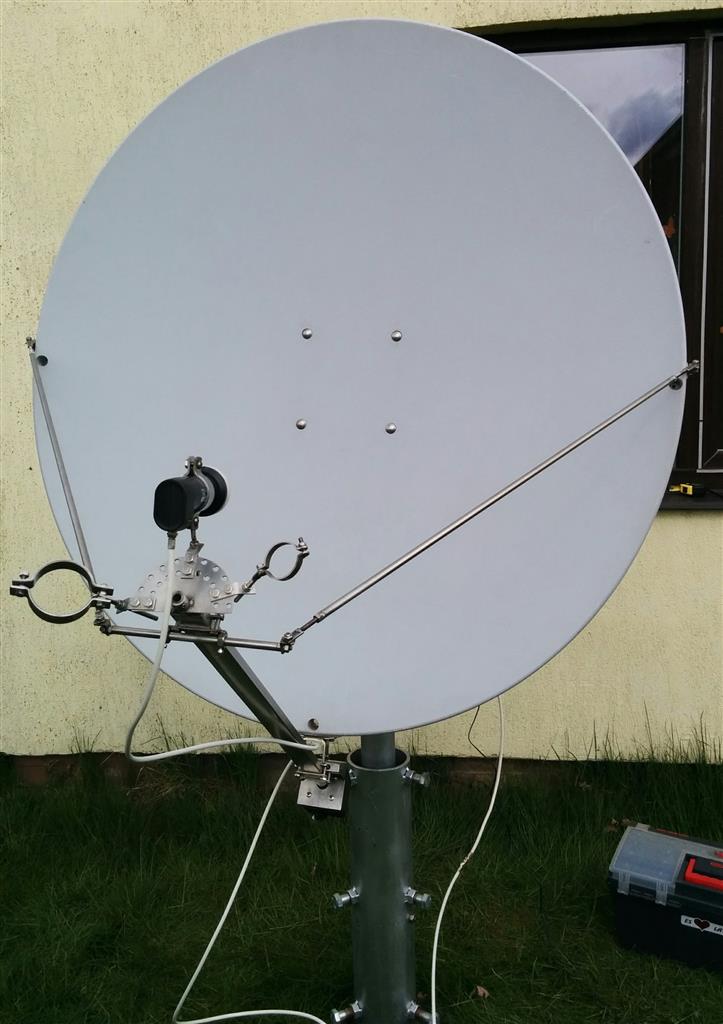

    There is my CM 1,2m polar-mounted dish taking arc 90*E-30*W. Currently is only Ku-band, but C-band will be added soon. Setup is not finished yet. IMG_20160425_121344 (Custom).jpg IMG_20160425_201206 (Custom).jpg IMG_20160425_201403 (Custom).jpg

    Hockeynut, Titanium and Trust like this.
  13. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    652
    Likes Received:
    680
    Location:
    Riga

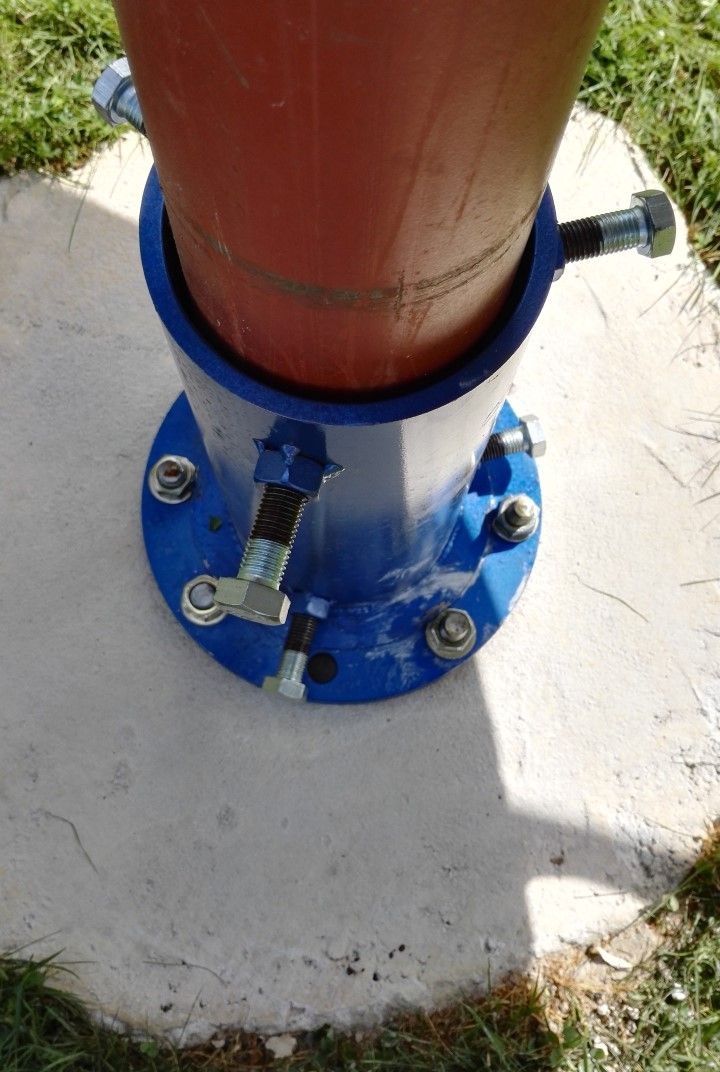

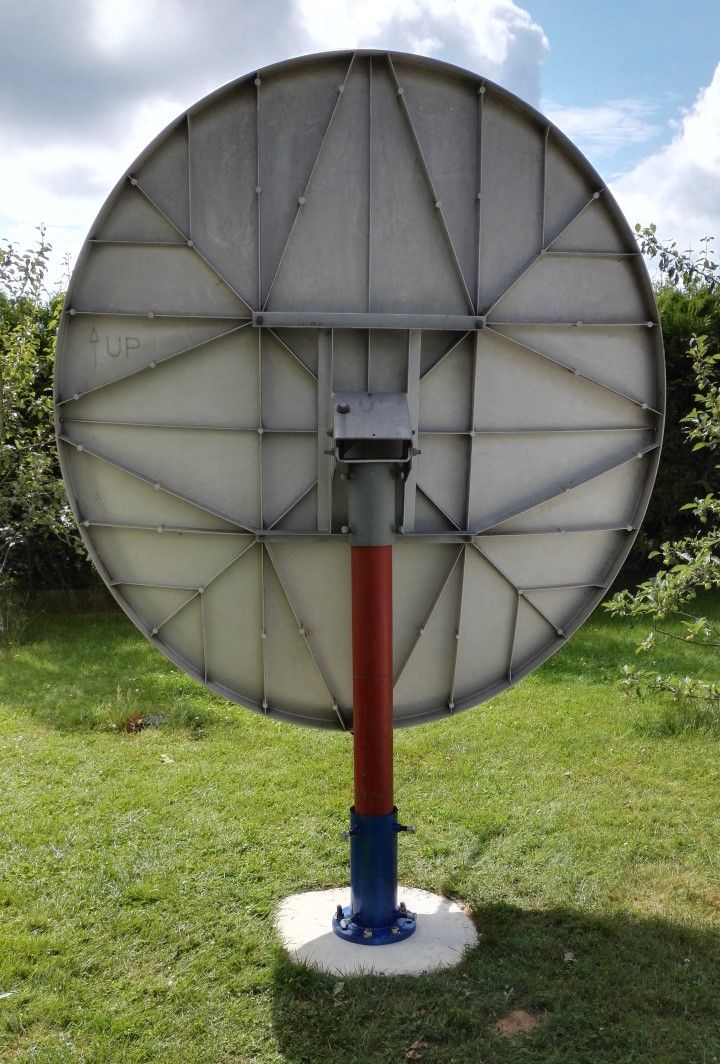

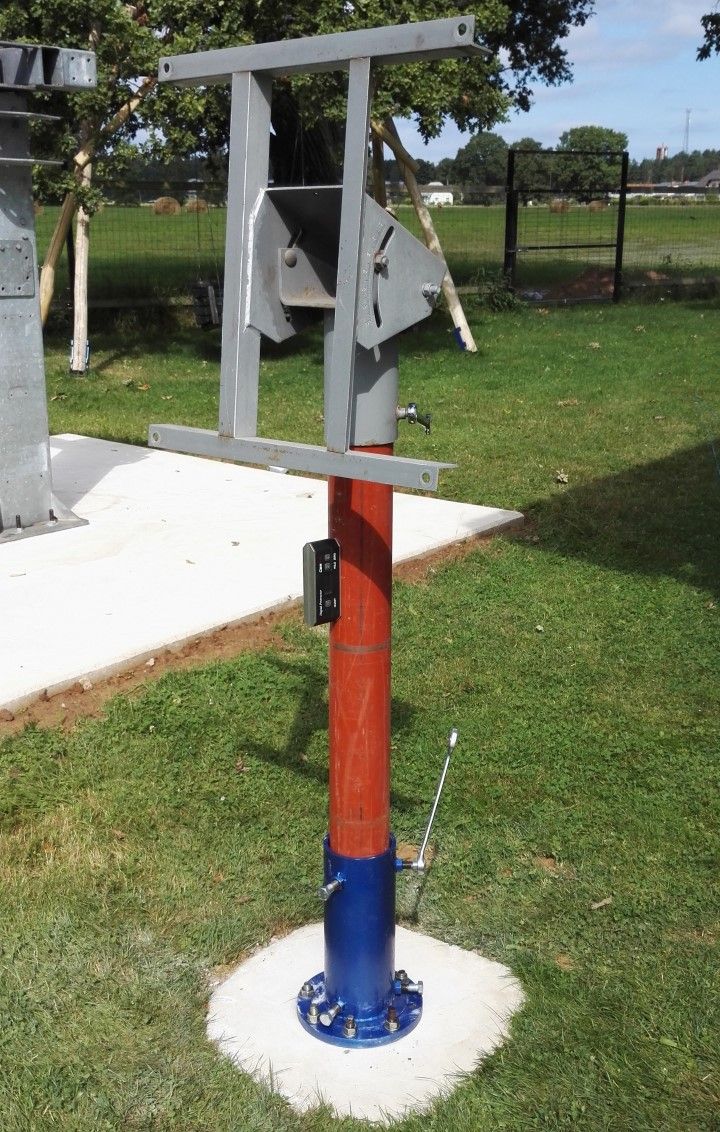

    Have installed this CM 1,8m dish today. As usually, setup is not finished. :(
    IMG_20160729_111213 (Custom).jpg IMG_20160729_114017 (Custom).jpg IMG_20160729_114032 (Custom).jpg IMG_20160729_114100 (Custom).jpg

  14. KennyR

    KennyR SatelliteGuys Family

    Joined:
    Sep 17, 2010
    Posts:
    106
    Likes Received:
    59
    Location:
    W W WV

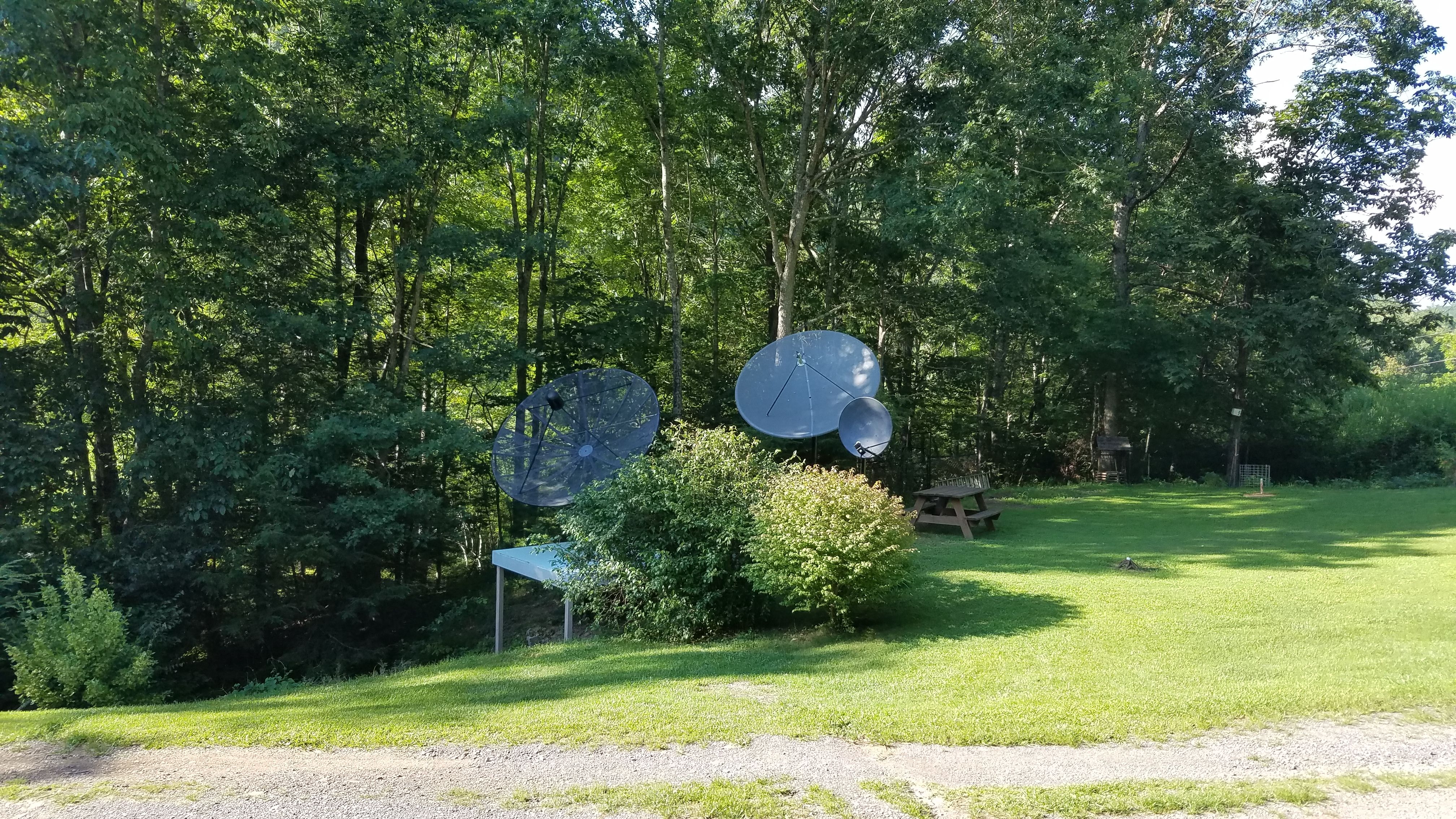

    My current setup. 20160730_175943.jpg

    iBoston, dougruss, migold and 3 others like this.
  15. kittyhas1000legs

    kittyhas1000legs That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,266
    Likes Received:
    611
    Location:
    Western Slope, CO

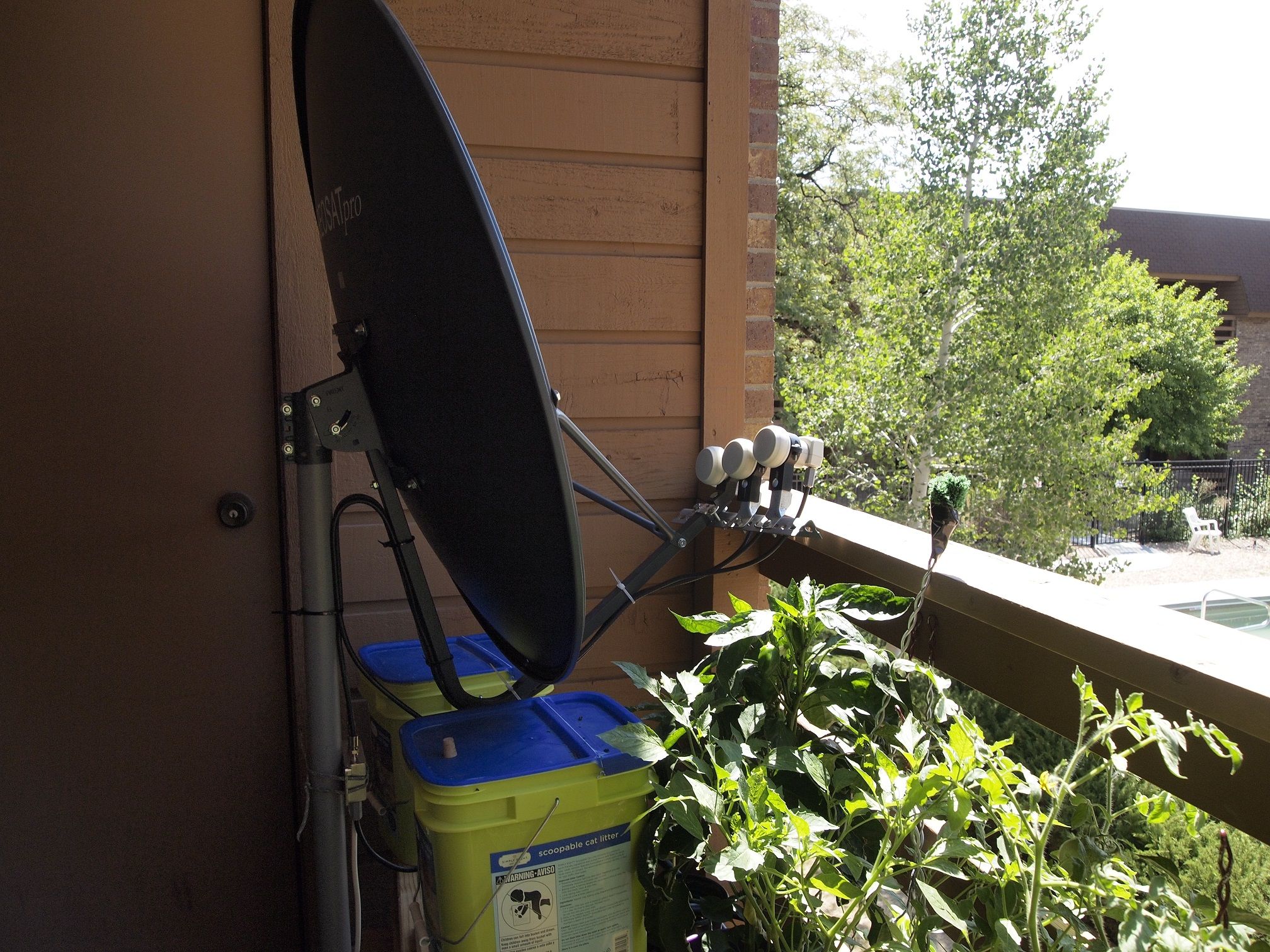

    The balcony farm is pretty crowded. There's barely any room for the dish!
    1 bell pepper, 1 tomatillo, 3 different tomatoes, and 4 eggplant. The cat litter buckets serve as a makeshift drip irrigation system (which might be a little TOO drippy, but that's what the cork is for.) The dish is finally set to reliably receive 103W (boresight), 97W, and 91W. Under the table I have an RCA VHFlo/hi/UHF antenna hiding.


    balc.jpg deesh.jpg

    iBoston, FTA4PA, danristheman and 4 others like this.
  16. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,459
    Likes Received:
    705
    Location:
    85w
    Nice Job on your setup Kitty.

  17. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    652
    Likes Received:
    680
    Location:
    Riga

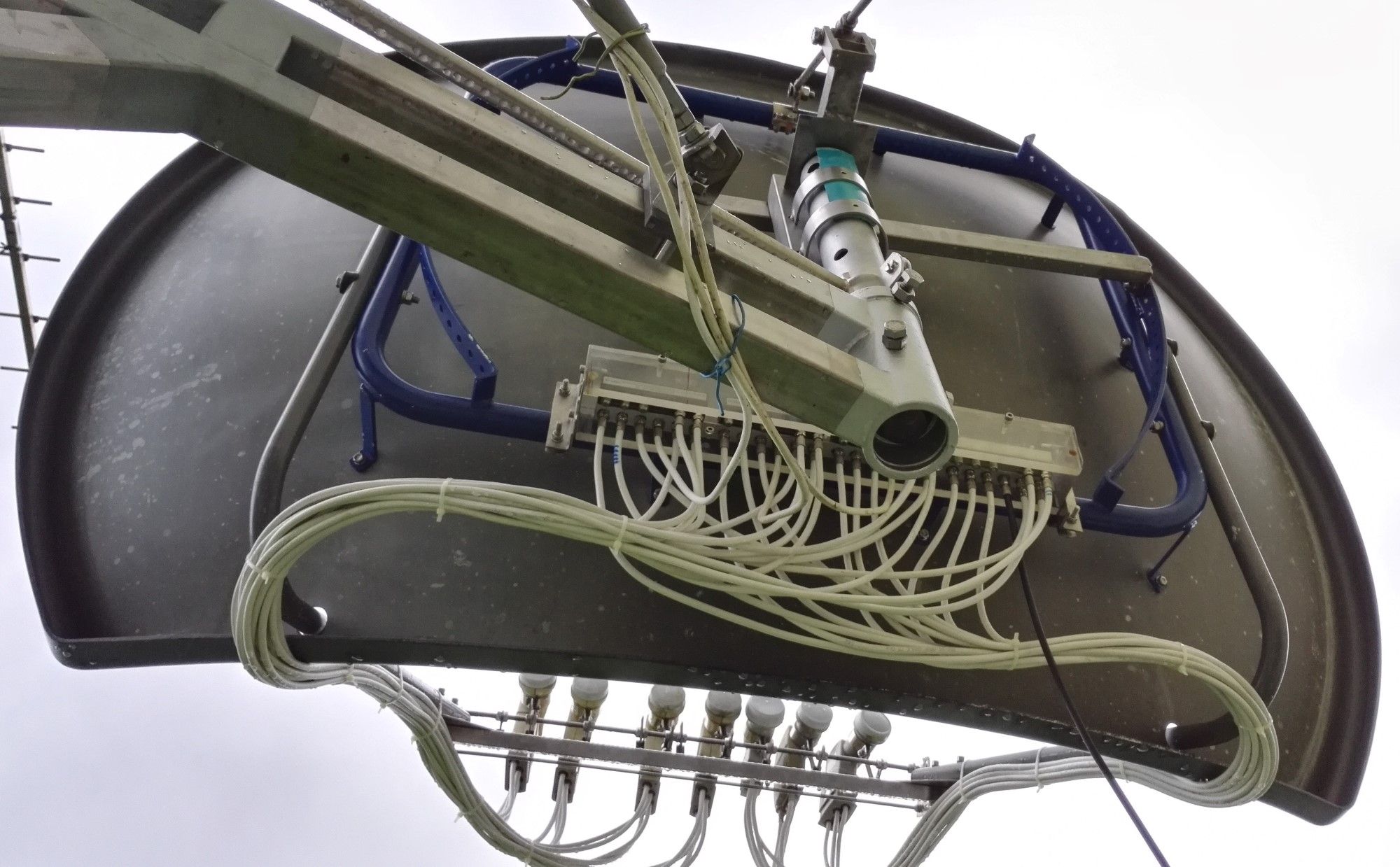

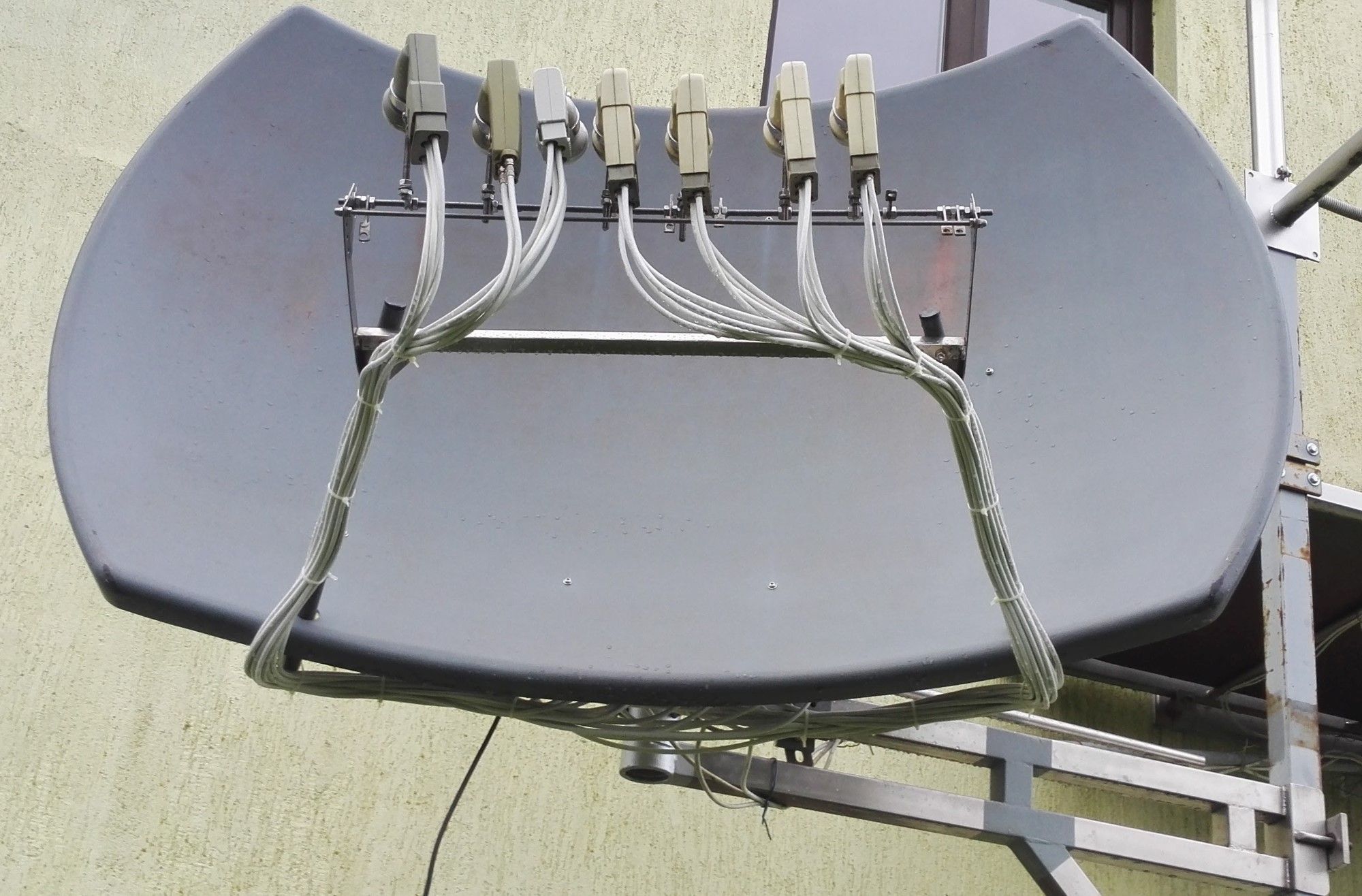

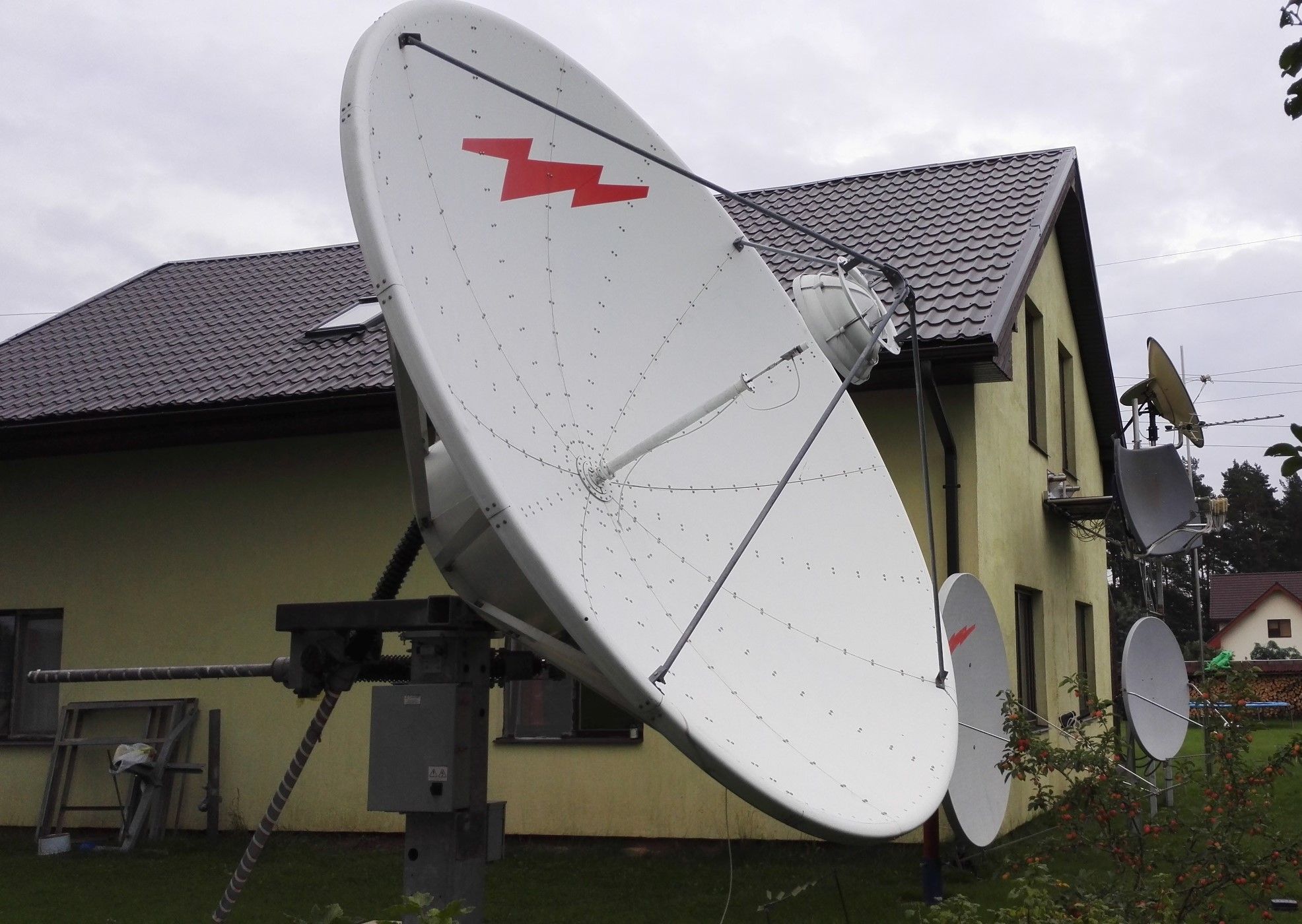

    Finished installation of old (but good) Swedish dish SMW-OA-1600. Tuned it to 7 satellites with Quad LNBs. Doing cabling was fun , still have sore fingers :coco. IMG_20160903_192901 (Custom).jpg IMG_20160903_192918 (Custom).jpg There is picture how my farm looks right now IMG_20160903_192338 (Custom).jpg

  18. Tylorert

    Tylorert SatelliteGuys Family

    Joined:
    Sep 14, 2016
    Posts:
    115
    Likes Received:
    12
    Location:
    Grayeslake
    Hows the rain fade?

  19. Wescopc/KI7OZM

    Wescopc/KI7OZM SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Sep 11, 2005
    Posts:
    1,767
    Likes Received:
    66
    Location:
    Canby, Oregon
    No problem.
    Bob

  20. Tylorert

    Tylorert SatelliteGuys Family

    Joined:
    Sep 14, 2016
    Posts:
    115
    Likes Received:
    12
    Location:
    Grayeslake


***
