Pointing a dish regarding the building wall direction

Status
Please reply by conversation.
polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto
This might be useful for newbies to this hobby. Turning the dish on its mast, sweeping the horizon by 15 - 20 degree or more, is time consuming. The dish pointing could be done faster if the direction could be pre-determined, by using a good compass. If there is no compass, then usage of www.dishpointer.com should be helpful, with 2 satellite azimuth comparison and little math.
As an example, there is description of pointing the dish to popular bird, 97 W, in Toronto, whose streets do not run parallel to geographical coordinates.

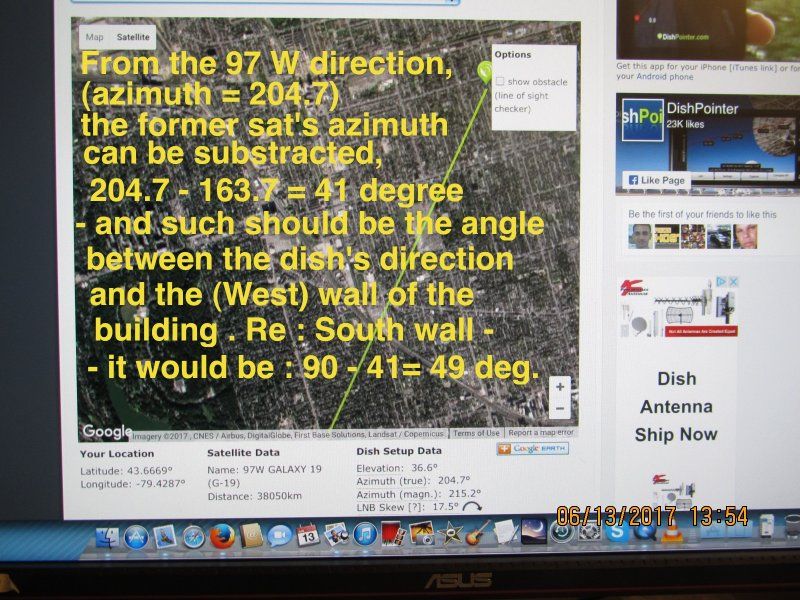

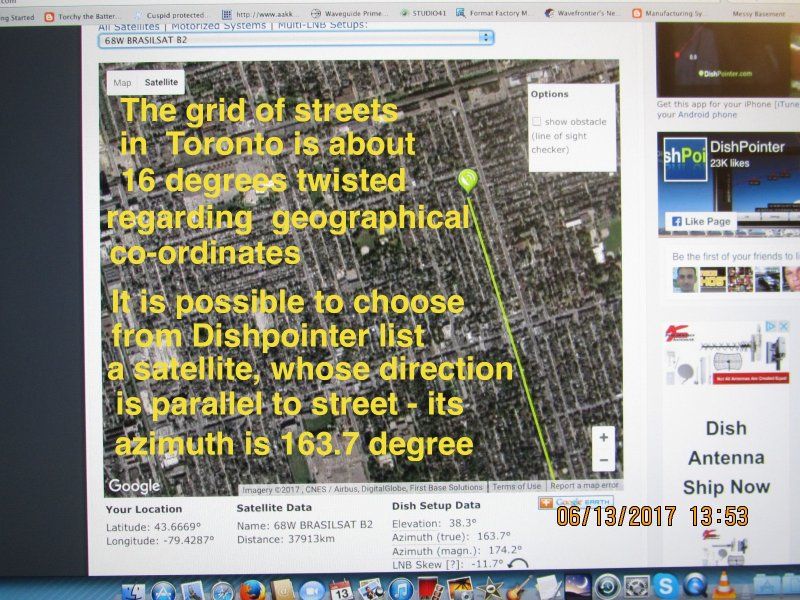

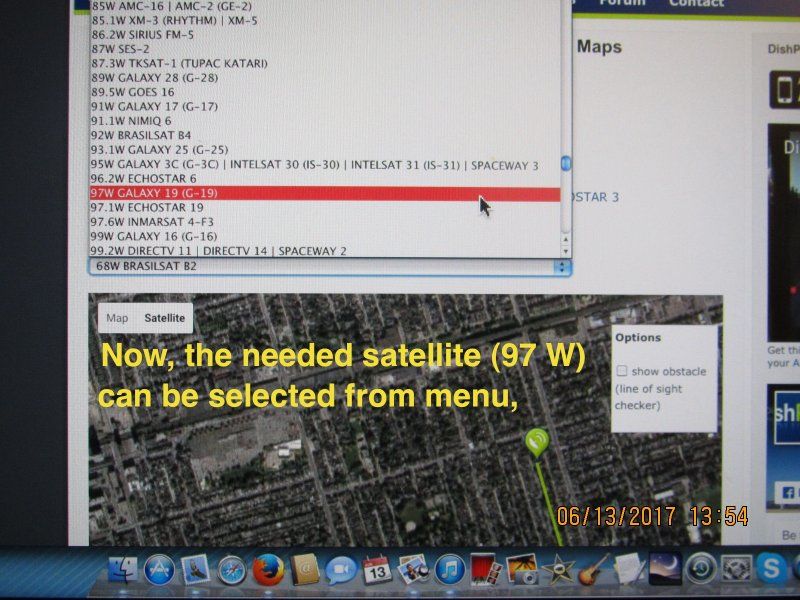

Three annotated pictures follow:


Attachments

  • IMG_4741.JPG
    130.7 KB · Views: 211
  • IMG_4742.JPG
    97.2 KB · Views: 193
  • IMG_4743.JPG
    126.7 KB · Views: 176
kittyhas1000legs

kittyhas1000legs

That's a lot of claws!
Pub Member / Supporter
Aug 8, 2012
1,696
1,402
Western Slope, CO
That's one thing I like about the city that I moved to. All the streets are north-south or east-west, and my balcony faces due south. Setting up my motor was far easier than I expected. Fine tuning it, on the other hand....

  • Like
Reactions: polgyver
polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto

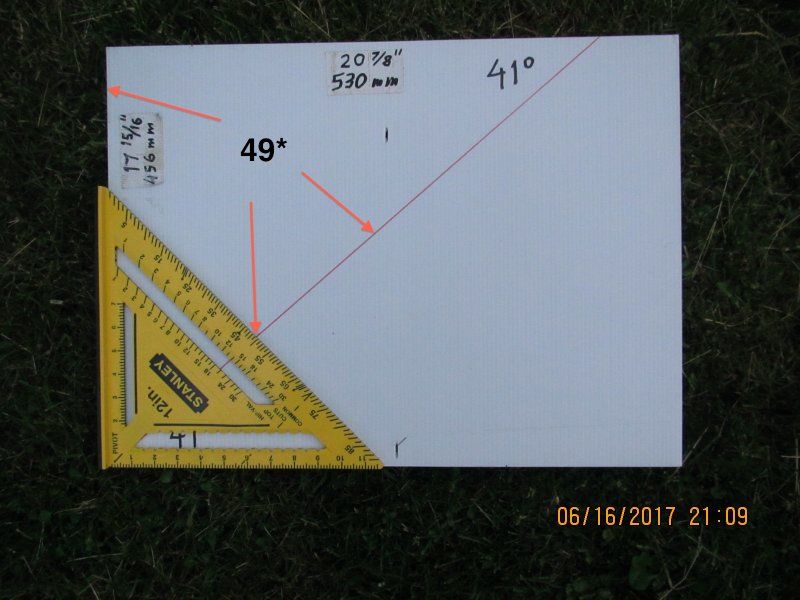

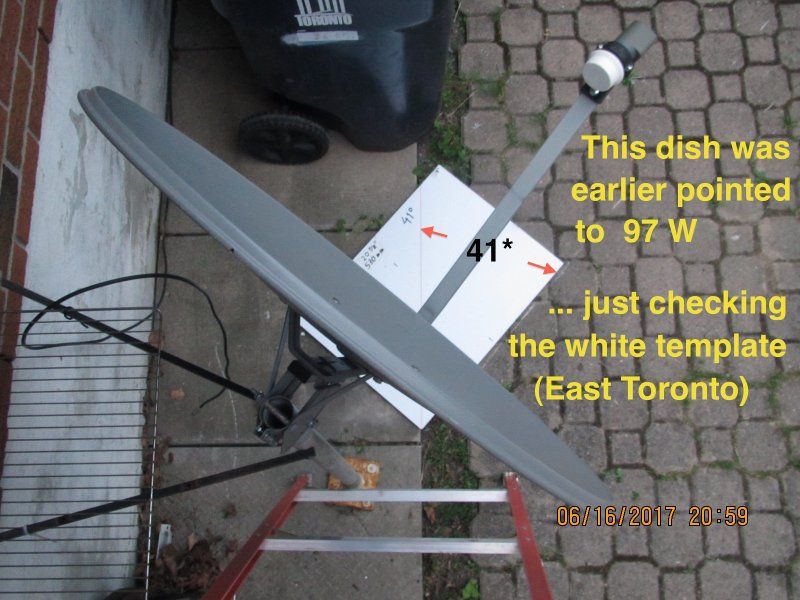

Yesterday I made a template and checked it with the dish in my backyard (angles seemed OK).
Today I used the template for installation of dish at customer's place (40 km West of my place).

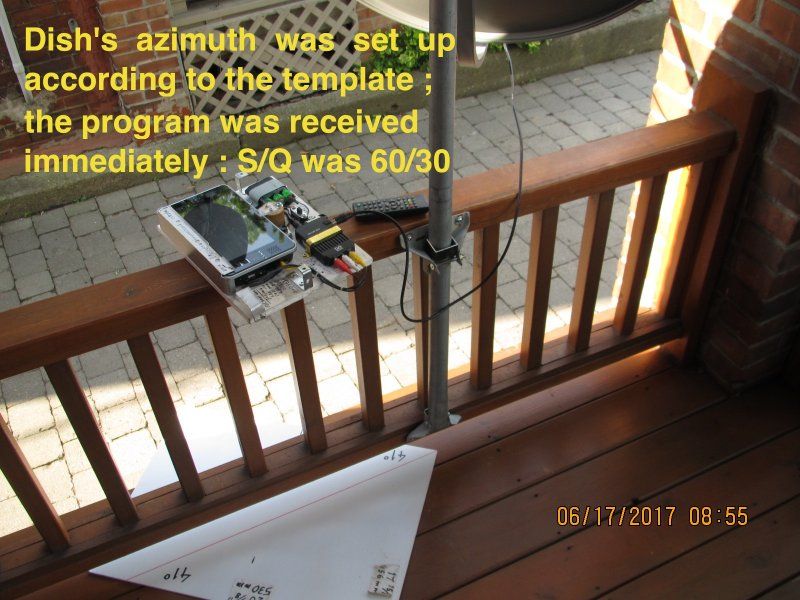

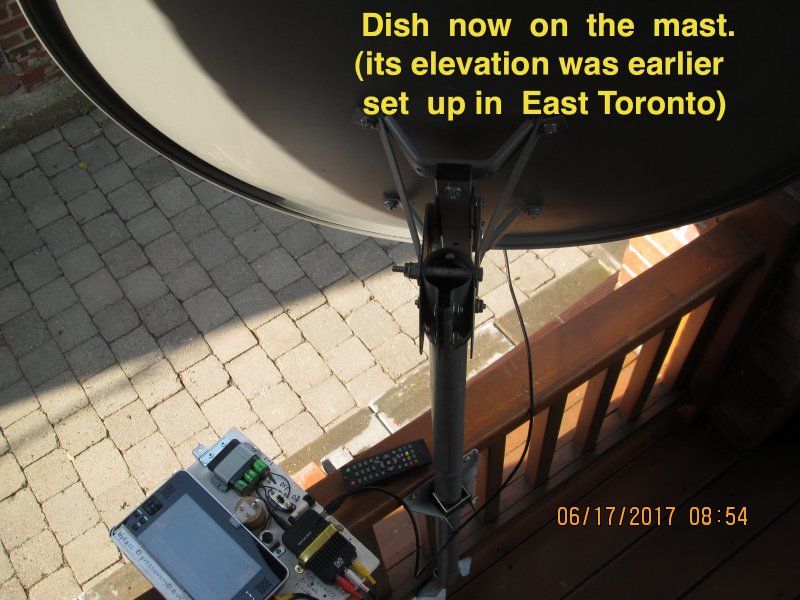

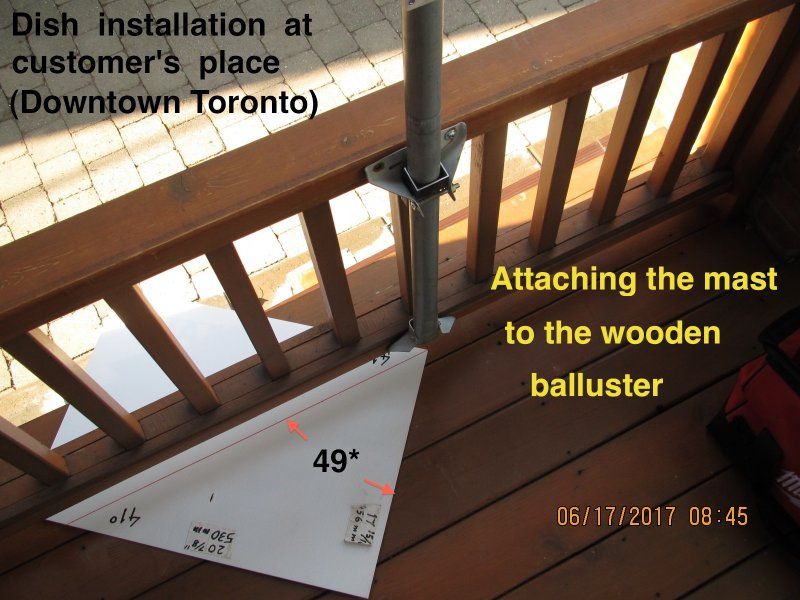

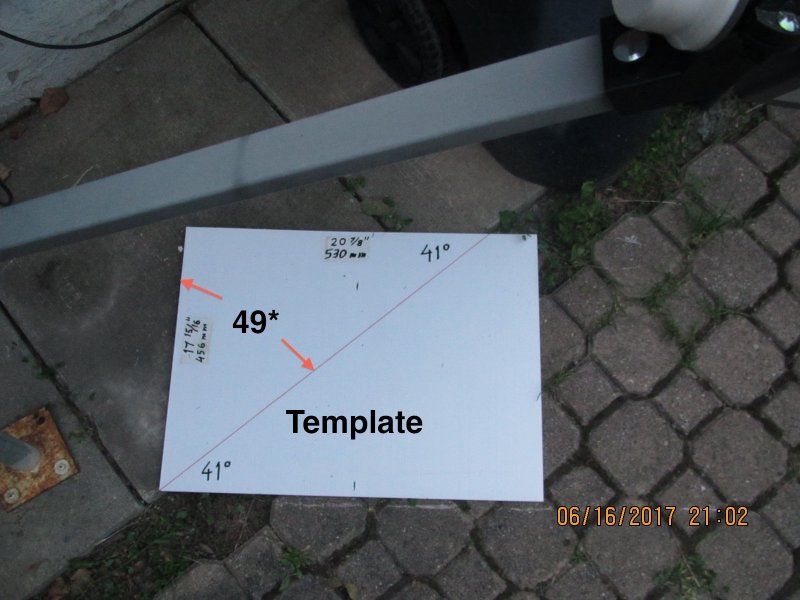

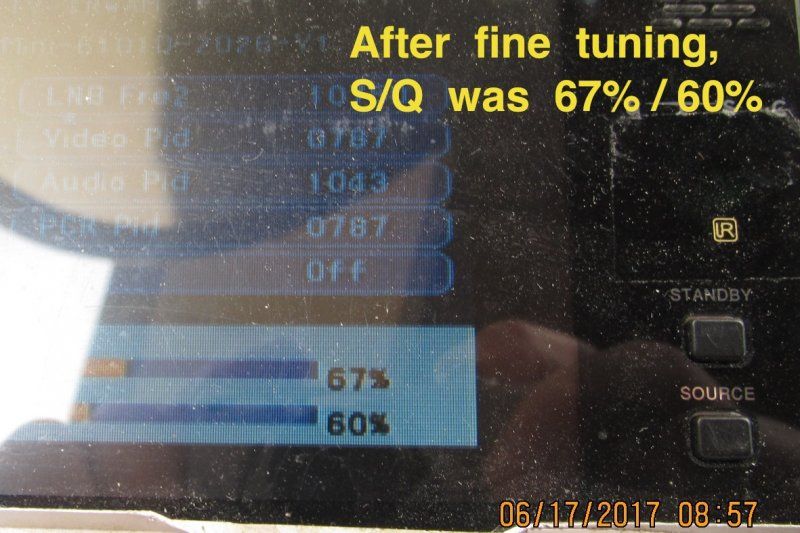

Annotated pictures have more info :

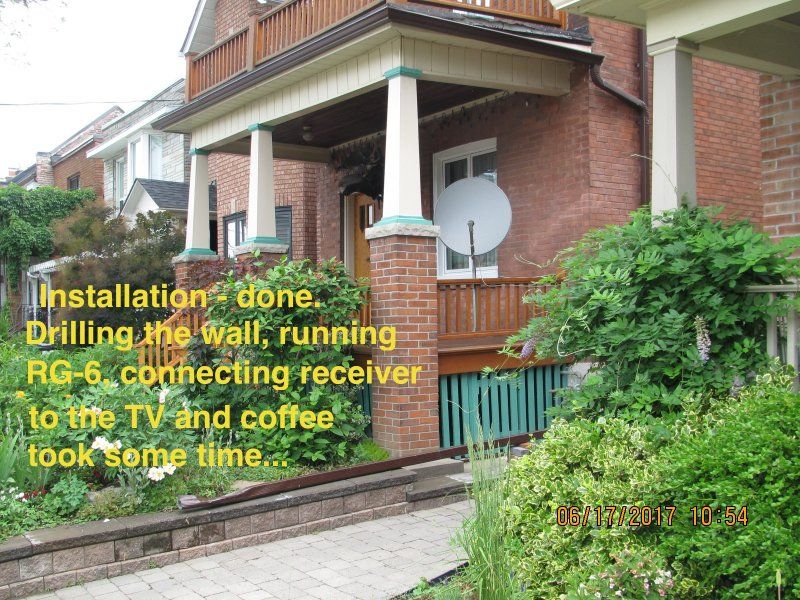

IMG 4754 IMG 4756 IMG 4759 IMG 4762 IMG 4763 IMG 4765 IMG 4767 IMG 4769
