Pointing a Slimeline 3 swm

Discussion in 'DIRECTV Support Forum' started by Harpoon1, Jul 26, 2018.

  1. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    I'm new to this forum so please excuse my lack of knowledge! I have the following equipment:

    Slimline SWM 3 ONE output
    HR24 receiver

    I have tried everything under the sun to point this dish and get a connected with no success. I have spent hours looking at the meter on the receiver and get all 0's. I have leveled the pole so many times I'm starting to dream about levels. I even bought an AIM 1.5 meter and still can’t get it done - that's how bad I am at this!!

    I’m in the Dallas area so it tells me to point as follows:
    Az - 183
    El -51
    Tilt - 84

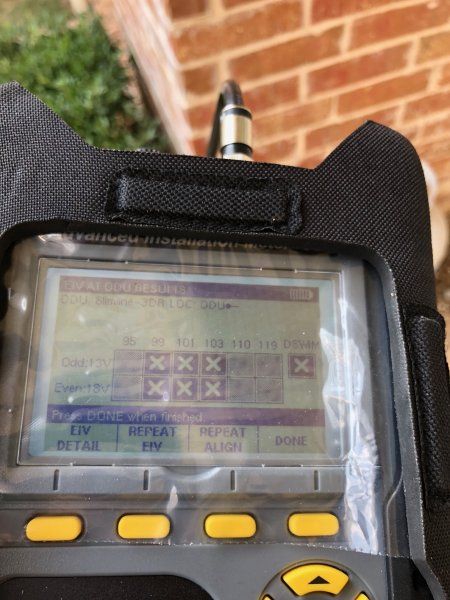

    I start there and adjust Az to get strongest signal then adjust elev for the same. I have even had the signal "lock" on the meter (had the signal in the -32dBm range) but when I run the EIV I get all X's. See attached picture.

    I have pointed non HD dish with great success but this one is getting the best of me. I have not idea where to go from here so any help would be greatly appreciated.


    Attached Files:

  2. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    :welcome to Satelliteguys Harpoon1!
    Did you connect a power inserter in line? Is the mast plumb?

  3. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    When I connected to the receiver I used a power inserter. When I used the AIM meter I did not as I believed the meter would power the LNB. I did plumb the mast.

  4. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    Did you use the bubble in the mast? They can be unreliable. I prefer using a post level. I'm assuming you have a clear line of sight.

  5. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    Yes, I used a magnetic level on front and side and I do have a clear line of sight.

  6. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    Three words then, patience, patience, patience. Are you using the red line on the bracket to note the elevation setting?

  7. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    There are numerous cell phone apps that can help locate the satellites. SatelliteAR is a good one.

  8. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    Yes, I’m using the red line.

    raoul5788 likes this.
  9. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    The skew setting should have the dish close to vertical. Is that the case?

  10. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    I thought the AIM meter was supposed to be the gold standard.

  11. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    That's the meter that's used inline. The app is to show the approximate location of the satellites in the sky on your phone.

  12. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    It’s at 84 which is what the stats called for.

  13. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    Just covering the bases. The skew settings can be confusing sometimes.

  14. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    Ok, thank you

  15. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    Ok, some success. I’m now getting check marks on satellite 101 but X’s on 99 and 103. If 101 is coming in, is it a skew adjustment to get 99 & 103?

  16. Jimbo

    Jimbo SatelliteGuys Master
    Lifetime Supporter

    Joined:
    Jul 14, 2005
    Posts:
    59,456
    Likes Received:
    2,169
    Location:
    NW Ohio - Buckeye Country
    Normally, provided the 101 numbers are where they need to be.

  17. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    26,065
    Likes Received:
    8,715
    Location:
    Cheshire CT
    Could be. Are the numbers on 99 and 103 about the same? What signal strength numbers are you getting on all sats and transponders? Don't worry about 99s and 103s.

  18. Claude Greiner

    Claude Greiner SatelliteGuys Master
    Supporting Founder

    Joined:
    Sep 8, 2003
    Posts:
    11,401
    Likes Received:
    2,434
    Location:
    Detroit - The Paris of the Midwest
    Dish could likely be bent....Really!

    If your using an AIM meter, you should be able to get the alignment perfect every time.

    I have had situations where I dropped the Dish, did everything right and not be able to align it after 20 mins. Went and got a new Dish and had it lined up in a few minutes.

    For this very reason I won’t buy any used dishes anymore.

    Unless I took the dish down myself, I won’t use it.

    99/103 are so dam sensitive, the slightest warp will prevent you from getting a good signal.

    dfergie and dishrich like this.
  19. Claude Greiner

    Claude Greiner SatelliteGuys Master
    Supporting Founder

    Joined:
    Sep 8, 2003
    Posts:
    11,401
    Likes Received:
    2,434
    Location:
    Detroit - The Paris of the Midwest
    No!

    If your mast is 100% level, then set the skew and forget it.

    Keep in mind 101 was designed for use with KU band signals on an 18 inch Dish.

    When using a slimline your using a 30 inch dish to get the sane signal.

    So of course it’s going to be easier to get.

    Level your mast

    Set your skew

    Set the elevation roughly

    Move dish from east to west till aim meter locks.

    Get 1/2 wrench and adjust the fine elevation bolt to get the lowest negative dB level as possible.

    Bump Dish slightly to east and west to check to see if you can get a lower negative dB signal.

    Once you think you got it locked, with your index finger pull back ever so slightly on the top and left and right sides of the dish to see if you can get a better signal.

    Run EIV test

    Lock down if everything passes, or slightly adjust the alignment.

    After you lock everything down, Run EIV test again.

    If your using a used Dish, it could be bent if your not getting a lock.

    dfergie and Jimbo like this.
  20. Harpoon1

    Harpoon1 Topic Starter Member

    Joined:
    Jul 26, 2018
    Posts:
    10
    Likes Received:
    6
    Location:
    Dallas
    Finally success!!!

    Amazing advice from everyone, thank you! Here were my lessons learned:

    1) getting that mast level is the absolute key. It’s everyone’s first advice for a reason. My problem was I would get the mast level then when I put the heavy dish on and adjusted it would move off center. Finally got small magnet levels that I could use on the actual dish bracket and leveled with the dish on.

    2) I had a restriction that was blocking the dish pointing in the optimal direction. The satellite pointer app as recommended above really helped. I struggled with your basic compass getting consistent results.

    3) Once I learned the dithering process I really got to a good reading.

    Thanks again for all of the great advice.

    HIFI, raoul5788, Jimbo and 1 other person like this.
