Prodelin with multiple LNBFs

[Corrado]

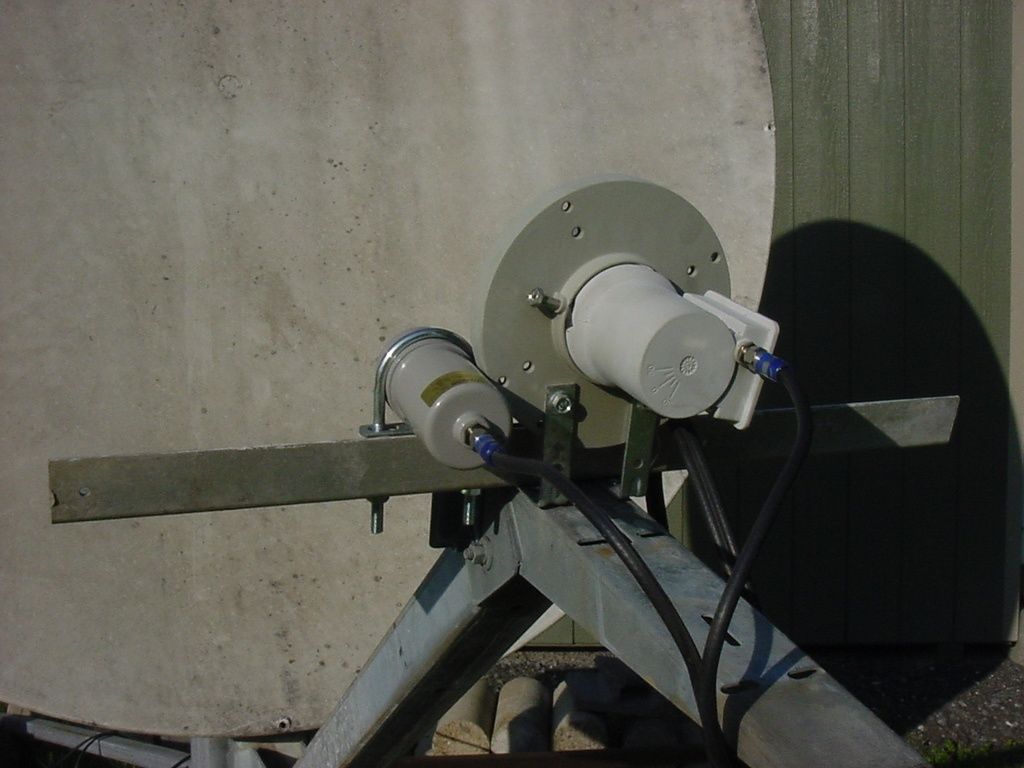

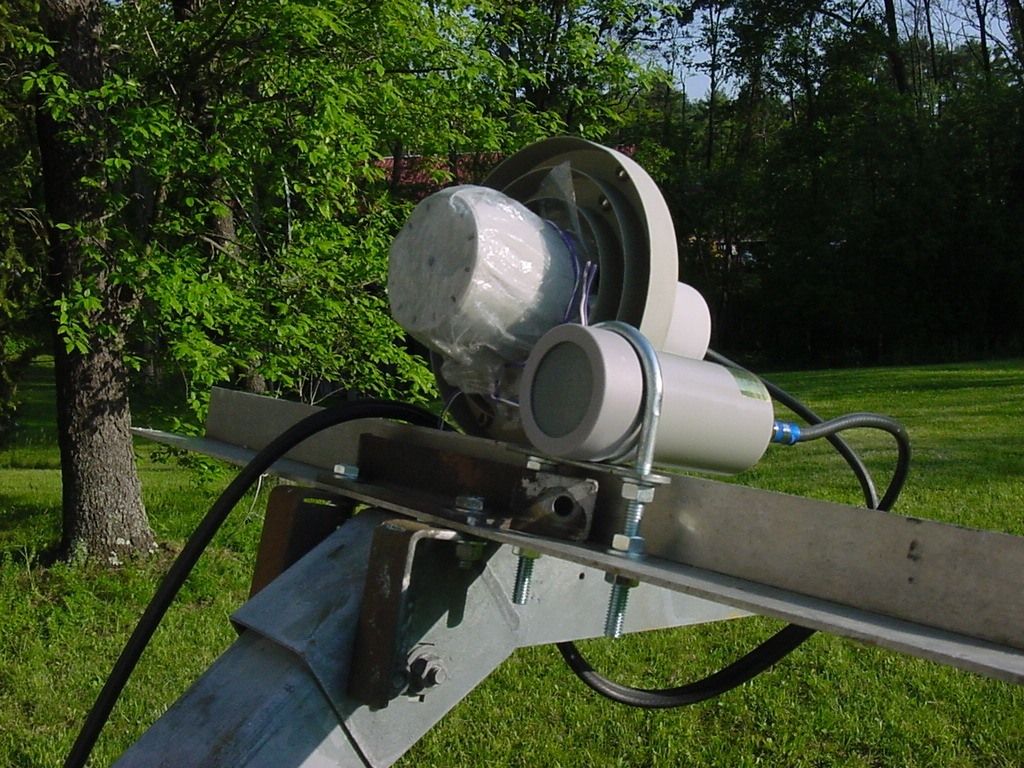

After one year of using my 6' Prodelin dish only for AMC18-105° for 4DTV, I decided to add another LNBF for AMC4-101° to my homemade bracket. I used hardware I had around and left room for future development.

The LNBF has a nice groove that fits the u-bolt perfectly and doesn't have a bulky case around it. I got some of them from Sadoun for projects like this. It gives 91Q on ku channels on 101° on a setup like this.

Thanks to Linuxman for the ideas from the thread how to receive the whole arc with fixed dishes.



[caddata]

Corrado:

Could you please post dimensions to locate and mount the CBand LNBF? I need from the top of the flat surface on the feed support strut up to to the centerline of the LNBF and the center of the dish to the center of the LNBF throat.

Thanks,
Harold



[Corrado]

The distance from the center of the dish to the face of the LNBF is 50". The height of the LNBF from the flat plate is 4.5" to the centerline of the opening. This setting seems to work best for C band.



[caddata]

Thanks for the info.

Harold



[Mr Tony]

very nice pics

kinda shocked you can get 4 degrees apart on that



[Anole]

Corrado - looks like you used the scalar to mount the C-band LNBF.
I found that a wise option, too.

Now, try another flat scalar in front of the first, slid well toward the dish.
There should be a sweet spot where the Q really blooms!

And of course, a conical scalar should work, but hopefully have a less touchy peak.



[cruzin]

Why couldnt you take a hole saw and put a hole in the scaler ring as close as possible to the c band lnb and get 2 degree apart sats?



[Mr Tony]

its probably possible. I was able to do 2 C-Band LNB's on a 6 footer by cutting the scaler ring on one side and get 4 degrees apart



[linuxman]

Nice work Corrado!!

I think you can get two C2s on there at 2 degrees apart.

I have a C2 at the center and a SL2 Ku at 2 degrees. I don't see why another C2 wouldn't work.



[cruzin]

what is a c2 is that a certain type? I think I may order some of those small ku lnbf s and try them on my 6' solid c band I am setting up. I just set up the c band on 99 and have another 1.2 dish with both 97 and 101. Maybe I can combine the all on the 6' solid c band dish.

Nice work Corrado!!

I think you can get two C2s on there at 2 degrees apart.

I have a C2 at the center and a SL2 Ku at 2 degrees. I don't see why another C2 wouldn't work.



[phlatwound]

what is a c2 is that a certain type?........

Satellite AV - Free to Air Satellite Equipment Distributors - Fortec Star, GEOSATpro, Glorystar - SatelliteAV, LLC.

Note that unit is a dual output, you could feed 2 receivers with it, or more if you sent it through a multiswitch.



[eurosport]

Satellite AV - Free to Air Satellite Equipment Distributors - Fortec Star, GEOSATpro, Glorystar - SatelliteAV, LLC.
Note that unit is a dual output, you could feed 2 receivers with it, or more if you sent it through a multiswitch.

Yep, I've got 3 DCII boxes running off one of these on my 7.5ft dish!



[Mr Tony]

Note that unit is a dual output, you could feed 2 receivers with it, or more if you sent it through a multiswitch.

so true. I have 3 of them set up
2 on a 4x4 multiswitch
1 on part of a 4x4 multiswitch

works like a champ...4 receivers running off of them
