I found a pic of a satellite mount which can drive full Clarke belt ( azimuth ). Do you guys have any idea what kind gearbox and chain drive they are using for this. I want to build this kind of mount for myself. Should be able to control via Titanium ASC1.


john_robot

Thread Starter
SatelliteGuys Pro
Feb 24, 2008
188
4

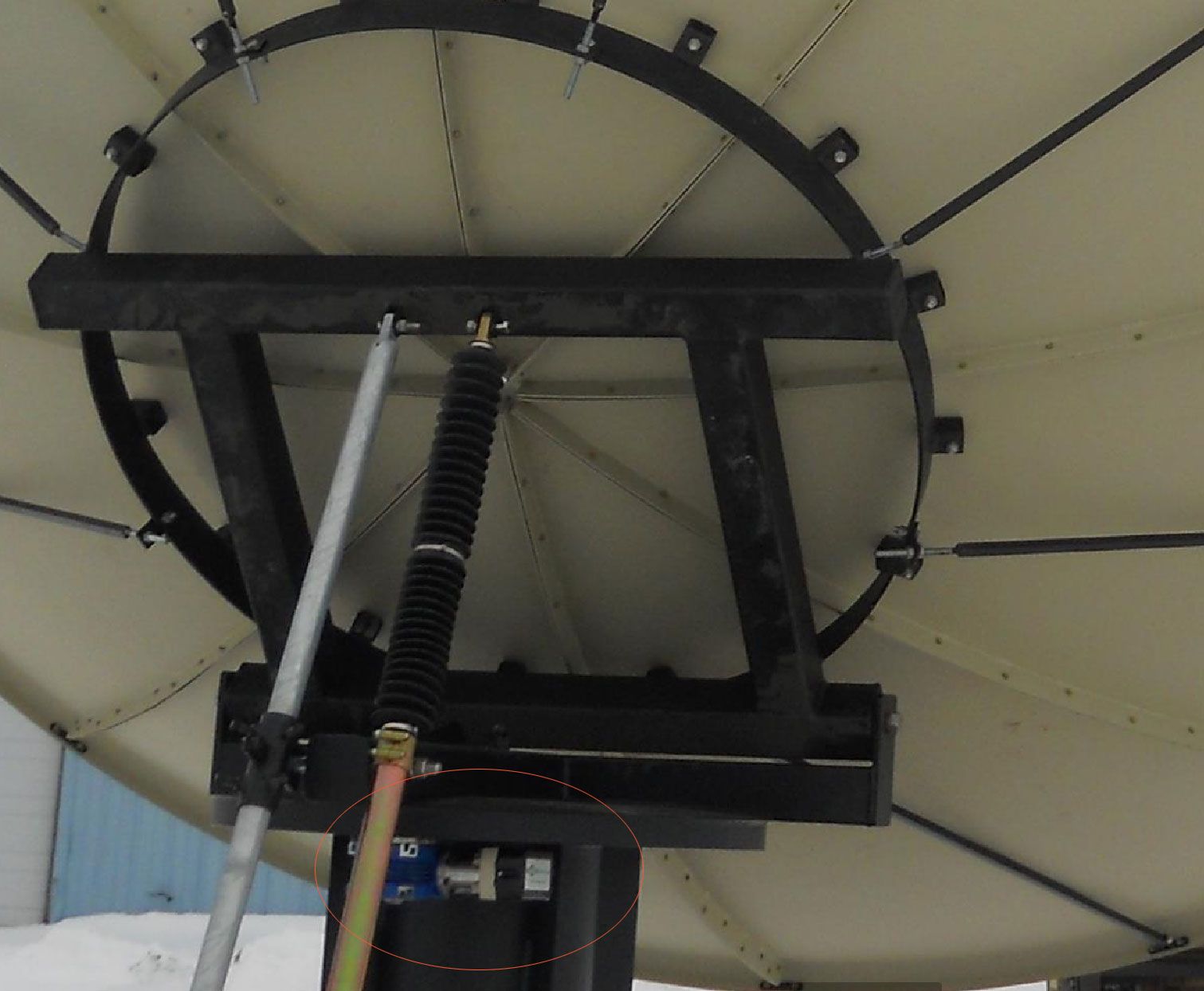

Sorry seems like something happened. I have attached it here again.



Bongu

FTA addict - suffering withdrawal since moving
Oct 20, 2010
647
64
Fort Worth 'burbs
Looks like a 2 axis control system to me. Elevation is controlled by the standard actuator and azimuth is controlled by the drive you have circled in red.


john_robot

Thread Starter
SatelliteGuys Pro
Feb 24, 2008
188
4
yeah right its a 2 axis mount. What kind of equipment's needed to built a such a mount? I know I need a 36 V 36" Inch Linear Actuator for the elevation . But not sure about azimuth .


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,199
8,133
Meadow Vista, Northern California
Should be able to use two 36" actuators and hinge the elevation and the az axis points..

The poor man two axis mount is a modified polar mount. Substitute the elevation bolt for a 12-18" actuator.

To control the two actuators, use two DiSEqC 1.2 controllers programmed to respond to the same receiver issued DiSEqC 1.2 "GoTo" command.

An alternative is to modify a polar mount with a sprocket attached by a chain to a DC motor to allow full rotation horizon to horizon.


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,199
8,133
Meadow Vista, Northern California
The ASC1 is a single axis controller, but as I suggested in the last post, two controllers can be synced to a single DiSEqC 1.2 command. A few guys use an ASC1 for polarity / AZ and a cheapo G or V box for elevation.


john_robot

Thread Starter
SatelliteGuys Pro
Feb 24, 2008
188
4
Tnx. I thought that ASC1 is a dual axis. Anyway I already have a RC2000 that I bought very cheap. Is there any specific type of DC motor that can track the movement with Pulse Sensor?
