My China superpack of MCX cables arrived Friday.

Bought a Hammond 1511 cast aluminum case at Fry's yesterday and will mill the ports for the upconvertor. Will leave space to probably eventually add the DVB-T tuner as well.

Yep same thing I wanna do. Right now it is just laying naked on the desk and working good for no shielding. :)

BTW the guys in CA are in and around ESCONDIDO, CA.


KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,629
5,888
EM75xb
My China superpack of MCX cables arrived Friday.

Bought a Hammond 1511 cast aluminum case at Fry's yesterday and will mill the ports for the upconvertor. Will leave space to probably eventually add the DVB-T tuner as well.
What are the dimensions of that case? Trying to find it at Fry's on-line.


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,140
8,023
Meadow Vista, Northern California
Oops, my bad. Bought the Hammond 1590B. Probably need to shave 1/16 off of each corner to give more wiggle room, but it fits like a glove! Will post some pixs of the completed project.



Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,140
8,023
Meadow Vista, Northern California
Not bad! Calibrated the upconvertor and the system was only 60ppm offset according to WWV on 15 and 20Mhz! Listening to active bands on 10 and 20 meters. Been a while since I have been in HF. Might just find motivation to get my amateur license again (gave it up years ago as Haiti made me surrender to receive a license down there).

Love looking at the DC spike! :D I don't have a long wire out, but am going to attach to a fence wire to see if there is any long wave from across the pond tonight! FUN!!!

Now installing HDSDR software to give that app a spin on HF. :D


primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
9,179
5,565
Beta Omicron Delta III
May I demonstrate my embarrassing and complete lack of knowledge on this topic? We had a listener to our AM station FAR away from us,
who posted around Christmas that they received us much farther than "normal" radios would allow, and said it sounded good (see attach)

Is it possible these types of radios are able to go 'where no radios have gone before" in terms of DX for AM, and/or stereo AM?

I'm glad to have listeners ANY way we can, but Muskegon is a long haul from us, and on an SDR radio...I'm intrigued.
Guess I need "SDR" for dummies and to start reading!

Mt. Pleasant is 154 feet higher in elevation than Muskegon, and it's only 90~ miles as the crow flies. That probably has a lot to do with it also.


radio

"On the Air" in MI
Pub Member / Supporter
Oct 13, 2007
3,659
895
West Central Michigan
We're not normally receivable past about 40-50 miles, period. Given man made interference today, that's about as
good as it gets for 5kw.

One of the reasons for streaming and pairing of phones to dashboards.
Not sure what the Mt. Pleasant references in the post. Please advise.


primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
9,179
5,565
Beta Omicron Delta III
We're not normally receivable past about 40-50 miles, period. Given man made interference today, that's about as
good as it gets for 5kw.

One of the reasons for streaming and pairing of phones to dashboards.
Not sure what the Mt. Pleasant references in the post. Please advise.

I thought your station was in Mt. Pleasant? Plus your location says: Location: West Central Michigan

Or am I confusing you with somebody else?


KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,629
5,888
EM75xb
Mt. Pleasant is an hour drive from Ionia I think....yep you are in the wrong town primestar. ;)


radio

"On the Air" in MI
Pub Member / Supporter
Oct 13, 2007
3,659
895
West Central Michigan
Our area is called "West Central Michigan" in radio circles, and has been for years...
since long before my arrival. No matter what my area's called, the point is, the SDR radio apparently received us quite well at a not so normal distance.

We used to have Mt. Pleasant in our daytime when we were directional. I took it OUT of our
coverage and gained population coverage by making us (daytime) NON directional about 5 years ago. Non-D gained us more of I-96 and Southern
areas, and since we own the stations to the North in Greenville, Lakeview there's no sense in shooting a signal in the former lightbulb shaped pattern
which included Mt. Pl.


Stargazer

Supporting Founder
Supporting Founder
Sep 7, 2003
16,563
338
Western WV
If windows, do you see device "Bulk-In, (Interface 0)? If not, the device driver is not installed.

If so, uninstall the driver and reinstall.

Windows 8 OS 64 bit. When I initially installed it I saw Interface 0 and installed to that and had no issues. Now it don't say that. It says RTL2838UHIDIR. When I uninstall it I see Interface 0 and install that to get the RTL2838UHIDIR but get nowhere. I also see one that says USB Receiver (Interface 0) in addition to RTL2838UHIDIR but when I tried to install to that (or Interface 1) I lost control of my keyboard and had to remotely connect to my computer to type anything again and install keyboard software and uninstall interface 1 to get my keyboard to work again. When I unhook the RTL the RTL2838UHIDIR goes away in the available device list.

Last edited:

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,140
8,023
Meadow Vista, Northern California
Looking for "Bulk-In, (Interface 0)" something is not right with your install. Did you install any drivers that came with the USB DVB-T? If so, delete and and reinstall the zadig.exe. If you haven't reviewed this page, it might help you through these steps:
http://www.rtl-sdr.com/rtl-sdr-quick-start-guide/

My project update:

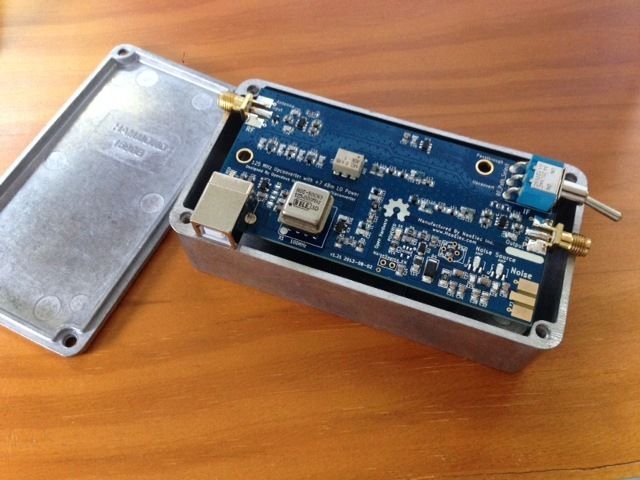

Put the HamItUp Upconverter in the case this afternoon as I was waiting for Asia to wake up for an engineering project. :D
Will add the uncased DVB-T PCB inside the Hammond with a external RF port for either a jumper connection to the upconverter or direct connect to the discone.

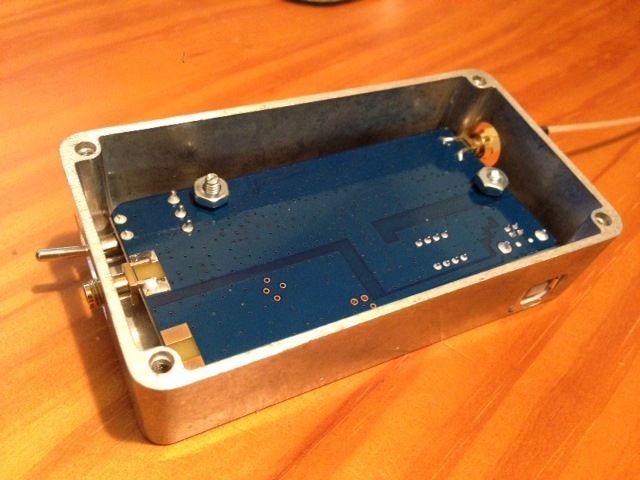

HamItUp Open Hamond1590B.jpeg
Drilled and filed for the RF, switch and USB B. Mounted PCB with countersunk standoffs. Finally got to use that tool that has been in the chest for 15+ years!

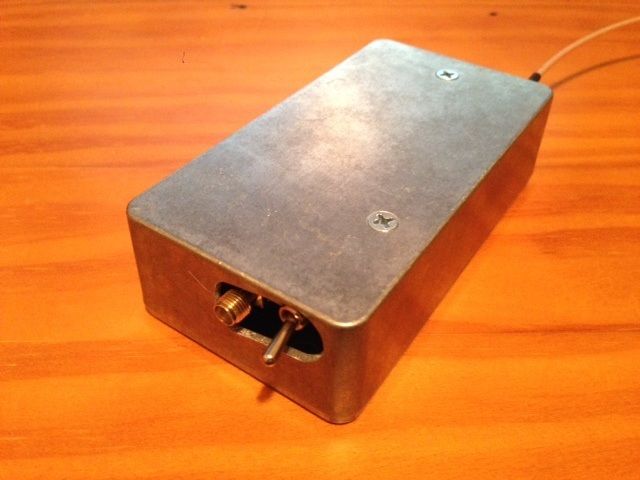

HamItUp Case1.jpeg
No labels yet on bypass or RF Out

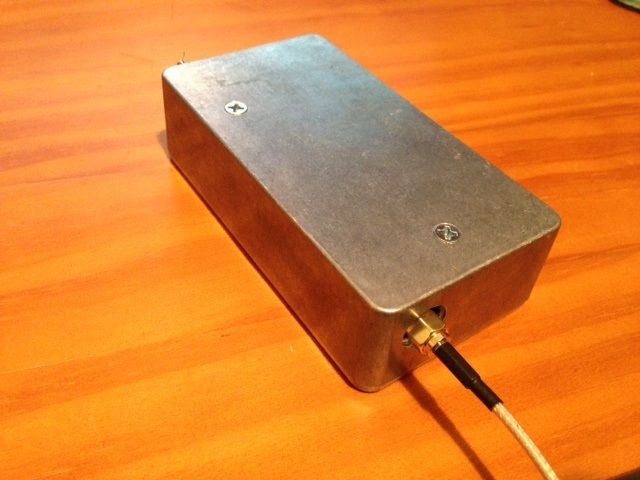

HamItUp Case2.JPG
Decided to leave the MCX connections on the PCB instead of hard wiring to DVB-T or change out the RF IN to a BNC as I originally planned.

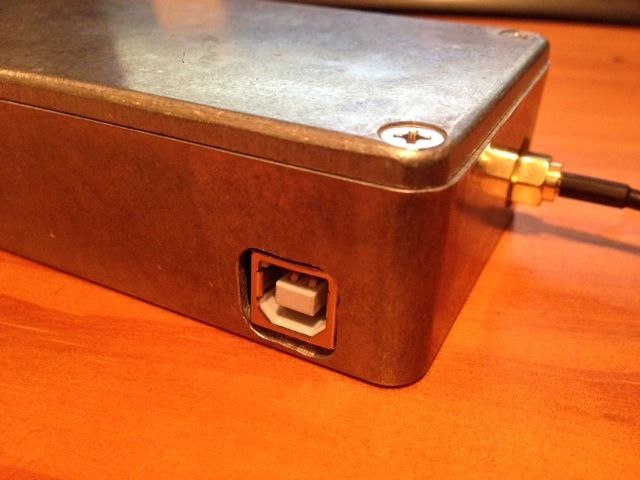

HamItUp Case3.jpeg

The USB B port will provide power to both the HamItUp Upconverter and DVB-T tuner as well as comm back to the PC.

Clear rubber feet, black or none? Decisions, decisions....

Fun project and inexpensive! My total including tons of adapters that I ill now not be using approx. $120. Yes, it all started with a $16 DVB-T USB... :D


KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,629
5,888
EM75xb
Man I so got to get a case for mine! :)

Been up all night playing with it and having fun!


papabruski

SatelliteGuys Family
Feb 5, 2011
91
12
mountain west
We had a listener to our AM station FAR away from us,
who posted around Christmas that they received us much farther than "normal" radios would allow, and said it sounded good

Is it possible these types of radios are able to go 'where no radios have gone before" in terms of DX for AM, and/or stereo AM?

I'm glad to have listeners ANY way we can, but Muskegon is a long haul from us, and on an SDR radio...I'm intrigued.
Guess I need "SDR" for dummies and to start reading!

Is there a trick to getting an AM station? I have a station within a few miles that I can't pick up. FM and NOAA are coming in well. Here, I'm using the stock antenna and testing it with a jumper wire to tv antenna's or anything else that looks like it will enhance signal. :) I also set the stock antenna atop a metal cannister to give it some 'ground plane'.
Like others, I've ordered MCX adapters, but they won't arrive for a week or more. Soooo much fun....


Jim S.

When someone asks you if you're a god, you say yes
Lifetime Supporter
Jan 2, 2006
5,241
675
FN11od
AM is below the tuner's specified range. (I thought that the driver wouldn't even let you tune outside the range, but I haven't tried it lately so it may have not happened in every version, or been recognized by every client program.) You can either buy an upconverter, or connect an antenna directly to one of the RTL2832U chip's inputs and put the driver into "direct sampling" mode.


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,140
8,023
Meadow Vista, Northern California
oops.. forgot to press send...

AM Broadcast radio frequency is far below the ability of the DVB-T USB tuner, which stops at about 25Mhz. AM broadcasts are from 540 to 1600Khz. I am using the HamItUp Upconvertor along with the DVB-T USB Tuner to cover DC - 55.8Mhz.


northgeorgia

SatelliteGuys Pro
Nov 14, 2011
1,538
195
North GA
With the upconvertor, I still have a hard time getting AM, but I know it's because I don't have a decent antenna. A stretched coathanger sometimes brings in the signals, but I know a good outdoor antenna would be ideal. New thread for DIY antennas out of household parts? :)


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,140
8,023
Meadow Vista, Northern California
The AM wave length is between 1822 feet at the bottom of the dial 540Khz to a short 613 feet at the top of the dial 1605Khz. For comparison, FM radio at 88Mhz is 11 feet.

As you can see , a wire hangar is a fraction of the antenna length needed for AM radio reception. Most portable AM radios have 50 - 100 feet of wire wrapped inside the case. My HF antenna is about 100 feet of wire shot into a tree, but it sure does better on AM broadcast than the discone.


northgeorgia

SatelliteGuys Pro
Nov 14, 2011
1,538
195
North GA
I remember the "Select-A-Tenna" being very popular about 10 years ago with MW DXers who had limited space. Anyone try one of those? From what I understand, you can build a similar design with a discarded variable capacitor from a radio and 50 to 100 feet of thin wire wrapped around a loop.
