Setting up SWM 3 LNB with HR22-100 problems

Discussion in 'DIRECTV Support Forum' started by shaggy88, May 9, 2013.

  1. shaggy88

    shaggy88 Topic Starter New Member

    Joined:
    May 8, 2013
    Posts:
    2
    Likes Received:
    0
    Location:
    Phoenix, AZ
    First I want to say thank you to the site for all of the info that allowed me to even attempt this endeavor. I'll try to make this short and detailed as possible. Moved to new house, had Direct before but instead of having them do the install I decided that I would attempt it myself. Main reason is sounded interesting always wondered how it all worked and I wanted the experience because we plan to set up a dish when we go traveling in the RV. Bought an entire kit, installed the entire thing (thanks to all of your directions and help) also watched some videos before ever trying anything. Got signal after some rough adjustment first tuned in the 101. We now have the 101 with 97 or greater on all but transponder number 18, 26 and 28 which have a strength of 82, 72 and 82 respectively. My problem is with tuning in the 99(c) and the 103(ca). On the 99(c) I have mid 80's on most with a few 79's and the same on the 103(ca) most low 80's with some in the 78-79 range. I have tried on three separate occasions to get those satellites (99 and 103) higher and have failed all three times. I first fine tune the azimuth to the best strength then the elevation. Being very patient and moving larger movements at first then adjusting by .5 unit increments. Every time I find myself in the same place the transponder signals are around the same and the picture is jittery still. My question is what to try next. Should I move the tilt? Should I replace the line in the attic (we did use the existing line with the house) Any help would be much appreciated. The mount should be plumb verified with the bubble level on top of the mast and then again with a magnetic polycast protractor. I did read the thread "Signal Problems" By Joel V and it helped confirm that I am taking the right approach to setting all of this up. Thanks again

  2. texasbrit

    texasbrit SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Apr 12, 2006
    Posts:
    3,425
    Likes Received:
    253
    What are your signals on 103cb?

  3. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    24,618
    Likes Received:
    6,686
    Location:
    Cheshire CT
    :welcome to Satelliteguys shaggy88!

    Try checking the mast for plumb with a real level, not the bubble in the top. They aren't all that accurate. If your numbers on 99 and 103 are relatively even, although low, I suspect your tilt is good. Your elevation may be a little off. I have read that S Cal has issues with low numbers due to their locality. I wonder if the same is true for AZ? Maybe an installer in your area will post his experience.

  4. texasbrit

    texasbrit SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Apr 12, 2006
    Posts:
    3,425
    Likes Received:
    253
    A well aligned dish will have a few transponders on 101 at a signal strength of 100. If the Op's numbers are like that, then low signals on 99c, 103ca and 103cb are nearly always due to an error in the tilt setting (or a non-plumb dish mount, which has the same effect).
    Did you actually "dither" the dish to get the optimum 101 numbers?

  5. shaggy88

    shaggy88 Topic Starter New Member

    Joined:
    May 8, 2013
    Posts:
    2
    Likes Received:
    0
    Location:
    Phoenix, AZ
    I got the 24 in level out to check and it looks like it is perfectly level. I placed it on top of the mast and it is dead center. Is there a better way to check because other than placing it on top there doesn't seem like any other way to check it with the level. And my levels on 101 are as follows from 1 to 8, 97 98 97 0 97 100 97 100 9-16, 97 98 97 0 98 100 97 100 and 17-24, 97 82 97 100 98 100 98 100 and 25-32, 97 72 97 83 100 97 100. The levels on 103(cb) are 1-8, 89 91 82 81 85 89 80 81 and 9-16, 84 89 81 83 85 88.

    Thanks guys

  6. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan
    I'm also having problems getting a strong signal with my RV kit with the SWM 3 LNB. I also have the HR22 and only receiving singals in the upper 70's on the 101 band.

    How do I achieve a high signal ... shouldn't it be in the 90's? I followed the step by step instructions, but can't fine tune above these numbers.

    #6 Jackoldno7, Mar 5, 2018
    Last edited: Mar 5, 2018
  7. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    24,618
    Likes Received:
    6,686
    Location:
    Cheshire CT
    :welcome to Satelliteguys Jackoldno7!
    Are you using a power inserter? You need one to power the lnb. Have you checked the mast for plumb or does it do that automatically?

  8. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan
    Yes using a power inserter ... yes the mast is plumb ... I double checked that since that seems to be an issue most of the time.

  9. mr_tv

    mr_tv SatelliteGuys Pro

    Joined:
    Mar 5, 2010
    Posts:
    503
    Likes Received:
    19
    Location:
    Northwest
    Are you having 771 message on the screen or any loss of signal messages coming up? If you aren't then you may be getting as high a signal strength that the dish and LNB are going to give you. Mid to low 80s on 99 and 103 aren't really that bad. Sometimes the LNB built in amps start losing a bit of strength and your on screen signal numbers will drop. When they get down into the 60s or less you need to consider replacing LNB if your dish is aligned properly. Also make sure dish has no obvious dents or bends.

  10. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan
    No 771 messages or loss of signals on most channels ... do have a loss on some of the HD channels. Like I said I can only get to the upper 70's for my signal strength ... most people look like can reach the 90's. The dish doesn't have any dents or bends, still looks like brand new!

  11. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    24,618
    Likes Received:
    6,686
    Location:
    Cheshire CT
    Post your signal levels on 101, 99A/C and 103A/C. Your dish could be damaged without looking like it. I'm not saying it is though. You probably just need to be realigned.

  12. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan
    I'll be heading back to the cottage where the dish is mounted this weekend .. I can get that information then. I'm sure I could be off on the alignment ...

  13. texasbrit

    texasbrit SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Apr 12, 2006
    Posts:
    3,425
    Likes Received:
    253
    I think you are going to find this is just an alignment issue. Your signals are very close to optimum, the low signals on some 101 transponders are because they are spotbeams delivering locals to other cities. And nothing about your signal strengths will give you a jittery picture, that's something else entirely.

  14. Claude Greiner

    Claude Greiner SatelliteGuys Master
    Supporting Founder

    Joined:
    Sep 8, 2003
    Posts:
    10,705
    Likes Received:
    1,960
    Location:
    Detroit - The Paris of the Midwest
    You need to be in the higher 90’s on 101.

    If that’s good, 103/99 should fall into place automatically.

    Bare minimum 80% on 99/103. You should be in the high 80’s lower 90’s

  15. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan

    That's what I was thinking ... I think I might be off on my alignment. I need to double check that first before replacing the LNB or the dish.

  16. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan

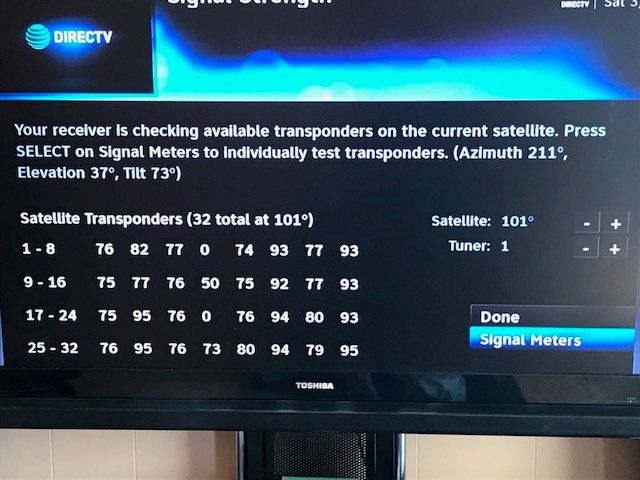

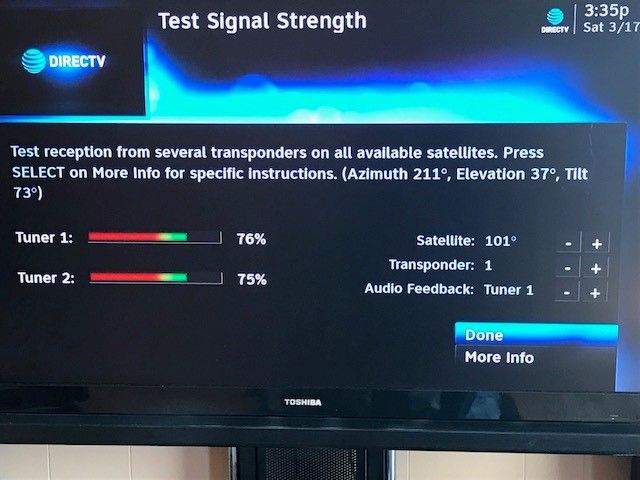

    Here is what i have ... Can't get it any higher, pole is level and reset all settings as displayed.

    satellite 1.jpg
    satellite 2.jpg

  17. texasbrit

    texasbrit SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Apr 12, 2006
    Posts:
    3,425
    Likes Received:
    253
    Did you use the dithering technique to try to align 101?
    If those numbers are the best you can get, indicates a faulty LNB or a damaged dish. Although it might not be obvious, your even TP strengths are much higher than your odds(allowing for spotbeams). Might indicate your tilt is wrong.

  18. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan

    Yes I used the dithering technique ... did not help. I was figuring one of those are damaged ... now to figure out which one. I used what was provided when i typed in the zip code (73).

  19. raoul5788

    raoul5788 Studebaker driver
    Staff Member HERE TO HELP YOU! Supporting Founder Lifetime Supporter

    Joined:
    Dec 28, 2004
    Posts:
    24,618
    Likes Received:
    6,686
    Location:
    Cheshire CT

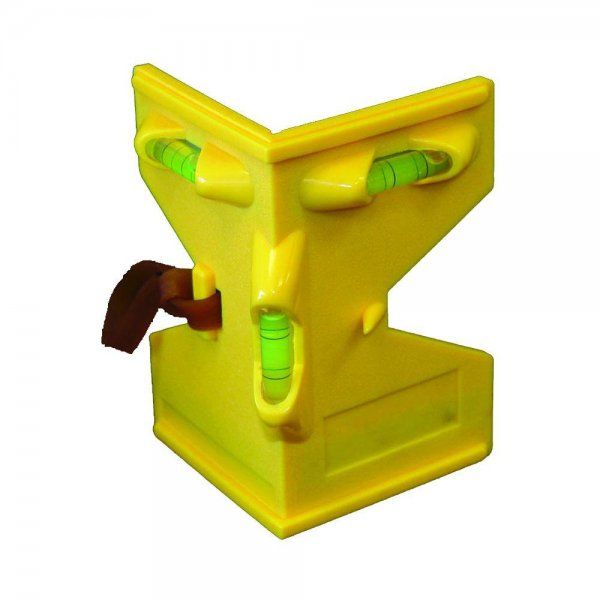

    If you are using the bubble level in the mast, that may not be accurate. I recommend using a post level.


    Attached Files:

  20. Jackoldno7

    Jackoldno7 Active SatelliteGuys Member

    Joined:
    Mar 5, 2018
    Posts:
    15
    Likes Received:
    1
    Location:
    Michigan

    I have used both levels ... The mast is as level as can be ...
