My Winegard 10' Pinnacle has been giving me reception problems lately! :mad:

This Bud has a "buttonhook" setup for the feedhorn. I have been blaming the recent high winds for messing with my alignment but I may be barking up the wrong tree! I think that the buttonhook is sagging! :eek:

What would be a good guesstimate on how long the feedhorn will stay centered and not sag?? Is there a way to support the buttonhook or should I just replace her with a BUD with the support arms?? :confused:

The reception of this BUD was great a couple of years ago with its deep dish shape. There is also a problem with the depth because this catches a lot more of that good ole sticky wet "lake effect" snow that we get so much of!! :eek:

Anole

Anole

SatelliteGuys Master
Sep 22, 2005
11,819
13
L.A., Calif.
I've seen folks post they uses the metal fishing leader to stabilize it.
I'd think four of those should do the job...?

D

Dishman Dan

Thread Starter
SatelliteGuys Pro
Jun 22, 2008
1,549
0
N/A
I've seen folks post they uses the metal fishing leader to stabilize it.
I'd think four of those should do the job...?

Thanks!

Would that be adjustable by twisting the leader??? Or once she is centered that is all you can do and it should not move?

I was wondering about making struts out of 1/2" EMT (conduit). The ends would need flattened for a few inches to fasten down. Hmmm.

Anole

Anole

SatelliteGuys Master
Sep 22, 2005
11,819
13
L.A., Calif.
I think one clever fellow used just one string of some sort from his Ku LNB to the top of his little dish, to counteract the sag when installing a heavy QPH-031.

As for the 1/2" conduit, it's quite easy to deal with.
Here's an example on a smaller project. Flatten, bend, drill, file, paint. Easy.

D

Dishman Dan

Thread Starter
SatelliteGuys Pro
Jun 22, 2008
1,549
0
N/A
The fishing leader would work but this time of the year it will be cold like ice fishing! I must do something about it soon and a BUD transplant this time of the year will be a lot harder to do!

The link to the conduit project reminded me that also I have to beef up my 1M with a Invacom like that! I have made mirror brackets out of EMT for farm trucks before and they turned out great.

We need a break in this cold weather soon! ;)

PopcornNMore

PopcornNMore

SatelliteGuys Pro
Mar 20, 2005
3,635
128
Gibsonia, PA
I had a 10' dish with a buttonhook feed support back in the 80's. I purchased a kit from Shawn Kenny's Green Sheet that came with three steel strands that got attached from the dish to the feed and could be tightened with included turnbuckles. It kept the feed centered even during high winds and snow storms.

You could probably buy the pieces needed at Home Depot or Lowes.

johnnynobody

johnnynobody

SatelliteGuys Master
Pub Member / Supporter
Aug 2, 2009
7,665
1,556
USA
Thanks!

Would that be adjustable by twisting the leader??? Or once she is centered that is all you can do and it should not move?

I was wondering about making struts out of 1/2" EMT (conduit). The ends would need flattened for a few inches to fasten down. Hmmm.

You could use turnbuckles with the wire which will allow you to center feed as necessary.

C

crackt

SatelliteGuys Pro
Feb 24, 2007
1,000
1
101w up north.
wire and turnbuckles will be the quickest / simplest fix. i scrapped the button hook on my dish and fabbed up four lnb struts. if you do go with a rigid fix make sure you build in a bit of adjustment. i have pics of the fix i did somewhere. ill post em if you want. but the path i took was a bit of work.

crackt out,.

phpinfo

phpinfo

SatelliteGuys Pro
Nov 25, 2008
294
0
USA
Is there anywhere online where you can buy a new buttonhook center plate and back plate?

Also, is there anywhere you can get the 4 leg setup for the Pinnacle, instead of using a buttonhook?

C

capned

SatelliteGuys Family
Jan 31, 2009
47
11
Southeastern Arizona
If you decide on making legs from EMT, one of my Pinnacles is apart in the shop, so I could post a pic and dimensions from one of the legs, and where they attach to the dish. They each attach to a rib with 2 (I think #10 X 3/8) sheet metal screws. You could also make new center plates for your buttonhook, but that will require a lot more work. Sorry, I don't have any button hook centers.

Greg

phpinfo

phpinfo

SatelliteGuys Pro
Nov 25, 2008
294
0
USA
If you decide on making legs from EMT, one of my Pinnacles is apart in the shop, so I could post a pic and dimensions from one of the legs, and where they attach to the dish. They each attach to a rib with 2 (I think #10 X 3/8) sheet metal screws. You could also make new center plates for your buttonhook, but that will require a lot more work. Sorry, I don't have any button hook centers.

Greg


That would be great if you could post pics and dimensions for the legs. I would prefer to do a 4-point leg setup anyway.

truckracer

truckracer

SatelliteGuys Pro
Sep 17, 2004
4,338
351
Charleston wv
Definifely make legs out of emt conduit. You wilk never have a problem again.

Hermitman

Hermitman

SatelliteGuys Pro
Jul 2, 2006
420
0
Limestone, Mi
I really think this whole buttonhook sagging is a bit overblown. I have 4 buttonhook dishes in my dish farm and haven't had any problems since I set them up years ago. I had one dish with an old STS C/Ku octopus feedhorn (the heavy, dual servo type) that I loosely put a support cable on to see if it would sag over time or during the heavy snows (lake effect) and it barely moved. I could see there might be some possible sagging with the older aluminum buttonhooks and heavy feedhorns. Maybe they're make the newer buttonhooks out of cheaper, thinner steel.

If you really thinks it sagging, I'd say the best thing to do is measure it. See if the center of the feedhorn is dead center in the dish. Also, all of my buttonhooks are secured by either set screws or bolts and are adjustable. Are yours tight? You might be able to eliminate an off-center condition by just rotating the buttonhook 180 degrees. You just have to remember that you'll need to re-adjust your polarity settings. Good luck.

C

capned

SatelliteGuys Family
Jan 31, 2009
47
11
Southeastern Arizona
That would be great if you could post pics and dimensions for the legs. I would prefer to do a 4-point leg setup anyway.

phpinfo,

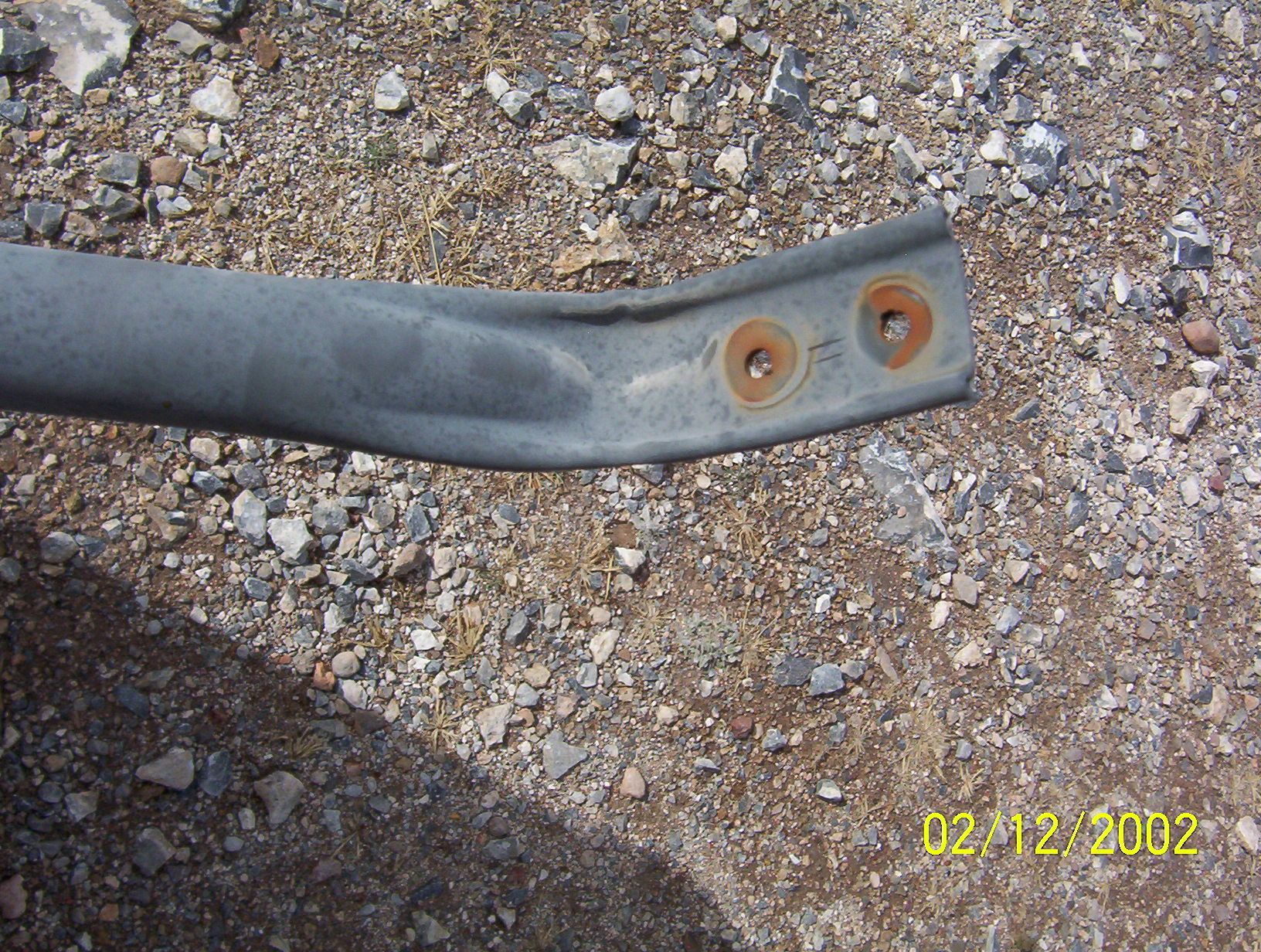

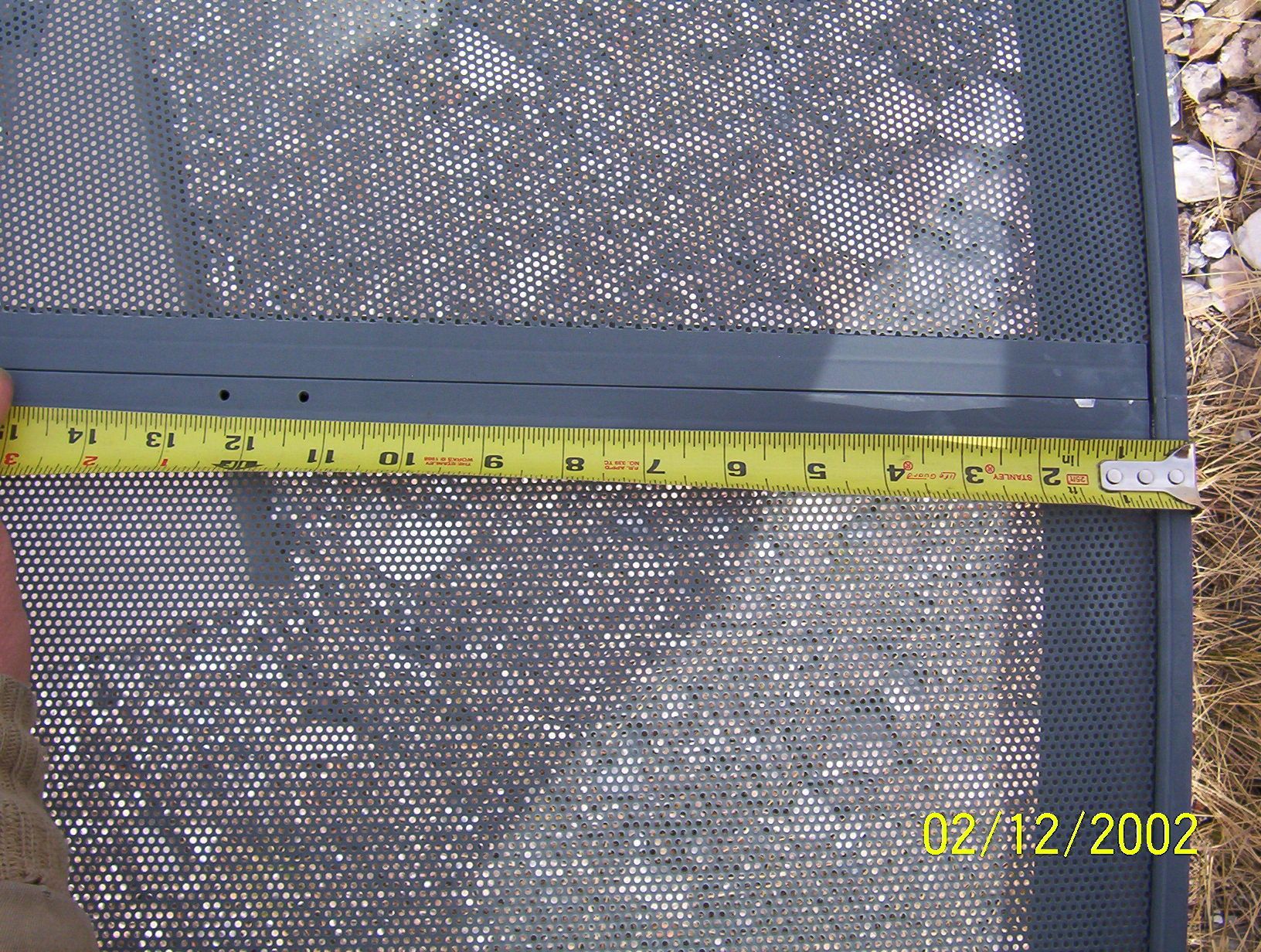

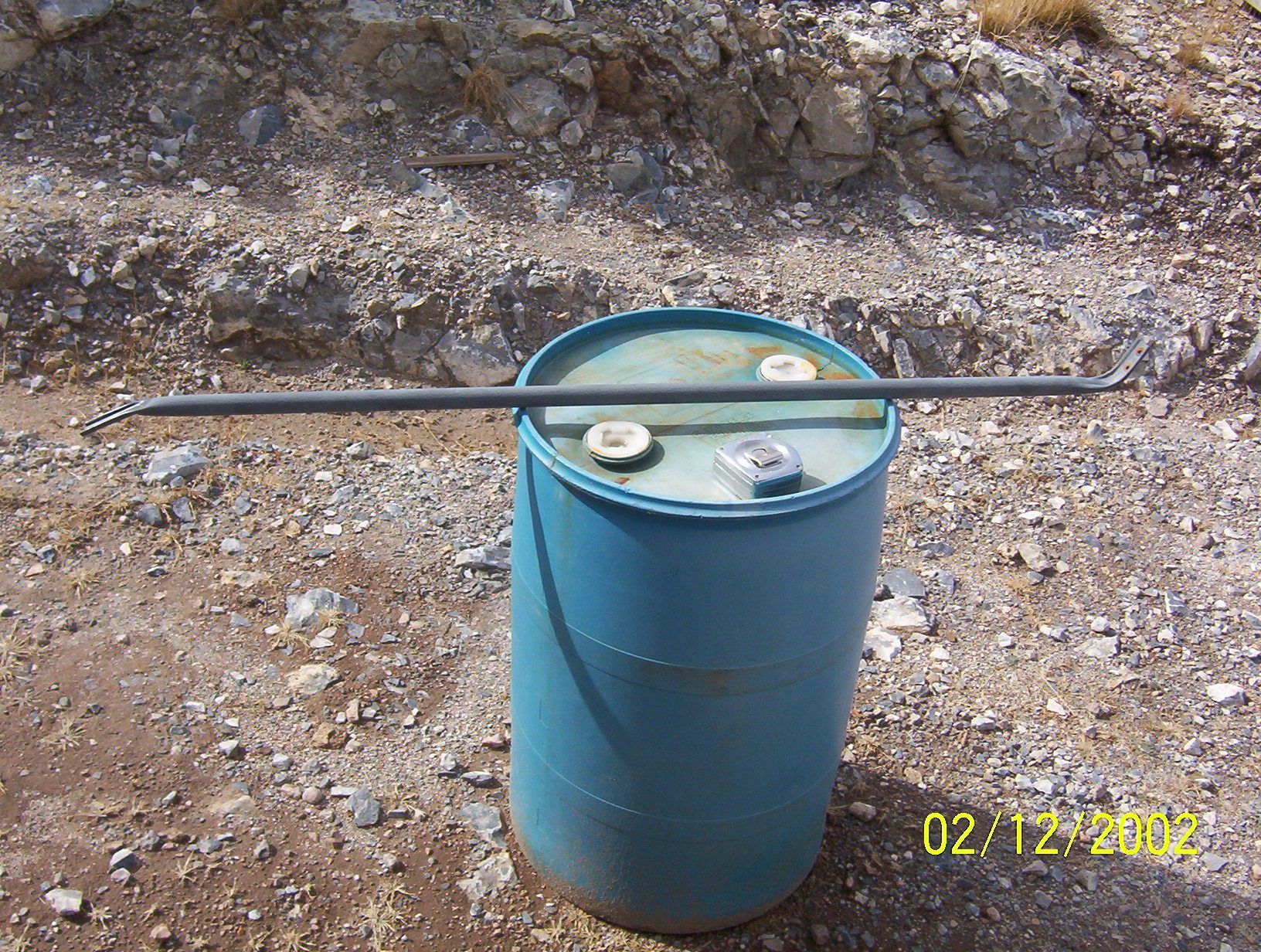

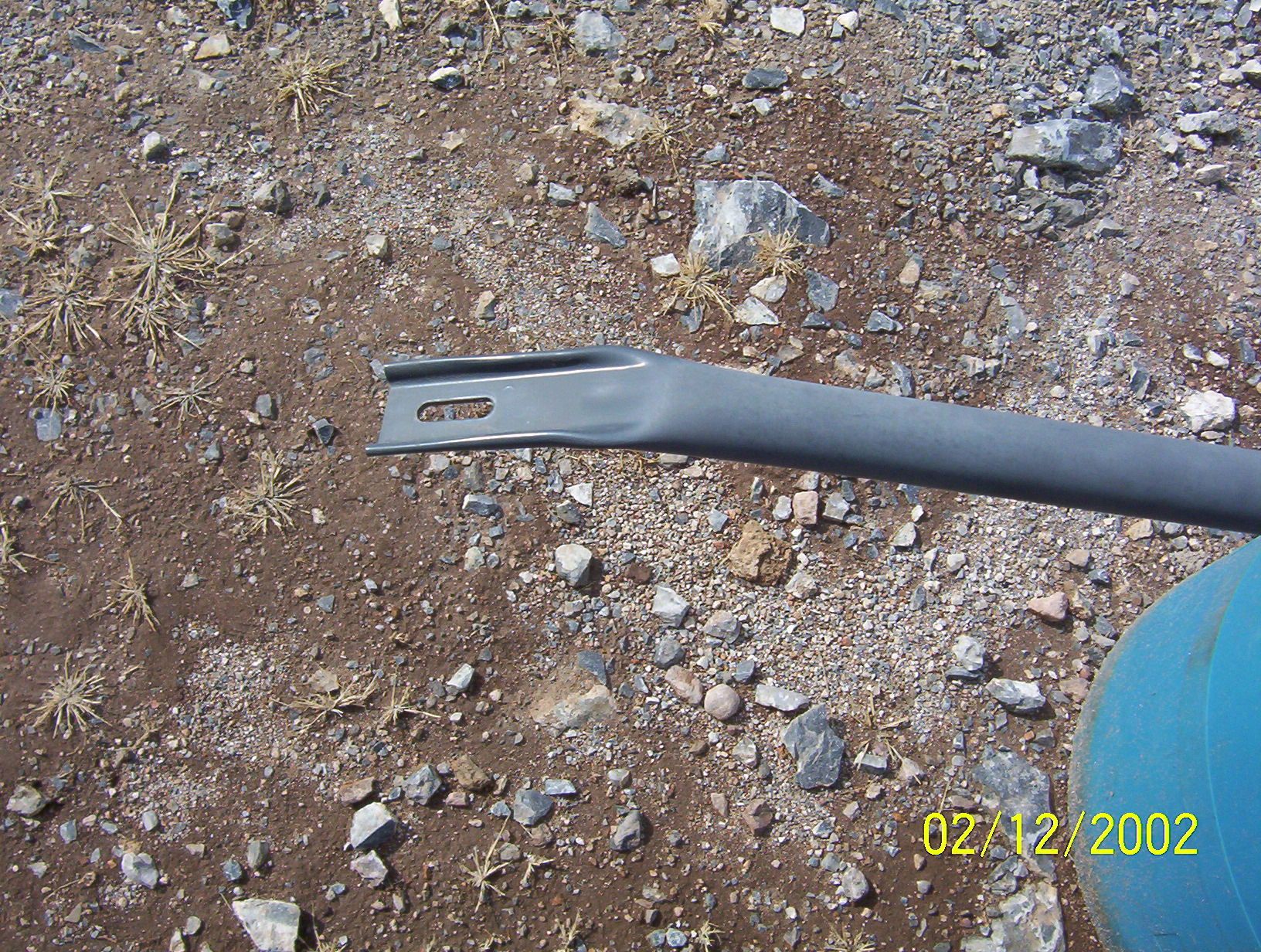

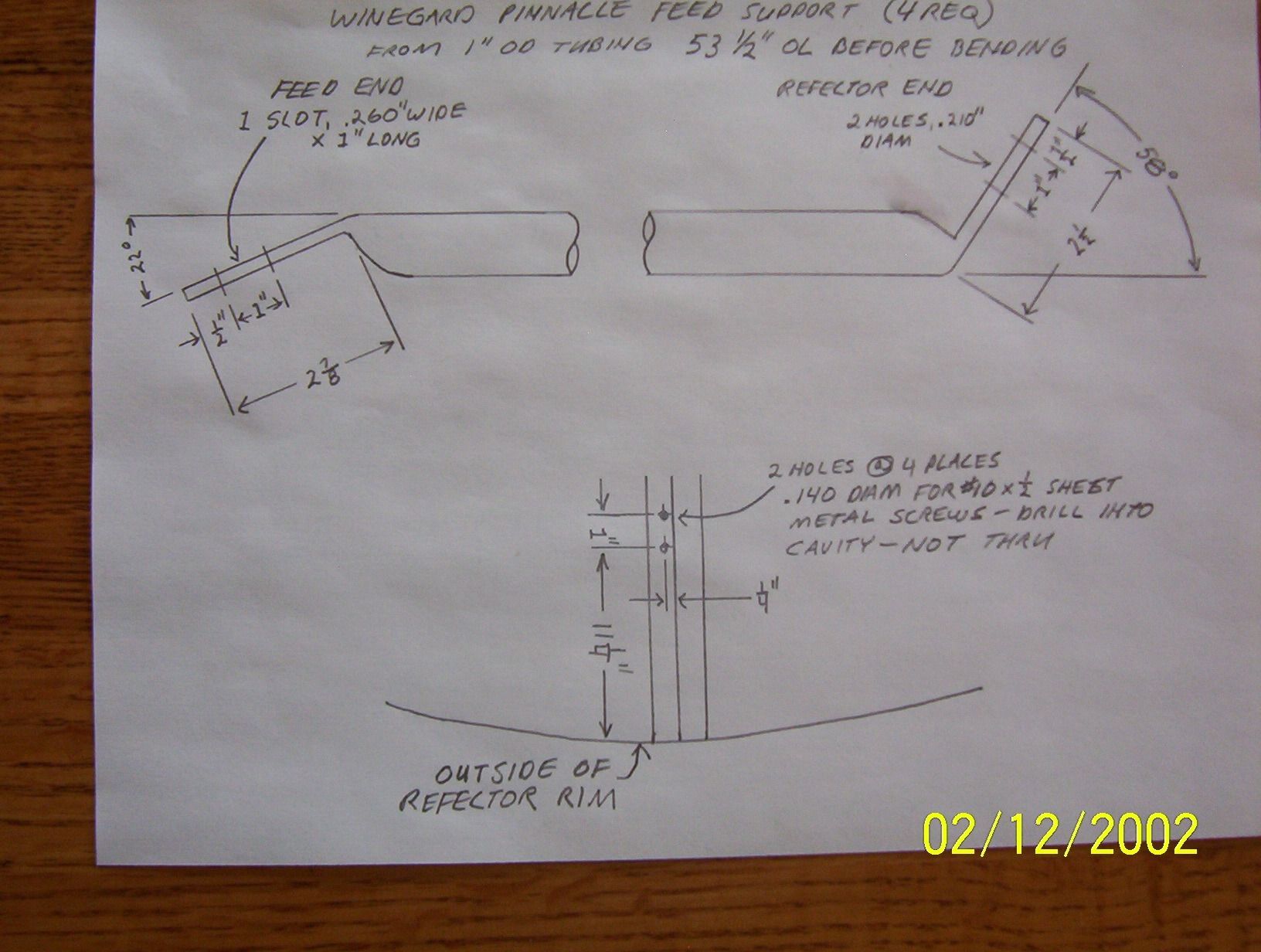

Here are some pics of the original, and a drawing of the Pinnacle replacement feed support legs. The originals are from 1" aluminum tubing, but 3/4" EMT should be fine. Pic #1 end that mounts to reflector. Pic #2 is feed end. Pic #4, and on the bottom of the drawing shows where to drill the .140" pilot holes for the #10:mad:not longer than 1/2") hex head sheet metal screws, to mount the legs to the reflector ribs. If I forgot something, or you need more info, don't hesitate to ask. Let us know how it works out.
Greg


Attachments

  • Winegard Feed 001.JPG
    Winegard Feed 001.JPG
    572.1 KB · Views: 185
  • Winegard Feed 002.JPG
    Winegard Feed 002.JPG
    607.4 KB · Views: 184
  • Winegard Feed 003.JPG
    Winegard Feed 003.JPG
    589.1 KB · Views: 178
  • Winegard Feed 004.JPG
    Winegard Feed 004.JPG
    573.3 KB · Views: 184
  • Winegard Feed 008.JPG
    Winegard Feed 008.JPG
    179.1 KB · Views: 179
phpinfo

phpinfo

SatelliteGuys Pro
Nov 25, 2008
294
0
USA
phpinfo,
Here are some pics of the original, and a drawing of the Pinnacle replacement feed support legs. The originals are from 1" aluminum tubing, but 3/4" EMT should be fine. Pic #1 end that mounts to reflector. Pic #2 is feed end. Pic #4, and on the bottom of the drawing shows where to drill the .140" pilot holes for the #10:mad:not longer than 1/2") hex head sheet metal screws, to mount the legs to the reflector ribs. If I forgot something, or you need more info, don't hesitate to ask. Let us know how it works out.
Greg


Awesome. Thanks for the specs. I am looking into making some of these legs. I can't find any originals, so this is the way to go.
