Tripod Setup SL3K (1 Viewer)

pancho55

Thread Starter
Member
Jan 25, 2021
6
0
Houston
I have a Slimline SL3K4NR2-01 that I am having trouble setting up with my Home HR24-100 receiver. I have a SWM insert (P121R3-16) I bought along with the MSPLIT2RO-01. Can someone confirm this is all I need or do I have the wrong equipment to get this to work. I have researched as best I can and cannot make this happen.


raoul5788

Studebaker driver
Staff member
HERE TO HELP YOU!
Supporting Founder
Lifetime Supporter
Dec 28, 2004
30,247
13,958
Cheshire CT
I have a Slimline SL3K4NR2-01 that I am having trouble setting up with my Home HR24-100 receiver. I have a SWM insert (P121R3-16) I bought along with the MSPLIT2RO-01. Can someone confirm this is all I need or do I have the wrong equipment to get this to work. I have researched as best I can and cannot make this happen.
:welcome to Satelliteguys pancho55!
You don't need the power inserter, but you do need a b-band converter between the lnb and the receiver. You don't need the splitter either. If you have more than one receiver just connect it to one of the other outputs of the lnb.


Frank Navin

SatelliteGuys Family
Dec 1, 2020
85
53
Englewood co
How many lines from LNB?

1 or 4?

If 4, then no power inserted but will need band converter. If 1 line then will need power inserted.


Sent from my iPhone using Tapatalk


Jimbo

SatelliteGuys Master
Lifetime Supporter
Jul 14, 2005
63,520
4,007
NW Ohio - Buckeye Country
How many lines from LNB?

1 or 4?

If 4, then no power inserted but will need band converter. If 1 line then will need power inserted.


Sent from my iPhone using Tapatalk
If he uses the SWM set up, he'll only need 1 line regardless ... (which generally makes things easier for when camping) make sure he has the splitter with him if he's using more than 1 recvr.


pancho55

Thread Starter
Member
Jan 25, 2021
6
0
Houston
:welcome to Satelliteguys pancho55!
You don't need the power inserter, but you do need a b-band converter between the lnb and the receiver. You don't need the splitter either. If you have more than one receiver just connect it to one of the other outputs of the lnb.
Thanks, will try that again.


Frank Navin

SatelliteGuys Family
Dec 1, 2020
85
53
Englewood co
If he uses the SWM set up, he'll only need 1 line regardless ... (which generally makes things easier for when camping) make sure he has the splitter with him if he's using more than 1 recvr.

Yes! But we need to identify the type of LNB he is using first as an H24 will work with either

Actually a legacy style LNB may be easier in this situation as the power inserted is not required

Sent from my iPhone using Tapatalk


Jimbo

SatelliteGuys Master
Lifetime Supporter
Jul 14, 2005
63,520
4,007
NW Ohio - Buckeye Country
Yes! But we need to identify the type of LNB he is using first as an H24 will work with either

Actually a legacy style LNB may be easier in this situation as the power inserted is not required

Sent from my iPhone using Tapatalk
Correct .... it all depends on which way he decides he want to set it up.


pancho55

Thread Starter
Member
Jan 25, 2021
6
0
Houston

Attachments

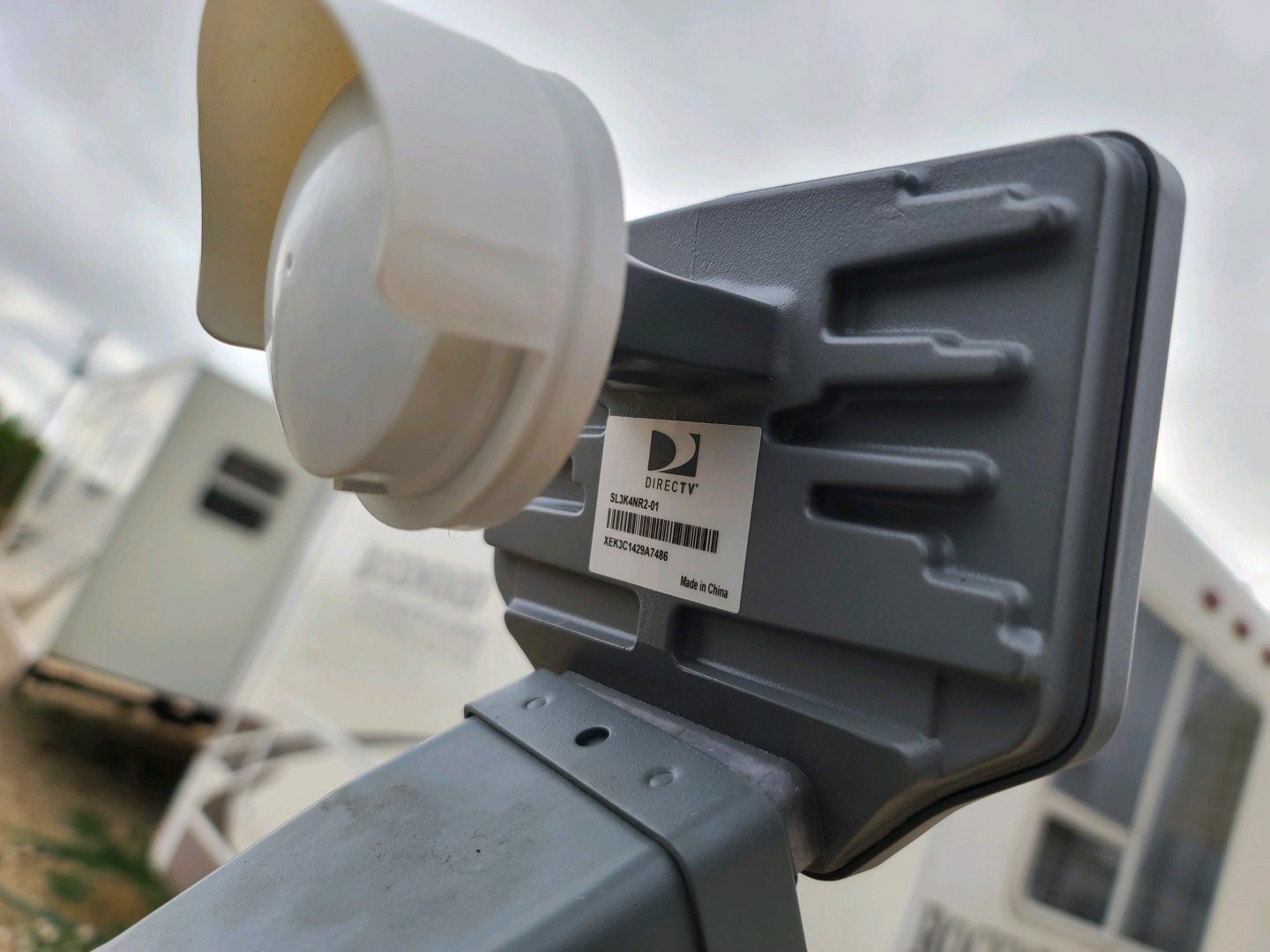

  • SL3.jpg
    116.4 KB · Views: 30

jcrandall

Proud Staff Member
Staff member
HERE TO HELP YOU!
Apr 3, 2005
10,888
365
Central Michigan
One white knowb with 4 outlets
OK, you do NOT have a SWM LNB. Keep this simple - you need two wires from the satellite to the receiver (HR24), NO power inserter, NO splitters, and TWO B-Band Converters.

On the satellite setup, select SL3, do not select SWM, and select dual tuner - unless you run only one wire in which case you can select single and only use one tuner.

If after that you don't have signal, your aim is likely off.

  • Like
Reactions: pancho55 and Jimbo

Frank Navin

SatelliteGuys Family
Dec 1, 2020
85
53
Englewood co
OK, you do NOT have a SWM LNB. Keep this simple - you need two wires from the satellite to the receiver (HR24), NO power inserter, NO splitters, and TWO B-Band Converters.

On the satellite setup, select SL3, do not select SWM, and select dual tuner - unless you run only one wire in which case you can select single and only use one tuner.

If after that you don't have signal, your aim is likely off.

You could set up the HR 24 to operate off of 1 tuner if you have a legacy LNB.

It’s a toss up between twin coax and a power inserter


Sent from my iPhone using Tapatalk


raoul5788

Studebaker driver
Staff member
HERE TO HELP YOU!
Supporting Founder
Lifetime Supporter
Dec 28, 2004
30,247
13,958
Cheshire CT
You could set up the HR 24 to operate off of 1 tuner if you have a legacy LNB.

It’s a toss up between twin coax and a power inserter


Sent from my iPhone using Tapatalk
The power inserter can only be used with a swm lnb, which he doesn't have.


pancho55

Thread Starter
Member
Jan 25, 2021
6
0
Houston
OK, you do NOT have a SWM LNB. Keep this simple - you need two wires from the satellite to the receiver (HR24), NO power inserter, NO splitters, and TWO B-Band Converters.

On the satellite setup, select SL3, do not select SWM, and select dual tuner - unless you run only one wire in which case you can select single and only use one tuner.

If after that you don't have signal, your aim is likely off.
Thanks guys, will try this and let all know, quick question. I am setting this up on RV after I do it on my back yard, can I put a slitter until I get inside and then do 2 lines or do I need to run a second line from dish to RV?
