Hi All,

I decided to break out the equipment for the new year and see if I can set it up again. I'm using equipment mentioned above. I am able to hit 121 no problem, nice green bars, but when I turn dish to the 97 or 101 sats I don't get anything but red bars. Any suggestions are most welcomed.


Anole

SatelliteGuys Master
Sep 22, 2005
11,819
10
L.A., Calif.
skew ?

From OC (I used Irvine), the skew for
97 = - 28°
101= - 23.4°
121= + 4.8°

edit: oops, I assumed you meant Orange County, California.
If you're in Orange County, New York, ... well... :)


acuevas

Thread Starter
SatelliteGuys Guru
Jun 11, 2009
132
0
Orange County
Iceberg - Thanks for moving. ( I have tried posting in FTA forum but get an error message - something about not enough privilages.)

Lak7 - What do you mean by 'hot transponder selected'? This trasnponder issue is confusing to me. How do you select it in the Coolsat. My manual does not explain. Do you know of a good thread for this?

Anole - thanks for the skew. But, if I am only using one LNB on this set up do I still need skew?


Tron

SatelliteGuys Master
May 6, 2005
6,599
33
Metro New Orleans, LA
For a linear satellite (such as 97W or AMC-4 at 101W), you must skew (or twist) the LNBF depending on where in the arc the satellite is located.

skew ?

From OC (I used Irvine), the skew for
97 = - 28°
101= - 23.4°
121= + 4.8°

edit: oops, I assumed you meant Orange County, California.
If you're in Orange County, New York, ... well... :)

From Anole's post above, notice that the skew is very different as you go from 121W to 101W and 97W. You will have to twist your LNBF clockwise (looking from in front of your dish), or toward the east, from where it is when you are locked on 121W.


Anole

SatelliteGuys Master
Sep 22, 2005
11,819
10
L.A., Calif.
I don't recall which dish that is you have there... but if it's the wide elliptical dish, it's got skew on the mount.
So, skewing the entire dish is what you want to do.
And the feedhorn matches the dish, so that's another reason.

But, if your dish is round, and not on a skewable mount, then twisting the LNB is the way to go.


acuevas

Thread Starter
SatelliteGuys Guru
Jun 11, 2009
132
0
Orange County
Thanks for clearing that up Anole.

Well, here is my set up: ( I am located in Brea, CA 92821 )
1. target sat = 101 AMC 4
2. 36' Worldview Dish with FSS Stacked LNB ( off of an old SuperDish )
3. EL 46.6 / AZ 138.1 / Skew -23.4 ( from 90 I go counter clockwise and end up at about 66.6 degrees for the skew )

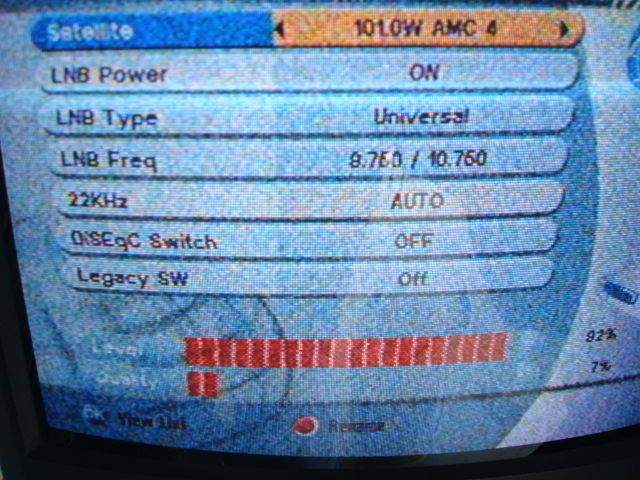

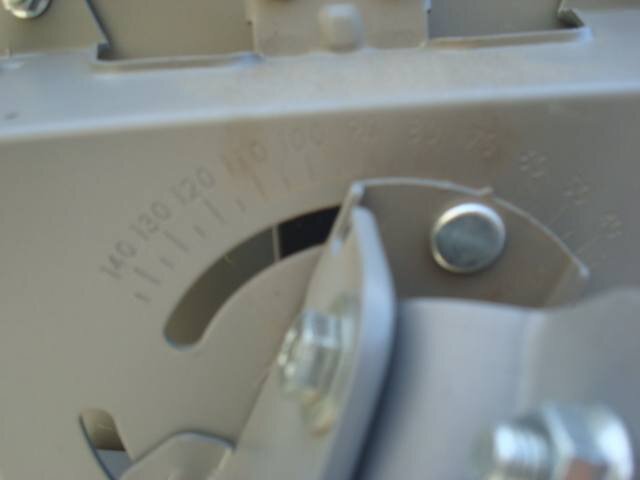

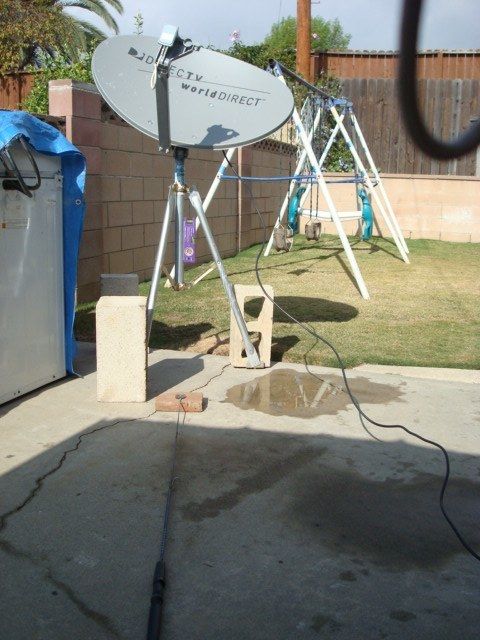

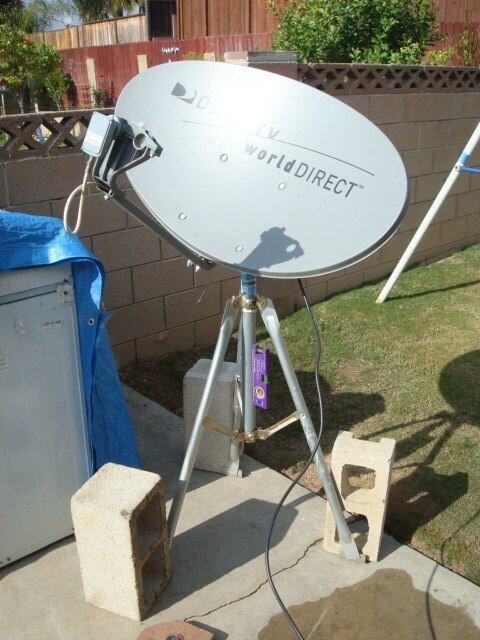

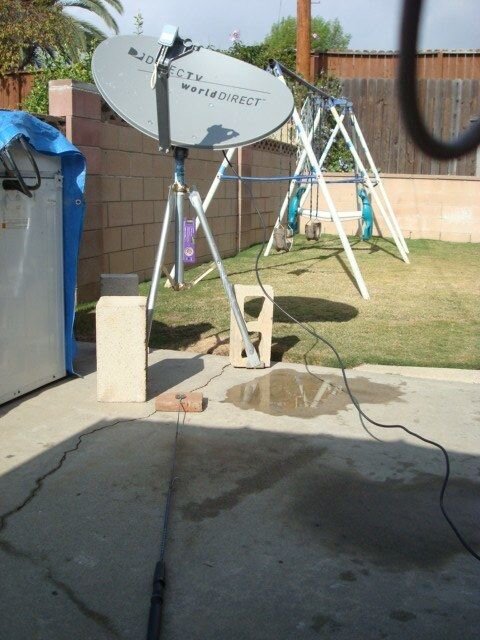

I still get all red bars, here are some pics for your reference.


Attachments

  • DSC03402.JPG
    64.3 KB · Views: 105
  • DSC03405.JPG
    19.6 KB · Views: 99
  • DSC03406.JPG
    59.9 KB · Views: 86
  • DSC03407.JPG
    13.4 KB · Views: 105
  • DSC03408.JPG
    71.4 KB · Views: 116

Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
289
38
Mankato, MN
you need to change the info on the menu to
SINGLE
10750 LNB freq

also select a vertical transponder since you are using a bandstacked LNB
for 101W use

12120 V 30000


acuevas

Thread Starter
SatelliteGuys Guru
Jun 11, 2009
132
0
Orange County

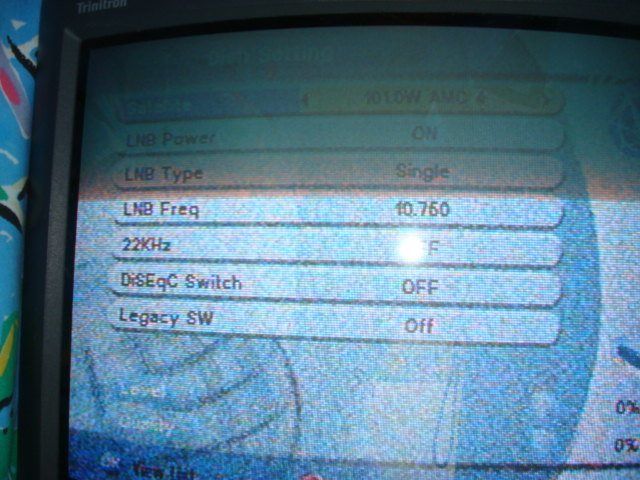

Thanks Iceberg, but when I changed settings I get no bars at all- see pic.

I don't understand the transponder issue, how this helps you with the green bars or how to properly set it up in the receiver ( manual does not say ). Do you know of a thread for this?


Attachments

  • DSC03411.JPG
    59.6 KB · Views: 95
Last edited:

meinename

SatelliteGuys Pro
Dec 9, 2008
587
0
Portland, OR
I usually use the "Manual scan" screen or "PID scan" screen after I set up the dish in "Dish settings"

They are on the bottom of the right column of the Installation Menu

I use (Menu) -> Right -> (Up) -> (Up) -> (OK/Enter)
for my most common remote command.

This is the part (using an active transponder [frequency]) that took me the longest to learn in properly operating the Coolsat.
I spend almost all of the time I'm manually aiming a dish with the Manual Scan screen up.


acuevas

Thread Starter
SatelliteGuys Guru
Jun 11, 2009
132
0
Orange County
Thanks Meinename,

This trasnponder[frequency] thing is quite interesting in figuring out. But, I think I got it. The funny thing is that I am apparently also hitting sat 103 at the same time and can get channels as well. Will this be an issue?


Jim S.

When someone asks you if you're a god, you say yes
Lifetime Supporter
Jan 2, 2006
5,287
721
FN11od
I don't think that the transponders on 101 and 103 will interfere with each other, but you'll get stronger signals if you can get the aim better. If you're looking for Setanta on 101, that transponder is especially weak. If you're looking for History and Biography, they're not much better. If you're looking for the Portuguese channel, then it doesn't matter. I once got the Portuguese channel when I was aimed almost exactly at 103, it's that strong.


acuevas

Thread Starter
SatelliteGuys Guru
Jun 11, 2009
132
0
Orange County
I want to say thank you to all who helped me with this issue. If I run into another issue I will start a new thread in order to to avoid convolution. Thanks.
