Receiving satellite signals using cone-shaped antennas-is it for real?

Discussion in 'Free To Air (FTA) Discussion' started by polgyver, Mar 26, 2013.

  1. polgyver

    polgyver Thread Starter Active SatelliteGuys Member

    Joined:
    Sep 21, 2010
    Posts:
    280
    Likes Received:
    17

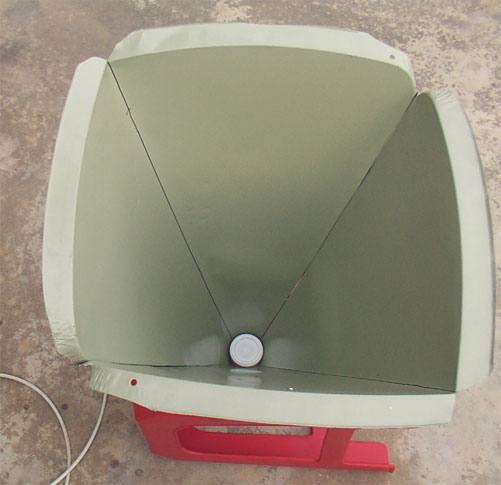

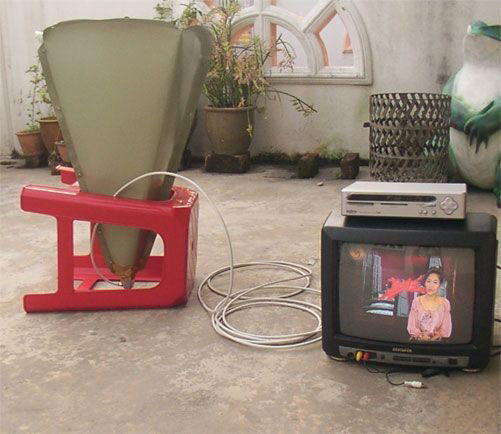

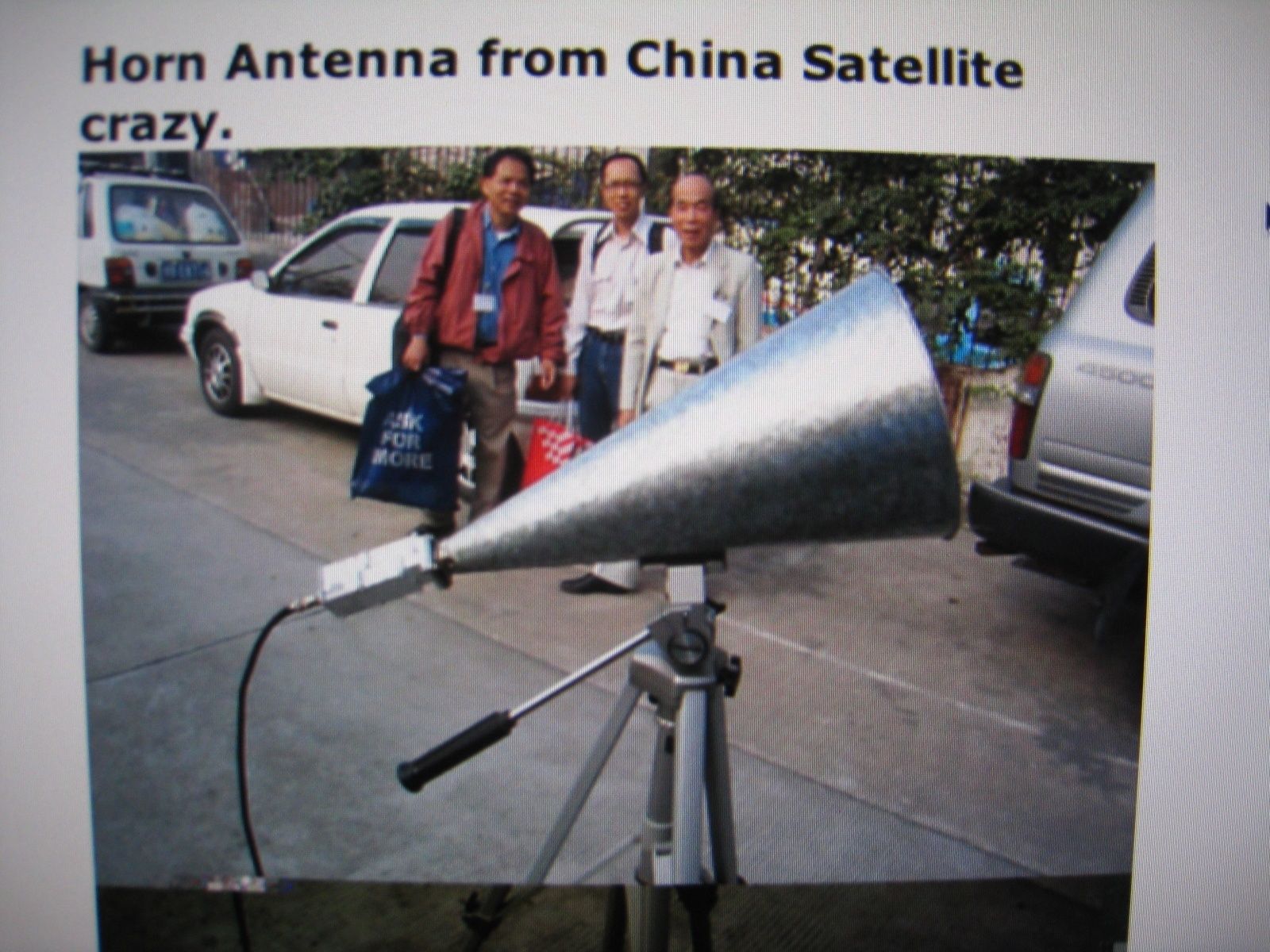

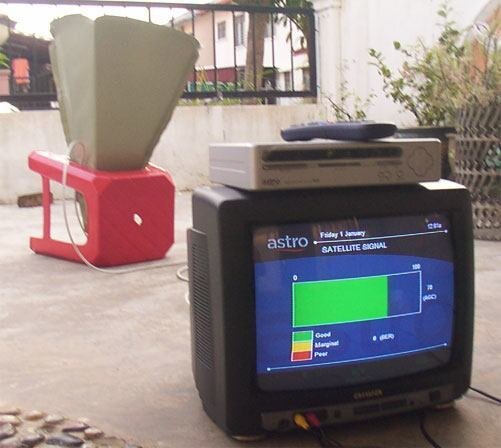

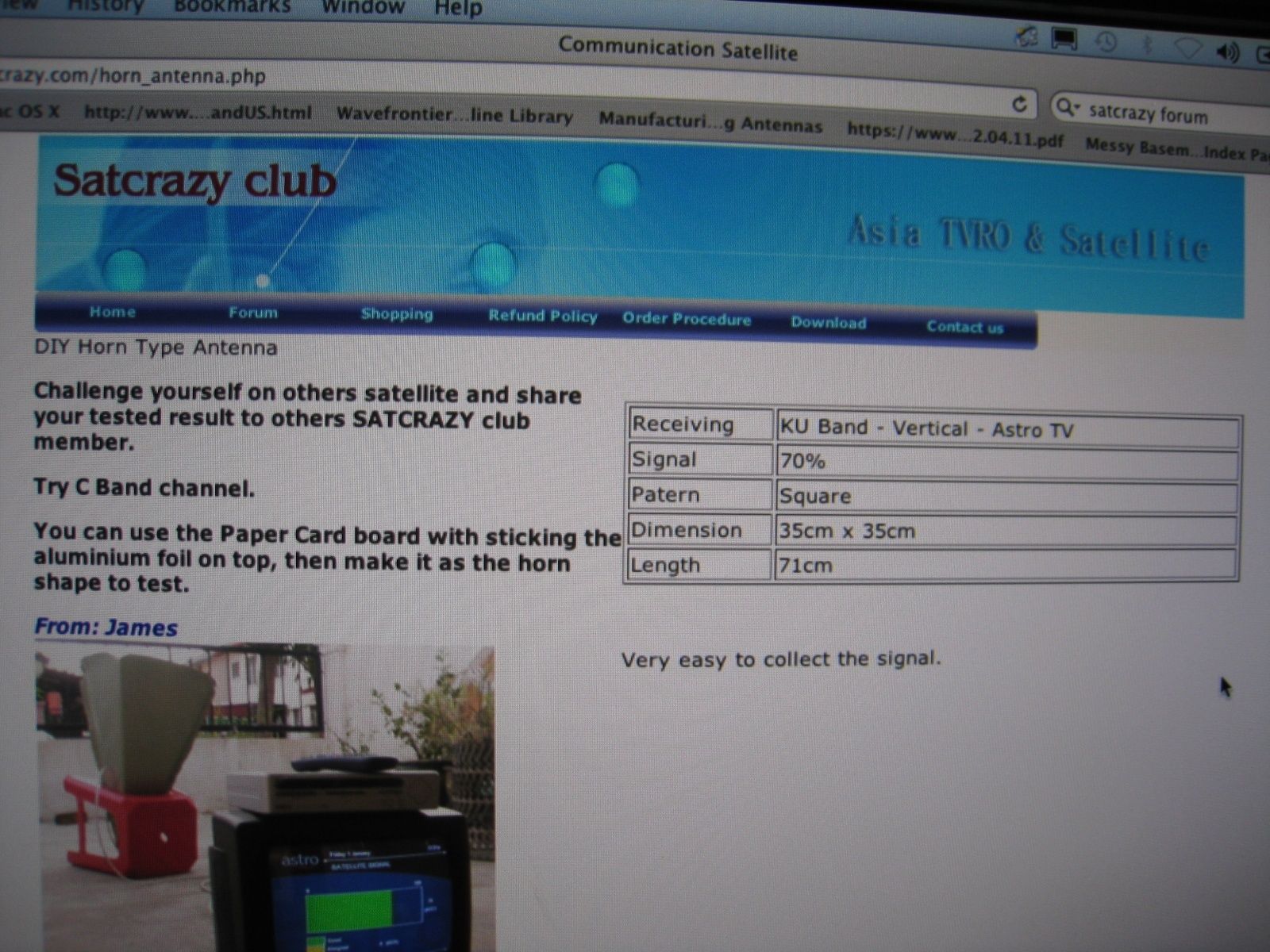

    I am interested in non-conventional ways of receiving satellite signals, and some time ago I found a web site advocating usage of cone-shaped antennas (resembling funnels) for catching satellite programs. Any opinion from our experienced members? A few photos follow (sorry for quality, I could not get them other way than photographing the computer screen) demo04.jpg demo03.jpg demo01.jpg IMG_1271.JPG IMG_1270.JPG

    #1
    Avatar

    Advertisements Register Today!



    Reigster at SatelliteGuys
  2. Anole

    Anole SatelliteGuys Guru

    Joined:
    Sep 22, 2005
    Posts:
    11,819
    Likes Received:
    1
    Most of those designs don't have the performance.
    That's why they're not used commercially.

    Anything'll work on really high powered signals such as DBS.
    But as FTAers, we're often faced with weaker and more complex signals, requiring higher performance dishes.
    The current interest in 32apsk signals is a case in point.
    Not one in a hundred of us can get those without major upgrades to dishes AND equipment!

    But if you're just hell bent on bragging rights for something weird, search for spherical satellite antenna.
    Probably the strangest I've seen. :)

    #2
  3. Lak7

    Lak7 SatelliteGuys Family Pub Member / Supporter

    Joined:
    Feb 28, 2008
    Posts:
    5,441
    Likes Received:
    4
    Hope it does not rain. :)

    #3
  4. Pixl

    Pixl Senior Member Pub Member / Supporter

    Joined:
    Feb 27, 2010
    Posts:
    1,831
    Likes Received:
    27
    Just about everybody has seen these horn antennas Bell Telephone had up all over N. America.

    [​IMG]

    Most have been taken down or abandoned in place. They were right across the C-band down link freqs. we use 3-4 Ghz range, very wide band. Signal collected is funneled down to a round waveguide (no center conductor) and on the the receivers on the ground. Here is one that Bell Labs modified to track the Echo star and other space signals, by laying it on it's back and pointed at the sky.


    [​IMG]


    I know of a local tower rigger that did a lot of work for Bell in the 80's . He brought one of these monsters to his home and set it up as a C-band sat, worked great. But it was difficult to move around and way too big for a hobbyist back yard dish. He eventually scrapped it out.
    These towers are still being sold to cell company etc. you might be able to talk yourself into one if you can catch one being dismantled. Now that will get you at the top of the list of the cool dude antennas.

    #4
  5. madmadworld

    madmadworld SatelliteGuys Family

    Joined:
    Apr 7, 2006
    Posts:
    4,263
    Likes Received:
    1
    learn something new everyday :happydance:..... check

    #5
  6. SatelliteAV

    SatelliteAV SatelliteGuys Family Pub Member / Supporter

    Joined:
    Sep 3, 2004
    Posts:
    6,089
    Likes Received:
    2
    Remlap has a cone type antenna converted to an universal LNBF in this thread:
    http://www.satelliteguys.us/threads/277581-Some-of-my-dishes-and-a-satellite-antenna

    Several years ago we tested the Pulsat LX2000 and found that it only received the strongest transponders on the linear polarity FSS KU satellites. It was not 2 degree complaint with significant adjacent satellite interference. While it might work for the strong signals on the European satellites, it just didn't have the gain necessary for our lower power signals in North America.

    Some reading on the Pulsat and other "out of the box" antennas and reflectors:
    http://www.satelliteguys.us/threads/174714-No-Way-That-Could-Work!-The-FTA-Mad-Scientist-Thread

    #6
  7. toucan-man

    toucan-man SatelliteGuys Family

    Joined:
    Jul 13, 2008
    Posts:
    2,664
    Likes Received:
    0

    #7
    Last edited by a moderator: May 27, 2014
  8. Stargazer

    Stargazer Supporting Founder Supporting Founder

    Joined:
    Sep 7, 2003
    Posts:
    15,334
    Likes Received:
    12
    That last thread was the one I remembered a while back, the mad scientist one using different things as satellite reflectors.

    #8
