Anyone know the specs on this LNA?

Discussion in 'Free To Air (FTA) Discussion' started by upnatm, Oct 23, 2012.

  1. upnatm

    upnatm Thread Starter Member

    Joined:
    Aug 22, 2009
    Posts:
    207
    Likes Received:
    0
    Hi All.


    I recently brought this piece home from the dump, as well as the
    1 meter dish it was attached to. It powers up nicely on standard
    LNB at 11250 LO. 79% on a PanSat 2700, (no signal).

    The dish is in pretty decent shape too, by the way.

    I searched the net and couldn't find any specs on it anywhere. The
    only match I found was on eBay, it had no feed-horn and very little
    description.

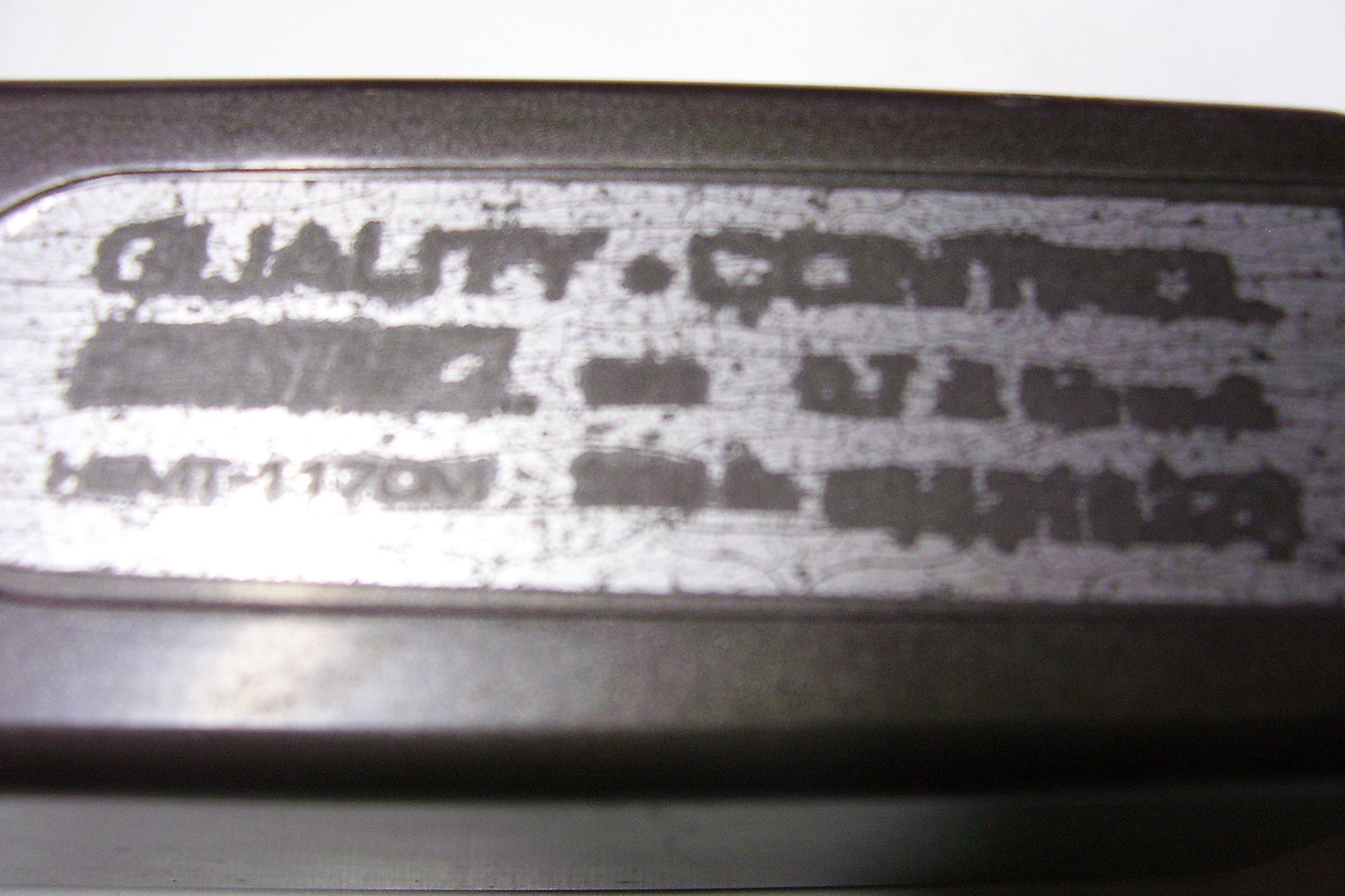

    The faded label says;
    EchoStar
    Quality-Control Noise- 0.7 dB, Gain- 55dB.
    HEMT-1170M Ser.No.E44316370
    Made in Taiwan R.O.C.

    Is it of any practical use for FTA?, or is it just another dust collector?

    Thanks, --Kev--


    Attached Files:

    #1
    Avatar

    Advertisements Register Today!



    Reigster at SatelliteGuys
  2. Scott Greczkowski

    Scott Greczkowski Welcome To SatelliteGuys! Staff Member HERE TO HELP YOU!

    Joined:
    Sep 7, 2003
    Posts:
    84,434
    Likes Received:
    692
    Wow... LNA... put it in a museum!

    You would need a block converter to convert the frequencies down to what the receiver can use. These Block converters are built into LNB's... (Thats what the B stands for.)

    #2
  3. upnatm

    upnatm Thread Starter Member

    Joined:
    Aug 22, 2009
    Posts:
    207
    Likes Received:
    0
    Thanks for the response Scott.

    I guess, if anything, the feed-horn alone could possibly be useful, in the future.

    Cheers!

    #3
  4. Tron

    Tron SatelliteGuys Family

    Joined:
    May 6, 2005
    Posts:
    6,590
    Likes Received:
    1

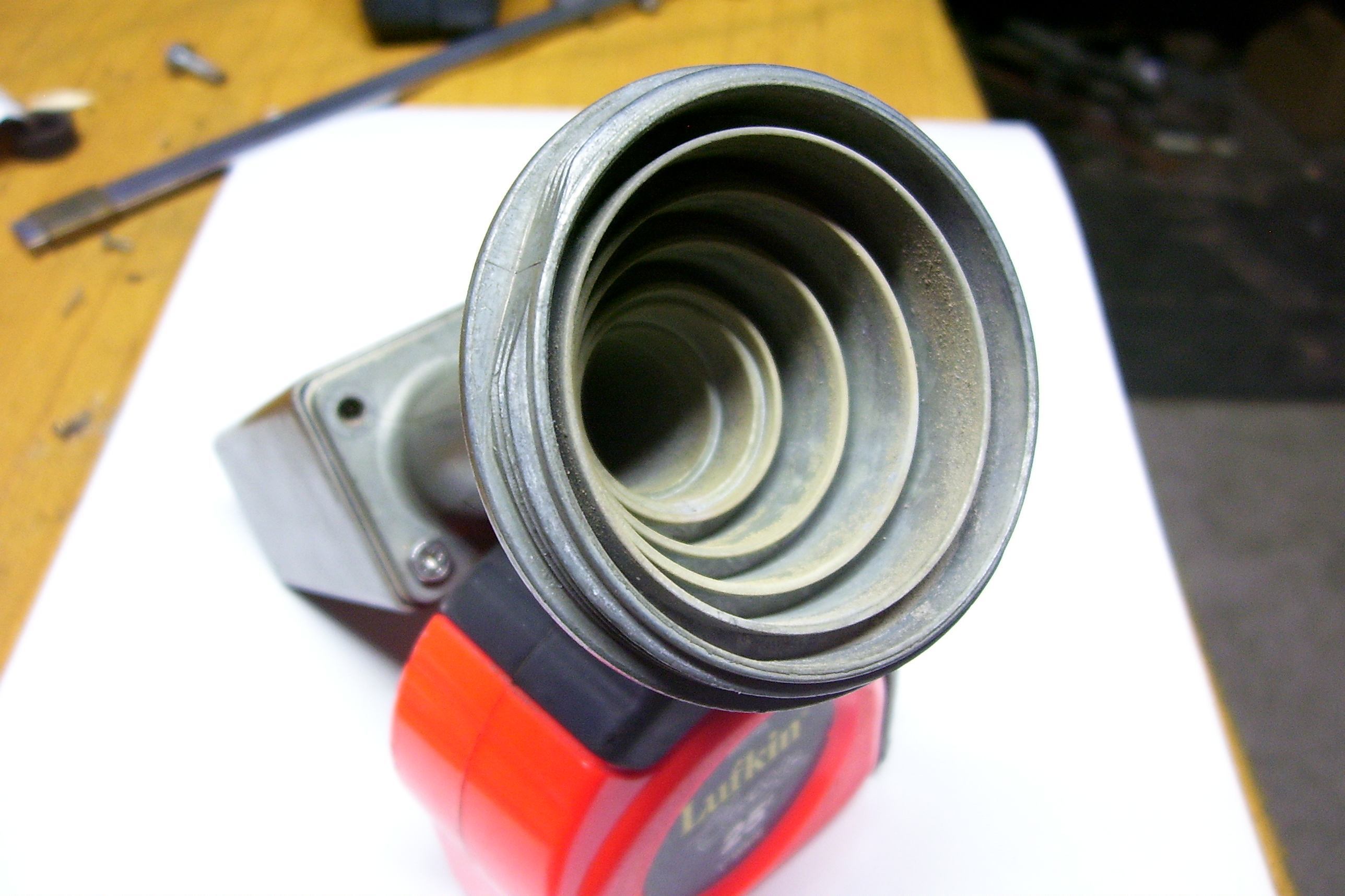

    Since you have the dish as well, definitely keep the feedhorn, as it will match the dish. The LNA looks like it is attached via a standard WR-75 flange to the feedhorn.

    #4
  5. FaT Air

    FaT Air HOA Free Zone Pub Member / Supporter

    Joined:
    Feb 27, 2010
    Posts:
    4,895
    Likes Received:
    83
    What is the output connector?? If it's an "F": connector it probably ISN'T an LNA. F connectors are terrible at Ku freqs. 3 gigs is pushing it. Most likely it's actually an LNB. Try 10750 for LO. and do a blind scan. (H polarity to supply 18V??)
    LNA's used, usually, an "N" or SMA connector. (Never seen one with a F)

    #5
  6. Bongu

    Bongu Addicted beyond recovery Pub Member / Supporter

    Joined:
    Oct 20, 2010
    Posts:
    517
    Likes Received:
    4

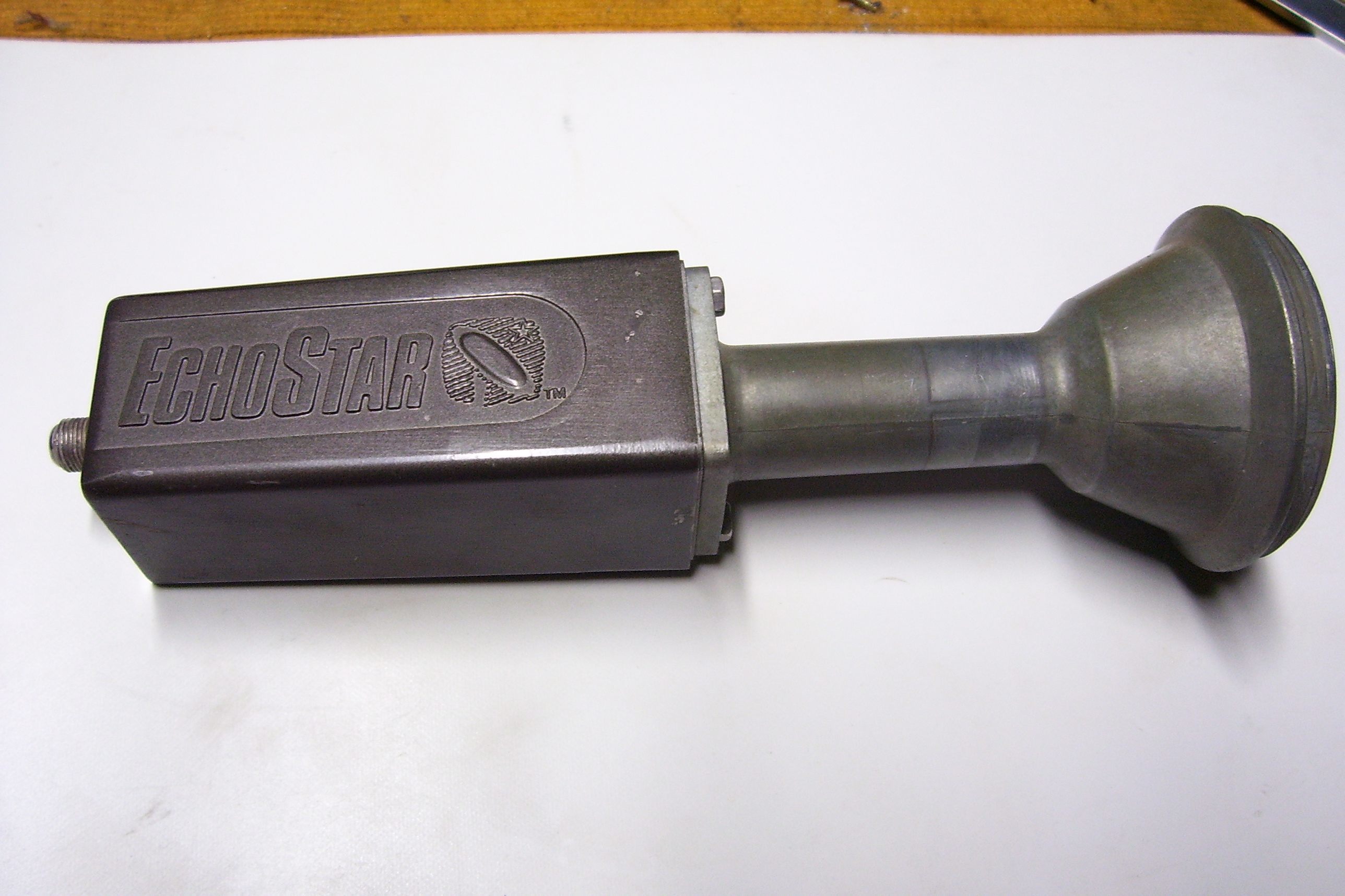

    What you posted in the picture is A single polarity Ku lnb and a Ku feedhorn. The lnb is a basic model that is good for FTA if you only need a single polarity. The feedhorn is probably matched to the reflector it was originally installed on. If you have the original reflector, you may want to look in to a different lnb if you desire both polarities from a single feedhorn.

    Sent from my Timex Sinclair using SatelliteGuys

    #6
  7. upnatm

    upnatm Thread Starter Member

    Joined:
    Aug 22, 2009
    Posts:
    207
    Likes Received:
    0
    Thanks for the input Guys!

    I've never worked (toyed?) with one like this, and was just wandering
    if it had any use or value.

    In hindsight, I may have wasted everyone's time, since I just dug out my
    Invacom QPH-031.

    I'm sure I can fit it to the focal point of the dish, but our northern weather
    is steadily getting wintery up here. This project might have to wait 'til spring.


    Hmmm, I wander if the feed-horn will fit the Invacom?


    Thanks again Guys!

    #7
  8. FaT Air

    FaT Air HOA Free Zone Pub Member / Supporter

    Joined:
    Feb 27, 2010
    Posts:
    4,895
    Likes Received:
    83
    It would fit the QPF-031 (Flange model). QPH is the integral (feed) horn model.

    #8
