Pansat 3500

Discussion in 'FTA/MPEG2 Equipment Reviews' started by Iceberg, Jul 18, 2005.

Thread Status:
Not open for further replies.
  1. Iceberg

    Iceberg Thread Starter We're here....RUN!!!! Supporting Founder

    Posts:
    91,483
    Likes Received:
    174
    When I first got into Free to Air, the first real receiver I got was a Pansat 1500 and I really liked it. So when I decided to review the new 2005 model, the Pansat 3500, I thought “what is this thing going to do to wow me?”. Boy was I in for a shock.

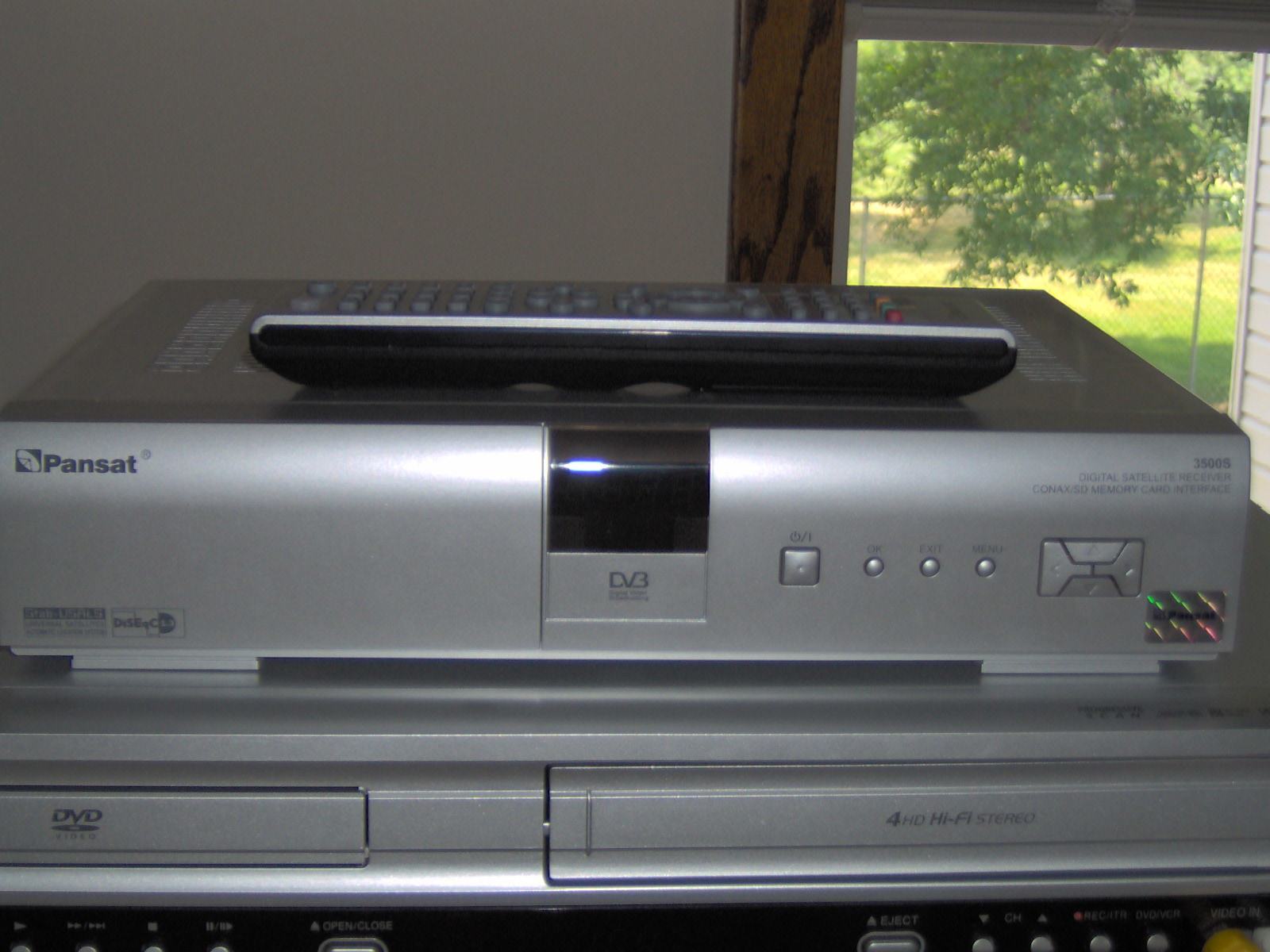

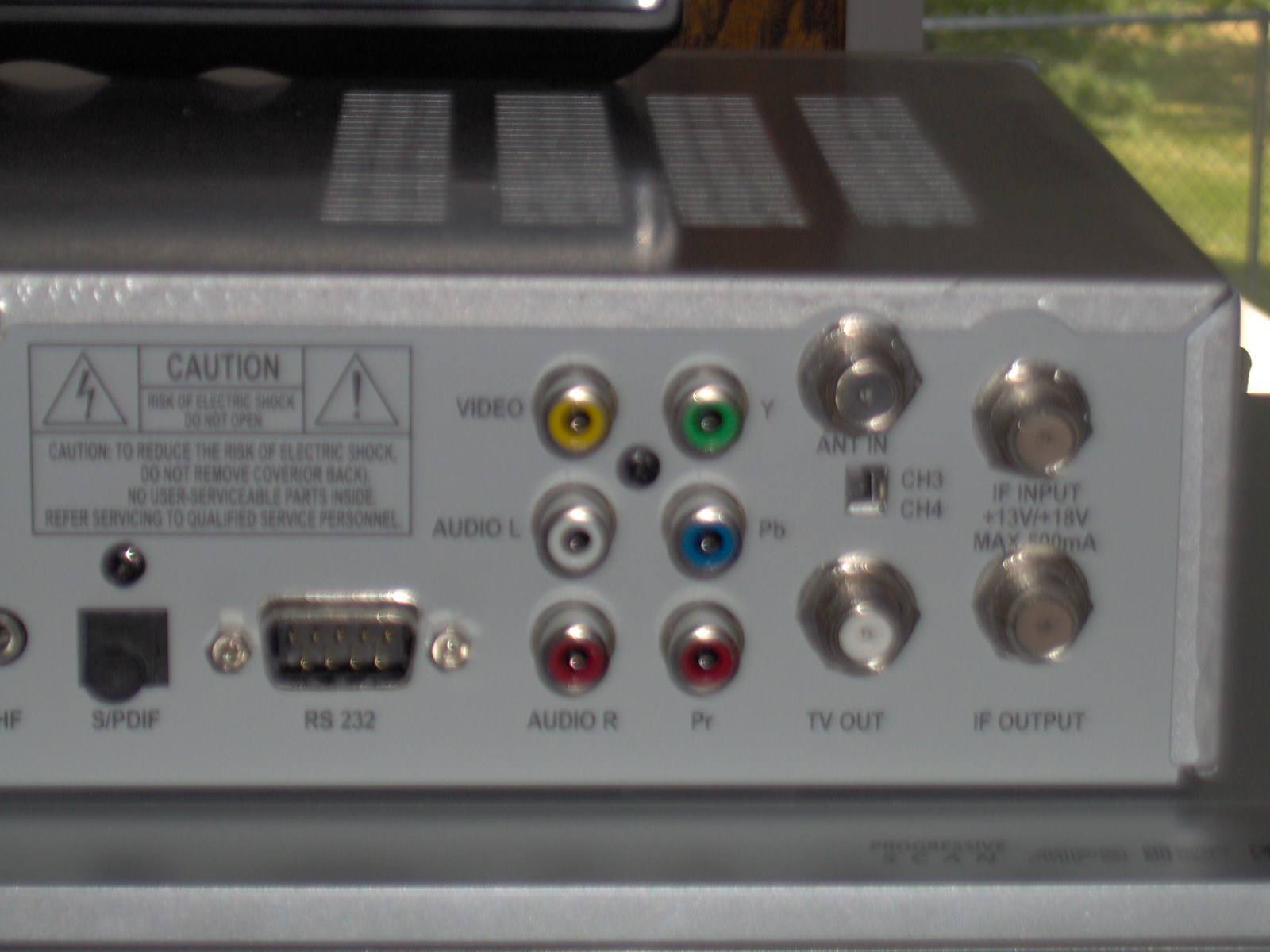

    The Pansat 3500 is an upgrade from the popular 2500, with a lot more options. The unit is a little bigger than the 1500. The first thing I noticed is there is more than 2 or 3 buttons on the front panel. There is channel up & down, volume up & down, the power and a menu, exit & OK button. So if you lose the remote, you can still use the unit and get into the menus. This is a big plus. On the back of the unit, there is a satellite input and a loop out, RF in and out, S-Video, RS232 port, a UHF plug, SPDIF output for AC-3 audio (you need a receiver to decode it), plugs for a C-Band polarizer and a set of audio/video outputs and component outputs. So If you have a big screen that has component outputs, you can use those.

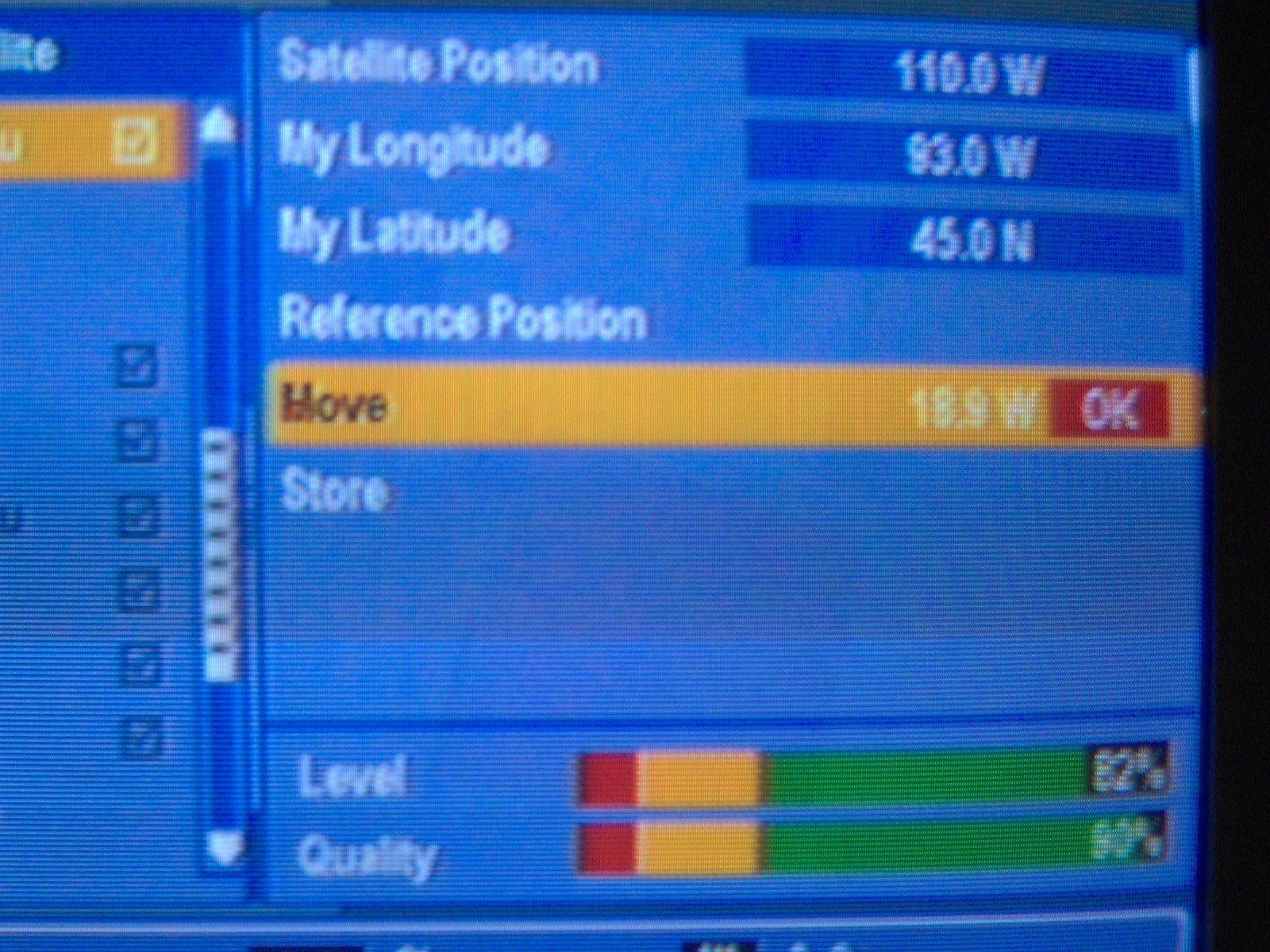

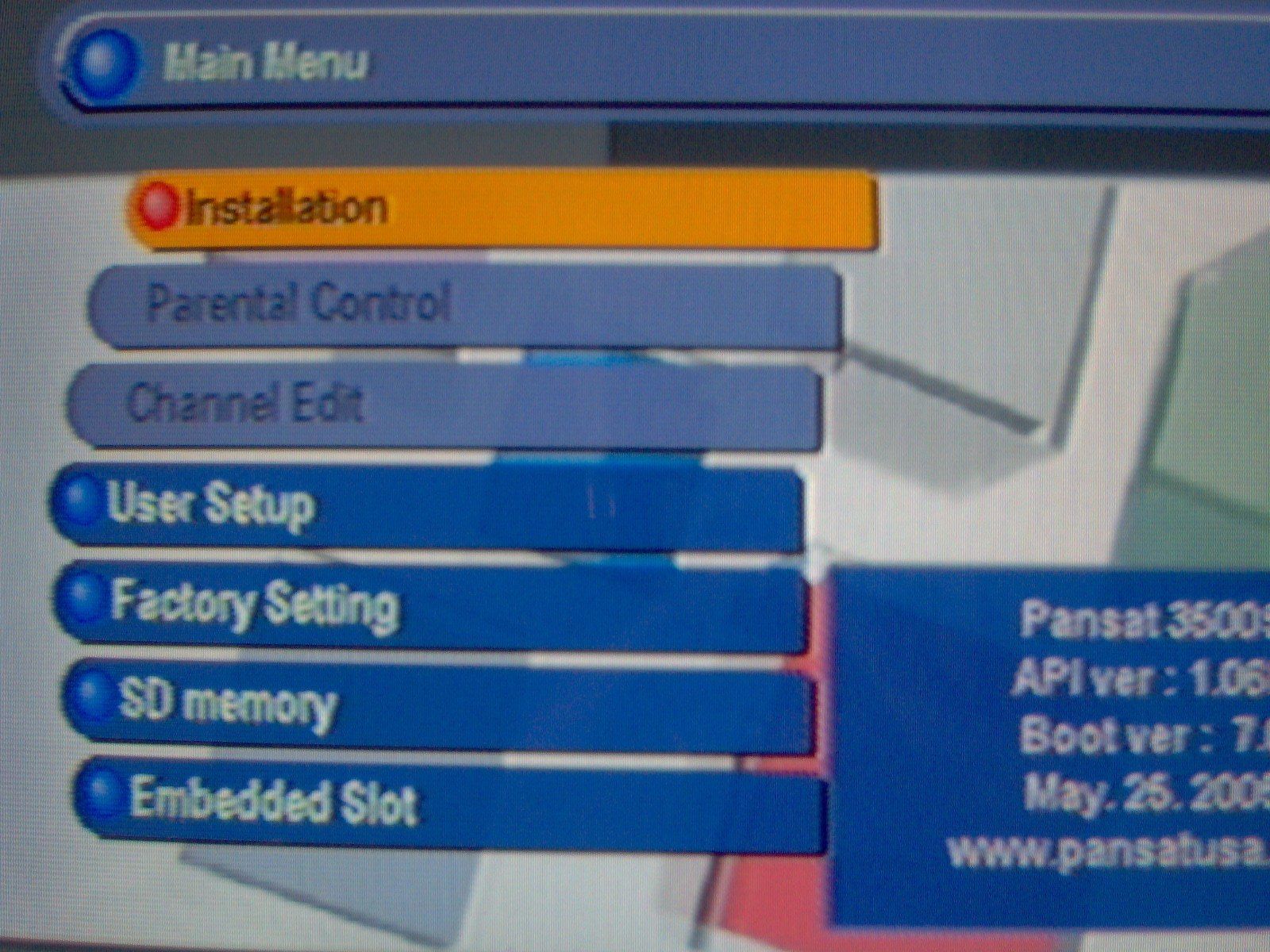

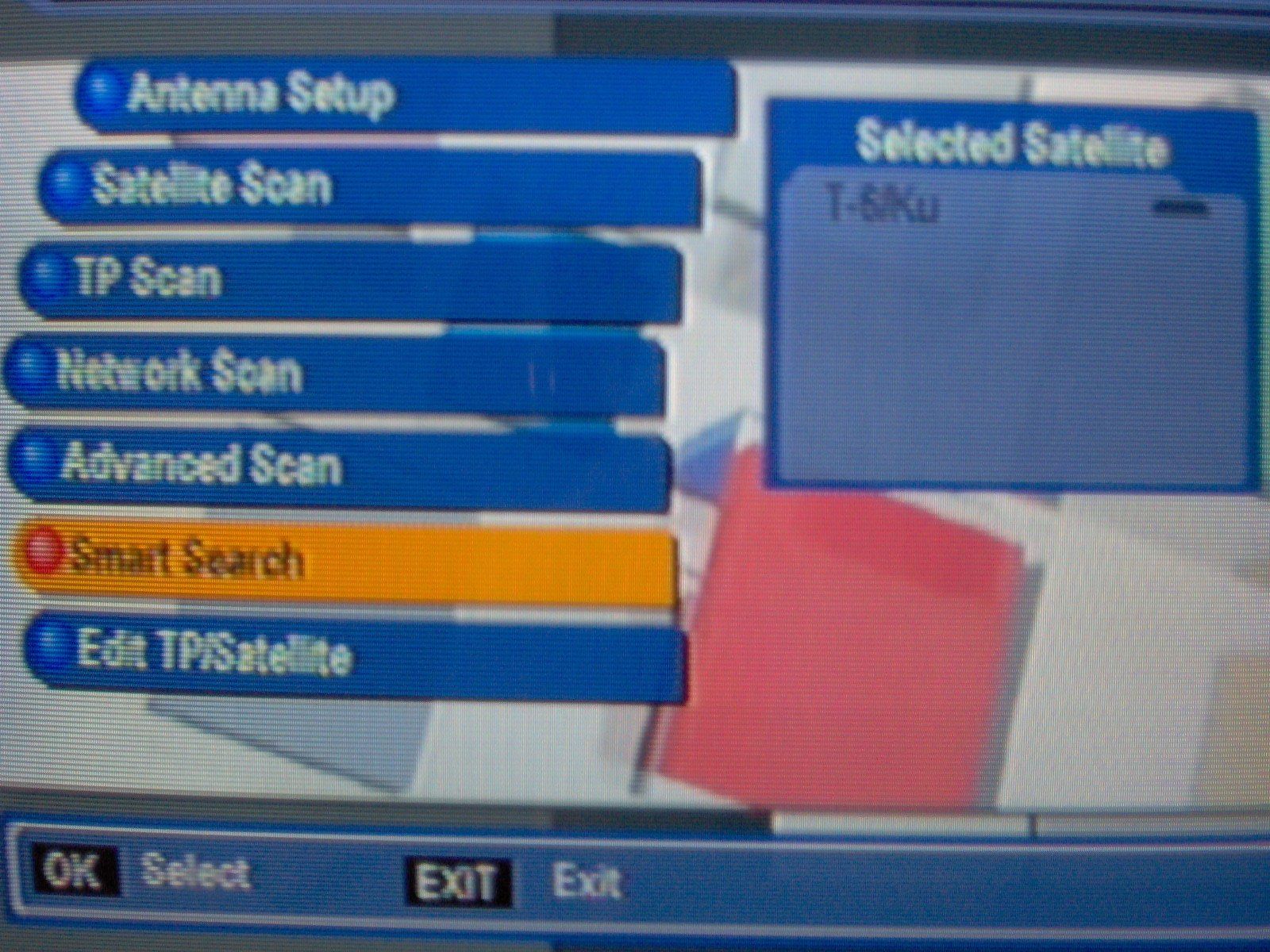

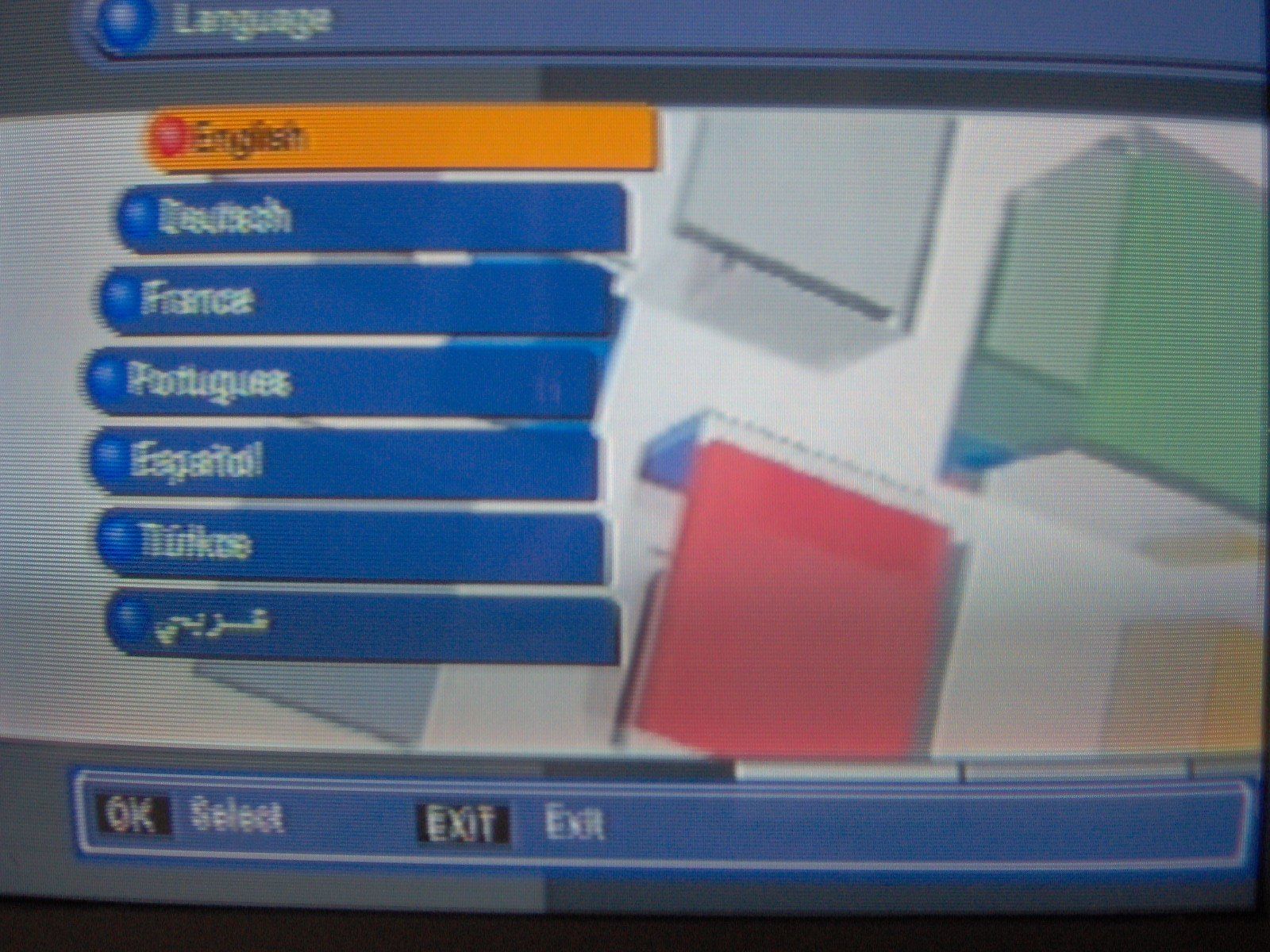

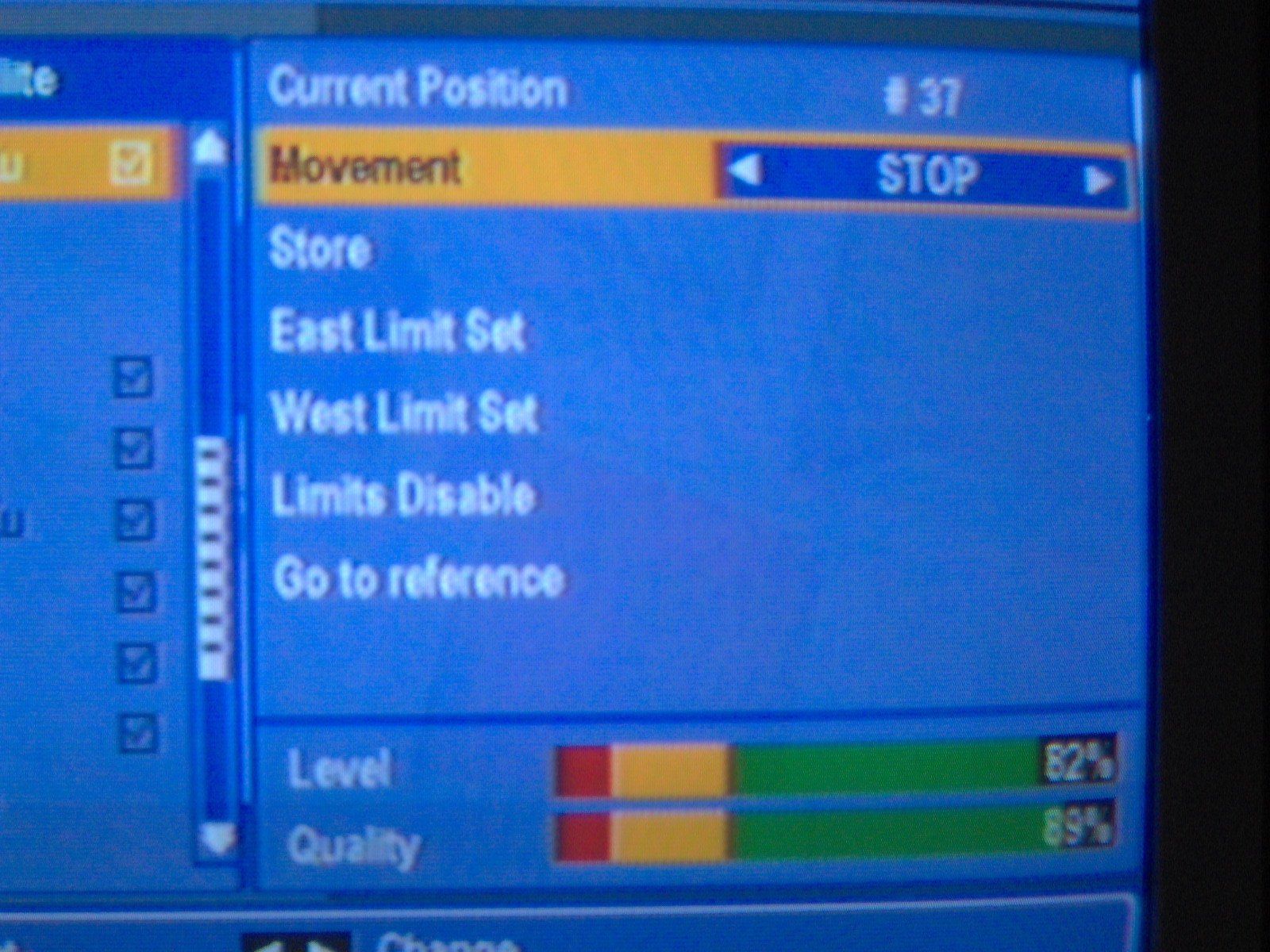

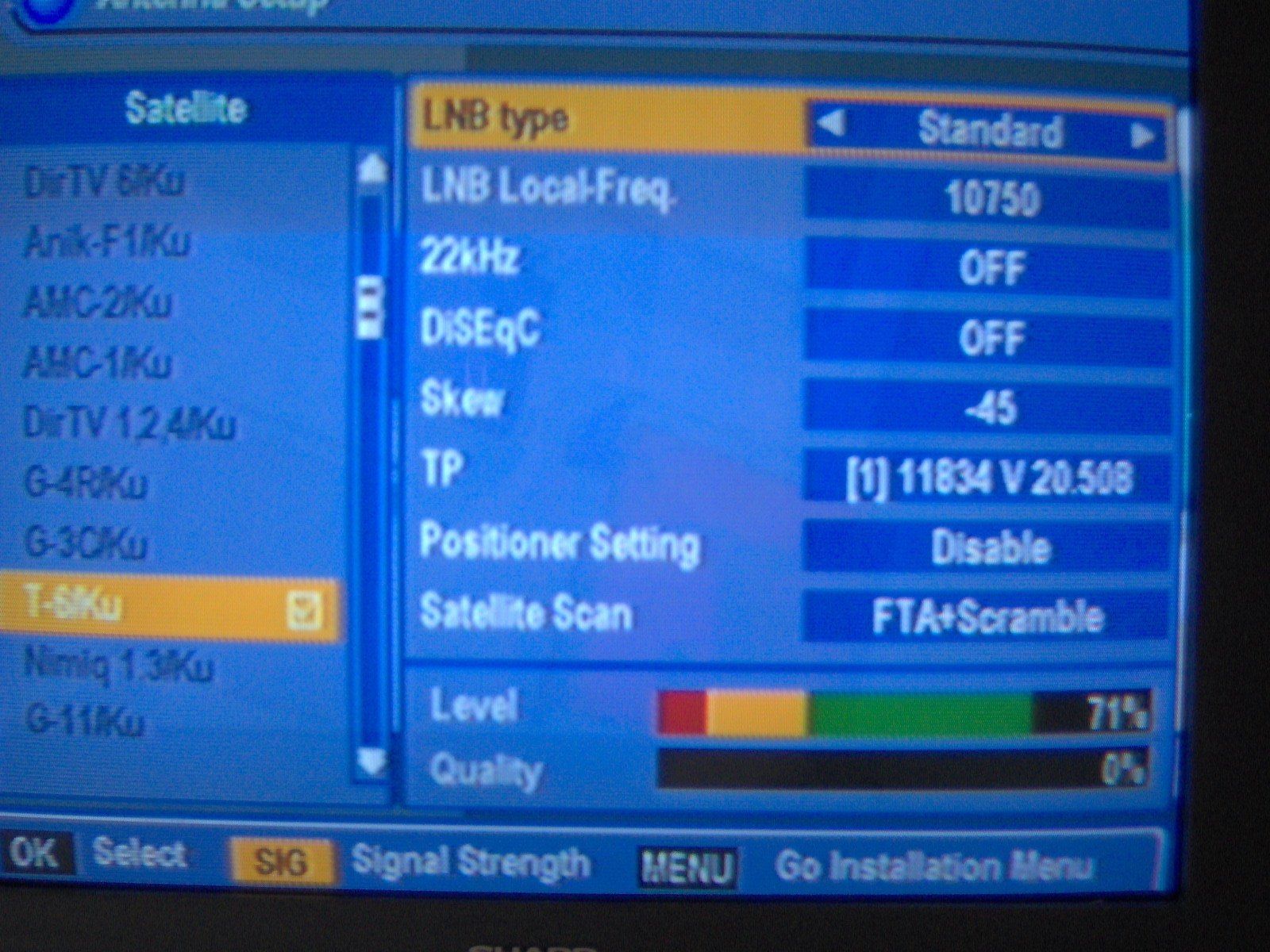

    I unplugged the receiver I was using and hooked up the 3500. Since I had worked with a Pansat before, I knew how to operate it. But even a newbie will find it easy to operate. Select the language and away you go. Setup is a breeze. Go into installation (type in password, which is 0000) and enter the info of your setup. I went to IA6, which sadly still is labeled T6, and went to change the LNB stuff. Since I had a standard, the LNB type and LO frequency was right. Changed a couple parameters (Diseqc) and set up my motor. Since I was on true south, I was already there. Stored that and backed out to the second screen. Since the unit has a smart scan, I let the unit do the work. I went through and selected the satellite and what I wanted to store (FTA only or everything). On the 1500, my options for polarity always defaulted to Horizontal, so I would have to switch it to ALL. The 3500 already is at ALL, but as you can see in the picture, I goofed and changed it to Vertical...whoops. Switched it to All and hit OK and the unit was off to scanning. Now let me tell you, this thing is FAST, much faster than the 1500. In less than 5 minutes I had channels. I went in and set up for G3 and did the same thing. Again, this is very easy to set up. Since the transponder was already in there for G3, I didn’t do a blind scan.

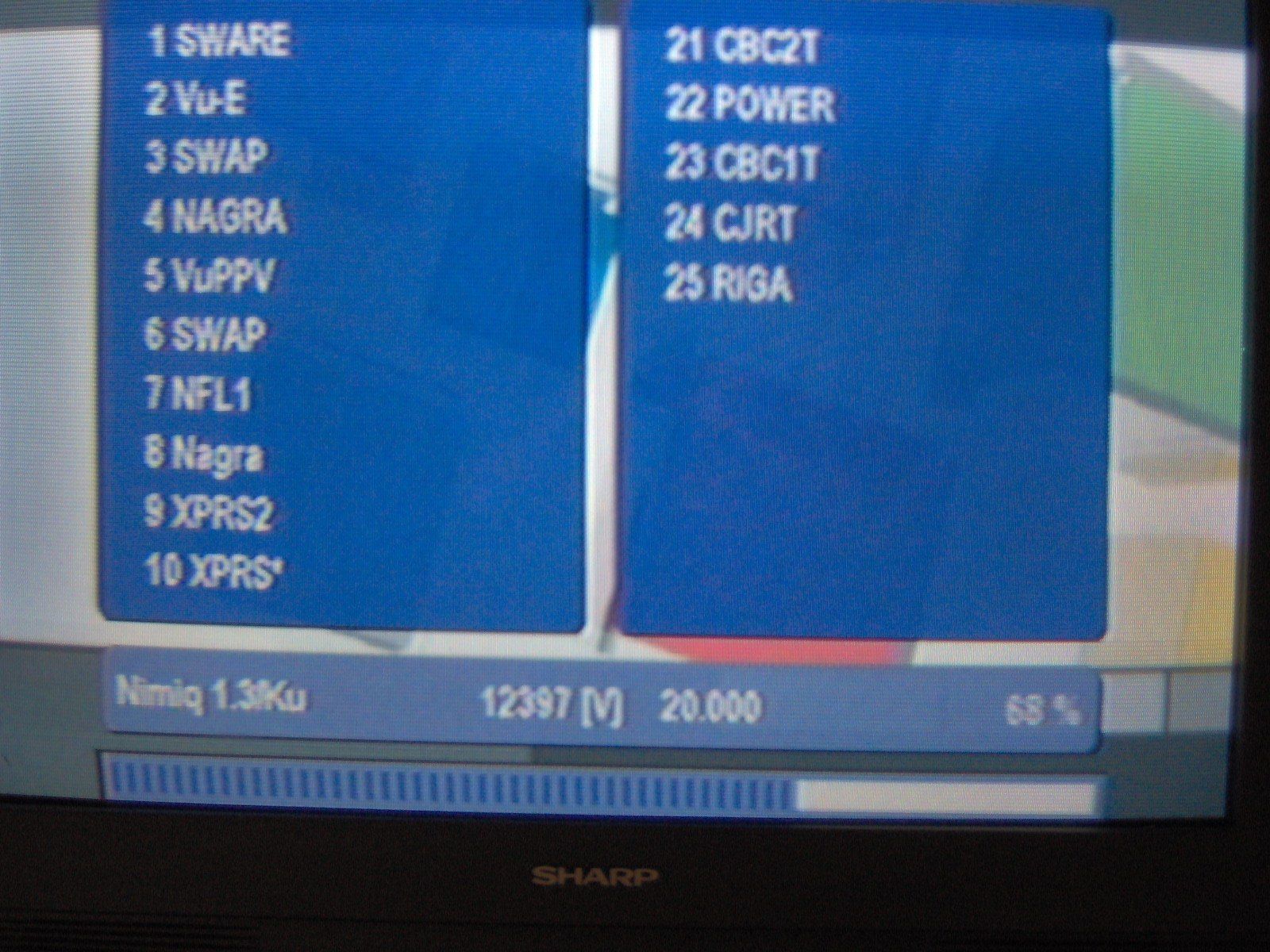

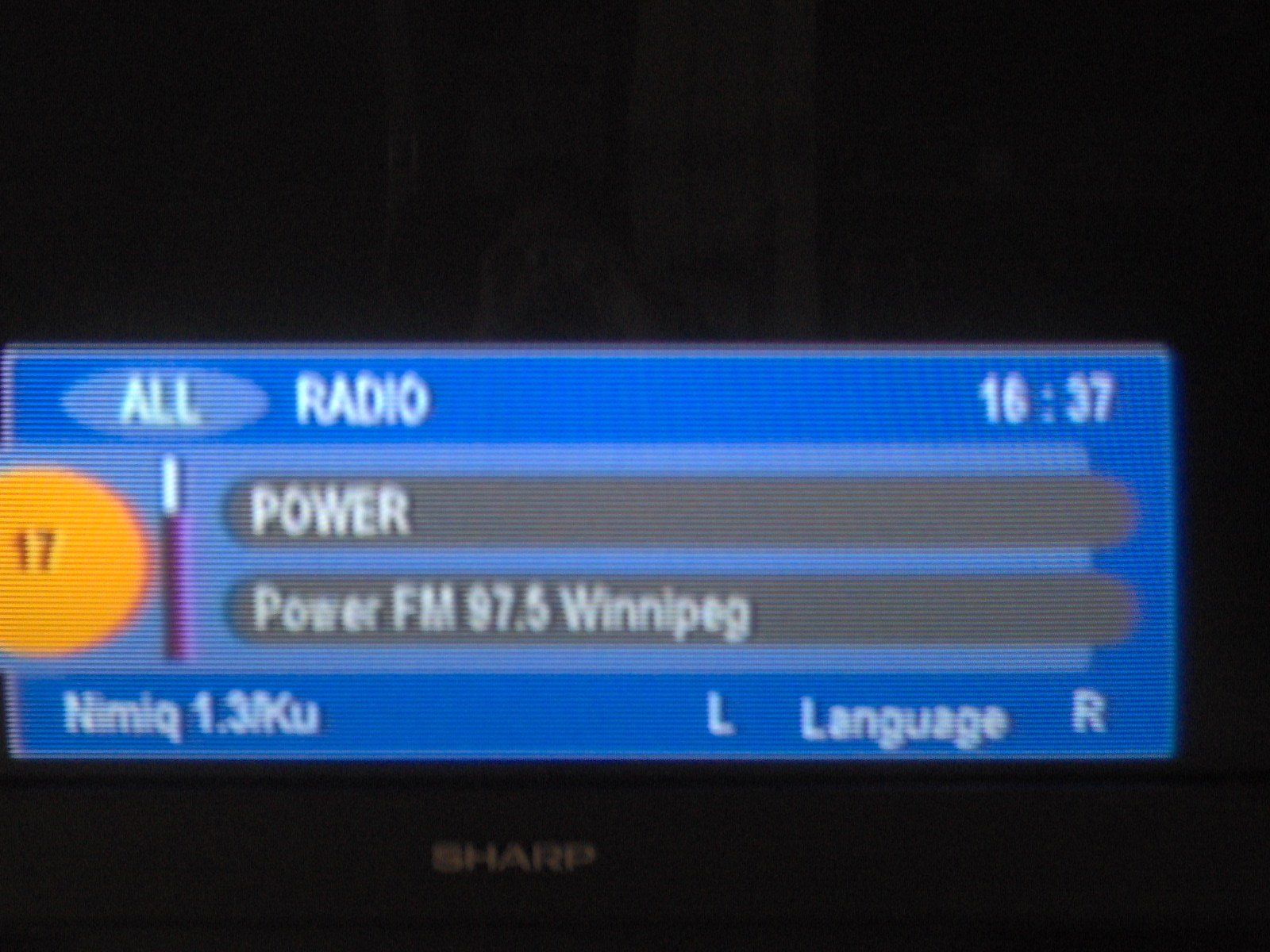

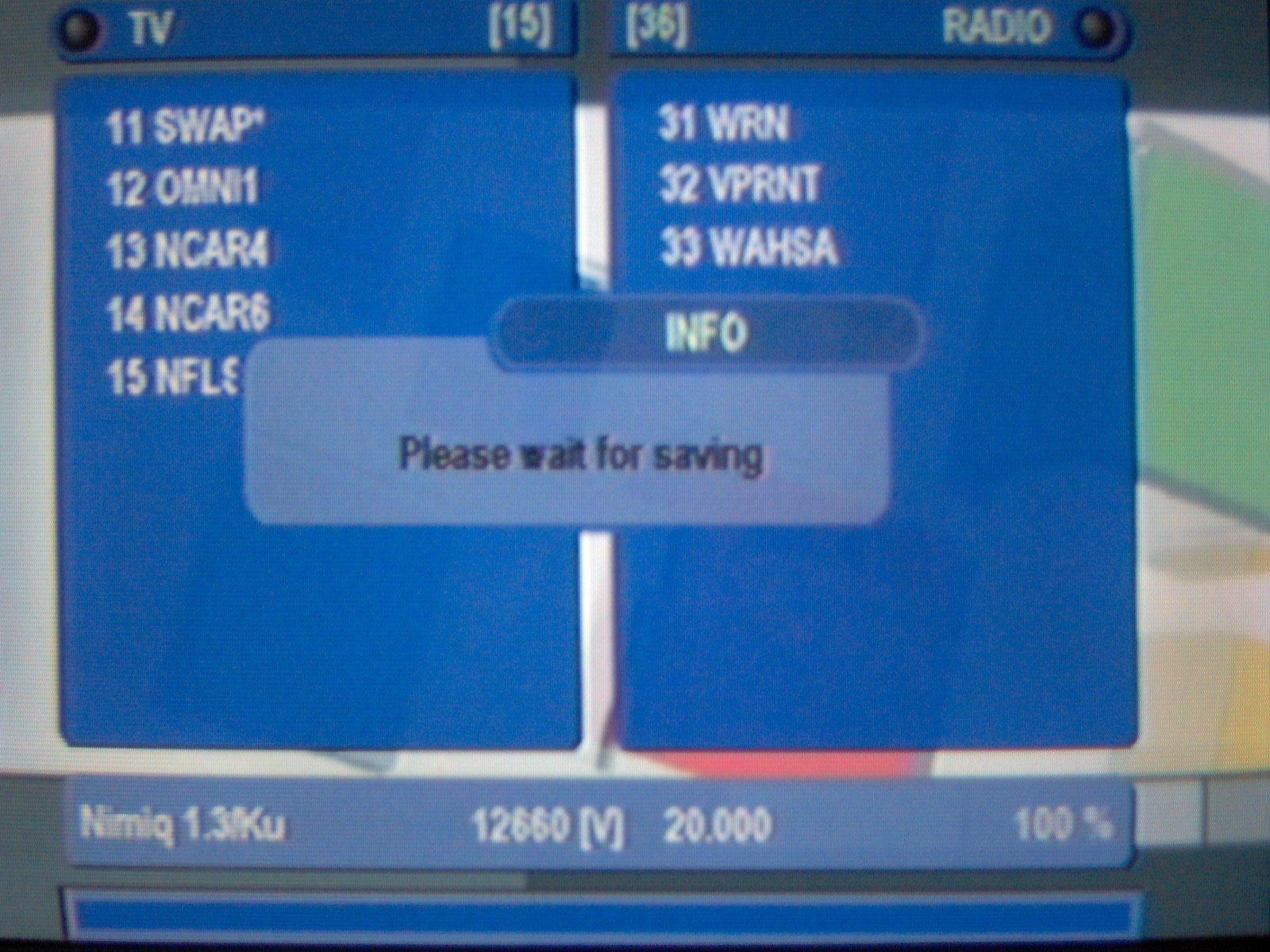

    I decided to really put this to the test. I got Nimiq1 lined up and did a blind scan. Now, anyone with a Pansat knows of the dreaded “Pansat issue” where when you scan a Dish Network satellite, you get 13 dummy channels per transponder. So if you want the audio on 119, you have 400+ dummy channels to delete. While ExpressVu isn’t as bad as Dish, there still is 150 channels to delete. So I figured “well here we go”. Much to my surprise (and happiness), this unit DOES NOT HAVE THE PANSAT ISSUE!!! If you see the pictures below, there was only 15 channels on ExpressVu that popped up. This is great for people who want to scan to see what is free, without the worry of deleting hundreds of channels. I tested out the USALS function and it is dead on. When I did scan one of the satellites, I picked up a HD signal. When it landed on it, I thought I would have to reset it like the 1500 (the 1500 locks up and you lose the menu until you power off). I was very happy this didnt do that. After a half hour of monkeying around with it, I went back to IA6 and did a master reset so I could enter everything right.

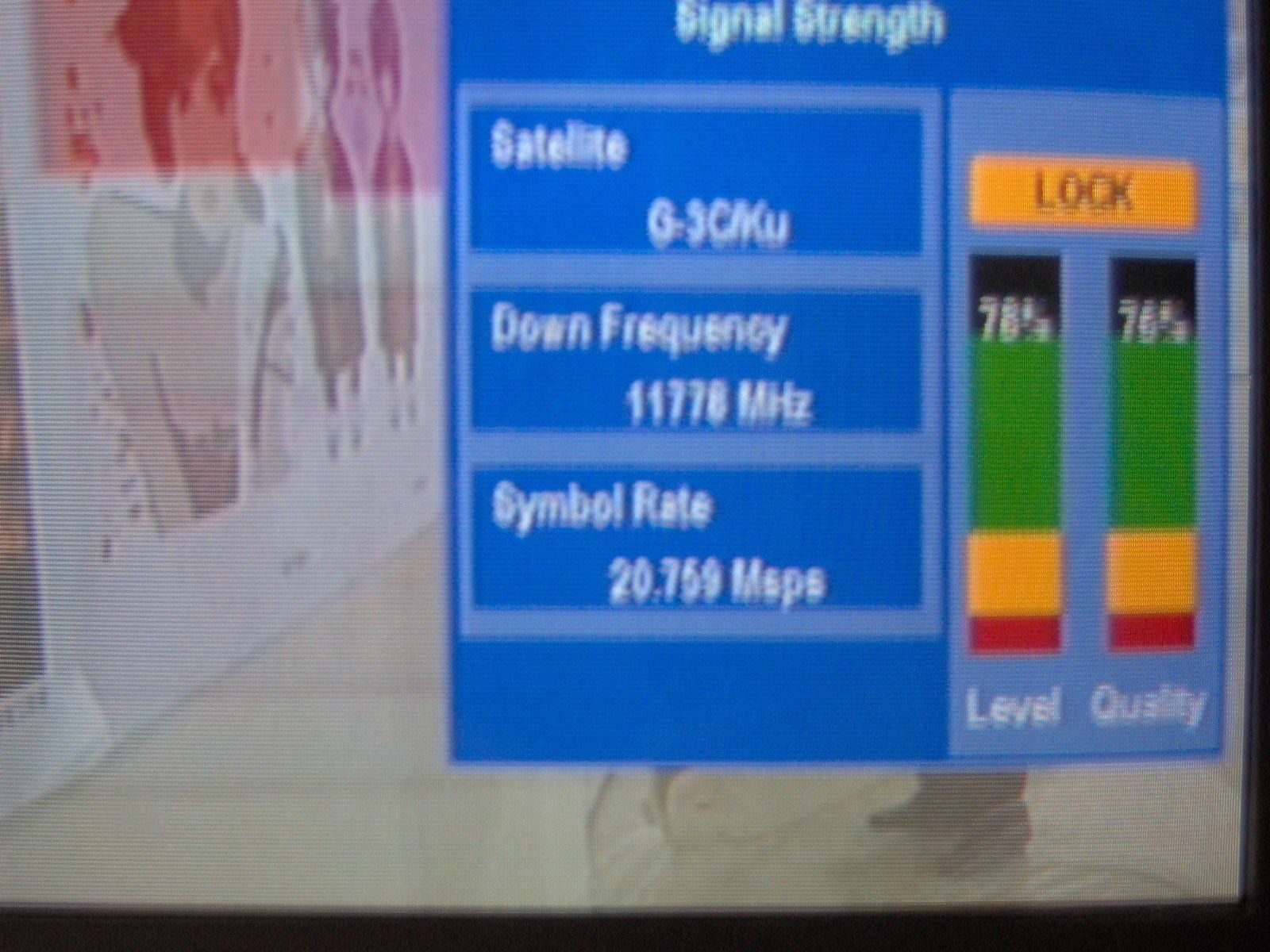

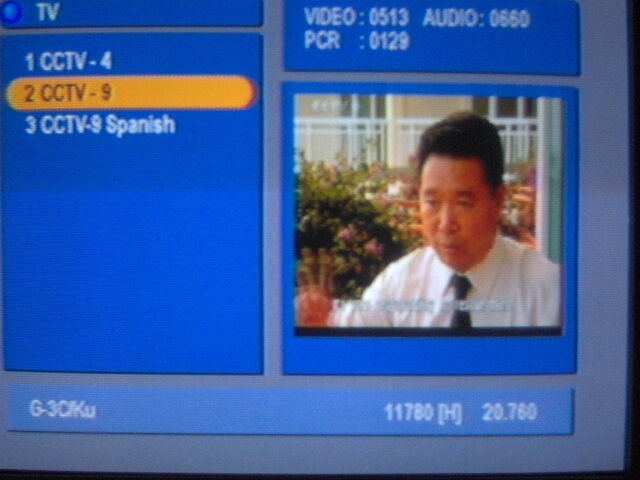

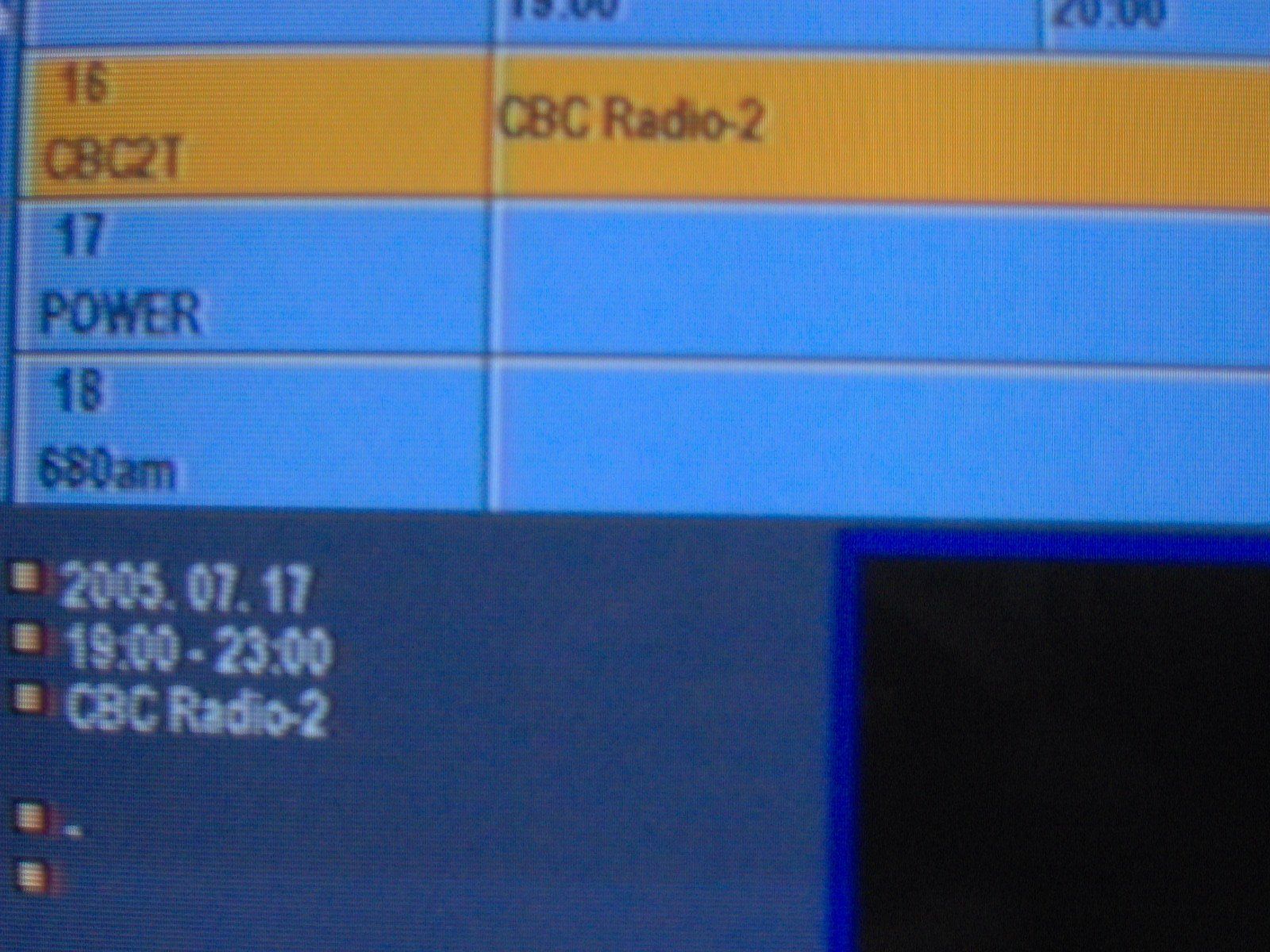

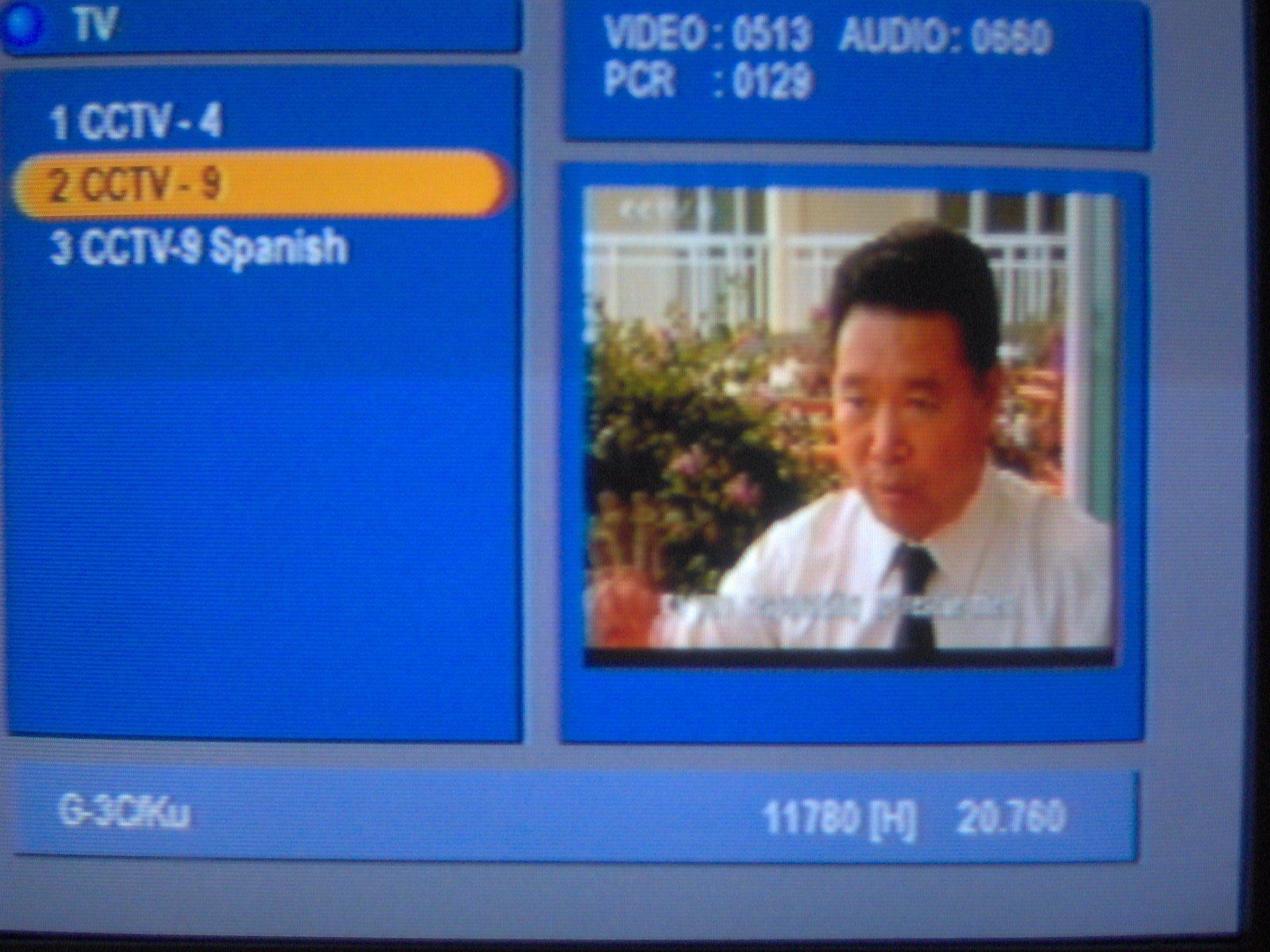

    I went to G10 and scanned in the channels and scanned them. I came across Imagin-Asian and the no audio, because of AC-3. So I decided to hook up the receiver I bought 9 months ago (and really never took it out because none of my receivers did AC-3). I hooked up the decoder to the unit and audio came out of the decoder. I now have AC-3...I can listen to the PBS stations now. This is a huge feature for me. When you are on a channel, press info to see the satellite and PID info. There is an EPG, but sadly most US channels don’t have a guide. It did work on the ExpressVu channels. Deleting channels was very easy to do, along with moving and renaming channels. You can even see a list of all tranponders at a glance with easy edit option. Another thing I noticed is the signal meter isn't as spazmatic as the 1500 is, which is good if you dont use a meter when aiming a dish :)

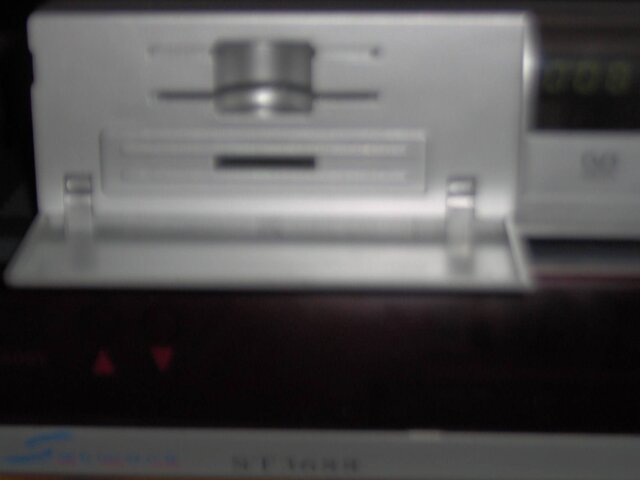

    The universal remote is very easy to use and the button layout is very well done. You also have an option of adding a UHF remote to the unit, so you can hook a second TV and control it from another room. This is an option I will be getting. The unit has a card slot for a subscription, like Globecast. There also is a MP3 player built in to the unit. All you need to do is put your card from the MP3 player into the unit and it recognizes it. There is a real time clock in it, so it actually keeps time. I did set a couple timers and they fired off with no issues. The nuit powers on and moves to the satellite if it isnt there already (so if you have to do this, you might want to start it a minute early). This unit does it all (and the manual is actually easy to understand) :D


    Some of the features of the unit are
    -smart scan (very fast smart scan)
    -loop through
    -multi language on screen display
    -fast channel change
    -universal remote
    -AC-3 output (need a receiver to decode it)
    -timer
    -REAL TIME CLOCK

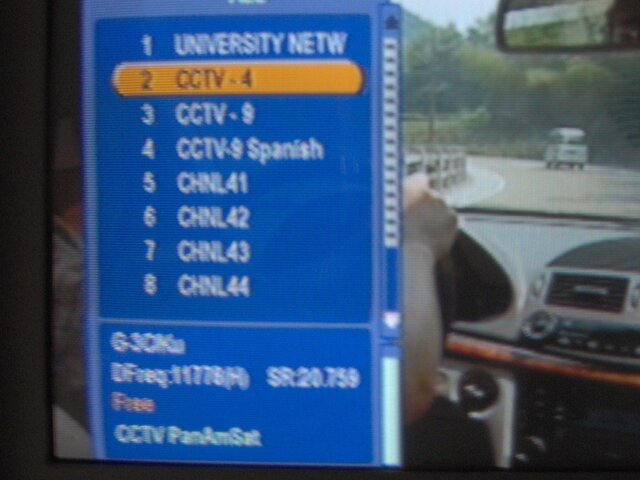

    -Picture in Guide
    -5 favourties lists

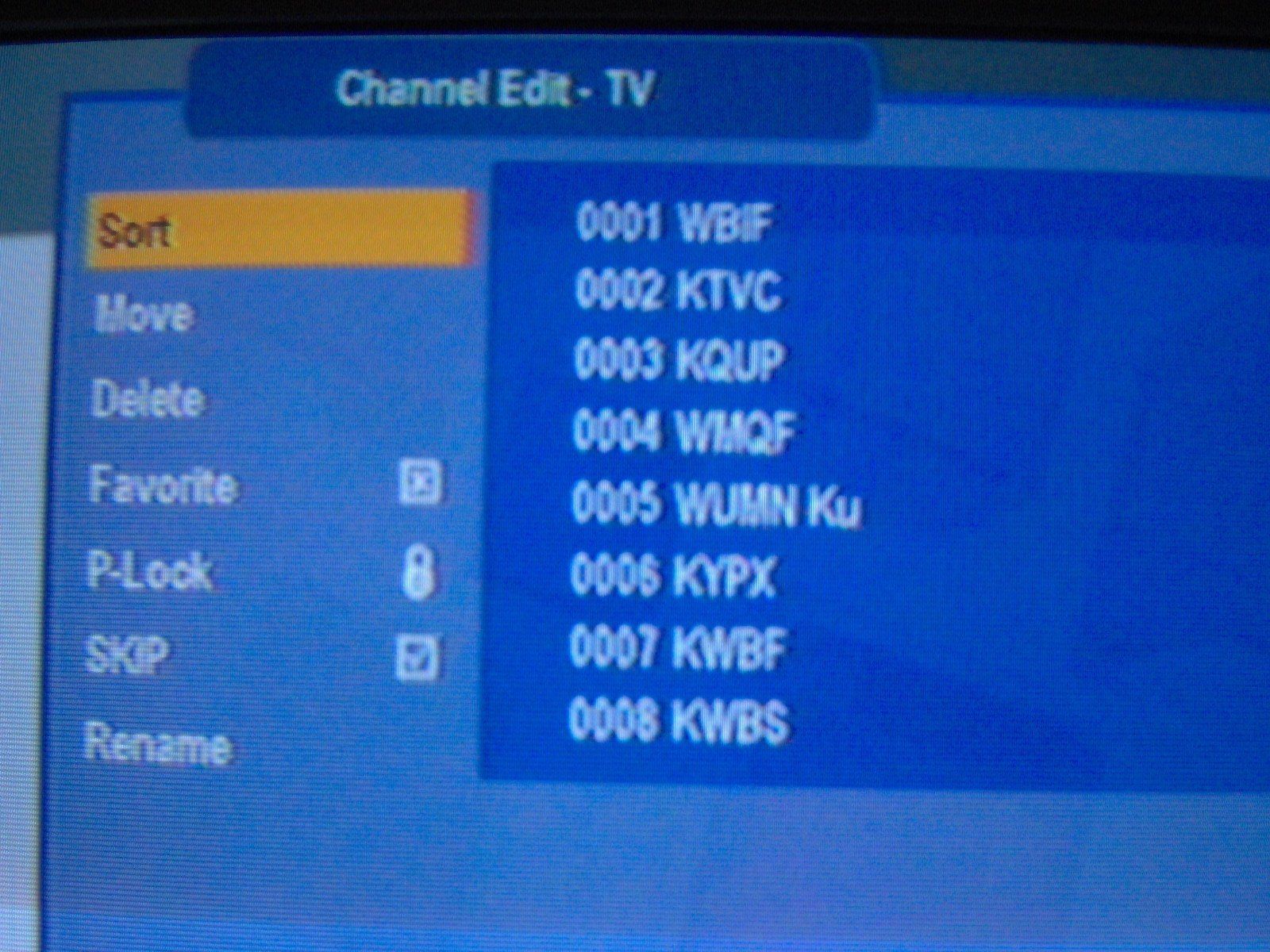

    -easy edit of channel names
    -can sort the channels by transponder, alphabetical
    -easy to move & delete channels
    -manual PID entry
    -satellite scan, network scan, advanced scan
    -USALS compatible
    -can use a motor and switches in tandem
    -easy to upgrade software
    -pause the picture

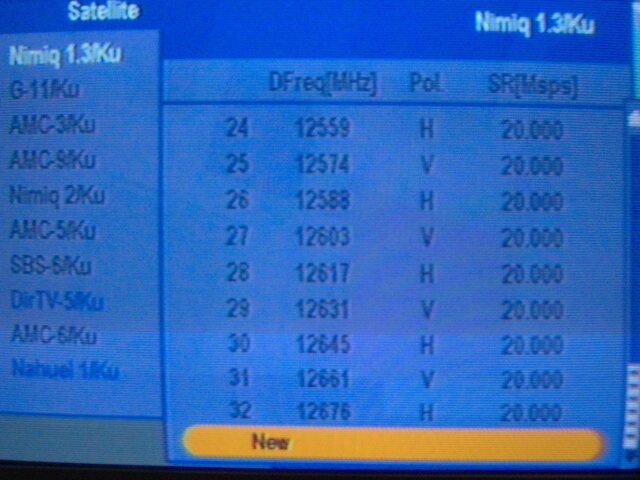

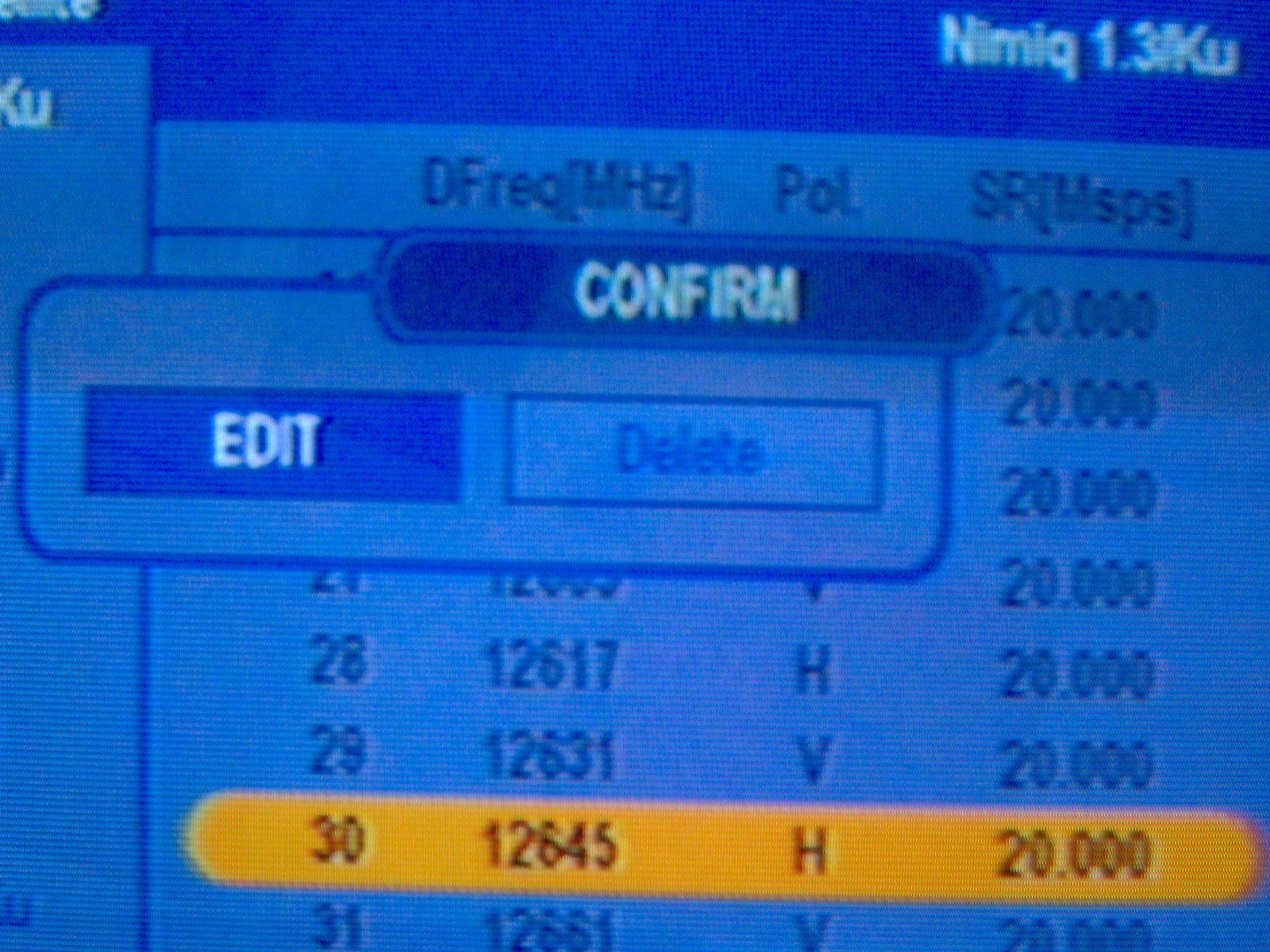

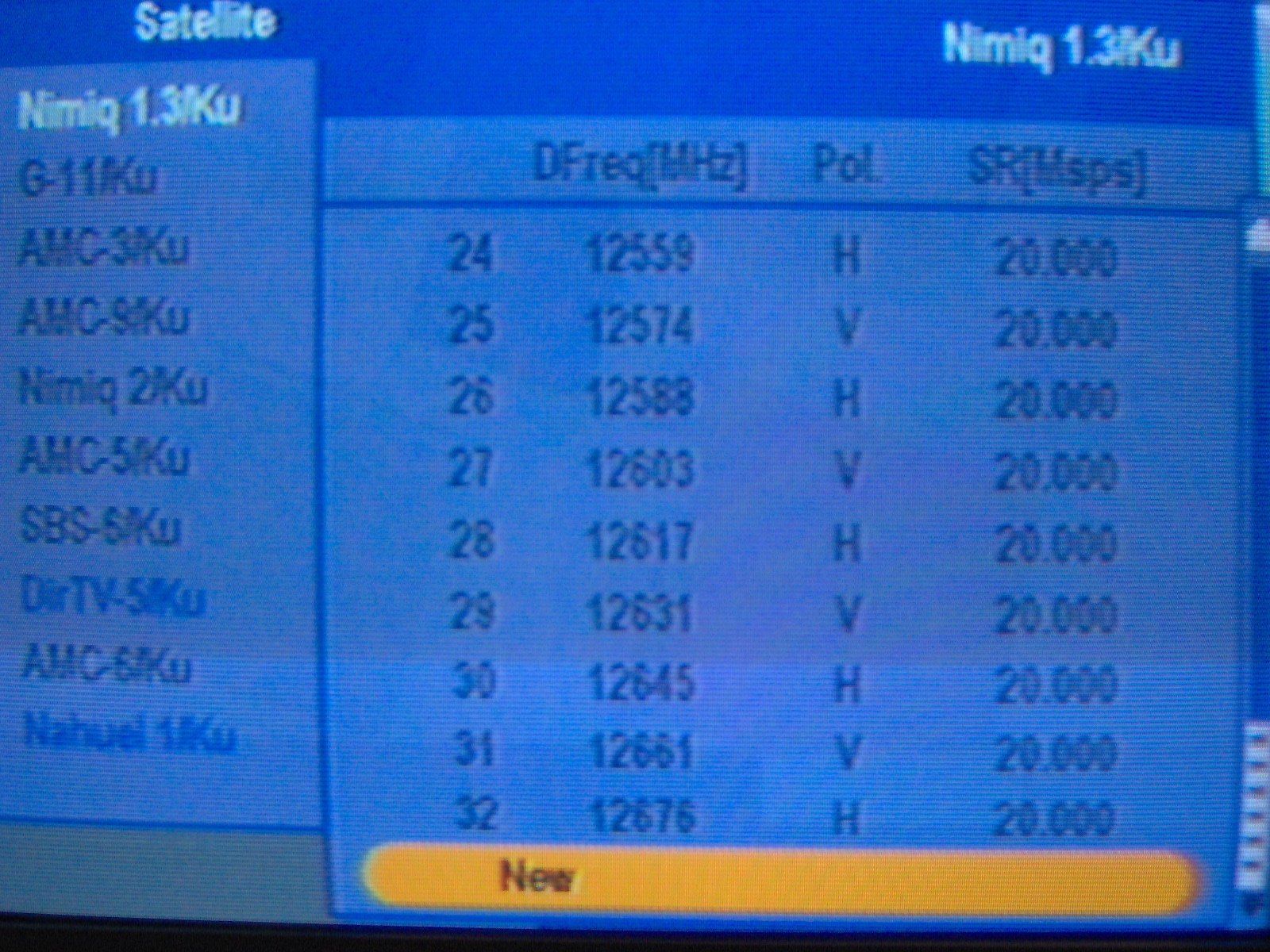

    -you can list and edit tranpsonders
    -can add a UHF remote
    -has an option to use a card for Globecast or other subscription
    -MP3 player (need a card)

    My favorite things about the unit are
    -speedy smart scan...I don’t have to wait 10 minutes to scan a satellite
    -the clock actually works. I hate on the 1500 to set the clock right, only to have it an hour off in a day or so
    -I can scan a DBS satellite without deleting 400 channels.
    -AC-3 output so I can listen to the PBS channels.

    The only flaws I found are
    -When I was scanning IA6, the unit seemed to get stuck on one frequency it picked up, It was trying to pick up something on that transponder for about 2 minutes before it gave up.
    -This really only pertains to me but where I wanted to put it, the remote sensor wouldn’t pick up the remote. The 1500 does pick it up, so I moved it to another area and it worked fine.

    Since I had worked with a Pansat before, I didnt know what to expect. I am very happy with this unit. All and all, this is an awesome unit as an upgrade (in my case) or as a first unit. On a 1-10 scale, I give this a 10. Other than the one delay when scanning (and my personal issue with the remote), I can’t find a reason not to buy it. This is a great unit and you will be happy. I highly suggest this unit.

    Once again, I want to give a big shout out to ftadirect, now one of our Gold sponsors. They are a top notch operation and you will be happy with the service.

    (warning to dial up's...big pictures)

    Attached Files:

    Avatar

    Advertisements Register Today!



    Reigster at SatelliteGuys
  2. Cascade

    Cascade Goose. Supporting Founder

    Posts:
    1,457
    Likes Received:
    0
    Component output, MP3 playback.
    Another great review - the 3500 looks like it's in a totally different class.
    I want one.
  3. drhydro

    drhydro Active SatelliteGuys Member

    Posts:
    1,572
    Likes Received:
    0
    It seems as if the Pansat line of receivers just keeps getting better :-D Thank you for the awesome review Iceberg, and its nice to hear you finally have a reciever with ac-3 out ;)
  4. Iceberg

    Iceberg Thread Starter We're here....RUN!!!! Supporting Founder

    Posts:
    91,483
    Likes Received:
    174
    I was happy my crappy receiver actually decoded it :)
  5. Scott Greczkowski

    Scott Greczkowski Welcome To SatelliteGuys! Staff Member HERE TO HELP YOU!

    Posts:
    84,433
    Likes Received:
    624
    Nice Iceberg!

    Since you can out a SD memory card in it to play MP3's is there any options to allow it to take screen grabs and store them on the SD card? (That would be a cool feature!) :D
  6. John Walsh

    John Walsh Cellophane Supporting Founder

    Posts:
    995
    Likes Received:
    0
    Great review Iceberg. My wife wants a Christmas list from me and after reading your review this may be at the top of it (along with a 1.2 meter dish that I can hide in our fenced in area but that's another story)
  7. GOsatelliteRob

    GOsatelliteRob Member

    Posts:
    83
    Likes Received:
    0
    Thank you Iceberg

    Thanks Iceberg for the excellent review.
    For the people that took the time to read the review, here is a bonus.
    Enter this code upon check out 04100312024428 at www.ftadirect.com

    http://www.ftadirect.com/pansat_3500s_16899_prd1.html

    You will receive $10 off, which is a special for the satelliteguys forum users :)
    Product is in stock and you can call 1-866-942-7186 to order by phone as well.
    Thanks again to everyone at satelliteguys, they are the leaders for free to air knowledge!

    Rob
    www.ftadirect.com
  8. Shawn95GT

    Shawn95GT Tivo fanatic Supporting Founder

    Posts:
    2,278
    Likes Received:
    0
    Wow - it actually delivers on everything I was expecting.

    I'm SO getting one of these :).

    Does it say in the manual if the component output does 480p?

    Thanks for the review!
  9. snathanb

    snathanb Supporting Founder Supporting Founder

    Posts:
    2,582
    Likes Received:
    0
    Now *that* would be sweet!
  10. Iceberg

    Iceberg Thread Starter We're here....RUN!!!! Supporting Founder

    Posts:
    91,483
    Likes Received:
    174
    I'll have to check the manual tonight
  11. vj9999

    vj9999 Member

    Posts:
    145
    Likes Received:
    0

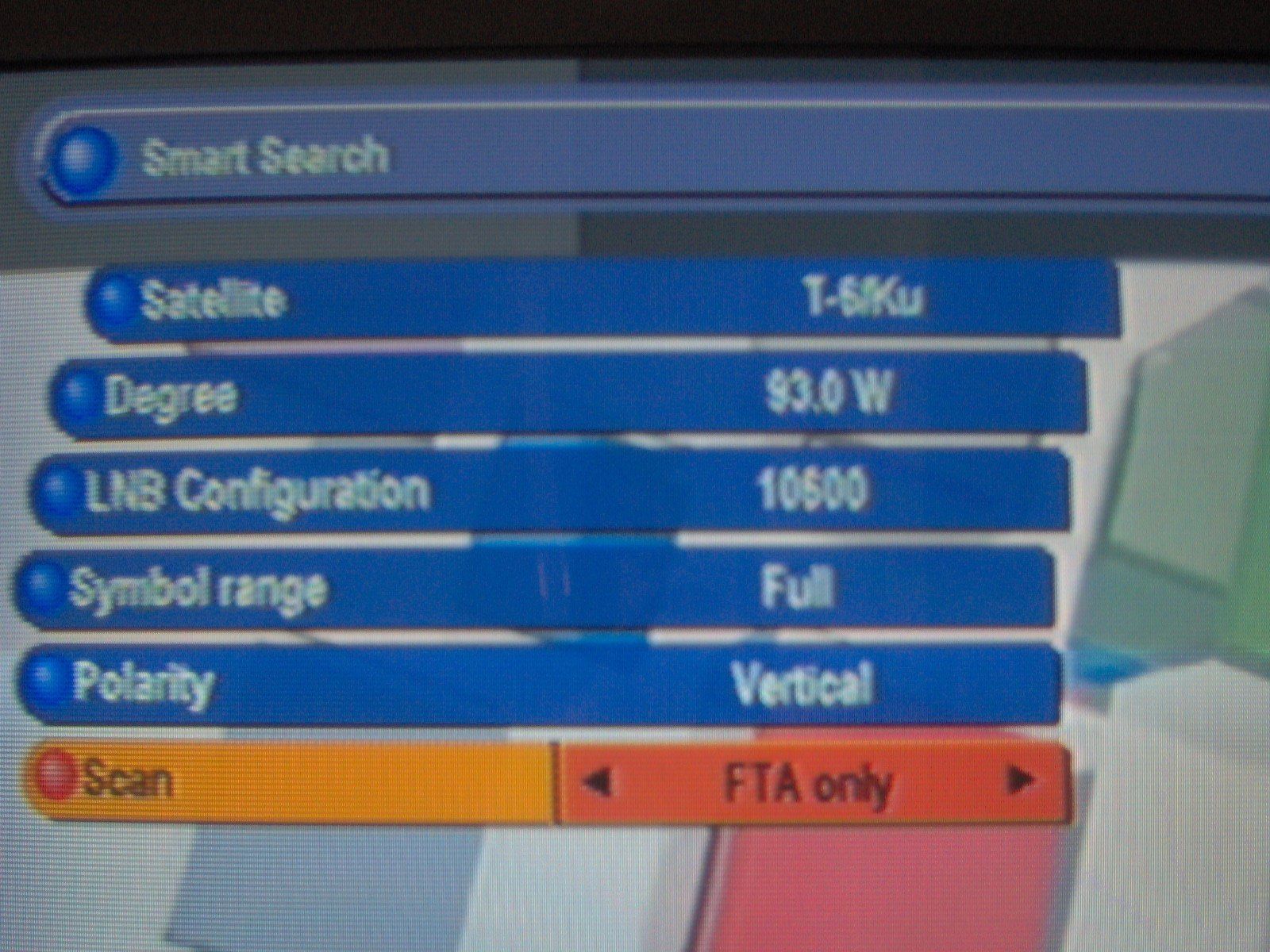

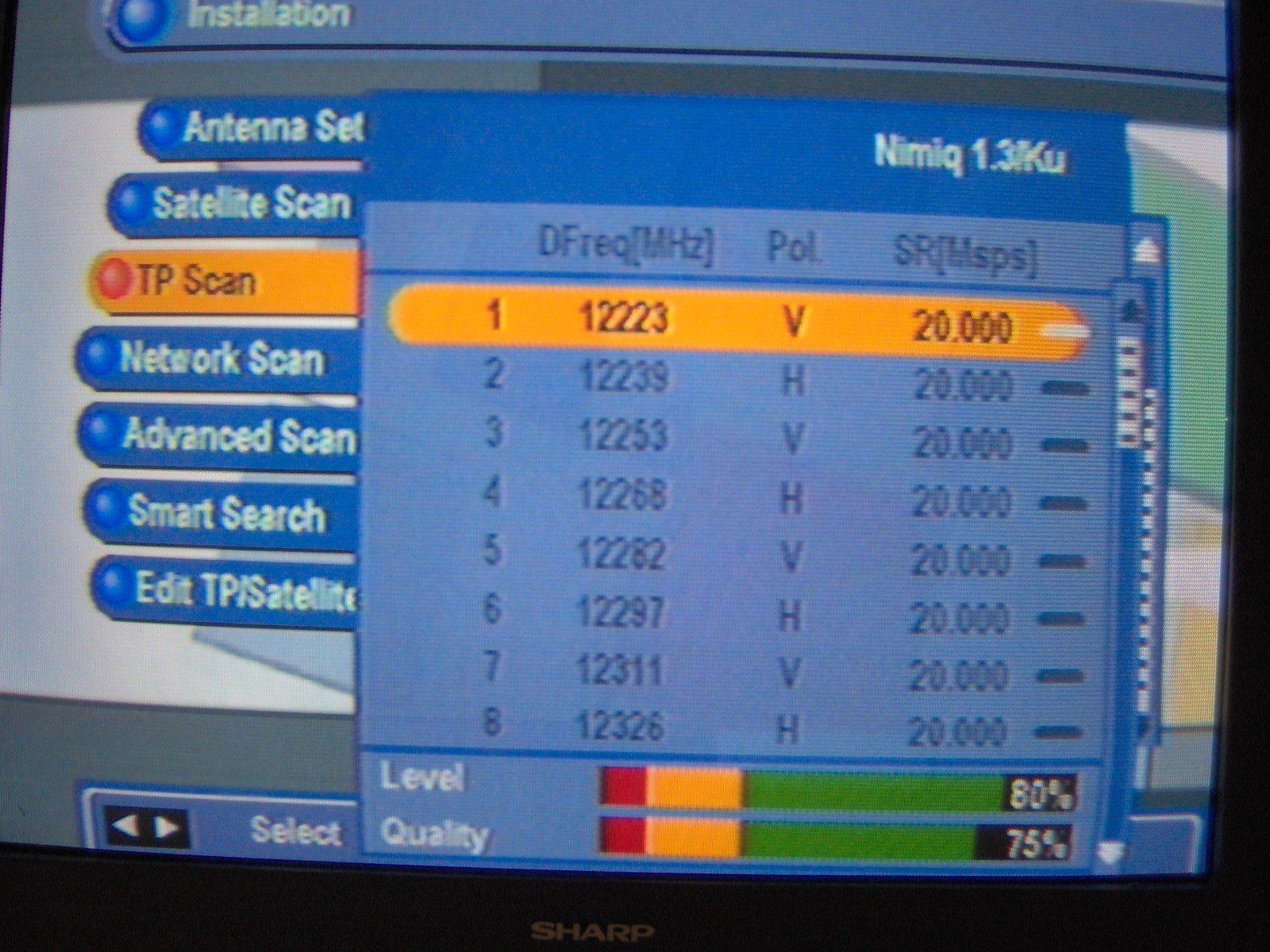

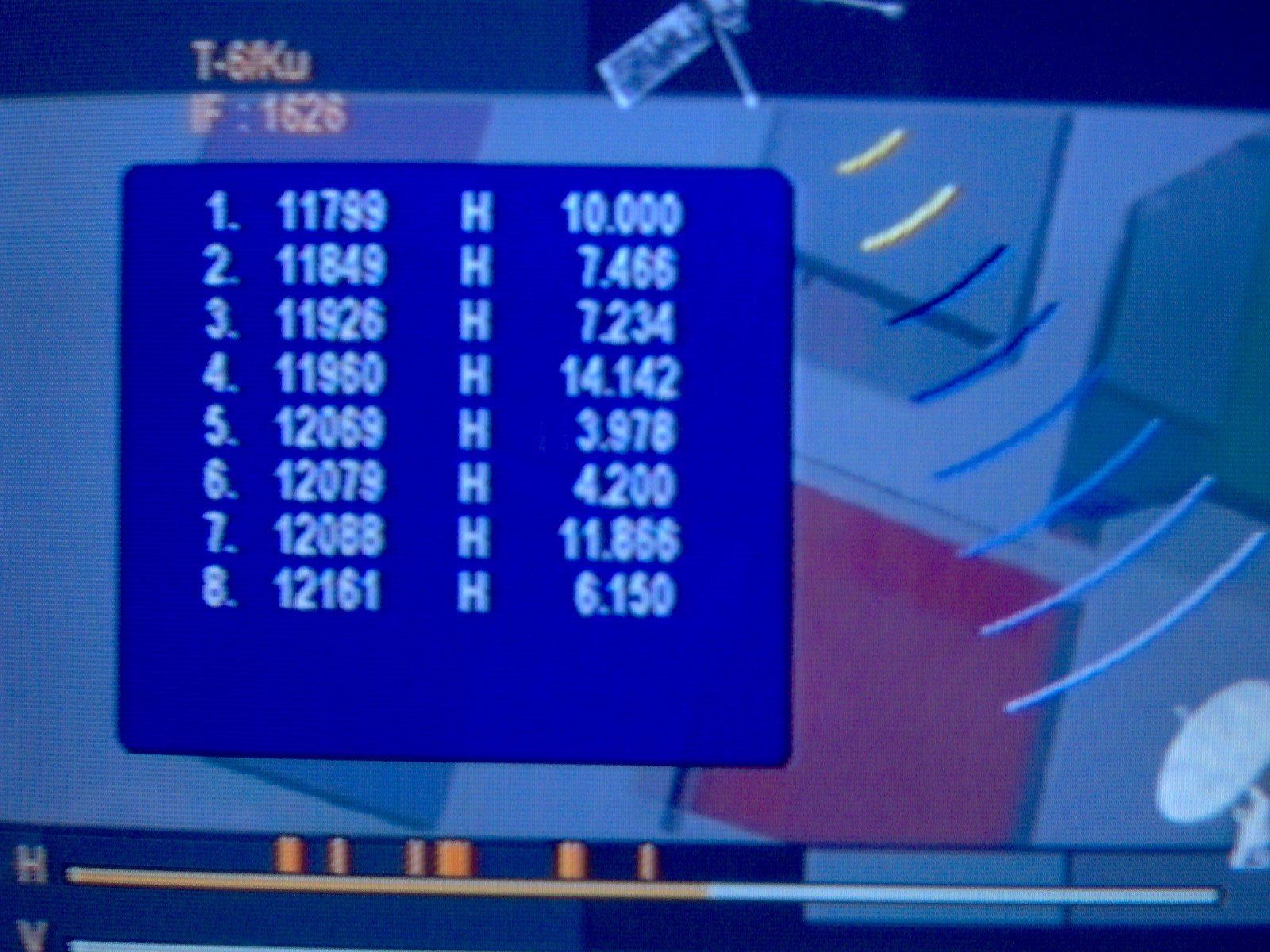

    I never owned/used a Pansat. From looking at the picture of blind search screen, does it have an option to select a frequency range you want to scan? That one of my favorite features that Fortec added in their firmware upgrades. It makes it much easier to specify only to scan 11700-12200 when scanning sats near echo birds so it doesn't have to go through scanning the whole spectrum.
  12. Iceberg

    Iceberg Thread Starter We're here....RUN!!!! Supporting Founder

    Posts:
    91,483
    Likes Received:
    174
    sort of
    If you have a standard LNB, it only scan from 11700-12200 (it scans via IF frequency and when it hits 1600 it jumps to 2150 bypassing the DBS stuff)

    If you have a Universal, it shouldn't hit them (at least not all of them). I dont have that issue on G11/Nimiq1. It scans just Ku band
  13. dishMIKE

    dishMIKE Active SatelliteGuys Member Pub Member / Supporter

    Posts:
    256
    Likes Received:
    0
    Great review Iceberg! I'm really happy for you!!! Mike
  14. korsjs

    korsjs Welcome To SatelliteGuys Supporting Founder

    Posts:
    7,583
    Likes Received:
    0
    since it has component output, can it do hd?
  15. voomvoom

    voomvoom SatelliteGuys Family

    Posts:
    6,638
    Likes Received:
    0
    Now that's what I would like to know!

    Good review Iceberg. I'm going to get me one of those baby's!

    Al
  16. Shawn95GT

    Shawn95GT Tivo fanatic Supporting Founder

    Posts:
    2,278
    Likes Received:
    0
    If it did it'd be in 48pt+ font in florescent green letters all over the box :p.

    Progressive scan would be nice though :cool:.
  17. lsat

    lsat Member Supporting Founder

    Posts:
    248
    Likes Received:
    0
    How does the overall speed of the blind scan compare to an Ultra or Coolsat?

  18. Iceberg

    Iceberg Thread Starter We're here....RUN!!!! Supporting Founder

    Posts:
    91,483
    Likes Received:
    174
    OK...I'll answer the questions in one posts

    no it does not do HD...the screen is just garbled (but it doesnt seize the box up like the 1500 does)

    I couldnt find anything on the component output other than the fact there is a component output..the manual doesnt say :)

    Blind scan is faster than the Fortec and faster than the Coolsat. The Coolsat scans the whole spectrum (11.7-12.7) so it scans the DBS frequencies even through there is none on most satellites. The Pansat skips those (unless you're on a DBS slot with LO of 11250)
  19. korsjs

    korsjs Welcome To SatelliteGuys Supporting Founder

    Posts:
    7,583
    Likes Received:
    0
  20. shramj

    shramj Member

    Posts:
    47
    Likes Received:
    0
    Can you get both Analogy KU and C bands with this receiver or does that havve to do with the LNBF's?
