Possible to use DirecTV triple LNB with FTA receiver?

Discussion in 'Free To Air (FTA) Discussion' started by Rawmotion, Mar 29, 2008.

  1. Rawmotion

    Rawmotion Thread Starter Member

    Joined:
    Dec 18, 2007
    Posts:
    16
    Likes Received:
    0
    I came across a DirecTV dish with a triple LNB. I took it apart, and the three feedhorns are labeled "101," "110," and "119." However, I read that there is a built-in switch. If this won't work with a regular FTA receiver, is it possible to rewire it to bypass the internal switch? I have it apart with the PCB completely accessible, so if anyone has any ideas, I'd be willing to try tweaking it.

    #1
    Avatar

    Advertisements Register Today!



    Reigster at SatelliteGuys
  2. Tron

    Tron SatelliteGuys Family

    Joined:
    May 6, 2005
    Posts:
    6,590
    Likes Received:
    1
    It will work for the few (and getting fewer by the month :( ) clear channels on the Dish Network and Bell ExpressVu pay-service satellites. The best of these birds is 119w (Echo 7), which has NASA-TV clear.

    The dish you have is a DirecTV Phase III dish, and only the 101w LNBF will work on a FTA receiver. The dish is too small (and has the wrong type of LNBF) for regular Ku FTA, but you can aim the 101w LNB at 119w for NASA-TV :)

    #2
  3. Rawmotion

    Rawmotion Thread Starter Member

    Joined:
    Dec 18, 2007
    Posts:
    16
    Likes Received:
    0
    Yeah, I assumed they were all circular LNBs. What I would have liked to do is bypass the internal switch and connect each LNB separately to the FTA receiver. That way I could get clear channels from all three sats without repositioning the dish.

    You mention that the 101 LNB will work. Is it not going through the switch? I noticed that the device had two cables coming out of it when I got it. Is the 110 independent? Maybe I can look at the PCB and figure out a way to separate the other two by using the first one as a reference.

    #3
  4. Lak7

    Lak7 SatelliteGuys Family Pub Member / Supporter

    Joined:
    Feb 28, 2008
    Posts:
    5,441
    Likes Received:
    4
    DTV LNBs have separate output for Horz and Vert. There is either a switch mounted to the back of the dish or built in to the LNB holder. Best to use DNet LNB, they have H /V switching built in to the LNB.

    #4
    Last edited: Mar 29, 2008
  5. Iceberg

    Iceberg We're here....RUN!!!! Supporting Founder

    Joined:
    Nov 17, 2003
    Posts:
    91,727
    Likes Received:
    208
    The 3 LNB's on that are all different setups.

    The 101 LNB will cover all 32 transponders that DBS has
    The 110 LNB is an oddball thing. It takes TP's 28,30,32 and converts them to 8,10,12
    The 119 LNB only covers TP 22-32 which is what DirecTV owns

    also the 110 LNB and 119 are combined together...

    The only LNB that will work is the 101 LNB

    #5
  6. Anole

    Anole SatelliteGuys Guru

    Joined:
    Sep 22, 2005
    Posts:
    11,819
    Likes Received:
    1
    been there, done that

    We talked extensively about using the Phase III dish last year.
    http://www.satelliteguys.us/free-air-fta-discussion/94189-retrofitting-phase-iii-ku-maybe.html
    Give it a read, and if you have any new questions , feel free to ask.


    I believe ya mean old Primestar LNBs...
    Old DirecTV and old Legacy Dish Network LNBs have voltage controlled LNBs, letting you select V/H with 13/18 volts respectively.

    #6
  7. Rawmotion

    Rawmotion Thread Starter Member

    Joined:
    Dec 18, 2007
    Posts:
    16
    Likes Received:
    0
    Excellent! Great info. Thanks!

    Regarding the 101 LNB (the one all the way to the right when looking at the feedhorns straight-on), will it "just work" if I plug in any of the 4 outputs to the FTA receiver? Should I treat it as a single 11250 circular LNB? Do I need to select a switch position?

    I also have an old original TERK DirecTV dish with the single LNB. It looks like it's thinner (width) but taller than the Phase III dish. I'd like to get rid of one of them, so I want to keep the one that would be more versatile later on. Has anyone had any luck picking up any Ku signals with these wider dishes (using a 10750 LNB, of course)?

    #7
  8. glen4cindy

    glen4cindy Active SatelliteGuys Member

    Joined:
    Sep 14, 2004
    Posts:
    481
    Likes Received:
    3
    Any DirecTv dish is just too small for most FTA. You can point to 119 for NASA and a couple of Dish How-To channels, but, most FTA you really need at least a 30" dish.

    #8
  9. Iceberg

    Iceberg We're here....RUN!!!! Supporting Founder

    Joined:
    Nov 17, 2003
    Posts:
    91,727
    Likes Received:
    208
    yep for everything but last question

    no switch position needed unless you put it into a diseqc switch

    #9
  10. Sadoun

    Sadoun SatelliteGuys Family

    Joined:
    Feb 27, 2005
    Posts:
    2,320
    Likes Received:
    0
    Don't waste your time with that dish. Get a true FTA motorized dish and enjoy the FTA channels on several of the KU satellites from 30W to 123W

    #10
  11. glen4cindy

    glen4cindy Active SatelliteGuys Member

    Joined:
    Sep 14, 2004
    Posts:
    481
    Likes Received:
    3
    Don't forget about 129, WSTV!

    #11
  12. Sadoun

    Sadoun SatelliteGuys Family

    Joined:
    Feb 27, 2005
    Posts:
    2,320
    Likes Received:
    0
    Ah, White Springs TV. Yes indeed.

    #12
  13. Tron

    Tron SatelliteGuys Family

    Joined:
    May 6, 2005
    Posts:
    6,590
    Likes Received:
    1
    Personally, if I had to decide on one of the small dishes (Phase III or older single LNBF DirecTV Terk), I'd pick the Terk. I probably have about half a dozen Phase III's sitting out in the boneyard collecting rust :) The older single LNBF dishes are simpler, and have a lot less that can go wrong inside :) The Phase III won't get you anything the Terk won't, unless you're a DirecTV subscriber.

    Many members have a dedicated DBS dish like these pointed at 119w for the free stuff there so they can use their FTA dish for other things at the same time.

    #13
  14. Smith P.

    Smith P. On Vacation

    Joined:
    Oct 4, 2003
    Posts:
    8,917
    Likes Received:
    0

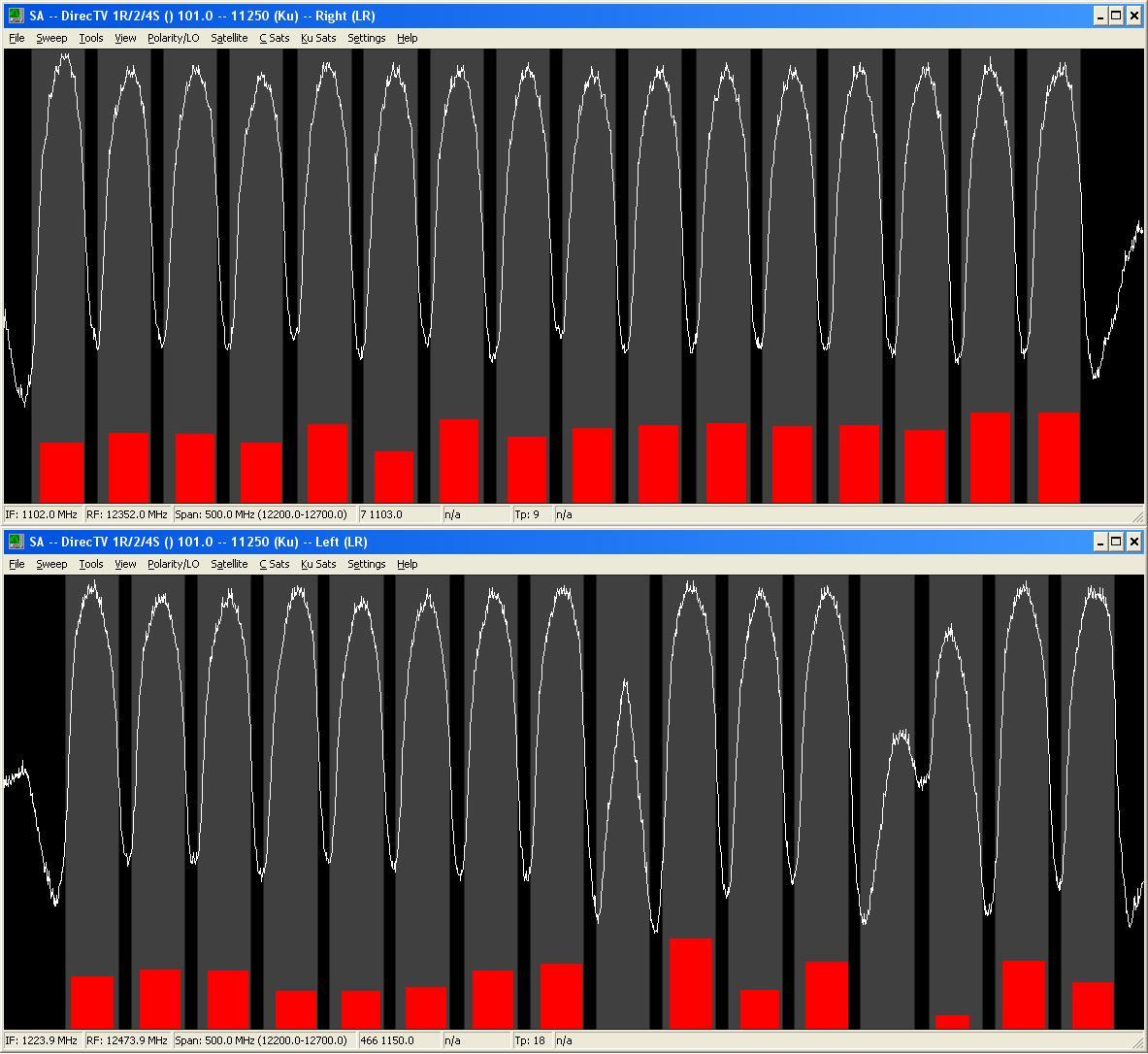

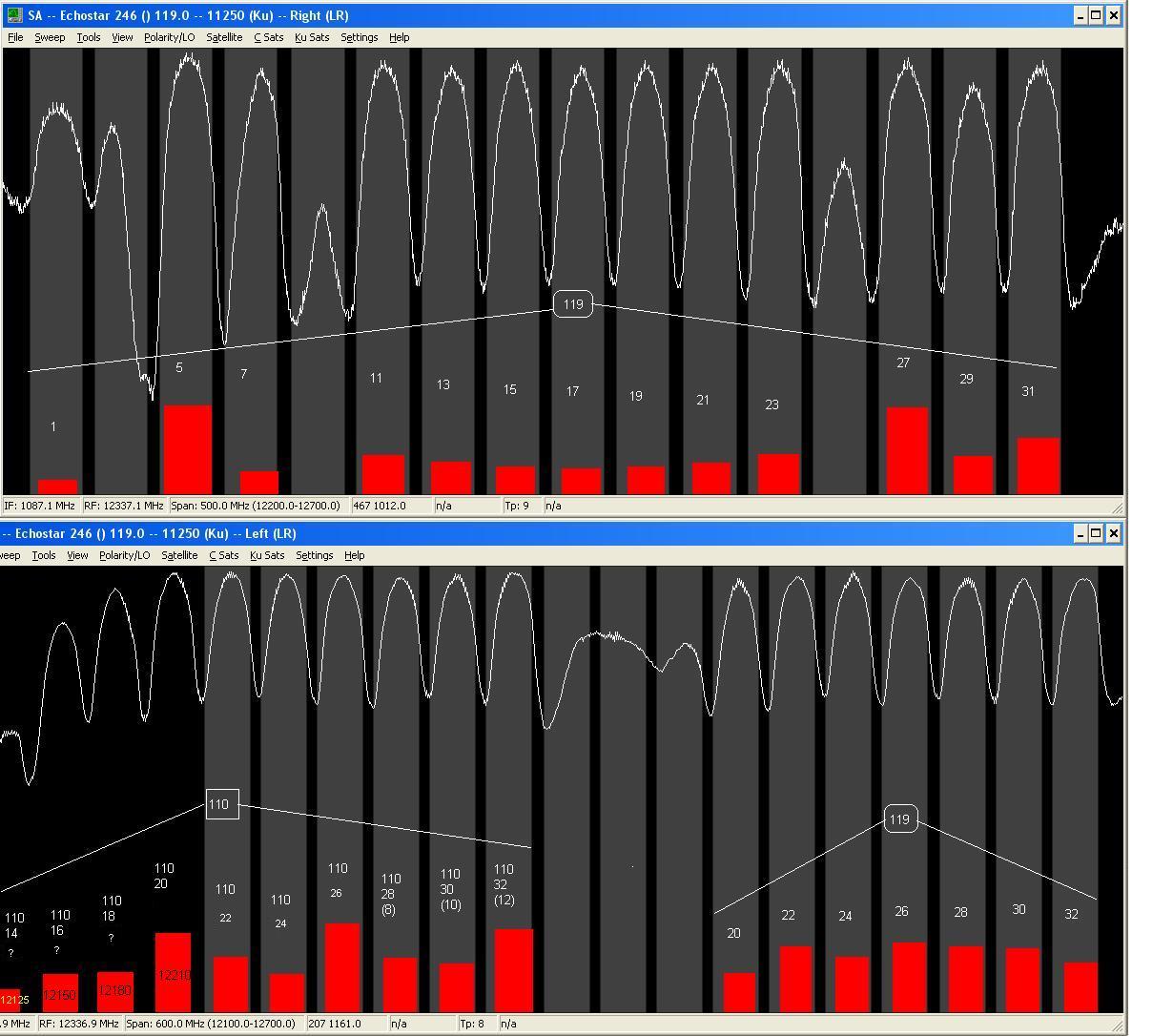

    Lets see spectrograms from each LNBF of Phase III.

    Taken around SFO, so in your area SBs could shows different way.
    Those 110W tpns marked by '?' I can't check - my card can't go to that low IF.


    Attached Files:

    #14
    Last edited: Mar 30, 2008
  15. Rawmotion

    Rawmotion Thread Starter Member

    Joined:
    Dec 18, 2007
    Posts:
    16
    Likes Received:
    0
    Thanks for the help! I got it working. A friend is interested in FTA so I'm going to give it to him to play around with.

    My main dish is one of the 3ABN ones which gets pretty much everything, but I might try the dual setup using the Terk just for fun. ;)

    #15
  16. Smith P.

    Smith P. On Vacation

    Joined:
    Oct 4, 2003
    Posts:
    8,917
    Likes Received:
    0
    So, looking at those spectrums, what sats/tpns you could see ? ;)



    Simple manipulation of DC voltage: 14 V or 18 V and a tone 22 kHz OFF/ON.

    #16
    Last edited: Mar 30, 2008

Share This Page
