19 laser illuminator with tuned parallel beams for checking dish shape

Status
Please reply by conversation.
polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto

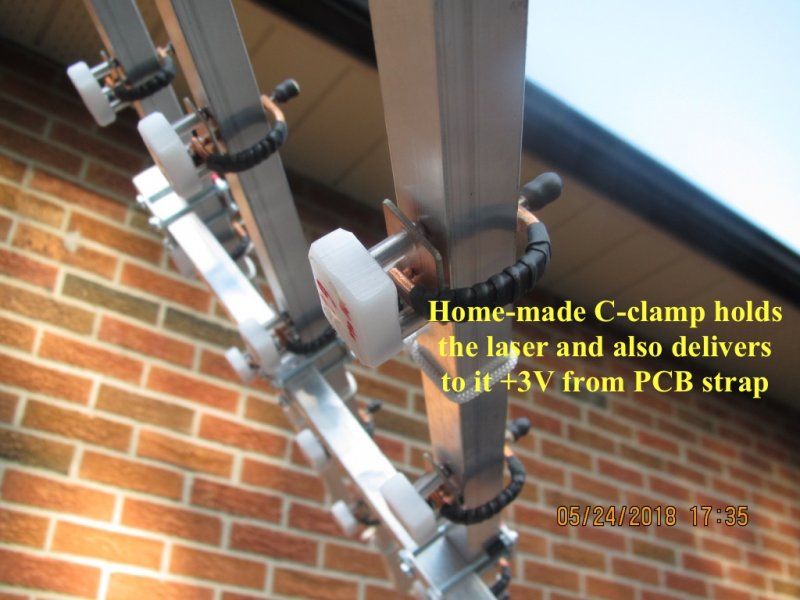

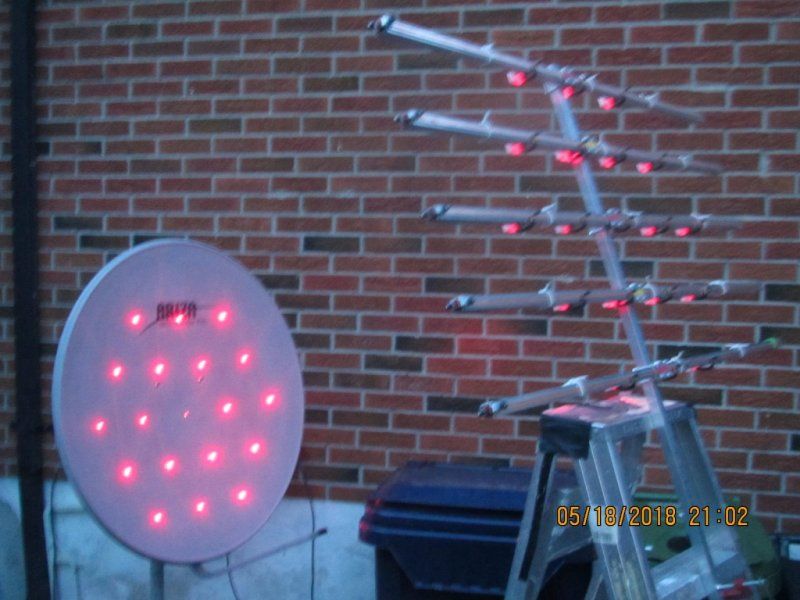

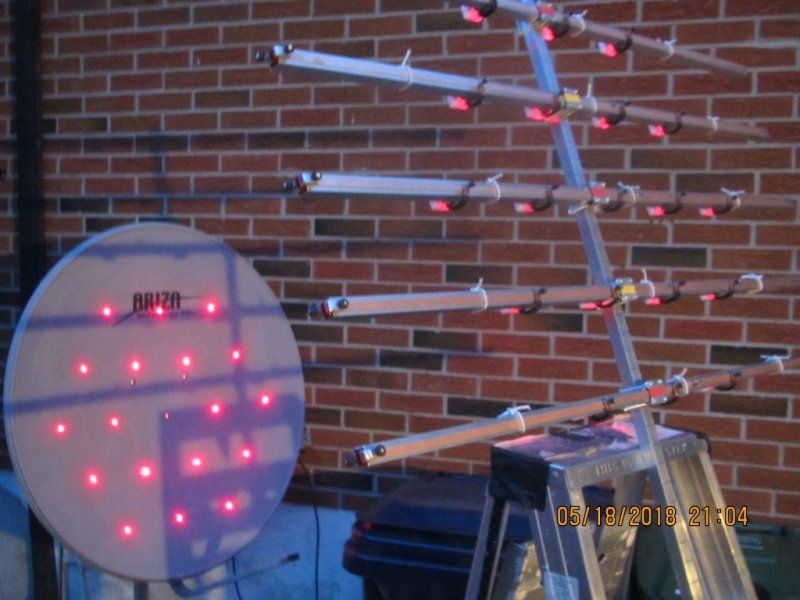

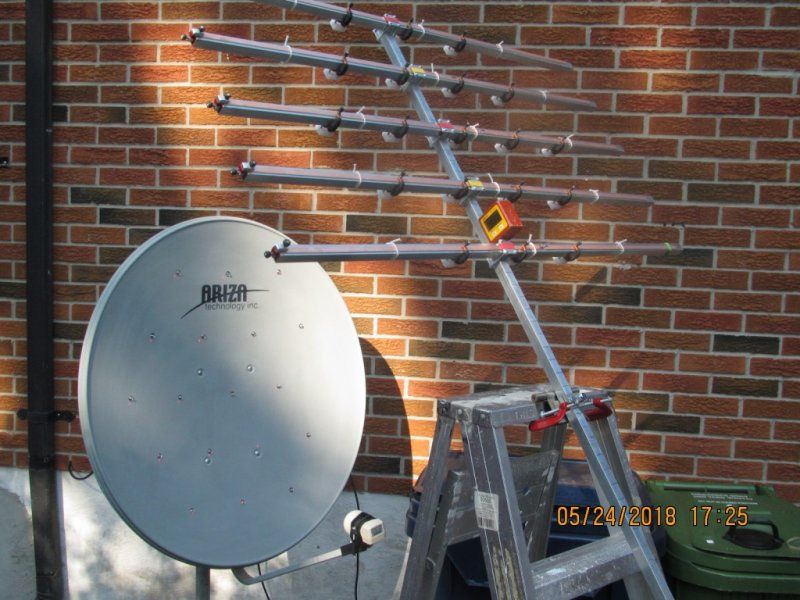

Today I assembled, after many delays, a structure made of 3/4" aluminum square tubing, which contains 19 small lasers. There are 5 horizontal bars connected to vertical longer bar. I assumed that the front surfaces of 5 bars can be treated as a straight flat plane. The 19 lasers, set in plastic holders, were precisely tuned to shine perpendicularly to their bases.
The distance between lasers, and also between bars, can be easily changed to fit dishes of different size.

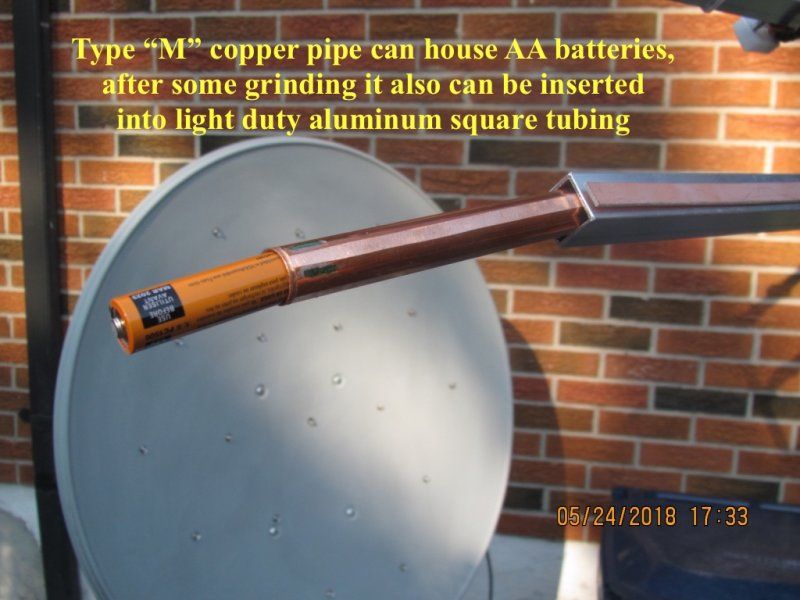

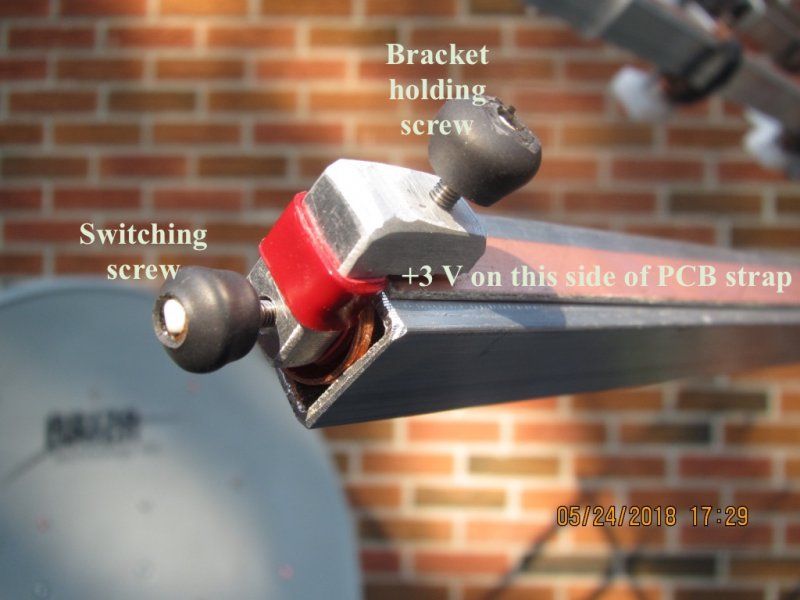

Each bar has its own set of 2 AA batteries, locked inside, which can be switched on and off by turning small screw.
The parallel beams of red light from lasers can be reflected back to LNBF "face" by using small mirrors with magnets, placed on dish's surface, where the mirrors could be easily shifted to illuminated spots.
I have a few dishes which do not provide good "Q" when pointed to satellites, so I suspect their shape is not truly parabolic. I hope to be able to re-shape these dishes for better "Q".
Three photos follow :
Thumb IMG 6370 1024
Thumb IMG 6371 1024
Thumb IMG 6373 1024

RimaNTSS

RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
865
913
Riga
I am speechless :hatsoff polgyver you are crazy...... in good sense of this word :bow
But seriously.... OK, you find out that dish is in bad shape, and what is next? I do not think it is easy to bring it back to original shape, and if you manage to do it than after some time it will warp again. That is problem of dishes made of tin.

  • Like
Reactions: polgyver
N6BY

N6BY

Geek
Lifetime Supporter
Mar 1, 2006
2,657
2,353
Roseville, CA 121W
...
The parallel beams of red light from lasers can be reflected back to LNBF "face" by using small mirrors with magnets, placed on dish's surface, where the mirrors could be easily shifted to illuminated spots....
Great project. I have always wondered how close my small dish is to a true parabola. Also a great way to find the exact focal point.

I have lots of thin mirror sheeting left over from a solar cooker experiment. Then you could see where all the beams converge at the same time. Just glue it to the dish with some spray-on contact adhesive. I'll send some to you free for the asking. If you want it just let me know your dish diameter and send me a PM with your mailing address.

  • Like
Reactions: polgyver
Cham

Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,469
1,019
Boonies
Cool!
Guess iot works better than always having to track the sun, and an artifical point source would always be too close if bright enough.

  • Like
Reactions: polgyver
polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto
This project is a continuation of earlier one, posted on this forum 4 years ago:
7 laser illuminator with 14 small mirrors reveal Wavefrontier flaws
I abandoned it for so long... but, finally, decided to continue with more lasers and simplified design.
Thanks, N6BY, for offering your mirrors, but I still have about 50 small mirrors from other projects.
Today, after a few days of vacation, I attempted to continue with the project, obviously started too late,
and got discouraged with bad quality photos and mosquito bites...
Surely, I have to learn more about taking photos in difficult light conditions.

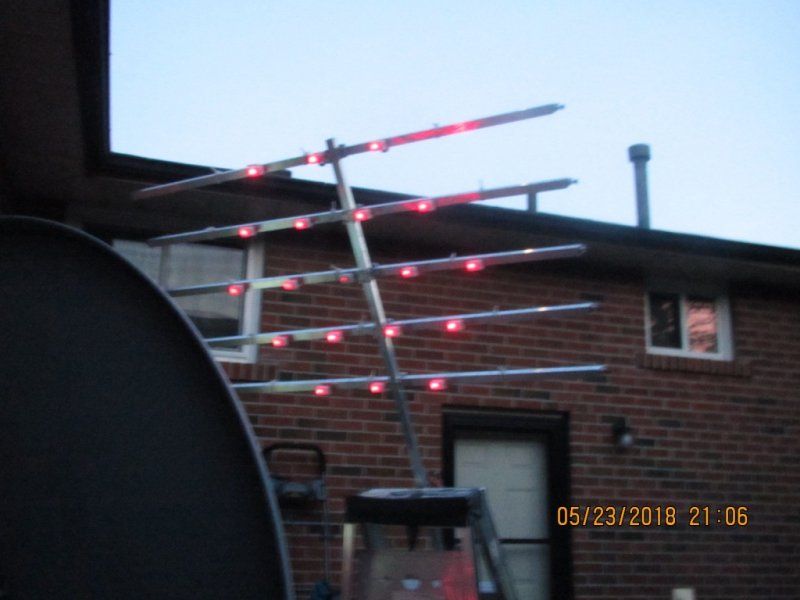

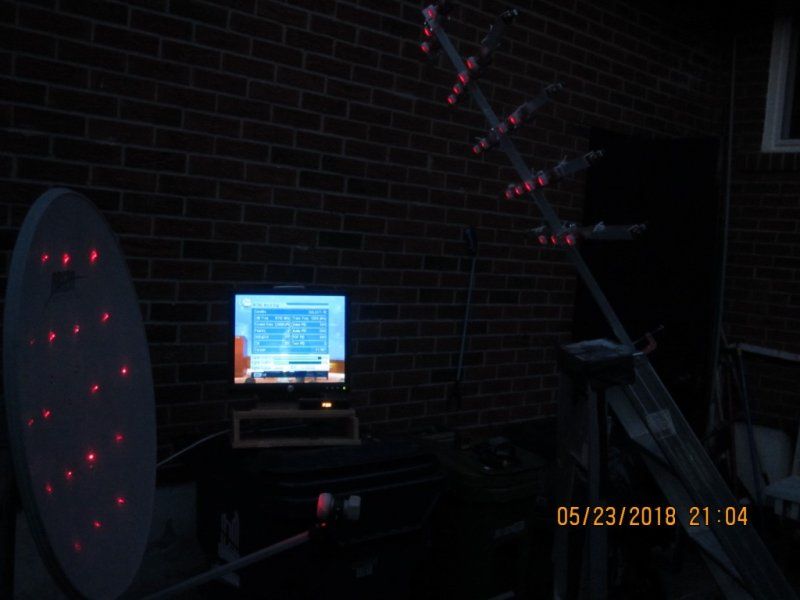

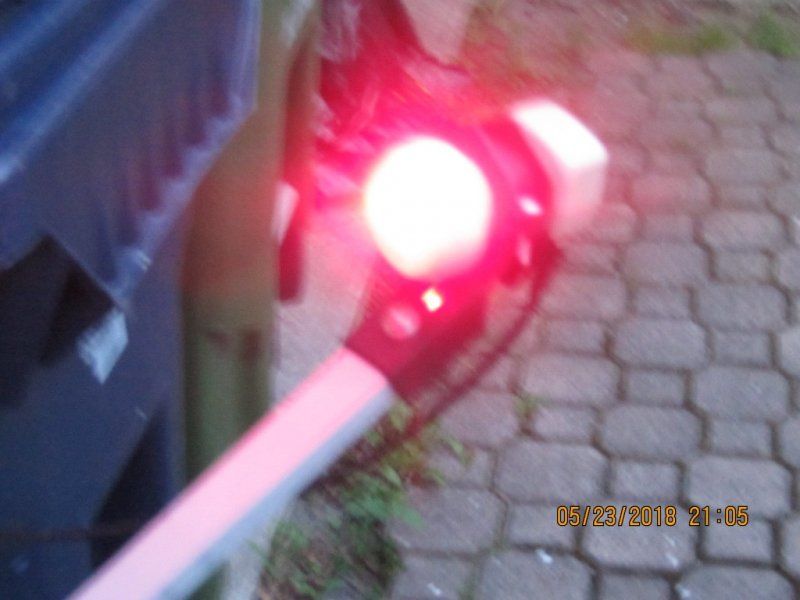

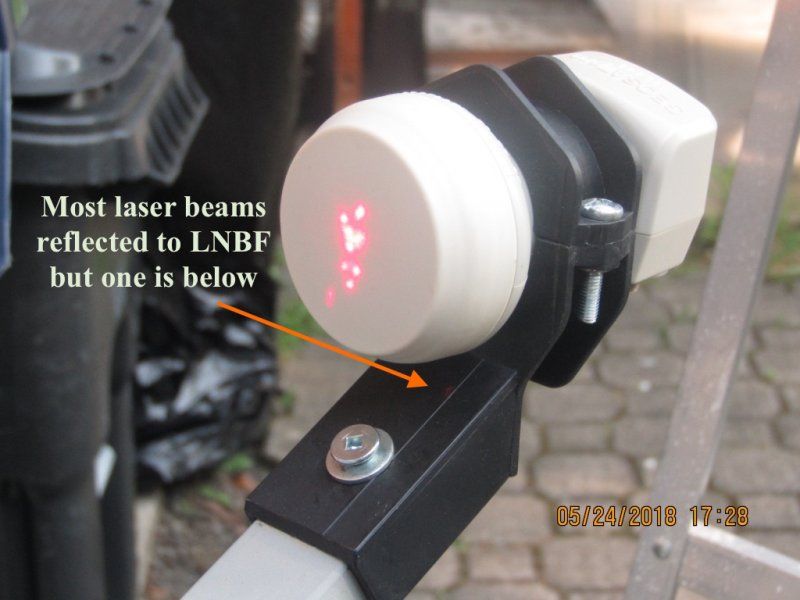

I added LNBF, attached 19 small mirrors to a good dish, hoping to see 19 small red reflections from mirrors on LNBF "face".

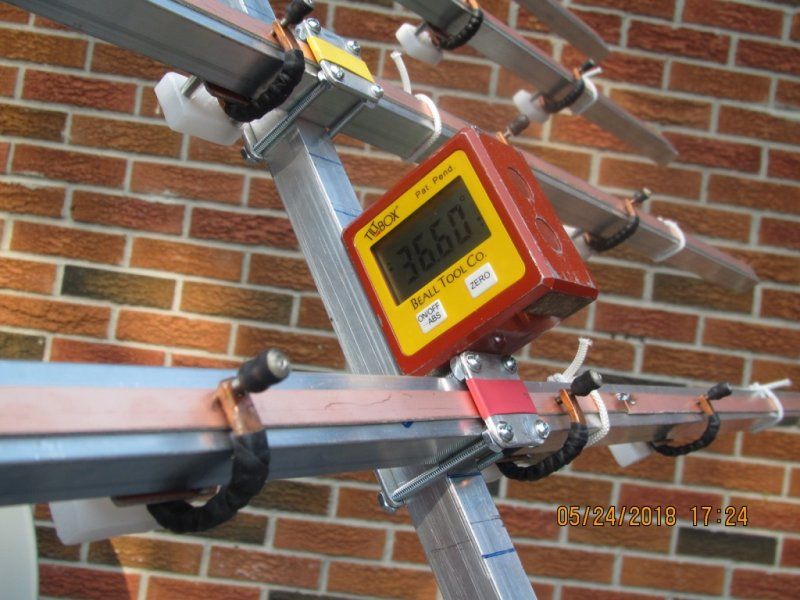

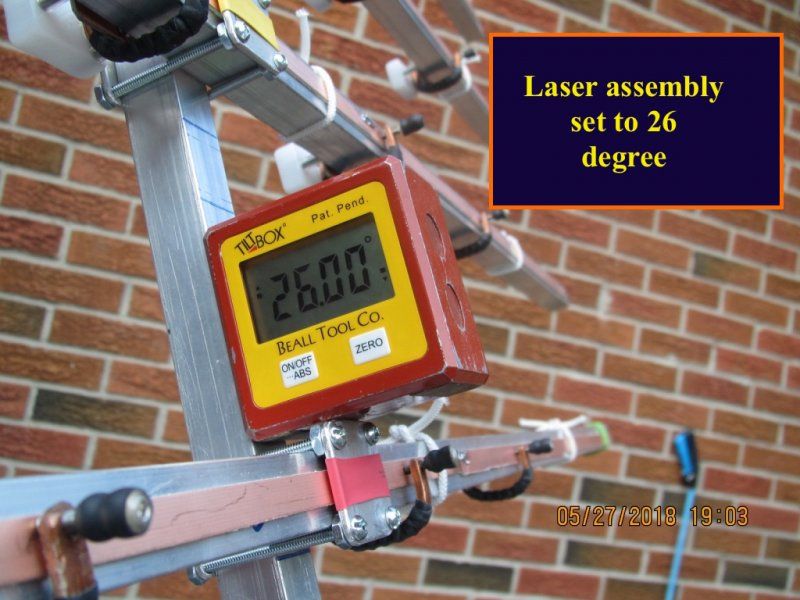

The laser stand was set at an 36.6 degree, which is correct for 97 W in Toronto.

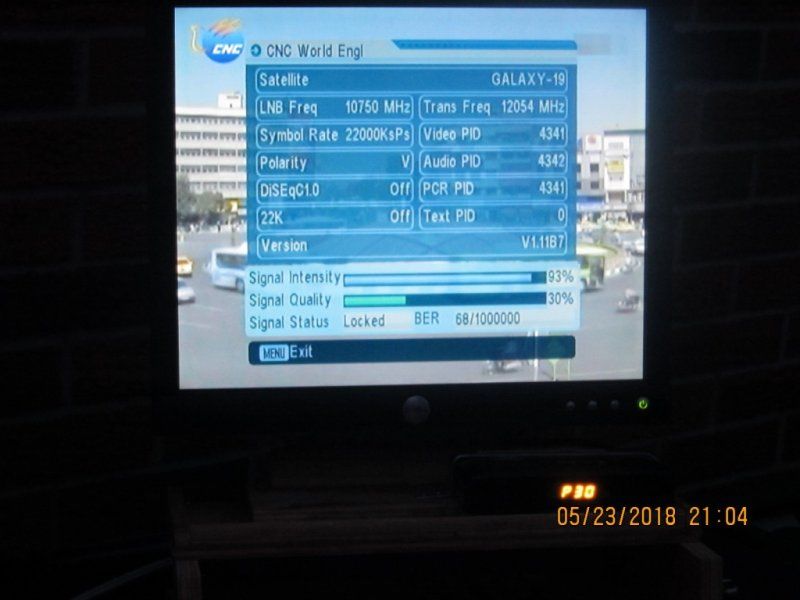

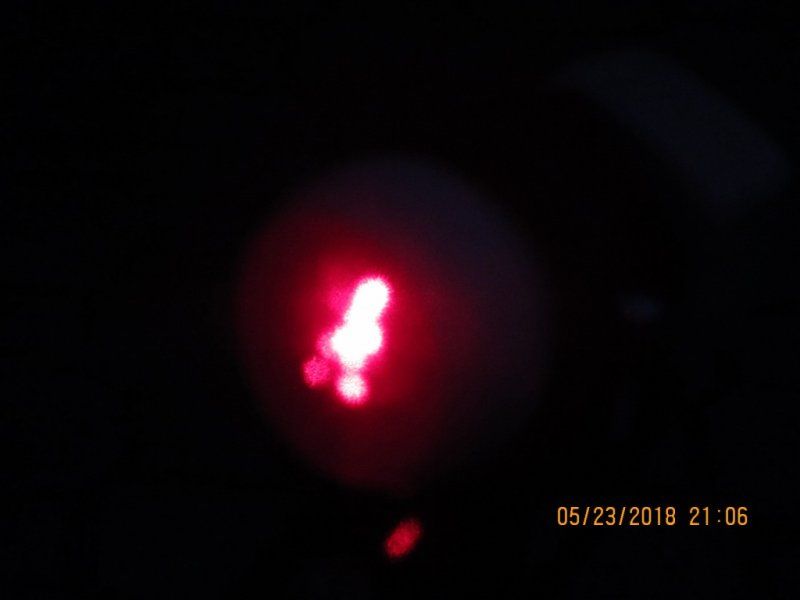

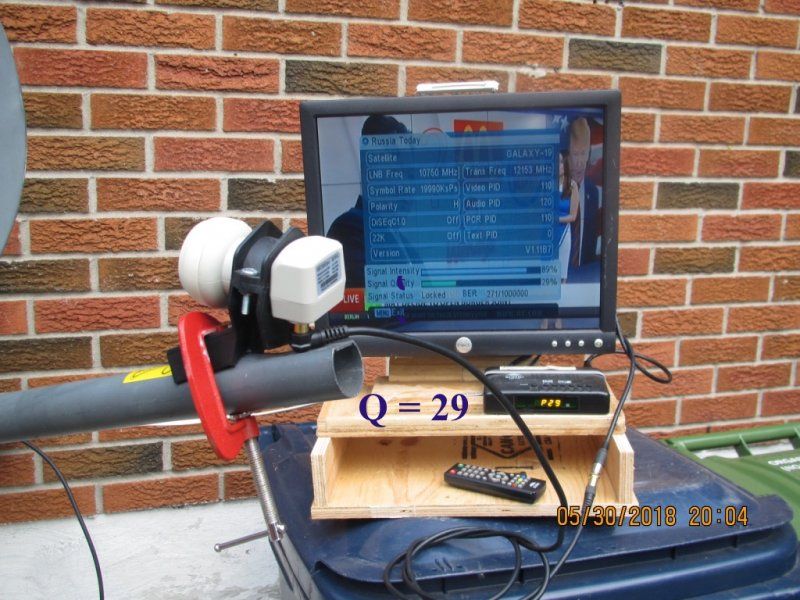

The CNC TV program was received with Q = 38 % earlier, but, after placement of laser stand in front of dish, the Q dropped to 30 %.
5 photos follow: Thumb IMG 6409 1024 Thumb IMG 6412 1024 Thumb IMG 6413 1024 Thumb IMG 6414 1024 Thumb IMG 6415 1024

polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto

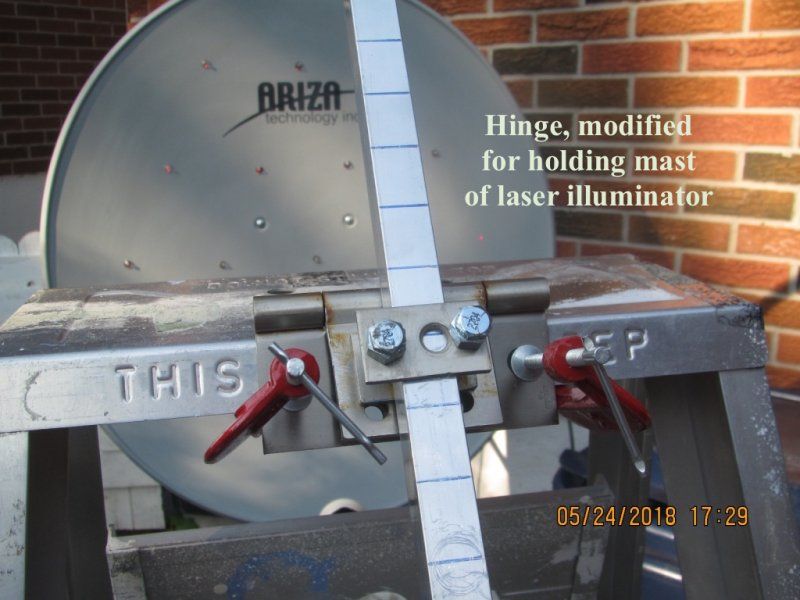

Today I got more pictures to share, some are annotated with tech info :

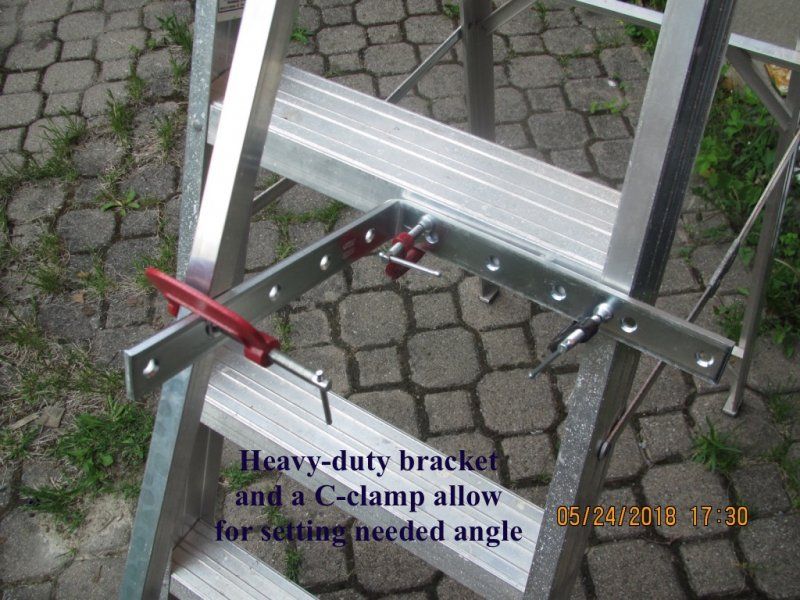

Thumb IMG 6418 1024 Thumb IMG 6420 1024 Thumb IMG 6421 1024 Thumb IMG 6423 1024 Thumb IMG 6424 1024 Thumb IMG 6425 1024 Thumb IMG 6426 1024 Thumb IMG 6428 1024

  • Like
Reactions: RimaNTSS
nelson61

nelson61

SatelliteGuys Master
Lifetime Supporter
Dec 8, 2007
7,495
6,793
Where it's Warm
I think I would get a spray can of of chrome paint and chrome the dish.
I've messed with mirrors using double face tape and it's a bitch on a large dish.

Then, strip the paint when alignment is done.

  • Like
Reactions: polgyver
polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto
I can not stop admire your effort!
Thank you, RimaNTSS, for support... it is encouraging to get "likes" from experienced members like you and Titanium and others who themselves have many "likes"...

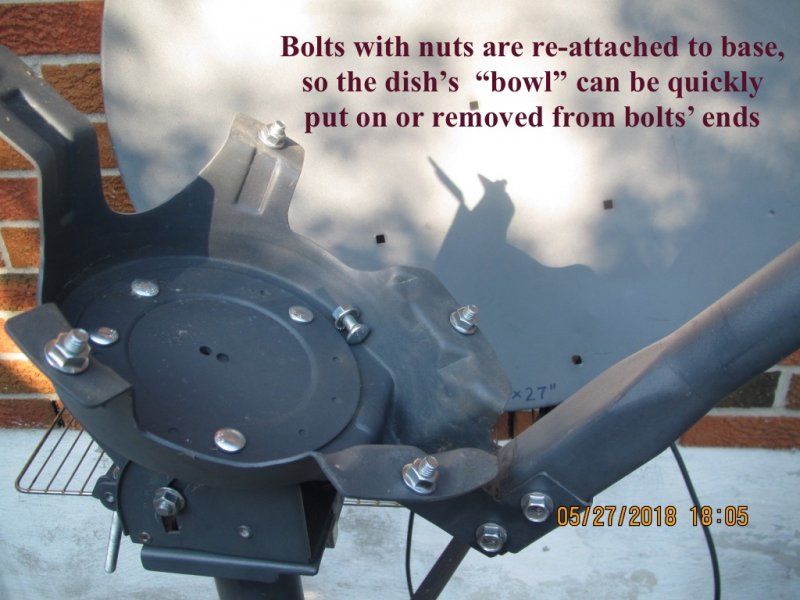

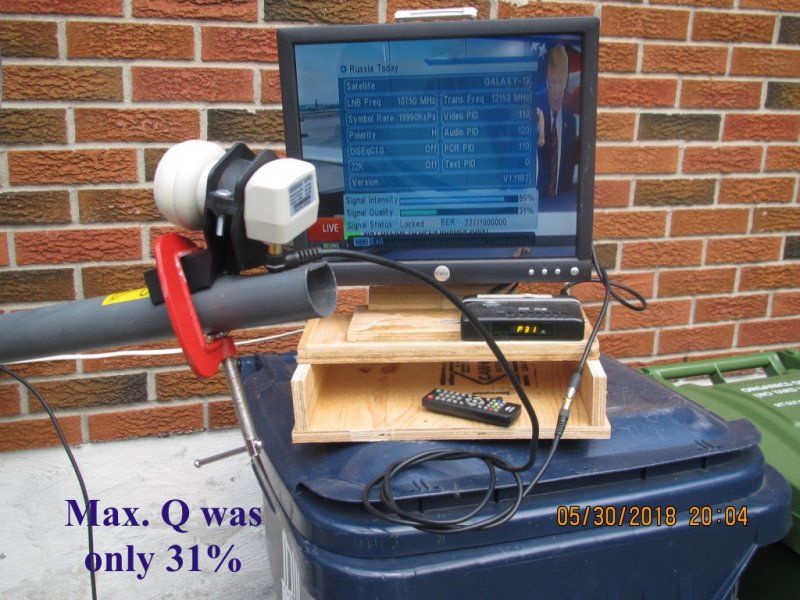

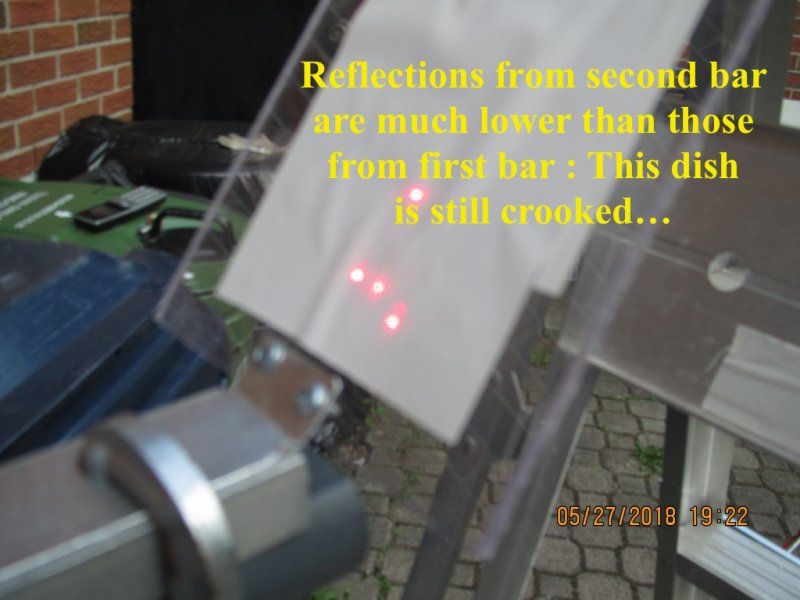

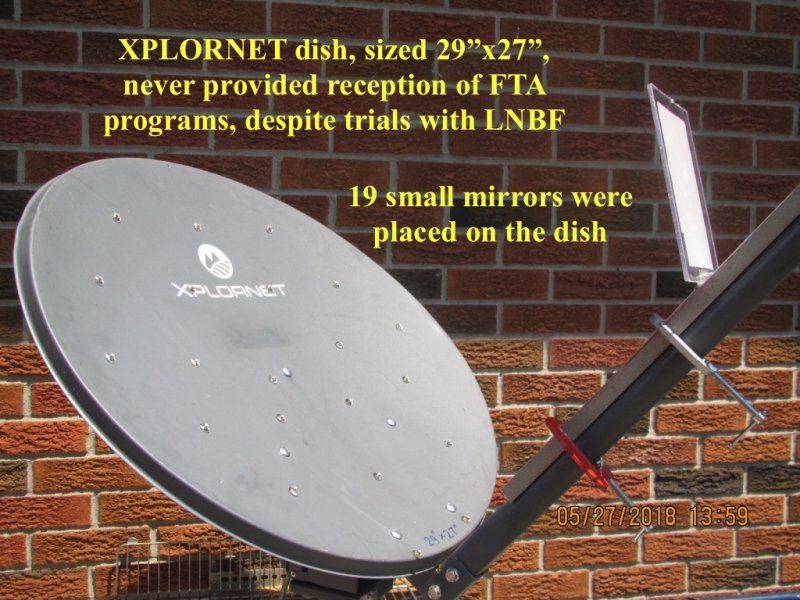

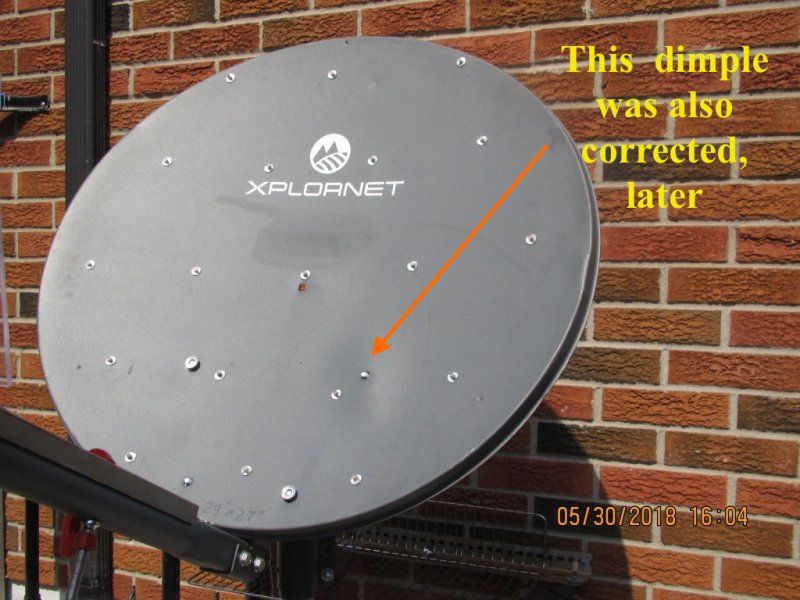

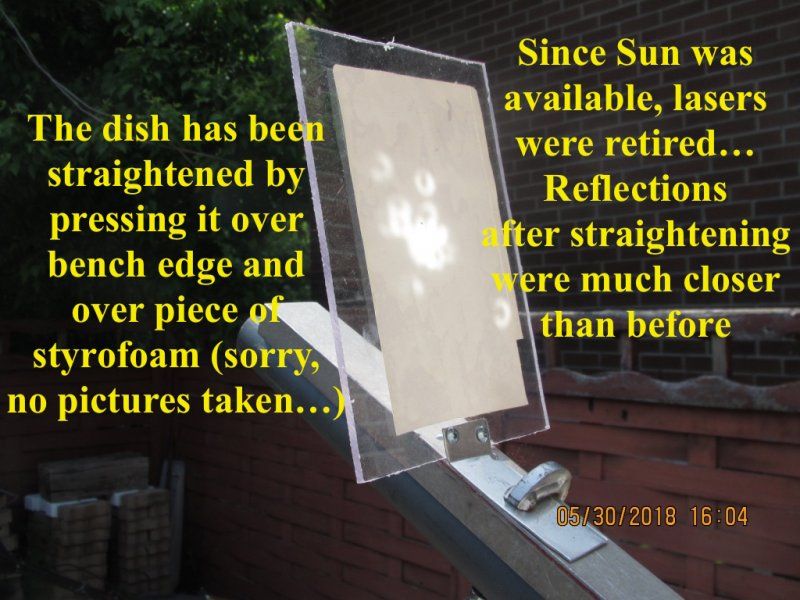

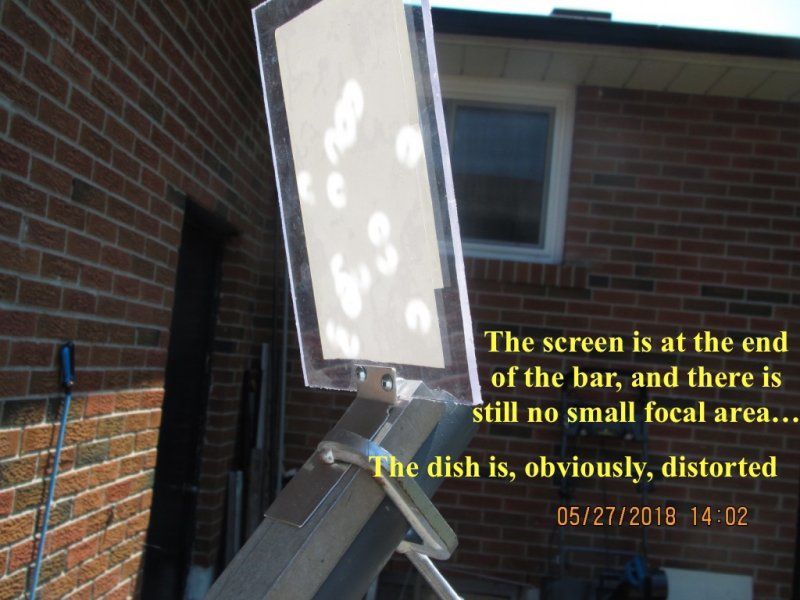

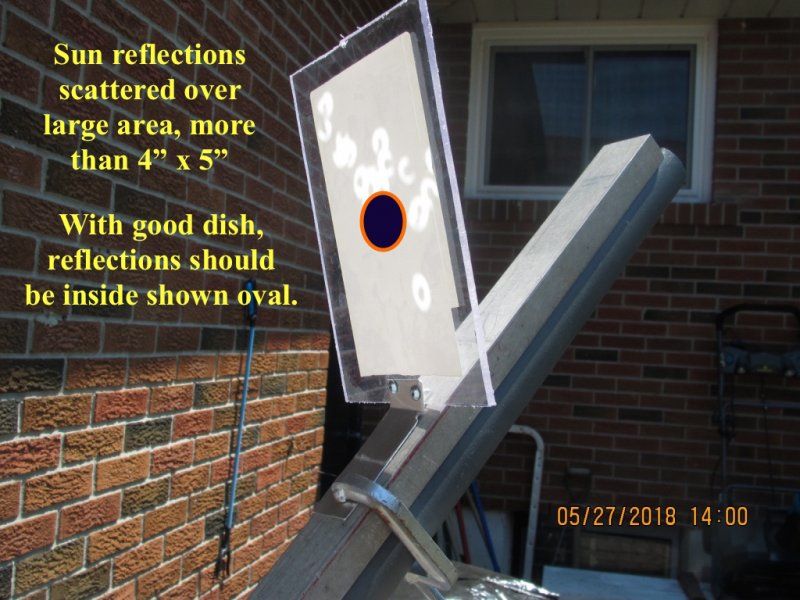

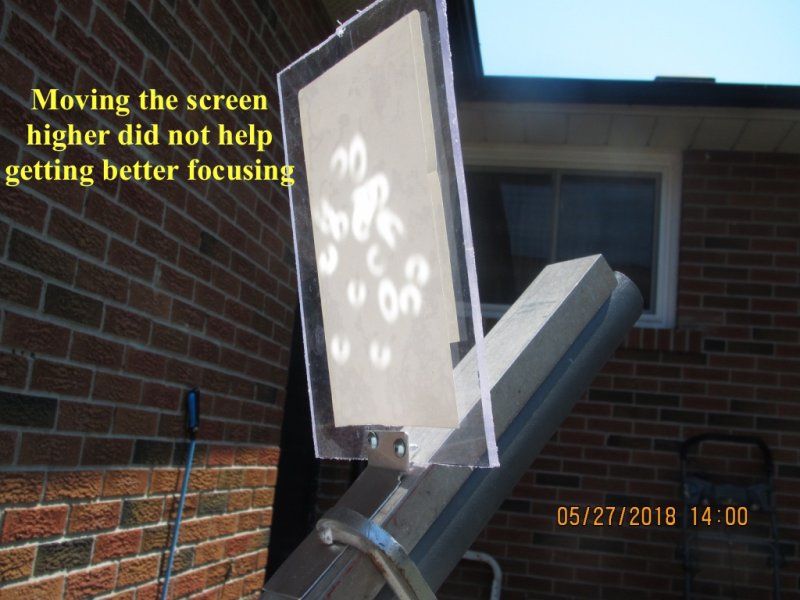

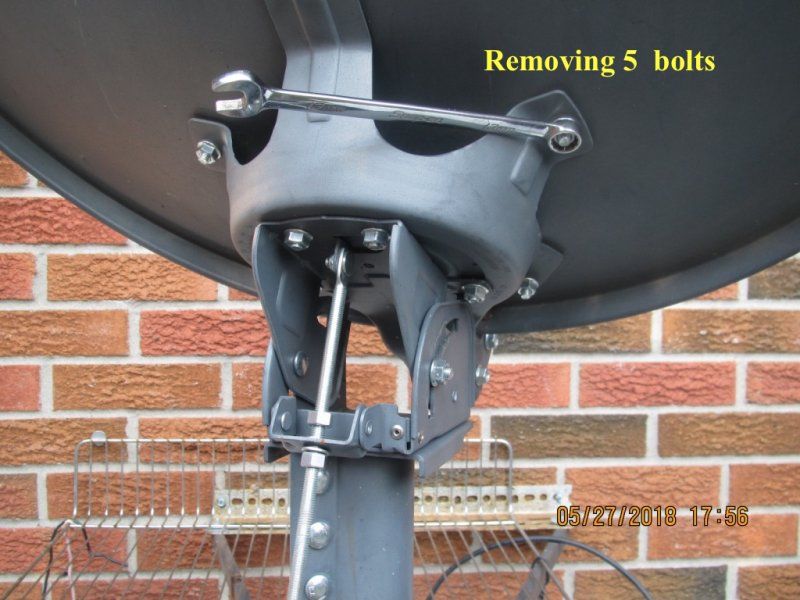

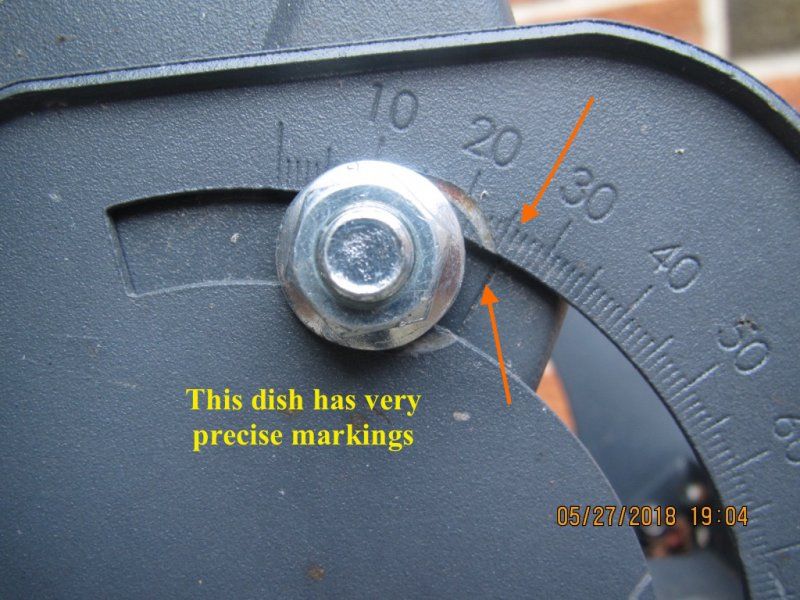

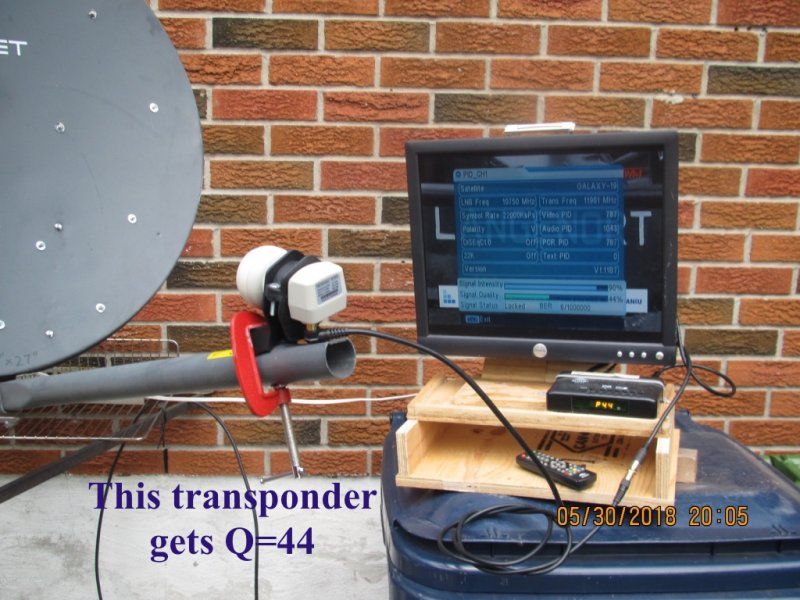

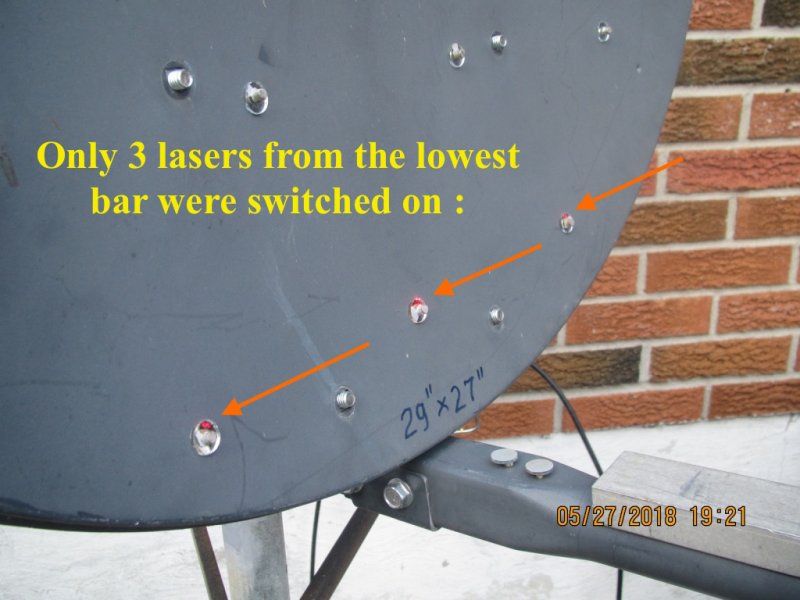

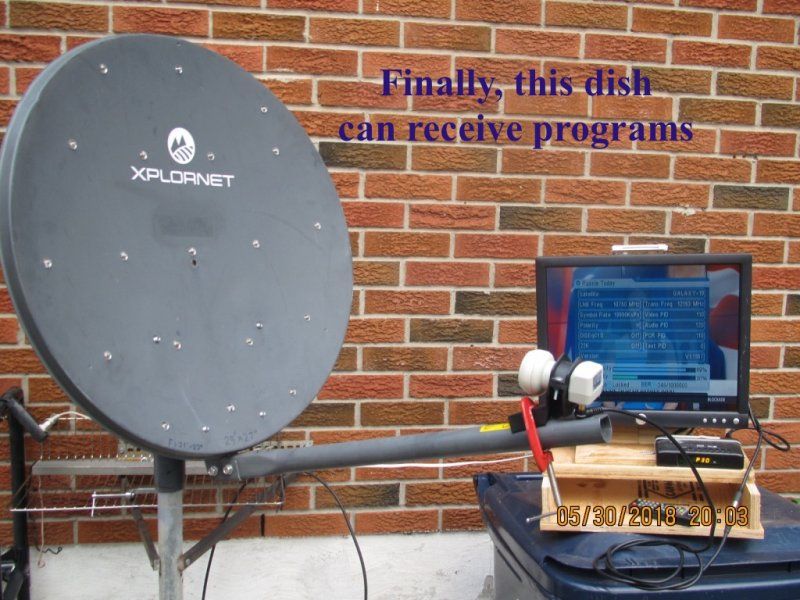

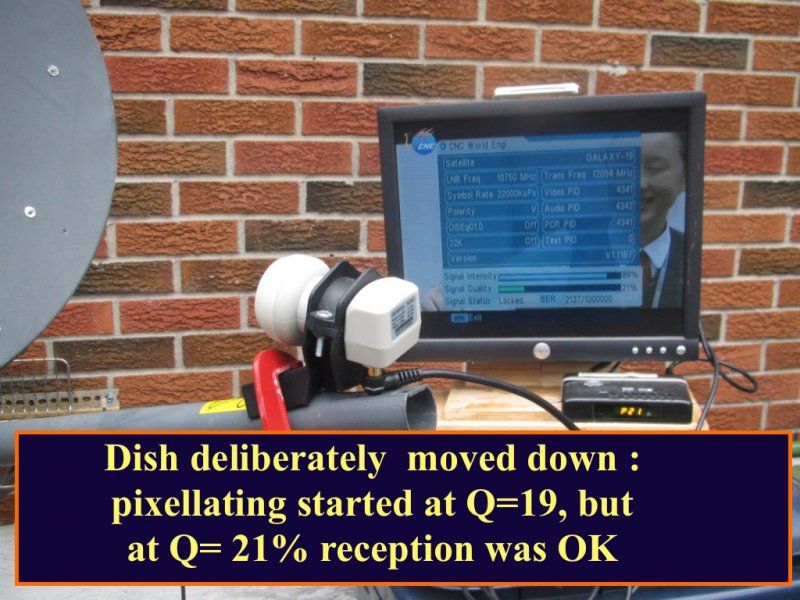

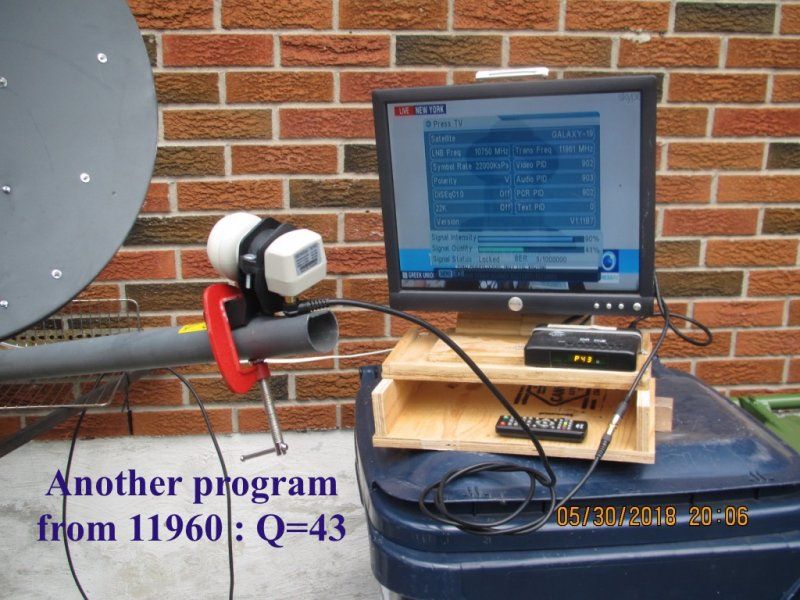

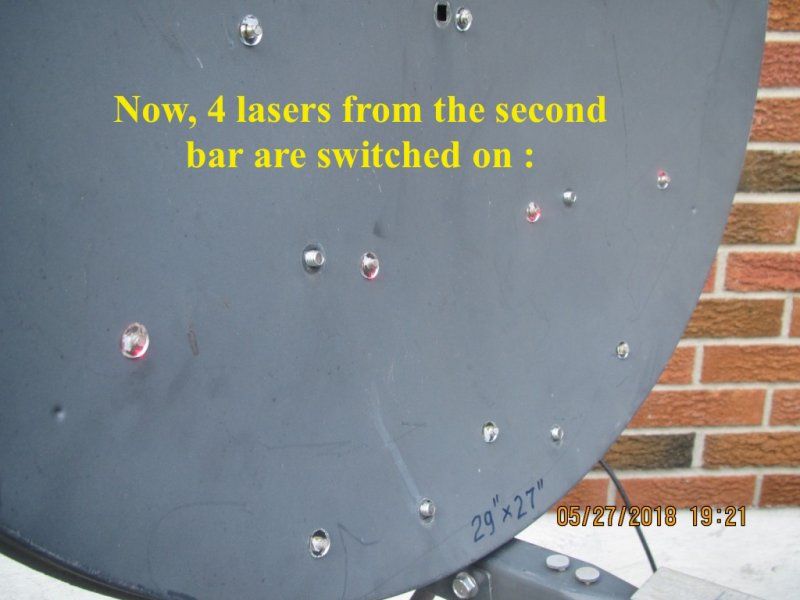

Today I examined one of dishes to be straightened, and tried to fix it, but not done yet ... (like you predicted).
9 photos are below :

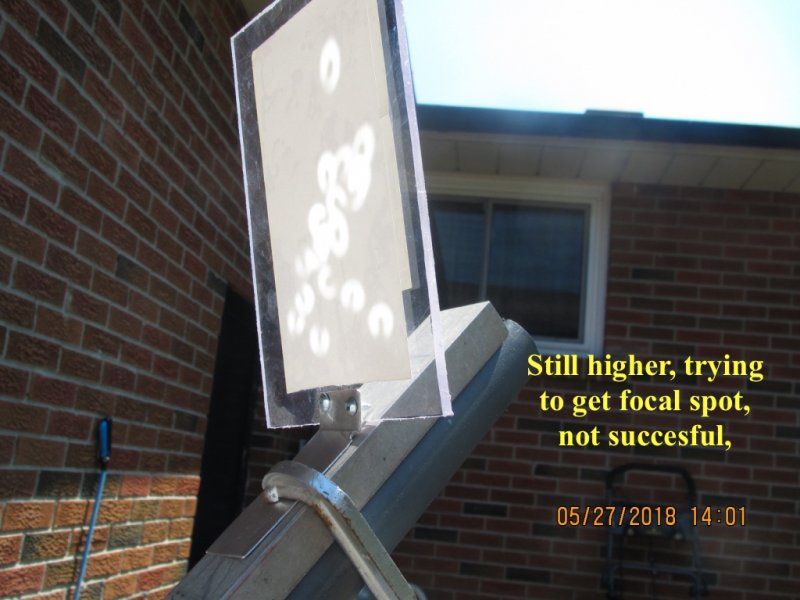

Thumb IMG 6459 1024 Thumb IMG 6460 1024 Thumb IMG 6462 1024 Thumb IMG 6463 1024 Thumb IMG 6464 1024 Thumb IMG 6465 1024 Thumb IMG 6467 1024 Thumb IMG 6468 1024 Thumb IMG 6470 1024

  • Like
Reactions: RimaNTSS and N6BY
polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto
I think I would get a spray can of of chrome paint and chrome the dish.
I've messed with mirrors using double face tape and it's a bitch on a large dish.

Then, strip the paint when alignment is done.

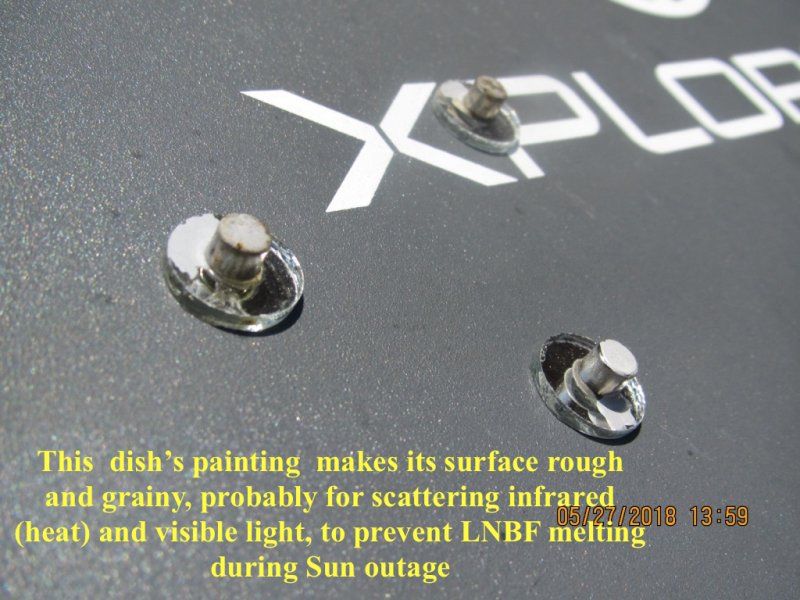

This is interesting idea, providing the chrome paint would fill in the coarse, uneven surface of the dish (see 2-nd photo of my earlier post).
I tried, much earlier, to "paste" pieces of aluminum cooking foil over the dish's surface, its shiny side up, using water, and later, honey, to make
it stick longer to the dish, but the light reflections from the tape were not well defined.

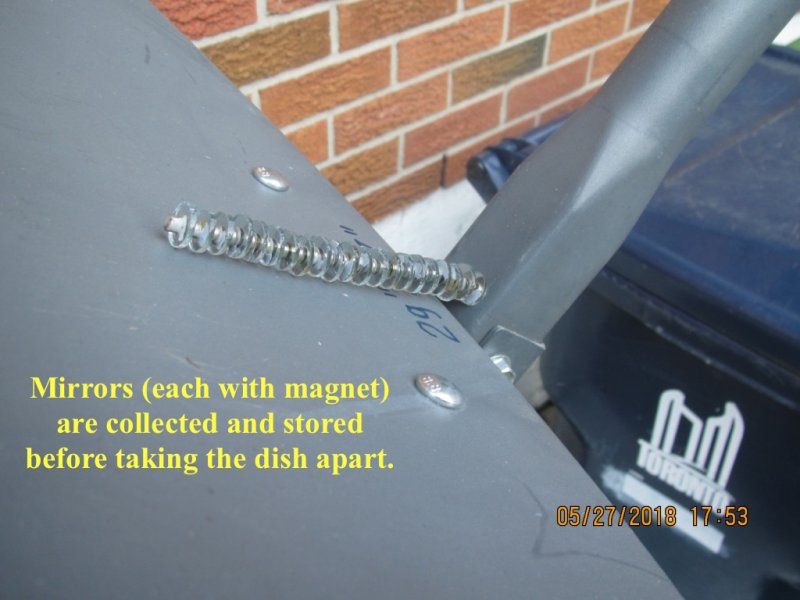

I have small mirrors with magnets, and they are easy to add and slide over the dish's surface.
Cheers, polgyver

N6BY

N6BY

Geek
Lifetime Supporter
Mar 1, 2006
2,657
2,353
Roseville, CA 121W
This is interesting idea, providing the chrome paint would fill in the coarse, uneven surface of the dish (see 2-nd photo of my earlier post).
I tried, much earlier, to "paste" pieces of aluminum cooking foil over the dish's surface, its shiny side up, using water, and later, honey, to make
it stick longer to the dish, but the light reflections from the tape were not well defined.
I have small mirrors with magnets, and they are easy to add and slide over the dish's surface.
Cheers, polgyver
My offer to send you some free mirror sheeting is still good. The only problem I can think of is accidentally letting the dish set out in the sun because it could easily melt your LNBF! :eeek

  • Like
Reactions: polgyver
