Anik F3 KU Footprint

[nelson61]

I don't believe this KU data has been previously published.

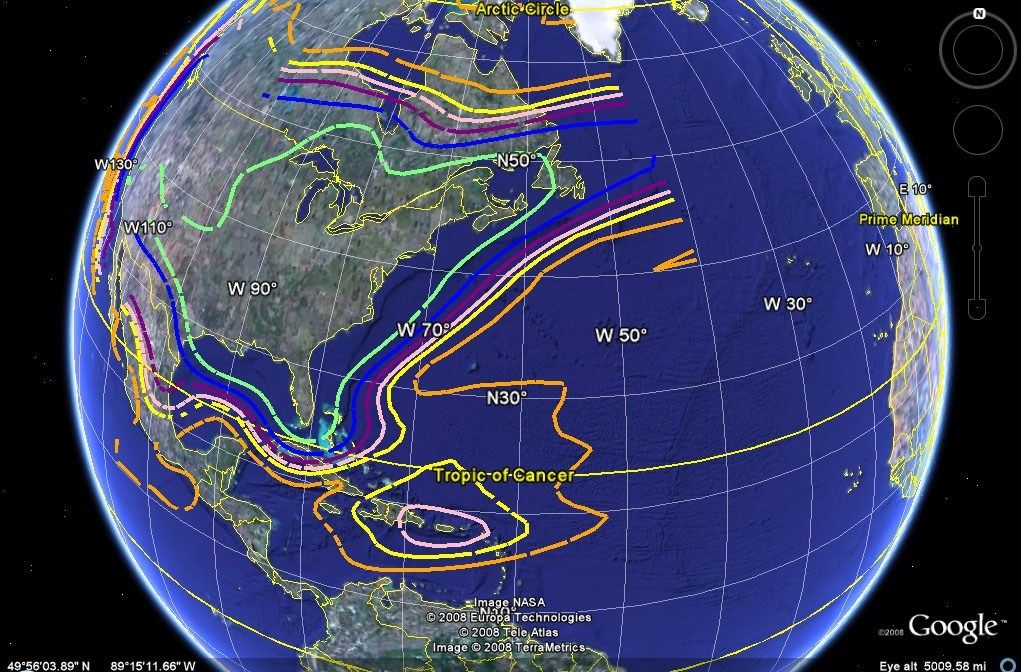

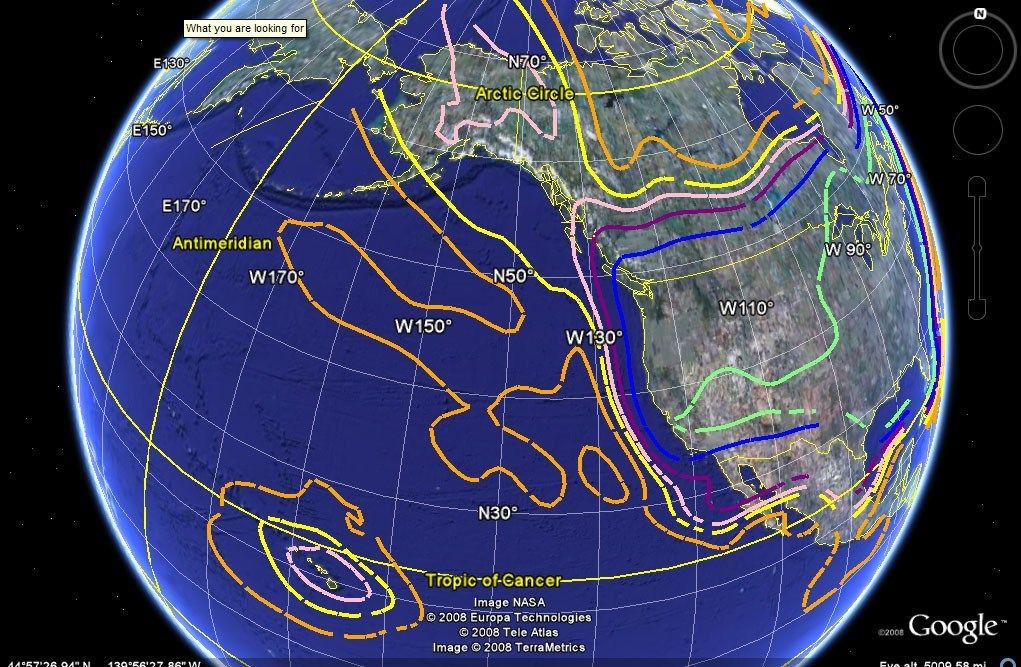

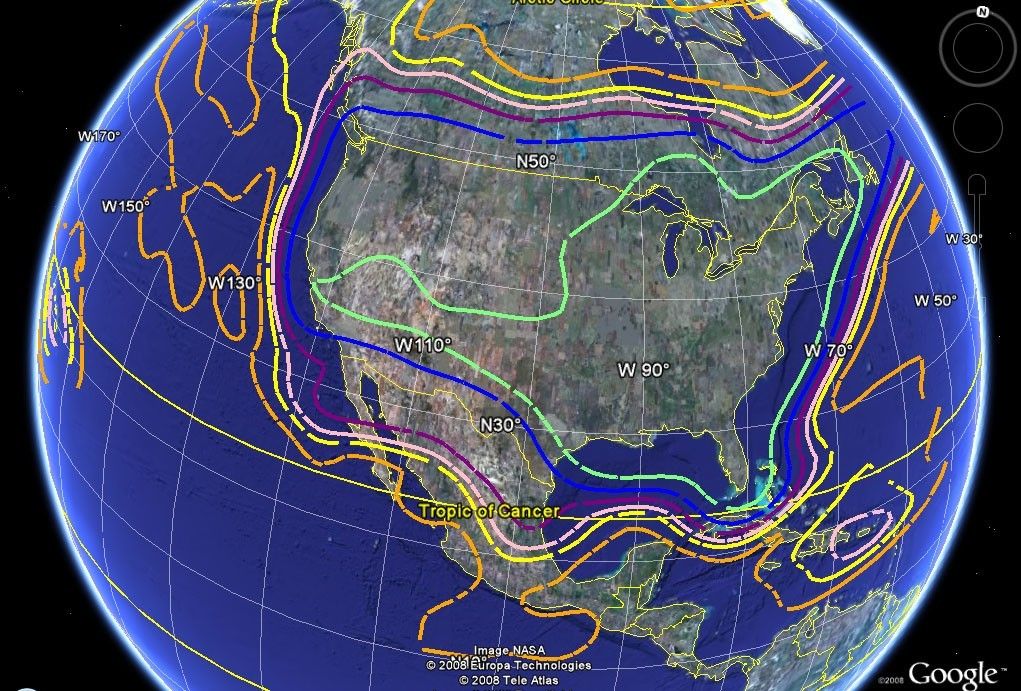

Anik F3 KU 11700-12,200 Circular Polarizaton Footprint.
.


Green = 51 dBw
Blue = 49 dBw
Purple = 47 dBw
Pink = 45 dBw
Yellow = 43 dBw
Orange = 38 dBw

I have the Footprint for 33 dBW for those extraterrestials that need it.



[PATECO]

Is this at 118.7° ?



[RVD420]

Is this at 118.7° ?

yes
