$80 Shipped

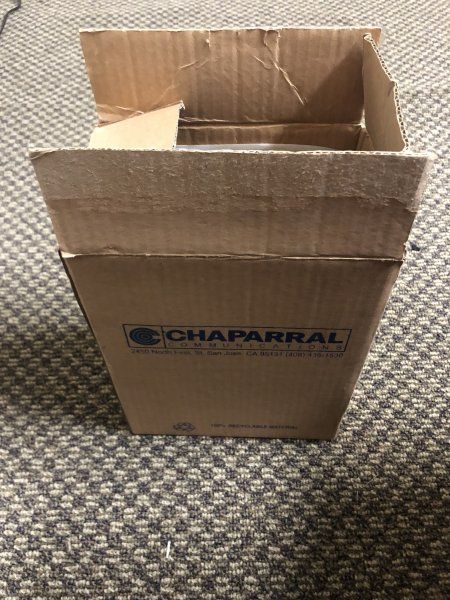

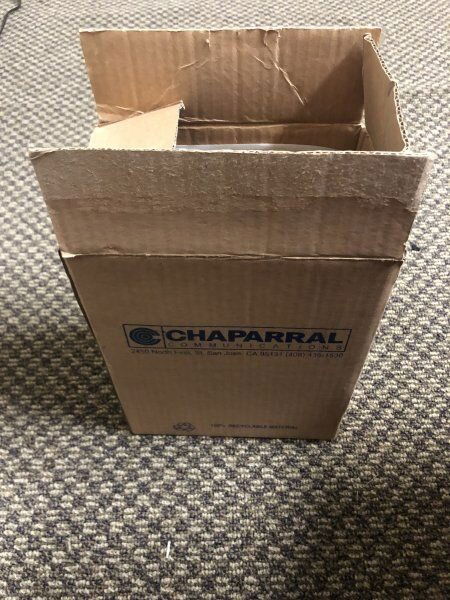

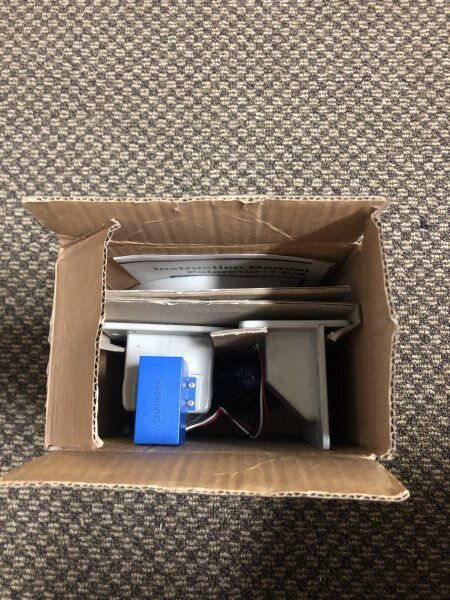

NIB
Features
Part Number 11-6870-1
Frequency Range C-Band: 3.4-4.2 GHz
Polarization Linear; horizontal and vertical, Circular; with optional dielectric plate
f/D Range .32 to .45
VSWR 1.25 to 1
Cross Pol. Isolation 35 dB
RF Ports WR 229 Compatible
Power requirements +5VDC and TTL Logic Pulse
Temperature Range -50° F to + 175° F
Size 6.5? diameter x 8.13?
Weight 2.7 lbs.
Warranty 2 years
NIB
Features
- Designed in the United States
- Patented probe design
- Precision cast-aluminum body, scalar and waveguide
- Waveguide flange with water-resistant gaskets
- 100% tested Servo motor
- Low-loss throat cover
- Stainless steel mounting hardware
- Durable polyurethane powder coating
- Mounts to single-pole, tripod and quadpod supports
- Cast-in f/D gauge
- Adjustable scalar (economy-adjustable)
- Single set-screw scalar rig
- Through and threaded mounting holes
Part Number 11-6870-1
Frequency Range C-Band: 3.4-4.2 GHz
Polarization Linear; horizontal and vertical, Circular; with optional dielectric plate
f/D Range .32 to .45
VSWR 1.25 to 1
Cross Pol. Isolation 35 dB
RF Ports WR 229 Compatible
Power requirements +5VDC and TTL Logic Pulse
Temperature Range -50° F to + 175° F
Size 6.5? diameter x 8.13?
Weight 2.7 lbs.
Warranty 2 years
