    Hello fellas

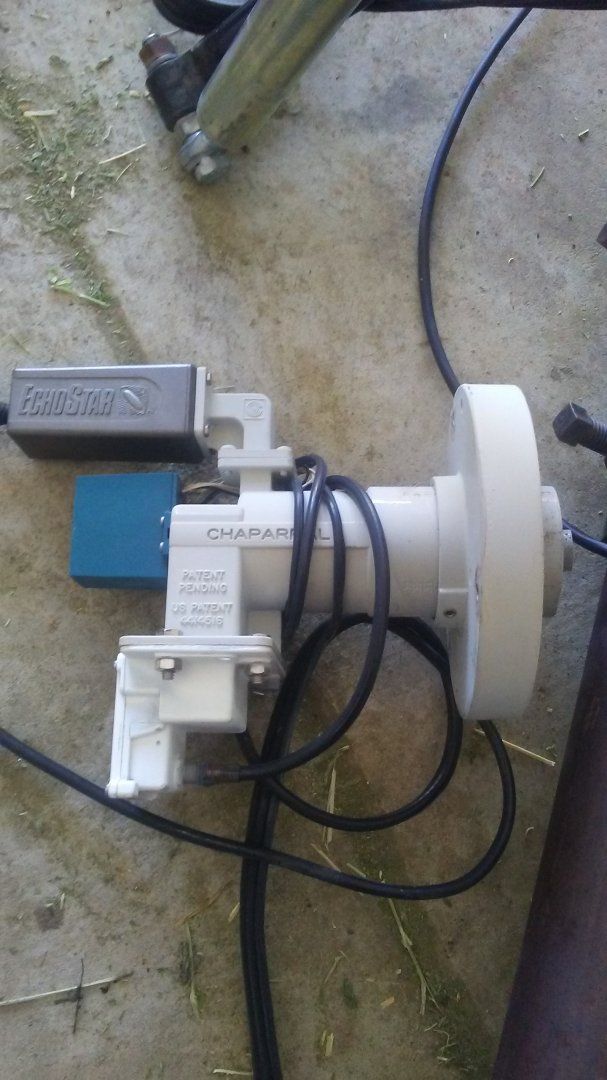

    So a buddy had this 8 ft. dish/pole laying around and he gave it to me. I know very little about how to hook it up. I'm learning slowly. He also gave me a almost new receiver Dmyco D4s Pro and I have no clue how it hooks up to the satellite dish actuator or servo. Any advice will be greatly appreciated.


    Attached Files:

  2. Magic Static

    Magic Static FTA Geek Staff Member HERE TO HELP YOU! Lifetime Supporter

    Joined:
    Oct 12, 2010
    Posts:
    6,739
    Likes Received:
    3,787
    Location:
    Montana
    :welcome to the forum mrclean . That's a nice dish. Sweet deal :) However that receiver you have does not control the dish motor or polarity servo motors. The good news is for a few more weeks there is a DiSEqC Dish controller still available that will fit your needs. The Titanium ASC1. There are a few left and no more being made. :(
    The receiver you have is primarily used for theft of service by satellite hackers. That is a taboo subject here and as a result not many people here are familiar with that receiver.

    KE4EST likes this.
  3. mrclean

    mrclean Topic Starter Active SatelliteGuys Member

    Joined:
    May 16, 2019
    Posts:
    18
    Likes Received:
    6
    Location:
    Idaho
    Thank you very muchMagic.I was really confused as to where the wires were suppose to hook up. lol I will find a Titanium and get it ordered. Many thanks again!!

  4. primestar31

    primestar31 SatelliteGuys Master

    Joined:
    Mar 15, 2005
    Posts:
    8,167
    Likes Received:
    4,406
    Location:
    Beta Omicron Delta III
    KE4EST likes this.
  5. KE4EST

    KE4EST SatelliteGuys Is My Second Home Staff Member HERE TO HELP YOU!

    Joined:
    Aug 9, 2004
    Posts:
    24,522
    Likes Received:
    4,887
    Location:
    EM75xb
  6. mrclean

    mrclean Topic Starter Active SatelliteGuys Member

    Joined:
    May 16, 2019
    Posts:
    18
    Likes Received:
    6
    Location:
    Idaho
    Thanks primestar, but I have one ordered from amazon...no shipping so figured that was the better deal.

  7. mrclean

    mrclean Topic Starter Active SatelliteGuys Member

    Joined:
    May 16, 2019
    Posts:
    18
    Likes Received:
    6
    Location:
    Idaho
    Glad to be here KE4EST! Thanks for the welcome. I had no idea so much info would be in one place. TONS!!

  8. zack

    zack SatelliteGuys Family

    Joined:
    Sep 22, 2009
    Posts:
    92
    Likes Received:
    24
    Location:
    texas

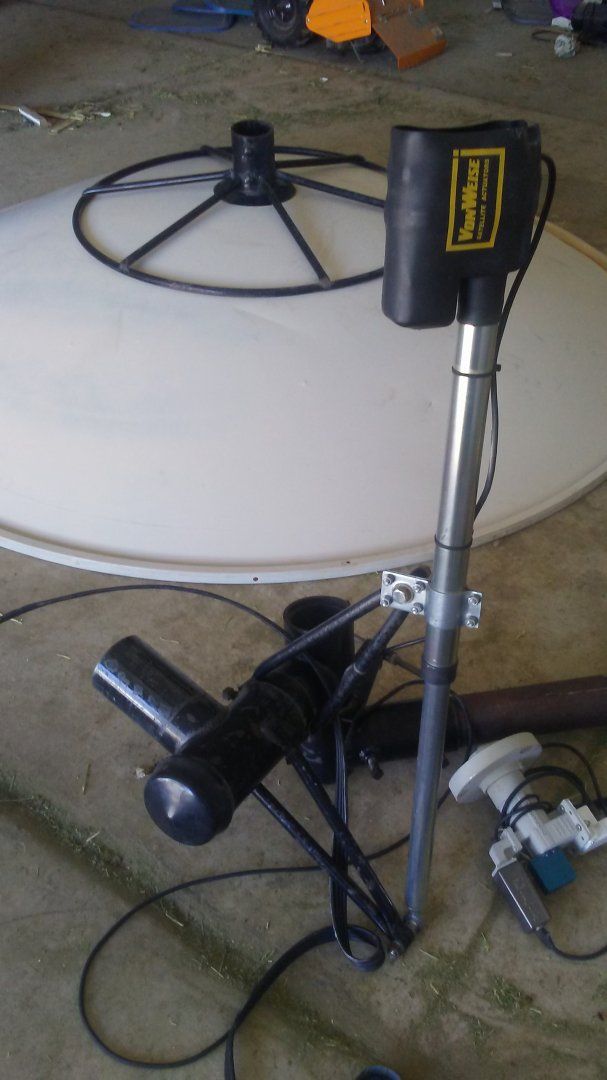

    Take another look at mrcleans second photo! The ASC1 will do all you say, but, what about that elevation motor, or whatever it is in the second photo?
