Is this considered warped?

Discussion in 'Free To Air (FTA) Discussion' started by olliec420, Aug 9, 2019.

  1. olliec420

    olliec420 Topic Starter SatelliteGuys Pro

    Joined:
    Jun 4, 2007
    Posts:
    677
    Likes Received:
    114
    Location:
    Pensacola, FL

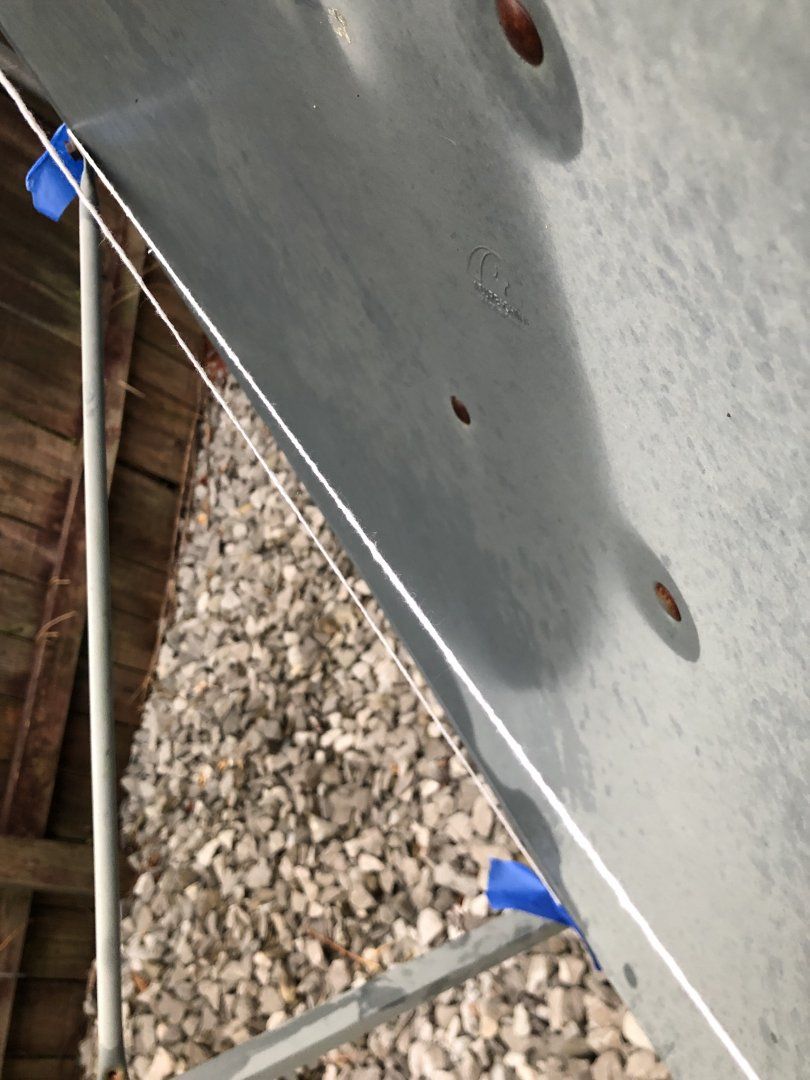

    I’ve been playing with ku band again the last week or so. Pulled out the old dish and just don’t feel like I’m getting good results. I got a $30 receiver for the garage because it’s hot and humid and nasty in there. lm finding 91 no problem but having trouble with 99. The q% levels on 91 on n1 are 40 tops. I feel like this should be pulling in better than that. Is the dish warped because the strings don’t touch? There is about an inch between them.

  2. harshness

    harshness SatelliteGuys Master

    Joined:
    May 5, 2007
    Posts:
    15,314
    Likes Received:
    2,178
    Location:
    Salem, OR
    There appear to be only three Ku transponders in use at 99W. It would be easy to miss them.

  3. Magic Static

    Magic Static FTA Geek Staff Member HERE TO HELP YOU! Lifetime Supporter

    Joined:
    Oct 12, 2010
    Posts:
    6,728
    Likes Received:
    3,772
    Location:
    Montana

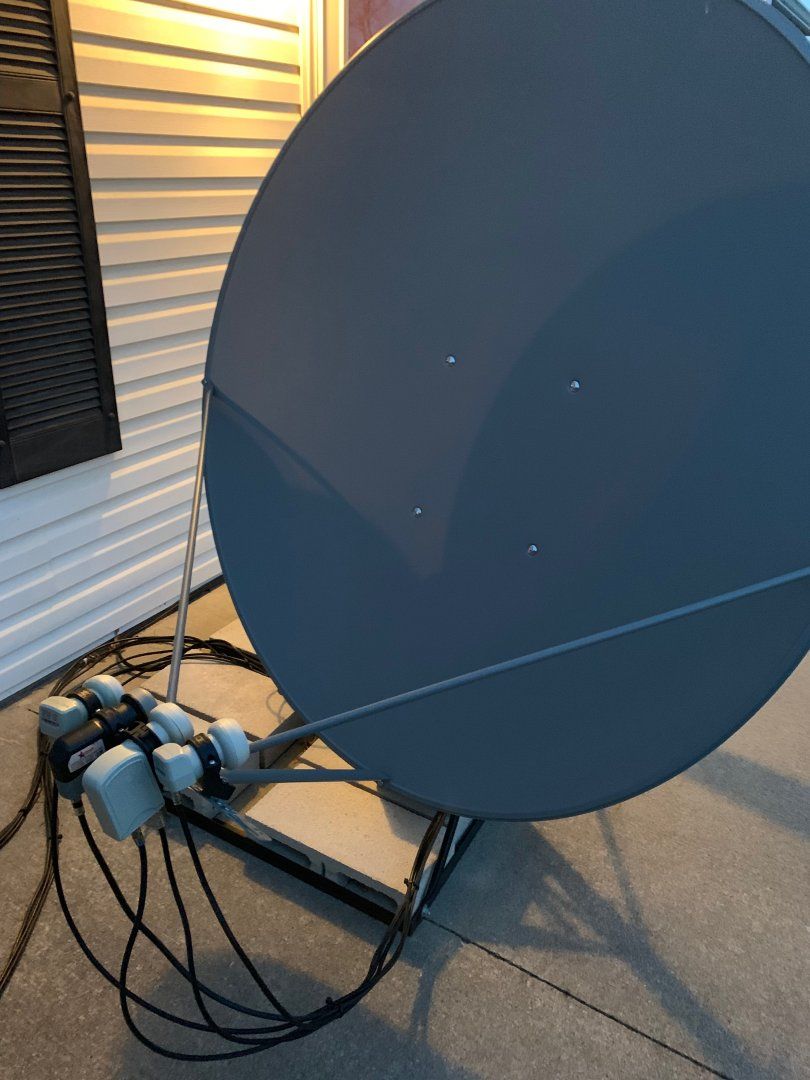

    Something isn't straight. A picture showing the whole dish with the strings attached my shed some light on the problem.

  4. olliec420

    olliec420 Topic Starter SatelliteGuys Pro

    Joined:
    Jun 4, 2007
    Posts:
    677
    Likes Received:
    114
    Location:
    Pensacola, FL
    I got it. 55% on the Russian tp. I feel like I should be able to do better than that. Trying to get 12094 and it’s seeing it on blind but not scanning in the channel.

  5. olliec420

    olliec420 Topic Starter SatelliteGuys Pro

    Joined:
    Jun 4, 2007
    Posts:
    677
    Likes Received:
    114
    Location:
    Pensacola, FL

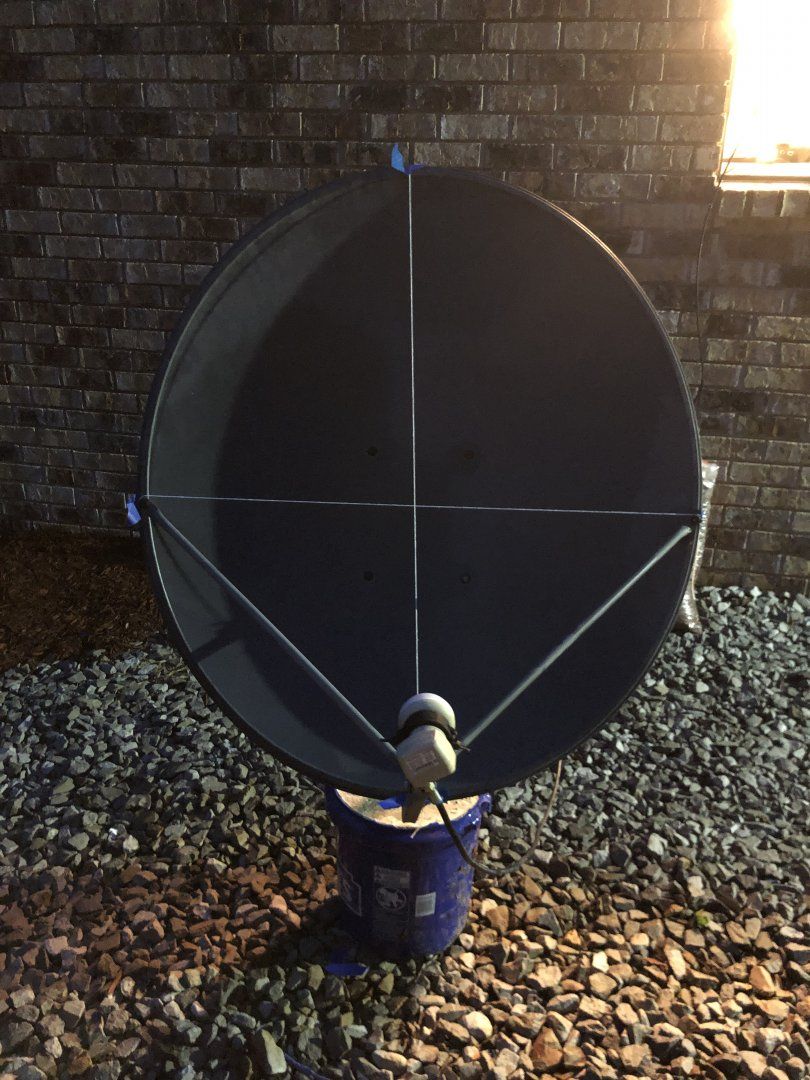

    It’s getting dark so that’s best I could do.


    Attached Files:

  6. Magic Static

    Magic Static FTA Geek Staff Member HERE TO HELP YOU! Lifetime Supporter

    Joined:
    Oct 12, 2010
    Posts:
    6,728
    Likes Received:
    3,772
    Location:
    Montana
    Yes it does look like the dish is warped. :(

    olliec420 likes this.
  7. KE4EST

    KE4EST SatelliteGuys Is My Second Home Staff Member HERE TO HELP YOU!

    Joined:
    Aug 9, 2004
    Posts:
    24,521
    Likes Received:
    4,887
    Location:
    EM75xb
    Agreed.

    olliec420 likes this.
  8. olliec420

    olliec420 Topic Starter SatelliteGuys Pro

    Joined:
    Jun 4, 2007
    Posts:
    677
    Likes Received:
    114
    Location:
    Pensacola, FL

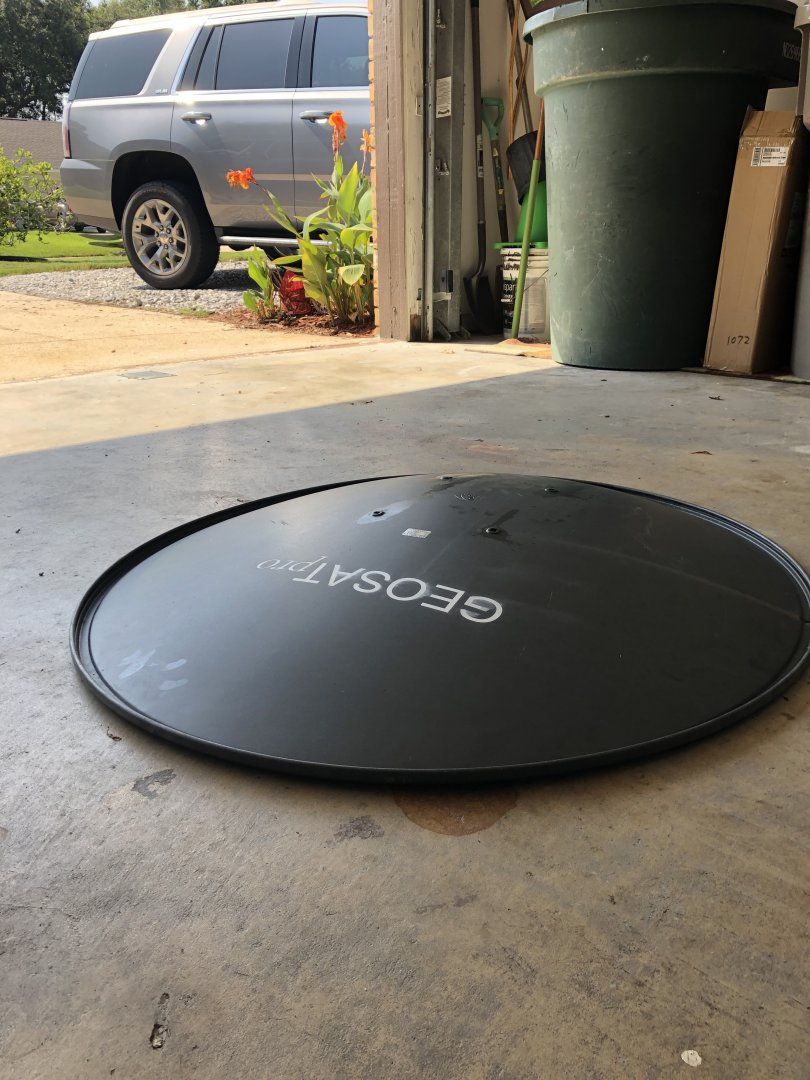

    It’s ok. I’ve had it since at least 09. I guess it’s time. That explains why I can’t get a signal worth a damn. I was thinking it was me being a bad satellite guy but no, it’s the dish. I really want one of the 120 cm ones but that shipping! How can I get around that? And what is the OD of the polar mount on it? Does anyone know?

  9. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    3,059
    Likes Received:
    1,059
    Location:
    85w
    Warped like my sense of humor.

    raydio likes this.
  10. a33

    a33 SatelliteGuys Pro

    Joined:
    Feb 4, 2015
    Posts:
    318
    Likes Received:
    202
    Location:
    netherlands europe
    Well, what about de-warping?

    First check if the warp is purely horizontal/vertical, or at an angle to hor/vert.
    What I once did (with a warped Triax 78) was: lying the dish (with mount and arm) on its back, and push down the sides that should be more backwards.
    Push a bit further than the wanted outcome, and the bending result will end somewhere inbetween.
    Then check (with the stringtest, or on a flat surface) how much more bending you have to do.
    I got a very good outcome that way.

    And I've seen a film I guess on youtube, where someone in a factory hall dewarped a dish by giving it (dish without arm and mount) a big shake.
    I believe the procedure was moving it away from you (while holding it at the sides), and then suddenly pulling it back, thus causing the bending in the desired direction.
    Never tried that, though.
    Edit: Found it:


    Thankfully the rim of the dish is the structure, that allowes dewarping back to the elliptical form.

    Greetz,
    A33

    #10 a33, Aug 10, 2019
    Last edited: Aug 10, 2019
    raydio and olliec420 like this.
  11. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    749
    Likes Received:
    788
    Location:
    Riga

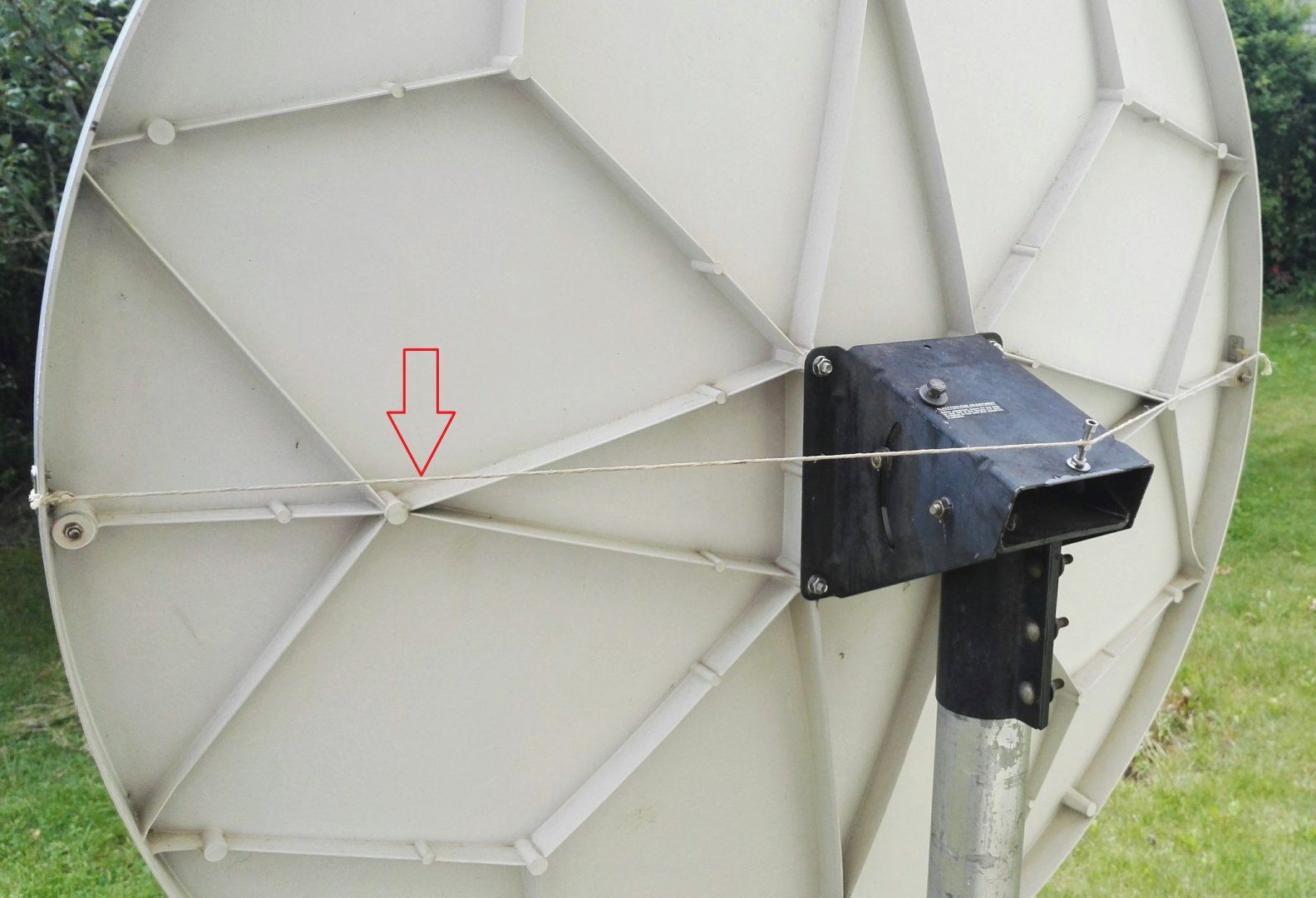

    olliec420 Unfortunately warping of metal dishes is common issue. It caused by weight of the feed, weight of the antenna, weather influence, metal tiredness etc. Warping can also happen to glass dishes, and some producers even build-in shape correction possibilities. Simple de-warping will probably give you some immediate effect, but after short period of time dish will warp again. The best method to get rid of warpage is to apply constant backward pulling of edges of the antenna. I could not find proper picture, so made this decoration (attached picture) on one of my antennas. Basically, you just need to attach metal wire to the edges of the dish and then pull back the wire. It is possible to use turn-buckle to regulate the strength of pulling. IMG_20190810_122931.jpg

    FTA4PA and olliec420 like this.
  12. a33

    a33 SatelliteGuys Pro

    Joined:
    Feb 4, 2015
    Posts:
    318
    Likes Received:
    202
    Location:
    netherlands europe
    RimaNTSS : Your solution seems good to pull back the sides of the dish.
    That would be 'normal' warpage?

    However in the picture of olliec420 , it looks like the top and bottom must be pulled back.
    Don't know the cause of that.
    Maybe the side arms have something to do with that?

    Greetz,
    A33

    olliec420 likes this.
  13. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    749
    Likes Received:
    788
    Location:
    Riga
    Yes, unusual warpage. Maybe more radical methods can be used... get another dish :shh, bigger and better, like Channel Master 1.2m :bow

    raydio and olliec420 like this.
  14. olliec420

    olliec420 Topic Starter SatelliteGuys Pro

    Joined:
    Jun 4, 2007
    Posts:
    677
    Likes Received:
    114
    Location:
    Pensacola, FL
    Ahhh, I didn’t know de warping was an option. Worth a try I guess!

    Since I moved in 2014 this dish has been laying around the yard and on my “portable” bucket mount. Been knocked over by the wind countless times. That musta have been what did it.

    So I just got the bug to play with ku again and I made a little setup in the garage and this is on the side yard. I have a 1.8 prodelin that I got for $60 but I feel like that’s a little too big for side yard. Haha. No HOA but I’m sure the neighbors wouldn’t appreciate.

    RimaNTSS likes this.
  15. olliec420

    olliec420 Topic Starter SatelliteGuys Pro

    Joined:
    Jun 4, 2007
    Posts:
    677
    Likes Received:
    114
    Location:
    Pensacola, FL

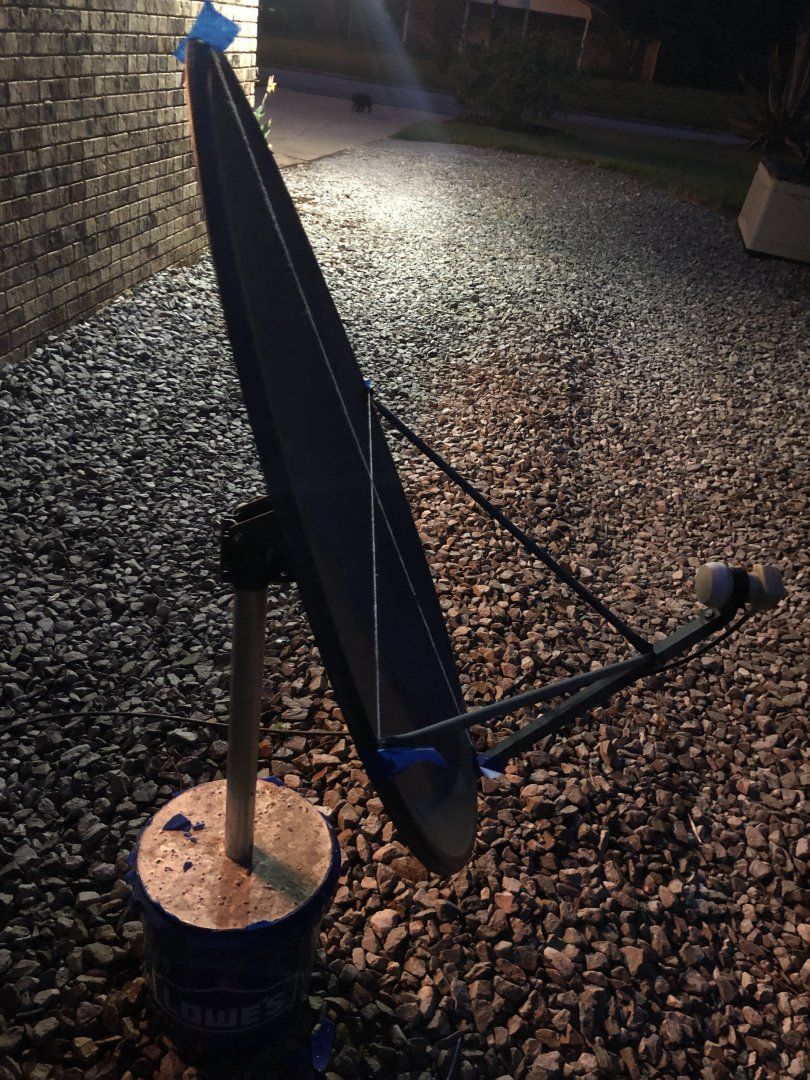

    May have fixed it!

    Hell I might have bent it tuning it. Sometime I pull hard on it to make tiny adjustments. I’ll try not to do that this time.


    Attached Files:

  16. comfortably_numb

    comfortably_numb Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,306
    Likes Received:
    7,453
    Location:
    Missouri/Kansas
    There are quite a few more than that, but not easy to tune without at least a 1.2m dish.

    olliec420 and raydio like this.
  17. raydio

    raydio K4ECP Supporting Founder Pub Member / Supporter

    Joined:
    Jan 6, 2005
    Posts:
    825
    Likes Received:
    707
    Location:
    Rio Rancho, NM
    Ya, how did he say in the video - shake it like a baby?

    olliec420 likes this.
  18. comfortably_numb

    comfortably_numb Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,306
    Likes Received:
    7,453
    Location:
    Missouri/Kansas
    :eek::eek::eek:

    raydio and olliec420 like this.
  19. olliec420

    olliec420 Topic Starter SatelliteGuys Pro

    Joined:
    Jun 4, 2007
    Posts:
    677
    Likes Received:
    114
    Location:
    Pensacola, FL
    This is why I think I should just order a bigger dish. But if this 36 bends so easy, how easy does the geosatpro 48 in bend?

    Yeah I thought that was funny. In mother Russia, baby shake you!



    I’m already getting a few more TPs on scan of 91but no more channels. Time to fine tune without bending it again. I have a tbs 6922 I’m putting in an old pc to bring in the garage today. Hopefully it’s tuner is more sensitive than this $30 jobbie.

  20. comfortably_numb

    comfortably_numb Dogs have owners, cats have staff Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    7,306
    Likes Received:
    7,453
    Location:
    Missouri/Kansas
    The GeoSat Pro 1.2m is made of the same material as the 90cm. It's delivered by freight courier in a large box. You may have to do the "shake test" when it arrives, same as the 90cm. Mine performs very well, and it's large enough that I can focus it on 99, and use offset LNB's to get everything on 95 and 103 as well.


    raydio and olliec420 like this.
