issues with 6 foot dish aiming (1 Viewer)

Register Today to see less ads! It's Free!
Status
Please reply by conversation.

Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
295
43
Mankato, MN
OK guys this is been bugging me for a while and hopefully someone knows :)

Why is it if I aim the C-Band dish to a satellite (say T6/IA6/G26) I get AMGTV really good (say 60-70 quality) but PBS (15 max) not so good. If I move the dish west then I get PBS excellent (75 quality) but AMGTV is crap (18-20)

same with G4....gets the nets locked in but KCHF is non existent...move it a little bit east and boom comes in great

The big one is G11...for same reasons

Is it due to the smaller dish size (6 footer)?? I guess what doesn't make sence is same sat same polarity but 2 different "channel lists" (where some channels come in if dish is at X but different ones on same satellite come in if dish is at X+an inch west)

Register Today to see less ads! It's Free!

truckracer

SatelliteGuys Pro
Sep 17, 2004
4,338
351
Charleston wv
Hey Ice, what lnbf are you using? When I had the BSC-621 that's exactly how my 10' dish was behaving.

Now that I have the corotor II C and ku is exactly in the same place in the sky on all sats.
We know that theoretically when KU is peaked on a hybrid sat the c should be right there.

If the conflicting tp's are both c band, then what is probably happening is the smaller 6' reflector is taking in interference from a neigboring sat. One tp is probably getting it from the east (interference) and the other from the west.

Just a theory.


jayelem

SatelliteGuys Pro
Jan 5, 2006
1,305
0
Chicago suburbs.
Why is it if I aim the C-Band dish to a satellite (say T6/IA6/G26) I get AMGTV really good (say 60-70 quality) but PBS (15 max) not so good. If I move the dish west then I get PBS excellent (75 quality) but AMGTV is crap (18-20)

I had similar issues with Ku band in the past , in fact I once posted a Hockey feed in the WUT area from SBS6 and somepeople only could lock the signal if they adjusted their dish.

I have peaked signals on certain weak TP's only to find stronger TP's losing quality.

I have also blind scanned unknown space with no documented birds just hoping to find something someone missed , I found a channel on Intelsat 1R doing just that .

I hope someone sheds light on this , pretty Damn interesting IMO .


truckracer

SatelliteGuys Pro
Sep 17, 2004
4,338
351
Charleston wv
I figured the beamwidth on my 10' on ku being 1/2 degree was to blame almost zoning in on individual transponders on the sat. I can do it on G25 ku where I can peak certain ku tp's while hurting others. Nature of the beast I guess.


linuxman

SatelliteGuys Pro
Jul 16, 2006
3,903
15
North West of St. Louis, MO
Hey Iceberg.

I have experienced the same thing on motorized dishes before, and found that I didn't have the elevation set just right which allows for the possibility of reception off-center so to speak.

I would try raising or lowering the dish and then re-peak and see if it doesn't get the whole satellite at the same signal quality in one position.

I have actually received signal in two separate elevations on the same satellite. One had acceptable signal, and the other had great signal.

It happens more often on a smaller flat f/d ratio dish than on a bigger deep f/d ratio dish.


Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
295
43
Mankato, MN
Hey Ice, what lnbf are you using? When I had the BSC-621 that's exactly how my 10' dish was behaving.
both that and the BSC-421

If the conflicting tp's are both c band, then what is probably happening is the smaller 6' reflector is taking in interference from a neigboring sat. One tp is probably getting it from the east (interference) and the other from the west.

Just a theory.
thats what I'm thinking too. Since T6 is my true south theres a few sat around it :)


Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
295
43
Mankato, MN
I would try raising or lowering the dish and then re-peak and see if it doesn't get the whole satellite at the same signal quality in one position.
I've tried that and nothing. I know I'm on the sweet spot for the elevation.

It happens more often on a smaller flat f/d ratio dish than on a bigger deep f/d ratio dish.

that's what I figured.....oh well


tvropro

On Vacation
Mar 9, 2007
6,872
0
Ice, it's because of the beamwidth is too wide on the 6 foot for the satellite spacing. You have a sidelobe interfering on some transponders from the adjacent bird. When you move the dish to get those channels better (null out the sidelobe) you get off the main beam of the satellite and loose signal on the other channels. I used to have problems like that on close satellites way back when when I had my 10 footer that was a bit out of round. You may want to do a string test and make sure that puppy is as true at parabolic as possible. On a 6 footer every little bit helps.


tdti1

SatelliteGuys Pro
Nov 23, 2004
2,318
1
Montreal, QC
Ice, it's because of the beamwidth is too wide on the 6 foot for the satellite spacing. You have a sidelobe interfering on some transponders from the adjacent bird. .

This is true, most probably even if the undersized reflector was not warped it will probably still have issues, plus it is not a quality reflector, of course a warp will not help.


photoman76

SatelliteGuys Pro
Jan 8, 2005
3,291
1
It's because of your dish size. When you are pointed at Galaxy 26, your dish is actually seeing signals from Galaxy 11 and Galaxy 3C also. I can see the same effects on my 7 1/2 footer, but to a lesser extent.

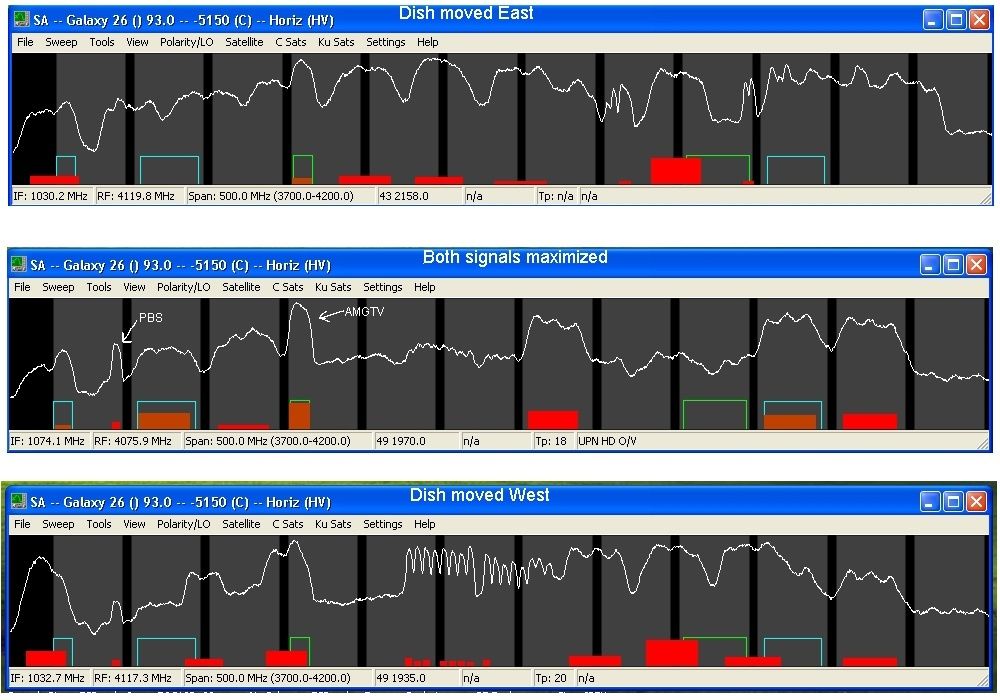

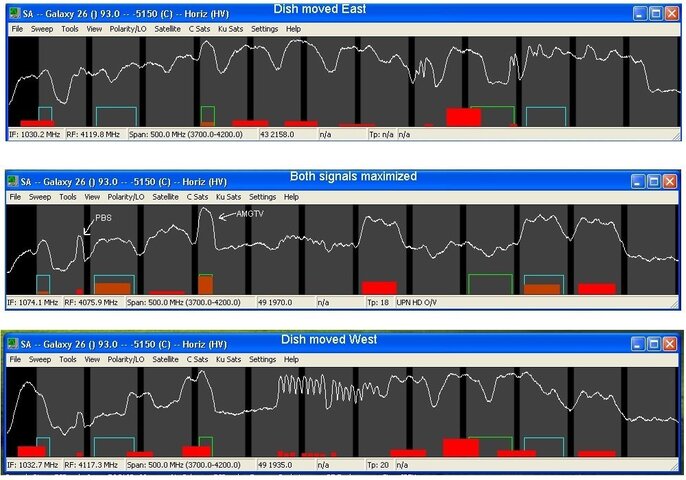

Attached are Broadlogic Spectrum Analyzer scans of Galaxy 26 dead on and with the dish moved east and west.
