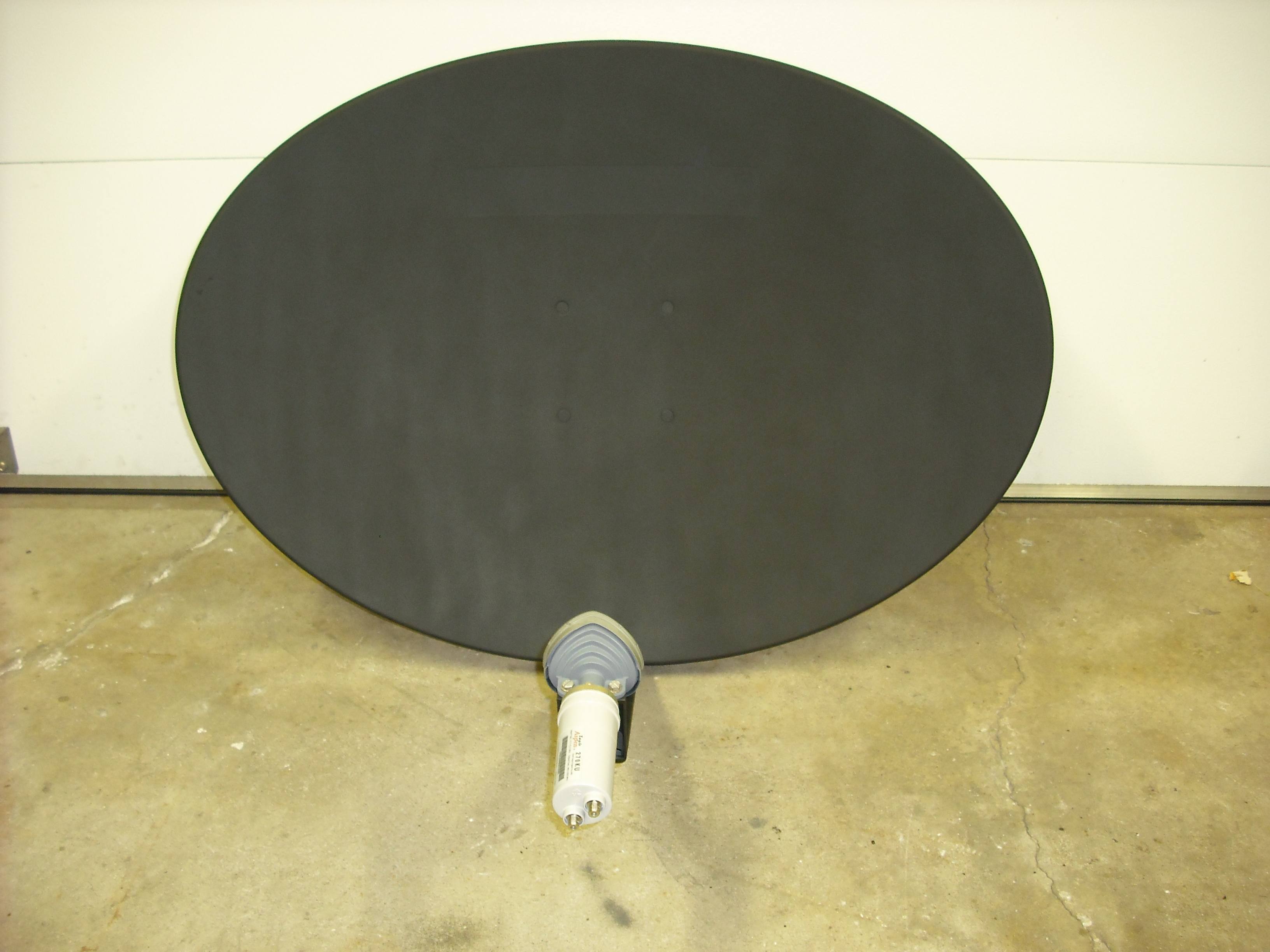

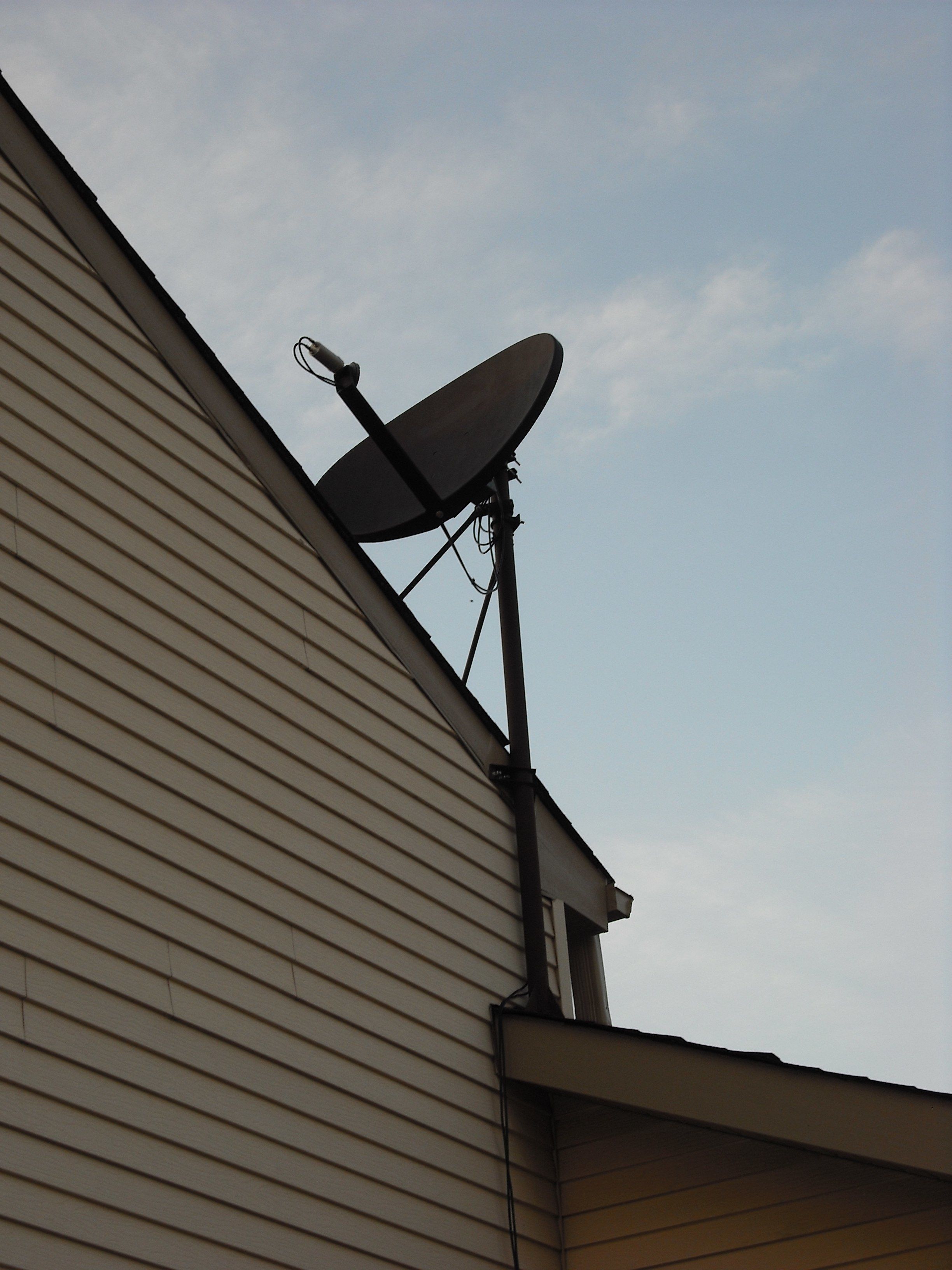

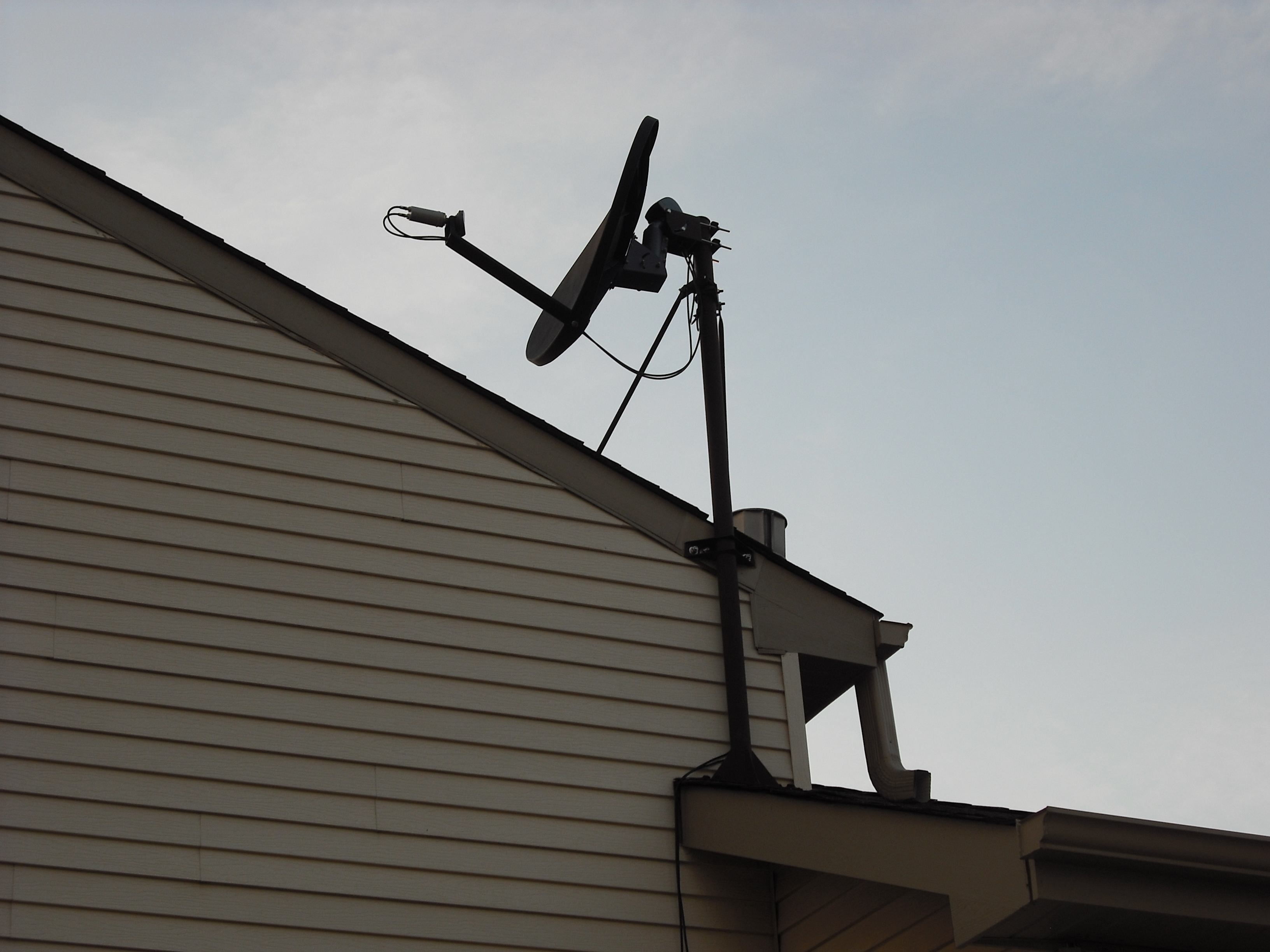

Just wanted to share some pics of the completed Primestar project. Everything went up on the roof last week and is working great so far! In the process I've become a big fan of the P*/Channel Master dishes.

Thanks to all of you who helped me work out the proper feed support length and feed/LNB from the pile of miscellaneous parts I started with. :)


Attachments

  • DSCF0051.JPG
    384.2 KB · Views: 182
  • DSCF0053.JPG
    276.3 KB · Views: 183
  • DSCF0052.JPG
    614.5 KB · Views: 149
  • DSCF0011.JPG
    425.7 KB · Views: 193
  • DSCF0008.JPG
    370.5 KB · Views: 167
  • DSCF0009.JPG
    355 KB · Views: 133
  • DSCF0012.JPG
    354 KB · Views: 142

SpiffWilkie

SatelliteGuys Pro
Jul 16, 2008
557
0
Memphis, TN
Just wanted to share some pics of the completed Primestar project. Everything went up on the roof last week and is working great so far! In the process I've become a big fan of the P*/Channel Master dishes.

Thanks to all of you who helped me work out the proper feed support length and feed/LNB from the pile of miscellaneous parts I started with. :)

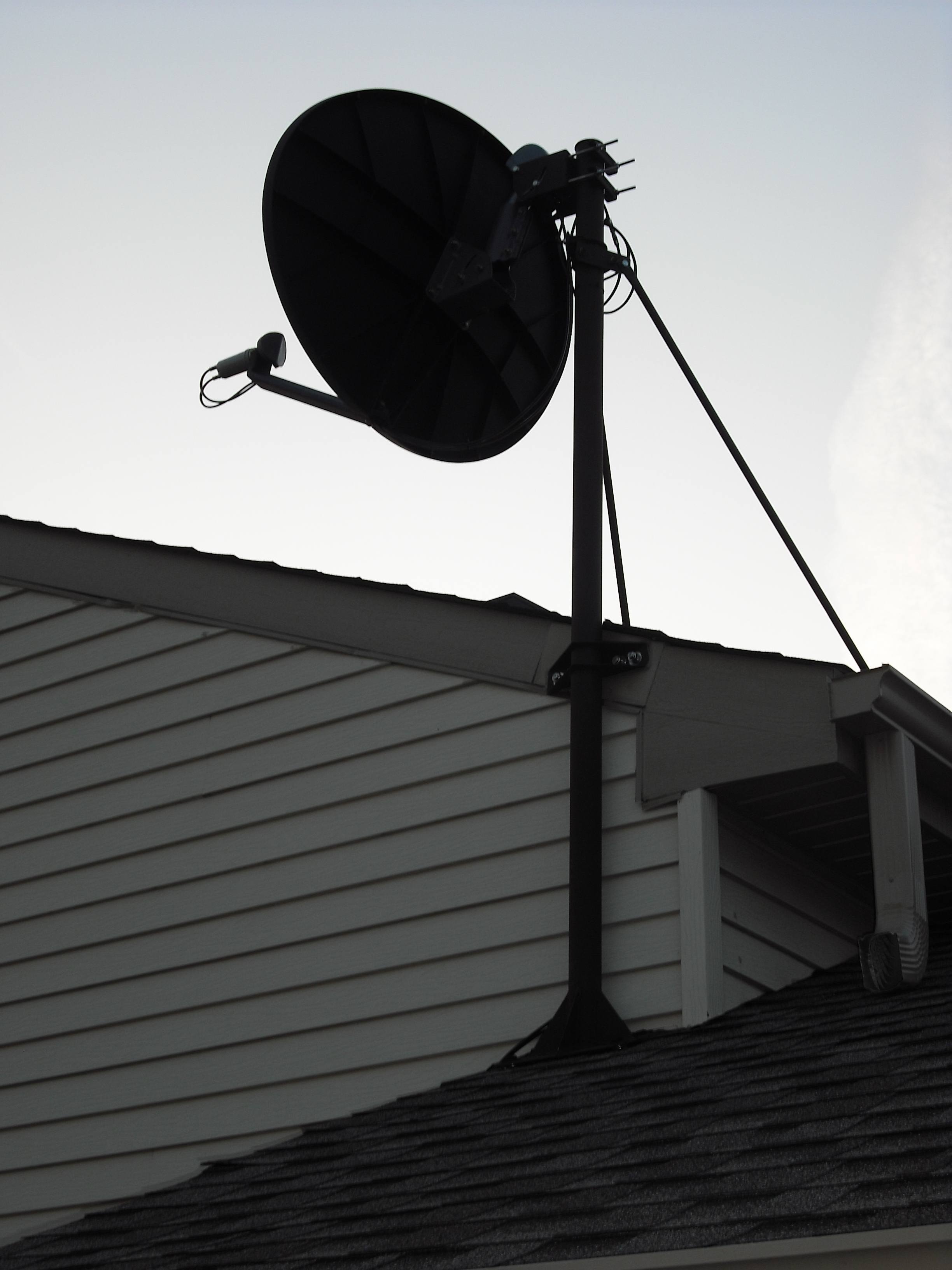

Nice mount. That looks very sturdy with the extra bracing halfway up the pole.


putney

SatelliteGuys Pro
Aug 12, 2009
854
6
St Louis, missouri

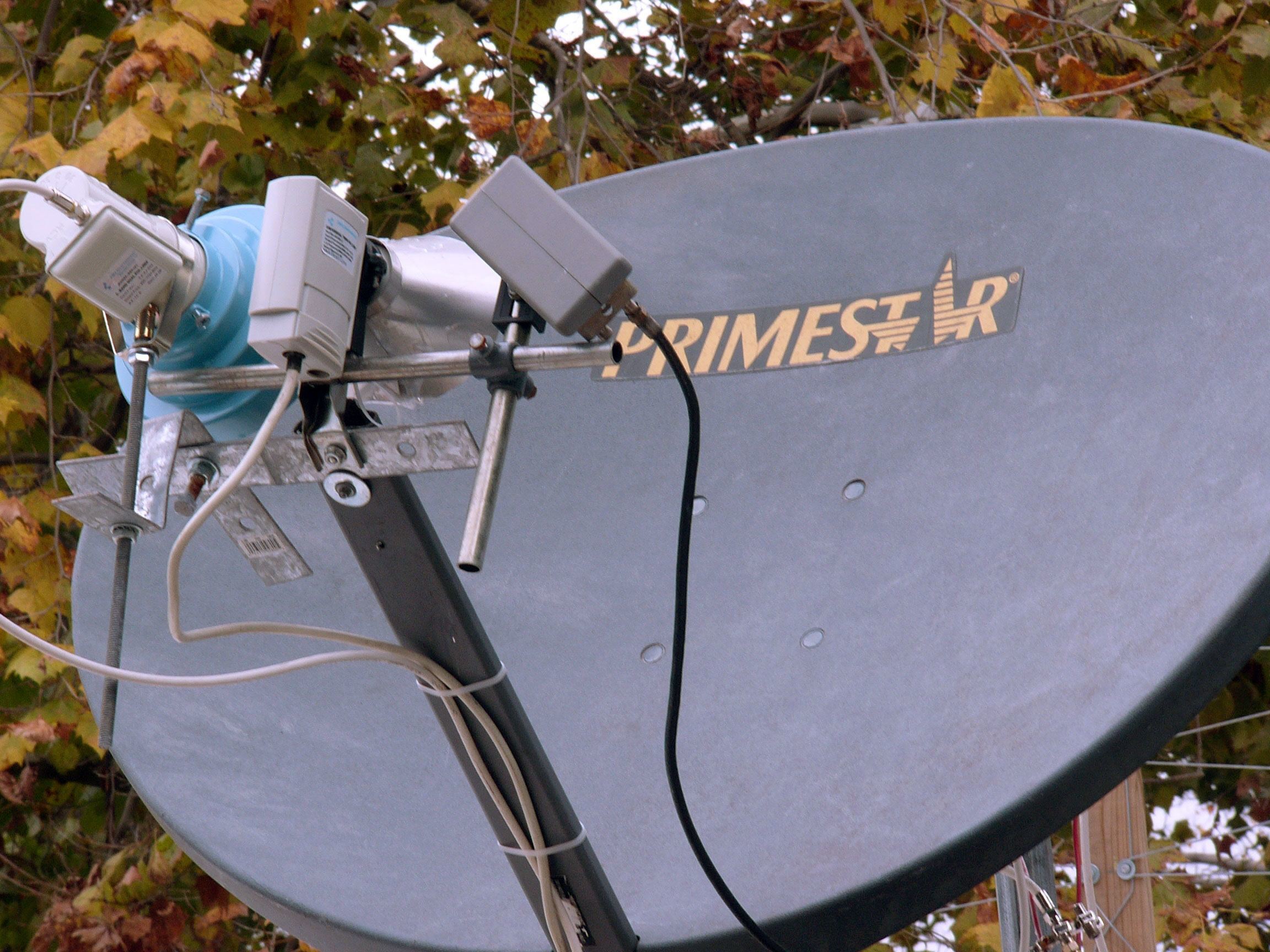

welcome to the primestar club! I love mine. Now just throw on a C-Band LNB and you're good for another dozen channels!


Attachments

  • dish.jpg
    521.9 KB · Views: 280

turbosat

SatelliteGuys Master
Dec 26, 2006
9,001
75
Oneonta,AL
Very nice, good paint job too! Hate to climb up there to work on it though, hehe.
Putney, that is an amazing setup you built, first I've seen of it. Award-winning.


K'bick

Thread Starter
SatelliteGuys Family
Jun 29, 2008
52
0
Chicago Suburbs
welcome to the primestar club! I love mine. Now just throw on a C-Band LNB and you're good for another dozen channels!

Whoa! Thats a killer setup there Putney.. I can see now that I am not even scratching the surface with P*!

What kind of C band reception can you get with your P*? I assume thats an 84e dish?


Very cool!!


Anole

SatelliteGuys Master
Sep 22, 2005
11,819
10
L.A., Calif.
K'bick -

Ya done good! Must'a been gettin' some fine advice, there! - :D
Great paint job.
Dandy LNB.
Wise reuse of the original feedhorn.
Not excited about using the entire original mount, but the upper pole bracing probably helps! - :up
And if you are trackin' the arc, then it doesn't get much better.
Congrats.!. - :cool:


ChuckBoozer

SatelliteGuys Pro
Jan 13, 2007
252
0
South Carolina
Great job!

Can't beat the Channel Master dishes....love all 3 of my Primestars (70E, 75E and 84E) and look forward to playing with my 2 brand new Channel Master dishes that I just added to my collection (90cm and 1m). :)


putney

SatelliteGuys Pro
Aug 12, 2009
854
6
St Louis, missouri
Whoa! Thats a killer setup there Putney.. I can see now that I am not even scratching the surface with P*!

What kind of C band reception can you get with your P*? I assume thats an 84e dish?


Very cool!!

Yes 84e.

My strongest signal is 60%Q on my azbox with WAPA on 97ºw.

Most are in the 30%Q range which has been a stable lock in rain and overcast.

My weakest (and most recent) lock is at 12%Q...and it's solid!

I have a total of 15 usable channels, but have scanned in many more (Most duplicate christian broadcast with different languages).

The best thing I find is by mounting my C-band LNB is 10º off center and circular LNB is 9º off center, it makes them very easy to motor to.

For 91ºwC I motor to 101ºwKu, then menu back to 91ºwC and save a DiSEqC setting, then 107ºKu for 97ºC, 119ºKu for 99ºC, 121ºKu for 111.1ºC, 110º for 119º(circular) and so on. When browsing it makes for no motor movement between the sats that share the same locate points!

I find this setup satisfying enough to hold me until I can upgrade to a 6'...and I have my eye on one:rolleyes:.


Babadem

SatelliteGuys Pro
May 21, 2007
2,293
160
MA
Yes 84e.

My strongest signal is 60%Q on my azbox with WAPA on 97ºw.

Most are in the 30%Q range which has been a stable lock in rain and overcast.

My weakest (and most recent) lock is at 12%Q...and it's solid!

I have a total of 15 usable channels, but have scanned in many more (Most duplicate christian broadcast with different languages).

The best thing I find is by mounting my C-band LNB is 10º off center and circular LNB is 9º off center, it makes them very easy to motor to.

For 91ºwC I motor to 101ºwKu, then menu back to 91ºwC and save a DiSEqC setting, then 107ºKu for 97ºC, 119ºKu for 99ºC, 121ºKu for 111.1ºC, 110º for 119º(circular) and so on. When browsing it makes for no motor movement between the sats that share the same locate points!

I find this setup satisfying enough to hold me until I can upgrade to a 6'...and I have my eye on one:rolleyes:.
I'm thinking of doing something simillar.


K'bick

Thread Starter
SatelliteGuys Family
Jun 29, 2008
52
0
Chicago Suburbs
K'bick -

Ya done good! Must'a been gettin' some fine advice, there! - :D
Great paint job.

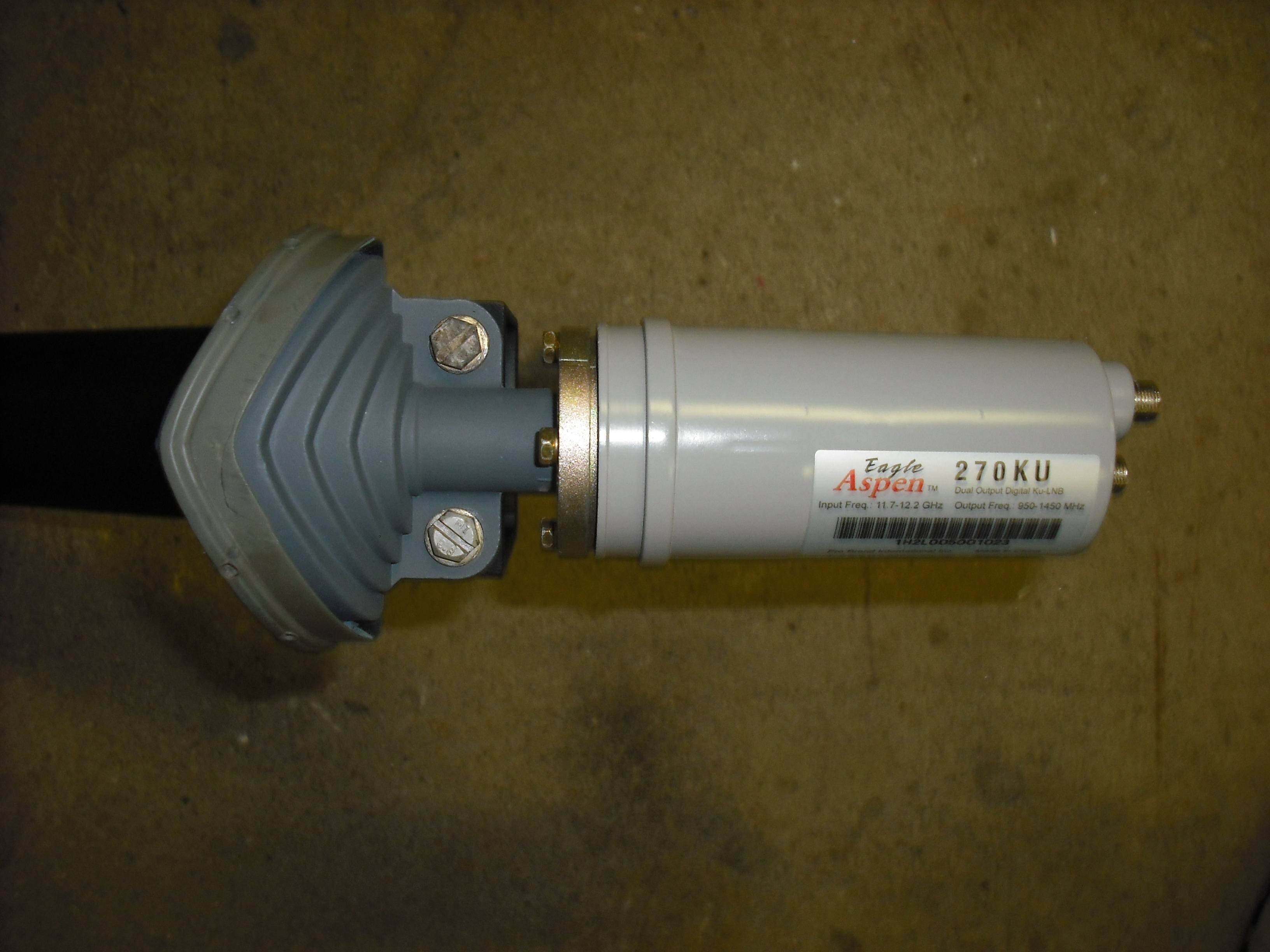

Dandy LNB.

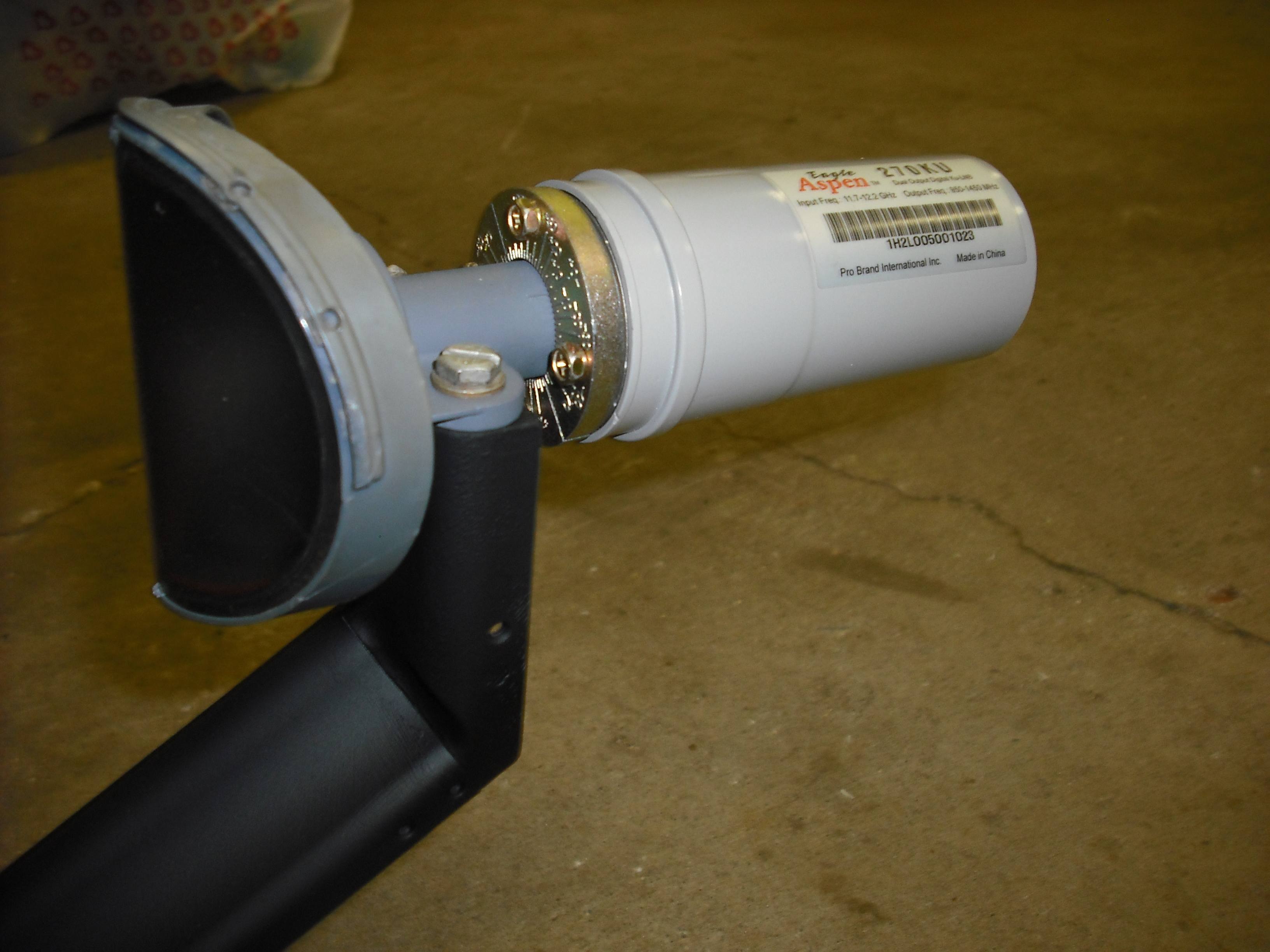

Wise reuse of the original feedhorn.
Not excited about using the entire original mount, but the upper pole bracing probably helps! - :up
And if you are trackin' the arc, then it doesn't get much better.
Congrats.!. - :cool:

Thank you sir! I got some great advice indeed. Special thanks to the guys who helped me out with the feed arm measurements.

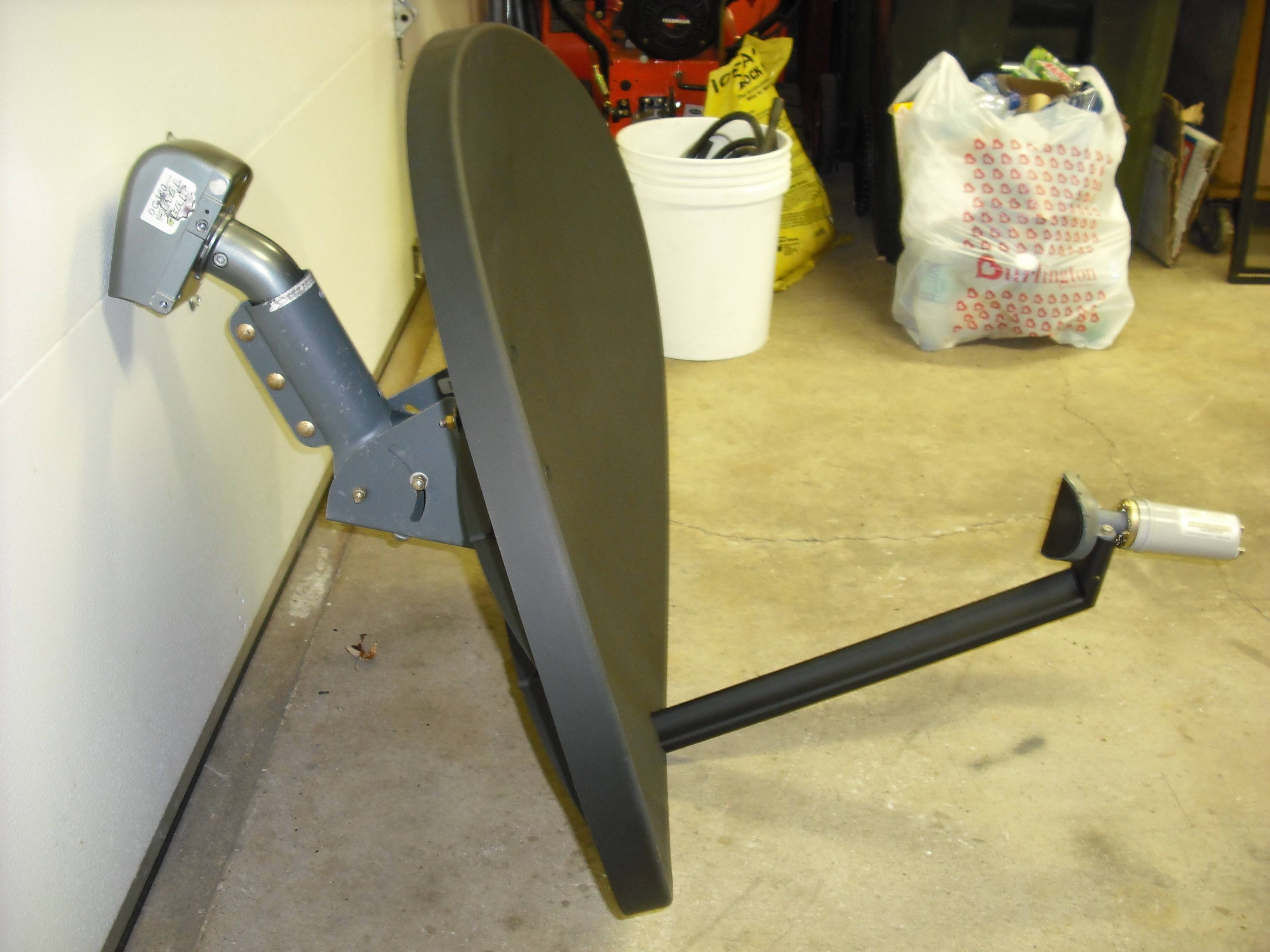

The original mount that came with that dish was a 3-piece with integrated skew and it was *heavy*. The actual mount I used is a lighter, unmodified 75e mount sans skew. I chose not to make/retrofit anything lighter because of the high winds we get combined with the high up location of the dish.

I've read where many people have had problems with weight when motorizing a P* dish however the setup you see in the pics is actually about 4.5 pounds lighter than a 1M Fortec * setup I originally had up there. The DG380 motor does move the P* noticably faster.

The mast was originally designed to withstand very high wind loads across the face of a 1M round dish (the original Fortec * setup). With the lighter P* dish that has less surface area its not going anywhere. :)


K'bick

Thread Starter
SatelliteGuys Family
Jun 29, 2008
52
0
Chicago Suburbs
Hay K'bick, did you have enough clamping pressure using the P* mount or did you use a PVC insert ?


I used a PVC insert. Once the PVC was on the motor tube it was a very tight fit getting the P* mount to slide on. I had to remove the three compression bolts on the side of the mount and open it with a small pry bar to get it to slide on.

That wasn't the easiest part of the assembly for sure but considering that type of connection I was happy with the fit. :)


ziggy1222

SatelliteGuys Family
Aug 18, 2008
98
0
Looks good. Can you tell me the approximate diameter of the arm on the motor and how did you build it up to the 2 3/8" ID of the primestar mount? Thanks.
