Receiving programs from 30 W = Hispasat after reflection from 2 flat mirrors.

polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto
Just noticed that 10 years ago I described receiving program from Hispasat after double reflection. But then - it was just one reflector (mirror) and second reflection was, of course, from the dish...
Now, I tried TWO mirrors, so, technically, it could be called “triple” reflection ?

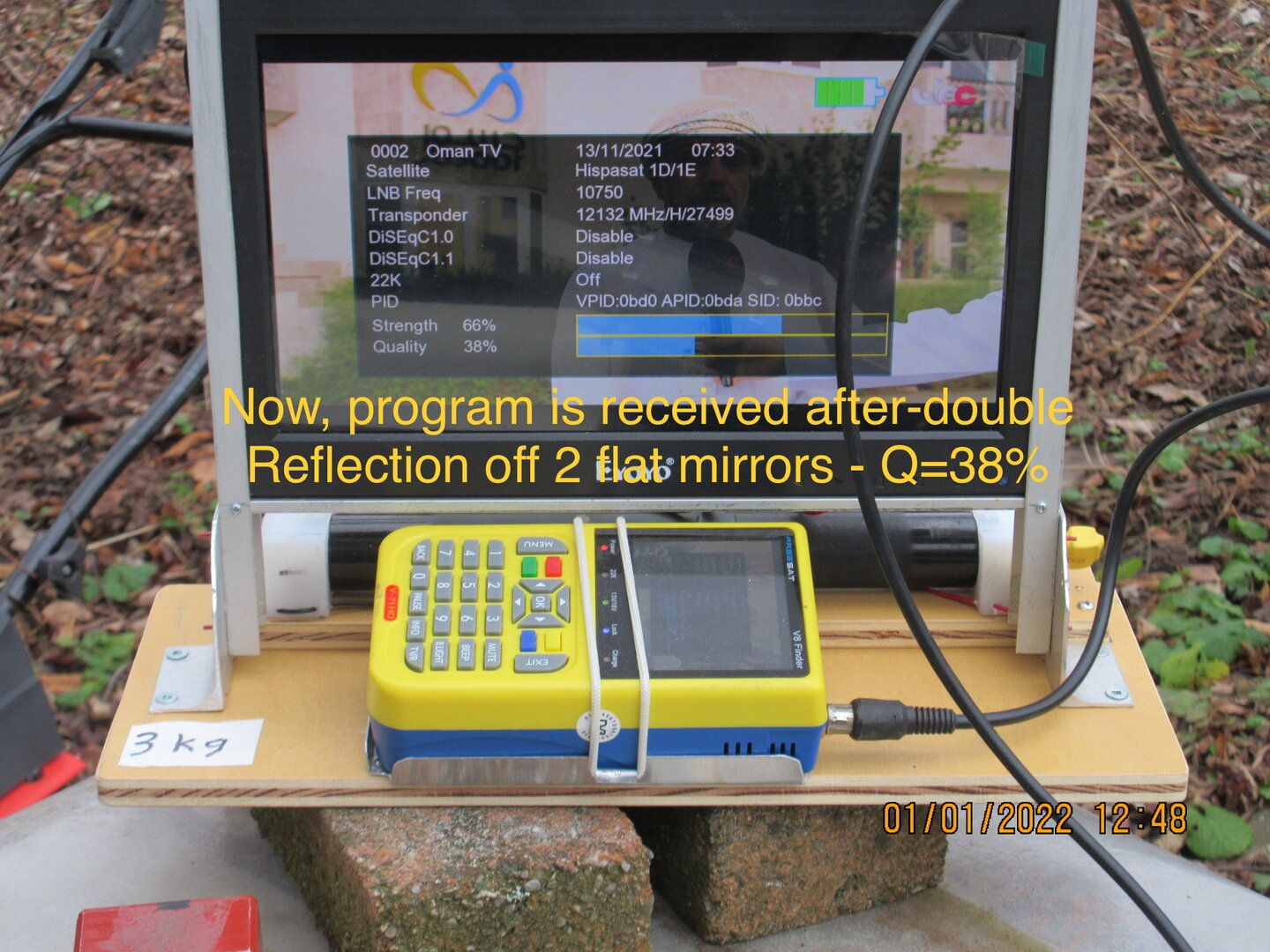

This experiment shows that losses of ”Q” are not significant despite reflection of surfaces.

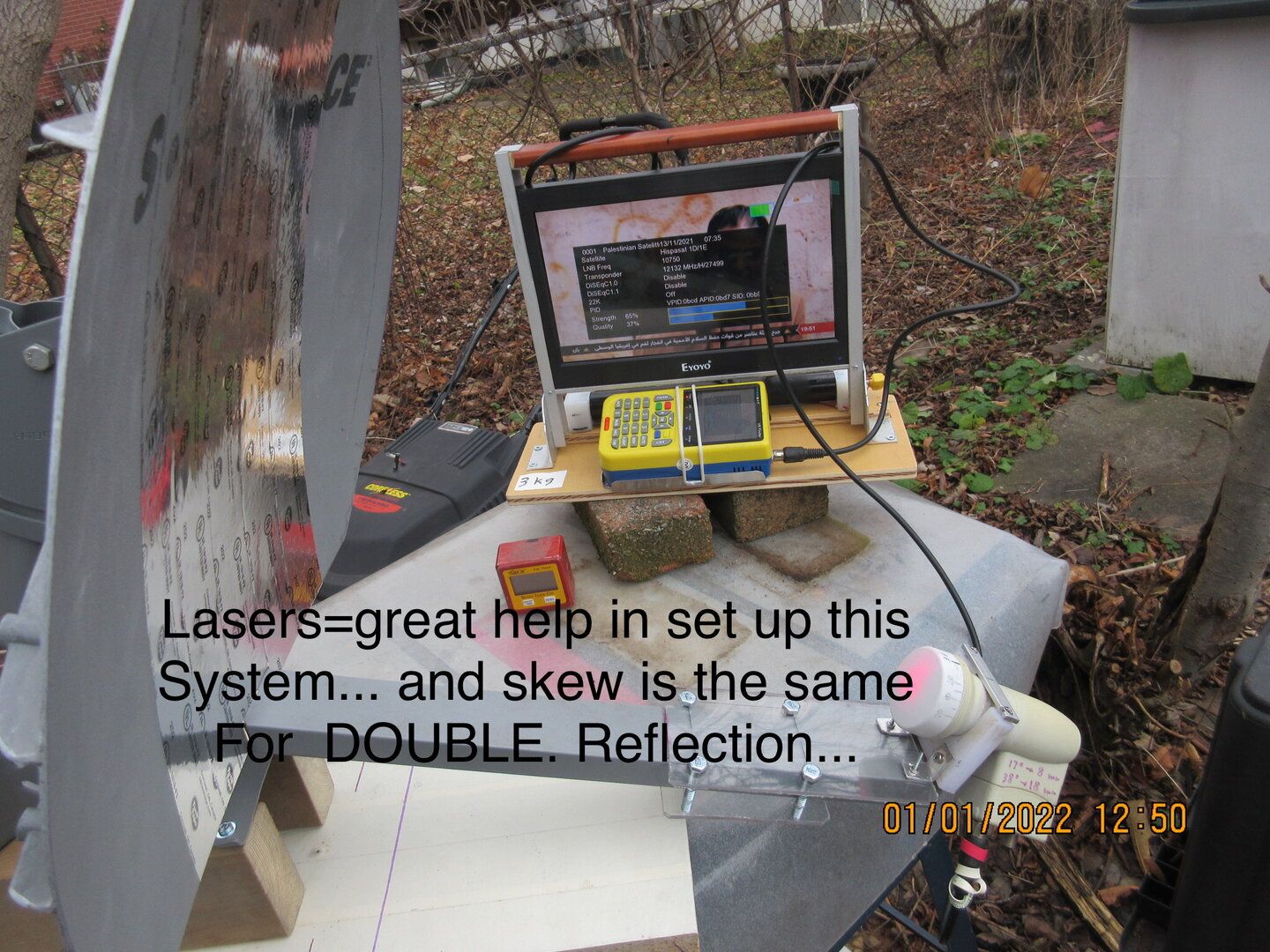

Without lasers, the set-up would be very time-consuming.
My curiosity is satisfied. I do not know if it can be used for something practical...

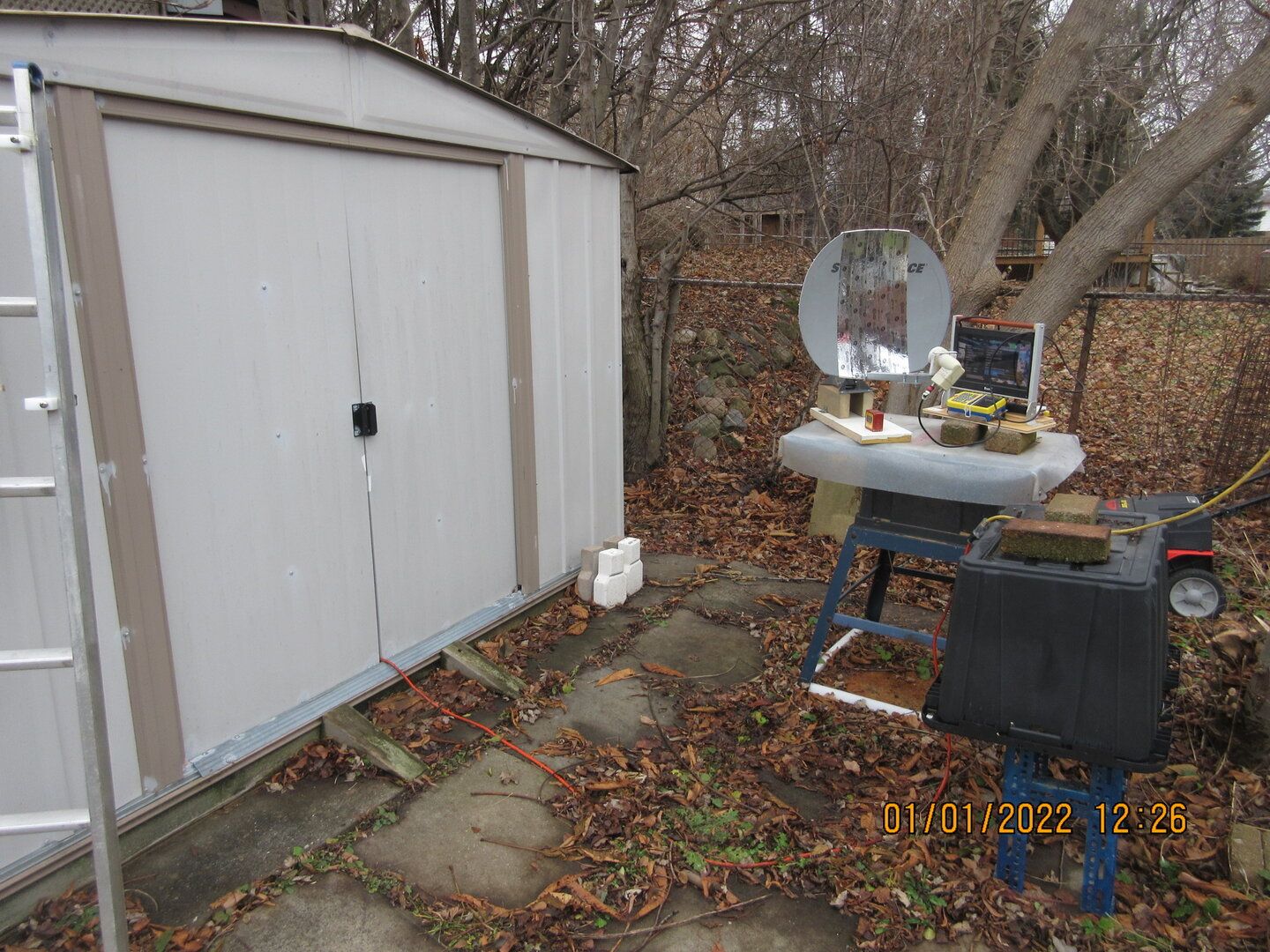

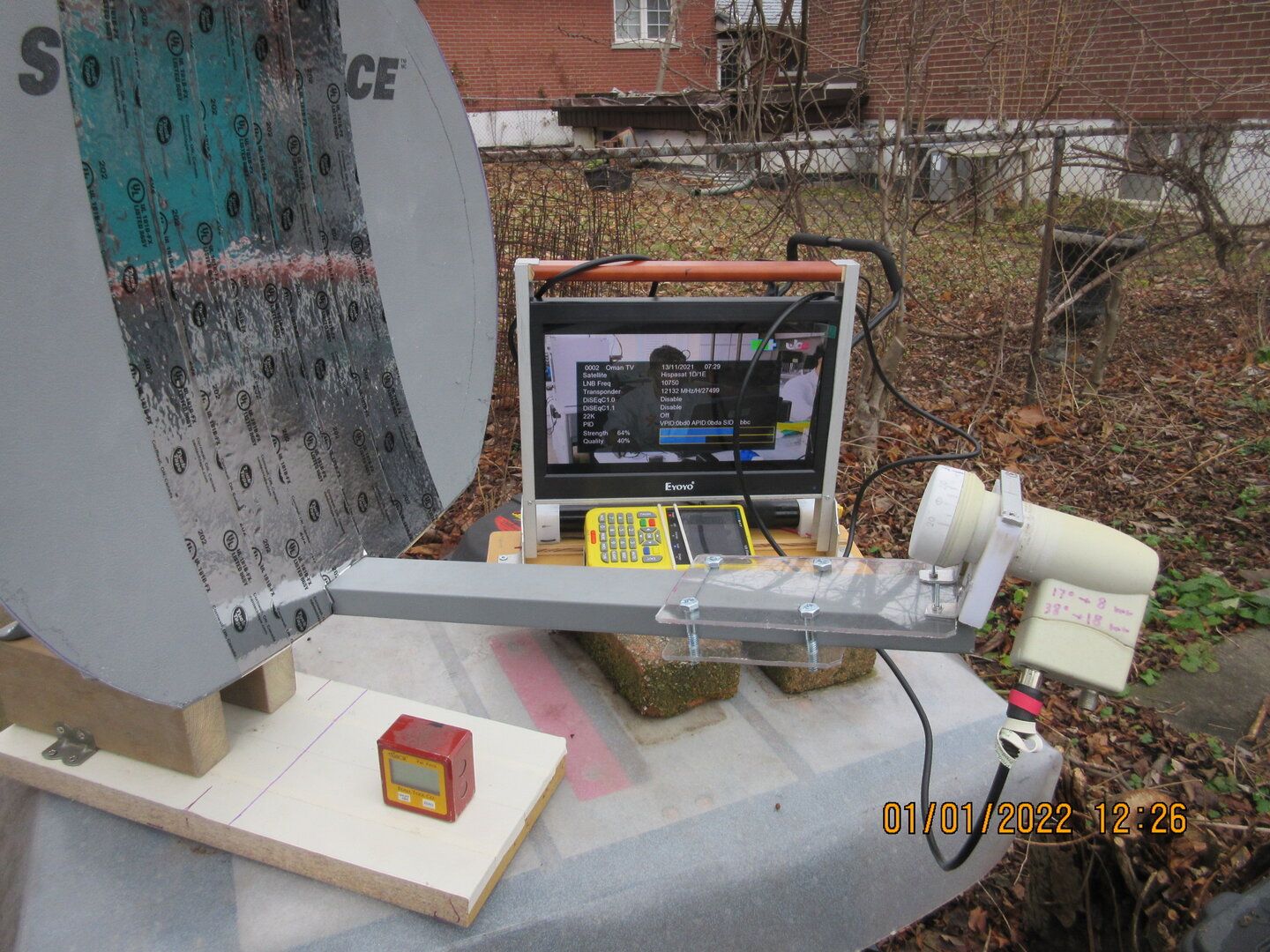

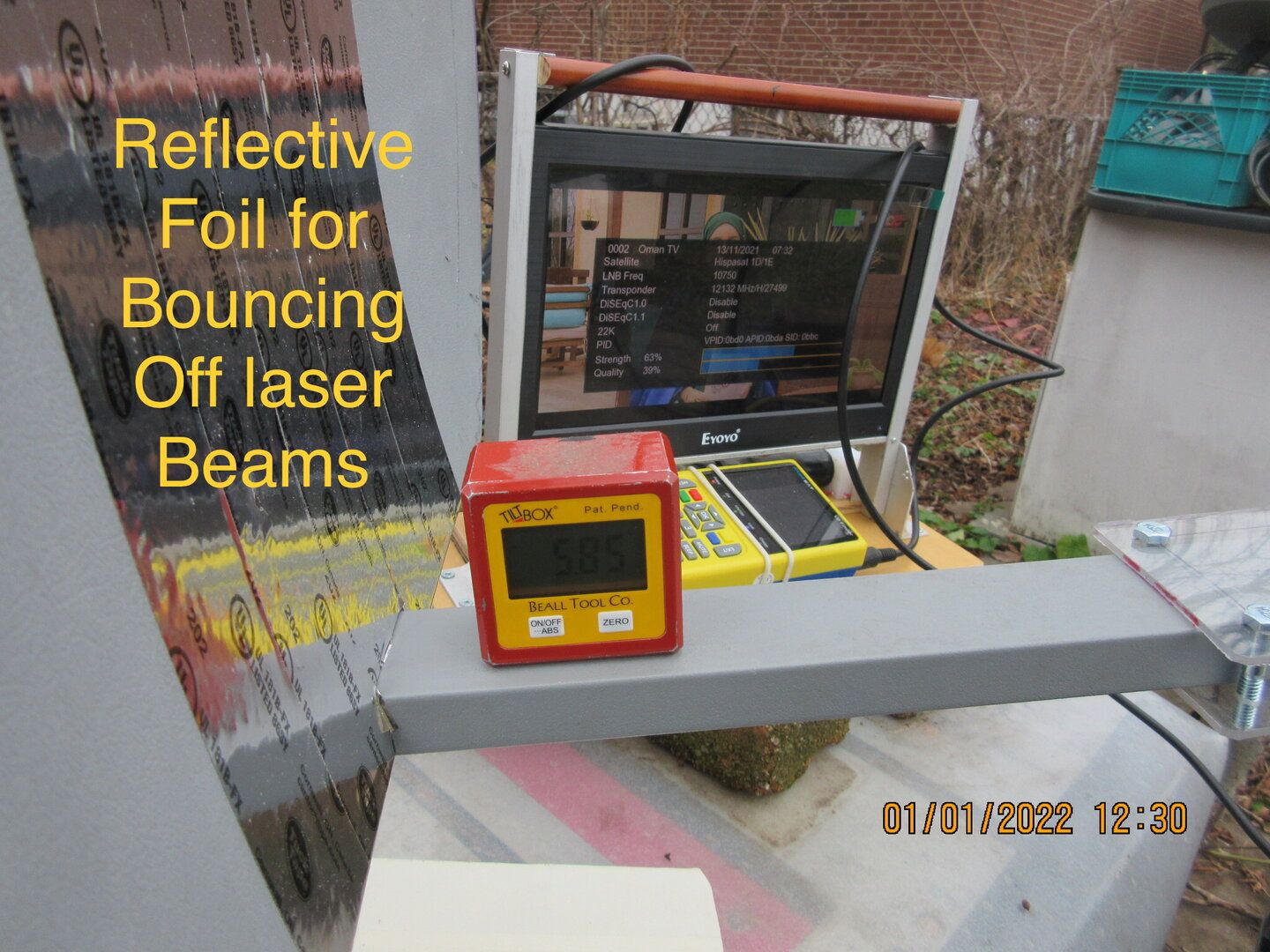

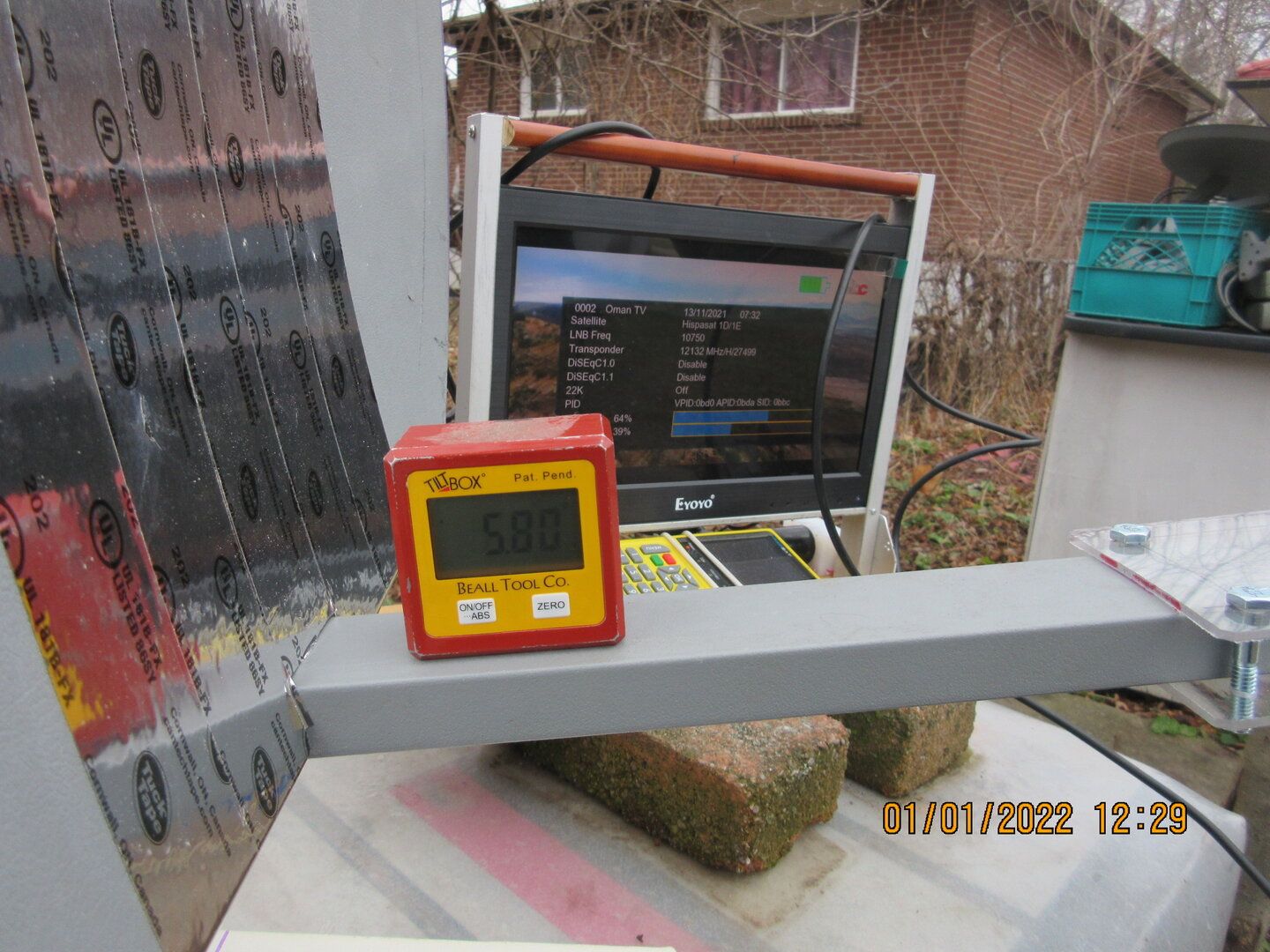

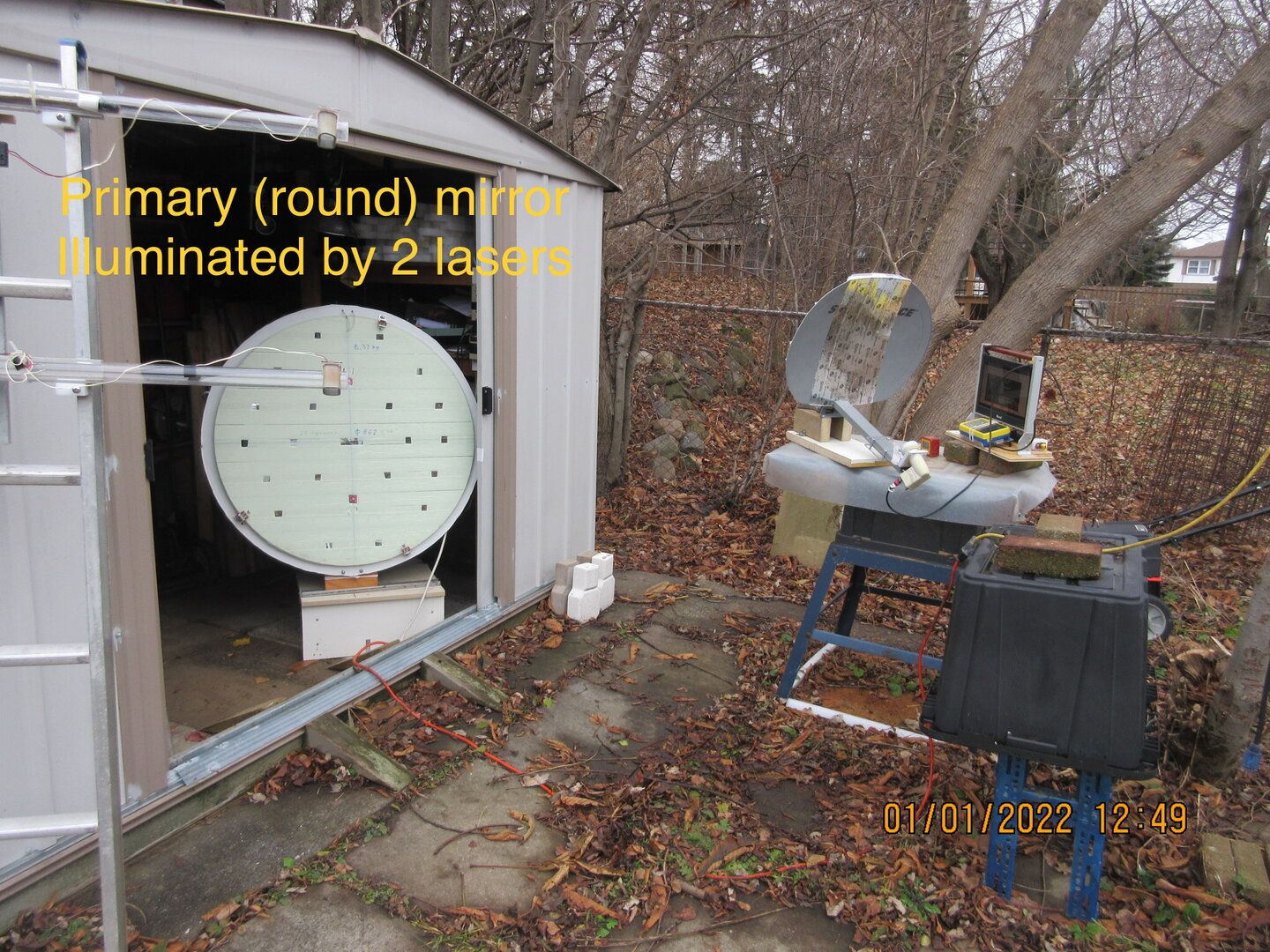

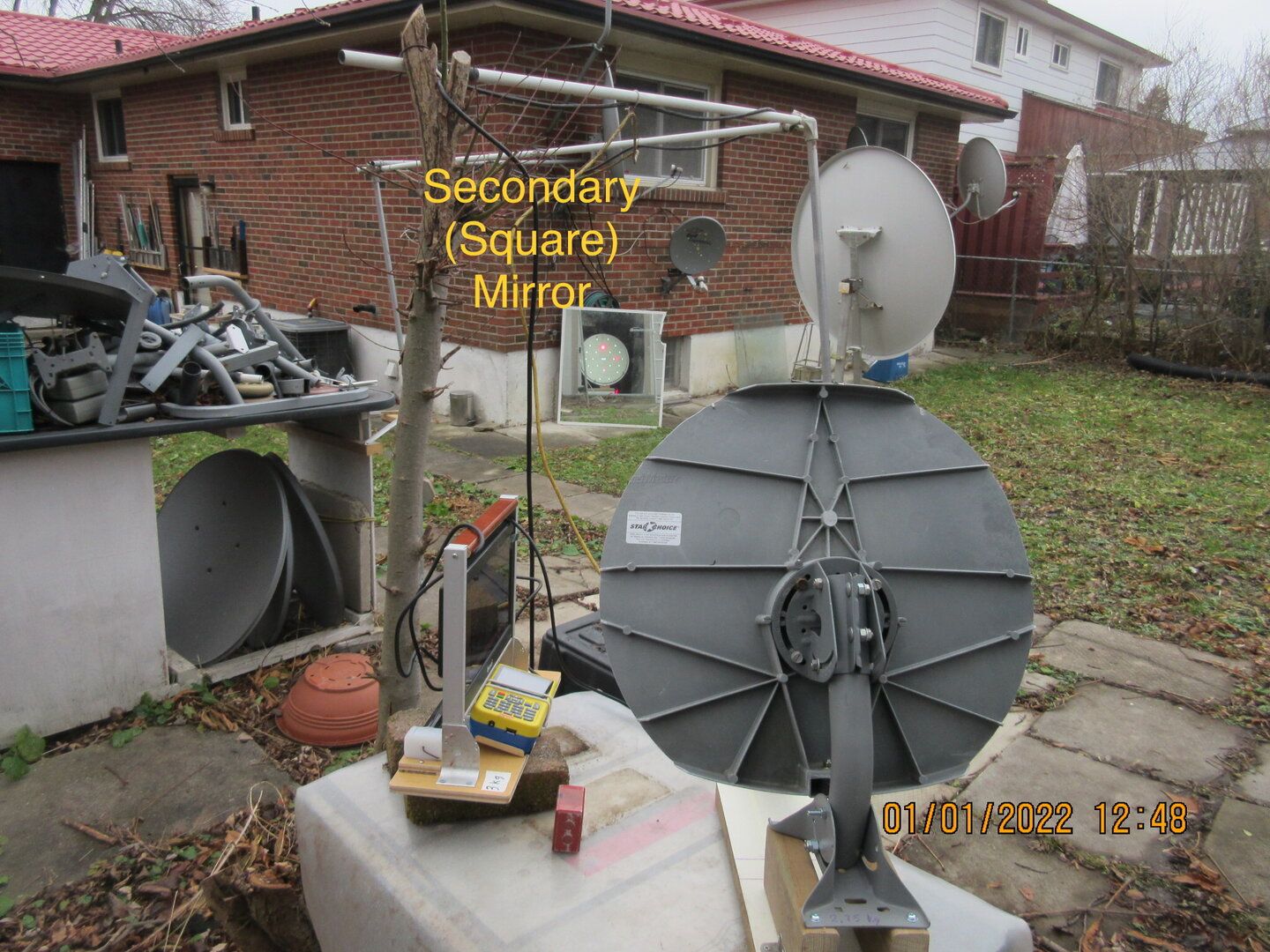

A few pictures follow


Attachments

  • 3CBCFD8B-90FC-4040-B07B-BCF093CAA160.jpeg
    322.1 KB · Views: 102
  • 610A8C49-BFEB-42A8-AE84-264B7BDCAE13.jpeg
    307 KB · Views: 96
  • C9C03500-F448-49F5-8A62-BCFB345FC6B3.jpeg
    240.5 KB · Views: 87
  • 3DBF9D49-9F63-4ECE-AD3F-00162EFFE023.jpeg
    239.8 KB · Views: 85
  • 49D3EC75-D100-4956-B156-4FC7FB1DAEDD.jpeg
    265.8 KB · Views: 96
  • C542F047-774D-440E-A427-78493A358FBF.jpeg
    364 KB · Views: 88
  • C5BA0FBE-63DF-4A2C-ADF3-D095DEF46C20.jpeg
    304.7 KB · Views: 101
mr3p

mr3p

SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,244
217
West
Whatever you are doing it looks like fun but I'm still trying to understand the purpose or advantage of double mirrors vs. a single dish?

polgyver

polgyver

Thread Starter
Creative Tinkerer
Pub Member / Supporter
Sep 21, 2010
476
344
Toronto
The advantage is very limited, I agree. A small percentage of satellite hobbyists has home or, more often, cottage surrounded by high trees, and such situation requires installation of a dish
far away - and long run of RG6 - sometimes in stoney ground. Instead, a flat signal reflector could return the sat”s beam to any place on the house wall. Even - ”inject” the beam through a window - maybe in the attic. I made a post a few months ago about “dish in a room” on this Forum.
Some people also do not like to have a dish on their home. If hidden in attic, it would be OK.
So, in some rare cases, sat beam - reflected - could be useful.
The round mirror which I keep in a shed, can be made slightly concave and thus it also can concentrate the sat“s beam to higher “density”. I hoped to use really small, 8” dia secondary reflector for reception. It did not work as expected.
Now the “new” plan or idea is to try MULTI - FACETED primary mirror (made of 3 to 7 smaller reflectors - focusing to far-away focal cloud with 12 or 14” secondary mirror. But not at present weather...
cheers,
polgyver
