There's a difference between Rx/Tx antenna and normal ones?

Discussion in 'Free To Air (FTA) Discussion' started by enb141, Jul 6, 2018.

  1. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America
    Hi, I've seen recently that lots of antennas has some sort of Rx/Tx angle at the final of the dish, in the place of the LNB shown as above

    [​IMG]

    So I would like to know if those arms can be used for normal Ku band reception or we need to use another arm for that?

    This is a normal one without that angled arm

    [​IMG]

    [​IMG]

    olliec420 and RimaNTSS like this.
  2. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga
    It basically does not matter what kind of arms are used. The most important is that arms hold LNB in proper position in such a way that LNB's phase center is co-located with antenna's focal point. It is also important that LNB is pointed to the right place on the surface of the dish.
    Rx/Tx arms usually made stronger to be able to hold massive block.

    FTA4PA and comfortably_numb like this.
  3. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America
    Thanks for your response, I'm wondering how an Tx-Rx arm can hold a normal LNB, as you can see in the picture I don't see how a normal LNB can be used in those arms, do they need any special LNB holder or something like that?

  4. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga

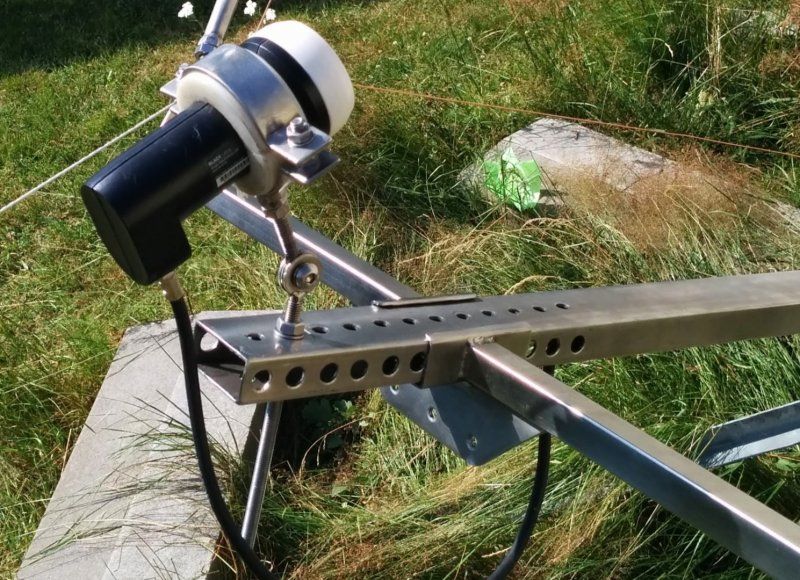

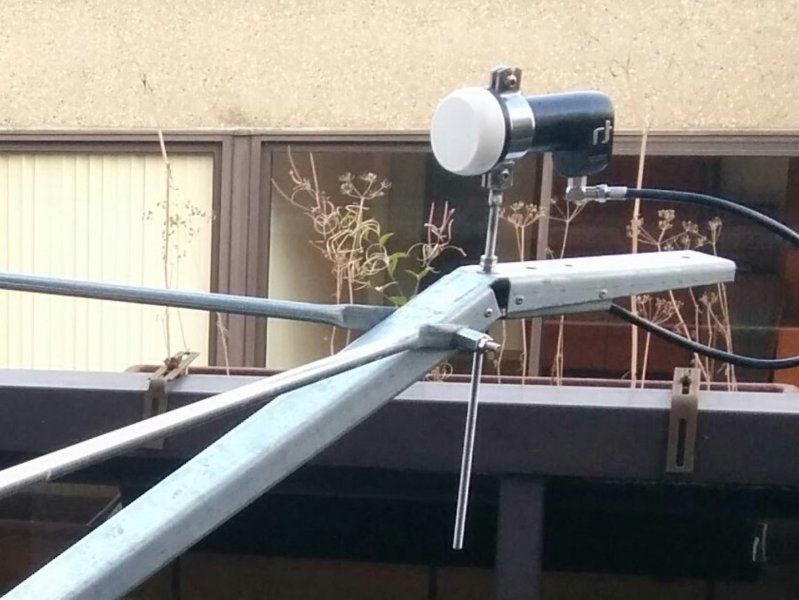

    It is possible to fabricate proper LNB-holder. There are couple of pictures (can not find more ATM) where you can get idea how that holder can look like.

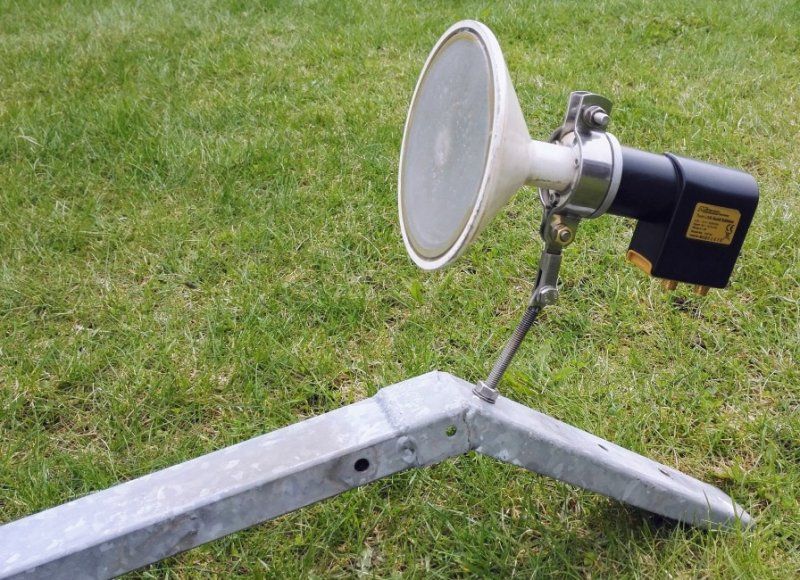

    Add later: there is another picture IMG_20180428_111003 (Custom).jpg


    Attached Files:

    FTA4PA and comfortably_numb like this.
  5. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America
    How do you calculate the right angle and the right height?

    It seems to be more complicated on those Rx-Tx arms than in those normal ones

  6. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,638
    Likes Received:
    780
    Location:
    85w
    Tx dishes had be a better than rx because they transmit the signal. Ask Brian about it.

  7. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga
    To now the right position of the LNB you have to know position of the focal point of the dish. And position of the focal point can be calculated (my preferred method) of measured. Yes, "normal arms" are simple but they not always position LNB in right position and it is not so simple to fix. Do you have in mind some particular antenna or original question was just rhetorical?

  8. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America
  9. a33

    a33 SatelliteGuys Pro

    Joined:
    Feb 4, 2015
    Posts:
    210
    Likes Received:
    130
    Location:
    netherlands europe
  10. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga
    You are right a33, I like CM dishes. But never had 2.4m one. I have always thought that CM 2.4m is exactly 2400mm wide. Just recently I got information from couple of users that it is 2430mm wide, that mean that position of the focal point is in slightly different place than indicated on my collage . Antenna has 22.6* offset angle and it is beautiful piece of satellite equipment.

  11. Cham

    Cham VE4GLS
    Pub Member / Supporter

    Joined:
    Dec 19, 2008
    Posts:
    2,032
    Likes Received:
    579
    Location:
    Boonies
    I have a 2.4m CM disn I use for C-band. These are awsome dish reflectors, heavy duty and super well built to keep the proper surface shape/focal point. For Ku you can add an LNB holder. There are a few threaded holes on the "platform" you might utilize, or you can drill a new one for your particular holder. The BUC was likely a Ku up/dn link system, so if you can position your feedhorn in the same location should be a good starting point.

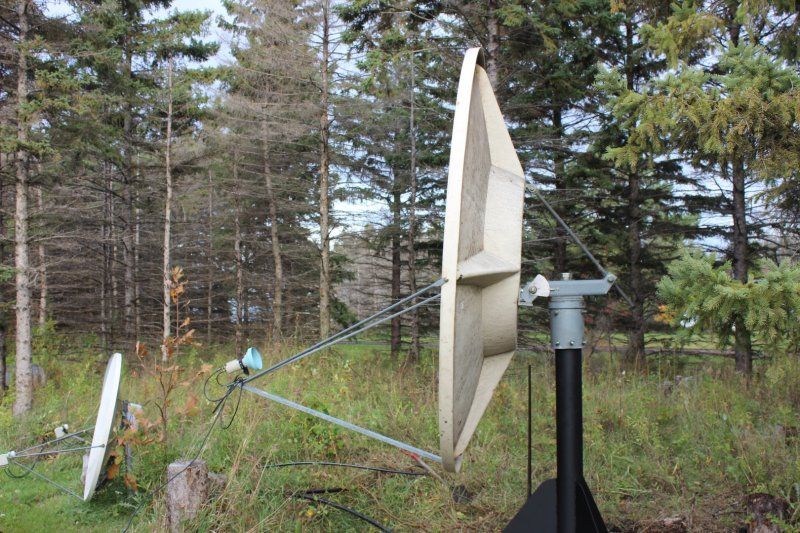

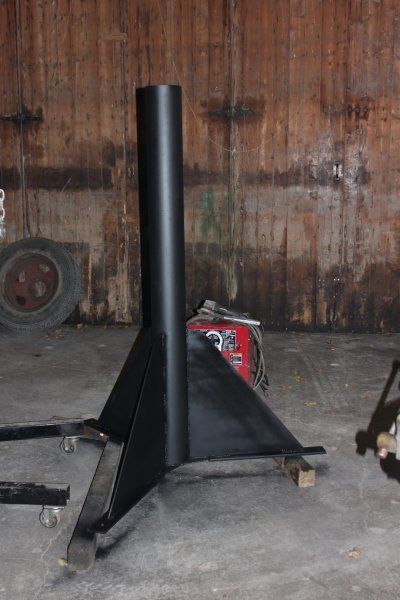

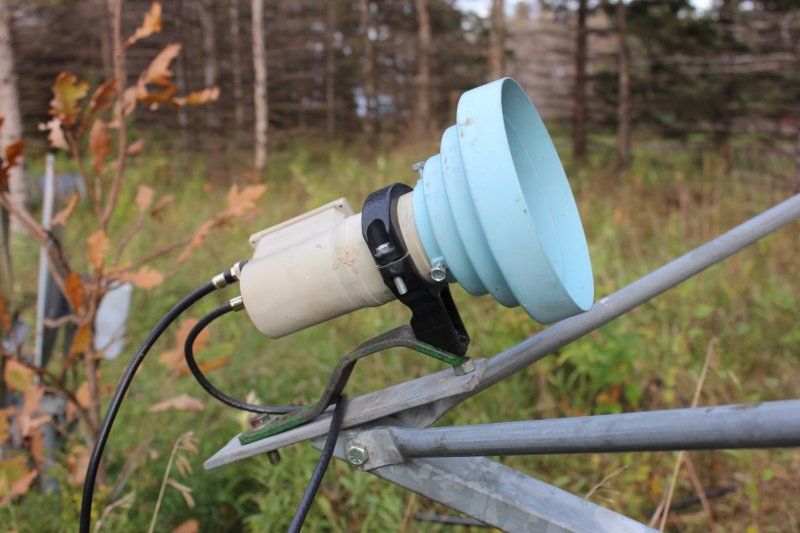

    Attached 2 pictures, one of the 6" pole support I built with sked 40 and 1/4" plate, and the LNB holder I am currently using (actually using a C2PLL on this dish now for G13 127W NASA etc.. Last image showing dish aimed at 127. Black pipe under the dish is pvc conduit for the cable (hadn't buried it yet).

    . 2.4msupport1.JPG 2_4dish7.JPG 2.4dish_complete (Large).JPG

    comfortably_numb likes this.
  12. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga

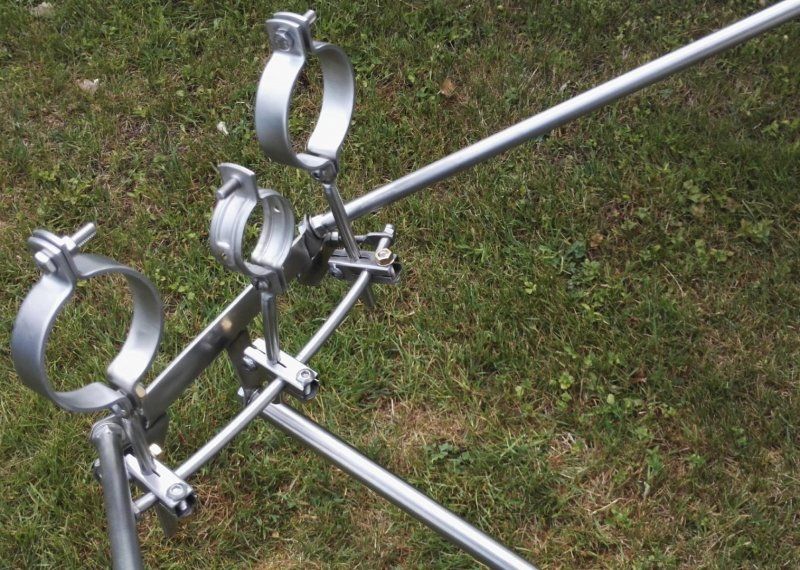

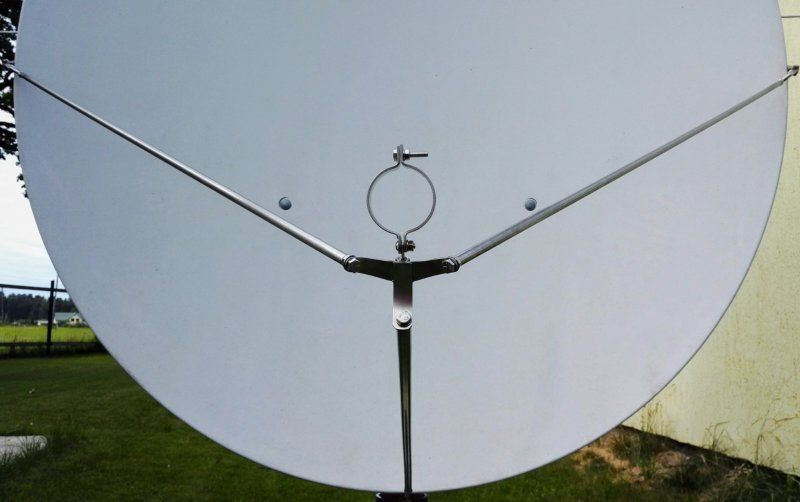

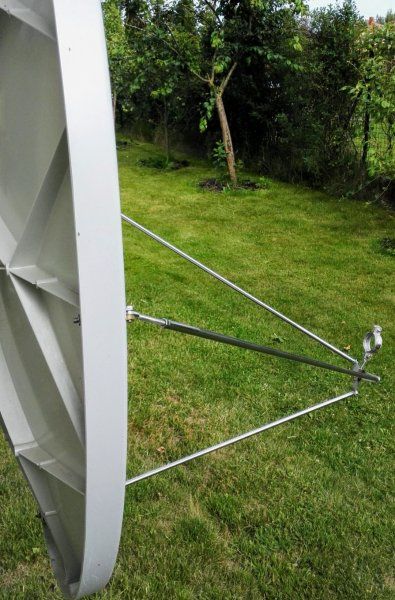

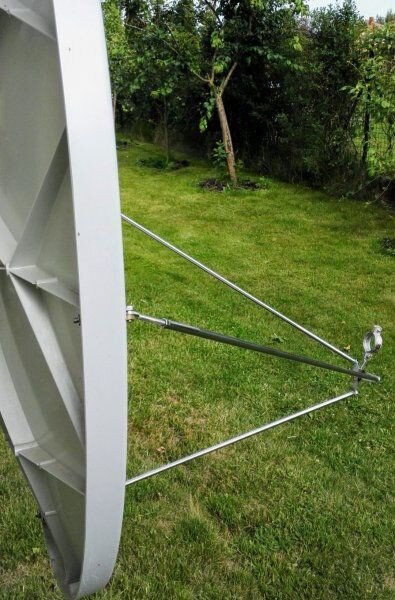

    I do not like multifeeds, but some people do, or maybe they have no choice to use them. There is new, length adjustable feedarms and multifeed for 1.8 Channel Master I made for a friend of mine. IMG_20180622_163715 (Large).jpg

    Foxbat likes this.
  13. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga

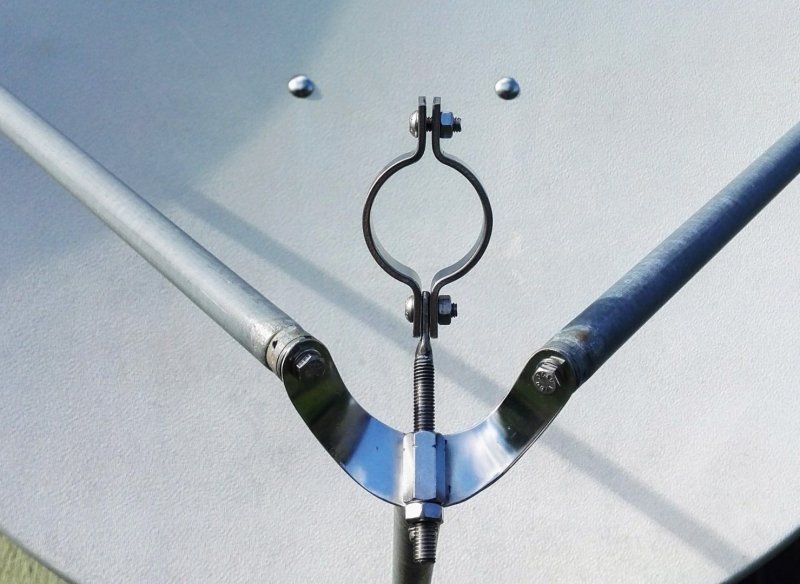

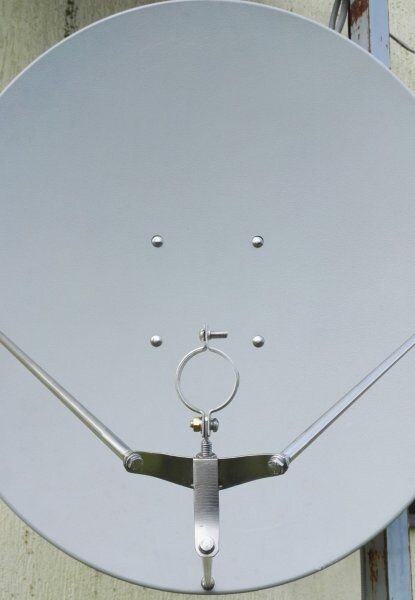

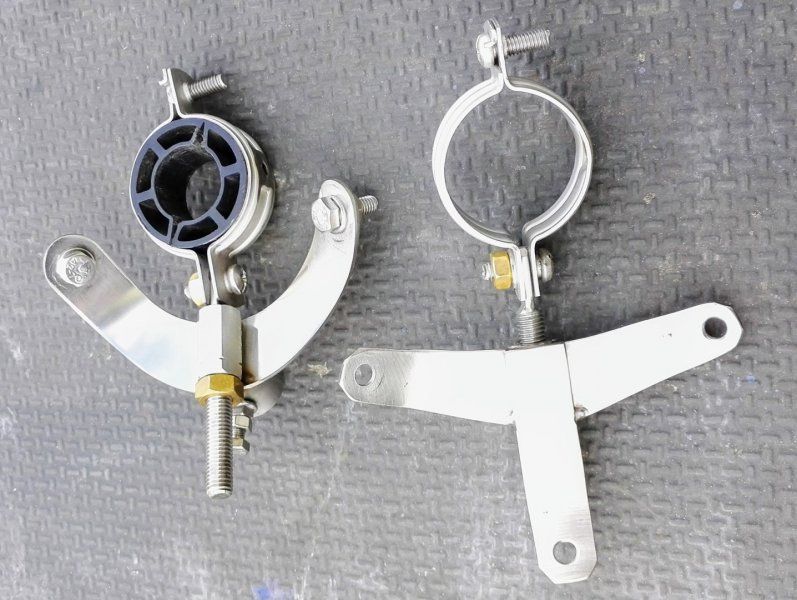

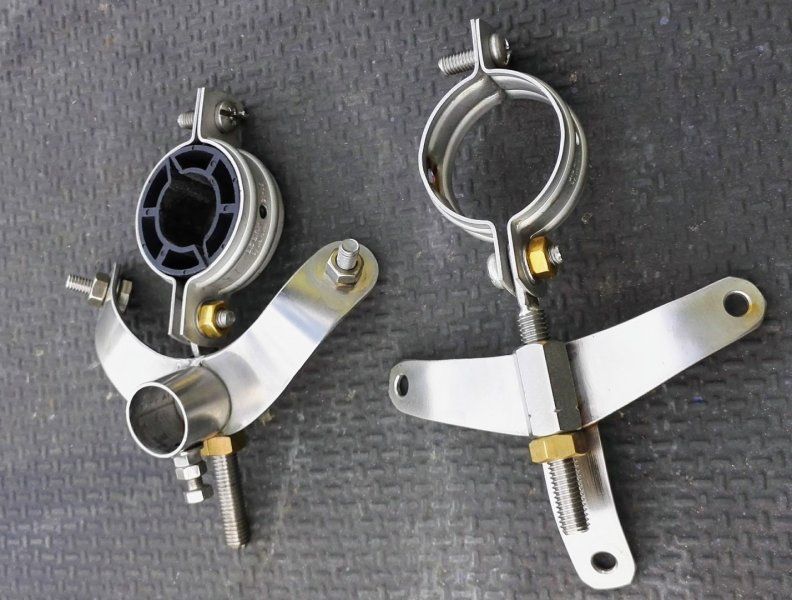

    After some experimentation, trials and errors I came to couple of solutions for Channel Master dishes. Namely, LNB-holder for original CM feedarms, and LNB-holder for new feedarms. Both holders, depending on the clamp used, can hold Ka/Ku/C-band LNB


    Attached Files:

  14. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America
    Thanks for your input guys, now, if this looks so complicated, which plug and play LNB do you recommend me for this dish?

    I'm talking about a universal LNB, do Rx-Tx LNBs can be used for TV Reception even if I only use the reception part of the Rx-TX LNB

  15. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga
    I would recommend to start from Inverto Black Ultra (IBU) or any other universal LNB. After some time you can do more trials. IBU is one of the best LNBs on nowadays market, it has good parameters and also not so expensive .

  16. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America
    That one doesn't seems to fit by default in that Tx-Rx dish, I'm looking for a "plug and play" LNB for this Tx-Rx dish arm.

  17. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    684
    Likes Received:
    719
    Location:
    Riga
    You can probably find it for couple of hundreds bucks, but reception results will, most likely, be same as by IBU.

    a33 likes this.
  18. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America

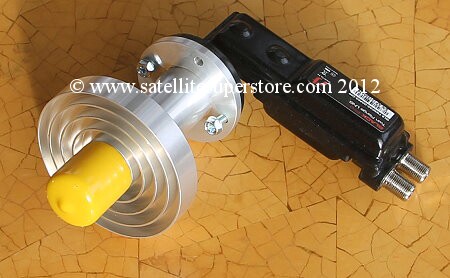

    Guys I think I've found which lnb works without going the extremely expensive and complicated way.

    [​IMG]

    and this one

    [​IMG]

    Cham likes this.
  19. Cham

    Cham VE4GLS
    Pub Member / Supporter

    Joined:
    Dec 19, 2008
    Posts:
    2,032
    Likes Received:
    579
    Location:
    Boonies
    Yes you can use the original BUC, but you would only have one polarity, and check that the LNB matches the frequency range you want.

  20. enb141

    enb141 Topic Starter SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 5, 2009
    Posts:
    237
    Likes Received:
    3
    Location:
    Central America
    Why I will be able to only use one polarity?
