I currently using a C/Ku combo lnbf on my 8ft Andrew. The C works pretty good, the Ku is just ok at best. I would like to improve the C band even if it means skipping the Ku. Some of you guys have worked with C/Ku lnbf, C orthomode, and C/Ku orthomodes. How do they compare? Does the C/Ku ortho compromise over the C only ortho?
Jim
Jim
27 Replies
·
5741 views
Well, I take your meaning.
And a search for a good wiki to explain them wasn't productive.
Basically, it's a feedhorn with two ports, which get opposite polarities of signal.
So, one port gets only Vertical signals, and the other gets only Horizontal
You mount a stock C-band LNB on each, and you can receive both polarities all the time.
By combining both LNB outputs in a 2x4 (or bigger) multiswitch, you can exercise voltage control to select between V (13v) & H (18v) signals.
Here are several pictures of the Chaparral C-band only feed, from various angles.

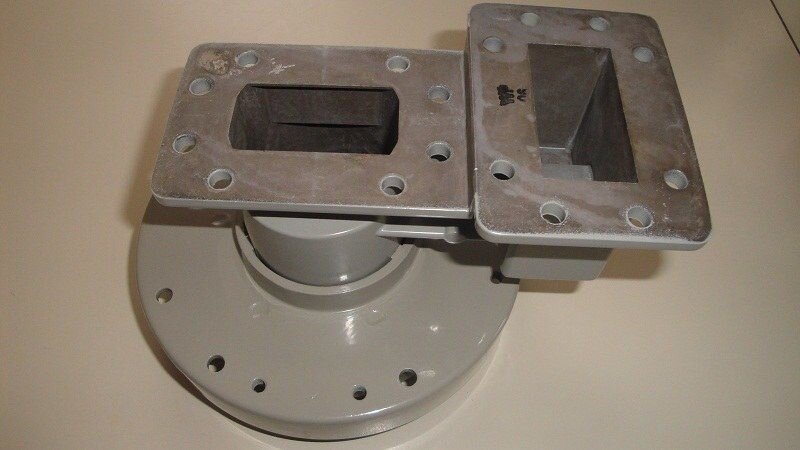

First, a view that the dish sees of the feed, minus LNBs.
Second, a view of the backside, showing where the LNBs bolt on.

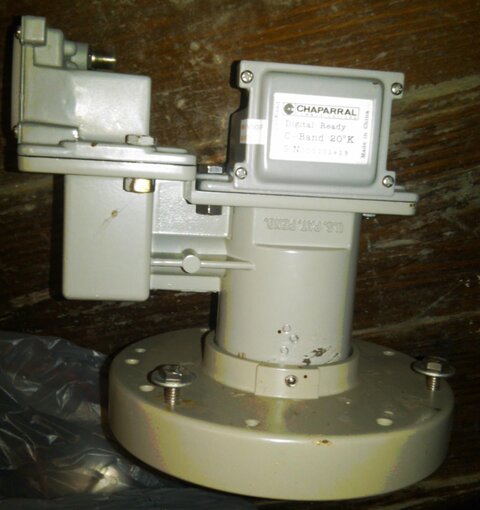

Third, a side view of the whole assembly, with LNBs attached.
Needless to say, a dual band ortho feed is more complicated, sporting two C-band LNBs, (one H & one for V)...
... and two Ku band LNBs, (again, one for H & another for V).
Hope that was close enough to English.
P
Whoa, I think you may want to re-read what you wrote. Orthomode means that the device will operate on orthogonal polarizations (H & V or L & R) and not just one.
A single polarization would be handled by a single mode device. One LNB.
A single orthomode feed will receive two polarizations in a single band. Two LNBs.
A dual orthomode feed generally will receive two polarizations in two bands. Technically it might also encompass receiving four polarizations (H, V, L, R) in a single band, but I have never seen anyone use the term in this manner, and it doesn't make a lot of sense. Four LNBs.
A quad orthomode feed is a holy grail for some people in FTA. Presumably in our little world, this would receive H, V, L, R for both C-band and Ku-band. Eight LNBs. However it is rather impractical unless you are willing to live will some significant losses. A siamese feed, like I documented in a thread some time back, is probably a much better solution.
Let's not make the nomenclature worse than it already is
Whoa, I think you may want to re-read what you wrote. Orthomode means that the device will operate on orthogonal polarizations (H & V or L & R) and not just one.
A single polarization would be handled by a single mode device. One LNB.
A single orthomode feed will receive two polarizations in a single band. Two LNBs.
A dual orthomode feed generally will receive two polarizations in two bands. Technically it might also encompass receiving four polarizations (H, V, L, R) in a single band, but I have never seen anyone use the term in this manner, and it doesn't make a lot of sense. Four LNBs.
A quad orthomode feed is a holy grail for some people in FTA. Presumably in our little world, this would receive H, V, L, R for both C-band and Ku-band. Eight LNBs. However it is rather impractical unless you are willing to live will some significant losses. A siamese feed, like I documented in a thread some time back, is probably a much better solution.
Let's not make the nomenclature worse than it already is
